Sayfa 0-50 - Isuzu EPC

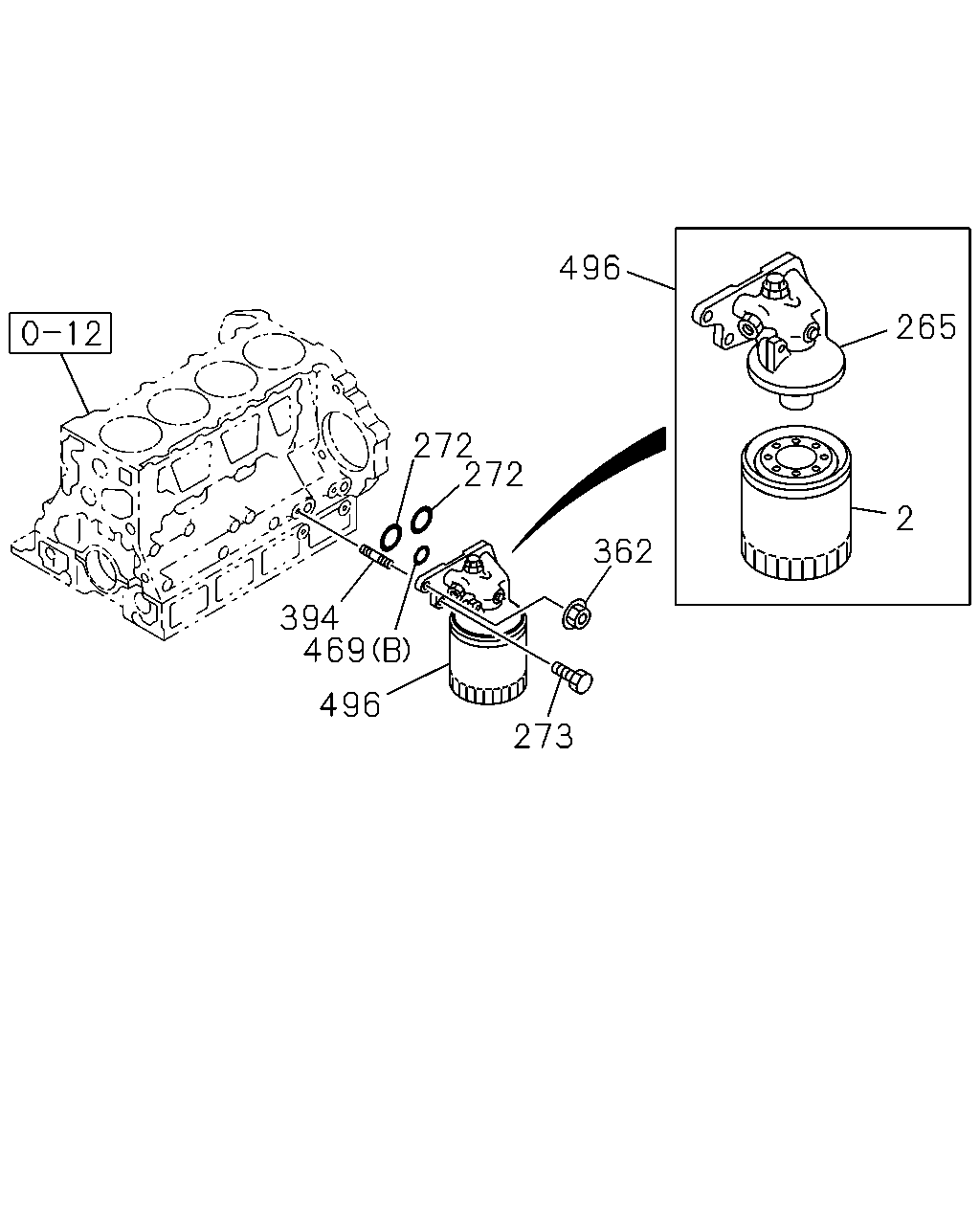

0-50 — OIL COOLER AND OIL FILTER (#46144) — 445 parça

496 265 272 272 2 362 394 469 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97148-270-1	01	1	0502-1003	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97148-270-1	01	1	1004-1509	●	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-98328-207-0	01	1	1510-	●	●
2	01.836 ELEMENT; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-97331-292-0	01	1	0211-0212			●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-97329-911-0	01	1	0211-0501			●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0211-0501				●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0502-0609					●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0610-					●	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97049-708-1	01	1	0211-0311			●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-97049-708-1	01	1	0312-0501			●
2	01.836 ELEMENT; OIL FILTER	8-97049-708-1	01	1	0502-			●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0211-0501							●	●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0502-0609	●						●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0610-	●	●					●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97148-270-1	01	1	0211-0501							●	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS	5-87610-117-0	01	1	0211-0501							●	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS	5-87610-117-0	01	1	0502-1003	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS	5-87610-117-0	01	1	1004-1509	●	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> BEST VALUE PARTS	5-87610-021-0	01	1	0211-0501			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0211-0501				●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0502-0609					●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0610-					●	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> BEST VALUE PARTS	5-87610-009-0	01	1	0211-0311			●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51> BEST VALUE PARTS	5-87610-009-0	01	1	0312-0501			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-009-0	01	1	0502-			●
265	01.837 BODY; OIL FILTER	8-98210-397-0	01	1	1302-							●
265	01.837 BODY; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-98210-397-0	01	1	1302-	●	●
265	01.837 BODY; OIL FILTER EXC. OIL COOLER<KC4>, TURBOCHARGER<K51>	8-97129-937-1	01	1	0301-0501			●
265	01.837 BODY; OIL FILTER EXC. OIL COOLER<KC4>	8-97129-937-1	01	1	0502-			●
265	01.837 BODY; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 01.540	8-94423-698-2	01	1	0211-0212			●
265	01.837 BODY; OIL FILTER ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S)	8-97247-088-1	01	1	0211-0501								●
265	01.837 BODY; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97247-088-2	01	1	0502-0811	●
265	01.837 BODY; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97247-088-2	01	1	0812-1405	●						●
265	01.837 BODY; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97247-088-2	01	1	1406-	●
265	01.837 BODY; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97096-677-2	01	1	0812-1301	●	●					●
265	01.837 BODY; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97096-677-4	01	1	1302-		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-0	01	1	0211-0501			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-1	01	1	0502-0609			●		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-1	01	1	0610-0706			●		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.550	8-98087-965-0	01	1	0707-			●		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-676-0	02	1	0211-0211							●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0212-0501							●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0502-0609	●						●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0610-	●	●					●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0211-0501							●	●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0502-0512	●						●
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0601-0609	●						●
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0610-	●	●					●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501							●	●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●						●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0609	●						●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-	●	●					●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0211-0501							●	●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0502-0512	●						●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0601-0609	●						●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0610-	●	●					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98207-974-0	01	1	1207-							●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S) (A)	8-98207-974-0	01	1	1207-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98207-975-0	01	1	1207-							●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S) (B)	8-98207-975-0	01	1	1207-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-94338-878-1	01	1	0211-0501							●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-94338-878-1	01	1	0502-0609	●						●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-94338-878-1	01	1	0610-1206	●	●					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) (A)	8-94338-878-1	01	1	1207-1405	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) (A)	8-94338-878-1	01	1	1406-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) (A)	8-94338-878-1	01	1	1406-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (B) ID=9.8	8-94399-713-0	01	1	0211-0211							●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.844 (B) ID=9.8	8-94399-339-0	01	1	0212-0501							●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.844 (B) ID=9.8	8-94399-339-0	01	1	0502-0609	●						●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.844 (B) ID=9.8	8-94399-339-0	01	1	0610-	●	●					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (C) ID=26.35	8-97137-500-0	01	1	0211-0211							●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (C) ID=26.2	9-09566-226-0	01	1	0212-0501							●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (C) ID=26.2	9-09566-226-0	01	1	0502-0606	●						●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-0609	●						●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0610-1206	●	●					●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1207-1405	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1406-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1406-		●
496	01.835 FILTER ASM; OIL SGL CAB&MIDDLE(NK**SF) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97148-268-4	01	1	1004-1405		●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97148-268-4	01	1	1406-1509		●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-98328-202-0	01	1	1510-		●
496	01.835 FILTER ASM; OIL EXC. OIL COOLER<KC4>, TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-94462-137-1	01	1	0211-0212			●
496	01.835 FILTER ASM; OIL EXC. OIL COOLER<KC4>, TURBOCHARGER<K51>	8-94462-137-2	01	1	0301-0501			●
496	01.835 FILTER ASM; OIL EXC. OIL COOLER<KC4>	8-94462-137-2	01	1	0502-			●
496	01.835 FILTER ASM; OIL PARTIAL OIL FILTER<S6A> EXC. OIL COOLER<KC4>, TURBOCHARGER<K51>	8-94144-297-2	01	1	0211-0212			●
496	01.835 FILTER ASM; OIL ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S)	8-97247-082-1	01	1	0211-0501								●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97247-082-2	01	1	0502-0811	●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97247-082-3	01	1	0812-1405	●						●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97247-082-3	01	1	1406-1509	●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-98328-203-0	01	1	1510-	●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S), ENGINE POWER N-SPEC(7QV)	8-97148-268-2	01	1	0211-0501								●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97148-268-2	01	1	0211-0501							●
496	01.835 FILTER ASM; OIL INDONESIA EQUIPMENT(S4S)	8-97247-515-0	01	1	0211-0501							●	●
496	01.835 FILTER ASM; OIL INDONESIA EQUIPMENT(S4S)	8-97247-515-0	01	1	0502-0609	●						●
496	01.835 FILTER ASM; OIL INDONESIA EQUIPMENT(S4S)	8-97247-515-0	01	1	0610-1301	●	●					●
496	01.835 FILTER ASM; OIL	8-98210-093-0	01	1	1302-							●
496	01.835 FILTER ASM; OIL INDONESIA EQUIPMENT(S4S)	8-98210-093-0	01	1	1302-	●	●

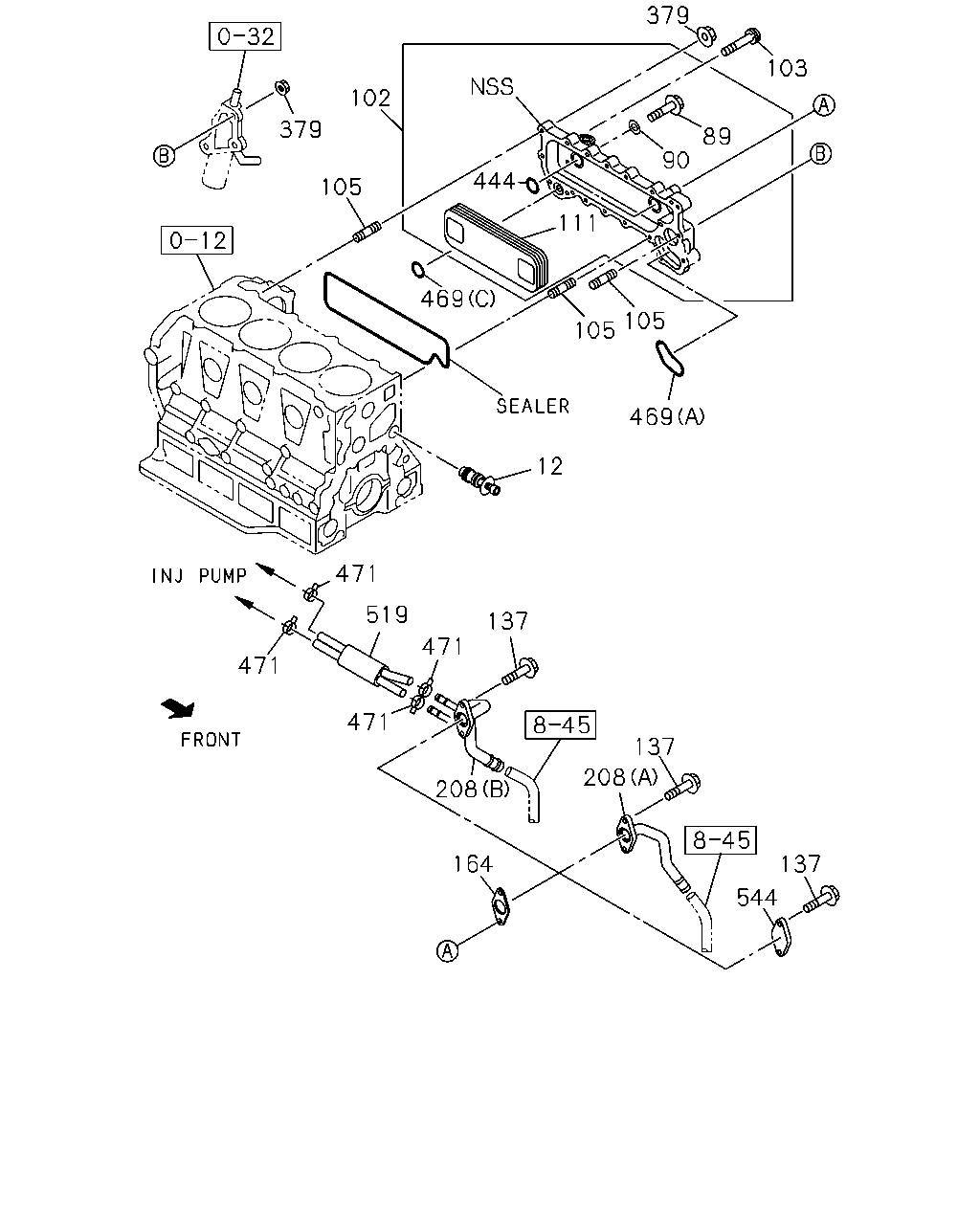

379 103 102 379 89 90 444 105 111 469 105 105 469 12 471 519 137 471 471 471 137 208 208 164 137 544

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	G	H
12	01.540 VALVE ASM; BYPASS EXC. INDONESIA EQUIPMENT(S4S)	8-97013-566-2	01	1	0211-0501			●	●
12	01.540 VALVE ASM; BYPASS EXC. INDONESIA EQUIPMENT(S4S)	8-97013-566-2	01	1	0502-1003	●
12	01.540 VALVE ASM; BYPASS EXC. INDONESIA EQUIPMENT(S4S)	8-97013-566-2	01	1	1004-1405	●	●
12	01.540 VALVE ASM; BYPASS EXC. INDONESIA EQUIPMENT(S4S)	8-97013-566-2	01	1	1406-	●
12	01.540 VALVE ASM; BYPASS EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-97013-566-2	01	1	1406-		●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0211-0501			●	●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0609	●		●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0610-1211	●	●	●
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1212-	●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0211-0501			●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0502-0609	●		●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0610-	●	●	●
102	01.540 COOLER ASM; OIL	8-98212-599-0	01	1	1212-			●
102	01.540 COOLER ASM; OIL INDONESIA EQUIPMENT(S4S)	8-98212-599-0	01	1	1212-	●	●
102	01.540 COOLER ASM; OIL	8-97333-783-0	01	1	0211-0406			●	●
102	01.540 COOLER ASM; OIL	8-97385-200-0	01	1	0407-0501			●	●
102	01.540 COOLER ASM; OIL	8-97385-200-0	01	1	0502-0609	●		●
102	01.540 COOLER ASM; OIL	8-97385-200-5	01	1	0610-1211	●	●	●
102	01.540 COOLER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97385-200-6	01	1	1212-1405	●	●
102	01.540 COOLER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97385-200-6	01	1	1406-	●
102	01.540 COOLER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-97385-200-6	01	1	1406-		●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	0211-0501			●	●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	0502-0512	●		●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	07	1	0601-0609	●		●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	07	1	0610-	●	●	●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	0211-0501			●	●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	0502-0512	●		●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	07	1	0601-0609	●		●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	07	1	0610-	●	●	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0211-0501			●	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0502-0609	●		●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0610-	●	●	●
111	01.540 CORE; OIL COOLER	8-97334-101-0	01	1	0211-0501			●	●
111	01.540 CORE; OIL COOLER	8-97334-101-0	01	1	0502-0609	●		●
111	01.540 CORE; OIL COOLER	8-97334-101-1	01	1	0610-	●	●	●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●	●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●		●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609	●		●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-	●	●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98208-745-0	01	1	1207-			●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S)	8-98208-745-0	01	1	1207-		●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . ID=18.6	8-97146-684-0	01	1	0211-0501			●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . ID=18.6	8-97146-684-0	01	1	0502-0609	●		●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . ID=18.6	8-97146-684-0	01	1	0610-1206	●	●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) ID=18.6	8-97146-684-0	01	1	1207-1405	●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) ID=18.6	8-97146-684-0	01	1	1406-	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) ID=18.6	8-97146-684-0	01	1	1406-		●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97146-519-0	01	1	1004-		●
208	01.540 PIPE; WATER,HTR ENGINE POWER N-SPEC(7QV) (B)	8-97139-585-1	01	1	0211-0501				●
208	01.540 PIPE; WATER,HTR (B)	8-97139-585-1	01	1	0502-	●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97146-519-0	01	1	0211-0501			●	●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0211-0501			●	●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0502-0602	●		●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0609	●		●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0610-	●	●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	0211-0406			●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0407-0501			●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0502-0609	●		●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0610-	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98207-974-0	01	1	1207-			●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S) (A)	8-98207-974-0	01	1	1207-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98207-975-0	01	1	1207-			●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S) (B)	8-98207-975-0	01	1	1207-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-94338-878-1	01	1	0211-0501			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-94338-878-1	01	1	0502-0609	●		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (A)	8-94338-878-1	01	1	0610-1206	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) (A)	8-94338-878-1	01	1	1207-1405	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) (A)	8-94338-878-1	01	1	1406-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) (A)	8-94338-878-1	01	1	1406-		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (B) ID=9.8	8-94399-713-0	01	1	0211-0211			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.844 (B) ID=9.8	8-94399-339-0	01	1	0212-0501			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.844 (B) ID=9.8	8-94399-339-0	01	1	0502-0609	●		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.844 (B) ID=9.8	8-94399-339-0	01	1	0610-	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (C) ID=26.35	8-97137-500-0	01	1	0211-0211			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (C) ID=26.2	9-09566-226-0	01	1	0212-0501			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (C) ID=26.2	9-09566-226-0	01	1	0502-0606	●		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-0609	●		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0610-1206	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1207-1405	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1406-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1406-		●
471	01.540 CLIP; HOSE ENGINE POWER N-SPEC(7QV) 03.162 ID=15.5	8-94221-519-0	04	1	0211-0501				●
471	01.540 CLIP; HOSE 03.162 ID=15.5	8-94221-519-0	04	1	0502-	●
519	01.540 HOSE; RUBBER ENGINE POWER N-SPEC(7QV)	8-97160-961-1	01	1	0211-0501				●
519	01.540 HOSE; RUBBER	8-97160-961-1	01	1	0502-	●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV)	8-97147-028-0	01	1	0211-0501				●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97147-028-0	01	1	0211-0501			●
544	08.845 COVER; HEATER	8-97147-028-0	01	1	0502-0609			●
544	08.845 COVER; HEATER	8-97147-028-0	01	1	0610-1003		●	●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97147-028-0	01	1	1004-		●	●

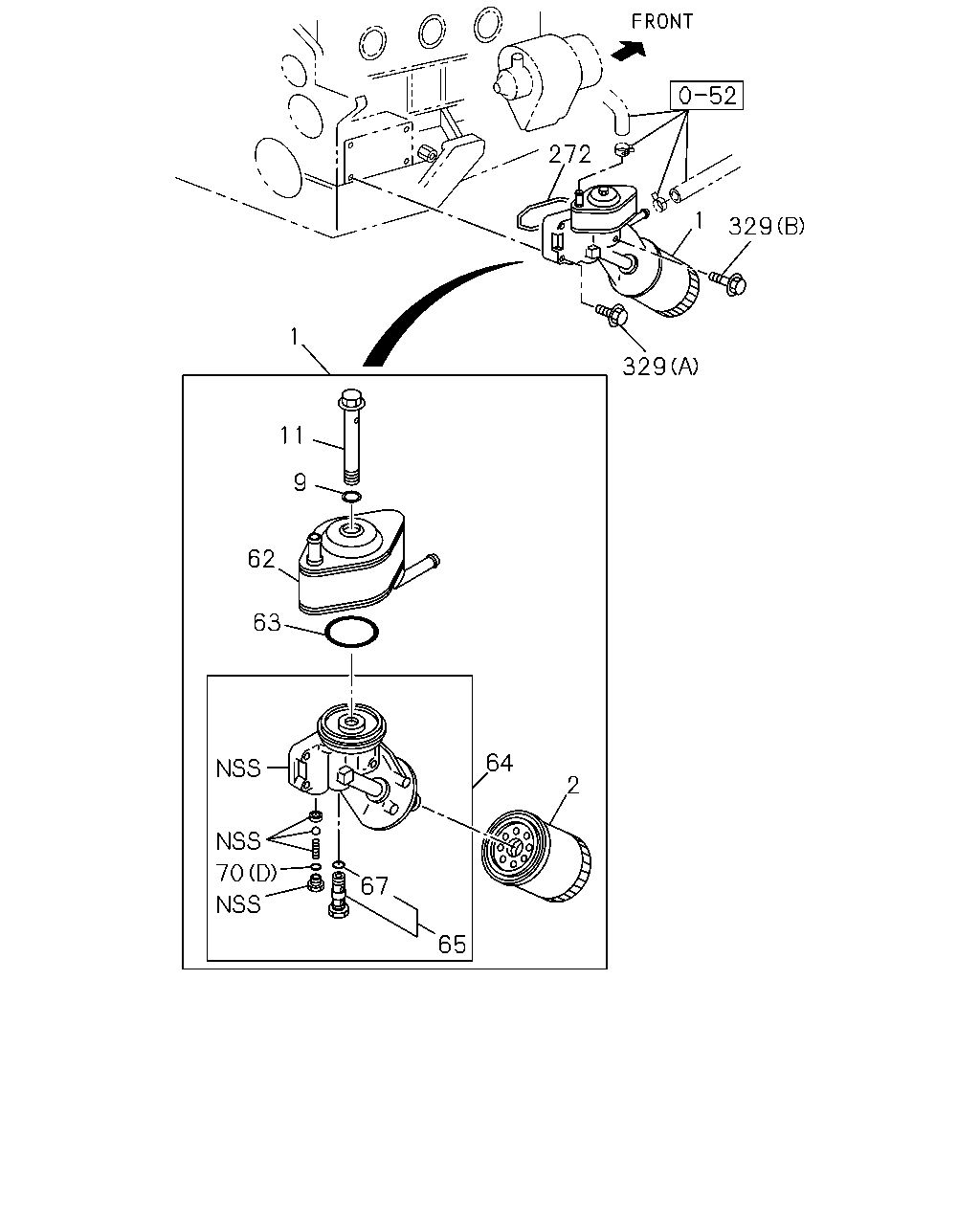

272 1 329 1 329 11 9 62 63 64 2 70 67 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94144-296-2	01	1	0211-0212			●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-94327-272-1	01	1	0211-0212			●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94327-272-1	01	1	0301-0501			●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4>	8-94327-272-1	01	1	0502-			●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51>	8-97176-074-3	01	1	0211-0307			●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51>	8-97224-298-1	01	1	0308-0501			●
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-1	01	1	0211-0501				●
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-2	01	1	0502-					●
1	01.540 FILTER & COOLER ASM; OIL	8-97224-298-2	01	1	0610-						●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97148-270-1	01	1	0502-1003	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97148-270-1	01	1	1004-1509	●	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-98328-207-0	01	1	1510-	●	●
2	01.836 ELEMENT; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-97331-292-0	01	1	0211-0212			●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-97329-911-0	01	1	0211-0501			●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0211-0501				●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0502-0609					●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0610-					●	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97049-708-1	01	1	0211-0311			●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-97049-708-1	01	1	0312-0501			●
2	01.836 ELEMENT; OIL FILTER	8-97049-708-1	01	1	0502-			●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0211-0501							●	●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0502-0609	●						●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0610-	●	●					●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97148-270-1	01	1	0211-0501							●	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS	5-87610-117-0	01	1	0211-0501							●	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS	5-87610-117-0	01	1	0502-1003	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS	5-87610-117-0	01	1	1004-1509	●	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> BEST VALUE PARTS	5-87610-021-0	01	1	0211-0501			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0211-0501				●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0502-0609					●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0610-					●	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> BEST VALUE PARTS	5-87610-009-0	01	1	0211-0311			●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51> BEST VALUE PARTS	5-87610-009-0	01	1	0312-0501			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-009-0	01	1	0502-			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) . TURBOCHARGER<K51> .	8-97047-000-0	01	1	0211-0501			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97047-000-0	01	1	0211-0501				●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97047-000-0	01	1	0502-0609					●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97047-000-0	01	1	0610-					●	●
11	01.840 BOLT; CENTER TURBOCHARGER<K51>	8-97144-713-0	01	1	0211-0501			●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0211-0501				●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0502-					●
11	01.840 BOLT; CENTER	8-97144-713-0	01	1	0610-						●
62	01.540 COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94401-680-0	01	1	0211-0501			●
62	01.540 COOLER ASM; OIL OIL COOLER<KC4>	8-94401-680-0	01	1	0502-			●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51>	8-97166-499-1	01	1	0211-0307			●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51>	8-97226-391-0	01	1	0308-0501			●
62	01.540 COOLER ASM; OIL	8-97301-588-0	01	1	0211-0501				●
62	01.540 COOLER ASM; OIL	8-97301-588-0	01	1	0502-					●
62	01.540 COOLER ASM; OIL	8-97226-391-0	01	1	0610-						●
63	01.550 GASKET; COOLER TO BRKT OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94383-720-0	01	1	0211-0501			●
63	01.550 GASKET; COOLER TO BRKT TURBOCHARGER<K51>	8-94383-720-0	01	1	0211-0501			●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0211-0501				●
63	01.550 GASKET; COOLER TO BRKT OIL COOLER<KC4>	8-94383-720-0	01	1	0502-0609			●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0502-0609					●
63	01.550 GASKET; COOLER TO BRKT OIL COOLER<KC4>	8-94383-720-0	01	1	0610-			●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0610-					●	●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-698-2	01	1	0211-0212			●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97081-756-0	01	1	0211-0212			●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-97081-756-0	01	1	0301-0501			●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4>	8-97081-756-0	01	1	0502-			●
64	01.540 BODY; OIL FILTER & OIL COOLER TURBOCHARGER<K51>	8-97166-497-1	01	1	0211-0501			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97313-207-1	01	1	0211-0501				●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97313-207-2	01	1	0502-					●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97166-497-2	01	1	0610-						●
65	01.540 VALVE; OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.837	8-94167-882-0	01	1	0211-0501			●
65	01.540 VALVE; OIL COOLER OIL COOLER<KC4> 01.837	8-94167-882-0	01	1	0502-			●
65	01.540 VALVE; OIL COOLER TURBOCHARGER<K51>	8-94450-772-0	01	1	0211-0501			●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0211-0501				●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0502-0609					●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0610-					●	●
67	01.550 GASKET; VLV TURBOCHARGER<K51> 01.837	9-09920-975-0	01	1	0211-0501			●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0211-0501				●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0502-0609					●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0610-					●	●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A) ID=13.6	8-94167-884-0	01	1	0211-0501			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> (A) ID=13.6	8-94167-884-0	01	1	0502-			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) ID=8.8	8-94167-885-0	01	1	0211-0501			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> (B) ID=8.8	8-94167-885-0	01	1	0502-			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) ID=6.8	8-94167-886-0	01	1	0211-0501			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> (C) ID=6.8	8-94167-886-0	01	1	0502-			●
70	01.844 GASKET; PLUG,OIL FILTER TURBOCHARGER<K51> (D)	9-09921-193-0	01	1	0211-0501			●
70	01.844 GASKET; PLUG,OIL FILTER (D)	9-09921-193-0	01	1	0211-0501				●
70	01.844 GASKET; PLUG,OIL FILTER (D)	9-09921-193-0	01	1	0502-0609					●
70	01.844 GASKET; PLUG,OIL FILTER (D)	9-09921-193-0	01	1	0610-					●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-0	01	1	0211-0501			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-1	01	1	0502-0609			●		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-1	01	1	0610-0706			●		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.550	8-98087-965-0	01	1	0707-			●		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-676-0	02	1	0211-0211							●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0212-0501							●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0502-0609	●						●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0610-	●	●					●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0211-0501			●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0211-0501				●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0502-0609					●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0610-					●	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0211-0501			●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0211-0501				●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0502-0512					●
329	01.840 BOLT; OIL FILTER 04.686 (B) M8X60 FLANGE	0-28050-860-0	02	1	0601-0609					●
329	01.840 BOLT; OIL FILTER 04.686 (B) M8X60 FLANGE	0-28050-860-0	02	1	0610-					●	●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	0211-0501			●
329	01.840 BOLT; OIL FILTER 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	0502-0512			●
329	01.840 BOLT; OIL FILTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	04	1	0601-			●

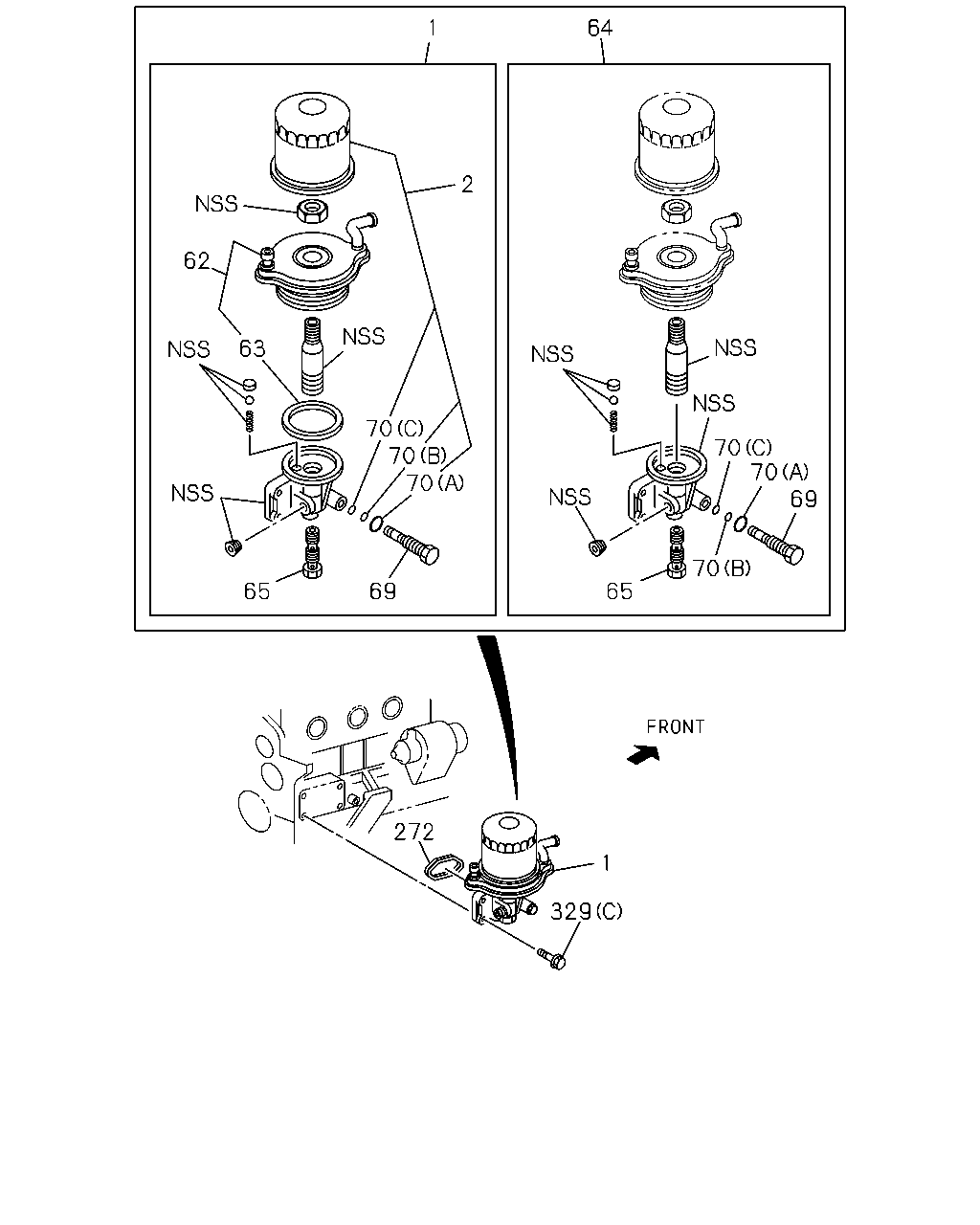

64 1 2 62 63 70 70 70 70 70 69 70 65 69 65 272 1 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94144-296-2	01	1	0211-0212			●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-94327-272-1	01	1	0211-0212			●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94327-272-1	01	1	0301-0501			●
1	01.540 FILTER & COOLER ASM; OIL OIL COOLER<KC4>	8-94327-272-1	01	1	0502-			●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51>	8-97176-074-3	01	1	0211-0307			●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51>	8-97224-298-1	01	1	0308-0501			●
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-1	01	1	0211-0501				●
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-2	01	1	0502-					●
1	01.540 FILTER & COOLER ASM; OIL	8-97224-298-2	01	1	0610-						●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97148-270-1	01	1	0502-1003	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97148-270-1	01	1	1004-1509	●	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-98328-207-0	01	1	1510-	●	●
2	01.836 ELEMENT; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-97331-292-0	01	1	0211-0212			●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-97329-911-0	01	1	0211-0501			●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0211-0501				●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0502-0609					●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0610-					●	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97049-708-1	01	1	0211-0311			●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-97049-708-1	01	1	0312-0501			●
2	01.836 ELEMENT; OIL FILTER	8-97049-708-1	01	1	0502-			●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0211-0501							●	●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0502-0609	●						●
2	01.836 ELEMENT; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97247-514-0	01	1	0610-	●	●					●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97148-270-1	01	1	0211-0501							●	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS	5-87610-117-0	01	1	0211-0501							●	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS	5-87610-117-0	01	1	0502-1003	●
2	01.836 ELEMENT; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS	5-87610-117-0	01	1	1004-1509	●	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51> BEST VALUE PARTS	5-87610-021-0	01	1	0211-0501			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0211-0501				●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0502-0609					●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0610-					●	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> BEST VALUE PARTS	5-87610-009-0	01	1	0211-0311			●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51> BEST VALUE PARTS	5-87610-009-0	01	1	0312-0501			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-009-0	01	1	0502-			●
62	01.540 COOLER ASM; OIL OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94401-680-0	01	1	0211-0501			●
62	01.540 COOLER ASM; OIL OIL COOLER<KC4>	8-94401-680-0	01	1	0502-			●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51>	8-97166-499-1	01	1	0211-0307			●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51>	8-97226-391-0	01	1	0308-0501			●
62	01.540 COOLER ASM; OIL	8-97301-588-0	01	1	0211-0501				●
62	01.540 COOLER ASM; OIL	8-97301-588-0	01	1	0502-					●
62	01.540 COOLER ASM; OIL	8-97226-391-0	01	1	0610-						●
63	01.550 GASKET; COOLER TO BRKT OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94383-720-0	01	1	0211-0501			●
63	01.550 GASKET; COOLER TO BRKT TURBOCHARGER<K51>	8-94383-720-0	01	1	0211-0501			●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0211-0501				●
63	01.550 GASKET; COOLER TO BRKT OIL COOLER<KC4>	8-94383-720-0	01	1	0502-0609			●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0502-0609					●
63	01.550 GASKET; COOLER TO BRKT OIL COOLER<KC4>	8-94383-720-0	01	1	0610-			●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0610-					●	●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-698-2	01	1	0211-0212			●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97081-756-0	01	1	0211-0212			●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-97081-756-0	01	1	0301-0501			●
64	01.540 BODY; OIL FILTER & OIL COOLER OIL COOLER<KC4>	8-97081-756-0	01	1	0502-			●
64	01.540 BODY; OIL FILTER & OIL COOLER TURBOCHARGER<K51>	8-97166-497-1	01	1	0211-0501			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97313-207-1	01	1	0211-0501				●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97313-207-2	01	1	0502-					●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97166-497-2	01	1	0610-						●
65	01.540 VALVE; OIL COOLER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.837	8-94167-882-0	01	1	0211-0501			●
65	01.540 VALVE; OIL COOLER OIL COOLER<KC4> 01.837	8-94167-882-0	01	1	0502-			●
65	01.540 VALVE; OIL COOLER TURBOCHARGER<K51>	8-94450-772-0	01	1	0211-0501			●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0211-0501				●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0502-0609					●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0610-					●	●
69	01.837 PLUG; BODY,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51>	8-94167-883-0	01	1	0211-0501			●
69	01.837 PLUG; BODY,OIL FILTER OIL COOLER<KC4>	8-94167-883-0	01	1	0502-			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A) ID=13.6	8-94167-884-0	01	1	0211-0501			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> (A) ID=13.6	8-94167-884-0	01	1	0502-			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) ID=8.8	8-94167-885-0	01	1	0211-0501			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> (B) ID=8.8	8-94167-885-0	01	1	0502-			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) ID=6.8	8-94167-886-0	01	1	0211-0501			●
70	01.844 GASKET; PLUG,OIL FILTER OIL COOLER<KC4> (C) ID=6.8	8-94167-886-0	01	1	0502-			●
70	01.844 GASKET; PLUG,OIL FILTER TURBOCHARGER<K51> (D)	9-09921-193-0	01	1	0211-0501			●
70	01.844 GASKET; PLUG,OIL FILTER (D)	9-09921-193-0	01	1	0211-0501				●
70	01.844 GASKET; PLUG,OIL FILTER (D)	9-09921-193-0	01	1	0502-0609					●
70	01.844 GASKET; PLUG,OIL FILTER (D)	9-09921-193-0	01	1	0610-					●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-0	01	1	0211-0501			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-1	01	1	0502-0609			●		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-1	01	1	0610-0706			●		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.550	8-98087-965-0	01	1	0707-			●		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-676-0	02	1	0211-0211							●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0212-0501							●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0502-0609	●						●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0610-	●	●					●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0211-0501			●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0211-0501				●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0502-0609					●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0610-					●	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0211-0501			●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0211-0501				●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0502-0512					●
329	01.840 BOLT; OIL FILTER 04.686 (B) M8X60 FLANGE	0-28050-860-0	02	1	0601-0609					●
329	01.840 BOLT; OIL FILTER 04.686 (B) M8X60 FLANGE	0-28050-860-0	02	1	0610-					●	●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	0211-0501			●
329	01.840 BOLT; OIL FILTER 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	0502-0512			●
329	01.840 BOLT; OIL FILTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	04	1	0601-			●

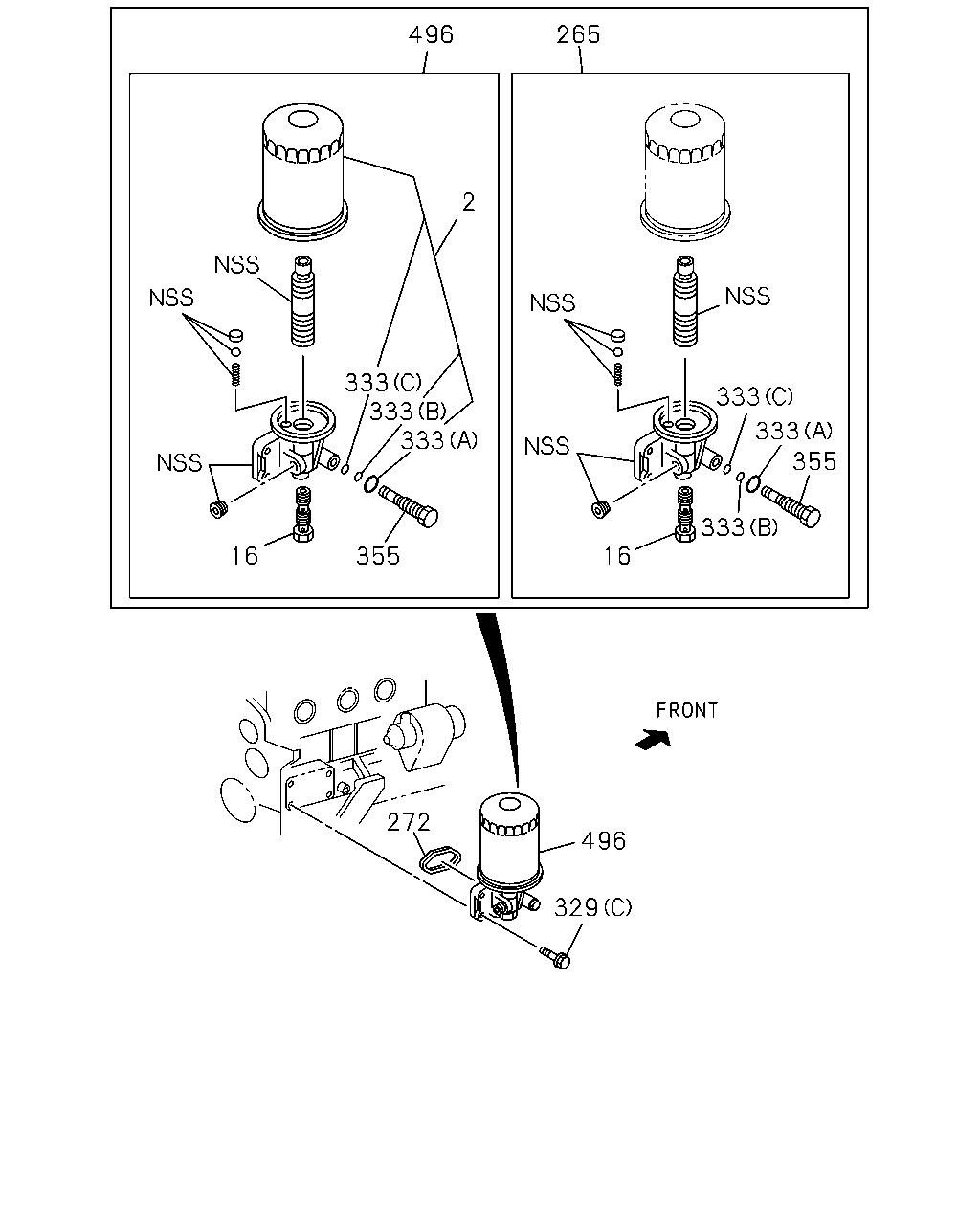

496 265 333 333 333 333 333 355 333 16 355 16 272 496 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
16	01.540 VALVE ASM; RELIEF EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 01.837	8-94167-882-0	01	1	0211-0501			●
16	01.540 VALVE ASM; RELIEF EXC. OIL COOLER<KC4> 01.837	8-94167-882-0	01	1	0502-			●
265	01.837 BODY; OIL FILTER	8-98210-397-0	01	1	1302-							●
265	01.837 BODY; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-98210-397-0	01	1	1302-	●	●
265	01.837 BODY; OIL FILTER EXC. OIL COOLER<KC4>, TURBOCHARGER<K51>	8-97129-937-1	01	1	0301-0501			●
265	01.837 BODY; OIL FILTER EXC. OIL COOLER<KC4>	8-97129-937-1	01	1	0502-			●
265	01.837 BODY; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 01.540	8-94423-698-2	01	1	0211-0212			●
265	01.837 BODY; OIL FILTER ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S)	8-97247-088-1	01	1	0211-0501								●
265	01.837 BODY; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97247-088-2	01	1	0502-0811	●
265	01.837 BODY; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97247-088-2	01	1	0812-1405	●						●
265	01.837 BODY; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97247-088-2	01	1	1406-	●
265	01.837 BODY; OIL FILTER INDONESIA EQUIPMENT(S4S)	8-97096-677-2	01	1	0812-1301	●	●					●
265	01.837 BODY; OIL FILTER EXC. INDONESIA EQUIPMENT(S4S)	8-97096-677-4	01	1	1302-		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-0	01	1	0211-0501			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-1	01	1	0502-0609			●		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-1	01	1	0610-0706			●		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.550	8-98087-965-0	01	1	0707-			●		●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-676-0	02	1	0211-0211							●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0212-0501							●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0502-0609	●						●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.1	8-94399-399-0	02	1	0610-	●	●					●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0211-0501			●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0211-0501				●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0502-0609					●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0610-					●	●
329	01.840 BOLT; OIL FILTER TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0211-0501			●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0211-0501				●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0502-0512					●
329	01.840 BOLT; OIL FILTER 04.686 (B) M8X60 FLANGE	0-28050-860-0	02	1	0601-0609					●
329	01.840 BOLT; OIL FILTER 04.686 (B) M8X60 FLANGE	0-28050-860-0	02	1	0610-					●	●
329	01.840 BOLT; OIL FILTER EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	0211-0501			●
329	01.840 BOLT; OIL FILTER 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	0502-0512			●
329	01.840 BOLT; OIL FILTER 03.275 (C) M8X25 FLANGE	0-28050-825-0	04	1	0601-			●
333	01.844 GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (A) ID=13.6	8-94167-884-0	01	1	0211-0501			●
333	01.844 GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. OIL COOLER<KC4> (A) ID=13.6	8-94167-884-0	01	1	0502-			●
333	01.844 GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (B) ID=8.8	8-94167-885-0	01	1	0211-0501			●
333	01.844 GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. OIL COOLER<KC4> (B) ID=8.8	8-94167-885-0	01	1	0502-			●
333	01.844 GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (C) ID=6.8	8-94167-886-0	01	1	0211-0501			●
333	01.844 GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. OIL COOLER<KC4> (C) ID=6.8	8-94167-886-0	01	1	0502-			●
355	01.837 PLUG; OIL PRESS EXC. OIL COOLER<KC4>, TURBOCHARGER<K51>	8-94167-883-0	01	1	0211-0501			●
355	01.837 PLUG; OIL PRESS EXC. OIL COOLER<KC4>	8-94167-883-0	01	1	0502-			●
496	01.835 FILTER ASM; OIL SGL CAB&MIDDLE(NK**SF) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97148-268-4	01	1	1004-1405		●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97148-268-4	01	1	1406-1509		●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-98328-202-0	01	1	1510-		●
496	01.835 FILTER ASM; OIL EXC. OIL COOLER<KC4>, TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-94462-137-1	01	1	0211-0212			●
496	01.835 FILTER ASM; OIL EXC. OIL COOLER<KC4>, TURBOCHARGER<K51>	8-94462-137-2	01	1	0301-0501			●
496	01.835 FILTER ASM; OIL EXC. OIL COOLER<KC4>	8-94462-137-2	01	1	0502-			●
496	01.835 FILTER ASM; OIL PARTIAL OIL FILTER<S6A> EXC. OIL COOLER<KC4>, TURBOCHARGER<K51>	8-94144-297-2	01	1	0211-0212			●
496	01.835 FILTER ASM; OIL ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S)	8-97247-082-1	01	1	0211-0501								●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97247-082-2	01	1	0502-0811	●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97247-082-3	01	1	0812-1405	●						●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97247-082-3	01	1	1406-1509	●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-98328-203-0	01	1	1510-	●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S), ENGINE POWER N-SPEC(7QV)	8-97148-268-2	01	1	0211-0501								●
496	01.835 FILTER ASM; OIL EXC. INDONESIA EQUIPMENT(S4S)	8-97148-268-2	01	1	0211-0501							●
496	01.835 FILTER ASM; OIL INDONESIA EQUIPMENT(S4S)	8-97247-515-0	01	1	0211-0501							●	●
496	01.835 FILTER ASM; OIL INDONESIA EQUIPMENT(S4S)	8-97247-515-0	01	1	0502-0609	●						●
496	01.835 FILTER ASM; OIL INDONESIA EQUIPMENT(S4S)	8-97247-515-0	01	1	0610-1301	●	●					●
496	01.835 FILTER ASM; OIL	8-98210-093-0	01	1	1302-							●
496	01.835 FILTER ASM; OIL INDONESIA EQUIPMENT(S4S)	8-98210-093-0	01	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
