◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#46142) — 478 parça

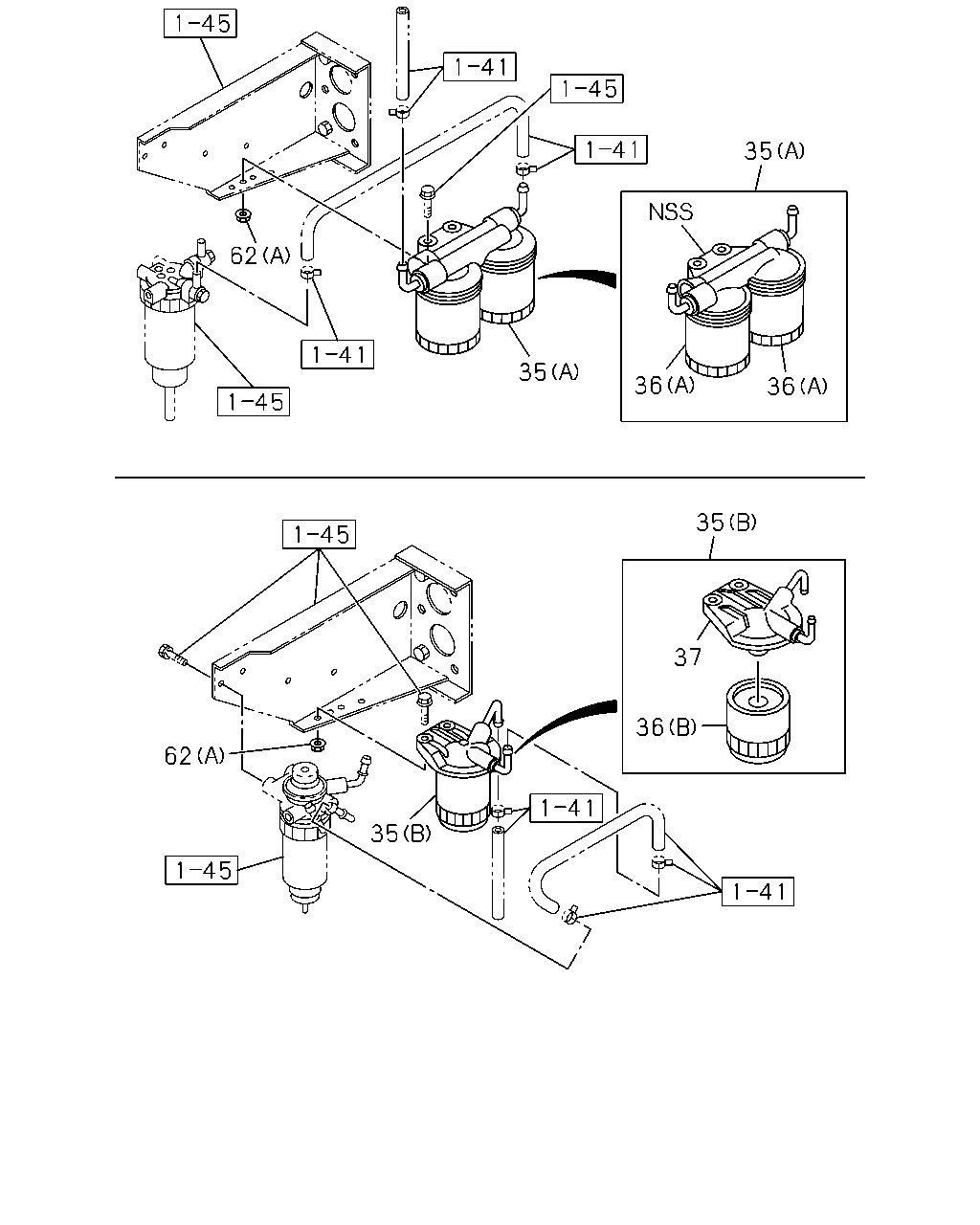

çizim 9642
35 35 36 36 35 37 36 62 35 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
35 03.890 FILTER ASM; SUB FUEL
VIN MODEL YEAR 2014(VZE) (C) 		8-98269-584-0 01 1 1405-1405 ●
35 03.890 FILTER ASM; SUB FUEL
VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (C) 		8-98269-584-0 01 1 1406- ● ●
35 03.890 FILTER ASM; SUB FUEL
SGL CAB(NK**S*) (B) 		8-97070-865-0 01 1 0301-0501 ●
35 03.890 FILTER ASM; SUB FUEL
(B) 		8-97070-865-0 01 1 0301-0501 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 		8-97070-865-0 01 1 0502-0505 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 		8-98006-454-0 01 1 0506-0609 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 		8-98006-454-0 01 1 0610-1404 ● ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-98006-454-0 01 1 1405-1405 ● ● ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) (B) 		8-98006-454-0 01 1 1406- ● ● ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) (A) 		8-97070-864-0 01 1 0211-0212 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 0301-0501 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 0502-0609 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 0610-1404 ● ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,VIN MODEL YEAR 2014(VZE) ,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 1405-1405 ● ● ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,VIN MODEL YEAR 2015(VZF) ,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 1406- ● ● ● ●
36 03.890 ELEMENT; FUEL FILTER
SGL CAB(NK**S*) (B) 		8-94246-908-0 01 1 0301-0501 ●
36 03.890 ELEMENT; FUEL FILTER
(B) 		8-94246-908-0 01 1 0301-0501 ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 		8-94246-908-0 01 1 0502-0505 ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 		8-97916-993-2 01 1 0506-0609 ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 		8-97916-993-2 01 1 0610-1404 ● ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-97916-993-2 01 1 1405-1405 ● ● ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) (B) 		8-97916-993-2 01 1 1406- ● ● ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 (A) 		8-94144-613-0 02 1 0211-0212 ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> 01.836 (A) 		8-94144-613-0 02 1 0301-0501 ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> 01.836 (A) 		8-94144-613-0 02 1 0502-0609 ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> 01.836 (A) 		8-94144-613-0 02 1 0610-1404 ● ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,VIN MODEL YEAR 2014(VZE) ,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.836 (A) 		8-94144-613-0 02 1 1405-1405 ● ● ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,VIN MODEL YEAR 2015(VZF) ,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.836 (A) 		8-94144-613-0 02 1 1406- ● ● ● ●
37 03.890 COVER; FUEL FILTER
SGL CAB(NK**S*) 		8-97363-518-0 01 1 0301-0501 ●
37 03.890 COVER; FUEL FILTER 8-97363-518-0 01 1 0301-0501 ●
37 03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97363-518-0 01 1 0502-0505 ● ●
37 03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97917-558-0 01 1 0506-0609 ● ●
37 03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97917-558-0 01 1 0610-1404 ● ● ●
37 03.890 COVER; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 		8-97917-558-0 01 1 1405-1405 ● ● ● ●
37 03.890 COVER; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		8-97917-558-0 01 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-0609 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-0609 ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0610-0712 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0610-0712 ● ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0801-1003 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0801-1003 ● ● ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0502-0602 ●
62 03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0603-1405 ●
62 03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1406- ●

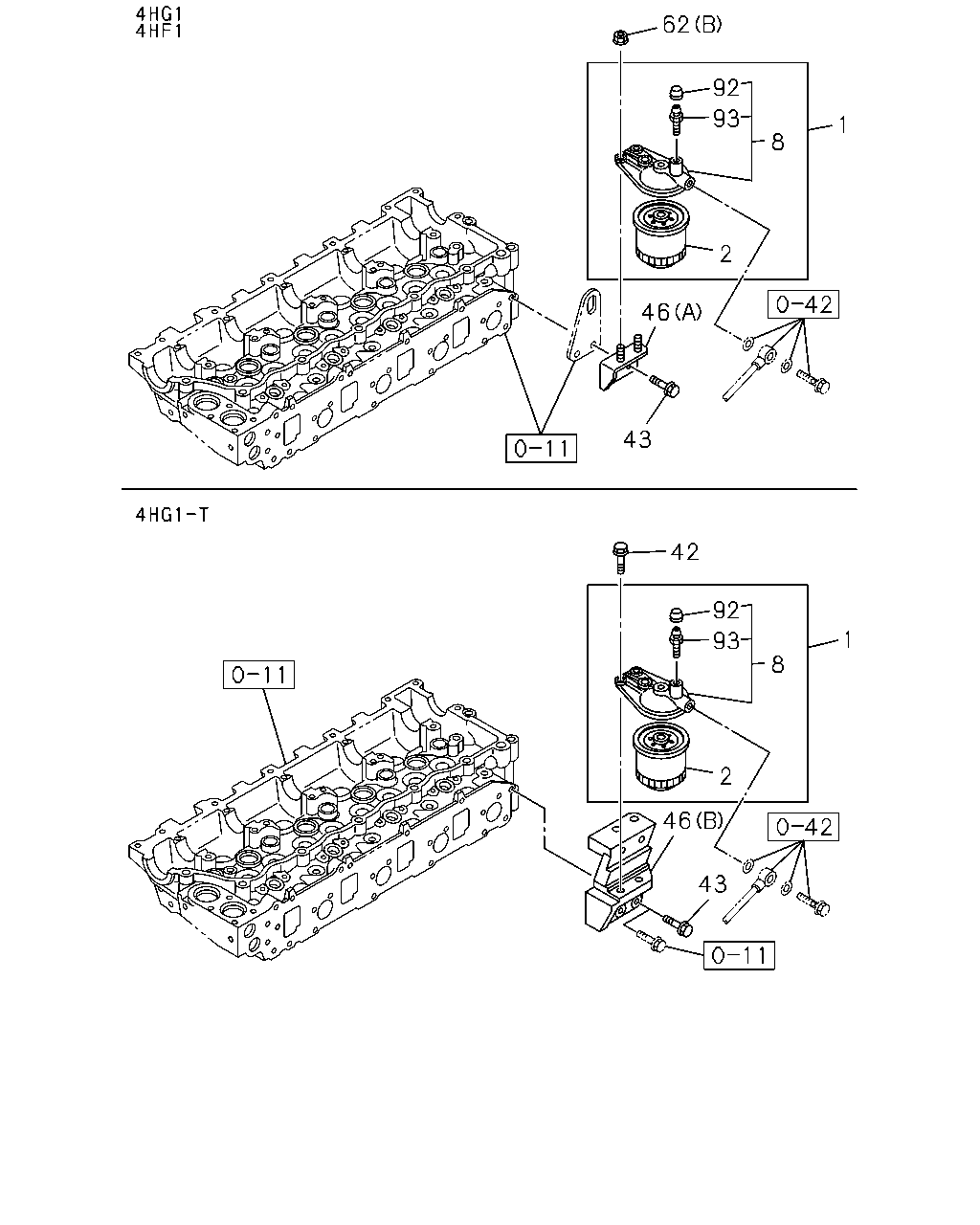

çizim 52311
62 92 93 1 8 2 46 43 42 92 1 93 8 2 46 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-98215-478-0 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
INDONESIA EQUIPMENT(S4S) 		8-98215-478-0 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0211-0609 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0610-1405 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		8-97070-864-0 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97070-865-0 01 1 0211-0505 ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 0506-0609 ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 0610-1405 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) 		8-94453-743-2 01 1 0211-0712 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) 		8-94453-743-2 01 1 0801-1405 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-94453-743-2 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0502-0609 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0610-1301 ● ●
1 03.890 FILTER ASM; FUEL
EXC. INDONESIA EQUIPMENT(S4S) 		8-97171-451-2 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-1 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-2 01 1 0502- ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2014(VZE) 		8-98270-184-0 01 1 1405-1405 ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-98270-184-0 01 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0211-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0610-1405 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 01.836 		8-94144-613-0 02 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-94246-908-0 01 1 0211-0505 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 0506-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 0610-1405 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0502-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0502-0611 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98037-480-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0502-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ●
8 03.890 COVER; FUEL FILTER 8-98234-919-0 01 1 1302- ●
8 03.890 COVER; FUEL FILTER
INDONESIA EQUIPMENT(S4S) 		8-98234-919-0 01 1 1302- ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97363-518-0 01 1 0211-0505 ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97917-558-0 01 1 0506-0609 ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97917-558-0 01 1 0610-1405 ● ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-97917-558-0 01 1 1406- ● ●
8 03.890 COVER; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-543-1 01 1 0211-0501 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 0211-0501 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 0502-0609 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 0610-1301 ● ●
8 03.890 COVER; FUEL FILTER
EXC. INDONESIA EQUIPMENT(S4S) 		8-97172-543-1 01 1 1302- ●
42 03.890 BOLT; FUEL FILTER
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 0610-1405 ●
42 03.890 BOLT; FUEL FILTER
VIN MODEL YEAR 2015(VZF) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1406-1406 ●
42 03.890 BOLT; FUEL FILTER
VIN MODEL YEAR 2015(VZF) 00.029 M10X35 FLANGE 		0-28751-035-0 02 1 1407- ●
43 03.890 BOLT; BRKT
00.029 M12X28 FLANGE 		0-28181-228-0 02 1 1406- ●
43 03.890 BOLT; BRKT
VIN MODEL YEAR 2015(VZF) 00.029 M12X28 FLANGE 		0-28181-228-0 02 1 1406- ●
43 03.890 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE 		0-28181-228-0 02 1 0211-0501 ●
43 03.890 BOLT; BRKT
00.029 M12X28 FLANGE 		0-28181-228-0 02 1 0211-0501 ●
43 03.890 BOLT; BRKT
00.029 M12X28 FLANGE 		0-28181-228-0 02 1 0502-0609 ●
43 03.890 BOLT; BRKT
00.029 M12X28 FLANGE 		0-28181-228-0 02 1 0610-1405 ● ●
43 03.890 BOLT; BRKT
EXC. VIN MODEL YEAR 2015(VZF) 00.029 M12X25 FLANGE 		0-28151-225-0 02 1 1406- ●
46 03.890 BRACKET
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94313-323-1 01 1 0211-0501 ●
46 03.890 BRACKET
(A) 		8-94313-323-1 01 1 0211-0501 ●
46 03.890 BRACKET
(A) 		8-94313-323-2 01 1 0502-1405 ●
46 03.890 BRACKET
(A) 		8-94313-323-2 01 1 1406- ●
46 03.890 BRACKET
EXC. VIN MODEL YEAR 2015(VZF) (A) 		8-94313-323-2 01 1 1406- ●
46 03.890 BRACKET
(B) 		8-97061-452-0 01 1 0610-1405 ●
46 03.890 BRACKET
VIN MODEL YEAR 2015(VZF) (B) 		8-97061-452-0 01 1 1406- ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-0609 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-0609 ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0610-0712 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0610-0712 ● ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0801-1003 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0801-1003 ● ● ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0502-0602 ●
62 03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0603-1405 ●
62 03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
92 03.417 CAP; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-548-0 01 1 0211-0501 ●
92 03.417 CAP; FUEL FILTER 8-97172-548-0 01 1 0211-0501 ●
92 03.417 CAP; FUEL FILTER 8-97172-548-0 01 1 0502-0609 ●
92 03.417 CAP; FUEL FILTER 8-97172-548-0 01 1 0610- ● ●
93 03.890 CONNECTOR; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-546-1 01 1 0211-0501 ●
93 03.890 CONNECTOR; FUEL FILTER 8-97172-546-1 01 1 0211-0501 ●
93 03.890 CONNECTOR; FUEL FILTER 8-97172-546-1 01 1 0502-0609 ●
93 03.890 CONNECTOR; FUEL FILTER 8-97172-546-1 01 1 0610- ● ●
çizim 52351
41 1 41 1 62 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-98215-478-0 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
INDONESIA EQUIPMENT(S4S) 		8-98215-478-0 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0211-0609 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0610-1405 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		8-97070-864-0 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97070-865-0 01 1 0211-0505 ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 0506-0609 ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 0610-1405 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) 		8-94453-743-2 01 1 0211-0712 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) 		8-94453-743-2 01 1 0801-1405 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-94453-743-2 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0502-0609 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0610-1301 ● ●
1 03.890 FILTER ASM; FUEL
EXC. INDONESIA EQUIPMENT(S4S) 		8-97171-451-2 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-1 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-2 01 1 0502- ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2014(VZE) 		8-98270-184-0 01 1 1405-1405 ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-98270-184-0 01 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0211-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0610-1405 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 01.836 		8-94144-613-0 02 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-94246-908-0 01 1 0211-0505 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 0506-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 0610-1405 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0502-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0502-0611 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98037-480-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0502-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ●
8 03.890 COVER; FUEL FILTER 8-98234-919-0 01 1 1302- ●
8 03.890 COVER; FUEL FILTER
INDONESIA EQUIPMENT(S4S) 		8-98234-919-0 01 1 1302- ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97363-518-0 01 1 0211-0505 ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97917-558-0 01 1 0506-0609 ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97917-558-0 01 1 0610-1405 ● ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-97917-558-0 01 1 1406- ● ●
8 03.890 COVER; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-543-1 01 1 0211-0501 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 0211-0501 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 0502-0609 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 0610-1301 ● ●
8 03.890 COVER; FUEL FILTER
EXC. INDONESIA EQUIPMENT(S4S) 		8-97172-543-1 01 1 1302- ●
41 03.890 BRACKET; FUEL FILTER
DBL CAB&SHORT(NK**WC) 		8-97103-345-1 01 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-0609 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-0609 ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0610-0712 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0610-0712 ● ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0801-1003 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0801-1003 ● ● ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0502-0602 ●
62 03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0603-1405 ●
62 03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
çizim 52986
62 62 1 1 20 10 9 20 9 9 9 20 9 57 2 56 11 20 15 2 15 16 14 62 1 8 19 12 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-98215-478-0 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
INDONESIA EQUIPMENT(S4S) 		8-98215-478-0 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0211-0609 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0610-1405 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		8-97070-864-0 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97070-865-0 01 1 0211-0505 ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 0506-0609 ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 0610-1405 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) 		8-94453-743-2 01 1 0211-0712 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) 		8-94453-743-2 01 1 0801-1405 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-94453-743-2 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0502-0609 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0610-1301 ● ●
1 03.890 FILTER ASM; FUEL
EXC. INDONESIA EQUIPMENT(S4S) 		8-97171-451-2 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-1 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-2 01 1 0502- ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2014(VZE) 		8-98270-184-0 01 1 1405-1405 ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-98270-184-0 01 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0211-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0610-1405 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 01.836 		8-94144-613-0 02 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-94246-908-0 01 1 0211-0505 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 0506-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 0610-1405 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0502-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0502-0611 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98037-480-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0502-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ●
5 03.890 BOLT; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 08.971 		9-09202-308-0 01 1 0211-0712 ●
5 03.890 BOLT; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 08.971 		9-09202-308-0 01 1 0801-1405 ● ●
5 03.890 BOLT; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 08.971 		9-09202-308-0 01 1 1406- ● ●
5 03.890 BOLT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0211-0501 ●
5 03.890 BOLT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0502- ●
6 03.890 GASKET; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-09562-106-0 01 1 0211-0712 ●
6 03.890 GASKET; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-09562-106-0 01 1 0801-1405 ● ●
6 03.890 GASKET; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		9-09562-106-0 01 1 1406- ● ●
6 03.890 GASKET; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0211-0501 ●
6 03.890 GASKET; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0502- ●
8 03.890 COVER; FUEL FILTER 8-98234-919-0 01 1 1302- ●
8 03.890 COVER; FUEL FILTER
INDONESIA EQUIPMENT(S4S) 		8-98234-919-0 01 1 1302- ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97363-518-0 01 1 0211-0505 ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97917-558-0 01 1 0506-0609 ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97917-558-0 01 1 0610-1405 ● ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-97917-558-0 01 1 1406- ● ●
8 03.890 COVER; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-543-1 01 1 0211-0501 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 0211-0501 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 0502-0609 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 0610-1301 ● ●
8 03.890 COVER; FUEL FILTER
EXC. INDONESIA EQUIPMENT(S4S) 		8-97172-543-1 01 1 1302- ●
9 03.890 GASKET; EYE JOINT
FUEL FILTER DUSTY ZONE(6KP) 08.955 (A) ID=14.2 OD=20.0 		9-09571-414-0 01 1 0211-0712 ●
9 03.890 GASKET; EYE JOINT
FUEL FILTER DUSTY ZONE(6KP) 08.955 (A) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-414-0 01 1 0801-1405 ● ●
9 03.890 GASKET; EYE JOINT
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 08.955 (A) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09571-414-0 01 1 1406- ● ●
9 03.890 GASKET; EYE JOINT
FUEL FILTER DUSTY ZONE(6KP) 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 0211-0712 ●
9 03.890 GASKET; EYE JOINT
FUEL FILTER DUSTY ZONE(6KP) 03.107 (B) ID=14.2 OD=23.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09572-014-0 04 1 0801-1405 ● ●
9 03.890 GASKET; EYE JOINT
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.107 (B) ID=14.2 OD=23.0 ALSO INCLUDED IN GASKET SET(ENGINE) . 		9-09572-014-0 04 1 1406- ● ●
10 03.890 VALVE; OVERFLOW,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-09862-056-0 01 1 0211-0712 ●
10 03.890 VALVE; OVERFLOW,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-09862-056-0 01 1 0801-1405 ● ●
10 03.890 VALVE; OVERFLOW,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		9-09862-056-0 01 1 1406- ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-13213-040-1 01 1 0211-0712 ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-13213-040-1 01 1 0801-1405 ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		9-13213-040-1 01 1 1406- ● ●
12 03.890 BOLT; CENTER,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		1-13231-012-0 01 1 0211-0712 ●
12 03.890 BOLT; CENTER,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		1-13231-012-0 01 1 0801-1405 ● ●
12 03.890 BOLT; CENTER,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		1-13231-012-0 01 1 1406- ● ●
14 03.890 SPRING; ELEMENT SUPPORT,FUEL FIL
FUEL FILTER DUSTY ZONE(6KP) 		1-09580-149-0 01 1 0211-0712 ●
14 03.890 SPRING; ELEMENT SUPPORT,FUEL FIL
FUEL FILTER DUSTY ZONE(6KP) 		1-09580-149-0 01 1 0801-1405 ● ●
14 03.890 SPRING; ELEMENT SUPPORT,FUEL FIL
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		1-09580-149-0 01 1 1406- ● ●
15 03.890 GASKET; HOLDER TO ELEMENT,FUEL F
FUEL FILTER DUSTY ZONE(6KP) 		1-09630-007-0 02 1 0211-0712 ●
15 03.890 GASKET; HOLDER TO ELEMENT,FUEL F
FUEL FILTER DUSTY ZONE(6KP) 		1-09630-007-0 02 1 0801-1405 ● ●
15 03.890 GASKET; HOLDER TO ELEMENT,FUEL F
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		1-09630-007-0 02 1 1406- ● ●
16 03.890 HOLDER; ELEMENT,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-09859-040-0 01 1 0211-0712 ●
16 03.890 HOLDER; ELEMENT,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-09859-040-0 01 1 0801-1405 ● ●
16 03.890 HOLDER; ELEMENT,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		9-09859-040-0 01 1 1406- ● ●
19 03.890 GASKET; BOLT TO CASE,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-09920-586-0 01 1 0211-0712 ●
19 03.890 GASKET; BOLT TO CASE,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-09920-586-0 01 1 0801-1405 ● ●
19 03.890 GASKET; BOLT TO CASE,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		9-09920-586-0 01 1 1406- ● ●
20 03.890 JOINT; EYE,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) (A) 		8-97019-867-0 02 1 0211-0712 ●
20 03.890 JOINT; EYE,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) (A) 		8-97019-867-0 02 1 0801-1405 ● ●
20 03.890 JOINT; EYE,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (A) 		8-97019-867-0 02 1 1406- ● ●
20 03.890 JOINT; EYE,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 03.162 (B) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0211-0712 ●
20 03.890 JOINT; EYE,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 03.162 (B) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0801-1405 ● ●
20 03.890 JOINT; EYE,FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.162 (B) M14X29 EYE-BOLT 		9-09906-325-1 02 1 1406- ● ●
56 03.890 PLUG; FUEL FILTER
FUEL FILTER DUAL(S6B) 		5-13226-001-0 01 1 0211-0609 ●
56 03.890 PLUG; FUEL FILTER
FUEL FILTER DUAL(S6B) 		5-13226-001-0 01 1 0610-1405 ● ●
56 03.890 PLUG; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		5-13226-001-0 01 1 1406- ● ●
57 03.890 GASKET; PLUG
FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0211-0609 ●
57 03.890 GASKET; PLUG
FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0610-1405 ● ●
57 03.890 GASKET; PLUG
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1406- ● ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-0609 ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-0609 ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0610-0712 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0610-0712 ● ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0801-1003 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0801-1003 ● ● ● ●
62 03.895 NUT; FUEL FILTER
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1004-1404 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1405-1405 ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
62 03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0502-0602 ●
62 03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0603-1405 ●
62 03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
EXC. VIN MODEL YEAR 2015(VZF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1406- ●
çizim 53771
124 125 2 1 5 6 126 112 3 112 112 66 66 7 7 72 88 40 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-98215-478-0 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
INDONESIA EQUIPMENT(S4S) 		8-98215-478-0 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0211-0609 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 0610-1405 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 		8-97070-864-0 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97070-865-0 01 1 0211-0505 ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 0506-0609 ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 0610-1405 ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-98006-454-0 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) 		8-94453-743-2 01 1 0211-0712 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) 		8-94453-743-2 01 1 0801-1405 ● ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-94453-743-2 01 1 1406- ● ●
1 03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0502-0609 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-2 01 1 0610-1301 ● ●
1 03.890 FILTER ASM; FUEL
EXC. INDONESIA EQUIPMENT(S4S) 		8-97171-451-2 01 1 1302- ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-1 01 1 0211-0501 ●
1 03.890 FILTER ASM; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-124-2 01 1 0502- ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2014(VZE) 		8-98270-184-0 01 1 1405-1405 ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-98270-184-0 01 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0211-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0610-1405 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 01.836 		8-94144-613-0 02 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-94246-908-0 01 1 0211-0505 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 0506-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 0610-1405 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0502-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0502-0611 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98037-480-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0502-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ●
3 03.890 SENSOR ASM; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 0211-0501 ●
3 03.890 SENSOR ASM; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 0502- ●
5 03.890 BOLT; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 08.971 		9-09202-308-0 01 1 0211-0712 ●
5 03.890 BOLT; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 08.971 		9-09202-308-0 01 1 0801-1405 ● ●
5 03.890 BOLT; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 08.971 		9-09202-308-0 01 1 1406- ● ●
5 03.890 BOLT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0211-0501 ●
5 03.890 BOLT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0502- ●
6 03.890 GASKET; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-09562-106-0 01 1 0211-0712 ●
6 03.890 GASKET; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) 		9-09562-106-0 01 1 0801-1405 ● ●
6 03.890 GASKET; FUEL FILTER
FUEL FILTER DUSTY ZONE(6KP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		9-09562-106-0 01 1 1406- ● ●
6 03.890 GASKET; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0211-0501 ●
6 03.890 GASKET; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0502- ●
7 03.890 PLUG; SENSOR,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97123-549-0 01 1 0211-0501 ●
7 03.890 PLUG; SENSOR,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97123-549-0 01 1 0502- ●
40 03.890 BRACKET; FUEL FILTER
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) 		8-97240-698-2 01 1 0211-0306 ●
40 03.890 BRACKET; FUEL FILTER
SMALL DUAL RR TIRE(NKN***) 		8-97240-698-2 01 1 0211-0306 ●
40 03.890 BRACKET; FUEL FILTER
SGL TIRE&SGL CAB(NKB*S*) FRT INDEPENDENT SUSPENSION(6PP) 		8-97370-091-0 01 1 0307-0501 ●
40 03.890 BRACKET; FUEL FILTER
SMALL DUAL RR TIRE(NKN***) 		8-97370-091-0 01 1 0307-0501 ●
40 03.890 BRACKET; FUEL FILTER
SMALL DUAL RR TIRE(NKN***) 		8-97370-091-0 01 1 0502- ●
40 03.890 BRACKET; FUEL FILTER
SGL TIRE&SGL CAB(NKB*S*) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97306-600-1 01 1 0211-0306 ●
40 03.890 BRACKET; FUEL FILTER
DUAL RR TIRE&SGL CAB(NKC*S*) 		8-97306-600-1 01 1 0211-0306 ●
40 03.890 BRACKET; FUEL FILTER
SGL TIRE&SGL CAB(NKB*S*) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97370-090-0 01 1 0307-0501 ●
40 03.890 BRACKET; FUEL FILTER
DUAL RR TIRE&SGL CAB(NKC*S*) 		8-97370-090-0 01 1 0307-0501 ●
40 03.890 BRACKET; FUEL FILTER
SGL TIRE&SGL CAB(NKB5SC) SGL TIRE&DBL CAB(NKB5WC) DUAL RR TIRE&SGL CAB&SHORT(NKC5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) DUAL RR TIRE&DBL CAB(NKC5WF) 		8-97370-090-0 01 1 0502- ●
66 03.890 GASKET; PLUG,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 0211-0501 ●
66 03.890 GASKET; PLUG,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 0502- ●
72 03.890 NUT; BRKT,FUEL FILTER
04.785 M10 FLANGE 		0-91150-110-0 03 1 0211-0302 ●
88 03.895 BOLT; BRKT,FUEL FILTER
00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0501 ●
88 03.895 BOLT; BRKT,FUEL FILTER
00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ●
88 03.895 BOLT; BRKT,FUEL FILTER
03.890 M10X30 FLANGE 		0-28051-030-0 02 1 0601- ●
112 06.605 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0211-0501 ●
112 06.605 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0502-0611 ●
112 06.605 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0612- ●
124 03.890 SWITCH; PRESSURE,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97378-844-0 01 1 0211-0501 ●
124 03.890 SWITCH; PRESSURE,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97378-844-0 01 1 0502- ●
125 03.890 BOLT; SWITCH,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97352-938-0 02 1 0211-0501 ●
125 03.890 BOLT; SWITCH,FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97352-938-0 02 1 0502- ●
126 03.890 BOLT; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> 01.540 		1-13219-156-0 01 1 0211-0501 ●
126 03.890 BOLT; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> 01.540 		1-13219-156-0 01 1 0502- ●
çizim 501307
35 35 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2014(VZE) 		8-98270-184-0 01 1 1405-1405 ●
2 03.890 ELEMENT KIT; FUEL FILTER
VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-98270-184-0 01 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0211-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 0610-1405 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) 01.836 		8-94144-613-0 02 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-94246-908-0 01 1 0211-0505 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 0506-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 0610-1405 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2015(VZF),FUEL FILTER DUSTY ZONE(6KP) 		8-97916-993-2 01 1 1406- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0502-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-1 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0502-0611 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98037-480-0 01 1 0612- ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0211-0501 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0502-0609 ●
2 03.890 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		5-87610-041-0 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ●
35 03.890 FILTER ASM; SUB FUEL
VIN MODEL YEAR 2014(VZE) (C) 		8-98269-584-0 01 1 1405-1405 ●
35 03.890 FILTER ASM; SUB FUEL
VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (C) 		8-98269-584-0 01 1 1406- ● ●
35 03.890 FILTER ASM; SUB FUEL
SGL CAB(NK**S*) (B) 		8-97070-865-0 01 1 0301-0501 ●
35 03.890 FILTER ASM; SUB FUEL
(B) 		8-97070-865-0 01 1 0301-0501 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 		8-97070-865-0 01 1 0502-0505 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 		8-98006-454-0 01 1 0506-0609 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 		8-98006-454-0 01 1 0610-1404 ● ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-98006-454-0 01 1 1405-1405 ● ● ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE" <N02>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2015(VZF) (B) 		8-98006-454-0 01 1 1406- ● ● ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) (A) 		8-97070-864-0 01 1 0211-0212 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 0301-0501 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 0502-0609 ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,FUEL TANK 75 LITTER "NONBOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 0610-1404 ● ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,VIN MODEL YEAR 2014(VZE) ,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 1405-1405 ● ● ● ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02>,VIN MODEL YEAR 2015(VZF) ,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) 		8-97070-864-0 01 1 1406- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
