Sayfa 0-36 - Isuzu EPC

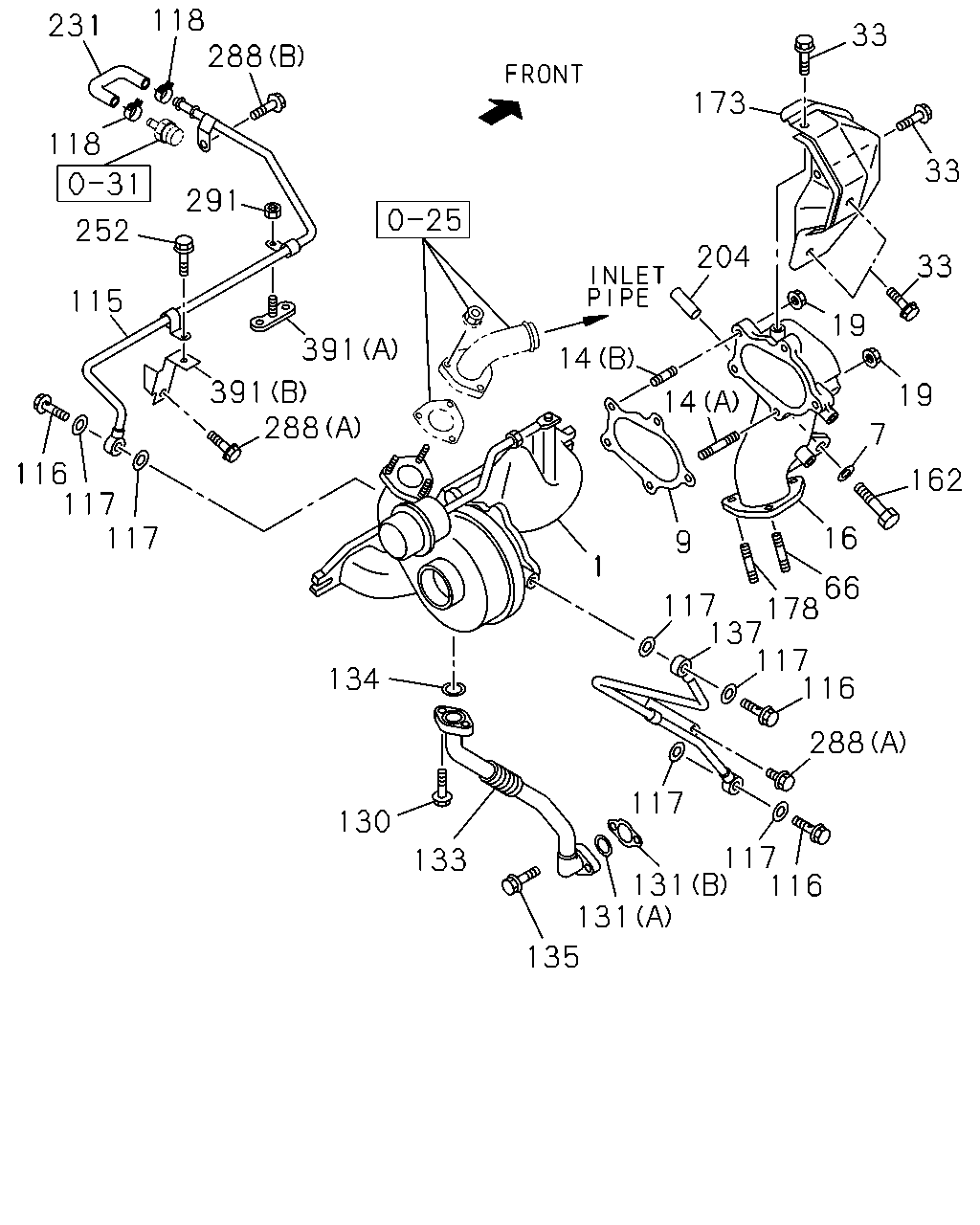

0-36 — TURBOCHARGER SYSTEM (#46139) — 336 parça

118 231 288 118 291 252 115 116 117 117 288 391 391 173 33 33 33 204 19 19 162 7 14 14 9 16 66 178 137 117 116 117 288 117 116 131 131 117 133 130 134 1 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2014(VZE)	8-98254-714-0	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015(VZF)	8-98254-714-0	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97192-331-4	01	1	1010-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>	8-97176-080-1	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0211-0501				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-5	01	1	0502-					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0610-1404	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2014(VZE)	8-97326-752-1	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015(VZF)	8-97326-752-1	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	0610-1009		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97331-185-1	01	1	1010-		●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0610-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>	8-94433-604-0	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0211-0501				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0502-					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97039-777-1	01	1	0610-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	0610-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (A) M8X105 L=116	8-94362-047-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97104-507-1	02	1	0502-0607					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	0608-0609					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97378-069-0	02	1	0610-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	04	1	0211-0406			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	04	1	0211-0406				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	0407-0408			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0407-0408				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X43 L=54	8-97104-507-1	02	1	0407-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97104-507-1	02	1	0407-0501				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0211-0408				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0409-0501				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0502-					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	0610-		●			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0610-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0610-	●
16	03.609 ADAPTER; EXH PIPE INDONESIA EQUIPMENT(S4S)	8-98209-505-0	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0610-1211	●
16	03.609 ADAPTER; EXH PIPE EXC. INDONESIA EQUIPMENT(S4S)	8-97178-487-3	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER<K51>	8-97176-079-0	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0211-0501				●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0502-					●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	0610-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0610-	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0610-	●
66	03.342 STUD; EXH PIPE TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0211-0501				●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0502-0609					●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0610-		●			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0610-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT VIN MODEL YEAR 2014(VZE)	8-98261-645-0	01	1	1405-1405	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT VIN MODEL YEAR 2015(VZF)	8-98261-645-0	01	1	1406-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0610-1404	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. VIN MODEL YEAR 2014(VZE)	8-97210-077-2	01	1	1405-1405	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. VIN MODEL YEAR 2015(VZF)	8-97210-077-2	01	1	1406-	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2014(VZE) M14X30 EYE-BOLT	8-94455-144-0	02	1	1405-1405	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2015(VZF) M14X30 EYE-BOLT	8-94455-144-0	02	1	1406-1409	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2015(VZF) M14X30 EYE-BOLT	8-94455-144-0	01	1	1410-	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2014(VZE) M14X31 EYE-BOLT	8-98037-067-0	01	1	1405-1405	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2015(VZF) M14X31 EYE-BOLT	8-98037-067-0	01	1	1406-1409	●
116	03.342 BOLT; WATER PIPE VIN MODEL YEAR 2015(VZF) M14X31 EYE-BOLT	8-98037-067-0	02	1	1410-	●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	0610-1404	●
116	03.342 BOLT; WATER PIPE EXC. VIN MODEL YEAR 2014(VZE) M14X30 EYE-BOLT	8-94455-144-0	03	1	1405-1405	●
116	03.342 BOLT; WATER PIPE EXC. VIN MODEL YEAR 2015(VZF) M14X30 EYE-BOLT	8-94455-144-0	03	1	1406-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . VIN MODEL YEAR 2014(VZE) 08.955 ID=14.2 OD=20.0	9-09571-414-0	06	1	1405-1405	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . VIN MODEL YEAR 2015(VZF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	06	1	1406-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-1404	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. VIN MODEL YEAR 2014(VZE) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1405-1405	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. VIN MODEL YEAR 2015(VZF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1406-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . T=2.5	8-94472-584-1	02	1	0211-0501				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . T=2.5	8-94472-584-1	02	1	0502-					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0610-0902	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-1312	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-1404	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. VIN MODEL YEAR 2014(VZE) 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1405-1405	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. VIN MODEL YEAR 2015(VZF) 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1406-	●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	02	1	0610-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D VIN MODEL YEAR 2014(VZE) 00.724 M6X16 HEX SOCKET	0-58330-616-0	02	1	1405-1405	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D VIN MODEL YEAR 2015(VZF) 00.724 M6X16 HEX SOCKET	0-58330-616-0	02	1	1406-1410	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D VIN MODEL YEAR 2015(VZF) 00.662 M6X16 W/LK WASHER	0-50540-616-0	02	1	1411-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0610-1404	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D EXC. VIN MODEL YEAR 2014(VZE) M6X20 W/LK WASHER	0-50540-620-0	02	1	1405-1405	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D EXC. VIN MODEL YEAR 2015(VZF) M6X20 W/LK WASHER	0-50540-620-0	02	1	1406-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (A) ID=27.7	9-09566-228-0	01	1	0610-1006	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . (B) ID=30	8-94394-671-0	01	1	1007-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER VIN MODEL YEAR 2014(VZE)	8-98261-657-0	01	1	1405-1405	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER VIN MODEL YEAR 2015(VZF)	8-98261-657-0	01	1	1406-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0610-1006	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-1404	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. VIN MODEL YEAR 2014(VZE)	8-98172-659-0	01	1	1405-1405	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. VIN MODEL YEAR 2015(VZF)	8-98172-659-0	01	1	1406-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=22.8	1-09623-462-0	01	1	0610-1404	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. VIN MODEL YEAR 2014(VZE) ID=22.8	1-09623-462-0	01	1	1405-1405	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. VIN MODEL YEAR 2015(VZF) ID=22.8	1-09623-462-0	01	1	1406-	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0610-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN VIN MODEL YEAR 2014(VZE)	8-98213-680-0	01	1	1405-1405	●
137	01.097 PIPE; WATER,TURBOCHARGER IN VIN MODEL YEAR 2015(VZF)	8-98213-680-0	01	1	1406-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0610-1404	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. VIN MODEL YEAR 2014(VZE)	8-97229-036-0	01	1	1405-1405	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. VIN MODEL YEAR 2015(VZF)	8-97229-036-0	01	1	1406-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0610-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0610-	●
178	03.407 STUD; DUCT VIN MODEL YEAR 2014(VZE) 03.275 M6X25 L=34	0-41010-625-0	04	1	1405-1405	●
178	03.407 STUD; DUCT VIN MODEL YEAR 2015(VZF) 03.275 M6X25 L=34	0-41010-625-0	04	1	1406-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0610-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT INDONESIA EQUIPMENT(S4S)	8-98215-875-0	01	1	1212-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0610-1211	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. INDONESIA EQUIPMENT(S4S)	8-97209-950-0	01	1	1212-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	0610-		●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0610-	●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0610-	●
291	03.374 NUT; PIPE TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-	●
391	03.342 BRACKET; WATER PIPE INDONESIA EQUIPMENT(S4S) (B)	8-98209-661-0	01	1	1212-	●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0610-1211	●
391	03.342 BRACKET; WATER PIPE EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97210-078-0	01	1	1212-	●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0610-	●

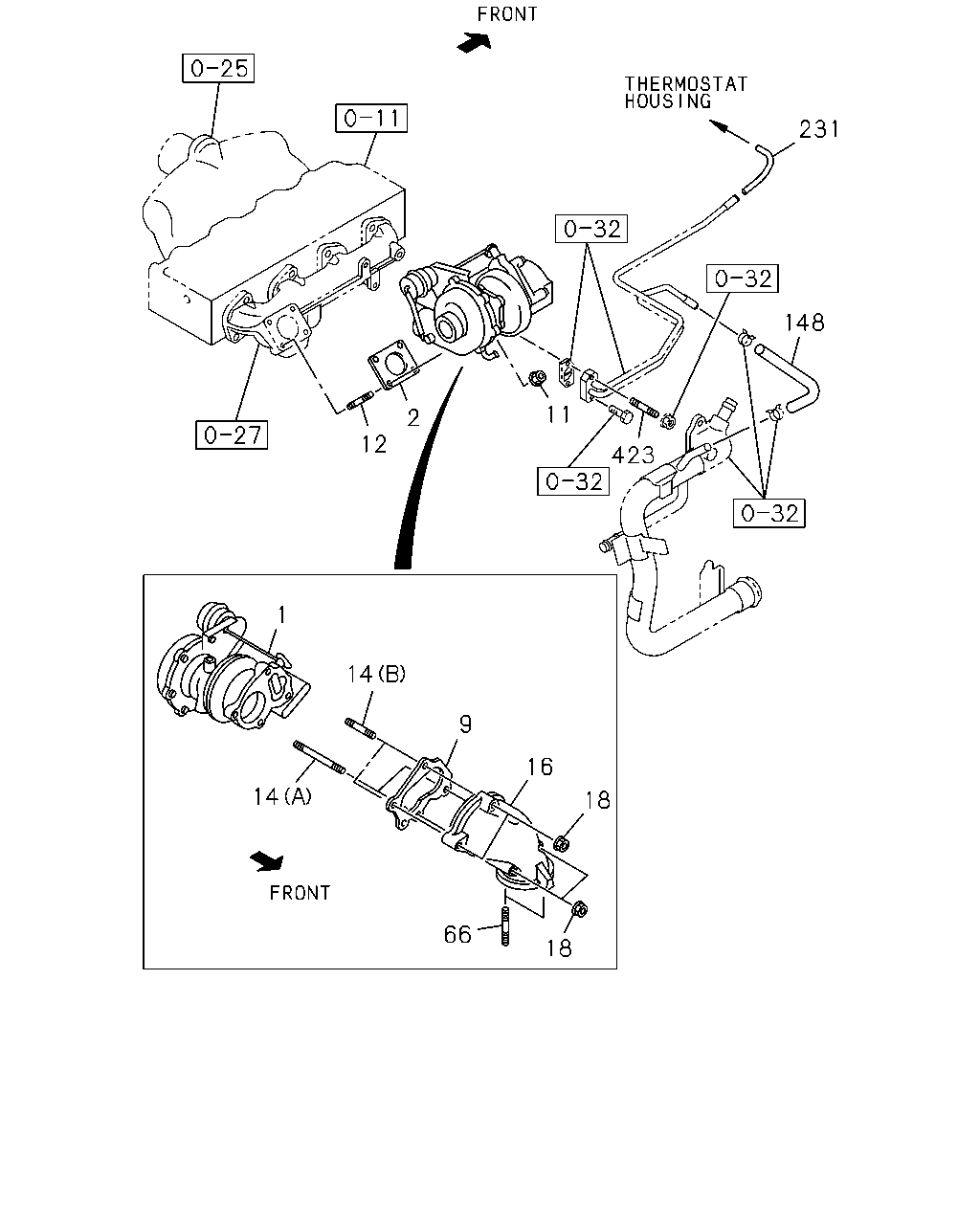

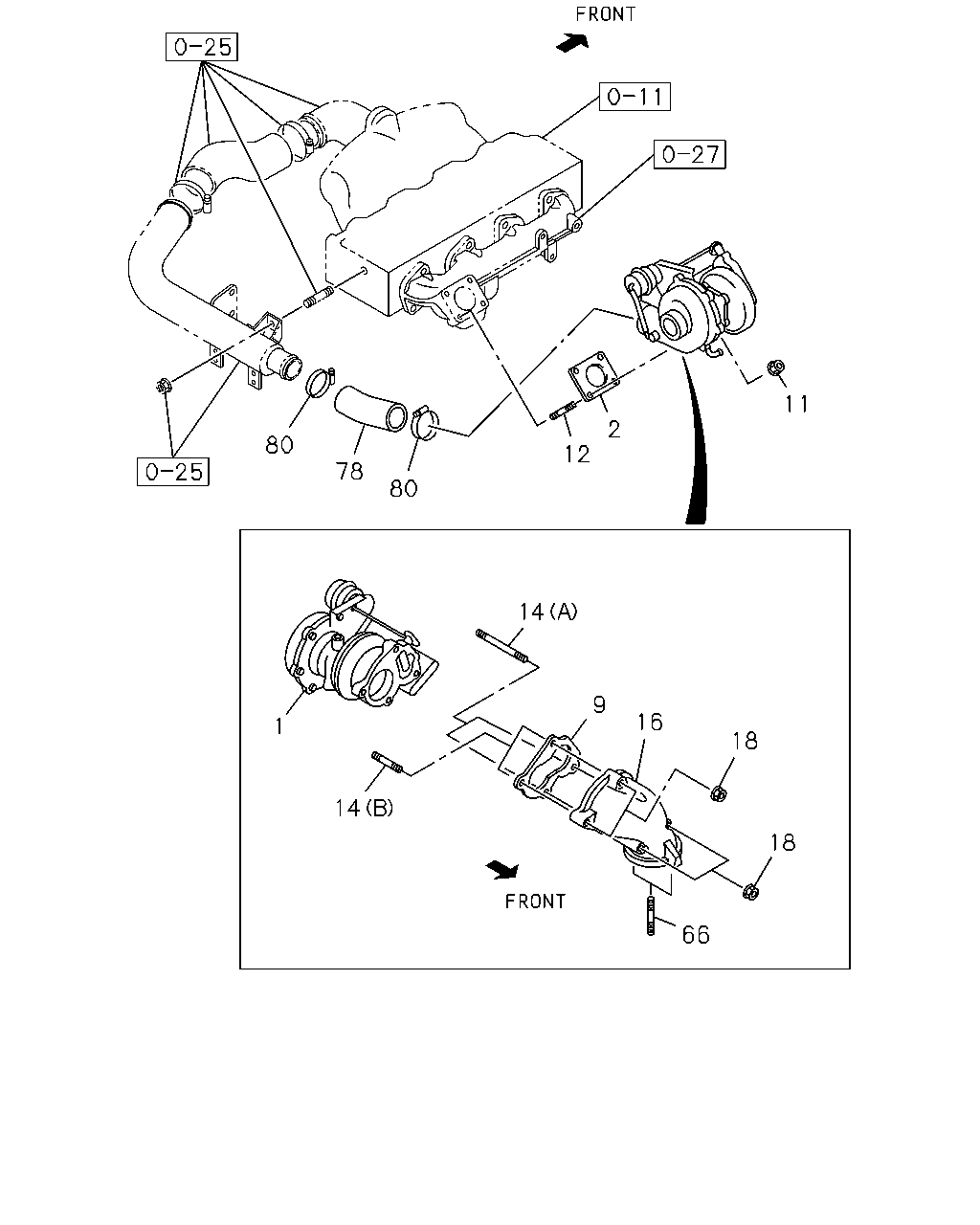

11 2 80 12 78 80 14 9 16 1 18 14 1 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2014(VZE)	8-98254-714-0	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015(VZF)	8-98254-714-0	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97192-331-4	01	1	1010-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>	8-97176-080-1	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0211-0501				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-5	01	1	0502-					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0610-1404	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2014(VZE)	8-97326-752-1	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015(VZF)	8-97326-752-1	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	0610-1009		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97331-185-1	01	1	1010-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>	8-94433-605-0	01	1	0211-0501			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0211-0501				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0502-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	0610-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>	8-94433-604-0	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0211-0501				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0502-					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97039-777-1	01	1	0610-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	0610-		●
11	03.342 NUT; TURBOCHARGER TURBOCHARGER<K51> 03.613 M8 FLANGE	8-97161-607-0	04	1	0211-0501			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0211-0501				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0502-0609					●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0610-		●			●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97104-508-1	04	1	0211-0408			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0211-0408				●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97378-060-0	04	1	0409-0501			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0501				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0502-0609					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0610-		●			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (A) M8X105 L=116	8-94362-047-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97104-507-1	02	1	0502-0607					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	0608-0609					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97378-069-0	02	1	0610-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	04	1	0211-0406			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	04	1	0211-0406				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	0407-0408			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0407-0408				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X43 L=54	8-97104-507-1	02	1	0407-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97104-507-1	02	1	0407-0501				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0211-0408				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0409-0501				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0502-					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	0610-		●			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0610-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0610-	●
16	03.609 ADAPTER; EXH PIPE INDONESIA EQUIPMENT(S4S)	8-98209-505-0	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0610-1211	●
16	03.609 ADAPTER; EXH PIPE EXC. INDONESIA EQUIPMENT(S4S)	8-97178-487-3	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER<K51>	8-97176-079-0	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0211-0501				●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0502-					●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	0610-		●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0211-0501			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0211-0501				●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0502-0609					●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0610-		●			●
66	03.342 STUD; EXH PIPE TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0211-0501				●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0502-0609					●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0610-		●			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0610-	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER TURBOCHARGER<K51>	8-97176-146-0	01	1	0211-0501			●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER TURBOCHARGER<K51> ID=45.5-56.5	8-97131-943-0	02	1	0211-0501			●

231 148 11 2 12 423 1 14 9 16 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2014(VZE)	8-98254-714-0	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015(VZF)	8-98254-714-0	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97192-331-4	01	1	1010-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>	8-97176-080-1	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0211-0501				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-5	01	1	0502-					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0610-1404	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2014(VZE)	8-97326-752-1	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015(VZF)	8-97326-752-1	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	0610-1009		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97331-185-1	01	1	1010-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>	8-94433-605-0	01	1	0211-0501			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0211-0501				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0502-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	0610-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>	8-94433-604-0	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0211-0501				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0502-					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97039-777-1	01	1	0610-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	0610-		●
11	03.342 NUT; TURBOCHARGER TURBOCHARGER<K51> 03.613 M8 FLANGE	8-97161-607-0	04	1	0211-0501			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0211-0501				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0502-0609					●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0610-		●			●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97104-508-1	04	1	0211-0408			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0211-0408				●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97378-060-0	04	1	0409-0501			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0501				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0502-0609					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0610-		●			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (A) M8X105 L=116	8-94362-047-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97104-507-1	02	1	0502-0607					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	0608-0609					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97378-069-0	02	1	0610-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	04	1	0211-0406			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	04	1	0211-0406				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	0407-0408			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0407-0408				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X43 L=54	8-97104-507-1	02	1	0407-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97104-507-1	02	1	0407-0501				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0211-0408				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0409-0501				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0502-					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	0610-		●			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0610-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0610-	●
16	03.609 ADAPTER; EXH PIPE INDONESIA EQUIPMENT(S4S)	8-98209-505-0	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0610-1211	●
16	03.609 ADAPTER; EXH PIPE EXC. INDONESIA EQUIPMENT(S4S)	8-97178-487-3	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER<K51>	8-97176-079-0	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0211-0501				●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0502-					●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	0610-		●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0211-0501			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0211-0501				●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0502-0609					●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0610-		●			●
66	03.342 STUD; EXH PIPE TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0211-0501				●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0502-0609					●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0610-		●			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0610-	●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0211-0501				●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0502-					●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=180 SERVICED BY L=3000	0-03559-300-0	01	1	0610-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT INDONESIA EQUIPMENT(S4S)	8-98215-875-0	01	1	1212-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0610-1211	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. INDONESIA EQUIPMENT(S4S)	8-97209-950-0	01	1	1212-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	0610-		●
423	03.373 STUD; WATER PIPE 01.652 M6X20 L=28	0-41010-620-0	01	1	0610-		●

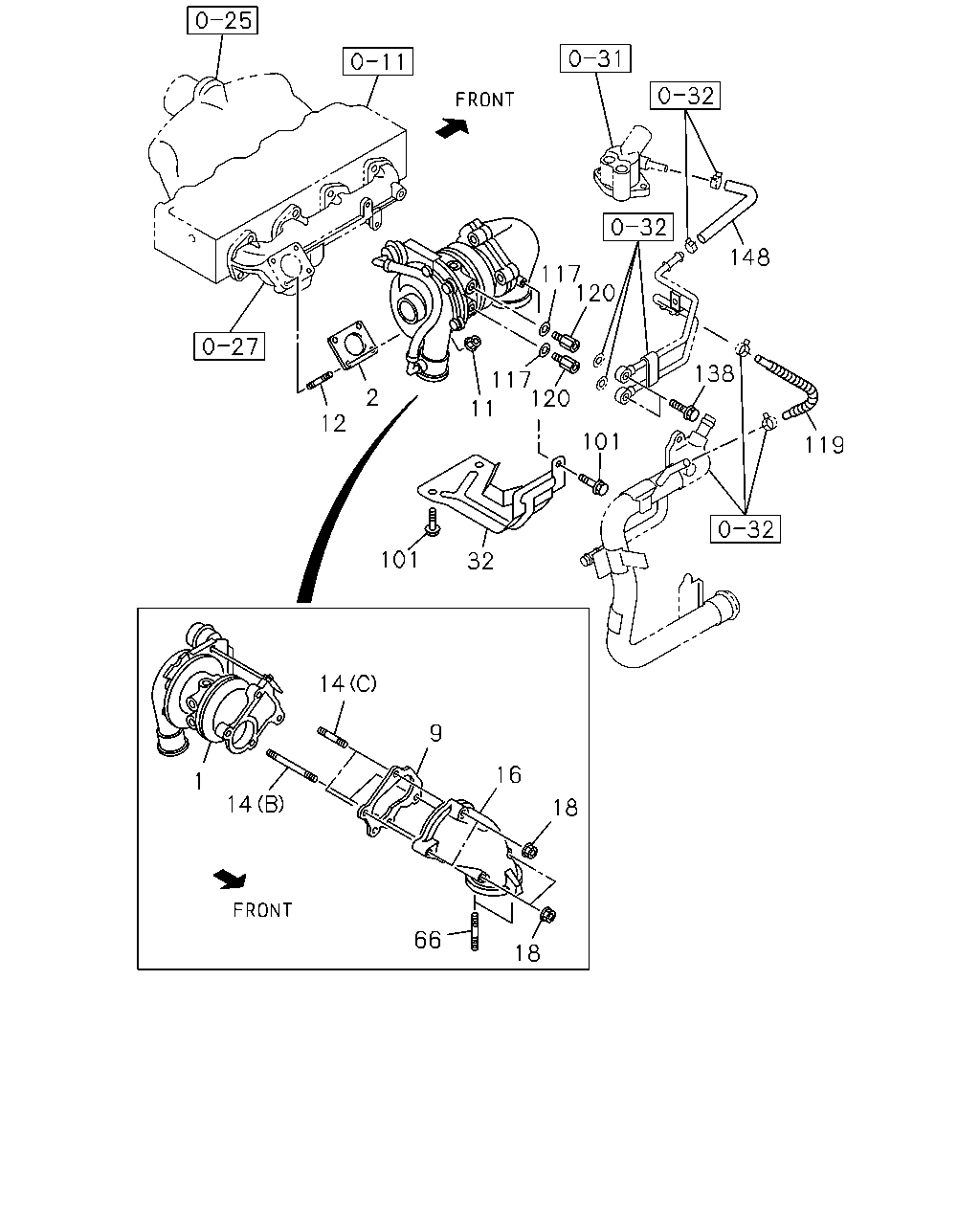

148 117 120 138 117 120 2 11 12 101 119 101 32 14 9 16 1 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2014(VZE)	8-98254-714-0	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015(VZF)	8-98254-714-0	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97192-331-4	01	1	1010-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>	8-97176-080-1	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0211-0501				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-5	01	1	0502-					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0610-1404	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2014(VZE)	8-97326-752-1	01	1	1405-1405	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015(VZF)	8-97326-752-1	01	1	1406-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	0610-1009		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97331-185-1	01	1	1010-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>	8-94433-605-0	01	1	0211-0501			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0211-0501				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0502-					●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	0610-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>	8-94433-604-0	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0211-0501				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0502-					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97039-777-1	01	1	0610-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	0610-		●
11	03.342 NUT; TURBOCHARGER TURBOCHARGER<K51> 03.613 M8 FLANGE	8-97161-607-0	04	1	0211-0501			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0211-0501				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0502-0609					●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0610-		●			●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97104-508-1	04	1	0211-0408			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0211-0408				●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97378-060-0	04	1	0409-0501			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0501				●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0502-0609					●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0610-		●			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (A) M8X105 L=116	8-94362-047-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97104-507-1	02	1	0502-0607					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	0608-0609					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97378-069-0	02	1	0610-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	04	1	0211-0406			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	04	1	0211-0406				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	0407-0408			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0407-0408				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X43 L=54	8-97104-507-1	02	1	0407-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97104-507-1	02	1	0407-0501				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0211-0408				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0409-0501				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81 L=92	8-97378-068-0	02	1	0502-					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	0610-		●			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0610-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0610-	●
16	03.609 ADAPTER; EXH PIPE INDONESIA EQUIPMENT(S4S)	8-98209-505-0	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0610-1211	●
16	03.609 ADAPTER; EXH PIPE EXC. INDONESIA EQUIPMENT(S4S)	8-97178-487-3	01	1	1212-	●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER<K51>	8-97176-079-0	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0211-0501				●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0502-					●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	0610-		●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0211-0501			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0211-0501				●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0502-0609					●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0610-		●			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97258-821-0	01	1	0211-0501				●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97258-821-0	01	1	0502-					●
66	03.342 STUD; EXH PIPE TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0211-0501				●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0502-0609					●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0610-		●			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0610-	●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0211-0501				●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0502-0512					●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0601-					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . VIN MODEL YEAR 2014(VZE) 08.955 ID=14.2 OD=20.0	9-09571-414-0	06	1	1405-1405	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . VIN MODEL YEAR 2015(VZF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	06	1	1406-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-1404	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. VIN MODEL YEAR 2014(VZE) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1405-1405	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. VIN MODEL YEAR 2015(VZF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1406-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . T=2.5	8-94472-584-1	02	1	0211-0501				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . T=2.5	8-94472-584-1	02	1	0502-					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0610-0902	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-1312	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-1404	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. VIN MODEL YEAR 2014(VZE) 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1405-1405	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. VIN MODEL YEAR 2015(VZF) 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1406-	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0211-0501				●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0502-					●
120	01.097 ADAPTER; WATER	8-94472-583-0	02	1	0211-0402				●
120	01.097 ADAPTER; WATER	8-94472-583-0	02	1	0502-					●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0211-0501				●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0502-					●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0211-0501				●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0502-					●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=180 SERVICED BY L=3000	0-03559-300-0	01	1	0610-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
