◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#46137) — 258 parça

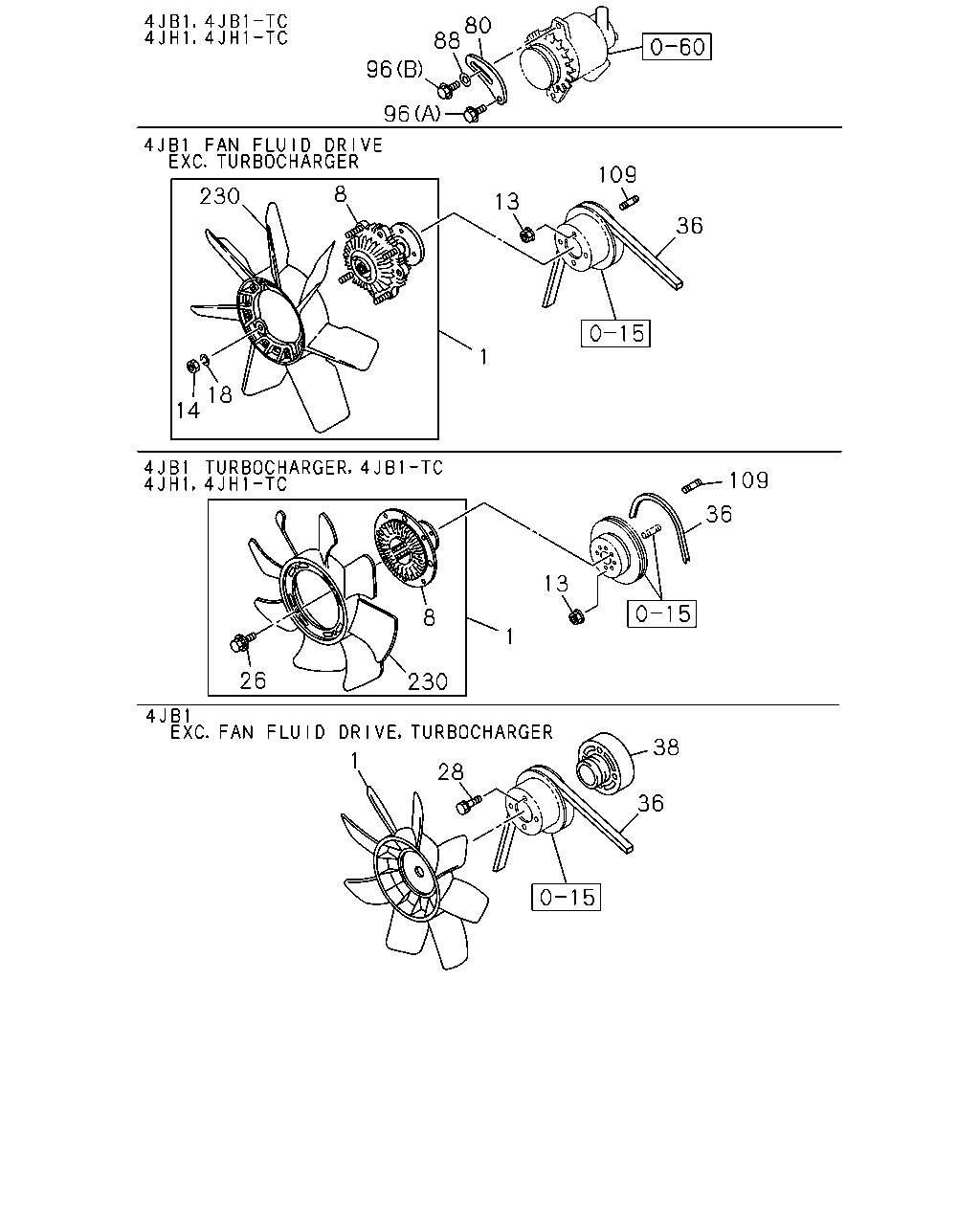

çizim 50111
80 88 96 96 109 8 230 13 36 1 18 14 109 36 13 8 1 26 230 38 1 28 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 0211-0501 ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=390 		8-94239-651-0 01 1 0502- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390 		5-13660-285-0 01 1 0211-0501 ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> OD=390 		5-13660-285-0 01 1 0502- ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-1 01 1 0211-0501 ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 0211-0501 ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 0502- ●
1 01.064 FAN; COOLING 8-97128-531-1 01 1 0211-0501 ●
1 01.064 FAN; COOLING 8-97128-531-2 01 1 0502- ●
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 0211-0609 ●
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 0610- ● ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-2 01 1 0610- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 		8-94244-409-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-94244-409-0 01 1 0502- ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 0502- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0502- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0211-0609 ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0610- ● ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 0610- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 0211-0501 ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0211-0501 ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0502-0609 ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0610- ● ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ● ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ● ●
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ● ●
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 0610- ● ● ●
14 01.062 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.413 M6 		9-09110-506-0 04 1 0211-0501 ●
14 01.062 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> 00.413 M6 		9-09110-506-0 04 1 0502- ●
18 01.062 WASHER; FAN TO CLU
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.206 ID=6.1 		9-09150-506-0 04 1 0211-0501 ●
18 01.062 WASHER; FAN TO CLU
FAN FLUID DRIVE<KA3> 00.206 ID=6.1 		9-09150-506-0 04 1 0502- ●
26 01.062 BOLT; FAN TO CLU
TURBOCHARGER<K51> 		8-94389-764-0 04 1 0211-0501 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0211-0501 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0502-0609 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0610-0712 ● ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0801- ● ● ● ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0609 ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0610- ● ●
28 01.062 BOLT; COOLING FAN
EXC. TURBOCHARGER<K51> M6X45 W/LK WASHER 		0-50040-645-0 04 1 0211-0501 ●
28 01.062 BOLT; COOLING FAN
M6X45 W/LK WASHER 		0-50040-645-0 04 1 0502-0909 ●
28 01.062 BOLT; COOLING FAN
M6X45 W/LK WASHER 		0-50540-645-0 04 1 0910- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0211-0501 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0502-0609 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0610- ● ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0211-0501 ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0502-0609 ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0610- ● ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0211-0501 ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0502-0609 ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0610- ● ● ●
38 01.062 SPACER; FAN 8-98209-524-0 01 1 1210- ●
38 01.062 SPACER; FAN
INDONESIA EQUIPMENT(S4S) 		8-98209-524-0 01 1 1210- ● ●
38 01.062 SPACER; FAN
EXC. TURBOCHARGER<K51> 01.064 		9-13642-078-0 01 1 0211-0501 ●
38 01.062 SPACER; FAN
01.064 		9-13642-078-0 01 1 0502- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0211-0501 ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0502-0609 ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0610-1209 ● ● ●
38 01.062 SPACER; FAN
EXC. INDONESIA EQUIPMENT(S4S) 		8-97108-643-0 01 1 1210-1405 ● ●
38 01.062 SPACER; FAN
EXC. INDONESIA EQUIPMENT(S4S) 		8-97108-643-0 01 1 1406- ●
38 01.062 SPACER; FAN
EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97108-643-0 01 1 1406- ●
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 		8-97249-636-0 01 1 1405- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0211-0501 ● ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0502-0609 ● ●
80 02.317 PLATE; ADJ 8-97080-556-2 01 1 0610- ● ● ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 0211-0305 ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0306-0307 ● ●
80 02.317 PLATE; ADJ
EXC. INDONESIA EQUIPMENT(S4S) 		8-97164-089-2 01 1 0308-0501 ● ●
80 02.317 PLATE; ADJ
EXC. INDONESIA EQUIPMENT(S4S) 		8-97164-089-2 01 1 0502-1003 ●
80 02.317 PLATE; ADJ
EXC. INDONESIA EQUIPMENT(S4S) 		8-97164-089-2 01 1 1004-1405 ● ●
80 02.317 PLATE; ADJ
EXC. INDONESIA EQUIPMENT(S4S) 		8-97164-089-2 01 1 1406- ●
80 02.317 PLATE; ADJ
EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97164-089-2 01 1 1406- ●
80 02.317 PLATE; ADJ
INDONESIA EQUIPMENT(S4S) 		8-97172-415-0 01 1 0308-0501 ● ●
80 02.317 PLATE; ADJ
INDONESIA EQUIPMENT(S4S) 		8-97172-415-0 01 1 0502-0609 ● ●
80 02.317 PLATE; ADJ
INDONESIA EQUIPMENT(S4S) 		8-97172-415-0 01 1 0610- ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0211-0501 ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0502-0605 ● ●
88 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0606-0609 ● ●
88 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0610- ● ● ●
95 02.317 BRACKET; ADJ PLATE 8-97520-907-0 01 1 1506- ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97520-907-0 01 1 1506- ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 0211-0305 ● ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 0308-0501 ● ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 0502-0609 ● ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 0610-1505 ● ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 1506- ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 1506- ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0211-0501 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0502-0512 ● ●
96 02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE 		0-28050-845-0 01 1 0601-0609 ● ●
96 02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE 		0-28050-845-0 01 1 0610- ● ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0211-0501 ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0502-0512 ● ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0609 ● ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0610- ● ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE 		8-97172-720-1 01 1 0211-0501 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE 		8-97172-720-1 01 1 0502-0609 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE 		8-97172-720-1 01 1 0610- ● ● ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27 		9-04110-618-0 04 1 0211-0501 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0211-0501 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0502-0604 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0609 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0610- ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0211-0501 ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0502-0609 ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0610- ● ● ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 0211-0501 ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		5-13660-300-0 01 1 0502- ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 0211-0501 ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 0211-0501 ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 0502- ●
230 01.055 FAN; COOLING 8-97131-664-0 01 1 0211-0501 ●
230 01.055 FAN; COOLING 8-97131-664-1 01 1 0502- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0211-0609 ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0610- ● ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-1 01 1 0610- ●

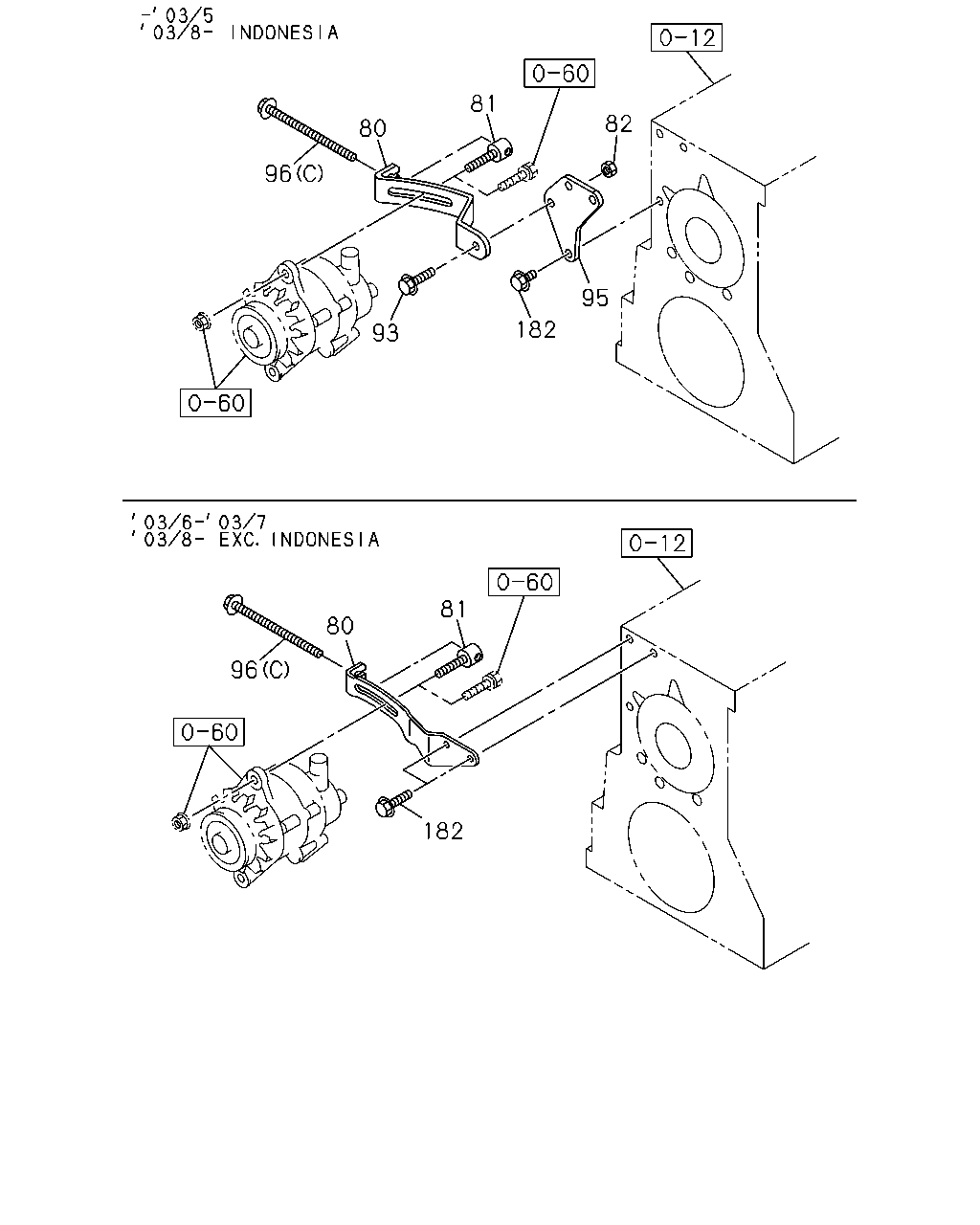

çizim 52258
82 81 80 96 182 93 85 81 80 96 182
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 		8-97249-636-0 01 1 1405- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0211-0501 ● ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0502-0609 ● ●
80 02.317 PLATE; ADJ 8-97080-556-2 01 1 0610- ● ● ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 0211-0305 ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0306-0307 ● ●
80 02.317 PLATE; ADJ
EXC. INDONESIA EQUIPMENT(S4S) 		8-97164-089-2 01 1 0308-0501 ● ●
80 02.317 PLATE; ADJ
EXC. INDONESIA EQUIPMENT(S4S) 		8-97164-089-2 01 1 0502-1003 ●
80 02.317 PLATE; ADJ
EXC. INDONESIA EQUIPMENT(S4S) 		8-97164-089-2 01 1 1004-1405 ● ●
80 02.317 PLATE; ADJ
EXC. INDONESIA EQUIPMENT(S4S) 		8-97164-089-2 01 1 1406- ●
80 02.317 PLATE; ADJ
EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97164-089-2 01 1 1406- ●
80 02.317 PLATE; ADJ
INDONESIA EQUIPMENT(S4S) 		8-97172-415-0 01 1 0308-0501 ● ●
80 02.317 PLATE; ADJ
INDONESIA EQUIPMENT(S4S) 		8-97172-415-0 01 1 0502-0609 ● ●
80 02.317 PLATE; ADJ
INDONESIA EQUIPMENT(S4S) 		8-97172-415-0 01 1 0610- ● ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0211-0501 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0502-0609 ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0610- ● ● ●
82 02.317 NUT; ADJ PLATE 8-97695-684-0 01 1 1506- ●
82 02.317 NUT; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97695-684-0 01 1 1506- ● ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0305 ● ●
93 02.317 BOLT; ADJ PLATE BRKT
INDONESIA EQUIPMENT(S4S) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0308-0501 ● ●
93 02.317 BOLT; ADJ PLATE BRKT
INDONESIA EQUIPMENT(S4S) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ● ●
93 02.317 BOLT; ADJ PLATE BRKT
INDONESIA EQUIPMENT(S4S) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-0609 ● ●
93 02.317 BOLT; ADJ PLATE BRKT
INDONESIA EQUIPMENT(S4S) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0610- ● ● ●
95 02.317 BRACKET; ADJ PLATE 8-97520-907-0 01 1 1506- ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97520-907-0 01 1 1506- ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 0211-0305 ● ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 0308-0501 ● ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 0502-0609 ● ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 0610-1505 ● ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 1506- ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 1506- ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0211-0501 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0502-0512 ● ●
96 02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE 		0-28050-845-0 01 1 0601-0609 ● ●
96 02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE 		0-28050-845-0 01 1 0610- ● ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0211-0501 ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0502-0512 ● ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0609 ● ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0610- ● ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE 		8-97172-720-1 01 1 0211-0501 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE 		8-97172-720-1 01 1 0502-0609 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (C) M8X130 FLANGE 		8-97172-720-1 01 1 0610- ● ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0211-0305 ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0306-0307 ● ●
182 01.062 BOLT; BRKT
INDONESIA EQUIPMENT(S4S) 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0308-0501 ● ●
182 01.062 BOLT; BRKT
INDONESIA EQUIPMENT(S4S) 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0502-0512 ● ●
182 01.062 BOLT; BRKT
INDONESIA EQUIPMENT(S4S) 01.060 M8X35 FLANGE 		0-28650-835-0 03 1 0601-0609 ● ●
182 01.062 BOLT; BRKT
INDONESIA EQUIPMENT(S4S) 01.060 M8X35 FLANGE 		0-28650-835-0 03 1 0610- ● ● ●
182 01.062 BOLT; BRKT
EXC. INDONESIA EQUIPMENT(S4S) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0308-0501 ● ●
182 01.062 BOLT; BRKT
EXC. INDONESIA EQUIPMENT(S4S) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0502-0512 ●
182 01.062 BOLT; BRKT
EXC. INDONESIA EQUIPMENT(S4S) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601-1003 ●
182 01.062 BOLT; BRKT
EXC. INDONESIA EQUIPMENT(S4S) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1004-1405 ● ●
182 01.062 BOLT; BRKT
EXC. INDONESIA EQUIPMENT(S4S) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1406- ●
182 01.062 BOLT; BRKT
EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 1406- ●

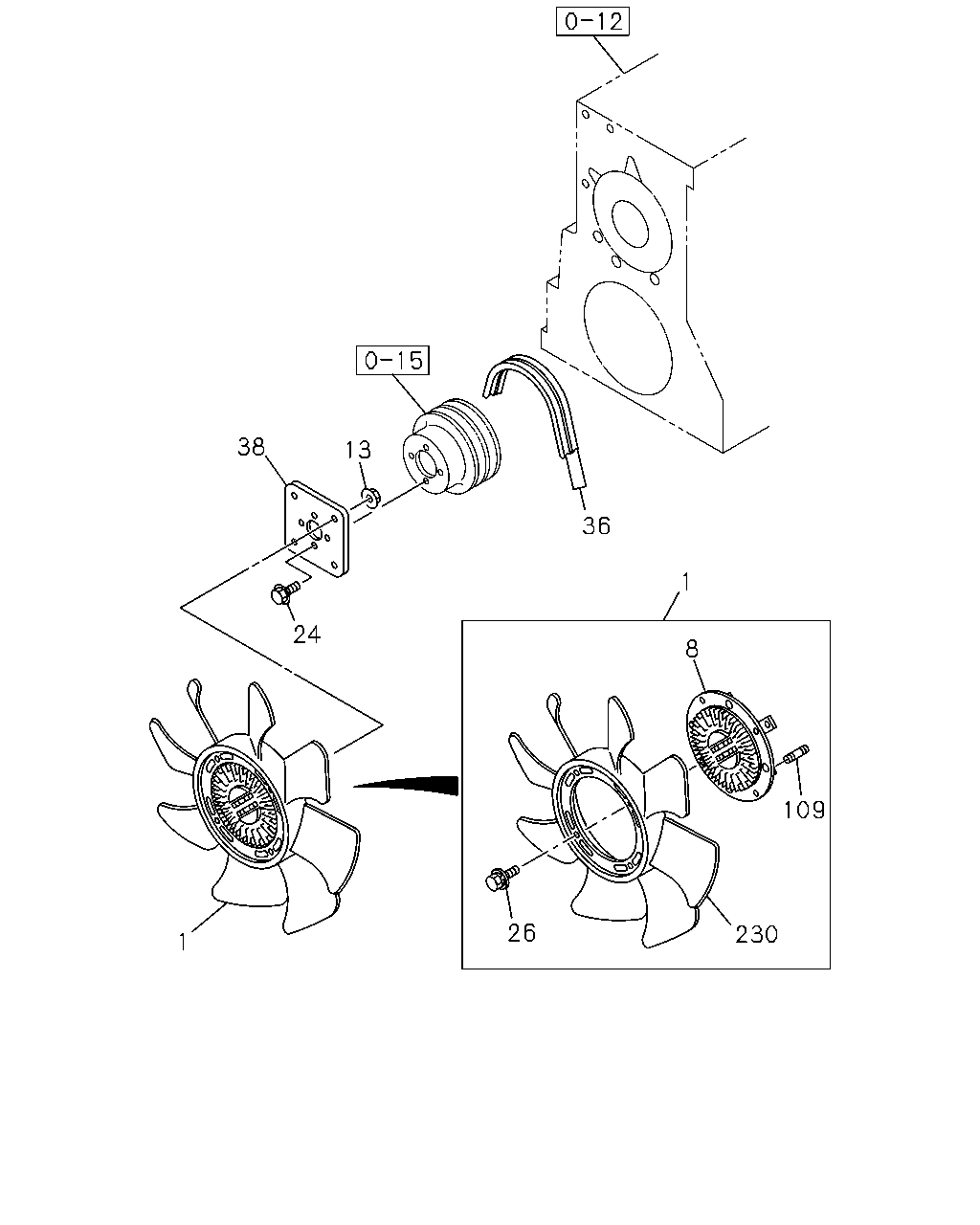

çizim 53242
38 13 36 1 24 8 109 26 230 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 0211-0501 ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=390 		8-94239-651-0 01 1 0502- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390 		5-13660-285-0 01 1 0211-0501 ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> OD=390 		5-13660-285-0 01 1 0502- ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-1 01 1 0211-0501 ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 0211-0501 ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 0502- ●
1 01.064 FAN; COOLING 8-97128-531-1 01 1 0211-0501 ●
1 01.064 FAN; COOLING 8-97128-531-2 01 1 0502- ●
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 0211-0609 ●
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 0610- ● ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-2 01 1 0610- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 		8-94244-409-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-94244-409-0 01 1 0502- ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 0502- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0211-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0502- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0211-0609 ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0610- ● ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 0610- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 0211-0501 ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0211-0501 ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0502-0609 ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0610- ● ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ● ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ● ●
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ● ●
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 0610- ● ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0211-0501 ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0502-0609 ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0610- ● ● ●
26 01.062 BOLT; FAN TO CLU
TURBOCHARGER<K51> 		8-94389-764-0 04 1 0211-0501 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0211-0501 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0502-0609 ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0610-0712 ● ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0801- ● ● ● ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0609 ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0610- ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0211-0501 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0502-0609 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0610- ● ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0211-0501 ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0502-0609 ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0610- ● ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0211-0501 ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0502-0609 ● ●
36 01.066 BELT; COOLING FAN
BEST VALUE PARTS 		5-87610-098-0 01 1 0610- ● ● ●
38 01.062 SPACER; FAN 8-98209-524-0 01 1 1210- ●
38 01.062 SPACER; FAN
INDONESIA EQUIPMENT(S4S) 		8-98209-524-0 01 1 1210- ● ●
38 01.062 SPACER; FAN
EXC. TURBOCHARGER<K51> 01.064 		9-13642-078-0 01 1 0211-0501 ●
38 01.062 SPACER; FAN
01.064 		9-13642-078-0 01 1 0502- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0211-0501 ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0502-0609 ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0610-1209 ● ● ●
38 01.062 SPACER; FAN
EXC. INDONESIA EQUIPMENT(S4S) 		8-97108-643-0 01 1 1210-1405 ● ●
38 01.062 SPACER; FAN
EXC. INDONESIA EQUIPMENT(S4S) 		8-97108-643-0 01 1 1406- ●
38 01.062 SPACER; FAN
EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97108-643-0 01 1 1406- ●
95 02.317 BRACKET; ADJ PLATE 8-97520-907-0 01 1 1506- ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97520-907-0 01 1 1506- ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 0211-0305 ● ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 0308-0501 ● ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 0502-0609 ● ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 0610-1505 ● ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 1506- ●
95 02.317 BRACKET; ADJ PLATE
INDONESIA EQUIPMENT(S4S) 		8-97037-510-0 01 1 1506- ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27 		9-04110-618-0 04 1 0211-0501 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0211-0501 ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0502-0604 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0609 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0610- ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0211-0501 ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0502-0609 ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0610- ● ● ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 0211-0501 ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		5-13660-300-0 01 1 0502- ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 0211-0501 ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 0211-0501 ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 0502- ●
230 01.055 FAN; COOLING 8-97131-664-0 01 1 0211-0501 ●
230 01.055 FAN; COOLING 8-97131-664-1 01 1 0502- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0211-0609 ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0610- ● ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-1 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
