◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#46134) — 42 parça

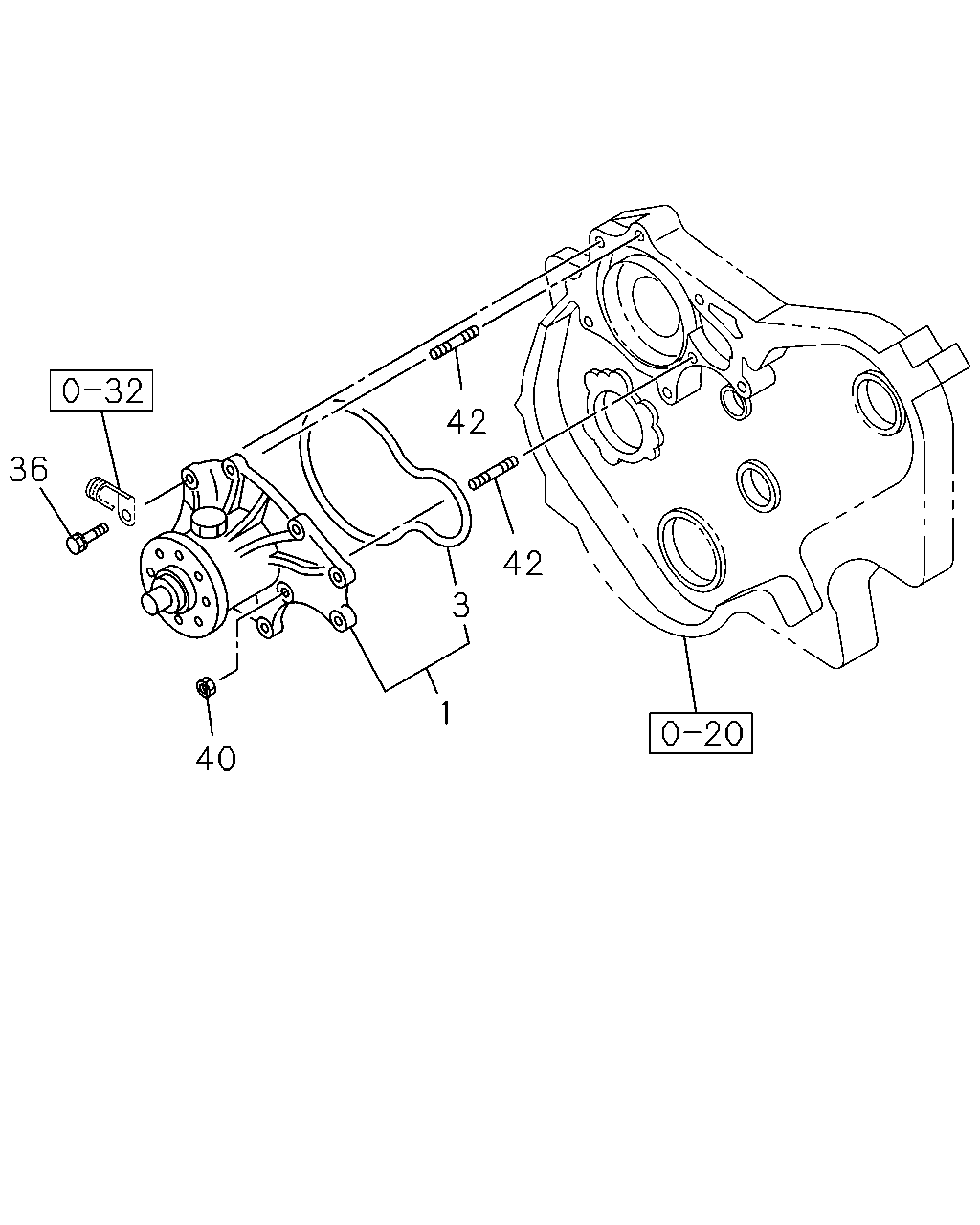

çizim 52123
42 36 42 3 1 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.069 PUMP ASM; WATER,W/GASKET 8-97105-012-3 01 1 0211-0501 ● ●
1 01.069 PUMP ASM; WATER,W/GASKET 8-97105-012-3 01 1 0502-0609 ● ●
1 01.069 PUMP ASM; WATER,W/GASKET 8-97105-012-5 01 1 0610- ● ● ●
1 01.069 PUMP ASM; WATER,W/GASKET
BEST VALUE PARTS 		5-87610-088-0 01 1 0610- ● ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94178-081-0 02 1 0502-0609 ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94178-081-0 02 1 0610- ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94178-081-0 01 1 0211-0501 ● ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94178-081-1 01 1 0502- ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 0211-0501 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 0502-0609 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 0610- ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0211-0501 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0502-0512 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
00.685 M8X40 FLANGE 		0-28650-840-0 06 1 0601-0609 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
00.685 M8X40 FLANGE 		0-28650-840-0 06 1 0610- ● ● ●
40 07.874 NUT; WATER PUMP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ●
40 07.874 NUT; WATER PUMP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ● ● ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ● ● ● ●
42 01.073 STUD; WATER PUMP
09.173 M8X22 L=34 		9-04110-822-0 02 1 0211-0501 ● ●
42 01.073 STUD; WATER PUMP
09.173 M8X22 L=34 		9-04110-822-0 02 1 0502-0604 ● ●
42 01.073 STUD; WATER PUMP
M8X22 L=34 		0-41010-822-0 02 1 0605-0609 ● ●
42 01.073 STUD; WATER PUMP
M8X22 L=34 		0-41010-822-0 02 1 0610- ● ● ●
çizim 52568
40 36 2 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 01.069 PUMP ASM; WATER
ANTI EROSION SPEC<7XK> 		8-97212-675-2 01 1 0812- ●
2 01.069 PUMP ASM; WATER 8-97333-361-0 01 1 0211-0501 ● ●
2 01.069 PUMP ASM; WATER 8-97333-361-0 01 1 0502-0609 ● ●
2 01.069 PUMP ASM; WATER 8-97333-361-0 01 1 0610-0811 ● ● ●
2 01.069 PUMP ASM; WATER 8-97333-361-1 01 1 0812-1510 ● ●
2 01.069 PUMP ASM; WATER
EXC. ANTI EROSION SPEC<7XK> 		8-97333-361-1 01 1 0812-1510 ●
2 01.069 PUMP ASM; WATER 8-98329-116-0 01 1 1511- ● ●
2 01.069 PUMP ASM; WATER
EXC. ANTI EROSION SPEC<7XK> 		8-98329-116-0 01 1 1511- ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 0211-0501 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 0502-0609 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 0610- ● ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0211-0501 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0502-0512 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
00.685 M8X40 FLANGE 		0-28650-840-0 06 1 0601-0609 ● ●
36 00.386 BOLT; WATER PUMP TO C/BL
00.685 M8X40 FLANGE 		0-28650-840-0 06 1 0610- ● ● ●
40 07.874 NUT; WATER PUMP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ●
40 07.874 NUT; WATER PUMP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ● ● ●
40 07.874 NUT; WATER PUMP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ● ● ● ●
