◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶
0-27 — EXHAUST MANIFOLD (#46132) — 259 parça

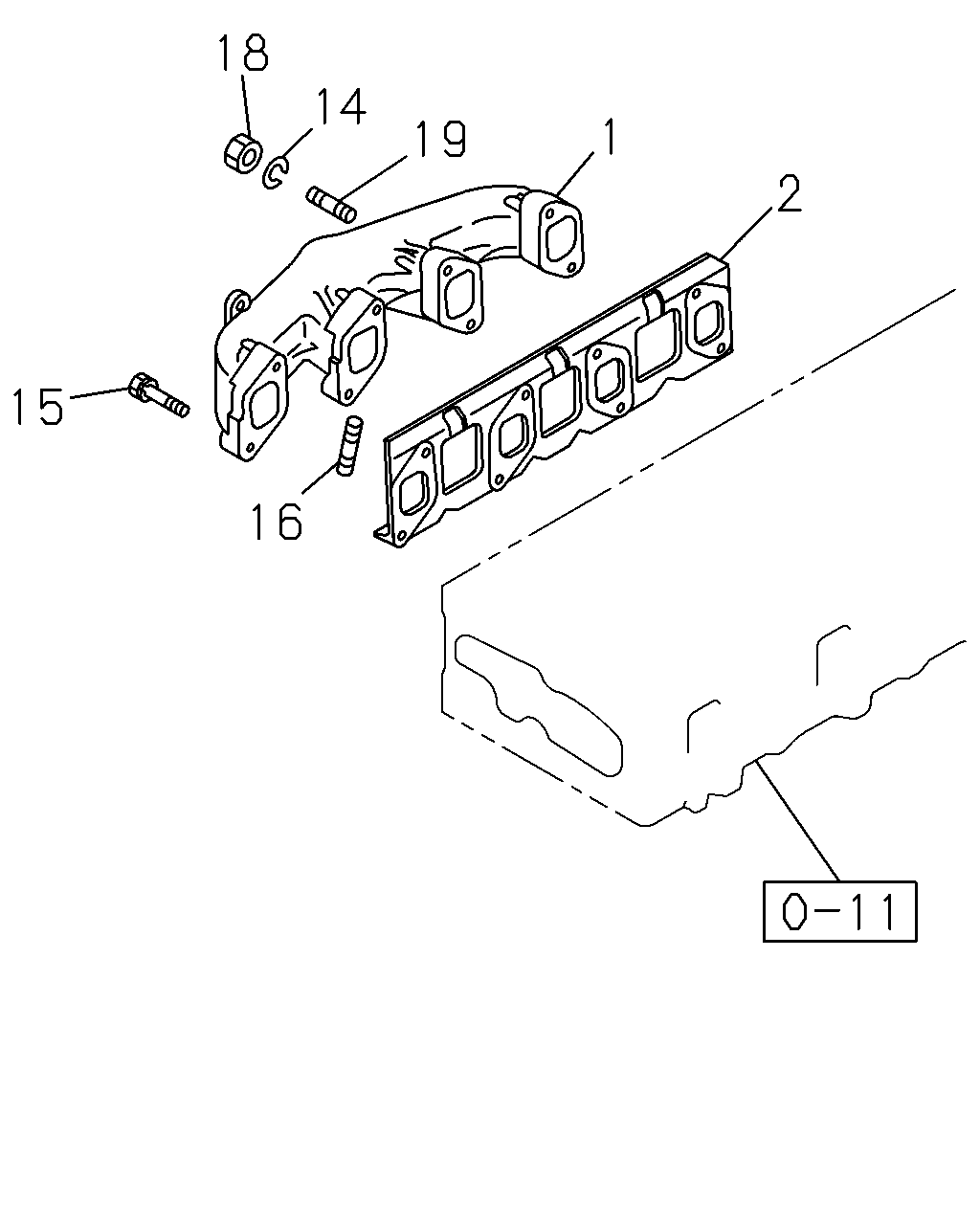

çizim 12304
18 14 1 19 2 15 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> 		8-97176-075-0 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 0502- ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 0211-0501 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-1 01 1 0502- ● ●
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0502- ●
1 03.601 MANIFOLD; EXHAUST 8-97217-908-0 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98210-152-0 01 1 1212- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INDONESIA EQUIPMENT(S4S) 		8-98210-152-0 01 1 1212- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0211-0501 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0502-0609 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-2 01 1 0610- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0211-0501 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0502-0609 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-2 01 1 0610-1211 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-499-2 01 1 1212-1405 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-499-2 01 1 1406- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97146-499-2 01 1 1406- ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0211-0501 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0502-0609 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0610- ● ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0211-0501 ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0502-0609 ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0610- ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0211-0501 ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0502-0609 ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0610- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 0211-0501 ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 0502- ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 0211-0501 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 0502- ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0211-0501 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0502-0602 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0211-0501 ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0502-0512 ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0601-0609 ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0610- ● ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 0211-0408 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0409-0501 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0502-0609 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0610- ● ● ●

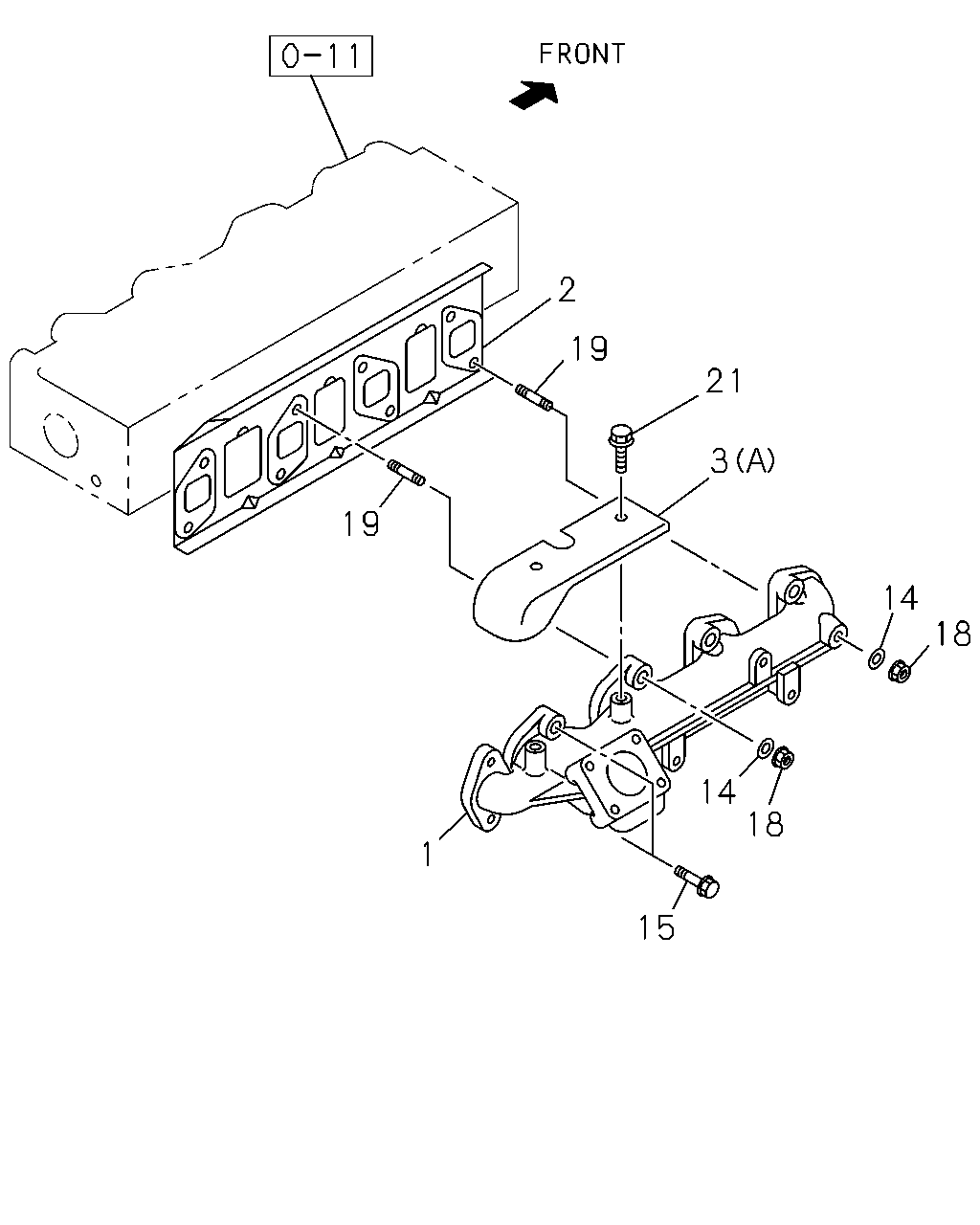

çizim 13493
2 19 21 3 19 14 18 14 18 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> 		8-97176-075-0 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 0502- ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 0211-0501 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-1 01 1 0502- ● ●
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0502- ●
1 03.601 MANIFOLD; EXHAUST 8-97217-908-0 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98210-152-0 01 1 1212- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INDONESIA EQUIPMENT(S4S) 		8-98210-152-0 01 1 1212- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0211-0501 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0502-0609 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-2 01 1 0610- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0211-0501 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0502-0609 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-2 01 1 0610-1211 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-499-2 01 1 1212-1405 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-499-2 01 1 1406- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97146-499-2 01 1 1406- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97176-085-2 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97096-424-1 01 1 0211-0501 ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97096-424-1 01 1 0502- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97259-171-1 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97259-171-1 01 1 0502- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97214-580-0 01 1 0610- ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0211-0501 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0502-0609 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0610- ● ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0211-0501 ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0502-0609 ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0610- ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0211-0501 ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0502-0609 ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0610- ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0211-0501 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0502-0602 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0211-0501 ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0502-0512 ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0601-0609 ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0610- ● ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 0211-0408 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0409-0501 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0502-0609 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0610- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0211-0501 ● ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0502- ● ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0502-0512 ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●

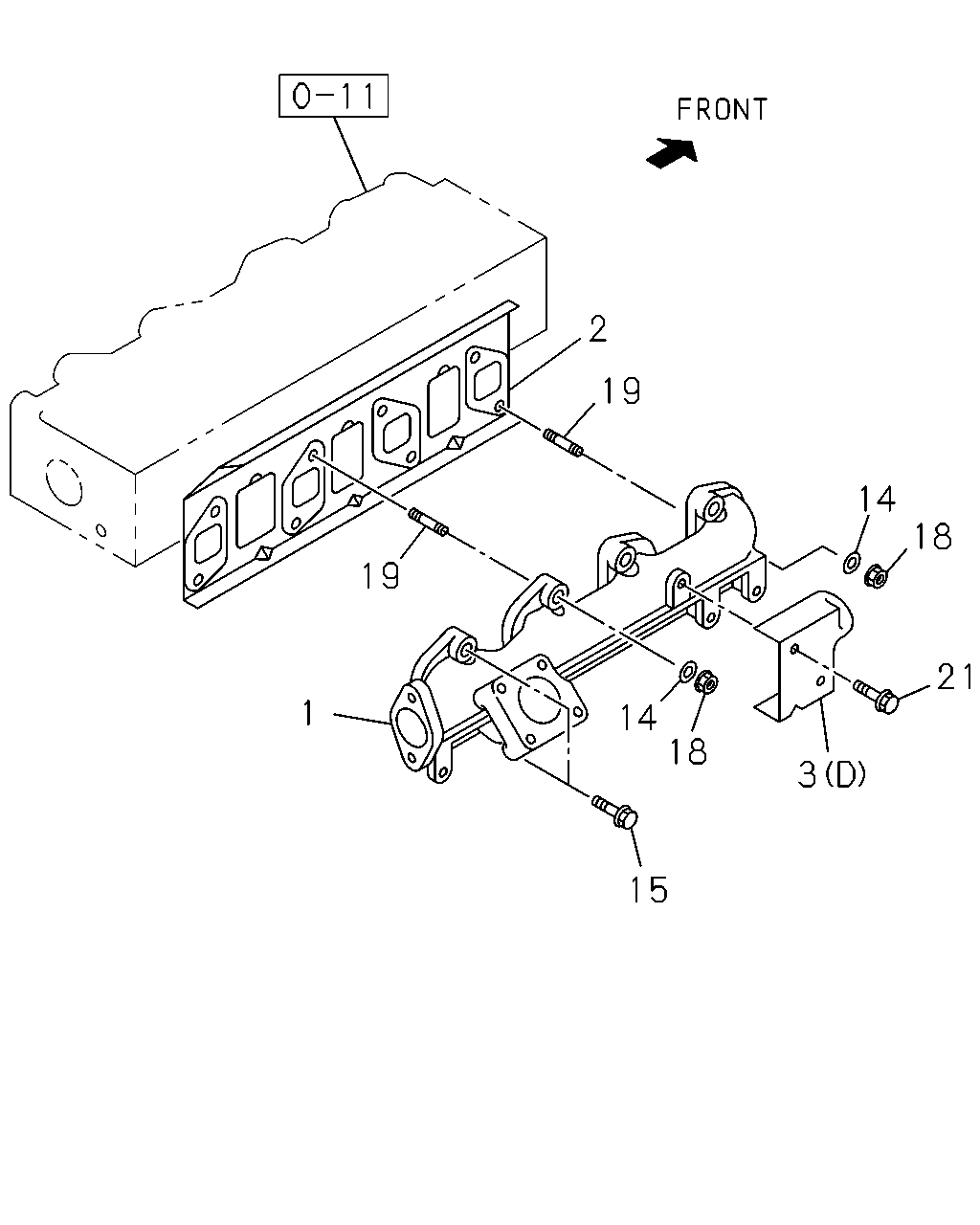

çizim 53425
2 19 14 18 19 21 1 14 18 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> 		8-97176-075-0 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 0502- ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 0211-0501 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-1 01 1 0502- ● ●
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0502- ●
1 03.601 MANIFOLD; EXHAUST 8-97217-908-0 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98210-152-0 01 1 1212- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INDONESIA EQUIPMENT(S4S) 		8-98210-152-0 01 1 1212- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0211-0501 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0502-0609 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-2 01 1 0610- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0211-0501 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0502-0609 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-2 01 1 0610-1211 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-499-2 01 1 1212-1405 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-499-2 01 1 1406- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97146-499-2 01 1 1406- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97176-085-2 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97096-424-1 01 1 0211-0501 ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97096-424-1 01 1 0502- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97259-171-1 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97259-171-1 01 1 0502- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97214-580-0 01 1 0610- ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0211-0501 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0502-0609 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0610- ● ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0211-0501 ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0502-0609 ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0610- ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0211-0501 ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0502-0609 ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0610- ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0211-0501 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0502-0602 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0211-0501 ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0502-0512 ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0601-0609 ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0610- ● ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 0211-0408 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0409-0501 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0502-0609 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0610- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0211-0501 ● ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0502- ● ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0502-0512 ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●

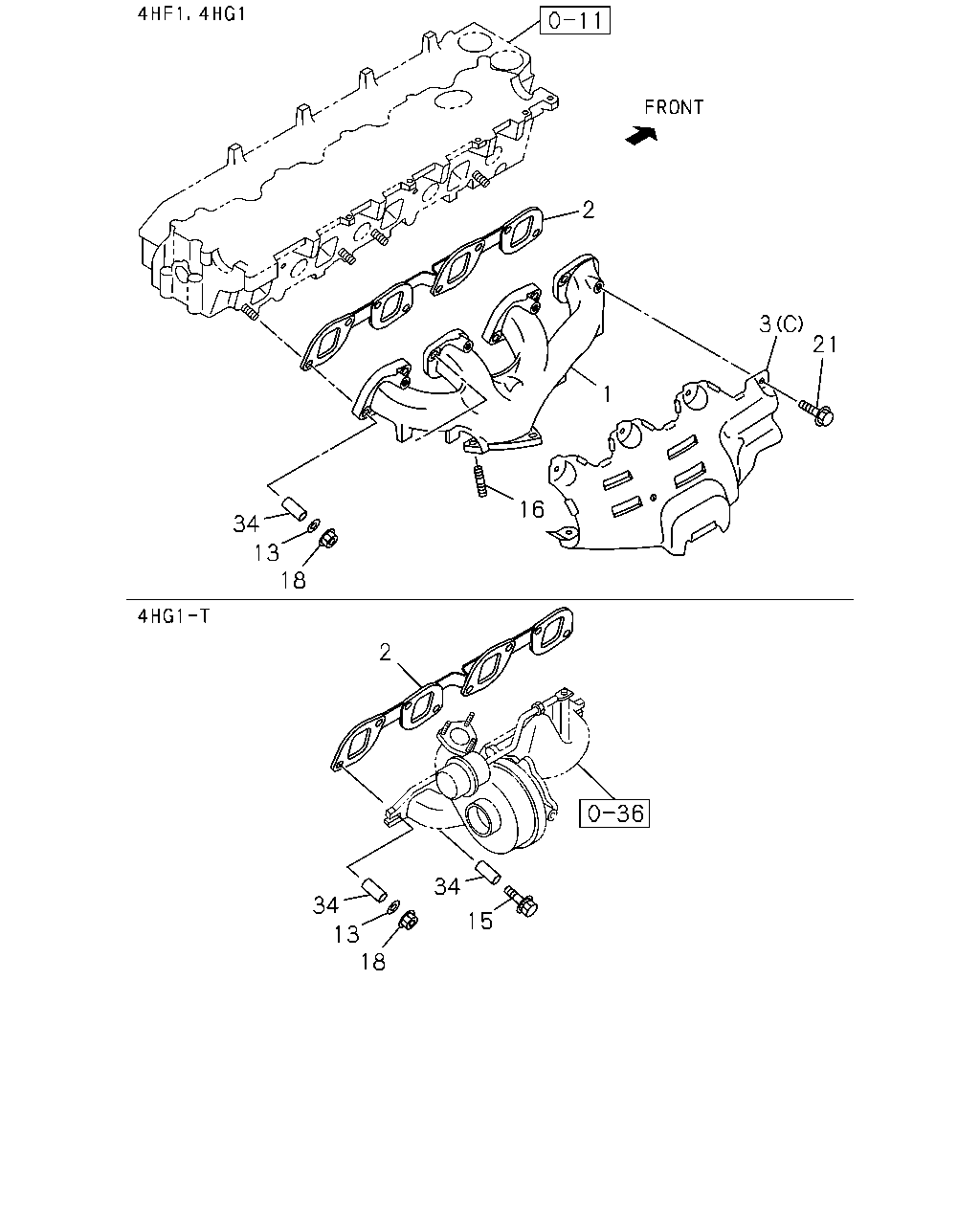

çizim 53443
2 3 21 1 16 34 13 18 2 34 34 15 13 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> 		8-97176-075-0 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 0502- ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 0211-0501 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-1 01 1 0502- ● ●
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0502- ●
1 03.601 MANIFOLD; EXHAUST 8-97217-908-0 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98210-152-0 01 1 1212- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INDONESIA EQUIPMENT(S4S) 		8-98210-152-0 01 1 1212- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0211-0501 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0502-0609 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-2 01 1 0610- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0211-0501 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0502-0609 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-2 01 1 0610-1211 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-499-2 01 1 1212-1405 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-499-2 01 1 1406- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97146-499-2 01 1 1406- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97176-085-2 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97096-424-1 01 1 0211-0501 ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97096-424-1 01 1 0502- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97259-171-1 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97259-171-1 01 1 0502- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97214-580-0 01 1 0610- ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0211-0501 ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0502-0609 ● ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 0610- ● ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0211-0501 ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0502-0609 ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0610- ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0211-0501 ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0502-0609 ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0610- ● ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 0211-0501 ●
16 03.604 STUD; EXH PIPE TO MANIF
03.613 M10X45 L=60 PLATING 		5-09302-008-1 04 1 0502- ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 0211-0501 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
M10X38 L=53 		8-97077-549-0 03 1 0502- ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0211-0501 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0502-0602 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0211-0501 ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0502-0512 ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0601-0609 ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0610- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0211-0501 ● ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0502- ● ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0502-0512 ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0211-0501 ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0502-0609 ● ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 0610- ● ● ●

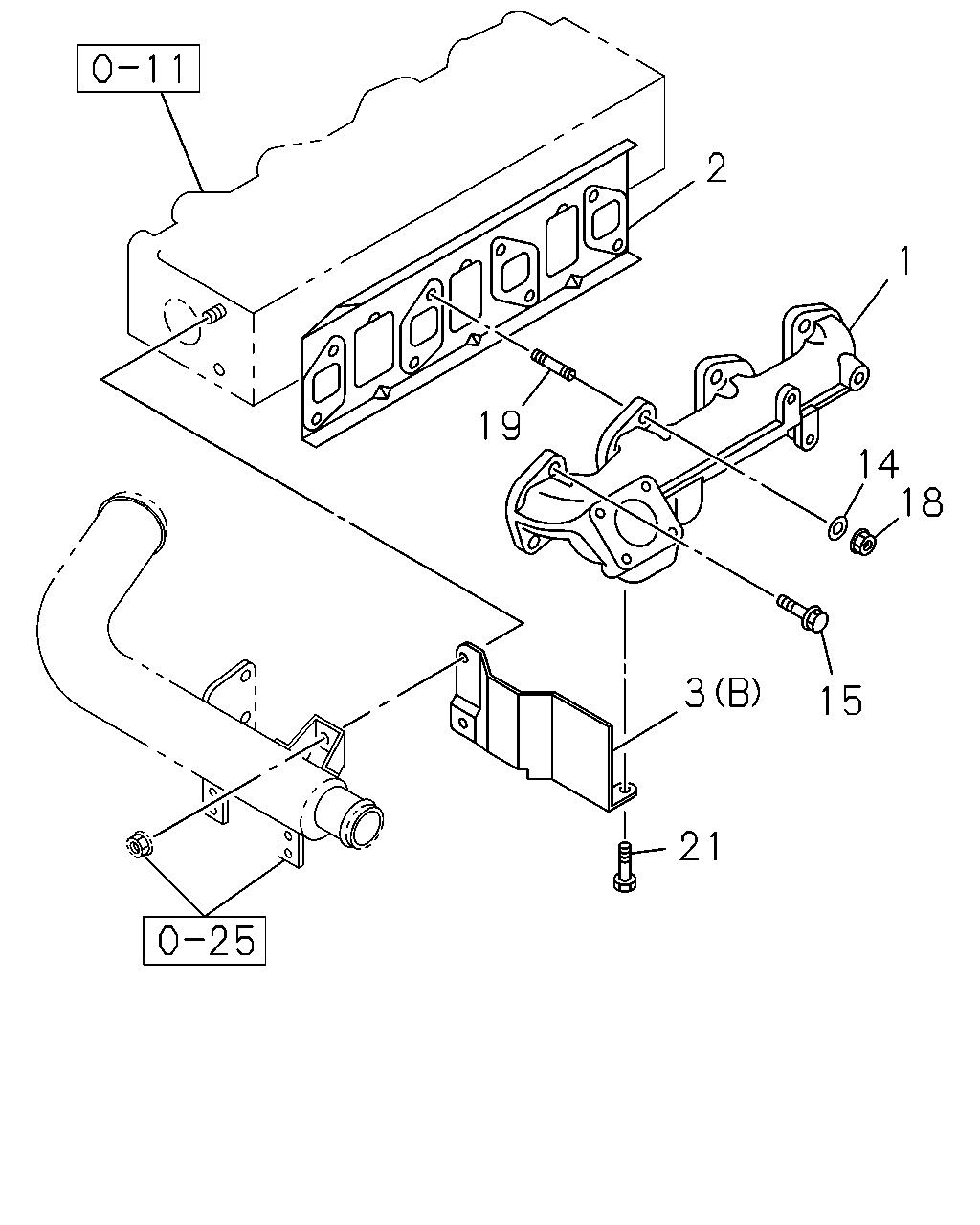

çizim 54793
2 1 19 14 18 3 15 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> 		8-97176-075-0 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97065-960-1 01 1 0502- ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-0 01 1 0211-0501 ● ●
1 03.601 MANIFOLD; EXHAUST 8-97163-079-1 01 1 0502- ● ●
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0211-0501 ●
1 03.601 MANIFOLD; EXHAUST 8-97288-575-3 01 1 0502- ●
1 03.601 MANIFOLD; EXHAUST 8-97217-908-0 01 1 0610- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98210-152-0 01 1 1212- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INDONESIA EQUIPMENT(S4S) 		8-98210-152-0 01 1 1212- ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0211-0501 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-0 01 1 0502-0609 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-2 01 1 0610- ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0211-0501 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-0 01 1 0502-0609 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97146-499-2 01 1 0610-1211 ● ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-499-2 01 1 1212-1405 ● ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-499-2 01 1 1406- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 		8-97146-499-2 01 1 1406- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97176-085-2 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97096-424-1 01 1 0211-0501 ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(C) 		8-97096-424-1 01 1 0502- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97259-171-1 01 1 0211-0501 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97259-171-1 01 1 0502- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97214-580-0 01 1 0610- ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0211-0501 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0502-0609 ● ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0610- ● ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0211-0501 ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0502-0609 ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0610- ● ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0211-0501 ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0502-0609 ● ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 0610- ● ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0211-0501 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 0502-0602 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0603-0609 ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610- ● ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0211-0501 ● ●
18 03.604 NUT; EXH MANIF
00.002 M10 		9-09110-510-0 02 1 0502-0512 ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0601-0609 ● ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 0610- ● ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 0211-0408 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0409-0501 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0502-0609 ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0610- ● ● ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0211-0501 ● ●
21 03.604 BOLT; HEAT PROTECTOR
M6X12 FLANGE 		8-97108-669-0 08 1 0502- ● ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0502-0512 ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
