◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#46131) — 784 parça

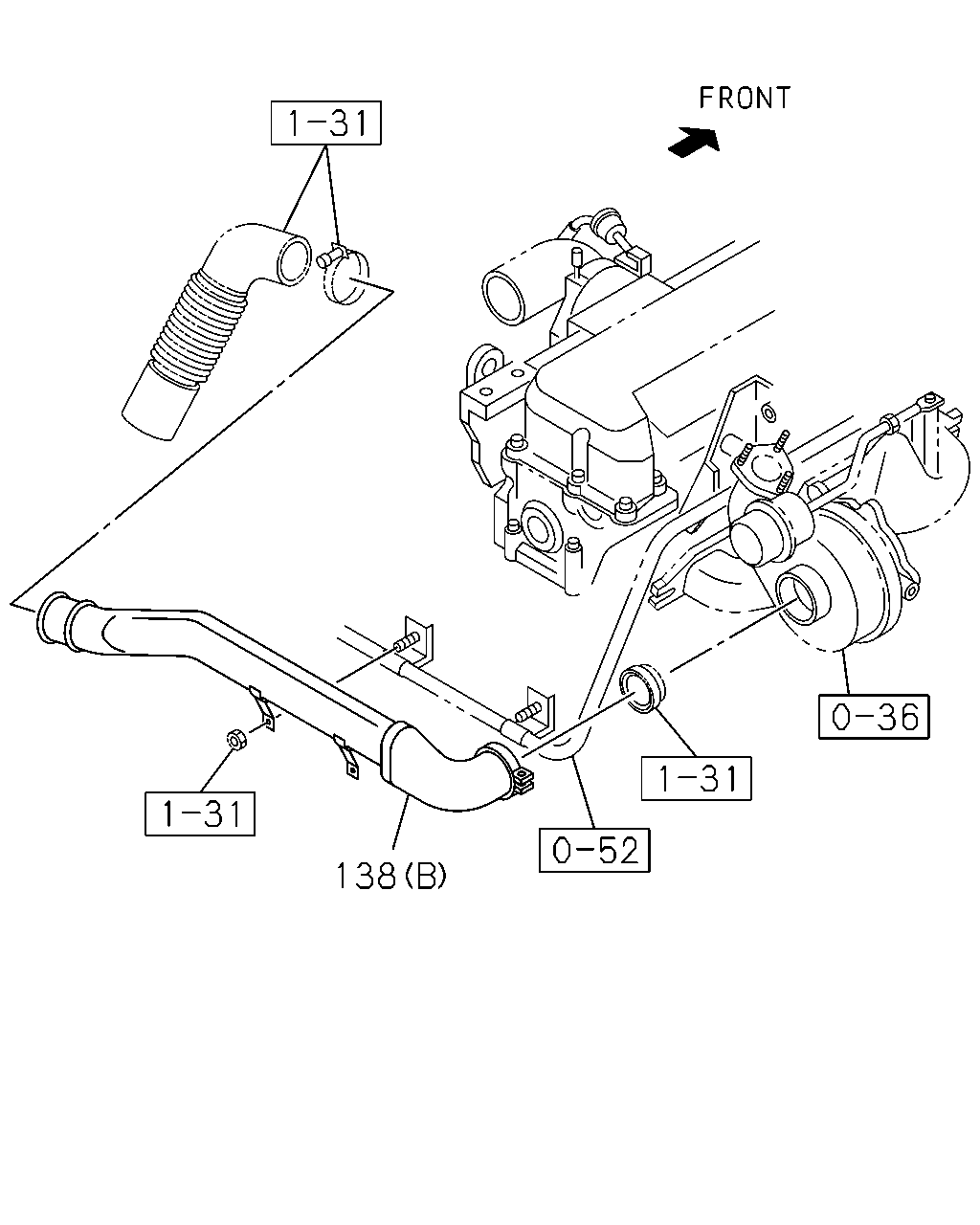

çizim 10318
138
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
138 03.265 PIPE; INL
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (C) 		8-98170-481-1 01 1 1107- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 (C) 		8-94417-173-1 01 1 0211-0501 ●
138 03.265 PIPE; INL
03.417 (C) 		8-94417-173-1 01 1 0502-1106 ●
138 03.265 PIPE; INL
IDENTIFICATION LABEL FOR KD<6UT> 03.417 (C) 		8-94417-173-1 01 1 1107- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-1 01 1 0211-0501 ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-1 01 1 0502-0609 ● ●
138 03.265 PIPE; INL
(A) 		8-97180-566-2 01 1 0610-0811 ● ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-2 01 1 0812-1405 ● ● ●
138 03.265 PIPE; INL
(A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
VIN MODEL YEAR 2015(VZF) (A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
(B) 		8-97178-748-3 01 1 0610-1404 ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) 		8-97178-748-3 01 1 1405- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. MINI BUS CHASSIS(V4B) (B) 		8-97178-748-3 01 1 1405- ●

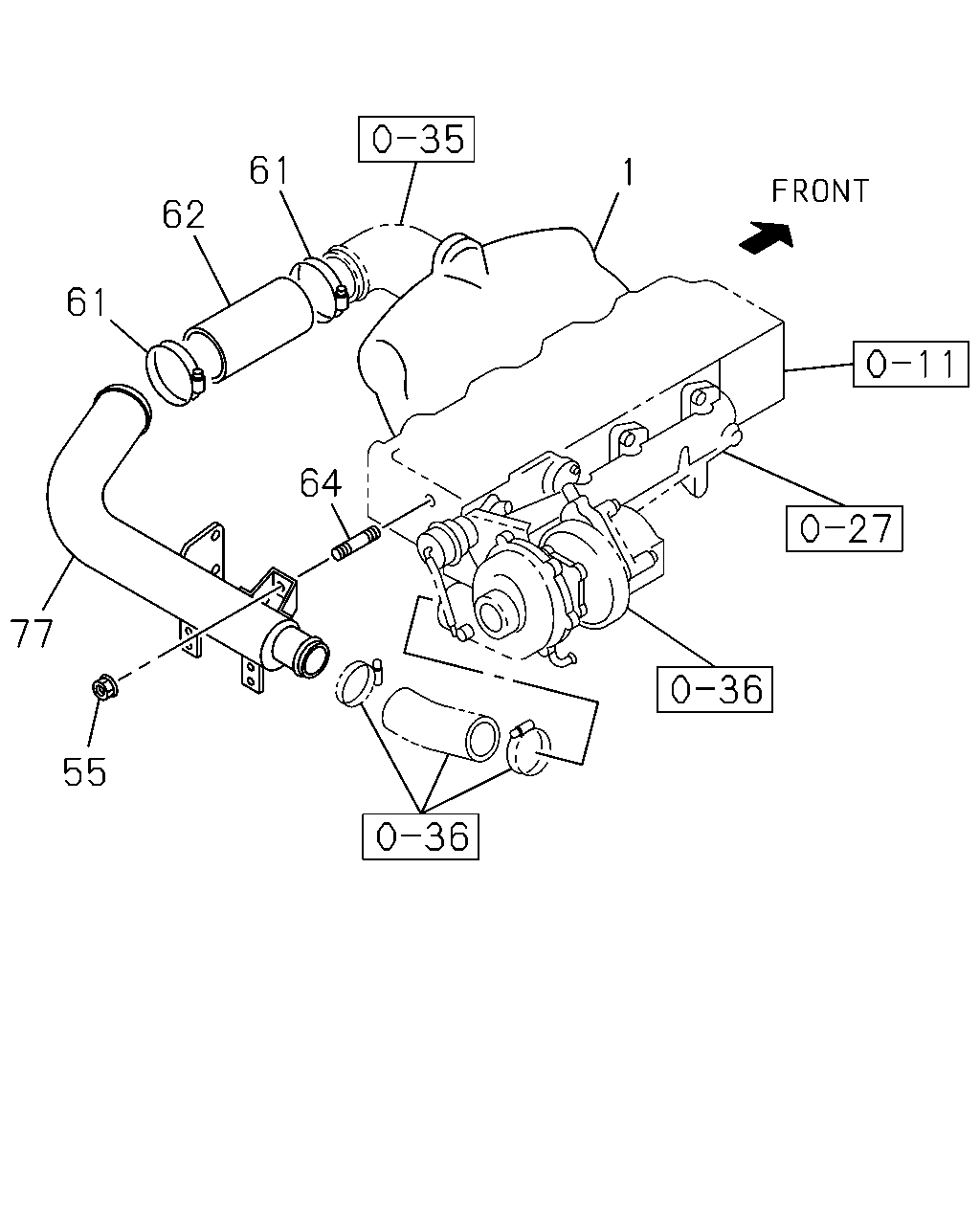

çizim 11157
61 1 62 61 64 77 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 0211- ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0211-0501 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0502-0609 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0610- ● ●
55 03.407 NUT; INL PIPE
TURBOCHARGER<K51> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
55 03.407 NUT; INL PIPE
01.540 M6 FLANGE 		0-91180-206-0 03 1 0610- ●
61 03.273 CLIP; CONNECTOR HOSE
TURBOCHARGER<K51> 03.417 ID=58-79 		8-94126-771-0 02 1 0211-0403 ●
61 03.273 CLIP; CONNECTOR HOSE
TURBOCHARGER<K51> 01.159 ID=58-76 		1-09707-203-0 02 1 0404-0501 ●
62 03.265 HOSE; CONNECTOR
TURBOCHARGER<K51> 		8-97176-147-0 01 1 0211-0501 ●
64 03.275 STUD; INL PIPE
TURBOCHARGER<K51> 03.417 M8X14 L=26 		9-04110-814-0 01 1 0211-0501 ●
77 03.265 PIPE; INL,INT SHUTTER TO INL MAN
TURBOCHARGER<K51> 		8-97176-076-0 01 1 0211-0501 ●

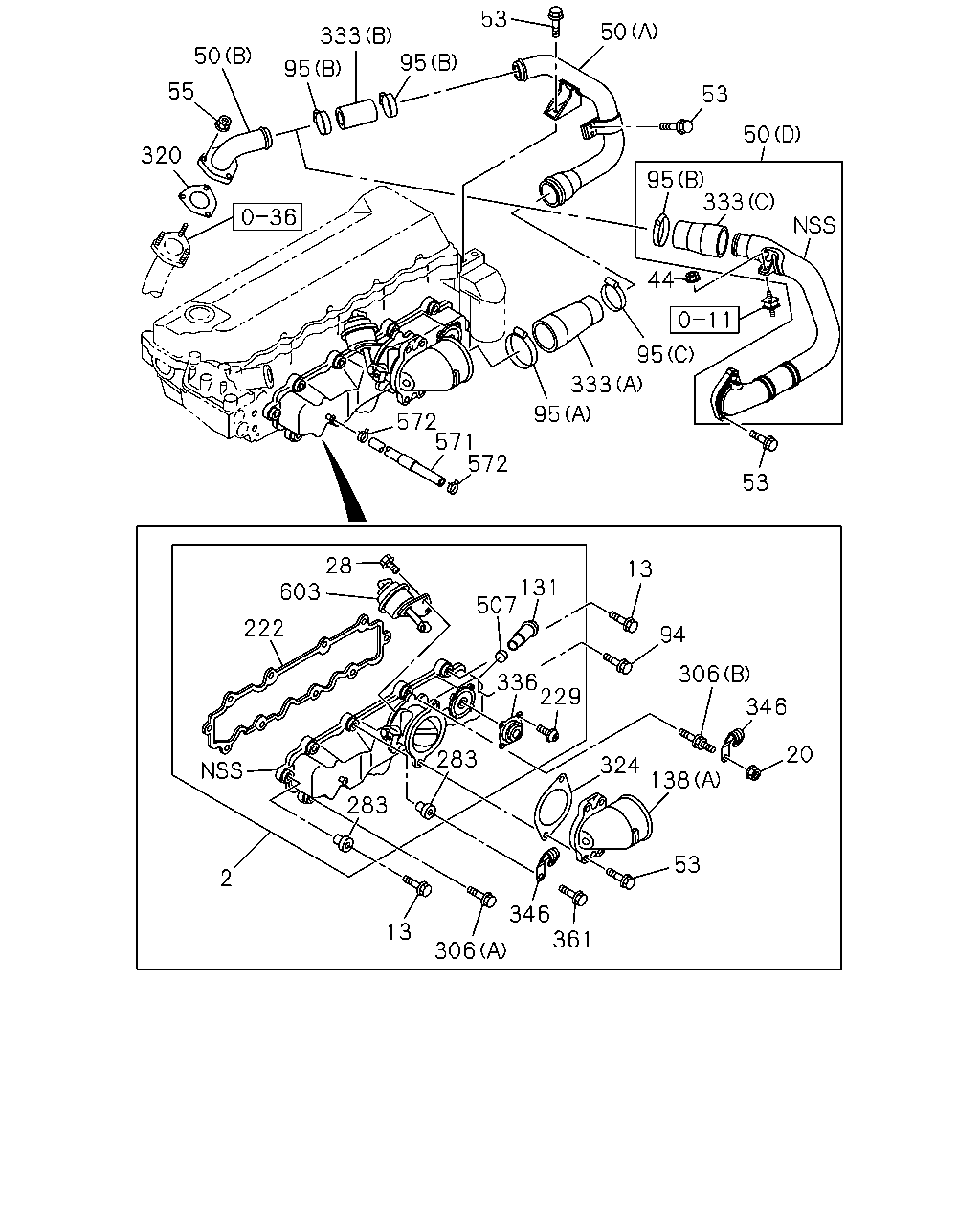

çizim 11477
333 53 50 53 50 95 333 44 95 333 95 53 572 571 572 28 603 222 131 507 336 229 13 94 306 346 20 138 324 283 283 2 13 306 361 346 53 50 55 320 95 95
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-97222-239-0 01 1 0812-1310 ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-98245-386-0 01 1 1311- ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8> 		8-97146-864-2 01 1 0211-0501 ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8> 		8-97146-864-2 01 1 0502-1310 ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8> 		8-98245-382-0 01 1 1311- ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 		8-97146-866-2 01 1 0211-0501 ● ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> 		8-97146-866-2 01 1 0502-1310 ● ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> 		8-98245-383-0 01 1 1311-1404 ● ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 		8-98245-383-0 01 1 1405-1409 ● ●
2 03.407 COVER; INL 8-97212-454-3 01 1 1410- ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-97222-239-0 01 1 0211-0501 ● ●
2 03.407 COVER; INL 8-97212-454-2 01 1 0610-1404 ●
2 03.407 COVER; INL
EXC. VIN MODEL YEAR 2014(VZE) 		8-97212-454-2 01 1 1405-1405 ●
2 03.407 COVER; INL
EXC. VIN MODEL YEAR 2015(VZF) 		8-97212-454-2 01 1 1406-1409 ●
2 03.407 COVER; INL 8-98245-383-0 01 1 1410- ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 		8-98245-383-0 01 1 1410- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 0211-0512 ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 06 1 0601- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 0211-0501 ● ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 0502-0512 ● ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 08 1 0601- ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0211-0501 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0502-0512 ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 04 1 0601- ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0211-0501 ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0502-0512 ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0601- ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 07 1 0610- ●
13 03.275 BOLT; INL MANIF
M8X52 L=68 		8-97118-455-0 01 1 0610-0701 ●
13 03.275 BOLT; INL MANIF
M8X52 L=68 		8-98048-395-0 01 1 0702- ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 05 1 0610- ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 01 1 0610- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0502-0609 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ● ● ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ● ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ●
28 03.278 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ● ●
28 03.278 BOLT; CHAMBER
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0502-0512 ● ●
28 03.278 BOLT; CHAMBER
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0601-0609 ● ●
28 03.278 BOLT; CHAMBER
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0610-0811 ● ● ●
28 03.278 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0812-1405 ● ● ●
28 03.278 BOLT; CHAMBER
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1406- ● ●
28 03.278 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1406- ●
44 03.407 NUT; PIPE BRKT
EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1406- ●
50 03.265 PIPE; INL
VIN MODEL YEAR 2014(VZE) (B) 		8-98261-643-0 01 1 1405-1405 ●
50 03.265 PIPE; INL
VIN MODEL YEAR 2015(VZF) (B) 		8-98261-643-0 01 1 1406- ●
50 03.265 PIPE; INL
VIN MODEL YEAR 2015(VZF) (A) 		8-97178-735-5 01 1 1406- ●
50 03.265 PIPE; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> (C) 		8-97078-858-0 01 1 0211-0501 ●
50 03.265 PIPE; INL
(A) 		8-97178-735-5 01 1 0610-1405 ●
50 03.265 PIPE; INL
EXC. VIN MODEL YEAR 2015(VZF) (D) 		8-98254-369-0 01 1 1406- ●
50 03.265 PIPE; INL
(B) 		8-97202-327-2 01 1 0610-1404 ●
50 03.265 PIPE; INL
EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-97202-327-2 01 1 1405-1405 ●
50 03.265 PIPE; INL
EXC. VIN MODEL YEAR 2015(VZF) (B) 		8-97202-327-2 01 1 1406- ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0502-0512 ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0601-0609 ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0610- ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0211-0501 ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0502-0512 ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0609 ● ●
53 03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0610-0811 ● ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0812-1405 ● ● ●
53 03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610-1405 ●
53 03.602 BOLT; INL PIPE
EXC. VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0610-1405 ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1406- ●
55 03.407 NUT; INL PIPE
TURBOCHARGER<K51> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
55 03.407 NUT; INL PIPE
01.540 M6 FLANGE 		0-91180-206-0 03 1 0610- ●
94 02.559 BOLT
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0211-0501 ● ●
94 02.559 BOLT
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0502-0512 ● ●
94 02.559 BOLT
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
94 02.559 BOLT
00.206 M8X30 FLANGE 		0-28050-830-0 01 1 0610- ●
95 03.278 CLIP; RUBBER HOSE
03.407 (A) ID=77-95 		1-09707-198-0 01 1 0610-0810 ●
95 03.278 CLIP; RUBBER HOSE
03.407 (A) ID=77-95 		1-09707-114-0 01 1 0811-1405 ●
95 03.278 CLIP; RUBBER HOSE
VIN MODEL YEAR 2015(VZF) 03.407 (A) ID=77-95 		1-09707-114-0 01 1 1406- ●
95 03.278 CLIP; RUBBER HOSE
03.407 (C) ID=68-85 		1-09707-202-0 01 1 0610-0810 ●
95 03.278 CLIP; RUBBER HOSE
03.407 (C) ID=68-85 		8-94320-428-0 01 1 0811-1405 ●
95 03.278 CLIP; RUBBER HOSE
VIN MODEL YEAR 2015(VZF) 03.407 (C) ID=68-85 		8-94320-428-0 01 1 1406- ●
95 03.278 CLIP; RUBBER HOSE
03.407 (B) ID=50-65 		1-09707-204-0 02 1 0610-0810 ●
95 03.278 CLIP; RUBBER HOSE
03.407 (B) ID=50-69 		8-94316-991-0 02 1 0811- ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 0211-0501 ● ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 0502-0609 ● ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 0610-0811 ● ● ●
131 03.278 PIPE; PCV,INL
EXHAUST BRAKE<NF8> 		8-97102-601-0 01 1 0812-1404 ● ● ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 1405-1405 ● ●
131 03.278 PIPE; PCV,INL
VIN MODEL YEAR 2014(VZE) 		8-97102-601-0 01 1 1405-1405 ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 1406-1409 ● ●
131 03.278 PIPE; PCV,INL
VIN MODEL YEAR 2015(VZF) 		8-97102-601-0 01 1 1406-1409 ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 1410- ● ●
131 03.278 PIPE; PCV,INL
EXC. VIN MODEL YEAR 2015(VZF) 		8-97102-601-0 01 1 1410- ●
138 03.265 PIPE; INL
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (C) 		8-98170-481-1 01 1 1107- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 (C) 		8-94417-173-1 01 1 0211-0501 ●
138 03.265 PIPE; INL
03.417 (C) 		8-94417-173-1 01 1 0502-1106 ●
138 03.265 PIPE; INL
IDENTIFICATION LABEL FOR KD<6UT> 03.417 (C) 		8-94417-173-1 01 1 1107- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-1 01 1 0211-0501 ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-1 01 1 0502-0609 ● ●
138 03.265 PIPE; INL
(A) 		8-97180-566-2 01 1 0610-0811 ● ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-2 01 1 0812-1405 ● ● ●
138 03.265 PIPE; INL
(A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
VIN MODEL YEAR 2015(VZF) (A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
(B) 		8-97178-748-3 01 1 0610-1404 ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) 		8-97178-748-3 01 1 1405- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. MINI BUS CHASSIS(V4B) (B) 		8-97178-748-3 01 1 1405- ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0211-0501 ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0502-0609 ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0610-0811 ● ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXHAUST BRAKE<NF8> 		8-97084-938-2 01 1 0812-1003 ● ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 1004- ● ● ●
229 03.278 SCREW; VENTILATION VLV
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0211-0501 ● ●
229 03.278 SCREW; VENTILATION VLV
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0502-0604 ● ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0605-0609 ● ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0610-0811 ● ● ●
229 03.278 SCREW; VENTILATION VLV
EXHAUST BRAKE<NF8> 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0812-1404 ● ● ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1405-1405 ● ●
229 03.278 SCREW; VENTILATION VLV
VIN MODEL YEAR 2014(VZE) 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1405-1405 ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1406-1409 ● ●
229 03.278 SCREW; VENTILATION VLV
VIN MODEL YEAR 2015(VZF) 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1406-1409 ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1410- ● ●
229 03.278 SCREW; VENTILATION VLV
EXC. VIN MODEL YEAR 2015(VZF) 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1410- ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 0211-0501 ● ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 0502-0609 ● ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 0610-0811 ● ● ●
283 03.265 RUBBER
EXHAUST BRAKE<NF8> OD=23 		8-97105-689-6 10 1 0812-1404 ● ● ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 1405-1405 ● ●
283 03.265 RUBBER
VIN MODEL YEAR 2014(VZE) OD=23 		8-97105-689-6 10 1 1405-1405 ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 1406-1409 ● ●
283 03.265 RUBBER
VIN MODEL YEAR 2015(VZF) OD=23 		8-97105-689-6 10 1 1406-1409 ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 1410- ● ●
283 03.265 RUBBER
EXC. VIN MODEL YEAR 2015(VZF) OD=23 		8-97105-689-6 10 1 1410- ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.054 (D) M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 0211-0501 ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
306 03.265 BOLT; VLV
01.540 (A) M8X45 FLANGE 		0-28080-845-0 05 1 0211-0501 ● ●
306 03.265 BOLT; VLV
01.540 (A) M8X45 FLANGE 		0-28080-845-0 05 1 0502-0512 ● ●
306 03.265 BOLT; VLV
09.173 (A) M8X45 FLANGE 		0-28050-845-0 05 1 0601-0609 ● ●
306 03.265 BOLT; VLV
09.173 (A) M8X45 FLANGE 		0-28050-845-0 05 1 0610- ● ● ●
306 03.265 BOLT; VLV
(B) M8X85 L=101 		8-97118-454-0 01 1 0610-0701 ●
306 03.265 BOLT; VLV
(B) M8X85 L=101 		8-98048-394-0 01 1 0702- ●
306 03.265 BOLT; VLV
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0610- ●
306 03.265 BOLT; VLV
03.680 (D) M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 0610- ●
320 03.270 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INDONESIA EQUIPMENT(S4S) 		8-98211-431-0 01 1 1212- ●
320 03.270 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=47 		8-97202-328-1 01 1 0610-1211 ●
320 03.270 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S) ID=47 		8-97202-328-1 01 1 1212- ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-0 01 1 0211-0501 ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-1 01 1 0502-0609 ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97180-546-1 01 1 0610-0811 ● ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-1 01 1 0812-1405 ● ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97180-546-1 01 1 1406- ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-1 01 1 1406- ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIN MODEL YEAR 2015(VZF) 		8-97180-546-1 01 1 1406- ●
333 03.278 HOSE; RUBBER,INL PIPE
VIN MODEL YEAR 2015(VZF) (A) 		8-97201-103-2 01 1 1406- ●
333 03.278 HOSE; RUBBER,INL PIPE
(A) 		8-97201-103-2 01 1 0610-1405 ●
333 03.278 HOSE; RUBBER,INL PIPE
EXC. VIN MODEL YEAR 2015(VZF) (C) 		8-98219-796-0 01 1 1406- ●
333 03.278 HOSE; RUBBER,INL PIPE
(B) 		8-97369-717-3 01 1 0610-1405 ●
333 03.278 HOSE; RUBBER,INL PIPE
VIN MODEL YEAR 2015(VZF) (B) 		8-97369-717-3 01 1 1406- ●
336 03.415 VALVE; VENTILATION 8-97119-887-0 01 1 0211-0501 ● ●
336 03.415 VALVE; VENTILATION 8-97119-887-0 01 1 0502-0609 ● ●
336 03.415 VALVE; VENTILATION 8-97119-887-0 01 1 0610-0811 ● ● ●
336 03.415 VALVE; VENTILATION
EXHAUST BRAKE<NF8> 		8-97119-887-0 01 1 0812-1310 ● ● ●
336 03.415 VALVE; VENTILATION
EXHAUST BRAKE<NF8> 		8-98245-399-0 01 1 1311-1404 ● ● ●
336 03.415 VALVE; VENTILATION 8-98245-399-0 01 1 1405-1405 ● ●
336 03.415 VALVE; VENTILATION
VIN MODEL YEAR 2014(VZE) 		8-98245-399-0 01 1 1405-1405 ●
336 03.415 VALVE; VENTILATION 8-98245-399-0 01 1 1406-1409 ● ●
336 03.415 VALVE; VENTILATION
VIN MODEL YEAR 2015(VZF) 		8-98245-399-0 01 1 1406-1409 ●
336 03.415 VALVE; VENTILATION 8-98245-399-0 01 1 1410- ● ●
336 03.415 VALVE; VENTILATION
EXC. VIN MODEL YEAR 2015(VZF) 		8-98245-399-0 01 1 1410- ●
346 02.559 CLIP; ENG HARNESS
ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0211-0501 ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0502-0801 ●
346 02.559 CLIP; ENG HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0211-0501 ● ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0502-0609 ● ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0610-0801 ● ● ●
346 02.559 CLIP; ENG HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802- ● ● ●
361 03.278 BOLT; CLIP
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610- ●
507 03.415 ORIFICE 8-97088-649-0 01 1 0211-0501 ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 0502-0609 ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 0610-0811 ● ● ●
507 03.415 ORIFICE
EXHAUST BRAKE<NF8> 		8-97088-649-0 01 1 0812-1404 ● ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 1405-1405 ● ●
507 03.415 ORIFICE
VIN MODEL YEAR 2014(VZE) 		8-97088-649-0 01 1 1405-1405 ●
507 03.415 ORIFICE 8-97088-649-0 01 1 1406-1409 ● ●
507 03.415 ORIFICE
VIN MODEL YEAR 2015(VZF) 		8-97088-649-0 01 1 1406-1409 ●
507 03.415 ORIFICE 8-97088-649-0 01 1 1410- ● ●
507 03.415 ORIFICE
EXC. VIN MODEL YEAR 2015(VZF) 		8-97088-649-0 01 1 1410- ●
571 03.265 HOSE; AIR BOOST
L=210 		8-98210-164-0 01 1 1212-1404 ●
571 03.265 HOSE; AIR BOOST
INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2014(VZE) L=210 		8-98210-164-0 01 1 1405-1405 ●
571 03.265 HOSE; AIR BOOST
INDONESIA EQUIPMENT(S4S) EXC. VIN MODEL YEAR 2015(VZF) L=210 		8-98210-164-0 01 1 1406- ●
571 03.265 HOSE; AIR BOOST
08.962 L=210 SERVICED BY L=3000 		0-04740-300-0 01 1 0610-1211 ●
571 03.265 HOSE; AIR BOOST
EXC. INDONESIA EQUIPMENT(S4S) 08.962 L=210 SERVICED BY L=3000 		0-04740-300-0 01 1 1212- ●
572 03.407 CLIP; BOOST HOSE
VIN MODEL YEAR 2015(VZF) 03.145 ID=8 		8-94107-762-0 01 1 1410- ●
572 03.407 CLIP; BOOST HOSE
03.145 ID=8 		8-94107-762-0 02 1 0610-1404 ●
572 03.407 CLIP; BOOST HOSE
EXC. VIN MODEL YEAR 2014(VZE) 03.145 ID=8 		8-94107-762-0 02 1 1405-1405 ●
572 03.407 CLIP; BOOST HOSE
EXC. VIN MODEL YEAR 2015(VZF) 03.145 ID=8 		8-94107-762-0 02 1 1406- ●
603 03.278 CHAMBER; THROTTLE
EXHAUST BRAKE<NF8> 		8-97204-780-0 01 1 0211-0501 ● ●
603 03.278 CHAMBER; THROTTLE 8-97204-780-0 01 1 0502-0609 ● ●
603 03.278 CHAMBER; THROTTLE 8-97204-780-0 01 1 0610-0811 ● ● ●
603 03.278 CHAMBER; THROTTLE
EXHAUST BRAKE<NF8> 		8-97204-780-0 01 1 0812-1405 ● ● ●
603 03.278 CHAMBER; THROTTLE 8-97204-780-0 01 1 1406- ● ●
603 03.278 CHAMBER; THROTTLE
EXHAUST BRAKE<NF8> 		8-97204-780-0 01 1 1406- ●
çizim 12303
114 114 115 115 480 480 115 306 306
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97227-211-0 01 1 0211-0501 ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> (C) L=1320 		8-97227-211-0 01 1 0502- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403 		8-97228-401-0 01 1 0211-0501 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=890 		8-97302-168-0 01 1 0211-0501 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310 		8-97309-000-0 01 1 0211-0501 ●
114 03.265 HOSE; VAC,INT THROTTLE
(A) L=403 		8-97228-401-0 01 1 0610- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 0211- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 03.278 (B) ID=37 		8-94481-468-0 01 1 0211- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 0211-0501 ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 0211-0501 ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 0502- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2 		8-94126-636-0 01 1 0211-0501 ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.054 (D) M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 0211-0501 ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
306 03.265 BOLT; VLV
01.540 (A) M8X45 FLANGE 		0-28080-845-0 05 1 0211-0501 ● ●
306 03.265 BOLT; VLV
01.540 (A) M8X45 FLANGE 		0-28080-845-0 05 1 0502-0512 ● ●
306 03.265 BOLT; VLV
09.173 (A) M8X45 FLANGE 		0-28050-845-0 05 1 0601-0609 ● ●
306 03.265 BOLT; VLV
09.173 (A) M8X45 FLANGE 		0-28050-845-0 05 1 0610- ● ● ●
306 03.265 BOLT; VLV
(B) M8X85 L=101 		8-97118-454-0 01 1 0610-0701 ●
306 03.265 BOLT; VLV
(B) M8X85 L=101 		8-98048-394-0 01 1 0702- ●
306 03.265 BOLT; VLV
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0610- ●
306 03.265 BOLT; VLV
03.680 (D) M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 0610- ●
480 03.314 VALVE ASM; VAC SW
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.670 		8-94144-597-1 01 1 0211-0501 ●
480 03.314 VALVE ASM; VAC SW
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.670 		8-94144-597-1 01 1 0211-0501 ●
480 03.314 VALVE ASM; VAC SW
03.670 		8-94144-597-1 01 1 0610- ●

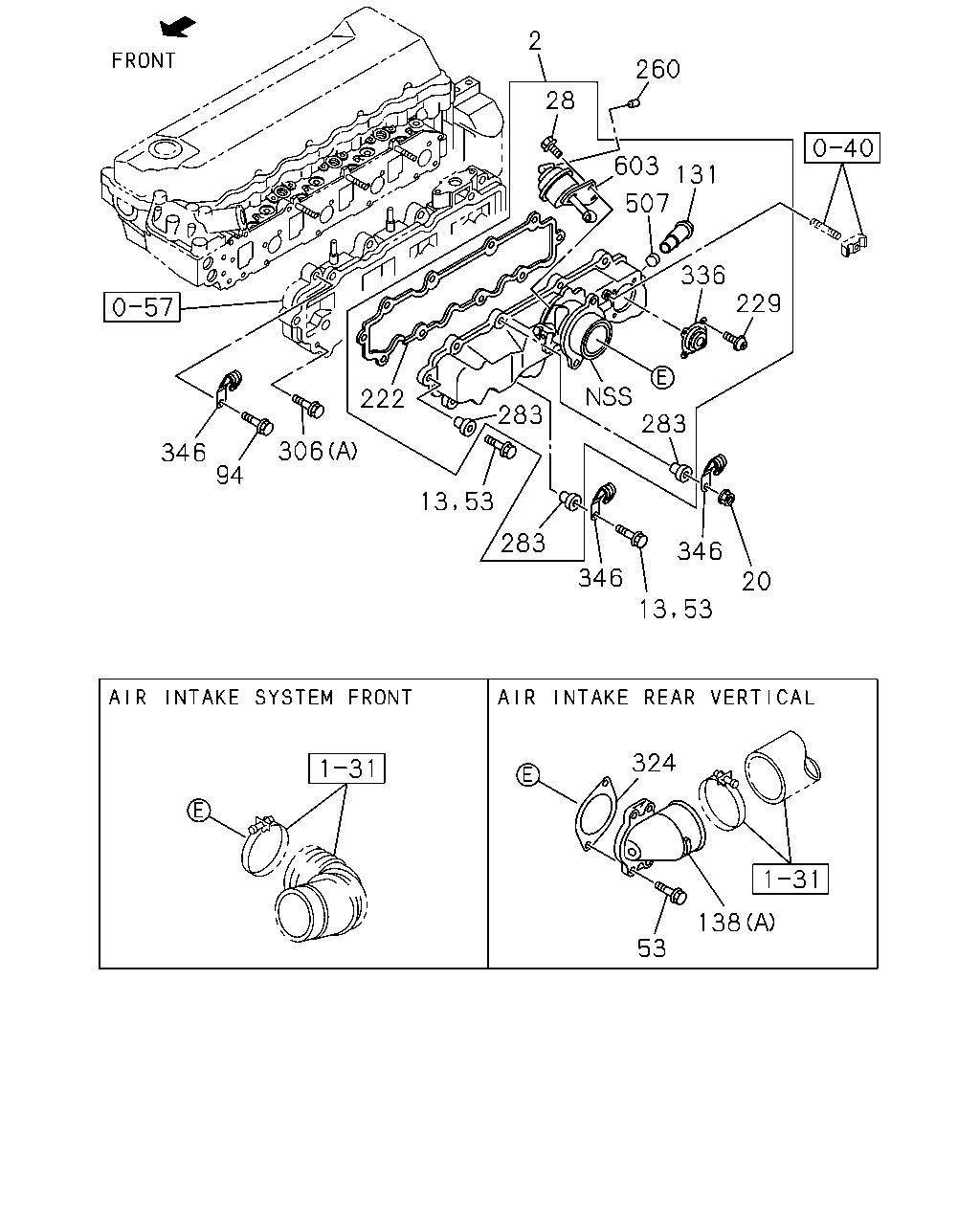

çizim 49385
2 260 28 603 131 507 336 229 283 222 283 306 346 94 283 346 346 20 324 138 53 13 53 13 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-97222-239-0 01 1 0812-1310 ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-98245-386-0 01 1 1311- ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8> 		8-97146-864-2 01 1 0211-0501 ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8> 		8-97146-864-2 01 1 0502-1310 ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8> 		8-98245-382-0 01 1 1311- ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 		8-97146-866-2 01 1 0211-0501 ● ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> 		8-97146-866-2 01 1 0502-1310 ● ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> 		8-98245-383-0 01 1 1311-1404 ● ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 		8-98245-383-0 01 1 1405-1409 ● ●
2 03.407 COVER; INL 8-97212-454-3 01 1 1410- ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-97222-239-0 01 1 0211-0501 ● ●
2 03.407 COVER; INL 8-97212-454-2 01 1 0610-1404 ●
2 03.407 COVER; INL
EXC. VIN MODEL YEAR 2014(VZE) 		8-97212-454-2 01 1 1405-1405 ●
2 03.407 COVER; INL
EXC. VIN MODEL YEAR 2015(VZF) 		8-97212-454-2 01 1 1406-1409 ●
2 03.407 COVER; INL 8-98245-383-0 01 1 1410- ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 		8-98245-383-0 01 1 1410- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 0211-0512 ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 06 1 0601- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 0211-0501 ● ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 0502-0512 ● ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 08 1 0601- ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0211-0501 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0502-0512 ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 04 1 0601- ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0211-0501 ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0502-0512 ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0601- ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 07 1 0610- ●
13 03.275 BOLT; INL MANIF
M8X52 L=68 		8-97118-455-0 01 1 0610-0701 ●
13 03.275 BOLT; INL MANIF
M8X52 L=68 		8-98048-395-0 01 1 0702- ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 05 1 0610- ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 01 1 0610- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0502-0609 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ● ● ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ● ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ●
28 03.278 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ● ●
28 03.278 BOLT; CHAMBER
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0502-0512 ● ●
28 03.278 BOLT; CHAMBER
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0601-0609 ● ●
28 03.278 BOLT; CHAMBER
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0610-0811 ● ● ●
28 03.278 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0812-1405 ● ● ●
28 03.278 BOLT; CHAMBER
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1406- ● ●
28 03.278 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0502-0512 ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0601-0609 ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0610- ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0211-0501 ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0502-0512 ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0609 ● ●
53 03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0610-0811 ● ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0812-1405 ● ● ●
53 03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610-1405 ●
53 03.602 BOLT; INL PIPE
EXC. VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0610-1405 ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1406- ●
94 02.559 BOLT
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0211-0501 ● ●
94 02.559 BOLT
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0502-0512 ● ●
94 02.559 BOLT
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
94 02.559 BOLT
00.206 M8X30 FLANGE 		0-28050-830-0 01 1 0610- ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 0211-0501 ● ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 0502-0609 ● ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 0610-0811 ● ● ●
131 03.278 PIPE; PCV,INL
EXHAUST BRAKE<NF8> 		8-97102-601-0 01 1 0812-1404 ● ● ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 1405-1405 ● ●
131 03.278 PIPE; PCV,INL
VIN MODEL YEAR 2014(VZE) 		8-97102-601-0 01 1 1405-1405 ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 1406-1409 ● ●
131 03.278 PIPE; PCV,INL
VIN MODEL YEAR 2015(VZF) 		8-97102-601-0 01 1 1406-1409 ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 1410- ● ●
131 03.278 PIPE; PCV,INL
EXC. VIN MODEL YEAR 2015(VZF) 		8-97102-601-0 01 1 1410- ●
138 03.265 PIPE; INL
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (C) 		8-98170-481-1 01 1 1107- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 (C) 		8-94417-173-1 01 1 0211-0501 ●
138 03.265 PIPE; INL
03.417 (C) 		8-94417-173-1 01 1 0502-1106 ●
138 03.265 PIPE; INL
IDENTIFICATION LABEL FOR KD<6UT> 03.417 (C) 		8-94417-173-1 01 1 1107- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-1 01 1 0211-0501 ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-1 01 1 0502-0609 ● ●
138 03.265 PIPE; INL
(A) 		8-97180-566-2 01 1 0610-0811 ● ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-2 01 1 0812-1405 ● ● ●
138 03.265 PIPE; INL
(A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
VIN MODEL YEAR 2015(VZF) (A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
(B) 		8-97178-748-3 01 1 0610-1404 ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) 		8-97178-748-3 01 1 1405- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. MINI BUS CHASSIS(V4B) (B) 		8-97178-748-3 01 1 1405- ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0211-0501 ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0502-0609 ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0610-0811 ● ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXHAUST BRAKE<NF8> 		8-97084-938-2 01 1 0812-1003 ● ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 1004- ● ● ●
229 03.278 SCREW; VENTILATION VLV
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0211-0501 ● ●
229 03.278 SCREW; VENTILATION VLV
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0502-0604 ● ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0605-0609 ● ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0610-0811 ● ● ●
229 03.278 SCREW; VENTILATION VLV
EXHAUST BRAKE<NF8> 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0812-1404 ● ● ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1405-1405 ● ●
229 03.278 SCREW; VENTILATION VLV
VIN MODEL YEAR 2014(VZE) 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1405-1405 ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1406-1409 ● ●
229 03.278 SCREW; VENTILATION VLV
VIN MODEL YEAR 2015(VZF) 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1406-1409 ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1410- ● ●
229 03.278 SCREW; VENTILATION VLV
EXC. VIN MODEL YEAR 2015(VZF) 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1410- ●
260 03.278 CAP; RUBBER
TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 01.780 ID=4 		8-94217-809-0 01 1 0211-0501 ●
260 03.278 CAP; RUBBER
01.780 ID=4 		8-94217-809-0 01 1 0211-0501 ● ●
260 03.278 CAP; RUBBER
01.780 ID=4 		8-94217-809-0 01 1 0502-1409 ● ●
260 03.278 CAP; RUBBER
01.780 ID=4 		8-94217-809-0 01 1 1410- ● ●
260 03.278 CAP; RUBBER
VIN MODEL YEAR 2015(VZF) 01.780 ID=4 		8-94217-809-0 01 1 1410- ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 0211-0501 ● ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 0502-0609 ● ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 0610-0811 ● ● ●
283 03.265 RUBBER
EXHAUST BRAKE<NF8> OD=23 		8-97105-689-6 10 1 0812-1404 ● ● ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 1405-1405 ● ●
283 03.265 RUBBER
VIN MODEL YEAR 2014(VZE) OD=23 		8-97105-689-6 10 1 1405-1405 ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 1406-1409 ● ●
283 03.265 RUBBER
VIN MODEL YEAR 2015(VZF) OD=23 		8-97105-689-6 10 1 1406-1409 ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 1410- ● ●
283 03.265 RUBBER
EXC. VIN MODEL YEAR 2015(VZF) OD=23 		8-97105-689-6 10 1 1410- ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.054 (D) M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 0211-0501 ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
306 03.265 BOLT; VLV
01.540 (A) M8X45 FLANGE 		0-28080-845-0 05 1 0211-0501 ● ●
306 03.265 BOLT; VLV
01.540 (A) M8X45 FLANGE 		0-28080-845-0 05 1 0502-0512 ● ●
306 03.265 BOLT; VLV
09.173 (A) M8X45 FLANGE 		0-28050-845-0 05 1 0601-0609 ● ●
306 03.265 BOLT; VLV
09.173 (A) M8X45 FLANGE 		0-28050-845-0 05 1 0610- ● ● ●
306 03.265 BOLT; VLV
(B) M8X85 L=101 		8-97118-454-0 01 1 0610-0701 ●
306 03.265 BOLT; VLV
(B) M8X85 L=101 		8-98048-394-0 01 1 0702- ●
306 03.265 BOLT; VLV
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0610- ●
306 03.265 BOLT; VLV
03.680 (D) M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 0610- ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-0 01 1 0211-0501 ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-1 01 1 0502-0609 ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97180-546-1 01 1 0610-0811 ● ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-1 01 1 0812-1405 ● ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97180-546-1 01 1 1406- ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-1 01 1 1406- ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIN MODEL YEAR 2015(VZF) 		8-97180-546-1 01 1 1406- ●
336 03.415 VALVE; VENTILATION 8-97119-887-0 01 1 0211-0501 ● ●
336 03.415 VALVE; VENTILATION 8-97119-887-0 01 1 0502-0609 ● ●
336 03.415 VALVE; VENTILATION 8-97119-887-0 01 1 0610-0811 ● ● ●
336 03.415 VALVE; VENTILATION
EXHAUST BRAKE<NF8> 		8-97119-887-0 01 1 0812-1310 ● ● ●
336 03.415 VALVE; VENTILATION
EXHAUST BRAKE<NF8> 		8-98245-399-0 01 1 1311-1404 ● ● ●
336 03.415 VALVE; VENTILATION 8-98245-399-0 01 1 1405-1405 ● ●
336 03.415 VALVE; VENTILATION
VIN MODEL YEAR 2014(VZE) 		8-98245-399-0 01 1 1405-1405 ●
336 03.415 VALVE; VENTILATION 8-98245-399-0 01 1 1406-1409 ● ●
336 03.415 VALVE; VENTILATION
VIN MODEL YEAR 2015(VZF) 		8-98245-399-0 01 1 1406-1409 ●
336 03.415 VALVE; VENTILATION 8-98245-399-0 01 1 1410- ● ●
336 03.415 VALVE; VENTILATION
EXC. VIN MODEL YEAR 2015(VZF) 		8-98245-399-0 01 1 1410- ●
346 02.559 CLIP; ENG HARNESS
ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0211-0501 ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0502-0801 ●
346 02.559 CLIP; ENG HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0211-0501 ● ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0502-0609 ● ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0610-0801 ● ● ●
346 02.559 CLIP; ENG HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802- ● ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 0211-0501 ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 0502-0609 ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 0610-0811 ● ● ●
507 03.415 ORIFICE
EXHAUST BRAKE<NF8> 		8-97088-649-0 01 1 0812-1404 ● ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 1405-1405 ● ●
507 03.415 ORIFICE
VIN MODEL YEAR 2014(VZE) 		8-97088-649-0 01 1 1405-1405 ●
507 03.415 ORIFICE 8-97088-649-0 01 1 1406-1409 ● ●
507 03.415 ORIFICE
VIN MODEL YEAR 2015(VZF) 		8-97088-649-0 01 1 1406-1409 ●
507 03.415 ORIFICE 8-97088-649-0 01 1 1410- ● ●
507 03.415 ORIFICE
EXC. VIN MODEL YEAR 2015(VZF) 		8-97088-649-0 01 1 1410- ●
603 03.278 CHAMBER; THROTTLE
EXHAUST BRAKE<NF8> 		8-97204-780-0 01 1 0211-0501 ● ●
603 03.278 CHAMBER; THROTTLE 8-97204-780-0 01 1 0502-0609 ● ●
603 03.278 CHAMBER; THROTTLE 8-97204-780-0 01 1 0610-0811 ● ● ●
603 03.278 CHAMBER; THROTTLE
EXHAUST BRAKE<NF8> 		8-97204-780-0 01 1 0812-1405 ● ● ●
603 03.278 CHAMBER; THROTTLE 8-97204-780-0 01 1 1406- ● ●
603 03.278 CHAMBER; THROTTLE
EXHAUST BRAKE<NF8> 		8-97204-780-0 01 1 1406- ●

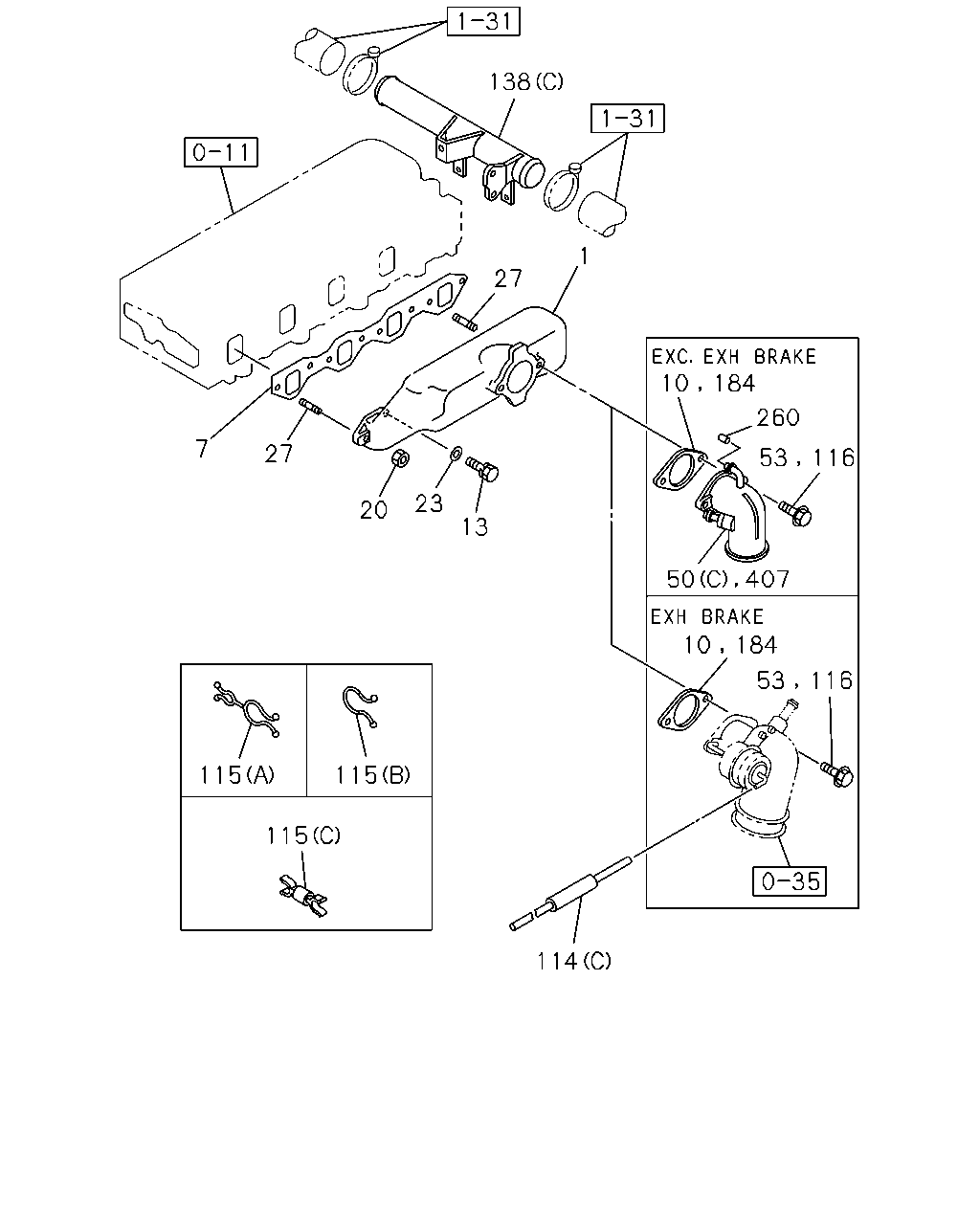

çizim 52192
138 1 27 10 184 260 7 27 53 116 23 20 13 10 184 53 116 115 115 115 114 50 407
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 0211- ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0211-0501 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0502-0609 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0610- ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-0 01 1 0211-0501 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-1 01 1 0502-0609 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-1 01 1 0610- ● ● ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURBOCHARGER<K51> 		8-97035-883-1 01 1 0211-0501 ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-1 01 1 0502- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 0211-0512 ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 06 1 0601- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 0211-0501 ● ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 0502-0512 ● ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 08 1 0601- ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0211-0501 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0502-0512 ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 04 1 0601- ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0211-0501 ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0502-0512 ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0601- ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 07 1 0610- ●
13 03.275 BOLT; INL MANIF
M8X52 L=68 		8-97118-455-0 01 1 0610-0701 ●
13 03.275 BOLT; INL MANIF
M8X52 L=68 		8-98048-395-0 01 1 0702- ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 05 1 0610- ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 01 1 0610- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0502-0609 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ● ● ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ● ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0211-0605 ●
23 03.275 WASHER; PL,INL MANIF
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0606-0609 ●
23 03.275 WASHER; PL,INL MANIF
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0610- ● ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 0211-0501 ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0211-0501 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 0502-0604 ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0502-0604 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> M8X25 L=37 		0-41010-825-0 01 1 0610- ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0610- ● ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0211-0501 ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0211-0501 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0502-0609 ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0502-0609 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0610- ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0610- ● ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0211-0501 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0502-0604 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> M8X25 L=37 		0-41010-825-0 02 1 0605- ●
50 03.265 PIPE; INL
VIN MODEL YEAR 2014(VZE) (B) 		8-98261-643-0 01 1 1405-1405 ●
50 03.265 PIPE; INL
VIN MODEL YEAR 2015(VZF) (B) 		8-98261-643-0 01 1 1406- ●
50 03.265 PIPE; INL
VIN MODEL YEAR 2015(VZF) (A) 		8-97178-735-5 01 1 1406- ●
50 03.265 PIPE; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> (C) 		8-97078-858-0 01 1 0211-0501 ●
50 03.265 PIPE; INL
(A) 		8-97178-735-5 01 1 0610-1405 ●
50 03.265 PIPE; INL
EXC. VIN MODEL YEAR 2015(VZF) (D) 		8-98254-369-0 01 1 1406- ●
50 03.265 PIPE; INL
(B) 		8-97202-327-2 01 1 0610-1404 ●
50 03.265 PIPE; INL
EXC. VIN MODEL YEAR 2014(VZE) (B) 		8-97202-327-2 01 1 1405-1405 ●
50 03.265 PIPE; INL
EXC. VIN MODEL YEAR 2015(VZF) (B) 		8-97202-327-2 01 1 1406- ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0502-0512 ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0601-0609 ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0610- ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0211-0501 ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0502-0512 ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0609 ● ●
53 03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0610-0811 ● ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0812-1405 ● ● ●
53 03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610-1405 ●
53 03.602 BOLT; INL PIPE
EXC. VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0610-1405 ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1406- ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97227-211-0 01 1 0211-0501 ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> (C) L=1320 		8-97227-211-0 01 1 0502- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403 		8-97228-401-0 01 1 0211-0501 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=890 		8-97302-168-0 01 1 0211-0501 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310 		8-97309-000-0 01 1 0211-0501 ●
114 03.265 HOSE; VAC,INT THROTTLE
(A) L=403 		8-97228-401-0 01 1 0610- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 0211- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 03.278 (B) ID=37 		8-94481-468-0 01 1 0211- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 0211-0501 ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 0211-0501 ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 0502- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2 		8-94126-636-0 01 1 0211-0501 ●
116 03.275 BOLT; MANIF TO INL PIPE
EXC. TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
116 03.275 BOLT; MANIF TO INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0502-0512 ●
116 03.275 BOLT; MANIF TO INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0601- ●
138 03.265 PIPE; INL
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (C) 		8-98170-481-1 01 1 1107- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 (C) 		8-94417-173-1 01 1 0211-0501 ●
138 03.265 PIPE; INL
03.417 (C) 		8-94417-173-1 01 1 0502-1106 ●
138 03.265 PIPE; INL
IDENTIFICATION LABEL FOR KD<6UT> 03.417 (C) 		8-94417-173-1 01 1 1107- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-1 01 1 0211-0501 ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-1 01 1 0502-0609 ● ●
138 03.265 PIPE; INL
(A) 		8-97180-566-2 01 1 0610-0811 ● ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-2 01 1 0812-1405 ● ● ●
138 03.265 PIPE; INL
(A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
VIN MODEL YEAR 2015(VZF) (A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
(B) 		8-97178-748-3 01 1 0610-1404 ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) 		8-97178-748-3 01 1 1405- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. MINI BUS CHASSIS(V4B) (B) 		8-97178-748-3 01 1 1405- ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406 		8-97035-883-1 01 1 0211-0501 ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406 		8-97035-883-1 01 1 0211-0501 ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406 		8-97035-883-1 01 1 0502-0609 ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406 		8-97035-883-1 01 1 0610- ● ●
260 03.278 CAP; RUBBER
TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 01.780 ID=4 		8-94217-809-0 01 1 0211-0501 ●
260 03.278 CAP; RUBBER
01.780 ID=4 		8-94217-809-0 01 1 0211-0501 ● ●
260 03.278 CAP; RUBBER
01.780 ID=4 		8-94217-809-0 01 1 0502-1409 ● ●
260 03.278 CAP; RUBBER
01.780 ID=4 		8-94217-809-0 01 1 1410- ● ●
260 03.278 CAP; RUBBER
VIN MODEL YEAR 2015(VZF) 01.780 ID=4 		8-94217-809-0 01 1 1410- ●
407 03.265 PIPE; INL,REAR
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 		8-94152-318-0 01 1 0211-0501 ●
407 03.265 PIPE; INL,REAR
EXC. EXHAUST BRAKE<NF8> 		8-94152-318-0 01 1 0502- ●
çizim 52675
2 131 507 336 229 324 283 283 222 306 346 94 13 138 53 283 346 346 20 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-97222-239-0 01 1 0812-1310 ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-98245-386-0 01 1 1311- ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8> 		8-97146-864-2 01 1 0211-0501 ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8> 		8-97146-864-2 01 1 0502-1310 ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8> 		8-98245-382-0 01 1 1311- ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 		8-97146-866-2 01 1 0211-0501 ● ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> 		8-97146-866-2 01 1 0502-1310 ● ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> 		8-98245-383-0 01 1 1311-1404 ● ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 		8-98245-383-0 01 1 1405-1409 ● ●
2 03.407 COVER; INL 8-97212-454-3 01 1 1410- ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-97222-239-0 01 1 0211-0501 ● ●
2 03.407 COVER; INL 8-97212-454-2 01 1 0610-1404 ●
2 03.407 COVER; INL
EXC. VIN MODEL YEAR 2014(VZE) 		8-97212-454-2 01 1 1405-1405 ●
2 03.407 COVER; INL
EXC. VIN MODEL YEAR 2015(VZF) 		8-97212-454-2 01 1 1406-1409 ●
2 03.407 COVER; INL 8-98245-383-0 01 1 1410- ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 		8-98245-383-0 01 1 1410- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 0211-0512 ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 06 1 0601- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 0211-0501 ● ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 0502-0512 ● ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 08 1 0601- ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0211-0501 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0502-0512 ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 04 1 0601- ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0211-0501 ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0502-0512 ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0601- ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 07 1 0610- ●
13 03.275 BOLT; INL MANIF
M8X52 L=68 		8-97118-455-0 01 1 0610-0701 ●
13 03.275 BOLT; INL MANIF
M8X52 L=68 		8-98048-395-0 01 1 0702- ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 05 1 0610- ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 01 1 0610- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0502-0609 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ● ● ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ● ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0502-0512 ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0601-0609 ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0610- ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0211-0501 ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0502-0512 ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0609 ● ●
53 03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0610-0811 ● ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0812-1405 ● ● ●
53 03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610-1405 ●
53 03.602 BOLT; INL PIPE
EXC. VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0610-1405 ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1406- ●
94 02.559 BOLT
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0211-0501 ● ●
94 02.559 BOLT
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0502-0512 ● ●
94 02.559 BOLT
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
94 02.559 BOLT
00.206 M8X30 FLANGE 		0-28050-830-0 01 1 0610- ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 0211-0501 ● ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 0502-0609 ● ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 0610-0811 ● ● ●
131 03.278 PIPE; PCV,INL
EXHAUST BRAKE<NF8> 		8-97102-601-0 01 1 0812-1404 ● ● ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 1405-1405 ● ●
131 03.278 PIPE; PCV,INL
VIN MODEL YEAR 2014(VZE) 		8-97102-601-0 01 1 1405-1405 ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 1406-1409 ● ●
131 03.278 PIPE; PCV,INL
VIN MODEL YEAR 2015(VZF) 		8-97102-601-0 01 1 1406-1409 ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 1410- ● ●
131 03.278 PIPE; PCV,INL
EXC. VIN MODEL YEAR 2015(VZF) 		8-97102-601-0 01 1 1410- ●
138 03.265 PIPE; INL
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (C) 		8-98170-481-1 01 1 1107- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 (C) 		8-94417-173-1 01 1 0211-0501 ●
138 03.265 PIPE; INL
03.417 (C) 		8-94417-173-1 01 1 0502-1106 ●
138 03.265 PIPE; INL
IDENTIFICATION LABEL FOR KD<6UT> 03.417 (C) 		8-94417-173-1 01 1 1107- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-1 01 1 0211-0501 ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-1 01 1 0502-0609 ● ●
138 03.265 PIPE; INL
(A) 		8-97180-566-2 01 1 0610-0811 ● ● ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-2 01 1 0812-1405 ● ● ●
138 03.265 PIPE; INL
(A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
VIN MODEL YEAR 2015(VZF) (A) 		8-97180-566-2 01 1 1406- ●
138 03.265 PIPE; INL
(B) 		8-97178-748-3 01 1 0610-1404 ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) (B) 		8-97178-748-3 01 1 1405- ●
138 03.265 PIPE; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. MINI BUS CHASSIS(V4B) (B) 		8-97178-748-3 01 1 1405- ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0211-0501 ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0502-0609 ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0610-0811 ● ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXHAUST BRAKE<NF8> 		8-97084-938-2 01 1 0812-1003 ● ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 1004- ● ● ●
229 03.278 SCREW; VENTILATION VLV
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0211-0501 ● ●
229 03.278 SCREW; VENTILATION VLV
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0502-0604 ● ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0605-0609 ● ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0610-0811 ● ● ●
229 03.278 SCREW; VENTILATION VLV
EXHAUST BRAKE<NF8> 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0812-1404 ● ● ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1405-1405 ● ●
229 03.278 SCREW; VENTILATION VLV
VIN MODEL YEAR 2014(VZE) 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1405-1405 ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1406-1409 ● ●
229 03.278 SCREW; VENTILATION VLV
VIN MODEL YEAR 2015(VZF) 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1406-1409 ●
229 03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1410- ● ●
229 03.278 SCREW; VENTILATION VLV
EXC. VIN MODEL YEAR 2015(VZF) 00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 1410- ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 0211-0501 ● ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 0502-0609 ● ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 0610-0811 ● ● ●
283 03.265 RUBBER
EXHAUST BRAKE<NF8> OD=23 		8-97105-689-6 10 1 0812-1404 ● ● ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 1405-1405 ● ●
283 03.265 RUBBER
VIN MODEL YEAR 2014(VZE) OD=23 		8-97105-689-6 10 1 1405-1405 ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 1406-1409 ● ●
283 03.265 RUBBER
VIN MODEL YEAR 2015(VZF) OD=23 		8-97105-689-6 10 1 1406-1409 ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 1410- ● ●
283 03.265 RUBBER
EXC. VIN MODEL YEAR 2015(VZF) OD=23 		8-97105-689-6 10 1 1410- ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.054 (D) M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 0211-0501 ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
306 03.265 BOLT; VLV
01.540 (A) M8X45 FLANGE 		0-28080-845-0 05 1 0211-0501 ● ●
306 03.265 BOLT; VLV
01.540 (A) M8X45 FLANGE 		0-28080-845-0 05 1 0502-0512 ● ●
306 03.265 BOLT; VLV
09.173 (A) M8X45 FLANGE 		0-28050-845-0 05 1 0601-0609 ● ●
306 03.265 BOLT; VLV
09.173 (A) M8X45 FLANGE 		0-28050-845-0 05 1 0610- ● ● ●
306 03.265 BOLT; VLV
(B) M8X85 L=101 		8-97118-454-0 01 1 0610-0701 ●
306 03.265 BOLT; VLV
(B) M8X85 L=101 		8-98048-394-0 01 1 0702- ●
306 03.265 BOLT; VLV
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 0610- ●
306 03.265 BOLT; VLV
03.680 (D) M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 0610- ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-0 01 1 0211-0501 ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-1 01 1 0502-0609 ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97180-546-1 01 1 0610-0811 ● ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-1 01 1 0812-1405 ● ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97180-546-1 01 1 1406- ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR INTAKE REAR VERTICAL<KJ3> 		8-97180-546-1 01 1 1406- ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) VIN MODEL YEAR 2015(VZF) 		8-97180-546-1 01 1 1406- ●
336 03.415 VALVE; VENTILATION 8-97119-887-0 01 1 0211-0501 ● ●
336 03.415 VALVE; VENTILATION 8-97119-887-0 01 1 0502-0609 ● ●
336 03.415 VALVE; VENTILATION 8-97119-887-0 01 1 0610-0811 ● ● ●
336 03.415 VALVE; VENTILATION
EXHAUST BRAKE<NF8> 		8-97119-887-0 01 1 0812-1310 ● ● ●
336 03.415 VALVE; VENTILATION
EXHAUST BRAKE<NF8> 		8-98245-399-0 01 1 1311-1404 ● ● ●
336 03.415 VALVE; VENTILATION 8-98245-399-0 01 1 1405-1405 ● ●
336 03.415 VALVE; VENTILATION
VIN MODEL YEAR 2014(VZE) 		8-98245-399-0 01 1 1405-1405 ●
336 03.415 VALVE; VENTILATION 8-98245-399-0 01 1 1406-1409 ● ●
336 03.415 VALVE; VENTILATION
VIN MODEL YEAR 2015(VZF) 		8-98245-399-0 01 1 1406-1409 ●
336 03.415 VALVE; VENTILATION 8-98245-399-0 01 1 1410- ● ●
336 03.415 VALVE; VENTILATION
EXC. VIN MODEL YEAR 2015(VZF) 		8-98245-399-0 01 1 1410- ●
346 02.559 CLIP; ENG HARNESS
ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0211-0501 ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0502-0801 ●
346 02.559 CLIP; ENG HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0211-0501 ● ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0502-0609 ● ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0610-0801 ● ● ●
346 02.559 CLIP; ENG HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802- ● ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 0211-0501 ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 0502-0609 ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 0610-0811 ● ● ●
507 03.415 ORIFICE
EXHAUST BRAKE<NF8> 		8-97088-649-0 01 1 0812-1404 ● ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 1405-1405 ● ●
507 03.415 ORIFICE
VIN MODEL YEAR 2014(VZE) 		8-97088-649-0 01 1 1405-1405 ●
507 03.415 ORIFICE 8-97088-649-0 01 1 1406-1409 ● ●
507 03.415 ORIFICE
VIN MODEL YEAR 2015(VZF) 		8-97088-649-0 01 1 1406-1409 ●
507 03.415 ORIFICE 8-97088-649-0 01 1 1410- ● ●
507 03.415 ORIFICE
EXC. VIN MODEL YEAR 2015(VZF) 		8-97088-649-0 01 1 1410- ●
çizim 53846
27 1 7 184 20 27 53 13 13 20 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 0211- ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0211-0501 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0502-0609 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0610- ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-0 01 1 0211-0501 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-1 01 1 0502-0609 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-1 01 1 0610- ● ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 0211-0512 ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 06 1 0601- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 0211-0501 ● ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 0502-0512 ● ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 08 1 0601- ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0211-0501 ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0502-0512 ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 04 1 0601- ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0211-0501 ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0502-0512 ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 02 1 0601- ●
13 03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE 		0-28050-830-0 07 1 0610- ●
13 03.275 BOLT; INL MANIF
M8X52 L=68 		8-97118-455-0 01 1 0610-0701 ●
13 03.275 BOLT; INL MANIF
M8X52 L=68 		8-98048-395-0 01 1 0702- ●
13 03.275 BOLT; INL MANIF
09.008 M8X25 W/LK WASHER 		0-50540-825-0 05 1 0610- ●
13 03.275 BOLT; INL MANIF
09.171 M8X30 W/LK WASHER 		0-50540-830-0 01 1 0610- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0502-0609 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ● ● ●
20 03.275 NUT; INL MANIF
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ● ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ●
20 03.275 NUT; INL MANIF
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 0211-0501 ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0211-0501 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 01 1 0502-0604 ●
27 03.275 STUD; INL MANIF
03.901 M8X25 L=37 		9-04110-825-0 01 1 0502-0604 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0605-0609 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> M8X25 L=37 		0-41010-825-0 01 1 0610- ●
27 03.275 STUD; INL MANIF
M8X25 L=37 		0-41010-825-0 01 1 0610- ● ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0211-0501 ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0211-0501 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0502-0609 ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0502-0609 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 M8X35 L=46 		9-09630-034-1 01 1 0610- ●
27 03.275 STUD; INL MANIF
00.219 M8X35 L=46 		9-09630-034-1 01 1 0610- ● ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0211-0501 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0502-0604 ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4> M8X25 L=37 		0-41010-825-0 02 1 0605- ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0211-0501 ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0502-0512 ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0601-0609 ●
53 03.602 BOLT; INL PIPE
02.042 M10X25 FLANGE 		0-28151-025-0 02 1 0610- ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0211-0501 ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0502-0512 ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0609 ● ●
53 03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0610-0811 ● ● ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0812-1405 ● ● ●
53 03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610-1405 ●
53 03.602 BOLT; INL PIPE
EXC. VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 1406- ●
53 03.602 BOLT; INL PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0610-1405 ●
53 03.602 BOLT; INL PIPE
VIN MODEL YEAR 2015(VZF) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1406- ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406 		8-97035-883-1 01 1 0211-0501 ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406 		8-97035-883-1 01 1 0211-0501 ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406 		8-97035-883-1 01 1 0502-0609 ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406 		8-97035-883-1 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
