Sayfa 0-22 - Isuzu EPC

0-22 — ENGINE MOUNTING (#46130) — 356 parça

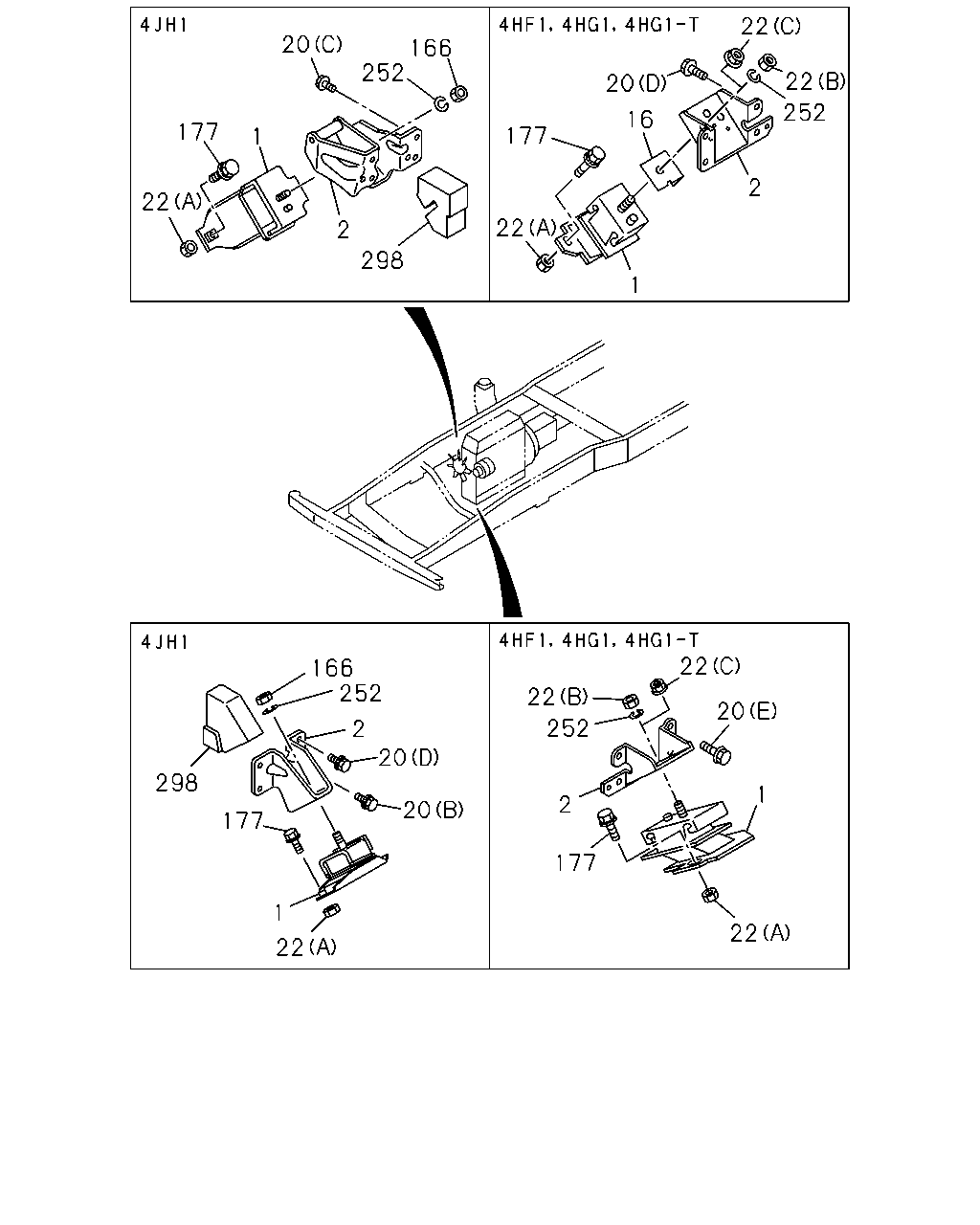

22 20 166 252 22 20 252 16 177 177 1 2 22 22 2 298 1 22 166 252 22 20 252 2 20 298 1 2 20 177 177 1 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.027 RUBBER; ENG FOOT,FRT INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97520-598-0	01	1	1506-	●
1	00.027 RUBBER; ENG FOOT,FRT INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97520-599-0	01	1	1506-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0211-0609		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0610-1505	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	1506-		●
1	00.027 RUBBER; ENG FOOT,FRT EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97080-621-0	01	1	1506-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0211-0609		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0610-1505	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	1506-		●
1	00.027 RUBBER; ENG FOOT,FRT EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97080-620-0	01	1	1506-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-0	01	1	0211-0501			●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97122-895-0	01	1	0211-0501					●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	0502-0609			●			●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	0610-			●			●	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-0	01	1	0211-0501			●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97122-893-0	01	1	0211-0501					●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	0502-0609			●			●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	0610-			●			●	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97122-892-0	01	1	0211-0501					●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97122-890-0	01	1	0211-0501					●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0211-0501		●			●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0502-0609		●				●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0610-	●	●				●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	0211-0501		●			●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	0502-0609		●				●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	0610-	●	●				●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	0211-0501			●	●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0502-0609			●				●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0610-			●				●	●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	0211-0501			●	●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	0502-0609			●				●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	0610-			●				●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	0211-0909		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	0211-0909		●
20	00.029 BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50541-022-0	03	1	0910-		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> (A) M10X22 W/LK WASHER	0-50541-022-0	03	1	0910-		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	0211-0909		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> (A) M10X22 W/LK WASHER	0-50541-022-0	02	1	0910-		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	0211-0501		●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	0211-0501					●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	0502-0609		●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	0502-0609						●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	0610-		●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	0610-	●					●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	01	1	0211-0501		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	01	1	0502-		●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	0211-0501		●			●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	0502-0512		●				●
20	00.029 BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50541-425-0	01	1	0601-0609		●				●
20	00.029 BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50541-425-0	01	1	0610-	●	●				●
20	00.029 BOLT; ENG FOOT (E) M10X20 FLANGE	0-28191-020-0	08	1	0211-0501			●	●
20	00.029 BOLT; ENG FOOT (E) M10X20 FLANGE	0-28191-020-0	08	1	0502-0512			●				●
20	00.029 BOLT; ENG FOOT (E) M10X20 FLANGE	0-28161-020-0	08	1	0601-0609			●				●
20	00.029 BOLT; ENG FOOT (E) M10X20 FLANGE	0-28161-020-0	08	1	0610-			●				●	●
20	00.029 BOLT; ENG FOOT 02.277 (D) M10X22 W/LK WASHER	0-50041-022-0	05	1	0211-0501					●
20	00.029 BOLT; ENG FOOT 02.277 (D) M10X22 W/LK WASHER	0-50041-022-0	05	1	0502-0609						●
20	00.029 BOLT; ENG FOOT 02.277 (D) M10X22 W/LK WASHER	0-50041-022-0	05	1	0610-0909	●					●
20	00.029 BOLT; ENG FOOT (D) M10X22 W/LK WASHER	0-50541-022-0	05	1	0910-	●					●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0211-0501		●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0211-0501					●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0211-0501			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0502-0512			●				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (B) M12	0-91110-512-0	02	1	0601-0609			●				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (B) M12	0-91110-512-0	02	1	0610-0612			●				●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (C) M12 FLANGE	0-91180-112-0	02	1	0701-			●				●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0211-0501					●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0502-0602		●	●			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0603-0609		●	●			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0610-	●	●	●			●	●	●
166	00.002 NUT; SUPPORT RUBBER 04.634 M12	9-99110-512-0	02	1	0211-0501		●			●
166	00.002 NUT; SUPPORT RUBBER 04.634 M12	9-99110-512-0	02	1	0502-0512		●				●
166	00.002 NUT; SUPPORT RUBBER 05.002 M12	0-91110-512-0	02	1	0601-0609		●				●
166	00.002 NUT; SUPPORT RUBBER 05.002 M12	0-91110-512-0	02	1	0610-	●	●				●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0211-0501		●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5	8-94468-733-1	04	1	0211-0501					●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0502-0609		●	●			●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0610-	●	●	●			●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	0211-0501					●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0211-0501		●	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0502-0603		●	●			●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-0609		●	●			●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0610-0612	●	●	●			●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0701-	●	●				●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97264-926-0	01	1	0211-0501					●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97264-926-0	01	1	0502-1012						●
298	00.027 RUBBER; SPACE,ENG FOOT 00.002	8-97205-803-0	01	1	1101-						●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97264-925-0	01	1	0211-0501					●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97264-925-0	01	1	0502-1012						●
298	00.027 RUBBER; SPACE,ENG FOOT 00.002	8-97205-805-0	01	1	1101-						●

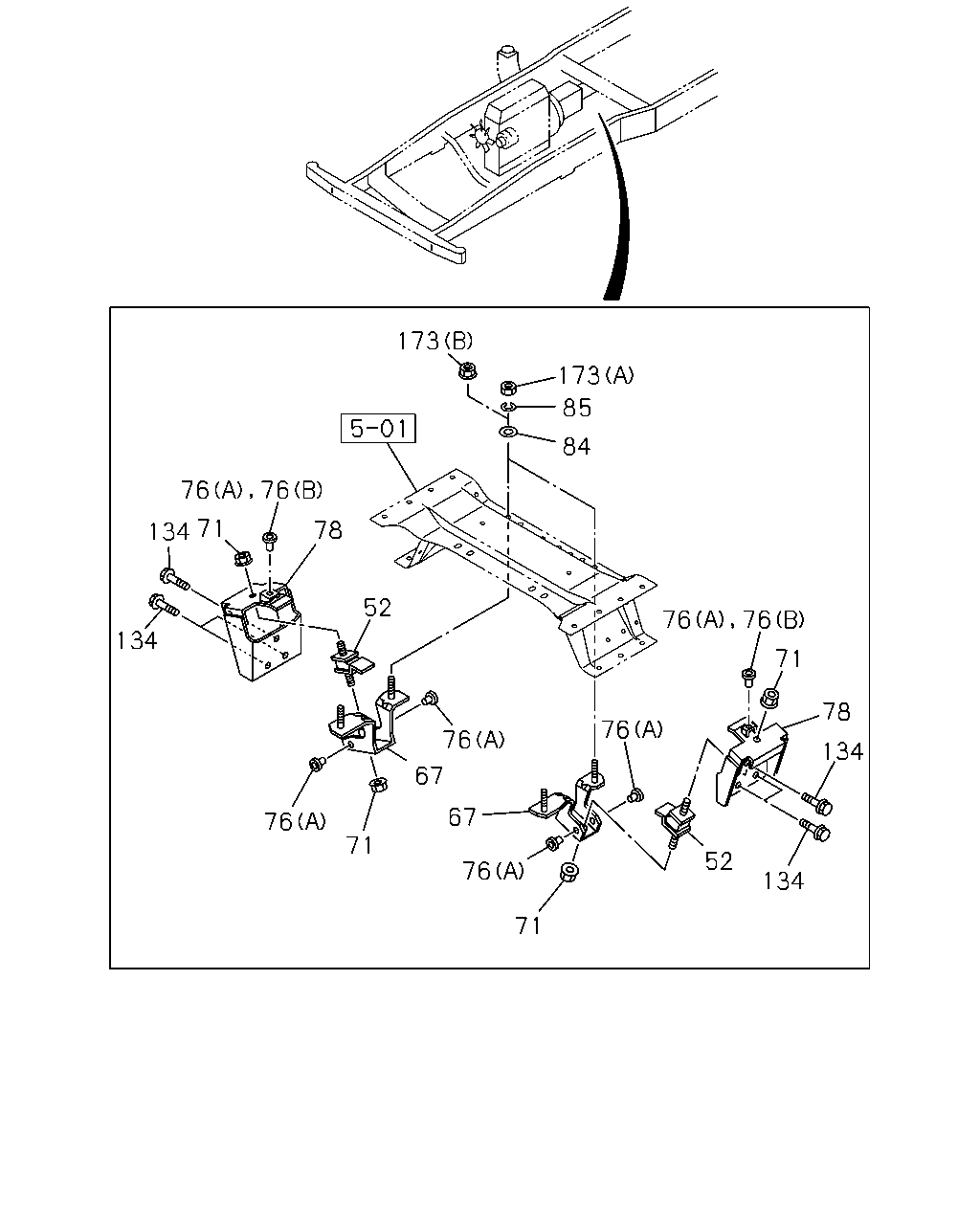

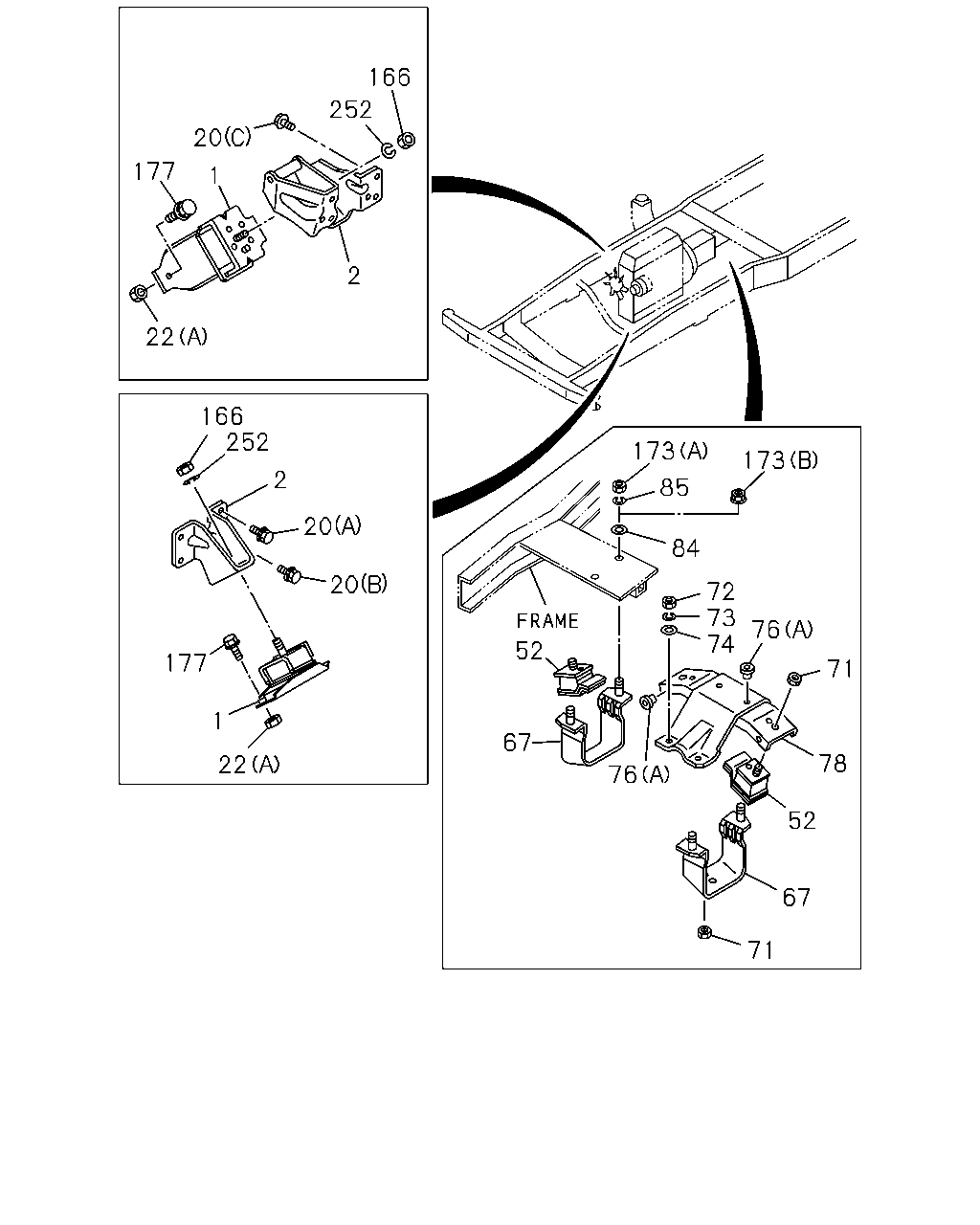

166 252 20 177 1 2 22 166 252 173 173 2 85 20 84 20 72 73 74 76 52 177 71 1 67 78 22 76 52 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.027 RUBBER; ENG FOOT,FRT INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97520-598-0	01	1	1506-	●
1	00.027 RUBBER; ENG FOOT,FRT INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97520-599-0	01	1	1506-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0211-0609		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0610-1505	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	1506-		●
1	00.027 RUBBER; ENG FOOT,FRT EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97080-621-0	01	1	1506-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0211-0609		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0610-1505	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	1506-		●
1	00.027 RUBBER; ENG FOOT,FRT EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97080-620-0	01	1	1506-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-0	01	1	0211-0501			●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97122-895-0	01	1	0211-0501					●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	0502-0609			●			●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	0610-			●			●	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-0	01	1	0211-0501			●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97122-893-0	01	1	0211-0501					●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	0502-0609			●			●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	0610-			●			●	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97122-892-0	01	1	0211-0501					●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97122-890-0	01	1	0211-0501					●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0211-0501		●			●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0502-0609		●				●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0610-	●	●				●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	0211-0501		●			●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	0502-0609		●				●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	0610-	●	●				●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	0211-0501			●	●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0502-0609			●				●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0610-			●				●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	0211-0909		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	0211-0909		●
20	00.029 BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50541-022-0	03	1	0910-		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> (A) M10X22 W/LK WASHER	0-50541-022-0	03	1	0910-		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	0211-0909		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> (A) M10X22 W/LK WASHER	0-50541-022-0	02	1	0910-		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	0211-0501		●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	0211-0501					●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	0502-0609		●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	0502-0609						●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	0610-		●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	0610-	●					●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	01	1	0211-0501		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	01	1	0502-		●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	0211-0501		●			●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	0502-0512		●				●
20	00.029 BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50541-425-0	01	1	0601-0609		●				●
20	00.029 BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50541-425-0	01	1	0610-	●	●				●
20	00.029 BOLT; ENG FOOT (E) M10X20 FLANGE	0-28191-020-0	08	1	0211-0501			●	●
20	00.029 BOLT; ENG FOOT (E) M10X20 FLANGE	0-28191-020-0	08	1	0502-0512			●				●
20	00.029 BOLT; ENG FOOT (E) M10X20 FLANGE	0-28161-020-0	08	1	0601-0609			●				●
20	00.029 BOLT; ENG FOOT (E) M10X20 FLANGE	0-28161-020-0	08	1	0610-			●				●	●
20	00.029 BOLT; ENG FOOT 02.277 (D) M10X22 W/LK WASHER	0-50041-022-0	05	1	0211-0501					●
20	00.029 BOLT; ENG FOOT 02.277 (D) M10X22 W/LK WASHER	0-50041-022-0	05	1	0502-0609						●
20	00.029 BOLT; ENG FOOT 02.277 (D) M10X22 W/LK WASHER	0-50041-022-0	05	1	0610-0909	●					●
20	00.029 BOLT; ENG FOOT (D) M10X22 W/LK WASHER	0-50541-022-0	05	1	0910-	●					●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0211-0501		●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0211-0501					●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0211-0501			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0502-0512			●				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (B) M12	0-91110-512-0	02	1	0601-0609			●				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (B) M12	0-91110-512-0	02	1	0610-0612			●				●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (C) M12 FLANGE	0-91180-112-0	02	1	0701-			●				●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0211-0501					●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0502-0602		●	●			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0603-0609		●	●			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0610-	●	●	●			●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0510-0510	●	●				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR FRAME-KICK UP<7EW>	8-94111-903-0	02	1	0510-0510			●	●			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0211-0501		●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0502-0509		●	●			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	03	1	0510-0510			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-94111-903-0	03	1	0510-0510							●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0510-0609		●	●			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0610-0712	●	●	●			●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0801-	●	●	●	●		●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	0211-0609		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	0610-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	0211-0609		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	0610-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-776-0	01	1	0211-0501				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-776-1	01	1	0502-							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-778-0	01	1	0211-0501				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-778-1	01	1	0502-							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-566-0	01	1	0211-0306				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-566-0	01	1	0211-0306			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97371-918-0	01	1	0307-0501				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-918-0	01	1	0307-0501			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-918-1	01	1	0502-0609			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97371-918-1	01	1	0502-0609							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-918-1	01	1	0610-			●					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97371-918-1	01	1	0610-							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-567-0	01	1	0211-0501				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-567-0	01	1	0211-0501			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-567-1	01	1	0502-0609			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-567-1	01	1	0502-0609							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-567-1	01	1	0610-			●					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-567-1	01	1	0610-							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-568-0	01	1	0211-0306					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-919-0	01	1	0307-0501					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-919-1	01	1	0502-						●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-569-0	01	1	0211-0501					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-569-1	01	1	0502-						●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501		●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602		●	●			●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0609		●	●			●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0610-0712	●	●	●			●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0801-	●	●	●	●		●	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	0211-0512		●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 00.833 M10	0-91110-510-0	04	1	0601-0609		●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 00.833 M10	0-91110-510-0	04	1	0610-	●	●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	9-09150-610-0	04	1	0211-0603		●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	0-91510-610-0	04	1	0604-0609		●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	0-91510-610-0	04	1	0610-	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	0211-0605		●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA ID=10.5 OD=22	0-91614-610-0	02	1	0606-0609		●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA ID=10.5 OD=22	0-91614-610-0	02	1	0610-	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	02	1	0211-0501		●
76	00.002 STOPPER; ENG MTG RUBBER FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	02	1	0211-0501				●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	02	1	0502-0609		●
76	00.002 STOPPER; ENG MTG RUBBER FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	02	1	0502-0609							●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	06	1	0610-1403			●			●		●
76	00.002 STOPPER; ENG MTG RUBBER EXC. FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	06	1	0610-1403							●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	06	1	1404-						●
76	00.002 STOPPER; ENG MTG RUBBER FRAME-KICK UP<7EW> (B)	8-97039-947-1	04	1	0211-0501				●
76	00.002 STOPPER; ENG MTG RUBBER FRAME-KICK UP<7EW> (B)	8-97039-947-1	04	1	0502-1403							●
76	00.002 STOPPER; ENG MTG RUBBER (B)	8-97039-947-1	04	1	1404-			●				●	●
76	00.002 STOPPER; ENG MTG RUBBER EXC. FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	06	1	0211-0501				●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	06	1	0211-0501			●		●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	06	1	0502-0609			●			●
76	00.002 STOPPER; ENG MTG RUBBER EXC. FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	06	1	0502-0609							●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	02	1	0610-1403	●	●
76	00.002 STOPPER; ENG MTG RUBBER FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	02	1	0610-1403							●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	02	1	1404-	●	●	●	●			●	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-2	01	1	0211-0609		●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-2	01	1	0610-	●	●
78	00.029 BRACKET; ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-756-0	02	1	0211-0501				●
78	00.029 BRACKET; ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-756-1	02	1	0502-							●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-560-0	01	1	0211-0501				●
78	00.029 BRACKET; ENG MTG,RR	8-97325-560-0	01	1	0211-0501			●		●
78	00.029 BRACKET; ENG MTG,RR	8-97325-560-1	01	1	0502-0609			●			●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-560-1	01	1	0502-0609							●
78	00.029 BRACKET; ENG MTG,RR	8-97325-560-1	01	1	0610-			●			●		●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-560-1	01	1	0610-							●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-561-0	01	1	0211-0501				●
78	00.029 BRACKET; ENG MTG,RR	8-97325-561-0	01	1	0211-0501			●		●
78	00.029 BRACKET; ENG MTG,RR	8-97325-561-1	01	1	0502-0609			●			●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-561-1	01	1	0502-0609							●
78	00.029 BRACKET; ENG MTG,RR	8-97325-561-1	01	1	0610-			●			●		●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-561-1	01	1	0610-							●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0211-0501		●	●	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0502-0605		●	●			●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-0609		●	●			●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0610-	●	●	●			●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0211-0501		●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0502-0603		●	●			●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0604-0609		●	●			●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0610-0610	●	●	●			●	●	●
166	00.002 NUT; SUPPORT RUBBER 04.634 M12	9-99110-512-0	02	1	0211-0501		●			●
166	00.002 NUT; SUPPORT RUBBER 04.634 M12	9-99110-512-0	02	1	0502-0512		●				●
166	00.002 NUT; SUPPORT RUBBER 05.002 M12	0-91110-512-0	02	1	0601-0609		●				●
166	00.002 NUT; SUPPORT RUBBER 05.002 M12	0-91110-512-0	02	1	0610-	●	●				●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 (A) M10	9-09110-410-0	04	1	0211-0501		●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 (A) M10	9-09110-410-0	04	1	0502-0512		●	●			●	●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 (A) M10	0-91110-510-0	04	1	0601-0609		●	●			●	●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 (A) M10	0-91110-510-0	04	1	0610-0610	●	●	●			●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0611-	●	●	●			●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0211-0501		●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5	8-94468-733-1	04	1	0211-0501					●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0502-0609		●	●			●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0610-	●	●	●			●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	0211-0501					●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0211-0501		●	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0502-0603		●	●			●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-0609		●	●			●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0610-0612	●	●	●			●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0701-	●	●				●

173 173 85 84 76 76 134 71 78 52 76 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0510-0510	●	●				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR FRAME-KICK UP<7EW>	8-94111-903-0	02	1	0510-0510			●	●			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0211-0501		●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0502-0509		●	●			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	03	1	0510-0510			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-94111-903-0	03	1	0510-0510							●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0510-0609		●	●			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0610-0712	●	●	●			●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0801-	●	●	●	●		●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	0211-0609		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	0610-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	0211-0609		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	0610-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-776-0	01	1	0211-0501				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-776-1	01	1	0502-							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-778-0	01	1	0211-0501				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-778-1	01	1	0502-							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-566-0	01	1	0211-0306				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-566-0	01	1	0211-0306			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97371-918-0	01	1	0307-0501				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-918-0	01	1	0307-0501			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-918-1	01	1	0502-0609			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97371-918-1	01	1	0502-0609							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-918-1	01	1	0610-			●					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97371-918-1	01	1	0610-							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-567-0	01	1	0211-0501				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-567-0	01	1	0211-0501			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-567-1	01	1	0502-0609			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-567-1	01	1	0502-0609							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-567-1	01	1	0610-			●					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-567-1	01	1	0610-							●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-568-0	01	1	0211-0306					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-919-0	01	1	0307-0501					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-919-1	01	1	0502-						●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-569-0	01	1	0211-0501					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-569-1	01	1	0502-						●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501		●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602		●	●			●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0609		●	●			●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0610-0712	●	●	●			●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0801-	●	●	●	●		●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	02	1	0211-0501		●
76	00.002 STOPPER; ENG MTG RUBBER FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	02	1	0211-0501				●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	02	1	0502-0609		●
76	00.002 STOPPER; ENG MTG RUBBER FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	02	1	0502-0609							●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	06	1	0610-1403			●			●		●
76	00.002 STOPPER; ENG MTG RUBBER EXC. FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	06	1	0610-1403							●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	06	1	1404-						●
76	00.002 STOPPER; ENG MTG RUBBER FRAME-KICK UP<7EW> (B)	8-97039-947-1	04	1	0211-0501				●
76	00.002 STOPPER; ENG MTG RUBBER FRAME-KICK UP<7EW> (B)	8-97039-947-1	04	1	0502-1403							●
76	00.002 STOPPER; ENG MTG RUBBER (B)	8-97039-947-1	04	1	1404-			●				●	●
76	00.002 STOPPER; ENG MTG RUBBER EXC. FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	06	1	0211-0501				●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	06	1	0211-0501			●		●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	06	1	0502-0609			●			●
76	00.002 STOPPER; ENG MTG RUBBER EXC. FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	06	1	0502-0609							●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	02	1	0610-1403	●	●
76	00.002 STOPPER; ENG MTG RUBBER FRAME-KICK UP<7EW> 00.027 (A)	8-94111-904-0	02	1	0610-1403							●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	02	1	1404-	●	●	●	●			●	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-2	01	1	0211-0609		●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-2	01	1	0610-	●	●
78	00.029 BRACKET; ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-756-0	02	1	0211-0501				●
78	00.029 BRACKET; ENG MTG,RR FRAME-KICK UP<7EW>	8-97255-756-1	02	1	0502-							●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-560-0	01	1	0211-0501				●
78	00.029 BRACKET; ENG MTG,RR	8-97325-560-0	01	1	0211-0501			●		●
78	00.029 BRACKET; ENG MTG,RR	8-97325-560-1	01	1	0502-0609			●			●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-560-1	01	1	0502-0609							●
78	00.029 BRACKET; ENG MTG,RR	8-97325-560-1	01	1	0610-			●			●		●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-560-1	01	1	0610-							●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-561-0	01	1	0211-0501				●
78	00.029 BRACKET; ENG MTG,RR	8-97325-561-0	01	1	0211-0501			●		●
78	00.029 BRACKET; ENG MTG,RR	8-97325-561-1	01	1	0502-0609			●			●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-561-1	01	1	0502-0609							●
78	00.029 BRACKET; ENG MTG,RR	8-97325-561-1	01	1	0610-			●			●		●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97325-561-1	01	1	0610-							●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0211-0501		●	●	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0502-0605		●	●			●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-0609		●	●			●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0610-	●	●	●			●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0211-0501		●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0502-0603		●	●			●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0604-0609		●	●			●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0610-0610	●	●	●			●	●	●
134	00.029 BOLT; SUPPORT BRKT 03.890 M12X25	0-28781-225-0	06	1	0211-0501			●	●	●
134	00.029 BOLT; SUPPORT BRKT 03.890 M12X25	0-28781-225-0	06	1	0502-0512			●			●	●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0601-0609			●			●	●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0610-			●			●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 (A) M10	9-09110-410-0	04	1	0211-0501		●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 (A) M10	9-09110-410-0	04	1	0502-0512		●	●			●	●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 (A) M10	0-91110-510-0	04	1	0601-0609		●	●			●	●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 (A) M10	0-91110-510-0	04	1	0610-0610	●	●	●			●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0611-	●	●	●			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
