Sayfa 0-20 - Isuzu EPC

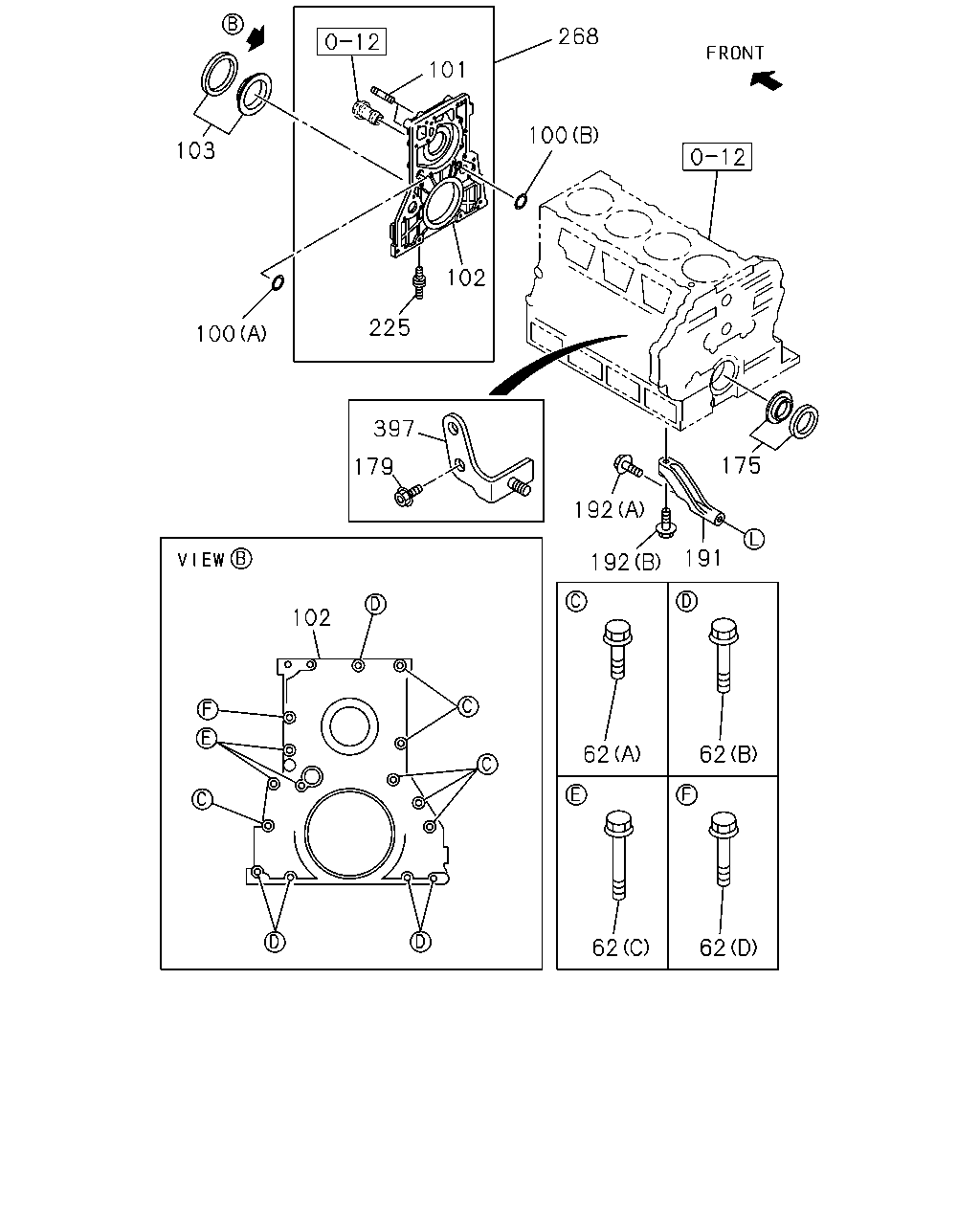

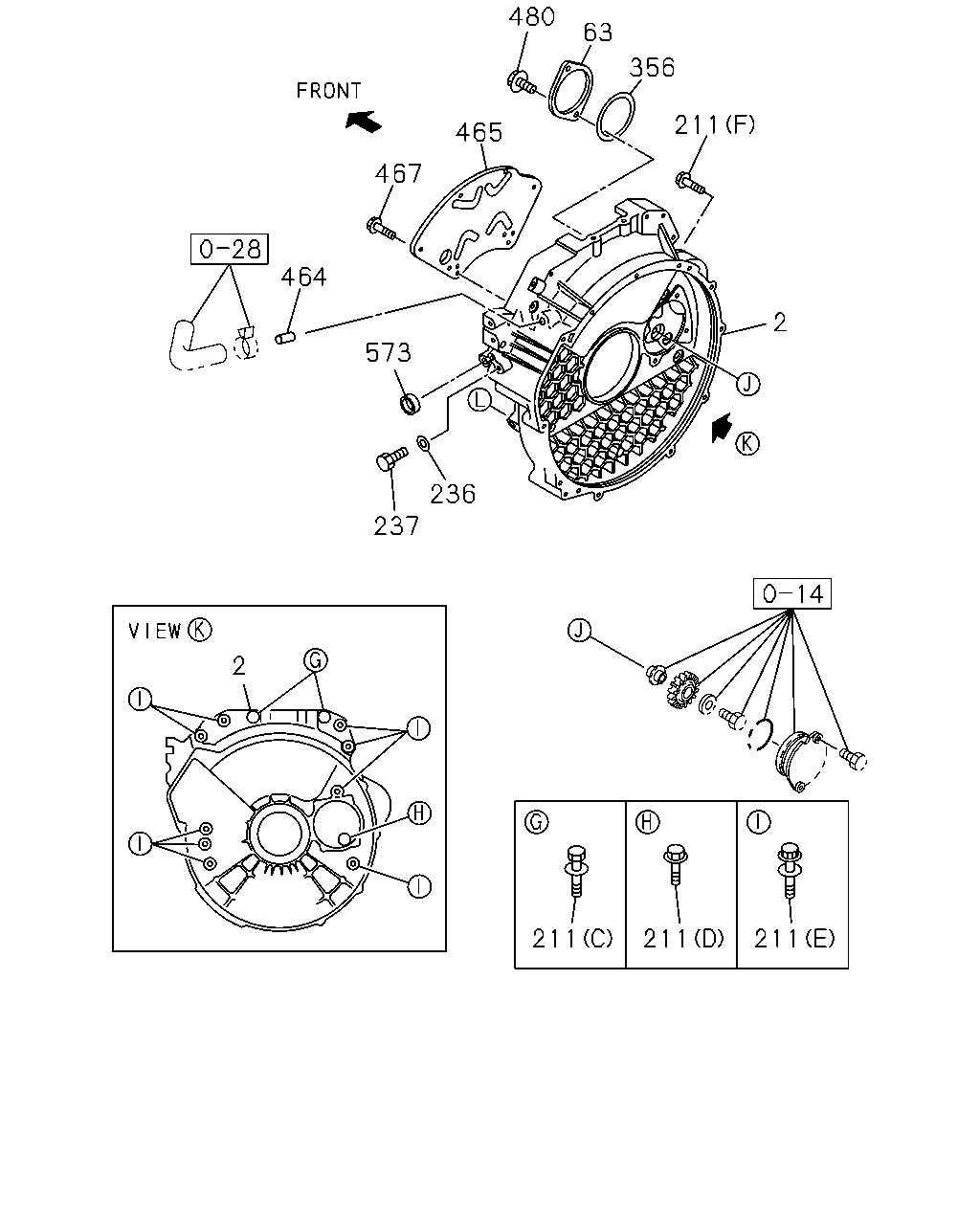

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#46129) — 413 parça

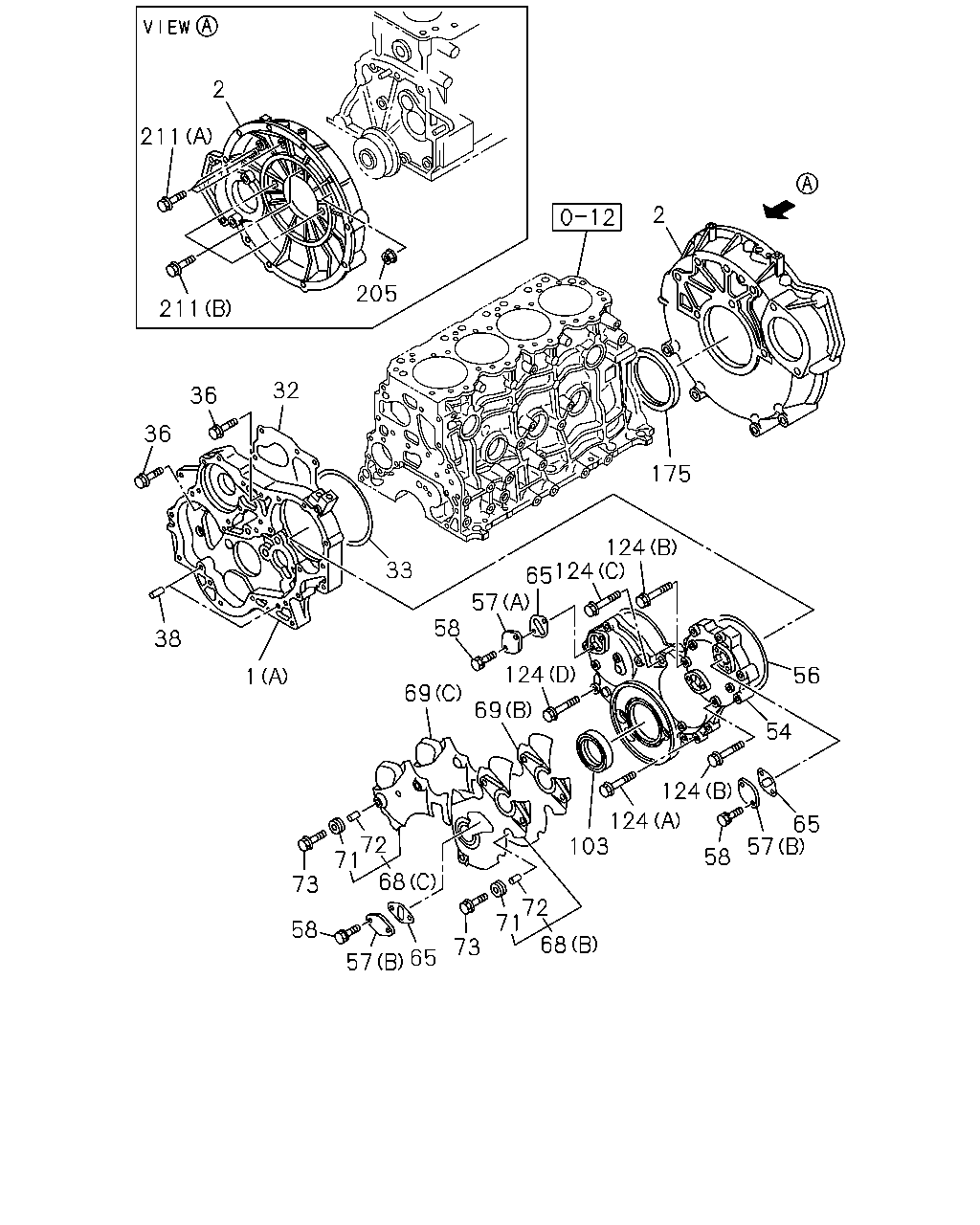

2 211 2 205 211 32 36 36 175 124 124 65 33 57 58 38 124 56 1 69 69 54 124 124 103 65 57 72 71 58 68 73 72 71 58 68 73 65 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.206 CASE; TIMING GEAR (A)	8-97129-982-3	01	1	0211-	●
1	00.206 CASE; TIMING GEAR (A)	8-97239-983-2	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR (A)	8-97239-983-2	01	1	0502-			●
1	00.206 CASE; TIMING GEAR (B)	8-97219-001-4	01	1	0610-				●
2	00.683 HOUSING; FLYWHEEL	8-97241-584-0	01	1	0211-0308					●	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-2	01	1	0309-0501					●	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-2	01	1	0502-0609					●		●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	0610-					●		●	●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0211-0501		●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0502-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-427-0	01	1	0211-0501	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-427-1	01	1	0502-0609	●		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-427-1	01	1	0610-	●		●	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) . INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-98269-758-0	01	1	1401-				●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94109-707-0	01	1	0211-0609	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94109-707-0	01	1	0610-1312	●			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94109-707-0	01	1	1401-	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-94109-707-0	01	1	1401-				●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-672-0	01	1	0211-0501		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-672-0	01	1	0502-			●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501		●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0503	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0503			●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0609	●		●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0610-0909	●		●	●
36	00.206 BOLT; GEAR CASE 03.704 M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-	●		●	●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0211-0503	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0211-0501	●	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0502-0609	●		●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0610-0909	●		●	●
36	00.206 BOLT; GEAR CASE M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-	●		●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-0501	●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-0609	●		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0610-	●		●	●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0211-0609	●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0610-	●			●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0211-0501		●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0502-			●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-694-0	01	1	0211-0501	●	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-694-0	01	1	0502-0609	●		●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-694-0	01	1	0610-	●		●	●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0211-0501	●	●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0502-0609	●		●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0610-	●		●	●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97304-608-1	01	1	0211-0501		●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97304-608-1	01	1	0502-			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	0211-0403	●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0404-0512	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-0609	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0610-	●			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0211-0403		●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0404-0501		●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0502-0512			●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0601-			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	02	1	0211-0609	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	02	1	0610-	●			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0211-0311		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	03	1	0312-0501		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	03	1	0502-			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	0211-0609	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	0610-	●			●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0211-0501		●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0502-			●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0211-0501		●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0502-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-94155-722-3	01	1	0211-0609	●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-94155-722-3	01	1	0610-	●			●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97255-035-1	01	1	0211-0302		●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0303-0501		●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-1	01	1	0502-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97239-992-0	01	1	0211-0211		●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97358-025-0	01	1	0212-0302		●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-0	01	1	0303-0501		●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-1	01	1	0502-			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0211-0609	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0610-	●			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0211-0501		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0502-			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0211-0609	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0610-	●			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0211-0501		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0502-			●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	0211-0403	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0404-0512	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0601-0609	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0610-	●			●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0211-0403		●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0501		●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0502-0512			●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98209-640-0	01	1	1207-					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S)	8-98209-640-0	01	1	1207-								●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0211-0501	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0502-0609	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0610-	●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0211-0501					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0502-0609					●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0610-1206					●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) ID=109 OD=137	8-97329-780-0	01	1	1207-1405							●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) ID=109 OD=137	8-97329-780-0	01	1	1406-							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) ID=109 OD=137	8-97329-780-0	01	1	1406-								●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501		●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0512			●
124	00.206 BOLT; TIMING COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-			●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0211-0501		●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0502-0512			●
124	00.206 BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-			●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0211-0501		●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0502-0512			●
124	00.206 BOLT; TIMING COVER (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-			●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0211-0501		●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0502-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0211-0501	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0502-0609	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0610-	●		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0211-0501					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0502-0609					●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0610-					●		●	●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501		●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0602			●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-			●
211	00.669 BOLT; HSG (F) M10X40 FLANGE	0-28781-040-0	01	1	0211-0501					●	●
211	00.669 BOLT; HSG (F) M10X40 FLANGE	0-28781-040-0	01	1	0502-0512					●		●
211	00.669 BOLT; HSG 00.029 (F) M10X40 FLANGE	0-28751-040-0	01	1	0601-0609					●		●
211	00.669 BOLT; HSG 00.029 (F) M10X40 FLANGE	0-28751-040-0	01	1	0610-					●		●	●
211	00.669 BOLT; HSG (C) M8X65 W/PL WASHER	8-94388-781-0	02	1	0211-0501					●	●
211	00.669 BOLT; HSG (C) M8X65 W/PL WASHER	8-94388-781-0	02	1	0502-					●		●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0211-0501					●	●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0502-0609					●		●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0610-1102					●		●	●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-					●		●	●
211	00.669 BOLT; HSG (D) M12X30 FLANGE	8-97135-419-0	01	1	0211-0501					●	●
211	00.669 BOLT; HSG (D) M12X30 FLANGE	8-97135-419-0	01	1	0502-0609					●		●
211	00.669 BOLT; HSG (D) M12X30 FLANGE	8-97135-419-0	01	1	0610-					●		●	●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28791-435-0	01	1	0211-0501					●	●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28791-435-0	01	1	0502-0512					●		●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28761-435-0	01	1	0601-0609					●		●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28761-435-0	01	1	0610-					●		●	●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0211-0501		●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0502-0512			●
211	00.669 BOLT; HSG 03.890 (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-			●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0211-0501		●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0502-			●
211	00.669 BOLT; HSG (C) M8X20,M8X65 L=90	8-97200-622-1	02	1	0610-								●

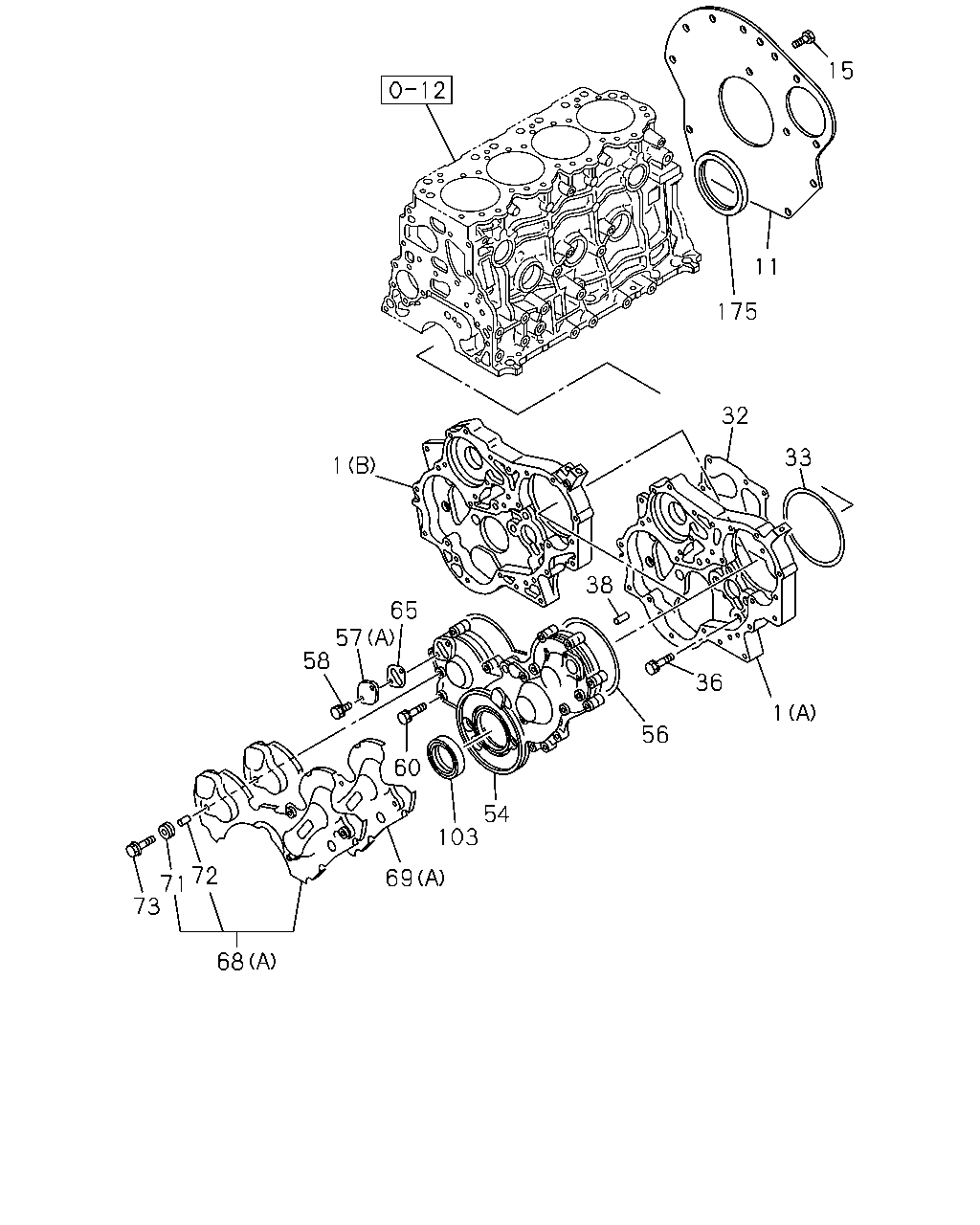

15 11 175 32 33 1 38 65 57 58 36 1 56 60 54 103 72 71 73 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.206 CASE; TIMING GEAR (A)	8-97129-982-3	01	1	0211-	●
1	00.206 CASE; TIMING GEAR (A)	8-97239-983-2	01	1	0211-0501		●
1	00.206 CASE; TIMING GEAR (A)	8-97239-983-2	01	1	0502-			●
1	00.206 CASE; TIMING GEAR (B)	8-97219-001-4	01	1	0610-				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0211-0609	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0610-	●			●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0211-0609	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0610-	●			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-427-0	01	1	0211-0501	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-427-1	01	1	0502-0609	●		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97129-427-1	01	1	0610-	●		●	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) . INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-98269-758-0	01	1	1401-				●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94109-707-0	01	1	0211-0609	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94109-707-0	01	1	0610-1312	●			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94109-707-0	01	1	1401-	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-94109-707-0	01	1	1401-				●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-672-0	01	1	0211-0501		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-672-0	01	1	0502-			●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501		●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0503	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0503			●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0609	●		●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0610-0909	●		●	●
36	00.206 BOLT; GEAR CASE 03.704 M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-	●		●	●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0211-0503	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0211-0501	●	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0502-0609	●		●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0610-0909	●		●	●
36	00.206 BOLT; GEAR CASE M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-	●		●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-0501	●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-0609	●		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0610-	●		●	●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0211-0609	●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0610-	●			●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0211-0501		●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0502-			●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-694-0	01	1	0211-0501	●	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-694-0	01	1	0502-0609	●		●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97287-694-0	01	1	0610-	●		●	●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0211-0501	●	●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0502-0609	●		●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0610-	●		●	●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97304-608-1	01	1	0211-0501		●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97304-608-1	01	1	0502-			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	0211-0403	●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0404-0512	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-0609	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0610-	●			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0211-0403		●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0404-0501		●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0502-0512			●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0601-			●
60	00.206 BOLT; COVER TO CASE 03.275 M8X30 FLANGE	0-28080-830-0	08	1	0211-0512	●
60	00.206 BOLT; COVER TO CASE M8X30 FLANGE	0-28050-830-0	08	1	0601-0609	●
60	00.206 BOLT; COVER TO CASE M8X30 FLANGE	0-28050-830-0	08	1	0610-	●			●
60	00.206 BOLT; COVER TO CASE 01.840 M8X70 W/LK WASHER	0-50040-870-0	06	1	0211-0512	●
60	00.206 BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0609	●
60	00.206 BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50540-870-0	06	1	0610-	●			●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0211-0512	●
60	00.206 BOLT; COVER TO CASE M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0609	●
60	00.206 BOLT; COVER TO CASE M12X55 HEX SOCKET	0-58331-255-0	01	1	0610-	●			●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	0211-0609	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	0610-	●			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	02	1	0211-0609	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	02	1	0610-	●			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0211-0311		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	03	1	0312-0501		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97118-698-1	03	1	0502-			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	0211-0609	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-94155-721-1	01	1	0610-	●			●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0211-0501		●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0502-			●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0211-0501		●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0502-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-94155-722-3	01	1	0211-0609	●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-94155-722-3	01	1	0610-	●			●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97255-035-1	01	1	0211-0302		●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0303-0501		●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-1	01	1	0502-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97239-992-0	01	1	0211-0211		●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97358-025-0	01	1	0212-0302		●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-0	01	1	0303-0501		●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-1	01	1	0502-			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0211-0609	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0610-	●			●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0211-0501		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0502-			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0211-0609	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0610-	●			●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0211-0501		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0502-			●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	0211-0403	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0404-0512	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0601-0609	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0610-	●			●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0211-0403		●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0501		●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0502-0512			●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98209-640-0	01	1	1207-					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S)	8-98209-640-0	01	1	1207-								●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0211-0501	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0502-0609	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0610-	●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0211-0501					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0502-0609					●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0610-1206					●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) ID=109 OD=137	8-97329-780-0	01	1	1207-1405							●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) ID=109 OD=137	8-97329-780-0	01	1	1406-							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) ID=109 OD=137	8-97329-780-0	01	1	1406-								●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0211-0501	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0502-0609	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0610-	●		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0211-0501					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0502-0609					●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0610-					●		●	●

268 101 100 103 102 225 100 397 175 179 192 191 192 102 62 62 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
62	00.206 BOLT; COVER 02.559 (A) M8X25 FLANGE	0-28680-825-0	06	1	0211-0501					●	●
62	00.206 BOLT; COVER 02.559 (A) M8X25 FLANGE	0-28680-825-0	06	1	0502-0512					●		●
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	0601-0609					●		●
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	0610-					●		●	●
62	00.206 BOLT; COVER 02.183 (B) M8X35 FLANGE	0-28680-835-0	05	1	0211-0501					●	●
62	00.206 BOLT; COVER 02.183 (B) M8X35 FLANGE	0-28680-835-0	05	1	0502-0512					●		●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	05	1	0601-0609					●		●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	05	1	0610-0706					●		●	●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	0707-					●		●	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0211-0501					●	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0502-0609					●		●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	03	1	0610-0706					●		●	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	02	1	0707-					●		●	●
62	00.206 BOLT; COVER 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0306-0404					●	●
62	00.206 BOLT; COVER EXC. INDONESIA EQUIPMENT(S4S) 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0405-0501						●
62	00.206 BOLT; COVER EXC. INDONESIA EQUIPMENT(S4S) 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0502-0512							●
62	00.206 BOLT; COVER EXC. INDONESIA EQUIPMENT(S4S) 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-1003							●
62	00.206 BOLT; COVER EXC. INDONESIA EQUIPMENT(S4S) 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	1004-1405							●	●
62	00.206 BOLT; COVER EXC. INDONESIA EQUIPMENT(S4S) 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	1406-							●
62	00.206 BOLT; COVER EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	1406-								●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.206 (A) ID=35.1	8-97028-748-1	01	1	0211-0501					●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.206 (A) ID=35.1	8-97028-748-1	01	1	0502-0609					●		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.206 (A) ID=35.1	8-97028-748-1	01	1	0610-					●		●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 04.439 (B) ID=17.8	9-09561-318-0	01	1	0211-0501					●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 04.439 (B) ID=17.8	9-09561-318-0	01	1	0502-0609					●		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE) . 04.439 (B) ID=17.8	9-09561-318-0	01	1	0610-					●		●	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0211-0501					●	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0502-0609					●		●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0610-					●		●	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0211-0501					●	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0502-0604					●		●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0605-0609					●		●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0610-					●		●	●
102	00.137 RETAINER; FRT ANTI EROSION SPEC<7XK>	8-98081-351-1	01	1	0812-							●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0211-0501					●	●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0502-0609					●		●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0610-0706					●		●	●
102	00.137 RETAINER; FRT	8-98039-932-1	01	1	0707-0811					●		●	●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	0812-1209					●			●
102	00.137 RETAINER; FRT EXC. ANTI EROSION SPEC<7XK>	8-98039-932-2	01	1	0812-1209							●
102	00.137 RETAINER; FRT EXC. INDONESIA EQUIPMENT(S4S),ANTI EROSION SPEC<7XK>	8-98039-932-2	01	1	1210-1405							●
102	00.137 RETAINER; FRT EXC. INDONESIA EQUIPMENT(S4S)	8-98039-932-2	01	1	1210-1405								●
102	00.137 RETAINER; FRT EXC. INDONESIA EQUIPMENT(S4S),ANTI EROSION SPEC<7XK>	8-98039-932-2	01	1	1406-							●
102	00.137 RETAINER; FRT EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-98039-932-2	01	1	1406-								●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98209-640-0	01	1	1207-					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . INDONESIA EQUIPMENT(S4S)	8-98209-640-0	01	1	1207-								●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0211-0501	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0502-0609	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97351-704-0	01	1	0610-	●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0211-0501					●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0502-0609					●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . ID=109 OD=137	8-97329-780-0	01	1	0610-1206					●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) ID=109 OD=137	8-97329-780-0	01	1	1207-1405							●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S) ID=109 OD=137	8-97329-780-0	01	1	1406-							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) ID=109 OD=137	8-97329-780-0	01	1	1406-								●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0211-0501	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0502-0609	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=95 OD=118	8-97071-561-1	01	1	0610-	●		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0211-0501					●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0502-0609					●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=104 OD=139	8-97602-379-0	01	1	0610-					●		●	●
179	00.206 BOLT; BRKT ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501						●
179	00.206 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512					●		●
179	00.206 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0604					●		●
179	00.206 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0605-							●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0610-1404								●
192	00.206 BOLT; STAY TO HSG 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	0610-1404								●
192	00.206 BOLT; STAY TO HSG 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	0610-1404								●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	03	1	0211-0501					●	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	03	1	0502-0609					●		●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	03	1	0610-					●		●	●
268	00.206 COVER; FRT	8-98209-520-0	01	1	1210-					●
268	00.206 COVER; FRT INDONESIA EQUIPMENT(S4S)	8-98209-520-0	01	1	1210-							●	●
268	00.206 COVER; FRT ANTI EROSION SPEC<7XK>	8-98079-080-1	01	1	0812-							●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0211-0501					●	●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0502-0609					●		●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0610-0706					●		●	●
268	00.206 COVER; FRT	8-98039-931-1	01	1	0707-0811					●		●	●
268	00.206 COVER; FRT	8-98039-931-2	01	1	0812-1209					●			●
268	00.206 COVER; FRT EXC. ANTI EROSION SPEC<7XK>	8-98039-931-2	01	1	0812-1209							●
268	00.206 COVER; FRT EXC. INDONESIA EQUIPMENT(S4S),ANTI EROSION SPEC<7XK>	8-98039-931-2	01	1	1210-1405							●
268	00.206 COVER; FRT EXC. INDONESIA EQUIPMENT(S4S)	8-98039-931-2	01	1	1210-1405								●
268	00.206 COVER; FRT EXC. INDONESIA EQUIPMENT(S4S),ANTI EROSION SPEC<7XK>	8-98039-931-2	01	1	1406-							●
268	00.206 COVER; FRT EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-98039-931-2	01	1	1406-								●
397	00.206 BRACKET; CONNECTOR ENGINE POWER N-SPEC(7QV)	8-97163-042-0	01	1	0211-0501						●
397	00.206 BRACKET; CONNECTOR	8-97163-042-0	01	1	0502-0604					●		●
397	00.206 BRACKET; CONNECTOR	8-97163-042-0	01	1	0605-							●

480 63 356 211 465 467 464 2 573 236 237 2 211 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	E	F	G	H
2	00.683 HOUSING; FLYWHEEL	8-97241-584-0	01	1	0211-0308			●	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-2	01	1	0309-0501			●	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-2	01	1	0502-0609			●		●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	0610-			●		●	●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0211-0501	●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0502-		●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	0211-0501			●	●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	0502-0609			●		●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	0610-			●		●	●
211	00.669 BOLT; HSG (F) M10X40 FLANGE	0-28781-040-0	01	1	0211-0501			●	●
211	00.669 BOLT; HSG (F) M10X40 FLANGE	0-28781-040-0	01	1	0502-0512			●		●
211	00.669 BOLT; HSG 00.029 (F) M10X40 FLANGE	0-28751-040-0	01	1	0601-0609			●		●
211	00.669 BOLT; HSG 00.029 (F) M10X40 FLANGE	0-28751-040-0	01	1	0610-			●		●	●
211	00.669 BOLT; HSG (C) M8X65 W/PL WASHER	8-94388-781-0	02	1	0211-0501			●	●
211	00.669 BOLT; HSG (C) M8X65 W/PL WASHER	8-94388-781-0	02	1	0502-			●		●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0211-0501			●	●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0502-0609			●		●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0610-1102			●		●	●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-			●		●	●
211	00.669 BOLT; HSG (D) M12X30 FLANGE	8-97135-419-0	01	1	0211-0501			●	●
211	00.669 BOLT; HSG (D) M12X30 FLANGE	8-97135-419-0	01	1	0502-0609			●		●
211	00.669 BOLT; HSG (D) M12X30 FLANGE	8-97135-419-0	01	1	0610-			●		●	●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28791-435-0	01	1	0211-0501			●	●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28791-435-0	01	1	0502-0512			●		●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28761-435-0	01	1	0601-0609			●		●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> (E) M14X35 FLANGE	0-28761-435-0	01	1	0610-			●		●	●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0211-0501	●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0502-0512		●
211	00.669 BOLT; HSG 03.890 (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-		●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0211-0501	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0502-		●
211	00.669 BOLT; HSG (C) M8X20,M8X65 L=90	8-97200-622-1	02	1	0610-						●
236	00.669 GASKET; FLYWHEEL HSG ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 01.531 ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-0501				●
236	00.669 GASKET; FLYWHEEL HSG EXC. INDONESIA EQUIPMENT(S4S) 01.531 ID=10.2 OD=15.2	1-09630-083-0	01	1	0502-0811					●
236	00.669 GASKET; FLYWHEEL HSG EXC. INDONESIA EQUIPMENT(S4S) 01.531 ID=10.2 OD=15.2	1-09630-083-0	01	1	0812-1405			●		●
236	00.669 GASKET; FLYWHEEL HSG EXC. INDONESIA EQUIPMENT(S4S) 01.531 ID=10.2 OD=15.2	1-09630-083-0	01	1	1406-					●
237	00.686 PLUG; FLYWHEEL HSG ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0211-0501				●
237	00.686 PLUG; FLYWHEEL HSG EXC. INDONESIA EQUIPMENT(S4S) 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0502-0512					●
237	00.686 PLUG; FLYWHEEL HSG EXC. INDONESIA EQUIPMENT(S4S) 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0601-0811					●
237	00.686 PLUG; FLYWHEEL HSG EXC. INDONESIA EQUIPMENT(S4S) 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0812-1405			●		●
237	00.686 PLUG; FLYWHEEL HSG EXC. INDONESIA EQUIPMENT(S4S) 06.225 M10X12 FLANGE	0-28051-012-0	01	1	1406-					●
356	00.207 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. POWER STEERING<N40> 06.673	8-97101-875-2	01	1	0211-0501			●	●
356	00.207 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. POWER STEERING<N40> 06.673	8-97101-875-2	01	1	0502-0609			●		●
356	00.207 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. POWER STEERING<N40> 06.673	8-97101-875-2	01	1	0610-			●		●	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0211-0501			●	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0502-0609			●		●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0610-			●		●	●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	0211-0308			●	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0309-0501			●	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0502-0609			●		●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0610-			●		●	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0211-0501			●	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0502-0507			●		●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0508-0609			●		●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0610-0805			●		●	●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	0806-			●		●	●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	0211-0501			●	●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	0502-0609			●		●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	0610-0805			●		●	●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 04.439 M10X28 FLANGE	8-98044-944-0	02	1	0806-1010			●		●	●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1011-			●		●	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0211-0501			●	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0502-0609			●		●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0610-			●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
