Sayfa 0-14 - Isuzu EPC

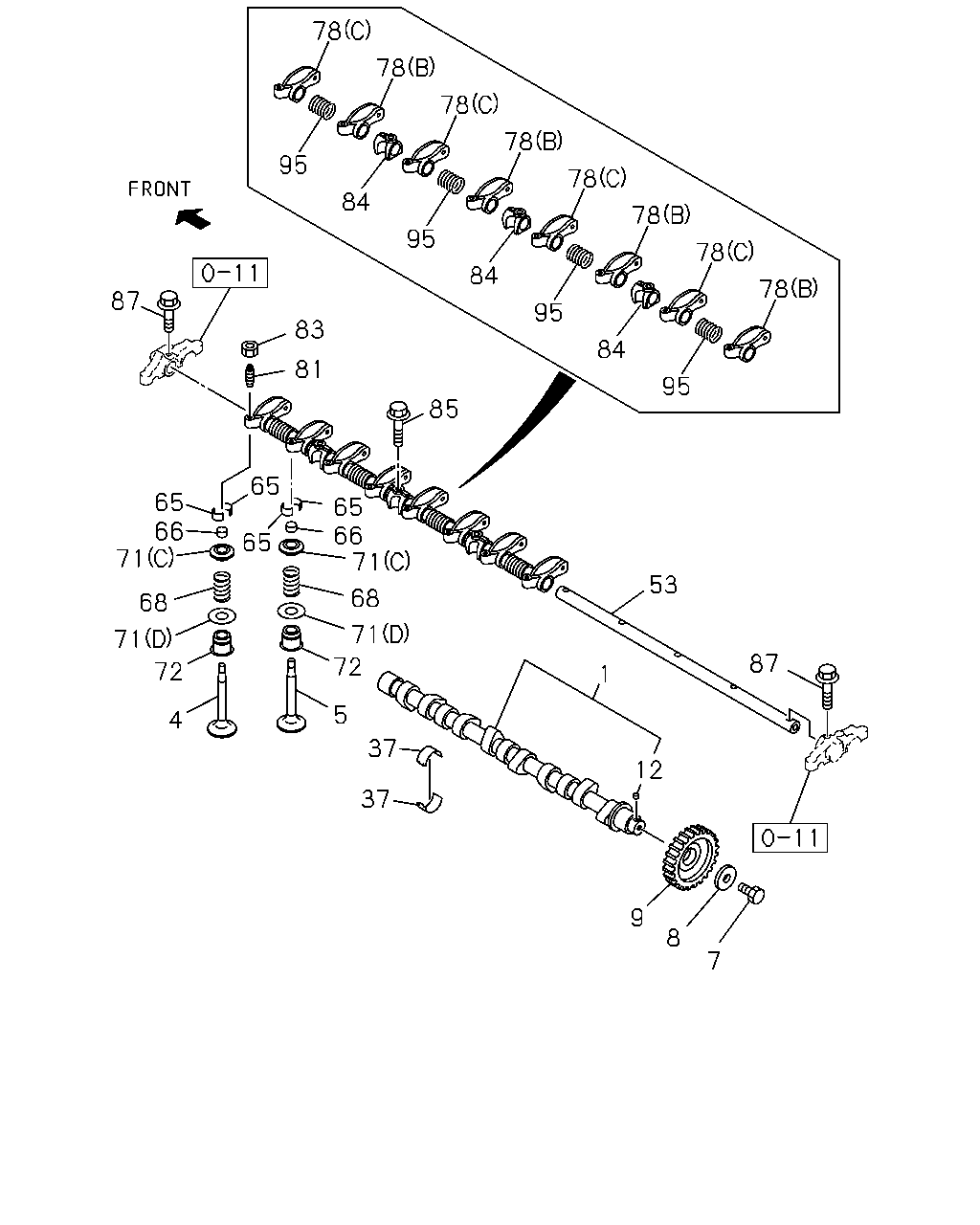

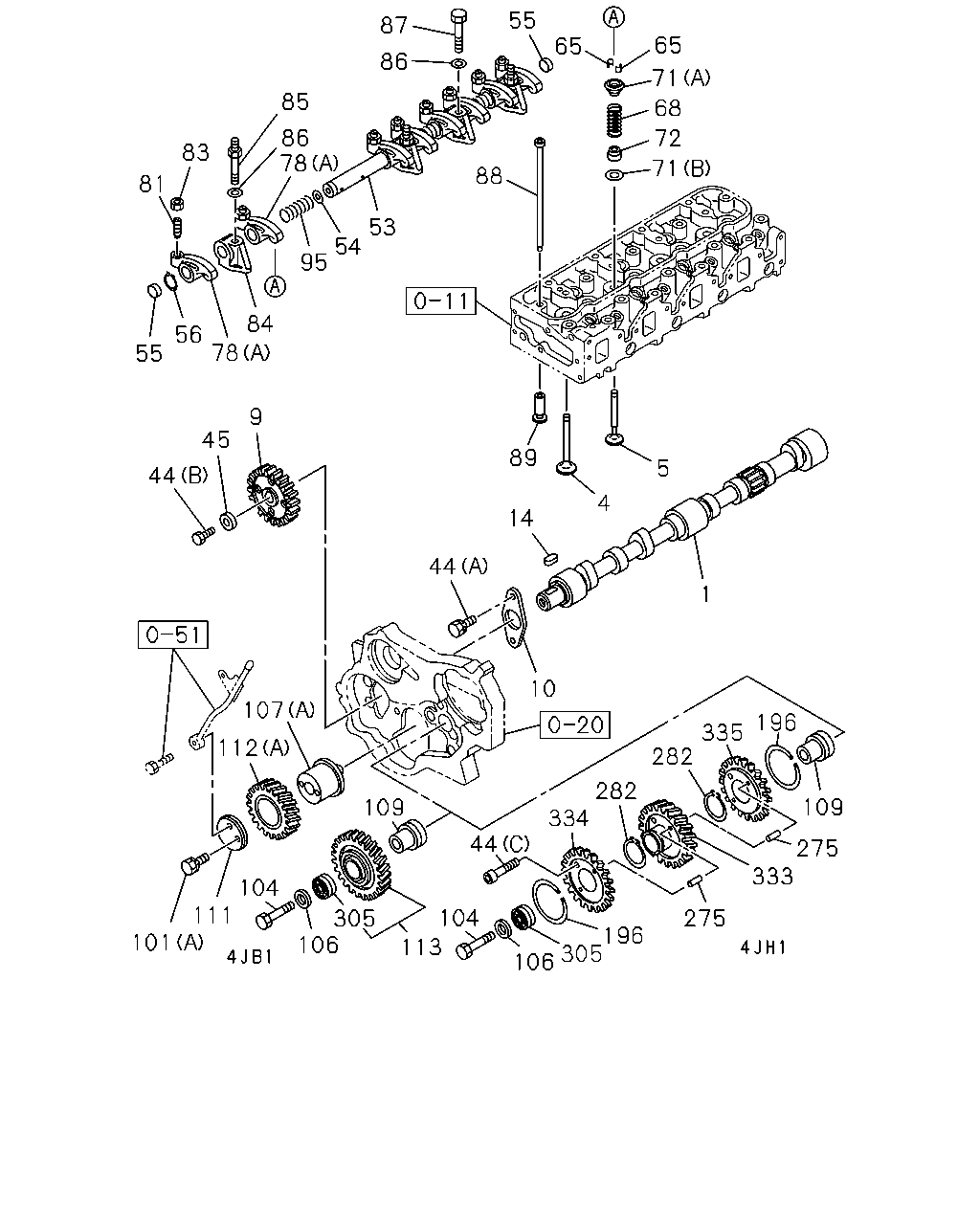

0-14 — CAMSHAFT AND VALVE (#46127) — 565 parça

55 87 65 65 86 71 85 68 86 78 72 83 71 88 81 53 54 95 84 56 78 55 9 45 89 5 44 4 14 44 1 10 107 196 335 282 112 282 334 109 109 44 275 333 104 111 104 275 305 106 196 305 106 101 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0211-0501	●	●
1	00.519 CAMSHAFT	8-97287-657-1	01	1	0502-0609		●	●
1	00.519 CAMSHAFT	8-97287-657-1	01	1	0610-		●	●	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0211-0501					●	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0502-0609					●		●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0610-					●		●	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	0211-0501		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	0211-0501		●
4	00.296 VALVE; INL	8-94133-275-2	04	1	0502-		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0211-0501					●	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0502-0609					●		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0610-					●		●	●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0211-0501	●
4	00.296 VALVE; INL	8-97131-729-2	04	1	0502-			●
4	00.296 VALVE; INL	8-94464-921-2	04	1	0610-				●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	0211-0501		●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	0211-0501		●
5	00.297 VALVE; EXH	8-94247-875-2	04	1	0502-		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0211-0501					●	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0502-0609					●		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0610-					●		●	●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0211-0501	●
5	00.297 VALVE; EXH	8-97043-861-2	04	1	0502-			●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	0610-1405				●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-				●
9	00.736 GEAR; CM/SHF Z=42	8-97229-594-2	01	1	0912-				●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0211-0609		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0610-0911		●		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0912-		●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0211-0501					●	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0502-					●		●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0211-0501	●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0502-			●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0610-								●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0211-0501	●	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0502-0609		●	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0610-		●	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0211-0501	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0502-0609		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0610-		●	●	●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●	●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●	●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0609		●	●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0610-		●	●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0211-0501	●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0502-0609		●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0610-		●	●	●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0211-0501	●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0502-			●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0211-0409	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	8-97918-881-0	01	1	0410-0410	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0410-0501	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0502-0609		●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0610-		●	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0211-0501	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0502-0609		●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0610-		●	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0211-0501					●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0502-0609					●		●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0610-					●		●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0211-0501					●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0502-0609					●		●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0610-					●		●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0211-0501	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0502-0609		●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0610-		●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0211-0501	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0502-0609		●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0610-		●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0211-0501	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0502-0609		●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0610-		●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0211-0501	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0502-0609		●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0610-		●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0211-0501					●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0502-0609					●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0610-					●		●	●
68	00.303 SPRING; VLV INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-98276-958-0	08	1	1507-				●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0211-0501	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0502-0609		●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0610-1506		●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1507-		●	●
68	00.303 SPRING; VLV EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> H=48 NATURAL	8-94433-247-0	08	1	1507-				●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0211-0501					●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0502-0609					●		●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0610-					●		●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0211-0501	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0502-0609		●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0610-		●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0211-0501	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0502-0609		●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0610-		●	●	●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	0211-0501					●	●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	0502-0609					●		●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	0610-					●		●	●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	0211-0501					●	●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	0502-0609					●		●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	0610-					●		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0211-0501	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0502-0609		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0610-		●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0211-0501					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0502-0609					●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0610-					●		●	●
78	00.333 ARM; ROCKER (A)	8-94152-344-0	08	1	0211-0501	●	●
78	00.333 ARM; ROCKER (A)	8-94152-344-0	08	1	0502-0609		●	●
78	00.333 ARM; ROCKER (A)	8-94152-344-0	08	1	0610-		●	●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0211-0501					●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0502-0609					●		●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0610-					●		●	●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	0211-0501					●	●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	0502-0609					●		●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	0610-					●		●	●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	0211-0501					●	●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	0502-0609					●		●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	0610-					●		●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0211-0501					●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0502-0609					●		●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0610-					●		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0211-0501	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0502-0609		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0610-		●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0211-0501					●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0502-0609					●		●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0610-					●		●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0211-0501	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0502-0512		●	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0601-0609		●	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0610-		●	●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0211-0501					●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0502-0512					●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-0609					●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0610-					●		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0211-0501	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0502-0609		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0610-		●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0211-0501					●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0502-0609					●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0610-					●		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0211-0501					●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0502-0609					●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0610-					●		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0211-0501	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0502-0609		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0610-		●	●	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0211-0501					●	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0502-0609					●		●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0610-					●		●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0211-0501					●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0502-0609					●		●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0610-					●		●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0211-0501	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0502-0609		●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0610-		●	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0211-0501	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0502-0609		●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0610-		●	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0211-0501					●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0502-0512					●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0601-0609					●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0610-					●		●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0211-0501	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0502-0609		●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0610-		●	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0211-0501	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0502-0609		●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0610-		●	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0211-0501	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0502-0609		●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0610-		●	●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0211-0501					●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0502-0609					●		●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0610-					●		●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0211-0501					●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0502-0609					●		●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0610-					●		●	●

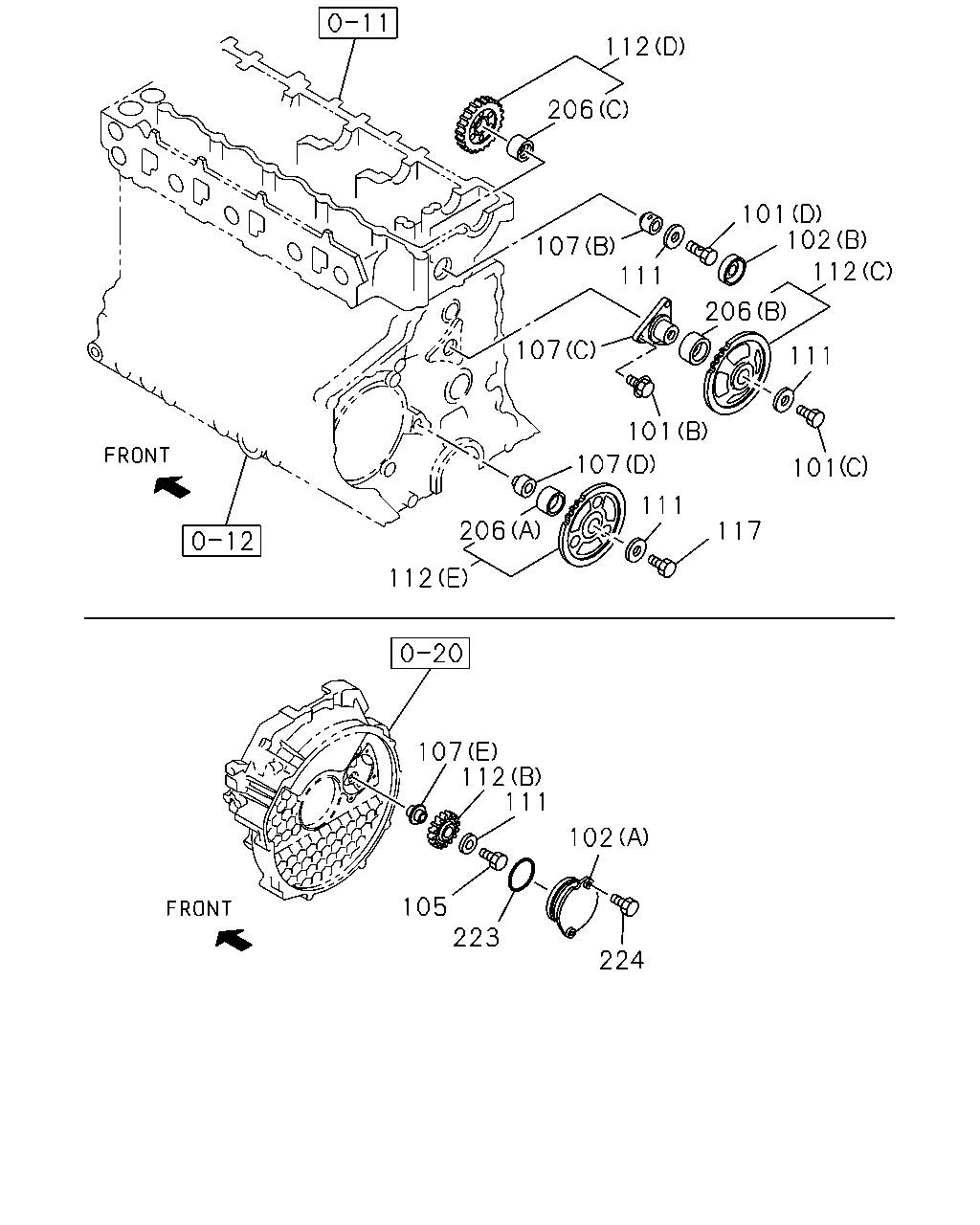

101	00.724 BOLT; THRUST COLLAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0211-0501	●	●
101	00.724 BOLT; THRUST COLLAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0502-0609		●	●
101	00.724 BOLT; THRUST COLLAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0610-		●	●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0211-0501					●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0502-0512					●		●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0609					●		●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0610-					●		●	●
101	00.724 BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	0211-0501					●	●
101	00.724 BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	0502-0609					●		●
101	00.724 BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	0610-					●		●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0211-0501					●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0502-0609					●		●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0610-1310					●		●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-					●		●	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	0211-0609		●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	0610-		●		●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0211-0501	●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0502-			●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	8-97918-881-0	01	1	0211-0409	●	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0410-0501	●	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0502-0609		●	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0610-		●	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-98209-525-0	01	1	1212-					●
107	00.724 SHAFT; IDLE GEAR INDONESIA EQUIPMENT(S4S) (C)	8-98209-525-0	01	1	1212-							●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94139-758-1	01	1	0211-		●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0211-0501					●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0502-0609					●		●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-					●		●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0211-0501					●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0502-0609					●		●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0610-					●		●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0211-0501					●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0502-0609					●		●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0610-1211					●		●	●
107	00.724 SHAFT; IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) (C)	8-97350-021-0	01	1	1212-1405							●	●
107	00.724 SHAFT; IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) (C)	8-97350-021-0	01	1	1406-							●
107	00.724 SHAFT; IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) (C)	8-97350-021-0	01	1	1406-								●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (E)	8-94334-682-0	01	1	0211-0501					●	●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (E)	8-94334-682-0	01	1	0502-0609					●		●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (E)	8-94334-682-1	01	1	0610-					●		●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97240-021-0	01	1	0211-0309	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0310-0501	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0502-			●
107	00.724 SHAFT; IDLE GEAR (A)	8-97920-007-0	01	1	0610-				●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	0211-		●
109	00.724 SHAFT; IDLE GEAR	8-97240-023-1	01	1	0211-0308	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	0309-0501	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	0502-			●
109	00.724 SHAFT; IDLE GEAR	8-97218-780-0	01	1	0610-				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-98209-850-0	01	1	1212-1306					●
111	00.724 COLLAR; THRUST,IDLE GEAR INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-98209-850-0	01	1	1212-1306							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-98209-850-0	03	1	1307-					●
111	00.724 COLLAR; THRUST,IDLE GEAR INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-98209-850-0	03	1	1307-							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-98209-850-0	01	1	1307-					●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-98209-850-0	01	1	1307-							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0211-0609		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0610-		●		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	03	1	0211-0302					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-97912-650-0	01	1	0911-		●		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	03	1	0303-0501					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0502-0609					●		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0610-1211					●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	02	1	1212-1306					●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-97209-728-2	03	1	1307-1405							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-97209-728-2	03	1	1406-							●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) ID=14.5 OD=46	8-97209-728-2	03	1	1406-								●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	0211-0501					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0502-0609					●		●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0610-1211					●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	1212-1306					●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-97209-728-2	01	1	1212-1306							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-97209-728-2	01	1	1307-1405							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-97209-728-2	01	1	1406-							●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) ID=14.5 OD=46	8-97209-728-2	01	1	1406-								●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0211-0501	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0502-			●
112	00.724 GEAR; IDLE (A) Z=31	8-97164-773-0	01	1	0211-		●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	0211-0501					●	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	0502-					●		●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	0211-0501					●	●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	0502-					●		●
112	00.724 GEAR; IDLE (E) Z=72-60	8-97227-213-0	01	1	0211-0501					●	●
112	00.724 GEAR; IDLE (E) Z=72-60	8-97227-213-0	01	1	0502-					●		●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0211-0501					●	●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0502-0609					●		●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0610-					●		●	●
112	00.724 GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0211-0501	●
112	00.724 GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0502-			●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	0610-								●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	0610-								●
112	00.724 GEAR; IDLE (E) Z=72-30	8-97227-074-0	01	1	0610-								●
112	00.724 GEAR; IDLE (A) Z=31	8-97229-601-0	01	1	0610-				●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	0211-		●
113	00.724 GEAR; IDLE Z=37	8-97229-602-0	01	1	0610-0908				●
113	00.724 GEAR; IDLE Z=37	8-98140-217-0	01	1	0909-				●
196	00.724 RING; SNAP	8-97245-684-1	02	1	0211-0501	●
196	00.724 RING; SNAP	8-97245-684-1	02	1	0502-			●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0211-0501	●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0502-			●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	0211-0501	●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	0502-			●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	0211-		●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0211-0501	●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0502-			●
305	00.724 BEARING; IDLE GEAR	8-97218-947-1	01	1	0610-0908				●
305	00.724 BEARING; IDLE GEAR	8-98140-110-0	01	1	0909-				●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0211-0501	●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0502-			●
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0211-0501	●
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0502-			●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0211-0501	●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0502-			●

78 78 78 78 95 78 84 78 95 78 84 78 87 95 83 84 81 95 85 65 66 71 65 65 66 65 71 53 68 68 71 71 87 72 72 1 5 4 37 12 37 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0211-0501	●	●
1	00.519 CAMSHAFT	8-97287-657-1	01	1	0502-0609		●	●
1	00.519 CAMSHAFT	8-97287-657-1	01	1	0610-		●	●	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0211-0501					●	●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0502-0609					●		●
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0610-					●		●	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	0211-0501		●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	0211-0501		●
4	00.296 VALVE; INL	8-94133-275-2	04	1	0502-		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0211-0501					●	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0502-0609					●		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0610-					●		●	●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0211-0501	●
4	00.296 VALVE; INL	8-97131-729-2	04	1	0502-			●
4	00.296 VALVE; INL	8-94464-921-2	04	1	0610-				●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	0211-0501		●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	0211-0501		●
5	00.297 VALVE; EXH	8-94247-875-2	04	1	0502-		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0211-0501					●	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0502-0609					●		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0610-					●		●	●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0211-0501	●
5	00.297 VALVE; EXH	8-97043-861-2	04	1	0502-			●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	0610-1405				●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-				●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0211-0501					●	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0502-0609					●		●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0610-					●		●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	8-98209-848-0	01	1	1212-					●
8	00.738 WASHER; CM/SHF GEAR INDONESIA EQUIPMENT(S4S) ID=14.5	8-98209-848-0	01	1	1212-							●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0211-0501					●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0502-0609					●		●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0610-1211					●		●	●
8	00.738 WASHER; CM/SHF GEAR EXC. INDONESIA EQUIPMENT(S4S) ID=14.5	9-09851-850-3	01	1	1212-1405							●	●
8	00.738 WASHER; CM/SHF GEAR EXC. INDONESIA EQUIPMENT(S4S) ID=14.5	9-09851-850-3	01	1	1406-							●
8	00.738 WASHER; CM/SHF GEAR EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) ID=14.5	9-09851-850-3	01	1	1406-								●
9	00.736 GEAR; CM/SHF Z=42	8-97229-594-2	01	1	0912-				●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0211-0609		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0610-0911		●		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0912-		●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0211-0501					●	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	0502-					●		●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0211-0501	●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0502-			●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0610-								●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0211-0501					●	●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0502-0609					●		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0610-					●		●	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0211-0501					●	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0502-0609					●		●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0610-0706					●		●	●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-					●		●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0211-0501	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0502-0609		●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0610-		●	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0211-0501					●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0502-0609					●		●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0610-					●		●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0211-0501					●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0502-0609					●		●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0610-					●		●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0211-0501	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0502-0609		●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0610-		●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0211-0501					●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0502-0609					●		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0610-					●		●	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0211-0501					●	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0502-0609					●		●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0610-					●		●	●
68	00.303 SPRING; VLV INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-98276-958-0	08	1	1507-				●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0211-0501	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0502-0609		●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0610-1506		●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1507-		●	●
68	00.303 SPRING; VLV EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> H=48 NATURAL	8-94433-247-0	08	1	1507-				●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0211-0501					●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0502-0609					●		●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	0610-					●		●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0211-0501	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0502-0609		●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0610-		●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0211-0501	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0502-0609		●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0610-		●	●	●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	0211-0501					●	●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	0502-0609					●		●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	0610-					●		●	●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	0211-0501					●	●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	0502-0609					●		●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	0610-					●		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0211-0501	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0502-0609		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0610-		●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0211-0501					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0502-0609					●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0610-					●		●	●
78	00.333 ARM; ROCKER (A)	8-94152-344-0	08	1	0211-0501	●	●
78	00.333 ARM; ROCKER (A)	8-94152-344-0	08	1	0502-0609		●	●
78	00.333 ARM; ROCKER (A)	8-94152-344-0	08	1	0610-		●	●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0211-0501					●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0502-0609					●		●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0610-					●		●	●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	0211-0501					●	●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	0502-0609					●		●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	0610-					●		●	●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	0211-0501					●	●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	0502-0609					●		●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	0610-					●		●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0211-0501					●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0502-0609					●		●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0610-					●		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0211-0501	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0502-0609		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0610-		●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0211-0501					●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0502-0609					●		●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0610-					●		●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0211-0501	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0502-0512		●	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0601-0609		●	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0610-		●	●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0211-0501					●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0502-0512					●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-0609					●		●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0610-					●		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0211-0501	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0502-0609		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0610-		●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0211-0501					●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0502-0609					●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0610-					●		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0211-0501					●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0502-0609					●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0610-					●		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0211-0501	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0502-0609		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0610-		●	●	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0211-0501					●	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0502-0609					●		●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0610-					●		●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0211-0501					●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0502-0609					●		●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0610-					●		●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0211-0501	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0502-0609		●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0610-		●	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0211-0501					●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0502-0512					●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0601-0609					●		●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0610-					●		●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0211-0501	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0502-0609		●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0610-		●	●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0211-0501					●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0502-0609					●		●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0610-					●		●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0211-0501					●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0502-0609					●		●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0610-					●		●	●

112 206 101 102 112 107 111 206 107 111 101 107 101 111 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
101	00.724 BOLT; THRUST COLLAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0211-0501	●	●
101	00.724 BOLT; THRUST COLLAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0502-0609		●	●
101	00.724 BOLT; THRUST COLLAR (A) M8X53 FLANGE	8-97223-999-0	02	1	0610-		●	●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0211-0501					●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0502-0512					●		●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0609					●		●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0610-					●		●	●
101	00.724 BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	0211-0501					●	●
101	00.724 BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	0502-0609					●		●
101	00.724 BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	0610-					●		●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0211-0501					●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0502-0609					●		●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0610-1310					●		●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-					●		●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-98209-813-0	01	1	1212-					●
102	00.724 COVER; IDLE GEAR INDONESIA EQUIPMENT(S4S) (B) OD=51	8-98209-813-0	01	1	1212-							●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0211-0501					●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0502-0609					●		●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0610-					●		●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0211-0501					●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0502-0609					●		●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0610-1211					●		●	●
102	00.724 COVER; IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) (B) OD=51	8-97096-826-0	01	1	1212-1405							●	●
102	00.724 COVER; IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) (B) OD=51	8-97096-826-0	01	1	1406-							●
102	00.724 COVER; IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) (B) OD=51	8-97096-826-0	01	1	1406-								●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	0211-0501					●	●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	0502-0512					●		●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0601-0609					●		●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0610-					●		●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-98209-525-0	01	1	1212-					●
107	00.724 SHAFT; IDLE GEAR INDONESIA EQUIPMENT(S4S) (C)	8-98209-525-0	01	1	1212-							●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94139-758-1	01	1	0211-		●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0211-0501					●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0502-0609					●		●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-					●		●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0211-0501					●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0502-0609					●		●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0610-					●		●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0211-0501					●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0502-0609					●		●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0610-1211					●		●	●
107	00.724 SHAFT; IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) (C)	8-97350-021-0	01	1	1212-1405							●	●
107	00.724 SHAFT; IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) (C)	8-97350-021-0	01	1	1406-							●
107	00.724 SHAFT; IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) (C)	8-97350-021-0	01	1	1406-								●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (E)	8-94334-682-0	01	1	0211-0501					●	●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (E)	8-94334-682-0	01	1	0502-0609					●		●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (E)	8-94334-682-1	01	1	0610-					●		●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97240-021-0	01	1	0211-0309	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0310-0501	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97943-224-0	01	1	0502-			●
107	00.724 SHAFT; IDLE GEAR (A)	8-97920-007-0	01	1	0610-				●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-98209-850-0	01	1	1212-1306					●
111	00.724 COLLAR; THRUST,IDLE GEAR INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-98209-850-0	01	1	1212-1306							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-98209-850-0	03	1	1307-					●
111	00.724 COLLAR; THRUST,IDLE GEAR INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-98209-850-0	03	1	1307-							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-98209-850-0	01	1	1307-					●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-98209-850-0	01	1	1307-							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0211-0609		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0610-		●		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	03	1	0211-0302					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-97912-650-0	01	1	0911-		●		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	03	1	0303-0501					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0502-0609					●		●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0610-1211					●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	02	1	1212-1306					●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-97209-728-2	03	1	1307-1405							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-97209-728-2	03	1	1406-							●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) ID=14.5 OD=46	8-97209-728-2	03	1	1406-								●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	0211-0501					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0502-0609					●		●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0610-1211					●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	1212-1306					●		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-97209-728-2	01	1	1212-1306							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-97209-728-2	01	1	1307-1405							●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. INDONESIA EQUIPMENT(S4S) ID=14.5 OD=46	8-97209-728-2	01	1	1406-							●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) ID=14.5 OD=46	8-97209-728-2	01	1	1406-								●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0211-0501	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0502-			●
112	00.724 GEAR; IDLE (A) Z=31	8-97164-773-0	01	1	0211-		●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	0211-0501					●	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-2	01	1	0502-					●		●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	0211-0501					●	●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	0502-					●		●
112	00.724 GEAR; IDLE (E) Z=72-60	8-97227-213-0	01	1	0211-0501					●	●
112	00.724 GEAR; IDLE (E) Z=72-60	8-97227-213-0	01	1	0502-					●		●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0211-0501					●	●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0502-0609					●		●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0610-					●		●	●
112	00.724 GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0211-0501	●
112	00.724 GEAR; IDLE (A) Z=43	8-97240-014-1	01	1	0502-			●
112	00.724 GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	0610-								●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	0610-								●
112	00.724 GEAR; IDLE (E) Z=72-30	8-97227-074-0	01	1	0610-								●
112	00.724 GEAR; IDLE (A) Z=31	8-97229-601-0	01	1	0610-				●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0211-0501					●	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0502-0609					●		●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0610-					●		●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0211-0501					●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0502-0609					●		●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0610-					●		●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0211-0501					●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0502-0609					●		●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0610-0802					●		●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-					●		●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0211-0501					●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0502-0609					●		●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0610-0809					●		●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-					●		●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE) . 04.854 ID=105.6	1-09623-247-0	01	1	0211-0211					●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=105.6	1-09623-423-0	01	1	0212-0501					●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=105.6	1-09623-423-0	01	1	0502-0609					●		●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE) . ID=105.6	1-09623-423-0	01	1	0610-					●		●	●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501					●	●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512					●		●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0609					●		●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-					●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
