Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#46126) — 282 parça

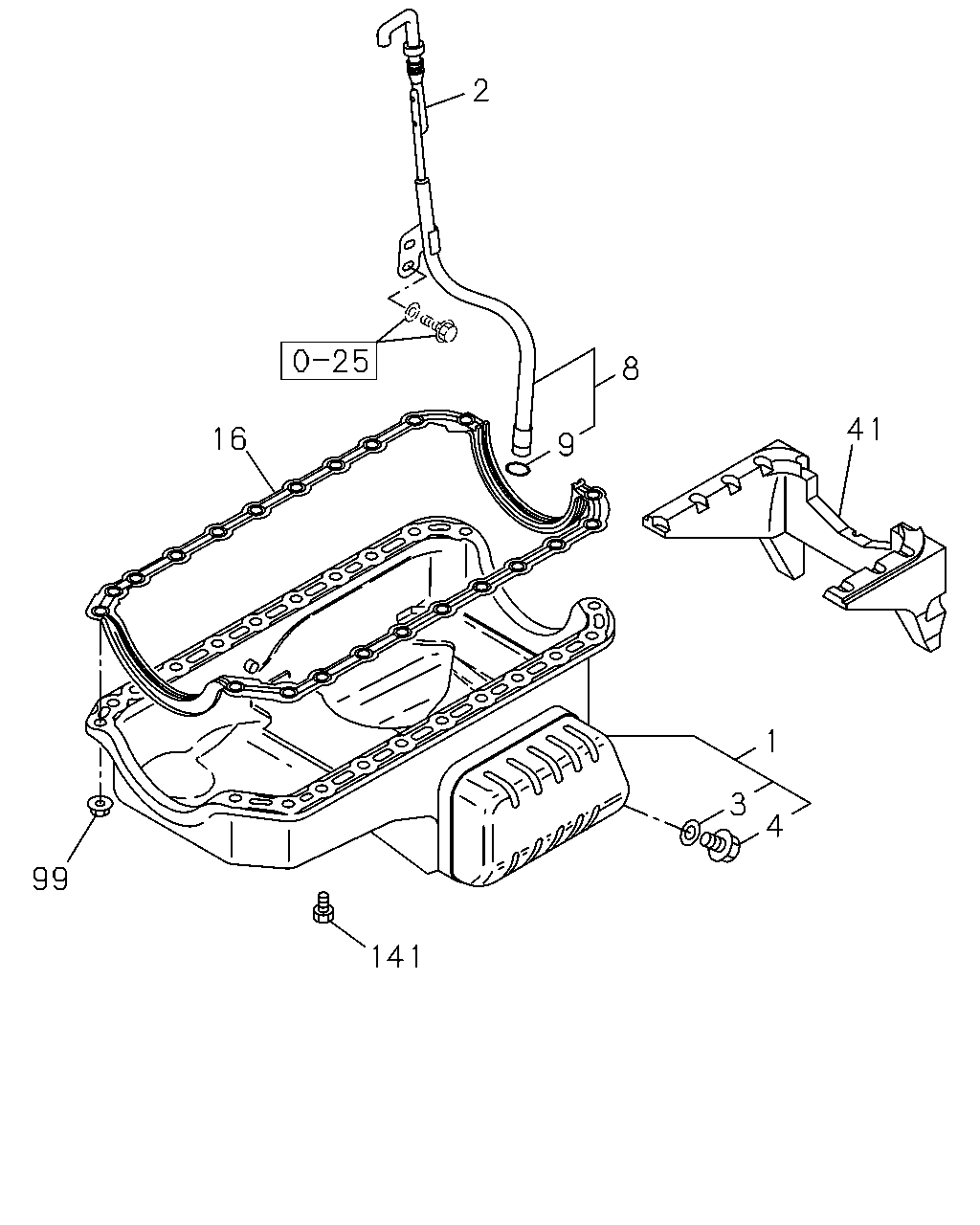

2 8 41 16 9 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0211-0411	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0412-0609	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0610-	●	●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405			●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0501			●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0502-0609			●		●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0610-1202			●		●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-			●		●	●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0211-0411							●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0501							●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0502-								●
2	01.516 GAUGE; OIL LEVEL	8-98210-002-0	01	1	1212-			●
2	01.516 GAUGE; OIL LEVEL INDONESIA EQUIPMENT(S4S)	8-98210-002-0	01	1	1212-					●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0211-0501							●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0502-0609								●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0610-		●						●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0502-	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0501			●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0502-0609			●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0610-1211			●		●	●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S)	8-97094-460-2	01	1	1212-1405					●	●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S)	8-97094-460-2	01	1	1406-					●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-97094-460-2	01	1	1406-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0211-0501	●		●	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0502-0609	●		●		●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0610-	●	●	●		●	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-0501	●		●	●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0609	●		●		●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0610-	●	●	●		●	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0211-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0501			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0502-			●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0211-0501							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0502-								●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	0610-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0610-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0211-0501	●						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0502-	●							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0211-0501			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0502-0609			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0610-		●	●		●	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0211-0501	●						●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0502-0609	●							●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0610-	●	●						●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97286-992-0	01	1	0211-0501	●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0211-0501							●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0502-0609								●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0610-1204		●						●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	1205-								●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0211-0501	●						●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0502-0609	●							●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0610-	●	●						●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0211-0501	●						●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0502-0609	●							●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0610-	●	●						●

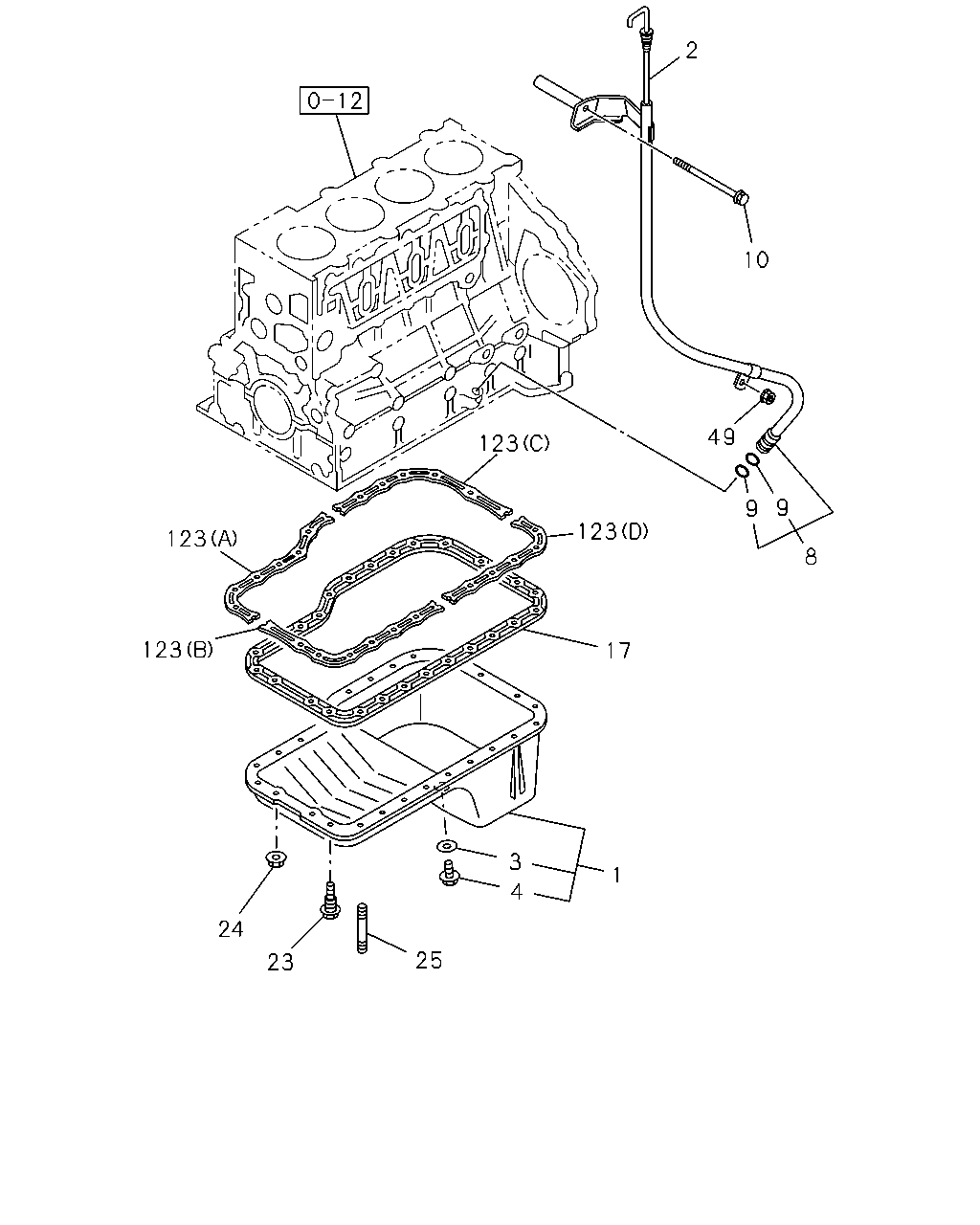

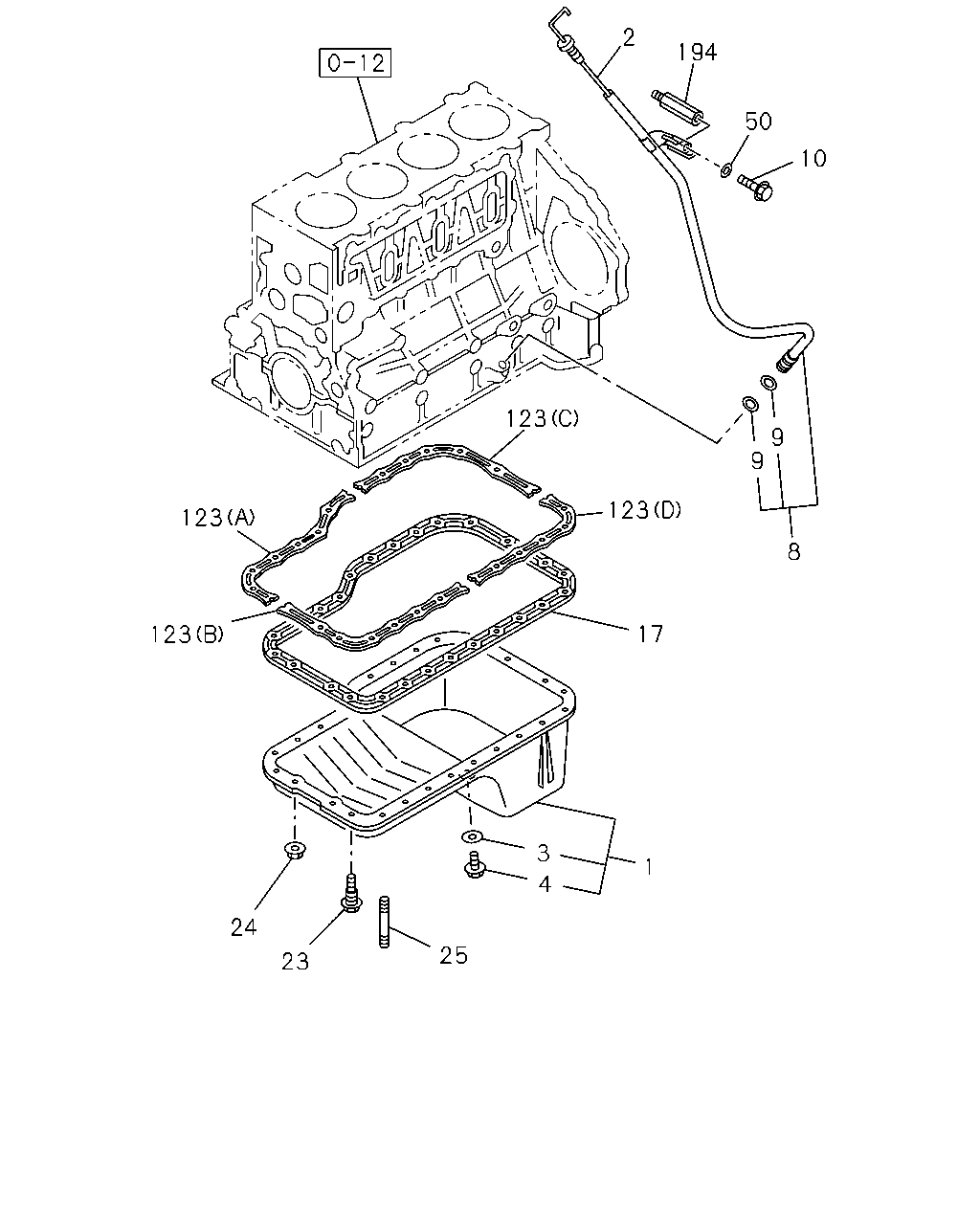

2 194 50 10 123 9 9 123 123 8 17 123 3 1 4 24 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0211-0411	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0412-0609	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0610-	●	●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405			●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0501			●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0502-0609			●		●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0610-1202			●		●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-			●		●	●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0211-0411							●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0501							●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0502-								●
2	01.516 GAUGE; OIL LEVEL	8-98210-002-0	01	1	1212-			●
2	01.516 GAUGE; OIL LEVEL INDONESIA EQUIPMENT(S4S)	8-98210-002-0	01	1	1212-					●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0211-0501							●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0502-0609								●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0610-		●						●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0502-	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0501			●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0502-0609			●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0610-1211			●		●	●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S)	8-97094-460-2	01	1	1212-1405					●	●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S)	8-97094-460-2	01	1	1406-					●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-97094-460-2	01	1	1406-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0211-0501	●		●	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0502-0609	●		●		●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0610-	●	●	●		●	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-0501	●		●	●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0609	●		●		●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0610-	●	●	●		●	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0211-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0501			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0502-			●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0211-0501							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0502-								●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	0610-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0610-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0211-0501	●						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0502-	●							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0211-0501			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0502-0609			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0610-		●	●		●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501			●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512			●		●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-			●		●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	0610-						●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97190-191-1	01	1	0211-0402			●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	0403-0501			●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	0502-0609			●		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	0610-			●		●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0211-0501			●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0502-0609			●		●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0610-			●		●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0211-0501			●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0502-0602			●		●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-0609			●		●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0610-			●		●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	0211-0501			●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	0502-0609			●		●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	0610-			●		●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	0211-0501			●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	0502-0609			●		●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	0610-			●		●	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0211-0501			●	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0502-0605			●		●
50	01.516 WASHER; PL,GUIDE TUBE 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0606-			●		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0211-0501			●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0502-0609			●		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0610-			●		●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0211-0501			●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0502-0609			●		●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0610-			●		●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0211-0501			●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0502-0609			●		●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0610-			●		●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0211-0501			●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0502-0609			●		●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0610-			●		●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0211-0501			●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0502-			●		●

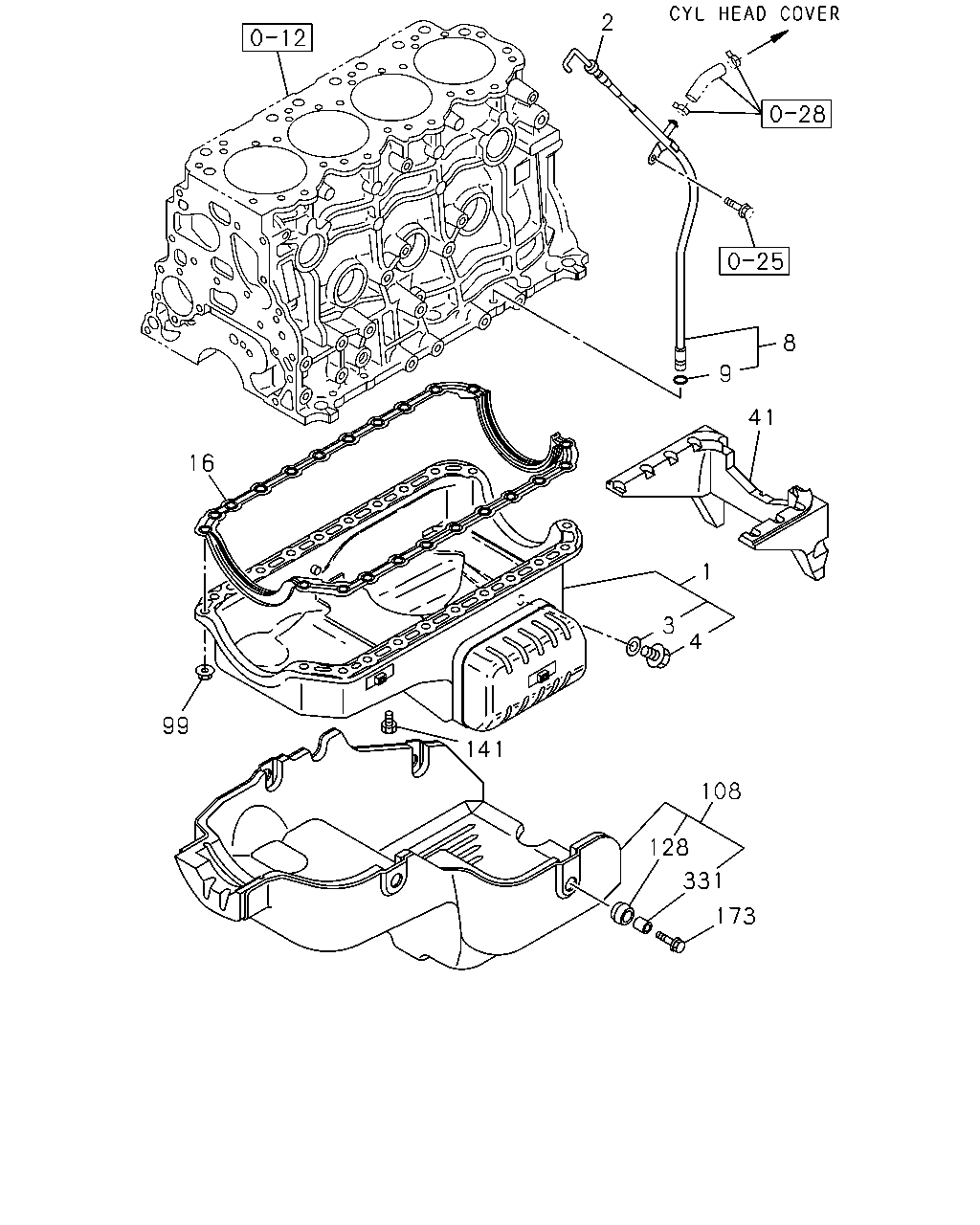

2 8 9 41 16 1 3 4 141 99 108 128 331 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0211-0411	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0412-0609	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0610-	●	●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405			●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0501			●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0502-0609			●		●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0610-1202			●		●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-			●		●	●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0211-0411							●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0501							●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0502-								●
2	01.516 GAUGE; OIL LEVEL	8-98210-002-0	01	1	1212-			●
2	01.516 GAUGE; OIL LEVEL INDONESIA EQUIPMENT(S4S)	8-98210-002-0	01	1	1212-					●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0211-0501							●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0502-0609								●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0610-		●						●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0502-	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0501			●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0502-0609			●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0610-1211			●		●	●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S)	8-97094-460-2	01	1	1212-1405					●	●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S)	8-97094-460-2	01	1	1406-					●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-97094-460-2	01	1	1406-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0211-0501	●		●	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0502-0609	●		●		●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0610-	●	●	●		●	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-0501	●		●	●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0609	●		●		●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0610-	●	●	●		●	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0211-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0501			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0502-			●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0211-0501							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0502-								●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	0610-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0610-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0211-0501	●						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0502-	●							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0211-0501			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0502-0609			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0610-		●	●		●	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0211-0501	●						●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0502-0609	●							●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97080-194-0	01	1	0610-	●	●						●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97286-992-0	01	1	0211-0501	●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0211-0501							●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0502-0609								●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0610-1204		●						●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	1205-								●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0211-0501	●						●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0502-0609	●							●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0610-	●	●						●
108	01.426 COVER; OIL PAN	8-97248-296-2	01	1	0211-0305							●
108	01.426 COVER; OIL PAN	8-97370-031-0	01	1	0306-0501							●
108	01.426 COVER; OIL PAN	8-97370-031-0	01	1	0502-0612								●
108	01.426 COVER; OIL PAN	8-98067-854-0	01	1	0701-								●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0211-0501							●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0502-								●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0211-0501	●						●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0502-0609	●							●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0610-	●	●						●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0211-0501							●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0502-								●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0211-0501							●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0502-								●

2 10 49 123 9 9 123 123 8 123 17 3 1 4 24 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0211-0411	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0412-0609	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	0610-	●	●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0211-0405			●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0406-0501			●	●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0502-0609			●		●
1	01.426 PAN ASM; OIL	8-97385-249-0	01	1	0610-1202			●		●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-			●		●	●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0211-0411							●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0412-0501							●
1	01.426 PAN ASM; OIL	8-98000-124-0	01	1	0502-								●
2	01.516 GAUGE; OIL LEVEL	8-98210-002-0	01	1	1212-			●
2	01.516 GAUGE; OIL LEVEL INDONESIA EQUIPMENT(S4S)	8-98210-002-0	01	1	1212-					●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0211-0501							●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0502-0609								●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0610-		●						●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0211-0501	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	0502-	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0211-0501			●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0502-0609			●		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	0610-1211			●		●	●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S)	8-97094-460-2	01	1	1212-1405					●	●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S)	8-97094-460-2	01	1	1406-					●
2	01.516 GAUGE; OIL LEVEL EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-97094-460-2	01	1	1406-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0211-0501	●		●	●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0502-0609	●		●		●			●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24	8-94158-328-0	01	1	0610-	●	●	●		●	●		●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0211-0501	●		●	●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0502-0609	●		●		●			●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0610-	●	●	●		●	●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0211-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0211-0501			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	0502-			●		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0211-0501							●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0502-								●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	0610-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	0610-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0211-0501	●						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	01	1	0502-	●							●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0211-0501			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0502-0609			●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11	5-09623-002-0	02	1	0610-		●	●		●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501			●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512			●		●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-			●		●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	0610-						●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97190-191-1	01	1	0211-0402			●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	0403-0501			●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	0502-0609			●		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97364-386-0	01	1	0610-			●		●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0211-0501			●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0502-0609			●		●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0610-			●		●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0211-0501			●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0502-0602			●		●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0603-0609			●		●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0610-			●		●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	0211-0501			●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	0502-0609			●		●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER, RUBBERTUBE	8-97190-391-0	01	1	0610-			●		●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	0211-0501			●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	0502-0609			●		●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER, RUBBERTUBE	8-97190-392-0	09	1	0610-			●		●	●
49	01.516 NUT; GUIDE TUBE 03.162 M10 FLANGE	0-91180-110-0	01	1	0610-						●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0211-0501			●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0502-0609			●		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0610-			●		●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0211-0501			●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0502-0609			●		●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0610-			●		●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0211-0501			●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0502-0609			●		●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0610-			●		●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0211-0501			●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0502-0609			●		●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0610-			●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
