◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶

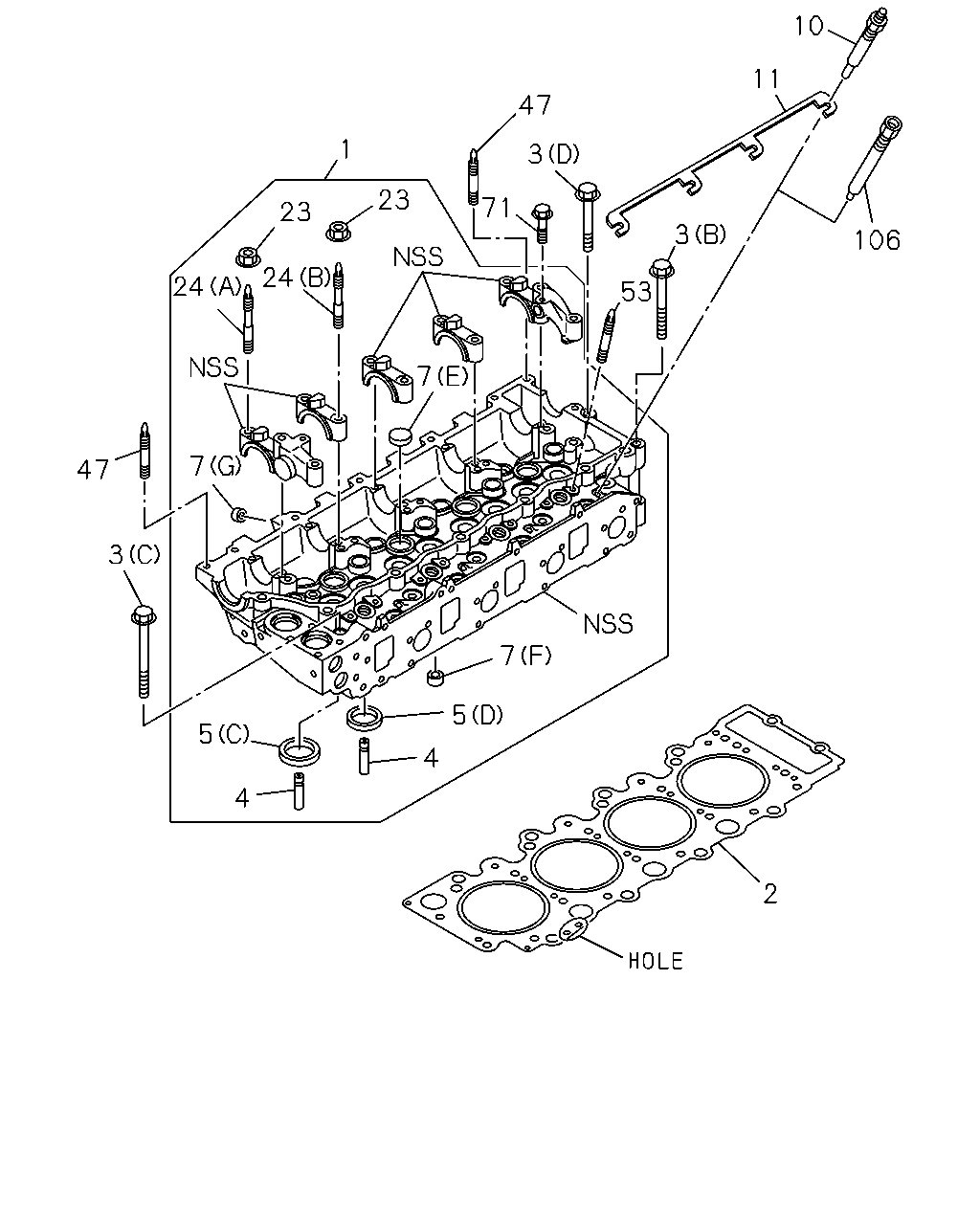

0-11 — CYLINDER HEAD (#46124) — 403 parça

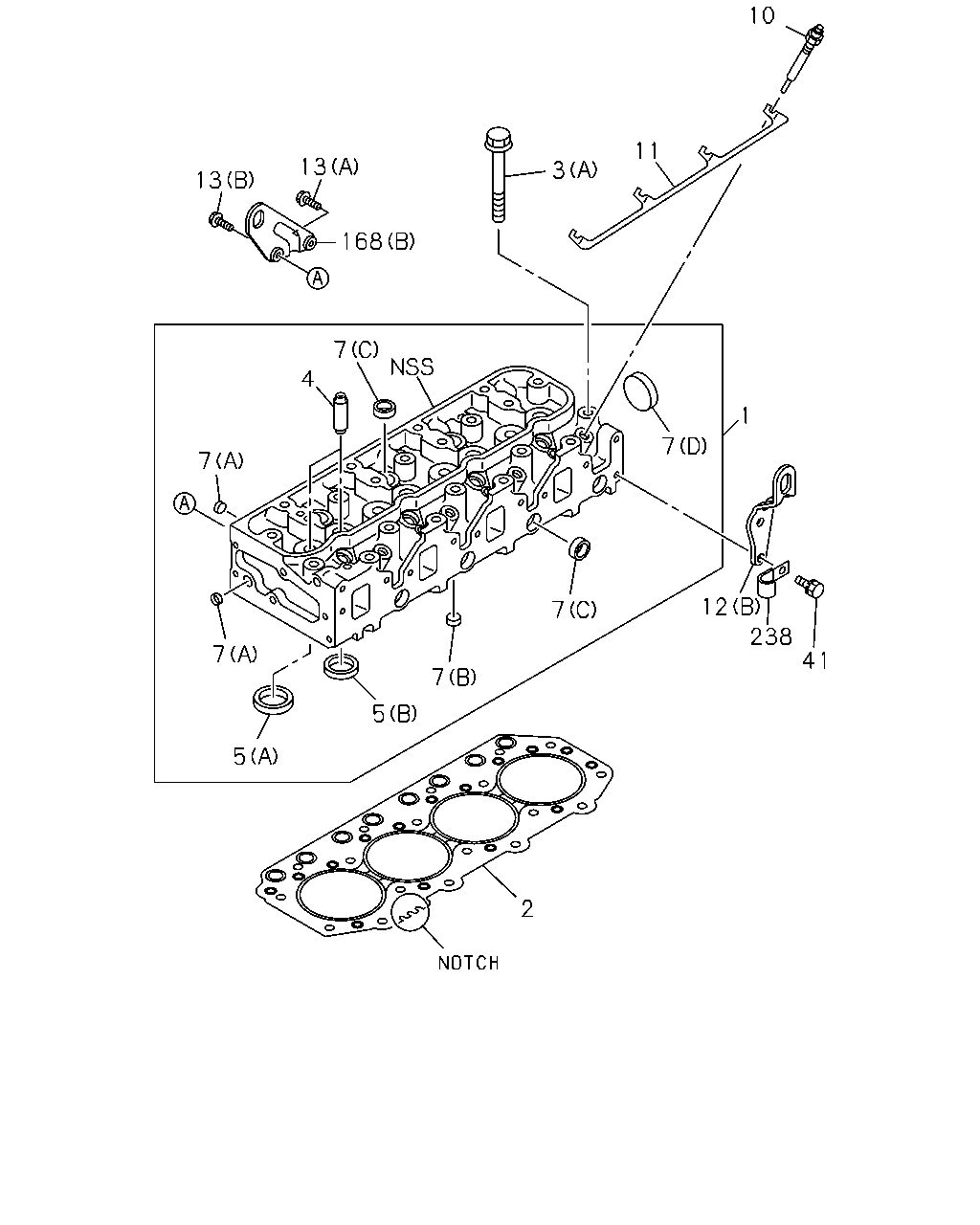

çizim 52173
10 11 13 3 13 168 7 4 1 7 7 12 7 238 41 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 		8-97109-642-3 01 1 0211-0211 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 		8-97109-642-3 01 1 0308-0501 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-4 01 1 0502- ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97176-424-6 01 1 0211-0501 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0211-0501 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-97120-178-4 01 1 0502- ●
1 00.269 HEAD ASM; CYL 8-97186-589-6 01 1 0211-0501 ● ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 0502- ● ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0211-0501 ●
1 00.269 HEAD ASM; CYL 8-97239-922-4 01 1 0502- ●
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 0610- ●
1 00.269 HEAD ASM; CYL 8-97204-376-6 01 1 0610- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0610- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0610- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0610- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97262-940-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-483-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-483-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97262-941-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-484-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-484-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97262-942-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-485-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-485-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97262-943-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0610- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97262-944-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0610- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97262-945-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0610- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 0211-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 0502-0609 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 0610- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M10X73 		8-94399-554-0 01 1 0211-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M10X73 		8-94399-554-0 01 1 0502-0609 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M10X73 		8-94399-554-0 01 1 0610- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0211-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0502-0609 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0610- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0211-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0502-0609 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0610-1503 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0211-0501 ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0502-0609 ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0610- ● ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0211-0501 ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0502-0609 ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0610- ● ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=41.2 		8-97231-228-0 04 1 0211-0609 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=41.2 		8-97231-228-0 04 1 0610- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0211-0501 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0502-0609 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0610- ● ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=52 		8-94394-127-0 04 1 0211-0501 ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=52 		8-94394-127-0 04 1 0502-0609 ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=52 		8-94394-127-0 04 1 0610- ● ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=43 		8-94396-172-0 04 1 0211-0501 ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=43 		8-94396-172-0 04 1 0502-0609 ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=43 		8-94396-172-0 04 1 0610- ● ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0211-0404 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0405-0501 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0502- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 07 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 01 1 0212-0307 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 07 1 0308-0501 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		8-97209-609-0 07 1 0502- ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0212-0307 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0308-0501 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		8-97209-609-0 06 1 0502-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0502-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		8-97209-609-0 06 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0610- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0502-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0610- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0502-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0610- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0502-0503 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0610- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (F) OD=25 		1-09600-016-0 02 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (F) OD=25 		1-09600-016-0 02 1 0502-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (F) OD=25 		1-09600-016-0 02 1 0610- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=12 		8-97036-335-1 04 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=12 		8-97036-335-1 04 1 0502-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=12 		8-97036-335-1 04 1 0610- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=32 		8-97096-821-0 12 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=32 		8-97096-821-0 12 1 0502-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=32 		8-97096-821-0 12 1 0610- ● ● ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0211-0301 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0302-0303 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94175-158-1 04 1 0304-0501 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0304-0501 ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94175-158-1 04 1 0502-0609 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0502-0609 ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94175-158-2 04 1 0610- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 0610- ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-8 04 1 0211-0303 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		8-94133-759-8 04 1 0304-0501 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-8 04 1 0304-0501 ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		8-94133-759-9 04 1 0502-0609 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0502-0609 ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		8-94133-759-9 04 1 0610- ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0610- ● ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-1 04 1 0211-0303 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		1-82513-044-2 04 1 0304-0501 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		1-82513-044-3 04 1 0502-0609 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		1-82513-044-3 04 1 0610- ● ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0211-0303 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-97033-761-1 04 1 0304-0501 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-97033-761-1 04 1 0502-0609 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-97033-761-2 04 1 0610- ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0211-0303 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97146-517-0 01 1 0304-0501 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0304-0501 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97146-517-0 01 1 0502-0609 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0502-0609 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97146-517-0 01 1 0610- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0610- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0211-0303 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97136-565-0 01 1 0304-0501 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97136-565-0 01 1 0502-0609 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97136-565-0 01 1 0610- ● ● ●
12 00.004 HANGER; ENG,RR
VIN MODEL YEAR 2015(VZF) (A) 		8-97210-326-0 01 1 1406- ●
12 00.004 HANGER; ENG,RR
(B) 		8-97107-739-0 01 1 0211-0501 ● ●
12 00.004 HANGER; ENG,RR
(B) 		8-97107-739-0 01 1 0502-0609 ● ●
12 00.004 HANGER; ENG,RR
(B) 		8-97107-739-0 01 1 0610- ● ● ●
12 00.004 HANGER; ENG,RR
(C) 		8-97071-960-0 01 1 0211-0501 ● ●
12 00.004 HANGER; ENG,RR
(C) 		8-97071-960-0 01 1 0502- ● ●
12 00.004 HANGER; ENG,RR
(A) 		8-97210-326-0 01 1 0610-1405 ●
12 00.004 HANGER; ENG,RR
EXC. VIN MODEL YEAR 2015(VZF) (D) 		8-98219-797-0 01 1 1406- ●
13 00.004 BOLT; HANGER
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0501 ● ●
13 00.004 BOLT; HANGER
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 0502-0512 ● ●
13 00.004 BOLT; HANGER
09.171 (B) M10X25 FLANGE 		0-28051-025-0 01 1 0601-0609 ● ●
13 00.004 BOLT; HANGER
09.171 (B) M10X25 FLANGE 		0-28051-025-0 01 1 0610- ● ● ●
13 00.004 BOLT; HANGER
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0211-0501 ● ●
13 00.004 BOLT; HANGER
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0502-0512 ● ●
13 00.004 BOLT; HANGER
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0609 ● ●
13 00.004 BOLT; HANGER
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0610- ● ● ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0211-0410 ● ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0411-0501 ● ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0502-0512 ● ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ● ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ● ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0211-0501 ●
41 09.181 BOLT; ENG HANGER
02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0502-0512 ●
41 09.181 BOLT; ENG HANGER
03.162 M12X20 FLANGE 		0-28151-220-0 02 1 0601- ●
41 09.181 BOLT; ENG HANGER
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0610-1405 ●
41 09.181 BOLT; ENG HANGER
VIN MODEL YEAR 2015(VZF) 02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1406- ●
168 00.004 HANGER; ENG,FRT
(B) 		8-94379-714-1 01 1 0211-0501 ● ●
168 00.004 HANGER; ENG,FRT
(B) 		8-94379-714-1 01 1 0502-0609 ● ●
168 00.004 HANGER; ENG,FRT
(B) 		8-94379-714-1 01 1 0610- ● ● ●
168 00.004 HANGER; ENG,FRT
INDONESIA EQUIPMENT(S4S) (C) 		8-97104-515-1 01 1 0211-0501 ● ●
168 00.004 HANGER; ENG,FRT
INDONESIA EQUIPMENT(S4S) (C) 		8-97104-515-1 01 1 0502- ● ●
168 00.004 HANGER; ENG,FRT
EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97127-373-0 01 1 0211-0501 ● ●
168 00.004 HANGER; ENG,FRT
EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97127-373-0 01 1 0502-0811 ●
168 00.004 HANGER; ENG,FRT
EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97127-373-0 01 1 0812-1405 ● ●
168 00.004 HANGER; ENG,FRT
EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97127-373-0 01 1 1406- ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97200-618-1 01 1 0610- ●
238 02.559 CLIP; GLOW HARNESS
04.205 L=60 		1-09700-304-0 01 1 0211-0501 ●
238 02.559 CLIP; GLOW HARNESS
04.205 L=60 		1-09700-304-0 01 1 0502- ●
çizim 53057
1 276 12 12 41 67 12 1 14 168 15 168
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 		8-97109-642-3 01 1 0211-0211 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 		8-97109-642-3 01 1 0308-0501 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-4 01 1 0502- ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97176-424-6 01 1 0211-0501 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0211-0501 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-97120-178-4 01 1 0502- ●
1 00.269 HEAD ASM; CYL 8-97186-589-6 01 1 0211-0501 ● ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 0502- ● ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0211-0501 ●
1 00.269 HEAD ASM; CYL 8-97239-922-4 01 1 0502- ●
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 0610- ●
1 00.269 HEAD ASM; CYL 8-97204-376-6 01 1 0610- ●
12 00.004 HANGER; ENG,RR
VIN MODEL YEAR 2015(VZF) (A) 		8-97210-326-0 01 1 1406- ●
12 00.004 HANGER; ENG,RR
(B) 		8-97107-739-0 01 1 0211-0501 ● ●
12 00.004 HANGER; ENG,RR
(B) 		8-97107-739-0 01 1 0502-0609 ● ●
12 00.004 HANGER; ENG,RR
(B) 		8-97107-739-0 01 1 0610- ● ● ●
12 00.004 HANGER; ENG,RR
(C) 		8-97071-960-0 01 1 0211-0501 ● ●
12 00.004 HANGER; ENG,RR
(C) 		8-97071-960-0 01 1 0502- ● ●
12 00.004 HANGER; ENG,RR
(A) 		8-97210-326-0 01 1 0610-1405 ●
12 00.004 HANGER; ENG,RR
EXC. VIN MODEL YEAR 2015(VZF) (D) 		8-98219-797-0 01 1 1406- ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0211-0501 ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0502-0609 ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0610- ● ● ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0501 ● ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0502-0512 ● ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601-0609 ● ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0610- ● ● ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0211-0410 ● ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0411-0501 ● ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0502-0512 ● ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ● ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ● ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0211-0501 ●
41 09.181 BOLT; ENG HANGER
02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0502-0512 ●
41 09.181 BOLT; ENG HANGER
03.162 M12X20 FLANGE 		0-28151-220-0 02 1 0601- ●
41 09.181 BOLT; ENG HANGER
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0610-1405 ●
41 09.181 BOLT; ENG HANGER
VIN MODEL YEAR 2015(VZF) 02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1406- ●
67 00.349 NUT; BRKT
EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1406- ●
168 00.004 HANGER; ENG,FRT
(B) 		8-94379-714-1 01 1 0211-0501 ● ●
168 00.004 HANGER; ENG,FRT
(B) 		8-94379-714-1 01 1 0502-0609 ● ●
168 00.004 HANGER; ENG,FRT
(B) 		8-94379-714-1 01 1 0610- ● ● ●
168 00.004 HANGER; ENG,FRT
INDONESIA EQUIPMENT(S4S) (C) 		8-97104-515-1 01 1 0211-0501 ● ●
168 00.004 HANGER; ENG,FRT
INDONESIA EQUIPMENT(S4S) (C) 		8-97104-515-1 01 1 0502- ● ●
168 00.004 HANGER; ENG,FRT
EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97127-373-0 01 1 0211-0501 ● ●
168 00.004 HANGER; ENG,FRT
EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97127-373-0 01 1 0502-0811 ●
168 00.004 HANGER; ENG,FRT
EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97127-373-0 01 1 0812-1405 ● ●
168 00.004 HANGER; ENG,FRT
EXC. INDONESIA EQUIPMENT(S4S) (C) 		8-97127-373-0 01 1 1406- ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97200-618-1 01 1 0610- ●
276 00.293 RUBBER; MTG
EXC. VIN MODEL YEAR 2015(VZF) 03.463 		8-98219-799-0 01 1 1406- ●
çizim 53845
10 11 47 1 3 23 71 23 3 106 24 24 53 7 7 47 3 7 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 		8-97109-642-3 01 1 0211-0211 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> 		8-97109-642-3 01 1 0308-0501 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-4 01 1 0502- ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97176-424-6 01 1 0211-0501 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0211-0501 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-97120-178-4 01 1 0502- ●
1 00.269 HEAD ASM; CYL 8-97186-589-6 01 1 0211-0501 ● ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 0502- ● ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0211-0501 ●
1 00.269 HEAD ASM; CYL 8-97239-922-4 01 1 0502- ●
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 0610- ●
1 00.269 HEAD ASM; CYL 8-97204-376-6 01 1 0610- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0610- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0610- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0610- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97262-940-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-483-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-483-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97262-941-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-484-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-484-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97262-942-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-485-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-485-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0211-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0502- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97262-943-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0610- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97262-944-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0610- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97262-945-1 01 1 0211-0211 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211-0609 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0610- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 0211-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 0502-0609 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 0610- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M10X73 		8-94399-554-0 01 1 0211-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M10X73 		8-94399-554-0 01 1 0502-0609 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M10X73 		8-94399-554-0 01 1 0610- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0211-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0502-0609 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0610- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0211-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0502-0609 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0610-1503 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0211-0501 ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0502-0609 ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0610- ● ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0211-0501 ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0502-0609 ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0610- ● ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=41.2 		8-97231-228-0 04 1 0211-0609 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=41.2 		8-97231-228-0 04 1 0610- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0211-0501 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0502-0609 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0610- ● ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=52 		8-94394-127-0 04 1 0211-0501 ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=52 		8-94394-127-0 04 1 0502-0609 ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=52 		8-94394-127-0 04 1 0610- ● ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=43 		8-94396-172-0 04 1 0211-0501 ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=43 		8-94396-172-0 04 1 0502-0609 ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=43 		8-94396-172-0 04 1 0610- ● ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0211-0404 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0405-0501 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0502- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 07 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 01 1 0212-0307 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>, TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 07 1 0308-0501 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		8-97209-609-0 07 1 0502- ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) OD=22 		8-97209-609-0 06 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0212-0307 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0308-0501 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		8-97209-609-0 06 1 0502-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0502-0609 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		8-97209-609-0 06 1 0610- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0610- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0502-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0610- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0502-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0610- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0502-0503 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0610- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (F) OD=25 		1-09600-016-0 02 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (F) OD=25 		1-09600-016-0 02 1 0502-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (F) OD=25 		1-09600-016-0 02 1 0610- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=12 		8-97036-335-1 04 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=12 		8-97036-335-1 04 1 0502-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=12 		8-97036-335-1 04 1 0610- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=32 		8-97096-821-0 12 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=32 		8-97096-821-0 12 1 0502-0609 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=32 		8-97096-821-0 12 1 0610- ● ● ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0211-0301 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0302-0303 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94175-158-1 04 1 0304-0501 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0304-0501 ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94175-158-1 04 1 0502-0609 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0502-0609 ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94175-158-2 04 1 0610- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 0610- ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-8 04 1 0211-0303 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		8-94133-759-8 04 1 0304-0501 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-8 04 1 0304-0501 ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		8-94133-759-9 04 1 0502-0609 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0502-0609 ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		8-94133-759-9 04 1 0610- ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0610- ● ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-1 04 1 0211-0303 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		1-82513-044-2 04 1 0304-0501 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		1-82513-044-3 04 1 0502-0609 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		1-82513-044-3 04 1 0610- ● ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0211-0303 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-97033-761-1 04 1 0304-0501 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-97033-761-1 04 1 0502-0609 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-97033-761-2 04 1 0610- ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0211-0303 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97146-517-0 01 1 0304-0501 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0304-0501 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97146-517-0 01 1 0502-0609 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0502-0609 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97146-517-0 01 1 0610- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0610- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0211-0303 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97136-565-0 01 1 0304-0501 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97136-565-0 01 1 0502-0609 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97136-565-0 01 1 0610- ● ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0211-0501 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0502-0602 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0603-0609 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0610- ● ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0211-0501 ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0502-0609 ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0610- ● ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0211-0501 ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0502-0609 ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0610- ● ● ●
47 00.413 STUD; CYL HD
03.163 M8X40 L=57 		0-49740-840-0 02 1 0211-0501 ● ●
47 00.413 STUD; CYL HD
03.163 M8X40 L=57 		0-49740-840-0 02 1 0502-0512 ● ●
47 00.413 STUD; CYL HD
03.275 M8X40 L=58 		0-49140-840-0 02 1 0601-0910 ● ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0911- ● ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0211-0501 ● ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0502-0609 ● ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0610- ● ● ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 0610- ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0211-0501 ● ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0502-0609 ● ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0610- ● ● ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0211-0501 ● ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0502-0512 ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0601-0609 ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0610- ● ● ●
106 00.293 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 02.270 		1-11119-018-0 04 1 0304-0501 ● ●
106 00.293 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 02.270 		1-11119-018-0 04 1 0502-0609 ● ●
106 00.293 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 02.270 		1-11119-018-0 04 1 0610- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
