Sayfa 0-10 - Isuzu EPC

0-10 — CYLINDER HEAD COVER (#46123) — 207 parça

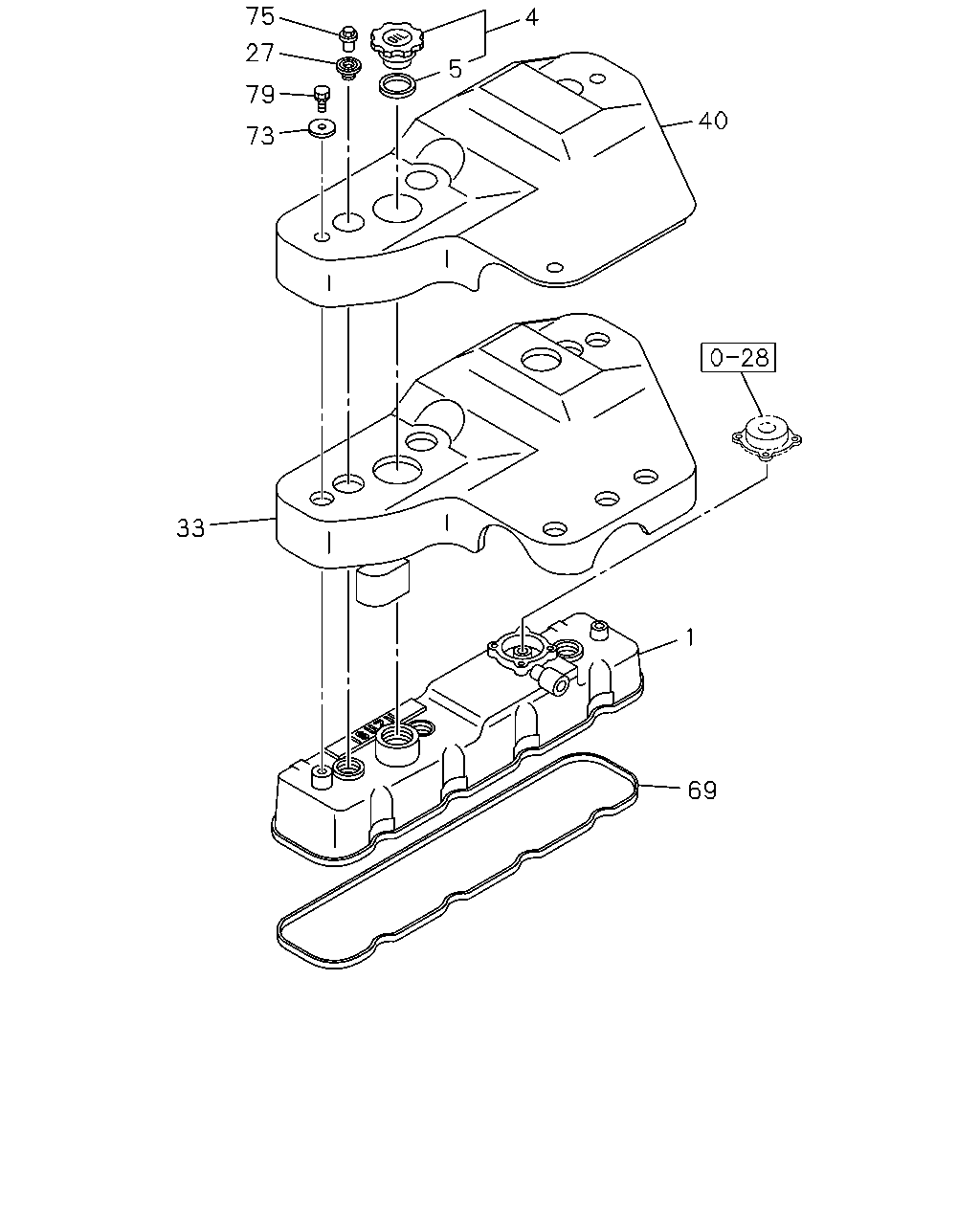

75 4 27 5 79 40 73 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD	8-98210-092-0	01	1	1210-	●
1	00.386 COVER; CYL HD INDONESIA EQUIPMENT(S4S)	8-98210-092-0	01	1	1210-		●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0211-0609			●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0610-			●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0211-0501	●				●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0502-0910	●					●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0211-0501							●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0502-								●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0610-0910		●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0911-1006	●	●				●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1007-1206	●	●				●
1	00.386 COVER; CYL HD EXC. INDONESIA EQUIPMENT(S4S)	8-98171-615-0	01	1	1207-1405		●				●
1	00.386 COVER; CYL HD EXC. INDONESIA EQUIPMENT(S4S)	8-98171-615-0	01	1	1406-						●
1	00.386 COVER; CYL HD EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-98171-615-0	01	1	1406-		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●		●		●		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-0609	●		●			●		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0610-	●	●	●	●		●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-0609	●		●			●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0610-	●	●	●	●		●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	02	1	0211-0501	●		●		●		●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0211-0501			●				●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0502-0609			●					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0610-			●	●				●
33	00.386 RUBBER; SPACE,CYL HD COVER SGL TIRE&SGL CAB(NKBS) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97204-206-1	01	1	0211-0501			●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0211-0501							●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0502-								●
40	00.386 COVER SGL TIRE&SGL CAB(NKBS) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97204-205-4	01	1	0211-0501			●
40	00.386 COVER	8-97240-037-0	01	1	0211-0501							●
40	00.386 COVER	8-97240-037-0	01	1	0502-								●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98207-973-0	01	1	1207-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INDONESIA EQUIPMENT(S4S)	8-98207-973-0	01	1	1207-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0211-0301			●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-0501			●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0502-0609			●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0610-			●	●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0211-0501	●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0502-0910	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0610-0910		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0911-1206	●	●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S)	8-97105-690-2	01	1	1207-1405		●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S)	8-97105-690-2	01	1	1406-						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-97105-690-2	01	1	1406-		●
73	00.413 WASHER; PL,HD COVER CHARGE AIR COOLER<6PL> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0211-0501			●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0211-0501							●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0502-0609								●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0610-				●				●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0211-0501			●				●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0502-0609			●					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0610-			●	●				●
79	00.293 BOLT; COVER CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501			●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501							●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0502-0512								●
79	00.293 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0609								●
79	00.293 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-				●				●
79	00.293 BOLT; COVER CHARGE AIR COOLER<6PL> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-0501			●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-0501							●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0502-0609								●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0610-				●				●

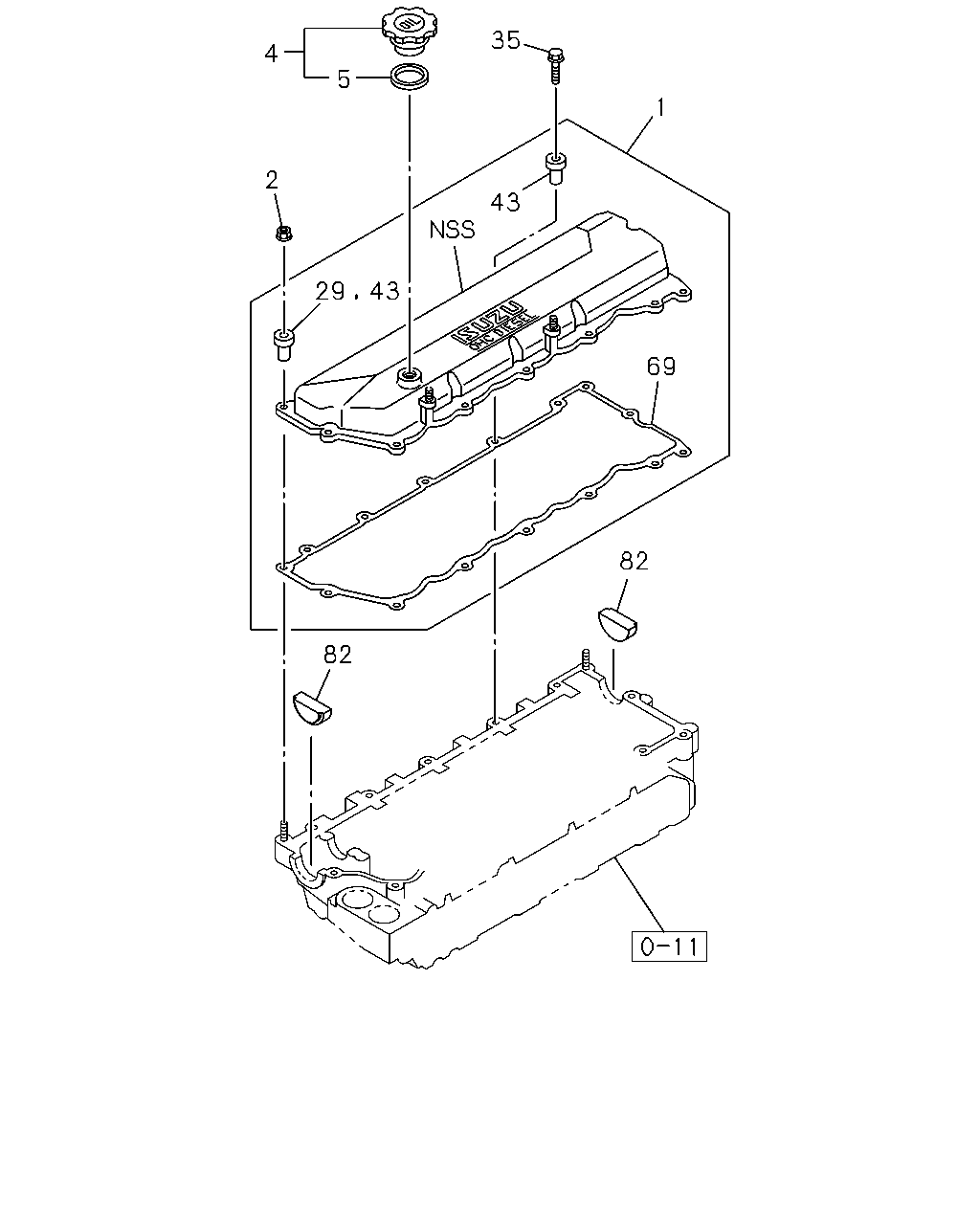

2 5 4 35 1 43 43 29 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD	8-98210-092-0	01	1	1210-	●
1	00.386 COVER; CYL HD INDONESIA EQUIPMENT(S4S)	8-98210-092-0	01	1	1210-		●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0211-0609			●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0610-			●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0211-0501	●				●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0502-0910	●					●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0211-0501							●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0502-								●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0610-0910		●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0911-1006	●	●				●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1007-1206	●	●				●
1	00.386 COVER; CYL HD EXC. INDONESIA EQUIPMENT(S4S)	8-98171-615-0	01	1	1207-1405		●				●
1	00.386 COVER; CYL HD EXC. INDONESIA EQUIPMENT(S4S)	8-98171-615-0	01	1	1406-						●
1	00.386 COVER; CYL HD EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-98171-615-0	01	1	1406-		●
2	00.413 NUT; COVER,HD VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	03	1	1405-1405		●
2	00.413 NUT; COVER,HD VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE	0-91180-108-0	03	1	1406-		●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●				●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●					●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0609	●					●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-1404	●	●				●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-1405	●					●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-1405		●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1406-	●					●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1406-		●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-1404		●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	01	1	1405-1405		●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2015(VZF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1406-		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●		●		●		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-0609	●		●			●		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0610-	●	●	●	●		●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-0609	●		●			●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0610-	●	●	●	●		●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	02	1	0211-0501	●		●		●		●
29	00.413 RUBBER; MTG,HD COVER	8-98208-910-0	15	1	1207-	●
29	00.413 RUBBER; MTG,HD COVER INDONESIA EQUIPMENT(S4S)	8-98208-910-0	15	1	1207-		●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0211-0501	●				●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0502-0512	●					●
35	00.293 BOLT; NOISE SHIELD COVER 00.685 M8X40 FLANGE	0-28650-840-0	06	1	0601-0910	●					●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	0911-	●					●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	0610-		●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23	8-97190-120-2	08	1	0211-0501	●				●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23	8-97190-120-2	08	1	0502-0910	●					●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0610-0910		●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	0911-1206	●	●				●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. INDONESIA EQUIPMENT(S4S) 03.265 OD=23	8-97105-689-6	15	1	1207-1405		●				●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. INDONESIA EQUIPMENT(S4S) 03.265 OD=23	8-97105-689-6	15	1	1406-						●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF) 03.265 OD=23	8-97105-689-6	15	1	1406-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98207-973-0	01	1	1207-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INDONESIA EQUIPMENT(S4S)	8-98207-973-0	01	1	1207-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0211-0301			●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-0501			●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0502-0609			●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0610-			●	●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0211-0501	●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0502-0910	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0610-0910		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0911-1206	●	●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S)	8-97105-690-2	01	1	1207-1405		●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S)	8-97105-690-2	01	1	1406-						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-97105-690-2	01	1	1406-		●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0211-0501	●				●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0502-0609	●					●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0610-1005	●	●				●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-	●	●				●

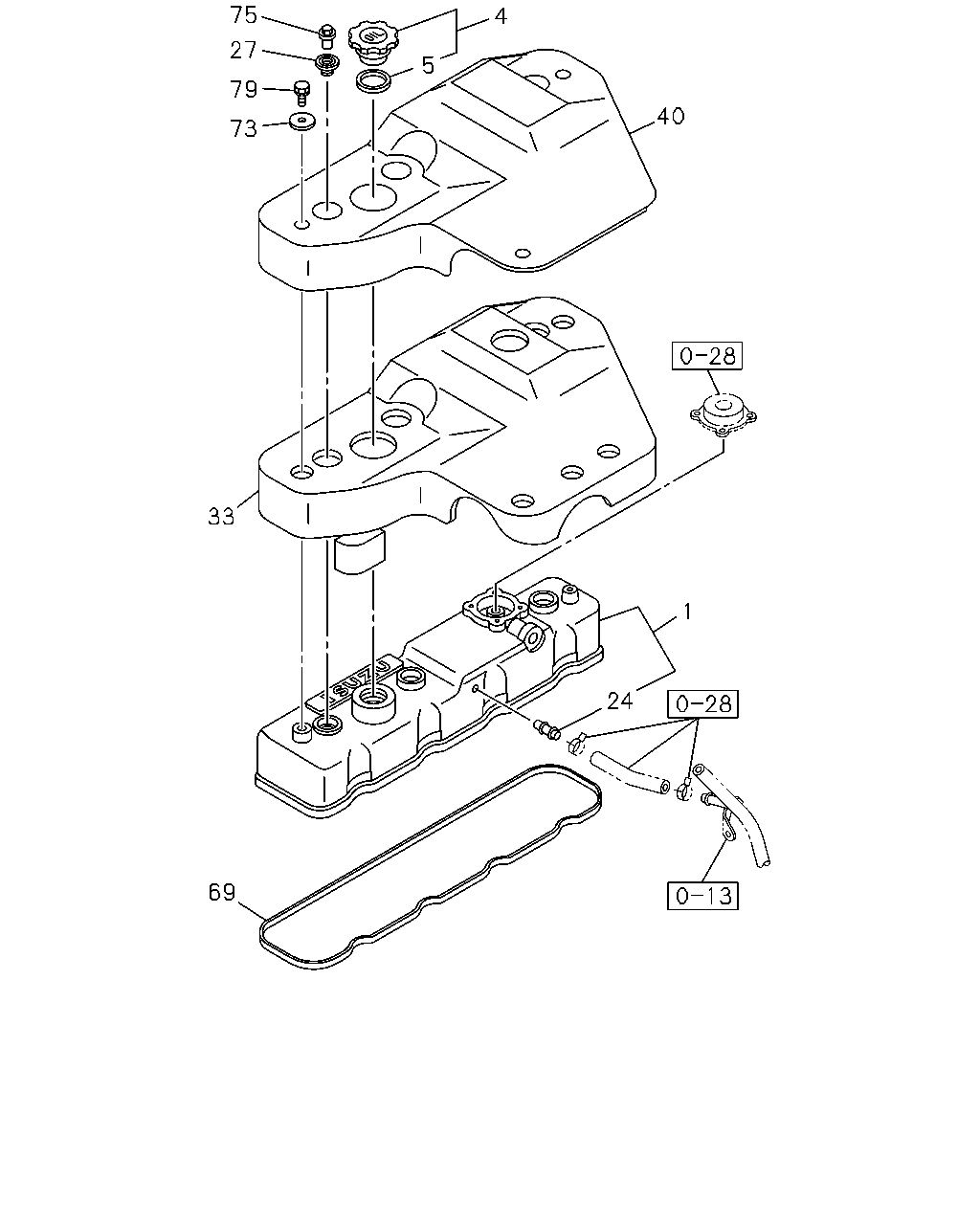

75 4 27 5 79 40 73 33 1 24 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD	8-98210-092-0	01	1	1210-	●
1	00.386 COVER; CYL HD INDONESIA EQUIPMENT(S4S)	8-98210-092-0	01	1	1210-		●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0211-0609			●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0610-			●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0211-0501	●				●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0502-0910	●					●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0211-0501							●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0502-								●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0610-0910		●
1	00.386 COVER; CYL HD	8-97113-025-3	01	1	0911-1006	●	●				●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1007-1206	●	●				●
1	00.386 COVER; CYL HD EXC. INDONESIA EQUIPMENT(S4S)	8-98171-615-0	01	1	1207-1405		●				●
1	00.386 COVER; CYL HD EXC. INDONESIA EQUIPMENT(S4S)	8-98171-615-0	01	1	1406-						●
1	00.386 COVER; CYL HD EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-98171-615-0	01	1	1406-		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●		●		●		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-0609	●		●			●		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0610-	●	●	●	●		●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-0609	●		●			●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0610-	●	●	●	●		●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	02	1	0211-0501	●		●		●		●
24	00.413 PIPE; BREATHER,OIL FILLER 01.430	8-94455-311-1	01	1	0211-0501							●
24	00.413 PIPE; BREATHER,OIL FILLER 01.430	8-94455-311-1	01	1	0502-								●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0211-0501			●				●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0502-0609			●					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0610-			●	●				●
33	00.386 RUBBER; SPACE,CYL HD COVER SGL TIRE&SGL CAB(NKBS) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97204-206-1	01	1	0211-0501			●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0211-0501							●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97240-038-0	01	1	0502-								●
40	00.386 COVER SGL TIRE&SGL CAB(NKBS) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97204-205-4	01	1	0211-0501			●
40	00.386 COVER	8-97240-037-0	01	1	0211-0501							●
40	00.386 COVER	8-97240-037-0	01	1	0502-								●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98207-973-0	01	1	1207-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INDONESIA EQUIPMENT(S4S)	8-98207-973-0	01	1	1207-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0211-0301			●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-0501			●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0502-0609			●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0610-			●	●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0211-0501	●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97189-871-1	01	1	0502-0910	●					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0610-0910		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97105-690-2	01	1	0911-1206	●	●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S)	8-97105-690-2	01	1	1207-1405		●				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S)	8-97105-690-2	01	1	1406-						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INDONESIA EQUIPMENT(S4S),VIN MODEL YEAR 2015(VZF)	8-97105-690-2	01	1	1406-		●
73	00.413 WASHER; PL,HD COVER CHARGE AIR COOLER<6PL> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0211-0501			●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0211-0501							●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0502-0609								●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0610-				●				●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0211-0501			●				●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0502-0609			●					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0610-			●	●				●
79	00.293 BOLT; COVER CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501			●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501							●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0502-0512								●
79	00.293 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0609								●
79	00.293 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-				●				●
79	00.293 BOLT; COVER CHARGE AIR COOLER<6PL> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-0501			●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0211-0501							●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0502-0609								●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0610-				●				●

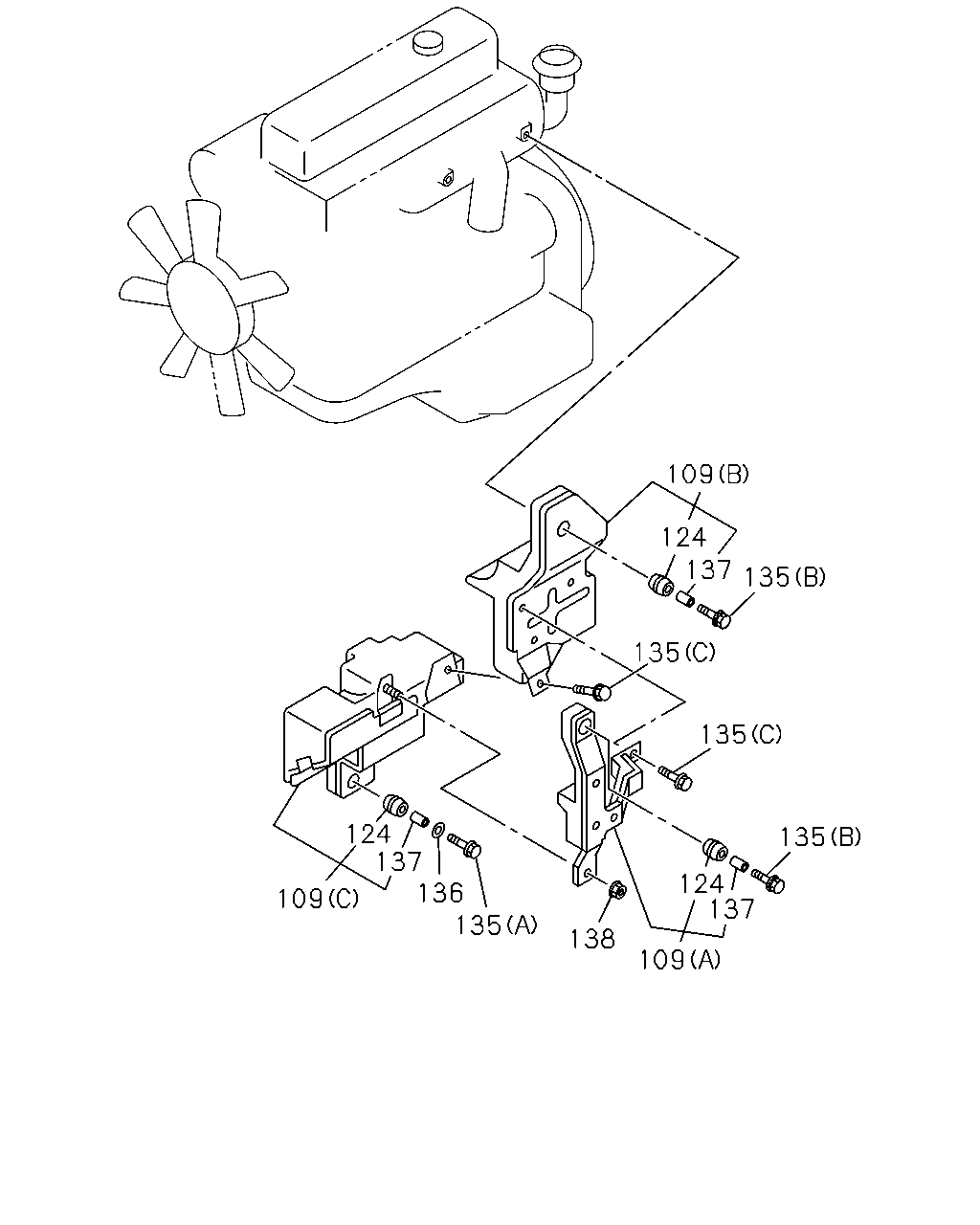

109 124 137 35 135 135 124 137 136 135 135 124 137 109 138 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0211-0501	●				●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0502-0512	●					●
35	00.293 BOLT; NOISE SHIELD COVER 00.685 M8X40 FLANGE	0-28650-840-0	06	1	0601-0910	●					●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	0911-	●					●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	0610-		●
109	00.386 COVER; ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97223-628-2	01	1	0211-0501			●
109	00.386 COVER; ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97223-629-1	01	1	0211-0501			●
109	00.386 COVER; ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97223-630-1	01	1	0211-0501			●
109	00.386 COVER; ENG (A)	8-97223-628-2	01	1	0610-				●
109	00.386 COVER; ENG (B)	8-97223-629-1	01	1	0610-				●
109	00.386 COVER; ENG (C)	8-97223-630-1	01	1	0610-				●
124	00.413 RUBBER; MTG,COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> OD=21.8	8-97325-051-0	03	1	0211-0501			●
124	00.413 RUBBER; MTG,COVER OD=21.8	8-97325-051-0	03	1	0610-				●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0211-0501			●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 09.008 (A) M10X20 FLANGE	0-28081-020-0	01	1	0211-0501			●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	0211-0501			●
135	00.413 BOLT; COVER,ENG 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	0610-				●
135	00.413 BOLT; COVER,ENG 00.029 (A) M10X20 FLANGE	0-28051-020-0	01	1	0610-				●
135	00.413 BOLT; COVER,ENG 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	0610-				●
136	00.413 WASHER; PL,ENG COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0211-0501			●
136	00.413 WASHER; PL,ENG COVER 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0610-				●
137	00.413 BUSHING; MTG RUBBER,COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 OD=13 T=9.5	8-94140-427-1	03	1	0211-0501			●
137	00.413 BUSHING; MTG RUBBER,COVER 00.034 OD=13 T=9.5	8-94140-427-1	03	1	0610-				●
138	00.413 NUT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
138	00.413 NUT; COVER,ENG 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
