◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#46122) — 468 parça

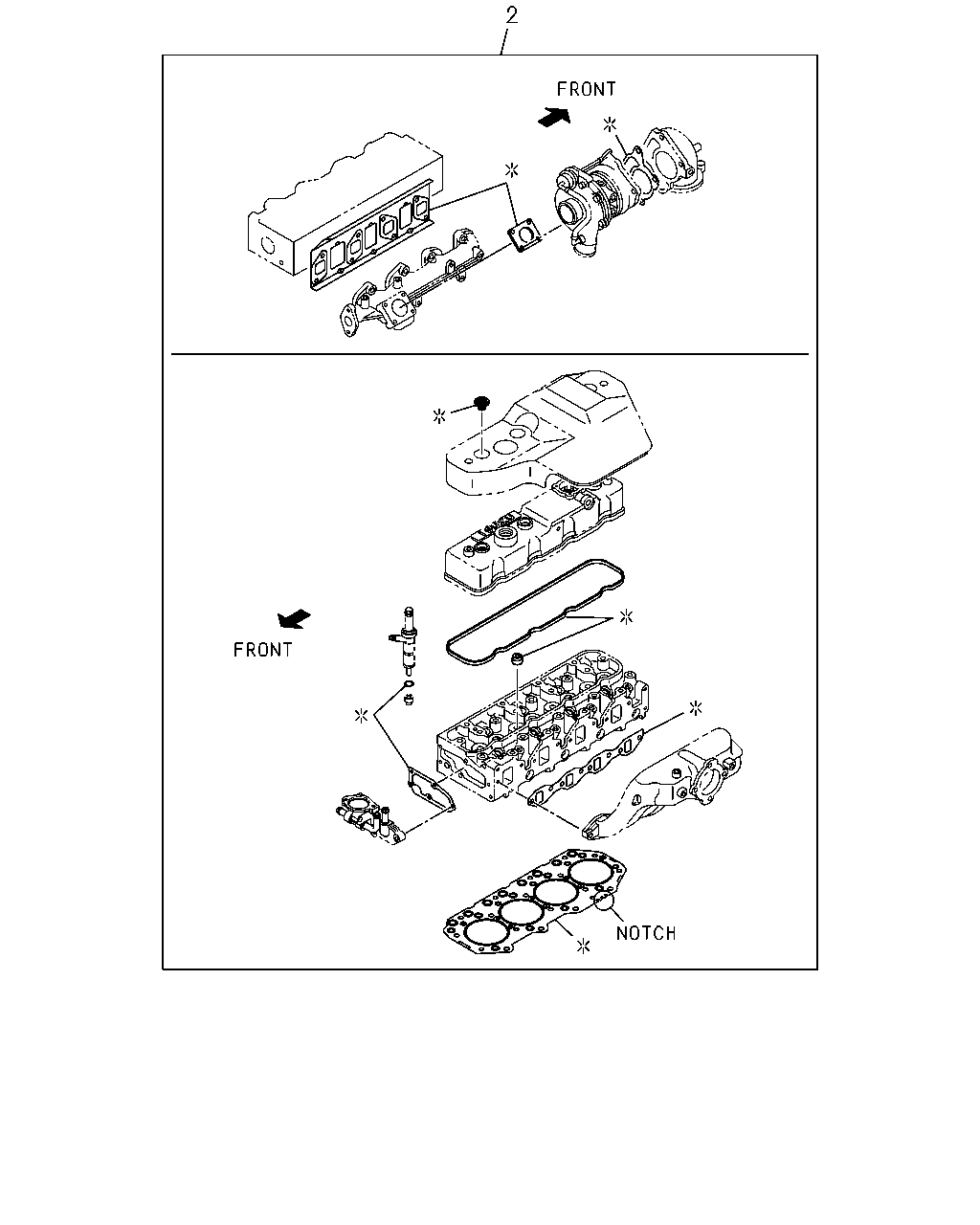

çizim 11007
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-901-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-902-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-903-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-691-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-691-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-692-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-692-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-693-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-693-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-957-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87813-957-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-123-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-958-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87813-958-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-124-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-959-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87813-959-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-125-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-232-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-233-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-234-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87813-963-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87813-964-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87813-965-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-7 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-7 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-7 01 1 0610- ●

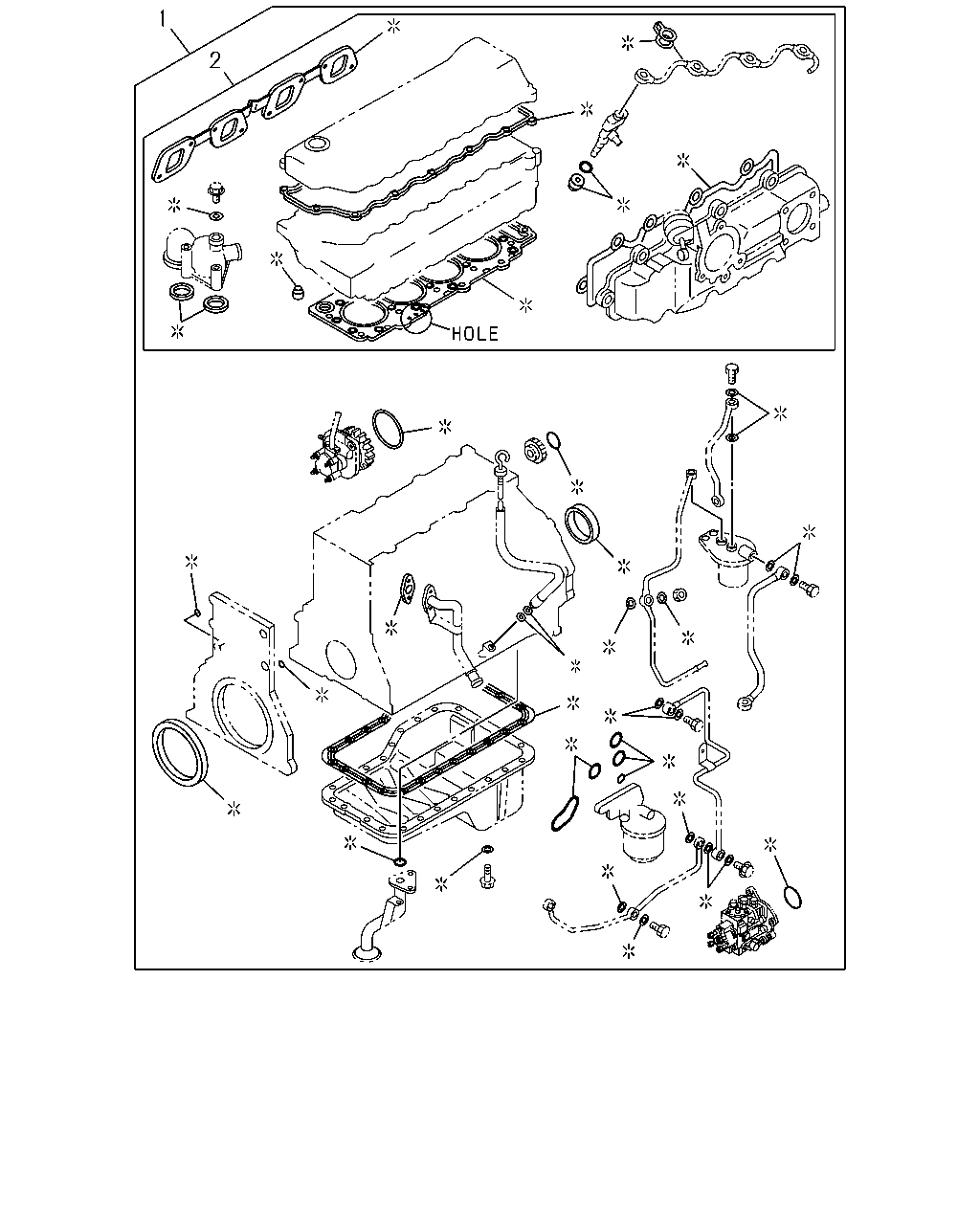

çizim 12134
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-895-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-896-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-897-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-892-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-892-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-169-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-893-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-893-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-170-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-894-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-894-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-171-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-428-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87814-428-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-207-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-429-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87814-429-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-208-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-430-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87814-430-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-209-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87815-200-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87815-201-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87815-202-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-347-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-348-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-349-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-494-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87815-968-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-495-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87815-969-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-496-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87815-970-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-733-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-175-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-734-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-176-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-735-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-177-3 01 1 0707- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-901-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-902-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-903-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-691-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-691-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-692-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-692-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-693-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-693-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-957-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87813-957-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-123-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-958-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87813-958-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-124-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-959-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87813-959-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-125-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-232-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-233-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-234-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87813-963-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87813-964-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87813-965-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-7 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-7 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-7 01 1 0610- ●

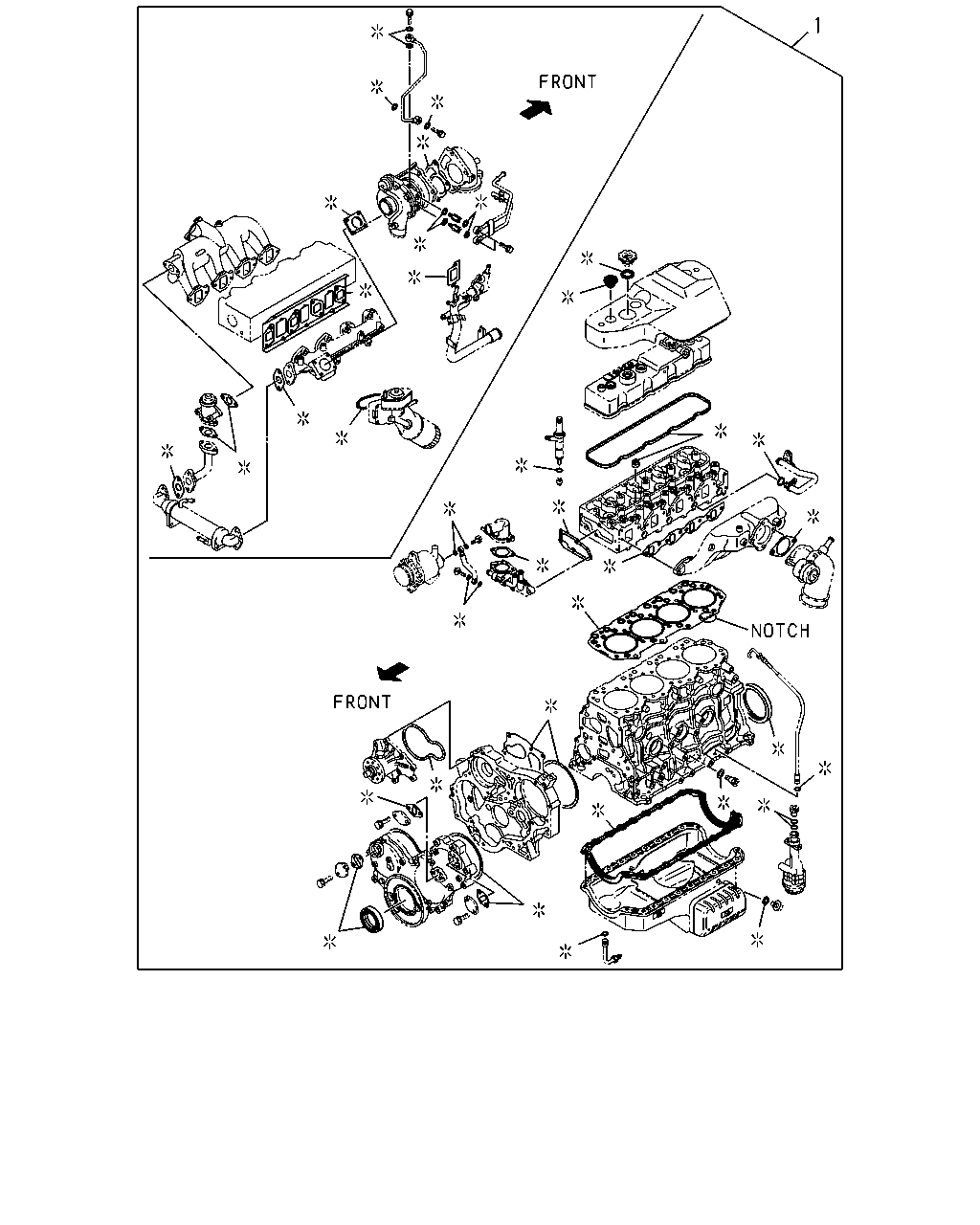

çizim 12135
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-895-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-896-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-897-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-892-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-892-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-169-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-893-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-893-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-170-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-894-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-894-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-171-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-428-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87814-428-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-207-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-429-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87814-429-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-208-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-430-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87814-430-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-209-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87815-200-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87815-201-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87815-202-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-347-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-348-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-349-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-494-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87815-968-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-495-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87815-969-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-496-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87815-970-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-733-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-175-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-734-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-176-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-735-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-177-3 01 1 0707- ●

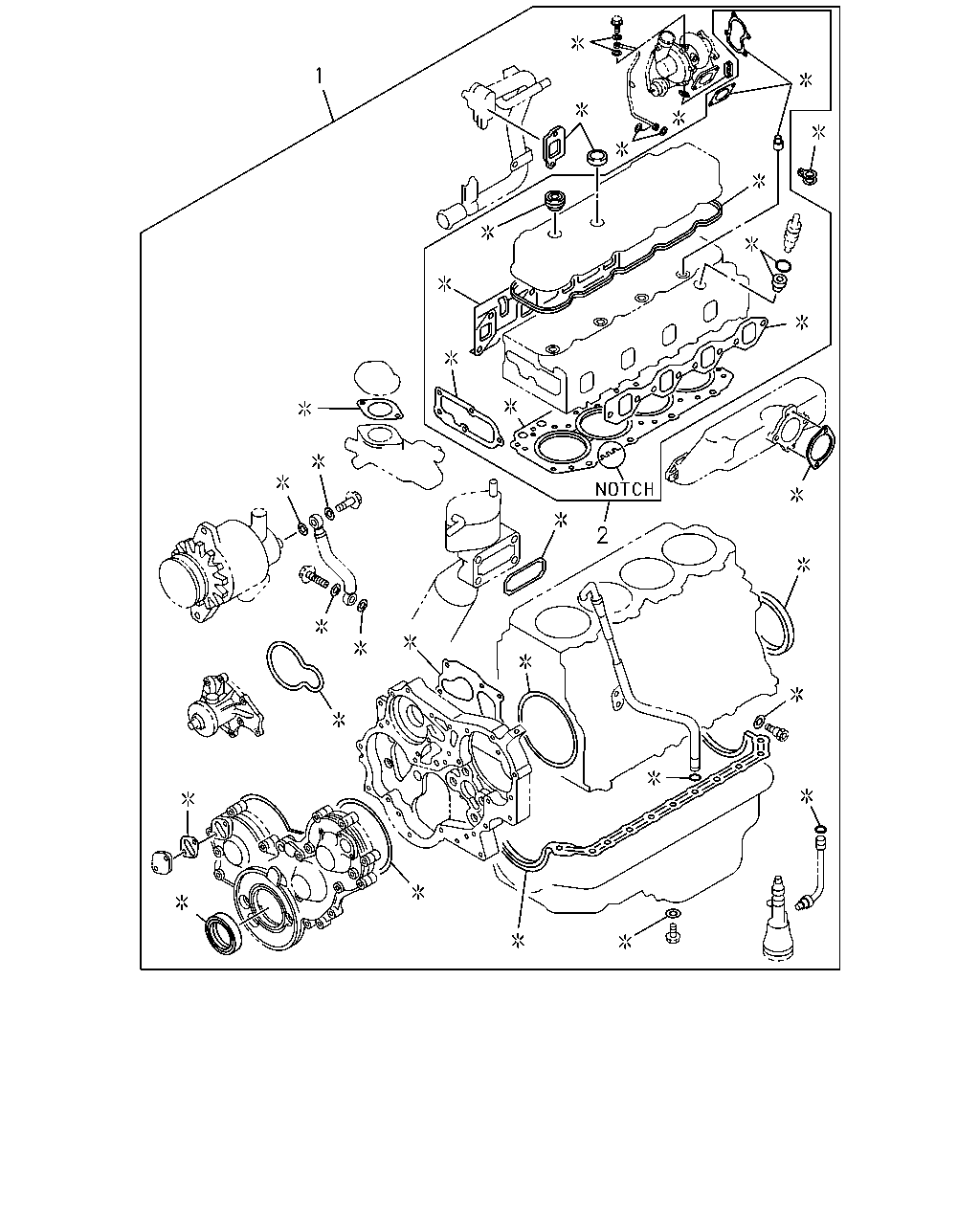

çizim 12759
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-895-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-896-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-897-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-892-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-892-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-169-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-893-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-893-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-170-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-894-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-894-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-171-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-428-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87814-428-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-207-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-429-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87814-429-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-208-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-430-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87814-430-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-209-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87815-200-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87815-201-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87815-202-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-347-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-348-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-349-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-494-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87815-968-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-495-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87815-969-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-496-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87815-970-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-733-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-175-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-734-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-176-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-735-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-177-3 01 1 0707- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-901-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-902-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-903-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-691-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-691-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-692-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-692-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-693-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-693-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-957-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87813-957-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-123-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-958-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87813-958-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-124-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-959-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87813-959-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-125-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-232-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-233-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-234-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87813-963-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87813-964-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87813-965-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-7 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-7 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-7 01 1 0610- ●

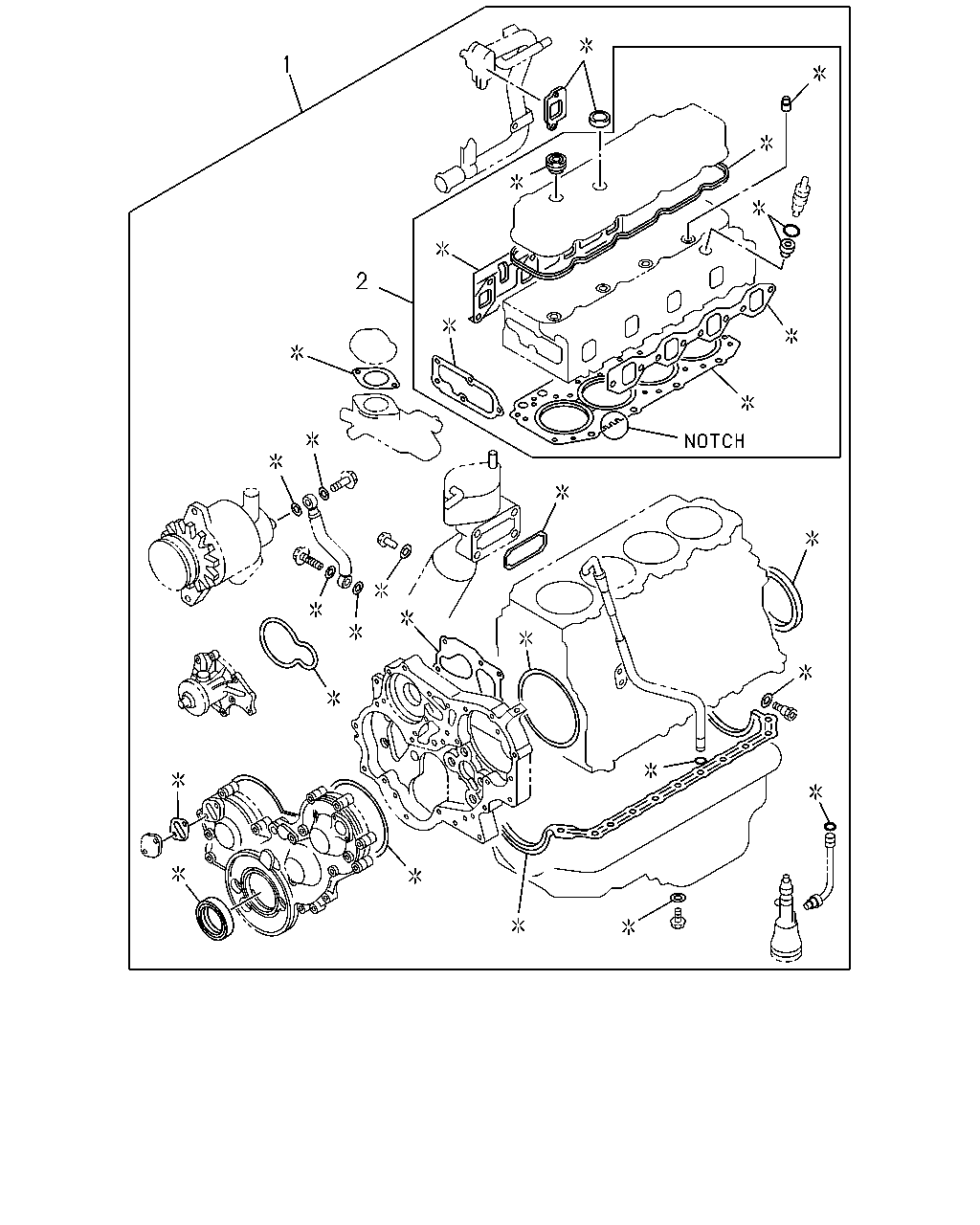

çizim 12939
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-895-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-896-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-897-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-892-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-892-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-169-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-893-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-893-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-170-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-894-9 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-894-9 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-171-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-428-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87814-428-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-207-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-429-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87814-429-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-208-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-430-4 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87814-430-4 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-209-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87815-200-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87815-201-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87815-202-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-347-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-348-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-349-4 01 1 0211-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 0911-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-494-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87815-968-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-495-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87815-969-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-3 01 1 0610-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-496-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1206 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87815-970-1 01 1 1207-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87814-733-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-175-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87814-734-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-176-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87814-735-0 01 1 0610-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-177-3 01 1 0707- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87812-901-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87812-902-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87812-903-6 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-691-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-691-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-692-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-692-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-693-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-693-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-957-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87813-957-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-123-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-958-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87813-958-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-124-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-959-4 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87813-959-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-125-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-232-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-233-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-234-1 01 1 0211-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 0911-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87813-963-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87813-964-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 0610-1206 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87813-965-4 01 1 1207-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. INDONESIA EQUIPMENT(S4S) T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-7 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-7 01 1 0610- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-7 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
