Sayfa 6-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶

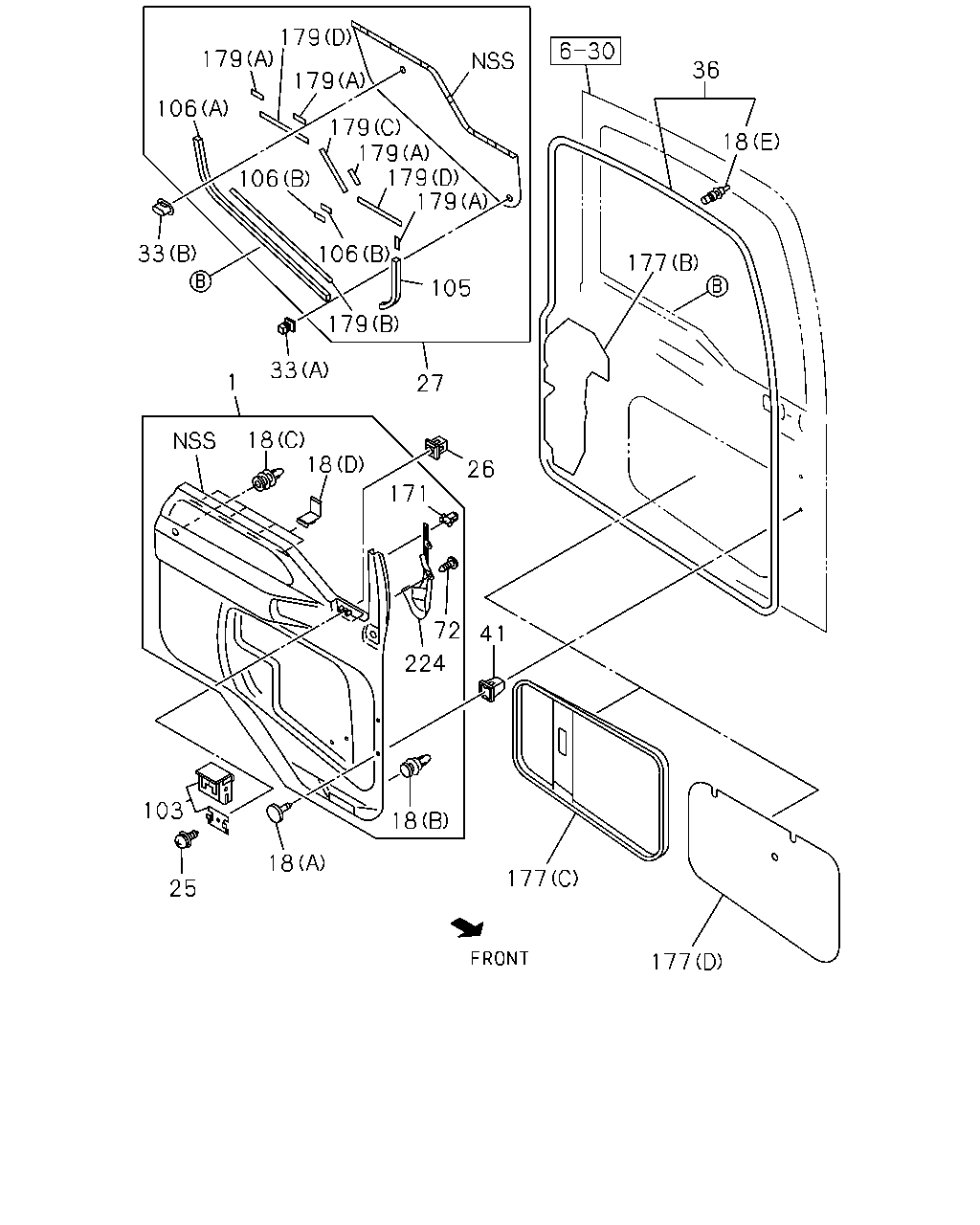

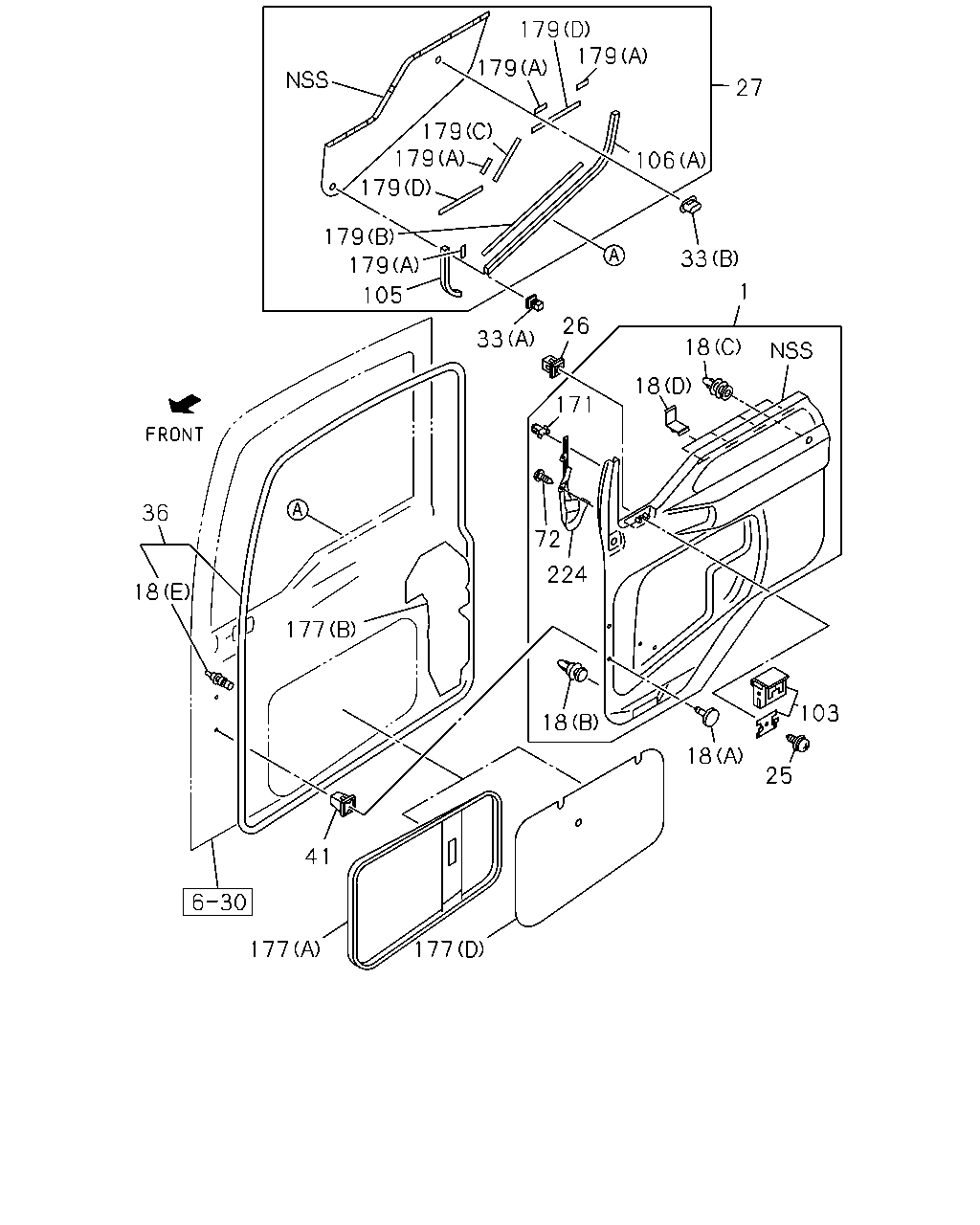

6-35 — FRONT DOOR TRIM (#4612) — 144 parça

179 179 179 27 179 179 106 179 179 33 179 1 105 26 33 18 18 171 36 72 224 18 177 103 18 18 25 41 177 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30>	1-73338-466-4	01	1	9603-0012
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30>	1-73338-534-0	01	1	0101-
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-450-2	01	1	9603-0012
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-532-0	01	1	0101-
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-465-4	01	1	9603-0012
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-533-0	01	1	0101-
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-449-4	01	1	9603-0012
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-531-0	01	1	0101-
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-467-4	01	1	9603-0012
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-535-0	01	1	0101-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	9603-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	9603-
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 DARK GRAY	1-09987-242-0	02	1	9603-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 DARK GRAY	1-09987-242-0	04	1	9603-
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-94126-768-0	05	1	9603-0012
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-94126-768-0	05	1	9603-0012
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-97893-482-0	05	1	0101-
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-97893-482-0	05	1	0101-
18	CLIP; DOOR PAD POWER WINDOW<A30> (C) OD=7.9 BLACK	8-94279-974-1	02	1	9603-
18	CLIP; DOOR PAD POWER WINDOW<A30> (C) OD=7.9 BLACK	8-94279-974-1	02	1	9603-
18	CLIP; DOOR PAD POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-09987-255-0	04	1	9603-0005
18	CLIP; DOOR PAD POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-09987-262-0	04	1	9603-0005
18	CLIP; DOOR PAD POWER WINDOW<A30> (D)	1-09987-262-0	04	1	9603-0005
18	CLIP; DOOR PAD POWER WINDOW<A30> (D)	1-09987-262-0	05	1	0006-
18	CLIP; DOOR PAD POWER WINDOW<A30> (D)	1-09987-262-0	05	1	0006-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-09987-262-0	08	1	9603-0005
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-09987-262-0	10	1	0006-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B) OD=8.5 GRAY	8-94126-768-0	10	1	9603-0012
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B) OD=8.5 GRAY	8-97893-482-0	10	1	0101-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (C) OD=7.9 BLACK	8-94279-974-1	02	1	9603-
25	SCREW; ASH TRAY,DOOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	9603-
26	GROMMET; SCREW,ASH TRAY DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9603-
27	PANEL; ORNAMENT,DOOR	1-76218-096-5	01	1	9603-
27	PANEL; ORNAMENT,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76218-125-5	01	1	9603-
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	01	1	9603-
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	01	1	9603-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	02	1	9603-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	02	1	9603-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-177-7	01	1	9603-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-176-7	01	1	9603-
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	9603-
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	9603-
72	SCREW; DOOR TRIM EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-527-0	08	1	0006-
103	TRAY ASM; ASH,DOOR	1-76458-078-2	01	1	9603-
103	TRAY ASM; ASH,DOOR	1-76458-077-2	01	1	9603-
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	01	1	9603-
105	SEAL; DOOR ORNAMENT,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76218-082-2	01	1	9603-
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	01	1	9603-
106	SEAL; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76218-083-2	01	1	9603-
106	SEAL; DOOR ORNAMENT (B)	1-76218-104-0	02	1	9603-
171	RETAINER; DOOR PAD POWER WINDOW<A30>	1-09987-264-0	01	1	9603-
171	RETAINER; DOOR PAD POWER WINDOW<A30>	1-09987-264-0	01	1	9603-
171	RETAINER; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-09987-264-0	02	1	9603-
177	SEAL; WATER,DOOR (B)	1-76778-055-2	02	1	9603-
177	SEAL; WATER,DOOR EXC. DELUXE CAB(W14) (D)	1-76778-047-2	02	1	9603-9704
177	SEAL; WATER,DOOR EXC. POWER WINDOW<A30> (D)	1-76778-047-3	02	1	9705-
177	SEAL; WATER,DOOR POWER WINDOW<A30> (C)	1-76778-052-0	01	1	9603-
177	SEAL; WATER,DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76778-035-4	01	1	9603-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-1	04	1	9603-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-1	01	1	9603-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-0	01	1	9603-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-0	02	1	9603-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-1	04	1	9603-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=45	1-76218-063-1	04	1	9603-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-1	01	1	9603-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=770	1-76218-091-1	01	1	9603-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-0	01	1	9603-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=160	1-76218-094-0	01	1	9603-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-0	02	1	9603-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D) L=235	1-76218-127-0	02	1	9603-
224	DEFLECTOR; DUCT EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-529-0	01	1	0006-
224	DEFLECTOR; DUCT EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-528-0	01	1	0006-

179 179 36 179 106 179 179 179 179 18 106 33 106 177 105 179 33 1 27 18 18 26 171 72 41 224 103 18 18 177 25 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30>	1-73338-466-4	01	1	9603-0012
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30>	1-73338-534-0	01	1	0101-
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-450-2	01	1	9603-0012
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-532-0	01	1	0101-
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-465-4	01	1	9603-0012
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-533-0	01	1	0101-
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-449-4	01	1	9603-0012
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-531-0	01	1	0101-
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-467-4	01	1	9603-0012
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-535-0	01	1	0101-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	9603-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	9603-
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 DARK GRAY	1-09987-242-0	02	1	9603-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 DARK GRAY	1-09987-242-0	04	1	9603-
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-94126-768-0	05	1	9603-0012
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-94126-768-0	05	1	9603-0012
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-97893-482-0	05	1	0101-
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-97893-482-0	05	1	0101-
18	CLIP; DOOR PAD POWER WINDOW<A30> (C) OD=7.9 BLACK	8-94279-974-1	02	1	9603-
18	CLIP; DOOR PAD POWER WINDOW<A30> (C) OD=7.9 BLACK	8-94279-974-1	02	1	9603-
18	CLIP; DOOR PAD POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-09987-255-0	04	1	9603-0005
18	CLIP; DOOR PAD POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-09987-262-0	04	1	9603-0005
18	CLIP; DOOR PAD POWER WINDOW<A30> (D)	1-09987-262-0	04	1	9603-0005
18	CLIP; DOOR PAD POWER WINDOW<A30> (D)	1-09987-262-0	05	1	0006-
18	CLIP; DOOR PAD POWER WINDOW<A30> (D)	1-09987-262-0	05	1	0006-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-09987-262-0	08	1	9603-0005
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-09987-262-0	10	1	0006-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B) OD=8.5 GRAY	8-94126-768-0	10	1	9603-0012
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B) OD=8.5 GRAY	8-97893-482-0	10	1	0101-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (C) OD=7.9 BLACK	8-94279-974-1	02	1	9603-
25	SCREW; ASH TRAY,DOOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	9603-
26	GROMMET; SCREW,ASH TRAY DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9603-
27	PANEL; ORNAMENT,DOOR	1-76218-096-5	01	1	9603-
27	PANEL; ORNAMENT,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76218-125-5	01	1	9603-
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	01	1	9603-
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	01	1	9603-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	02	1	9603-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	02	1	9603-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-177-7	01	1	9603-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-176-7	01	1	9603-
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	9603-
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	9603-
72	SCREW; DOOR TRIM EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-527-0	08	1	0006-
103	TRAY ASM; ASH,DOOR	1-76458-078-2	01	1	9603-
103	TRAY ASM; ASH,DOOR	1-76458-077-2	01	1	9603-
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	01	1	9603-
105	SEAL; DOOR ORNAMENT,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76218-082-2	01	1	9603-
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	01	1	9603-
106	SEAL; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76218-083-2	01	1	9603-
106	SEAL; DOOR ORNAMENT (B)	1-76218-104-0	02	1	9603-
171	RETAINER; DOOR PAD POWER WINDOW<A30>	1-09987-264-0	01	1	9603-
171	RETAINER; DOOR PAD POWER WINDOW<A30>	1-09987-264-0	01	1	9603-
171	RETAINER; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-09987-264-0	02	1	9603-
177	SEAL; WATER,DOOR (B)	1-76778-055-2	02	1	9603-
177	SEAL; WATER,DOOR EXC. DELUXE CAB(W14) (D)	1-76778-047-2	02	1	9603-9704
177	SEAL; WATER,DOOR EXC. POWER WINDOW<A30> (D)	1-76778-047-3	02	1	9705-
177	SEAL; WATER,DOOR POWER WINDOW<A30> (C)	1-76778-052-0	01	1	9603-
177	SEAL; WATER,DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76778-035-4	01	1	9603-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-1	04	1	9603-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-1	01	1	9603-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-0	01	1	9603-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-0	02	1	9603-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-1	04	1	9603-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=45	1-76218-063-1	04	1	9603-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-1	01	1	9603-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=770	1-76218-091-1	01	1	9603-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-0	01	1	9603-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=160	1-76218-094-0	01	1	9603-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-0	02	1	9603-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D) L=235	1-76218-127-0	02	1	9603-
224	DEFLECTOR; DUCT EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-529-0	01	1	0006-
224	DEFLECTOR; DUCT EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-528-0	01	1	0006-
