Sayfa 0-41 - Isuzu EPC

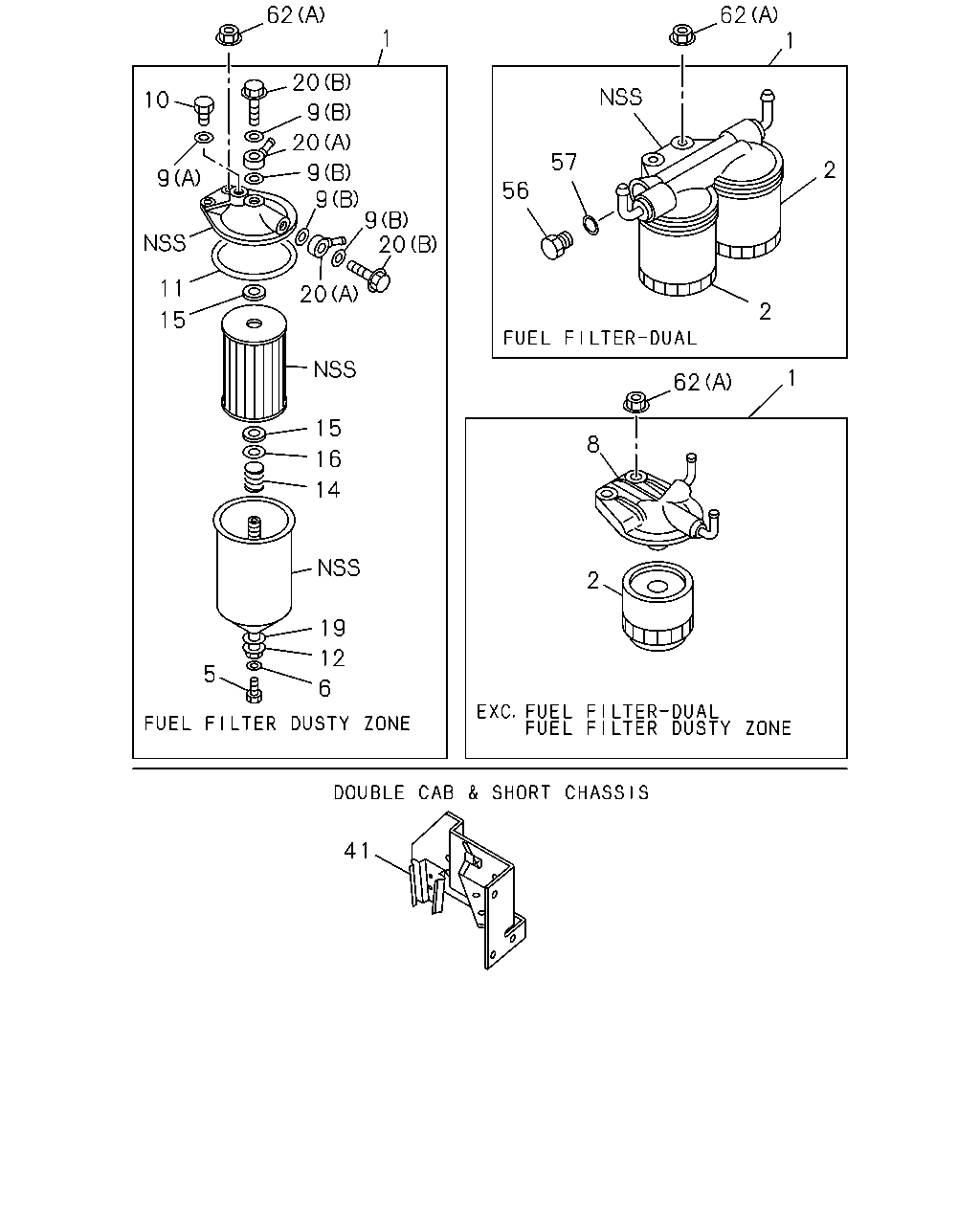

0-41 — FUEL FILTER AND BRACKET (#46116) — 159 parça

62 62 1 1 20 10 9 20 57 2 9 9 9 20 9 56 11 20 2 15 1 62 15 8 16 14 2 19 12 5 6 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9811-0105	●	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97070-865-0	01	1	9811-0105	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97070-865-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUSTY ZONE(6KP)	8-94453-743-2	01	1	9811-		●
1	03.890 FILTER ASM; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97171-451-2	01	1	9811-			●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	9811-				●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-124-0	01	1	0106-					●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9811-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	0106-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94246-908-0	01	1	9811-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94246-908-0	01	1	0106-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	9811-			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	9811-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0106-					●
5	03.890 BOLT; FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) 08.971	9-09202-308-0	01	1	9811-		●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-					●
6	03.890 GASKET; FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09562-106-0	01	1	9811-		●
6	03.890 GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-					●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97363-518-0	01	1	0106-		●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94254-730-0	01	1	9811-0105	●	●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-543-1	01	1	9811-0107			●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-543-1	01	1	0108-			●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0108-				●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). FUEL FILTER DUSTY ZONE(6KP) 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9811-		●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). FUEL FILTER DUSTY ZONE(6KP) 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-		●
10	03.890 VALVE; OVERFLOW,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09862-056-0	01	1	9811-		●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-13213-040-1	01	1	9811-		●
12	03.890 BOLT; CENTER,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	1-13231-012-0	01	1	9811-		●
14	03.890 SPRING; ELEMENT SUPPORT,FUEL FIL FUEL FILTER DUSTY ZONE(6KP)	1-09580-149-0	01	1	9811-		●
15	03.890 GASKET; HOLDER TO ELEMENT,FUEL F FUEL FILTER DUSTY ZONE(6KP)	1-09630-007-0	02	1	9811-		●
16	03.890 HOLDER; ELEMENT,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09859-040-0	01	1	9811-		●
19	03.890 GASKET; BOLT TO CASE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09920-586-0	01	1	9811-		●
20	03.890 JOINT; EYE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) (A)	8-97019-867-0	02	1	9811-		●
20	03.890 JOINT; EYE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) 03.162 (B) M14X29 EYE-BOLT	9-09906-325-1	02	1	9811-		●
41	03.890 BRACKET; FUEL FILTER DBL CAB&SHORT(NK**WC)	8-97103-345-1	01	1	9811-		●
56	03.890 PLUG; FUEL FILTER FUEL FILTER DUAL(S6B)	5-13226-001-0	01	1	0106-		●
57	03.890 GASKET; PLUG FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0106-		●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-0105	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-0105			●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0106-0107		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0106-0107			●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0108-		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0108-			●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-0002			●	●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-			●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-				●

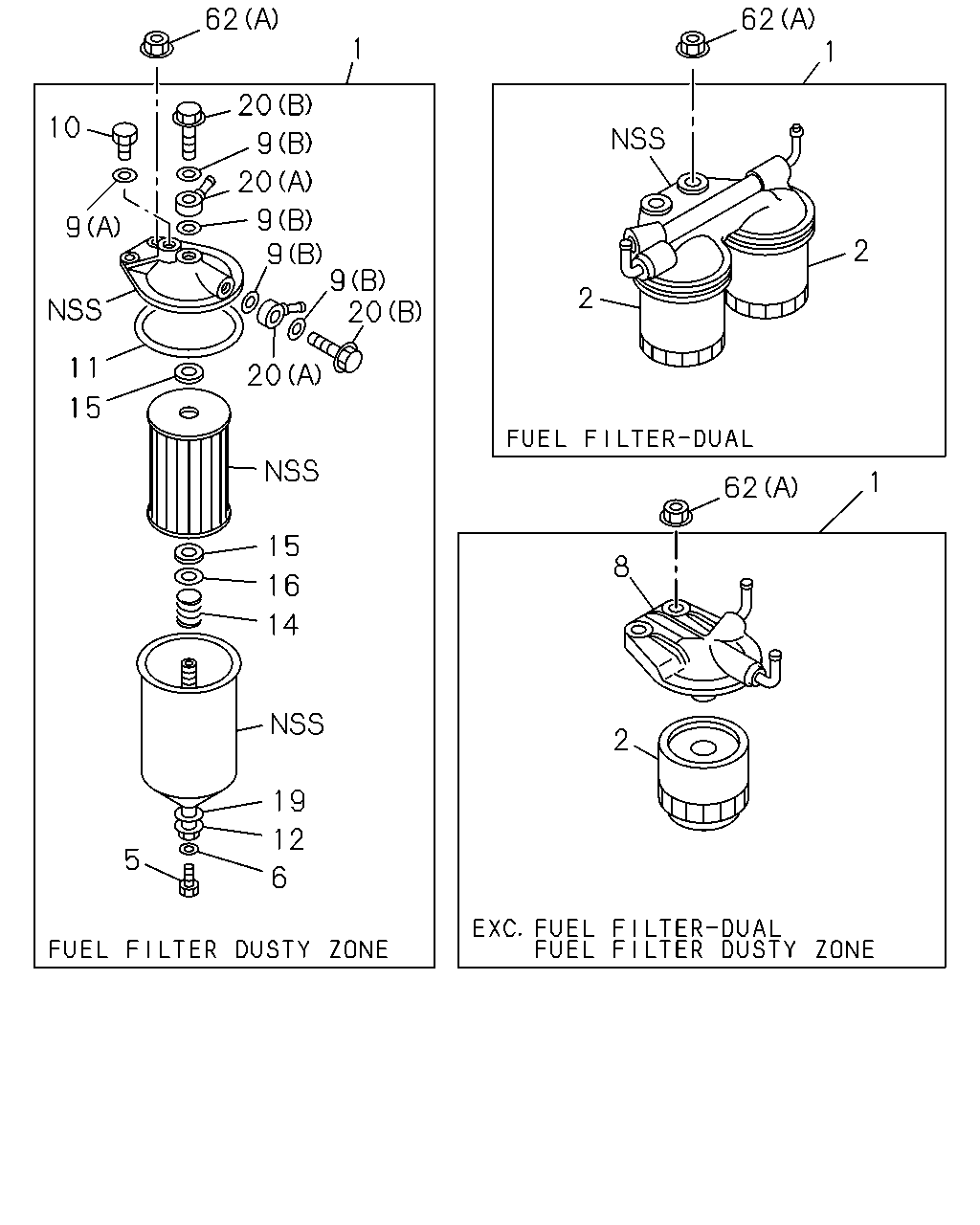

62 62 1 1 20 10 9 20 9 9 9 20 9 2 2 11 20 15 1 62 15 8 16 14 2 19 12 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9811-0105	●	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97070-865-0	01	1	9811-0105	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97070-865-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUSTY ZONE(6KP)	8-94453-743-2	01	1	9811-		●
1	03.890 FILTER ASM; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97171-451-2	01	1	9811-			●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	9811-				●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-124-0	01	1	0106-					●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9811-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	0106-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94246-908-0	01	1	9811-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94246-908-0	01	1	0106-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	9811-			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	9811-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0106-					●
5	03.890 BOLT; FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) 08.971	9-09202-308-0	01	1	9811-		●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-					●
6	03.890 GASKET; FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09562-106-0	01	1	9811-		●
6	03.890 GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-					●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97363-518-0	01	1	0106-		●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94254-730-0	01	1	9811-0105	●	●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-543-1	01	1	9811-0107			●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-543-1	01	1	0108-			●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0108-				●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). FUEL FILTER DUSTY ZONE(6KP) 08.955 (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	9811-		●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). FUEL FILTER DUSTY ZONE(6KP) 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-		●
10	03.890 VALVE; OVERFLOW,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09862-056-0	01	1	9811-		●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-13213-040-1	01	1	9811-		●
12	03.890 BOLT; CENTER,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	1-13231-012-0	01	1	9811-		●
14	03.890 SPRING; ELEMENT SUPPORT,FUEL FIL FUEL FILTER DUSTY ZONE(6KP)	1-09580-149-0	01	1	9811-		●
15	03.890 GASKET; HOLDER TO ELEMENT,FUEL F FUEL FILTER DUSTY ZONE(6KP)	1-09630-007-0	02	1	9811-		●
16	03.890 HOLDER; ELEMENT,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09859-040-0	01	1	9811-		●
19	03.890 GASKET; BOLT TO CASE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09920-586-0	01	1	9811-		●
20	03.890 JOINT; EYE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) (A)	8-97019-867-0	02	1	9811-		●
20	03.890 JOINT; EYE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) 03.162 (B) M14X29 EYE-BOLT	9-09906-325-1	02	1	9811-		●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-0105	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-0105			●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0106-0107		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0106-0107			●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0108-		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0108-			●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-0002			●	●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-			●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-				●

62 62 35 1 92 93 36 36 8 2 46 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9811-0105	●	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97070-865-0	01	1	9811-0105	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97070-865-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUSTY ZONE(6KP)	8-94453-743-2	01	1	9811-		●
1	03.890 FILTER ASM; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97171-451-2	01	1	9811-			●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	9811-				●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-124-0	01	1	0106-					●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9811-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	0106-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94246-908-0	01	1	9811-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94246-908-0	01	1	0106-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	9811-			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	9811-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0106-					●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97363-518-0	01	1	0106-		●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94254-730-0	01	1	9811-0105	●	●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-543-1	01	1	9811-0107			●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-543-1	01	1	0108-			●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0108-				●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9811-			●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9811-			●	●
43	03.890 BOLT; BRKT ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE	0-28181-220-0	02	1	9811-0002			●
43	03.890 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	9811-0107			●
43	03.890 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0108-			●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0108-				●
46	03.890 BRACKET EXC. ENGINE POWER N-SPEC(7QV)	8-94313-323-1	01	1	9811-			●
46	03.890 BRACKET	8-94313-323-1	01	1	9811-				●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-0105	●	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-0105			●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0106-0107		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0106-0107			●
62	03.895 NUT; FUEL FILTER 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0108-		●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0108-			●	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-0002			●	●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-			●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-				●
92	03.417 CAP; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-548-0	01	1	9811-			●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	9811-				●
93	03.890 CONNECTOR; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-546-1	01	1	9811-			●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	9811-				●

1 2 5 6 112 3 112 112 66 66 7 7 72 88 40 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	9811-0105	●	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97070-865-0	01	1	9811-0105	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-97070-865-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUSTY ZONE(6KP)	8-94453-743-2	01	1	9811-		●
1	03.890 FILTER ASM; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97171-451-2	01	1	9811-			●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	9811-				●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU>	8-97240-124-0	01	1	0106-					●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	9811-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	0106-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94246-908-0	01	1	9811-0105	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTERDUSTY ZONE(6KP)	8-94246-908-0	01	1	0106-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	9811-			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	9811-				●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0106-					●
3	03.890 SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0106-					●
5	03.890 BOLT; FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) 08.971	9-09202-308-0	01	1	9811-		●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-					●
6	03.890 GASKET; FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09562-106-0	01	1	9811-		●
6	03.890 GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-					●
7	03.890 PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0106-					●
40	03.890 BRACKET; FUEL FILTER FRT INDEPENDENT SUSPENSION(6PP)	8-97240-698-2	01	1	0106-					●
40	03.890 BRACKET; FUEL FILTER EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97306-600-1	01	1	0106-					●
66	03.890 GASKET; PLUG,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0106-					●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 M10 FLANGE	0-91150-110-0	03	1	0106-					●
88	03.895 BOLT; BRKT,FUEL FILTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0106-					●
112	06.605 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0106-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
