0-36 — TURBOCHARGER SYSTEM (#46113) — 54 parça

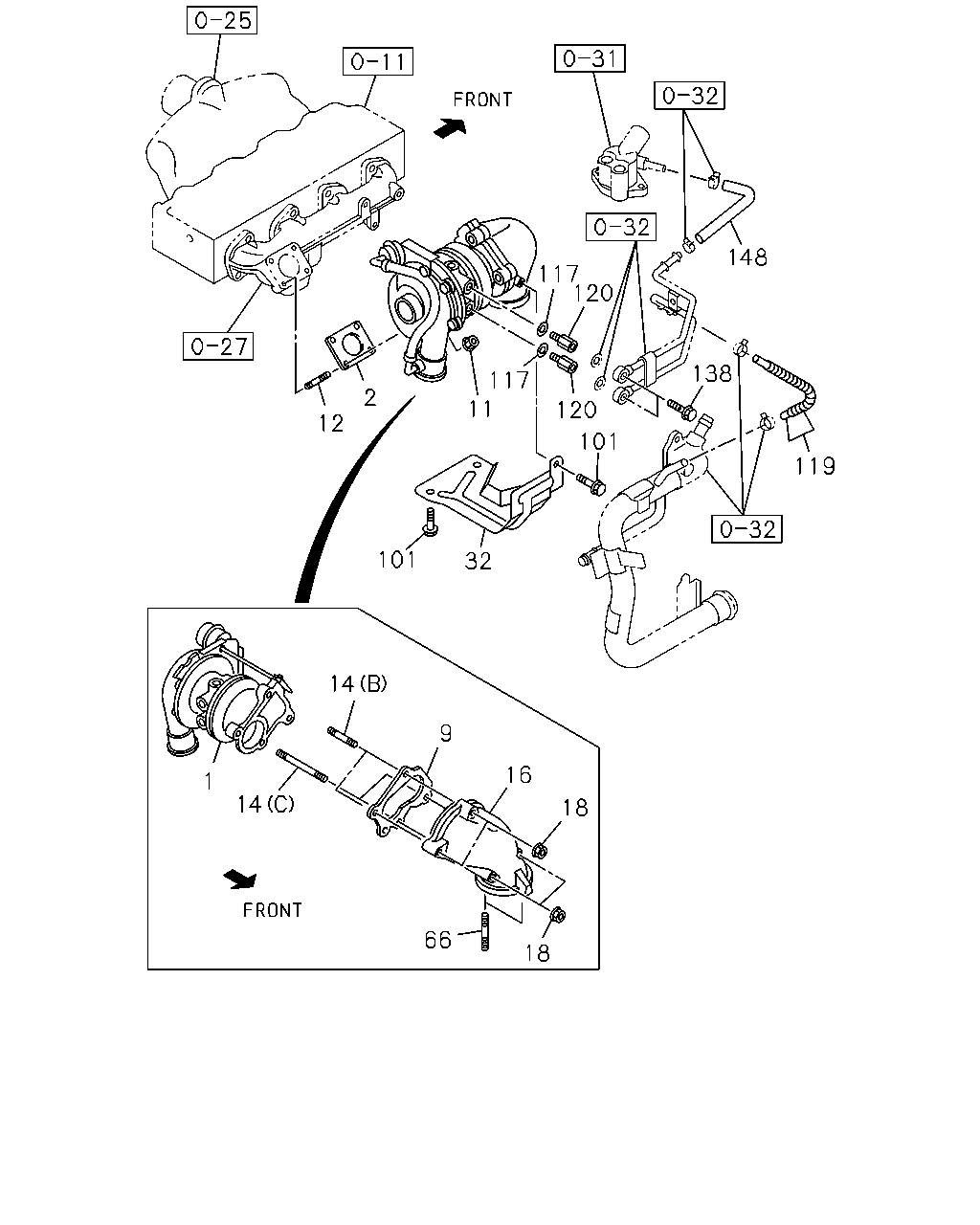

148 117 120 138 117 2 11 120 12 101 119 101 32 14 9 16 1 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>	8-97176-080-1	01	1	9811-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D) TURBOCHARGER<K51>	8-94433-605-0	01	1	9811-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97288-577-0	01	1	0106-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) TURBOCHARGER<K51>	8-94433-604-0	01	1	9811-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97179-646-0	01	1	0106-0111	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.611	8-97263-123-0	01	1	0112-	●
11	03.342 NUT; TURBOCHARGER TURBOCHARGER<K51> 03.613 M8 FLANGE	8-97161-607-0	04	1	9811-		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	9811-	●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97104-508-1	04	1	9811-		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9811-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (A) M8X105 L=116	8-94362-047-0	02	1	9811-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	9811-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0106-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	0106-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0106-	●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER<K51>	8-97176-079-0	01	1	9811-		●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0106-	●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	9811-		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9811-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97258-821-0	01	1	0106-	●
66	03.342 STUD; EXH PIPE TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9811-		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9811-	●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0106-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). T=2.5	8-94472-584-1	02	1	0106-	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0106-	●
120	01.097 ADAPTER; WATER	8-94472-583-0	02	1	0106-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0106-	●
148	03.417 HOSE; TURBOCHARGER,INL 03.342 L=280 SERVICED BY L=3000	0-03259-300-0	01	1	0106-0204	●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0205-	●

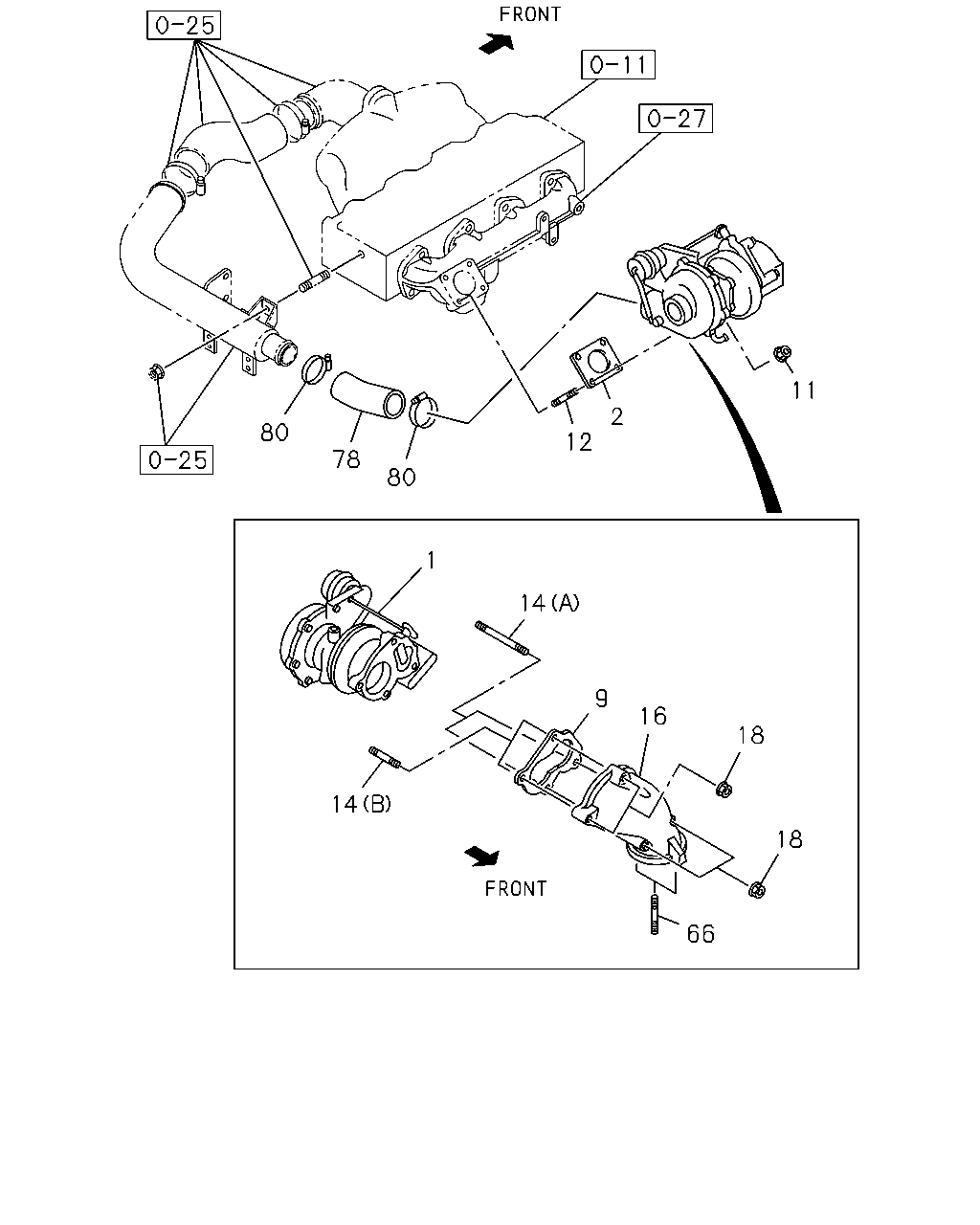

11 2 80 12 78 80 1 14 9 16 18 14 1 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>	8-97176-080-1	01	1	9811-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D) TURBOCHARGER<K51>	8-94433-605-0	01	1	9811-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97288-577-0	01	1	0106-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) TURBOCHARGER<K51>	8-94433-604-0	01	1	9811-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97179-646-0	01	1	0106-0111	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.611	8-97263-123-0	01	1	0112-	●
11	03.342 NUT; TURBOCHARGER TURBOCHARGER<K51> 03.613 M8 FLANGE	8-97161-607-0	04	1	9811-		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	9811-	●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97104-508-1	04	1	9811-		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9811-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (A) M8X105 L=116	8-94362-047-0	02	1	9811-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	9811-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X81	8-94107-532-1	02	1	0106-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	0106-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	0106-	●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER<K51>	8-97176-079-0	01	1	9811-		●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0106-	●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	9811-		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9811-	●
66	03.342 STUD; EXH PIPE TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9811-		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9811-	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER TURBOCHARGER<K51>	8-97176-146-0	01	1	9811-		●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER TURBOCHARGER<K51> ID=45.5-56.5	8-97131-943-0	02	1	9811-		●
