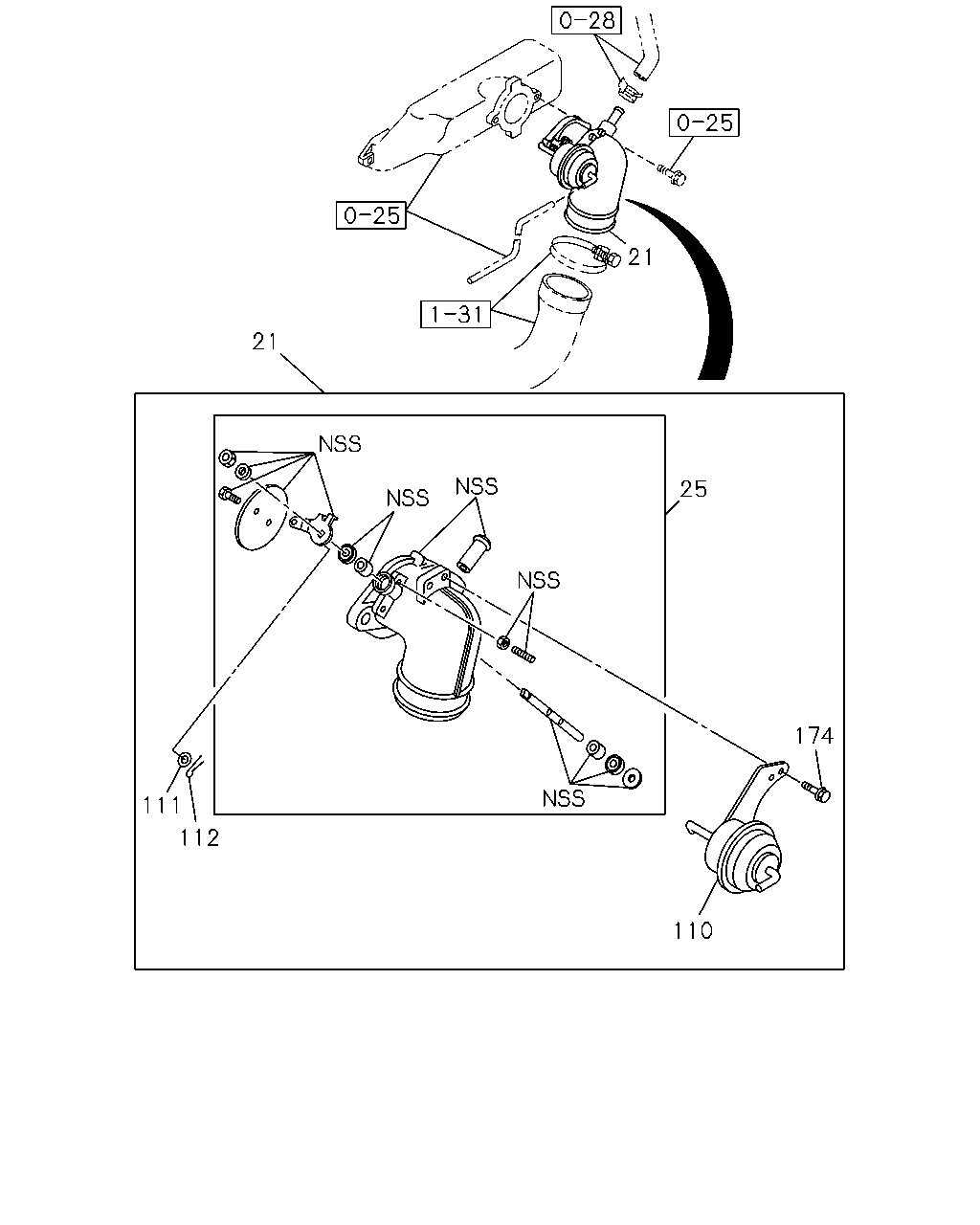

0-35 — ENGINE CONTROL VALVE AND LEVER (#46112) — 68 parça

21 21 25 174 111 112 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	03.440 VALVE ASM; THROTTLE	8-97309-925-2	01	1	0106-	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265	8-94143-586-1	01	1	9811-		●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-1	01	1	9811-		●	●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51>	8-97176-077-1	01	1	9811-0105			●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51>	8-97309-923-1	01	1	0106-			●
25	03.440 BODY ASM; THROTTLE	8-97350-521-0	01	1	0106-0106	●
25	03.440 BODY ASM; THROTTLE	8-97317-384-1	01	1	0106-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9811-		●	●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51>	8-97168-304-0	01	1	9811-0105			●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51>	8-97315-046-0	01	1	0106-			●
110	03.440 CHAMBER ASM; DIAPH	8-97317-385-0	01	1	0106-	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97104-169-0	01	1	9811-		●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9811-		●	●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51>	8-97168-305-0	01	1	9811-0105			●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51>	8-97315-051-0	01	1	0106-			●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-94467-828-0	01	1	9811-0105		●	●
111	03.440 WASHER; SPLIT PIN TURBOCHARGER<K51>	8-94467-828-0	01	1	9811-0105			●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-94467-828-0	01	1	0106-		●	●
111	03.440 WASHER; SPLIT PIN TURBOCHARGER<K51>	8-94467-828-0	01	1	0106-			●
111	03.440 WASHER; SPLIT PIN	8-94467-828-0	01	1	0106-	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	9-08112-010-0	01	1	9811-0105		●	●
112	03.440 PIN; SPLIT,LEVER TURBOCHARGER<K51>	9-08112-010-0	01	1	9811-0105			●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	9-08112-010-0	01	1	0106-		●	●
112	03.440 PIN; SPLIT,LEVER TURBOCHARGER<K51>	9-08112-010-0	01	1	0106-			●
112	03.440 PIN; SPLIT,LEVER	9-08112-010-0	01	1	0106-	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9811-0208		●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0209-		●	●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0209-			●
174	03.440 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0209-	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9811-0105		●	●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9811-0105			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	0106-0208		●	●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	0106-0208			●
174	03.440 BOLT; CHAMBER 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	0106-0208	●

21 21 25 174 110 112 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	03.440 VALVE ASM; THROTTLE	8-97309-925-2	01	1	0106-	●
21	03.440 VALVE ASM; THROTTLE AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.265	8-94143-586-1	01	1	9811-		●	●
21	03.440 VALVE ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97042-996-1	01	1	9811-		●	●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51>	8-97176-077-1	01	1	9811-0105			●
21	03.440 VALVE ASM; THROTTLE TURBOCHARGER<K51>	8-97309-923-1	01	1	0106-			●
25	03.440 BODY ASM; THROTTLE	8-97350-521-0	01	1	0106-0106	●
25	03.440 BODY ASM; THROTTLE	8-97317-384-1	01	1	0106-	●
25	03.440 BODY ASM; THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97094-116-0	01	1	9811-		●	●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51>	8-97168-304-0	01	1	9811-0105			●
25	03.440 BODY ASM; THROTTLE TURBOCHARGER<K51>	8-97315-046-0	01	1	0106-			●
110	03.440 CHAMBER ASM; DIAPH	8-97317-385-0	01	1	0106-	●
110	03.440 CHAMBER ASM; DIAPH AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97104-169-0	01	1	9811-		●	●
110	03.440 CHAMBER ASM; DIAPH EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC>	8-97019-267-0	01	1	9811-		●	●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51>	8-97168-305-0	01	1	9811-0105			●
110	03.440 CHAMBER ASM; DIAPH TURBOCHARGER<K51>	8-97315-051-0	01	1	0106-			●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-94467-828-0	01	1	9811-0105		●	●
111	03.440 WASHER; SPLIT PIN TURBOCHARGER<K51>	8-94467-828-0	01	1	9811-0105			●
111	03.440 WASHER; SPLIT PIN EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-94467-828-0	01	1	0106-		●	●
111	03.440 WASHER; SPLIT PIN TURBOCHARGER<K51>	8-94467-828-0	01	1	0106-			●
111	03.440 WASHER; SPLIT PIN	8-94467-828-0	01	1	0106-	●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	9-08112-010-0	01	1	9811-0105		●	●
112	03.440 PIN; SPLIT,LEVER TURBOCHARGER<K51>	9-08112-010-0	01	1	9811-0105			●
112	03.440 PIN; SPLIT,LEVER EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	9-08112-010-0	01	1	0106-		●	●
112	03.440 PIN; SPLIT,LEVER TURBOCHARGER<K51>	9-08112-010-0	01	1	0106-			●
112	03.440 PIN; SPLIT,LEVER	9-08112-010-0	01	1	0106-	●
174	03.440 BOLT; CHAMBER AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9811-0208		●	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0209-		●	●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0209-			●
174	03.440 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0209-	●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9811-0105		●	●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9811-0105			●
174	03.440 BOLT; CHAMBER EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	0106-0208		●	●
174	03.440 BOLT; CHAMBER TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	0106-0208			●
174	03.440 BOLT; CHAMBER 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	0106-0208	●
