◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#46111) — 176 parça

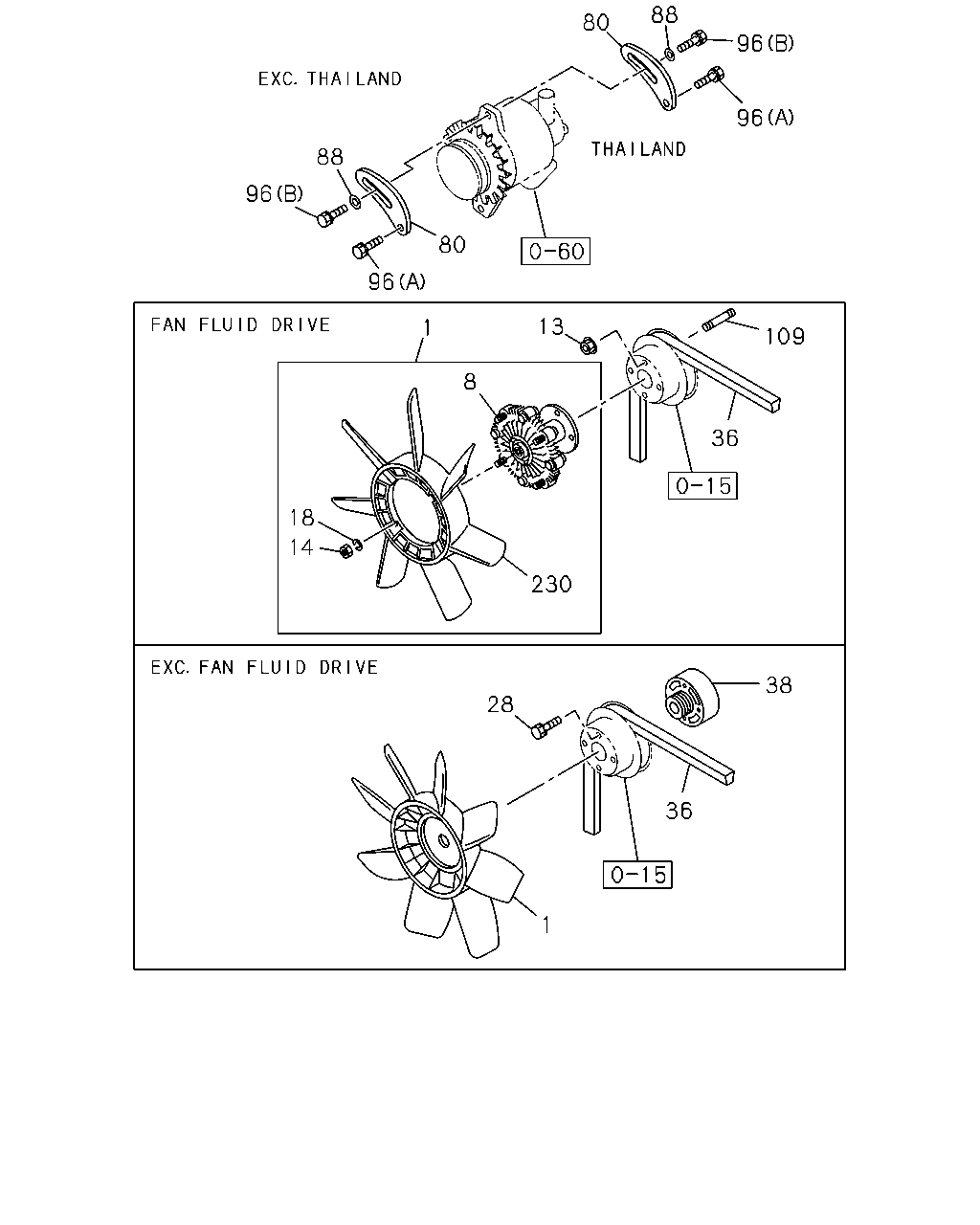

çizim 45673
88 80 96 96 88 96 80 96 13 1 109 8 36 18 14 230 38 28 36 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.064 FAN; COOLING
OD=430 		8-97141-195-1 01 1 0108- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=410 		8-97129-769-0 01 1 9811-0105 ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 9811-0105 ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 0106- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 9811- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390 		5-13660-285-0 01 1 9811- ●
1 01.064 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97129-772-1 01 1 9811- ●
1 01.064 FAN; COOLING 8-97128-531-0 01 1 0106- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0108- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97129-735-0 01 1 9811-0105 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 9811-0105 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 0106- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 		8-94244-409-0 01 1 9811- ●
8 01.064 CLUTCH; COOLING FAN
FLOOR REMOTE SHIFT<M11> 		8-97129-738-0 01 1 9811- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0106- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 9811-0105 ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 0106- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0106- ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 9811- ● ●
14 01.062 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.413 M6 		9-09110-506-0 04 1 9811- ●
18 01.062 WASHER; FAN TO CLU
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.206 ID=6.1 		9-09150-506-0 04 1 9811- ●
28 01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> M6X45 W/LK WASHER 		0-50040-645-0 04 1 9811-0105 ●
28 01.062 BOLT; COOLING FAN
EXC. TURBOCHARGER<K51> M6X45 W/LK WASHER 		0-50040-645-0 04 1 0106- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9811-0105 ●
36 01.066 BELT; COOLING FAN
EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9811-0105 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 0106-0206 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0207- ● ●
36 01.066 BELT; COOLING FAN
THAILAND EQUIPMENT(PM9) L=1065 		8-94240-372-0 01 1 9811-0105 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 9811- ● ●
38 01.062 SPACER; FAN
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> 01.064 		9-13642-078-0 01 1 9811-0105 ●
38 01.062 SPACER; FAN
EXC. TURBOCHARGER<K51> 01.064 		9-13642-078-0 01 1 0106- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9811- ● ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9811-0105 ●
80 02.317 PLATE; ADJ
EXC. THAILAND EQUIPMENT(PM9) 		8-97080-556-1 01 1 9811-0105 ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0106- ● ●
80 02.317 PLATE; ADJ
THAILAND EQUIPMENT(PM9) 		8-97117-938-0 01 1 9811-0105 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9811- ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9811-0105 ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0106- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9811-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0106- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9811-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0106- ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9811-0105 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0106- ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27 		9-04110-618-0 04 1 9811-0105 ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27 		9-04110-618-0 04 1 0106- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0106- ●
109 01.062 STUD; FAN CLU
FLOOR REMOTE SHIFT<M11> M8X13.5 L=22 		8-97049-577-1 04 1 9811-0107 ●
109 01.062 STUD; FAN CLU
FLOOR REMOTE SHIFT<M11> M8X13.5 L=22 		8-97049-577-1 04 1 0108- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0108- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0108- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		8-97094-660-0 01 1 9811-0105 ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 9811-0105 ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 0106- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 9811- ●
230 01.055 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97078-662-1 01 1 9811- ●
230 01.055 FAN; COOLING 8-97131-664-0 01 1 0106- ●

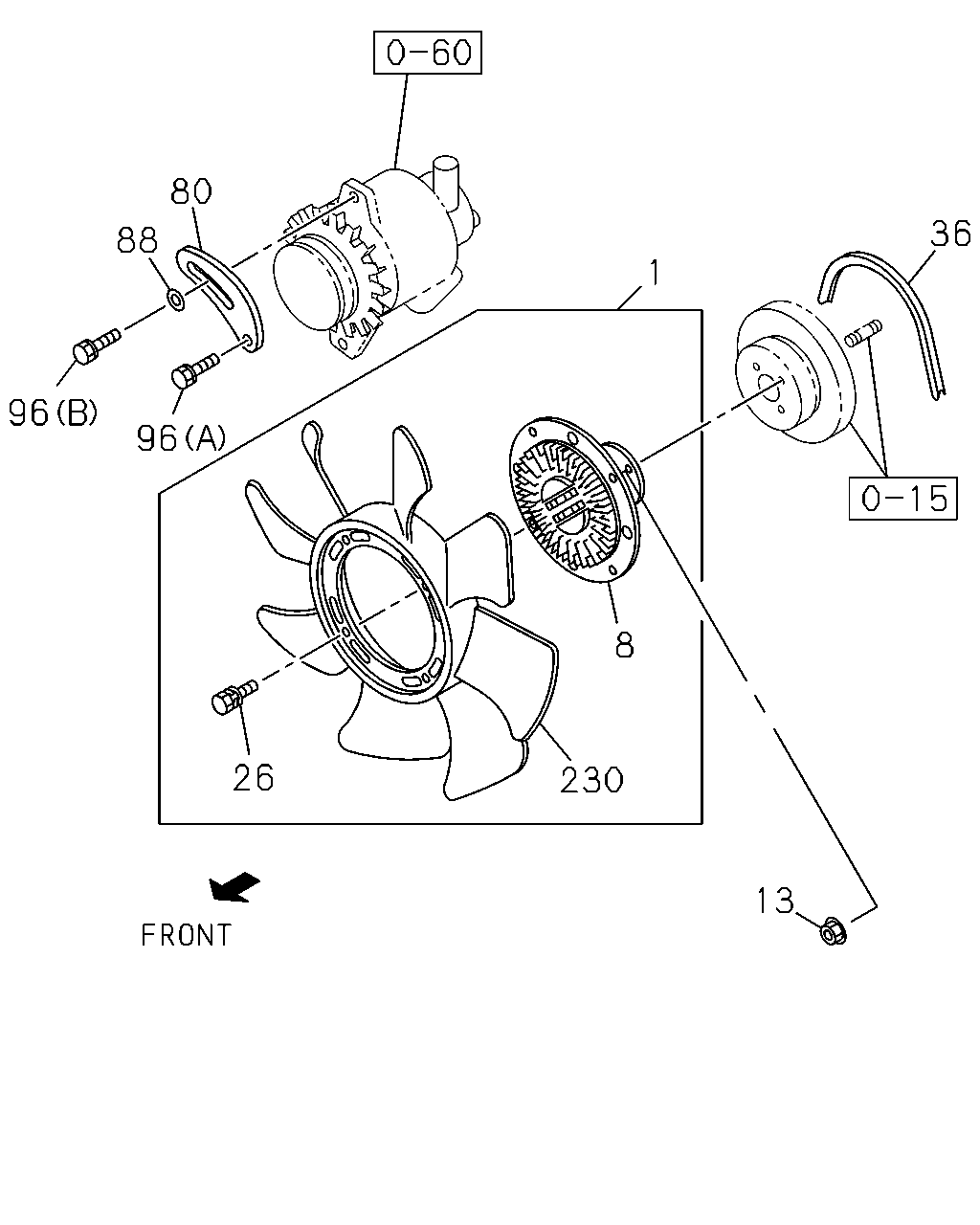

çizim 46020
80 36 88 1 96 96 8 26 230 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.064 FAN; COOLING
OD=430 		8-97141-195-1 01 1 0108- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=410 		8-97129-769-0 01 1 9811-0105 ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 9811-0105 ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 0106- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 9811- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390 		5-13660-285-0 01 1 9811- ●
1 01.064 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97129-772-1 01 1 9811- ●
1 01.064 FAN; COOLING 8-97128-531-0 01 1 0106- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0108- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97129-735-0 01 1 9811-0105 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 9811-0105 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 0106- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 		8-94244-409-0 01 1 9811- ●
8 01.064 CLUTCH; COOLING FAN
FLOOR REMOTE SHIFT<M11> 		8-97129-738-0 01 1 9811- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0106- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 9811-0105 ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 0106- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0106- ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 9811- ● ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0108- ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9811-0105 ●
26 01.062 BOLT; FAN TO CLU
TURBOCHARGER<K51> 		8-94389-764-0 04 1 9811-0105 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9811-0105 ●
26 01.062 BOLT; FAN TO CLU
TURBOCHARGER<K51> 		8-94389-764-0 04 1 0106- ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 0106- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0106- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9811-0105 ●
36 01.066 BELT; COOLING FAN
EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9811-0105 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 0106-0206 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0207- ● ●
36 01.066 BELT; COOLING FAN
THAILAND EQUIPMENT(PM9) L=1065 		8-94240-372-0 01 1 9811-0105 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 9811- ● ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9811-0105 ●
80 02.317 PLATE; ADJ
EXC. THAILAND EQUIPMENT(PM9) 		8-97080-556-1 01 1 9811-0105 ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0106- ● ●
80 02.317 PLATE; ADJ
THAILAND EQUIPMENT(PM9) 		8-97117-938-0 01 1 9811-0105 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9811- ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9811-0105 ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0106- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9811-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0106- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9811-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0106- ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9811-0105 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0106- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0108- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		8-97094-660-0 01 1 9811-0105 ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 9811-0105 ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 0106- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 9811- ●
230 01.055 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97078-662-1 01 1 9811- ●
230 01.055 FAN; COOLING 8-97131-664-0 01 1 0106- ●

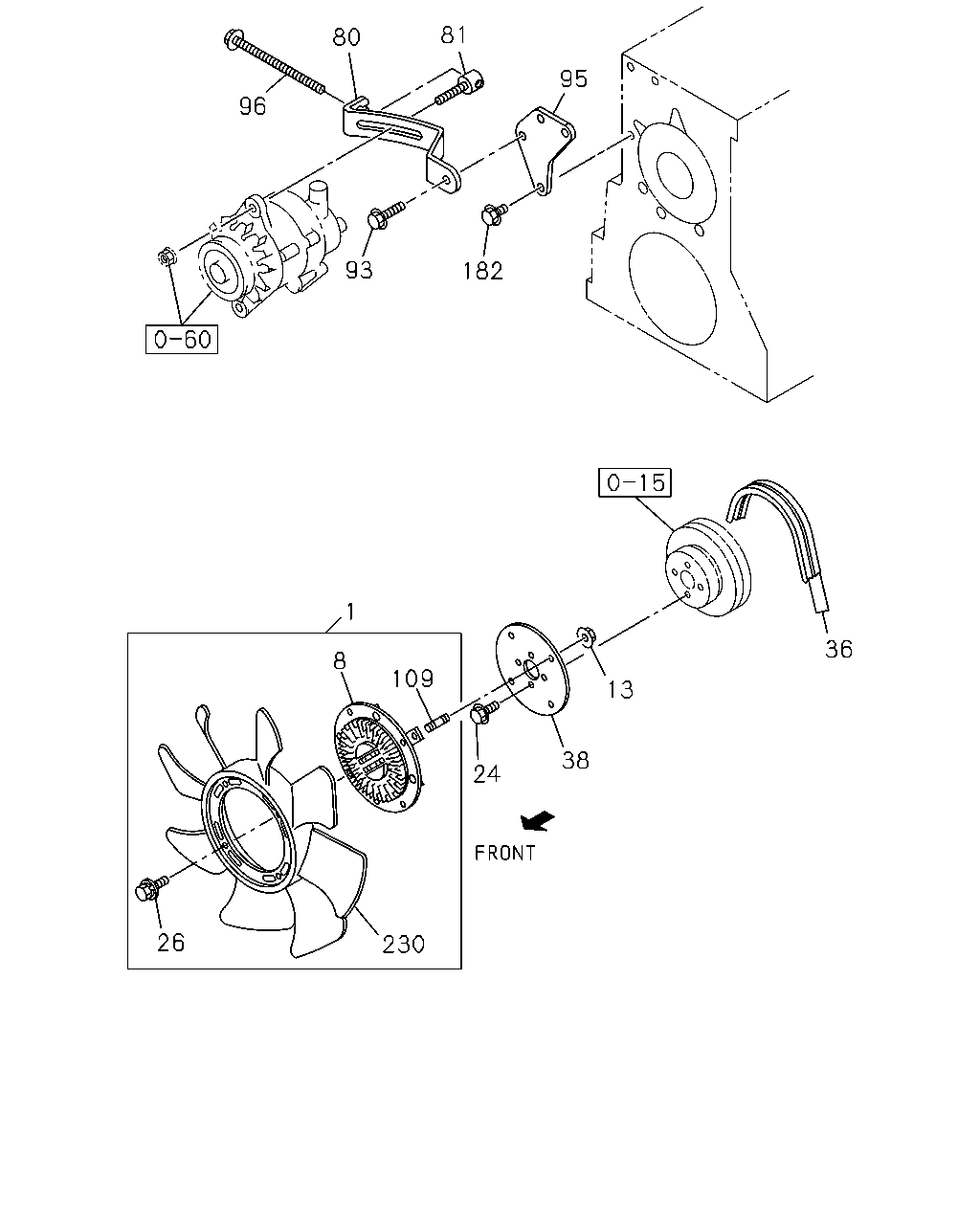

çizim 46023
81 80 95 96 93 182 1 36 8 109 13 38 24 26 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.064 FAN; COOLING
OD=430 		8-97141-195-1 01 1 0108- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=410 		8-97129-769-0 01 1 9811-0105 ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 9811-0105 ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 0106- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 9811- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390 		5-13660-285-0 01 1 9811- ●
1 01.064 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97129-772-1 01 1 9811- ●
1 01.064 FAN; COOLING 8-97128-531-0 01 1 0106- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0108- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97129-735-0 01 1 9811-0105 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 9811-0105 ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 0106- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 		8-94244-409-0 01 1 9811- ●
8 01.064 CLUTCH; COOLING FAN
FLOOR REMOTE SHIFT<M11> 		8-97129-738-0 01 1 9811- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-736-0 01 1 0106- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 9811-0105 ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 0106- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0106- ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 9811- ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9811- ● ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0108- ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9811-0105 ●
26 01.062 BOLT; FAN TO CLU
TURBOCHARGER<K51> 		8-94389-764-0 04 1 9811-0105 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9811-0105 ●
26 01.062 BOLT; FAN TO CLU
TURBOCHARGER<K51> 		8-94389-764-0 04 1 0106- ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 0106- ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0106- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9811-0105 ●
36 01.066 BELT; COOLING FAN
EXC. THAILAND EQUIPMENT(PM9) L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9811-0105 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 0106-0206 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0207- ● ●
36 01.066 BELT; COOLING FAN
THAILAND EQUIPMENT(PM9) L=1065 		8-94240-372-0 01 1 9811-0105 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 9811- ● ●
38 01.062 SPACER; FAN
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> 01.064 		9-13642-078-0 01 1 9811-0105 ●
38 01.062 SPACER; FAN
EXC. TURBOCHARGER<K51> 01.064 		9-13642-078-0 01 1 0106- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9811- ● ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9811-0105 ●
80 02.317 PLATE; ADJ
EXC. THAILAND EQUIPMENT(PM9) 		8-97080-556-1 01 1 9811-0105 ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 0106- ● ●
80 02.317 PLATE; ADJ
THAILAND EQUIPMENT(PM9) 		8-97117-938-0 01 1 9811-0105 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9811- ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 		8-97086-228-1 01 1 9811-0005 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) 		8-97257-223-0 01 1 0006-0105 ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0106- ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9811- ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9811- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9811-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 0106- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9811-0105 ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0106- ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) EXC. GENERATOR DENSO(7KH) M8X130 FLANGE 		8-97172-720-1 01 1 9811-0105 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0106- ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27 		9-04110-618-0 04 1 9811-0105 ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27 		9-04110-618-0 04 1 0106- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0106- ●
109 01.062 STUD; FAN CLU
FLOOR REMOTE SHIFT<M11> M8X13.5 L=22 		8-97049-577-1 04 1 9811-0107 ●
109 01.062 STUD; FAN CLU
FLOOR REMOTE SHIFT<M11> M8X13.5 L=22 		8-97049-577-1 04 1 0108- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0108- ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 9811- ● ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0108- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		8-97094-660-0 01 1 9811-0105 ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 9811-0105 ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 0106- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 9811- ●
230 01.055 FAN; COOLING
FLOOR REMOTE SHIFT<M11> 		8-97078-662-1 01 1 9811- ●
230 01.055 FAN; COOLING 8-97131-664-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
