◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#46105) — 268 parça

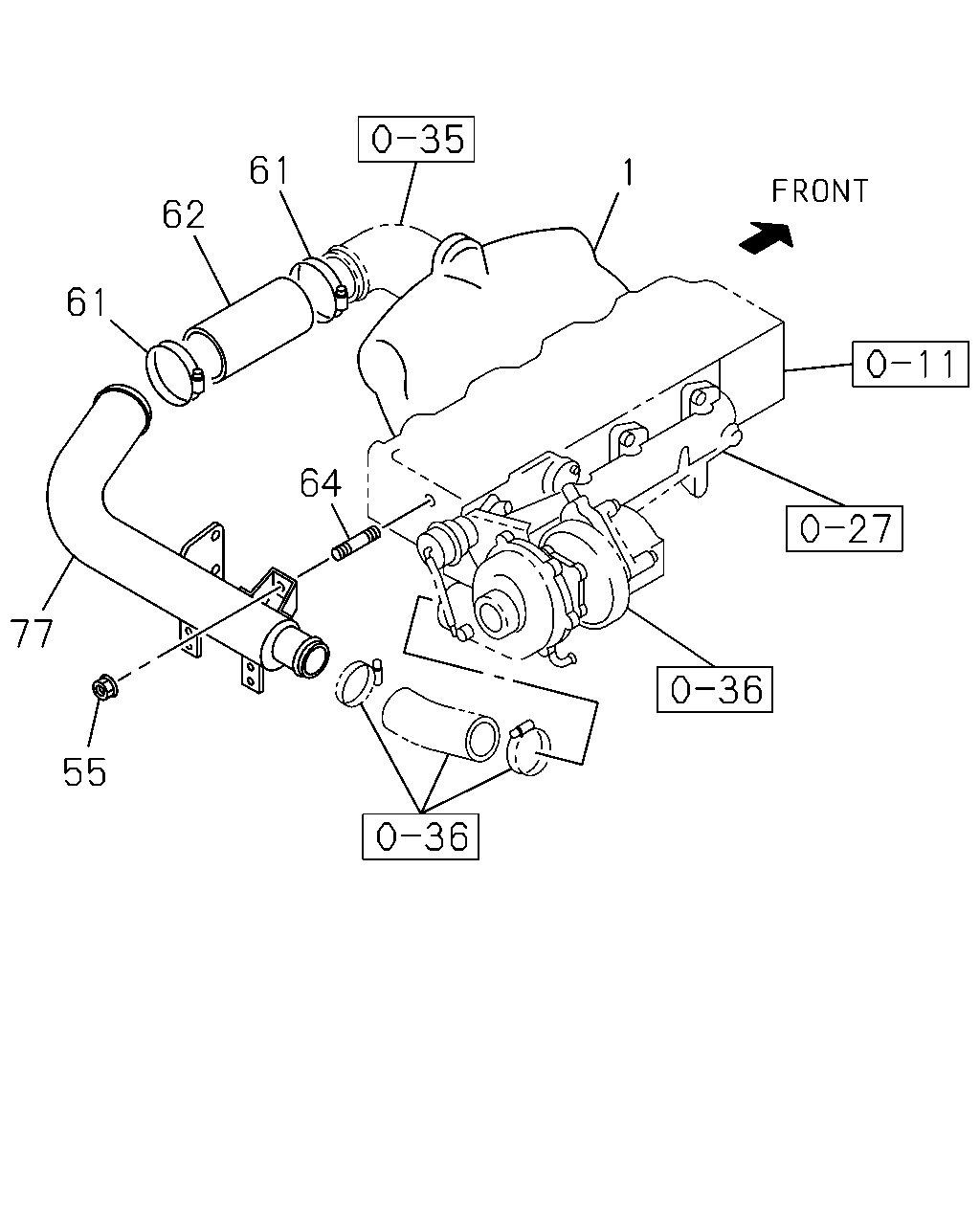

çizim 8871
61 1 62 61 64 77 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.265 MANIFOLD; INL
HONG KONG EQUIPMENT(PQ1) 		8-97147-920-0 01 1 9811-0105 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0106- ●
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 9811- ●
55 03.407 NUT; INL PIPE
TURBOCHARGER<K51> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ●
61 03.273 CLIP; CONNECTOR HOSE
TURBOCHARGER<K51> 03.417 ID=58-79 		8-94126-771-0 02 1 9811- ●
62 03.265 HOSE; CONNECTOR
TURBOCHARGER<K51> 		8-97176-147-0 01 1 9811- ●
64 03.275 STUD; INL PIPE
TURBOCHARGER<K51> 03.417 M8X14 L=26 		9-04110-814-0 01 1 9811- ●
77 03.265 PIPE; INL,INT SHUTTER TO INL MAN
TURBOCHARGER<K51> 		8-97176-076-0 01 1 9811- ●

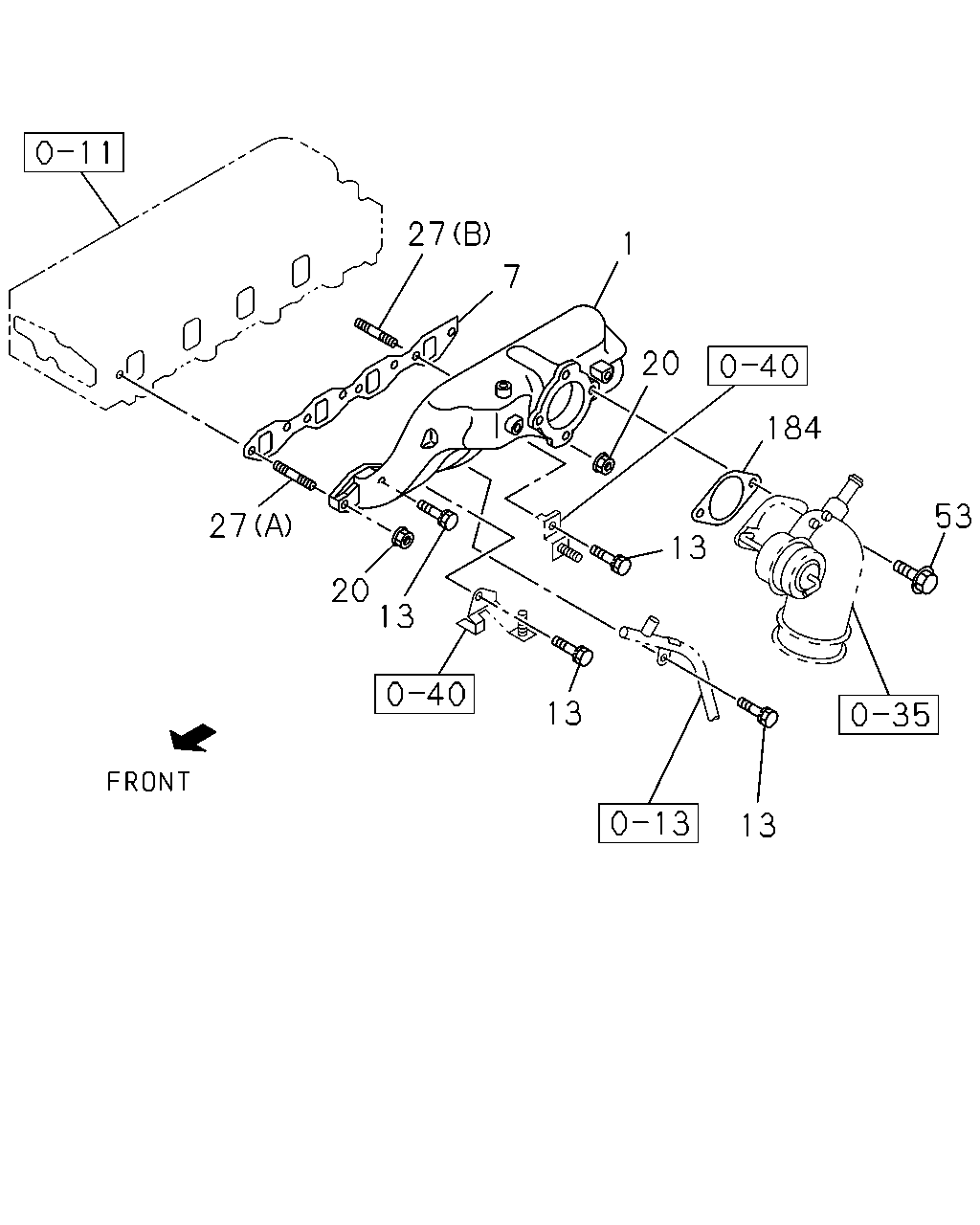

çizim 44747
27 1 7 20 184 53 27 13 20 13 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.265 MANIFOLD; INL
HONG KONG EQUIPMENT(PQ1) 		8-97147-920-0 01 1 9811-0105 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0106- ●
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 9811- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) HONG KONG EQUIPMENT(PQ1) 		8-97144-623-0 04 1 9811-0105 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97228-044-0 01 1 0106-0112 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97066-741-1 01 1 9811-9905 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97228-044-0 01 1 9906-0101 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97301-838-0 01 1 0102- ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9811-0105 ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0106- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 0106- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 9811- ● ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0106- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811-0105 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0106- ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ●
27 03.275 STUD; INL MANIF
03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 0106- ●
27 03.275 STUD; INL MANIF
00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 0106- ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37 		9-04110-825-0 02 1 9811- ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 09.181 M10X25 FLANGE 		0-28781-025-0 02 1 9811-0208 ●
53 03.602 BOLT; INL PIPE
09.181 M10X25 FLANGE 		0-28781-025-0 02 1 9811-0208 ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0209- ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0209- ●
53 03.602 BOLT; INL PIPE
EXHAUST BRAKE<NF8> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811- ● ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.406 		8-97035-883-1 01 1 9811- ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.406 		8-97035-883-1 01 1 9811- ●

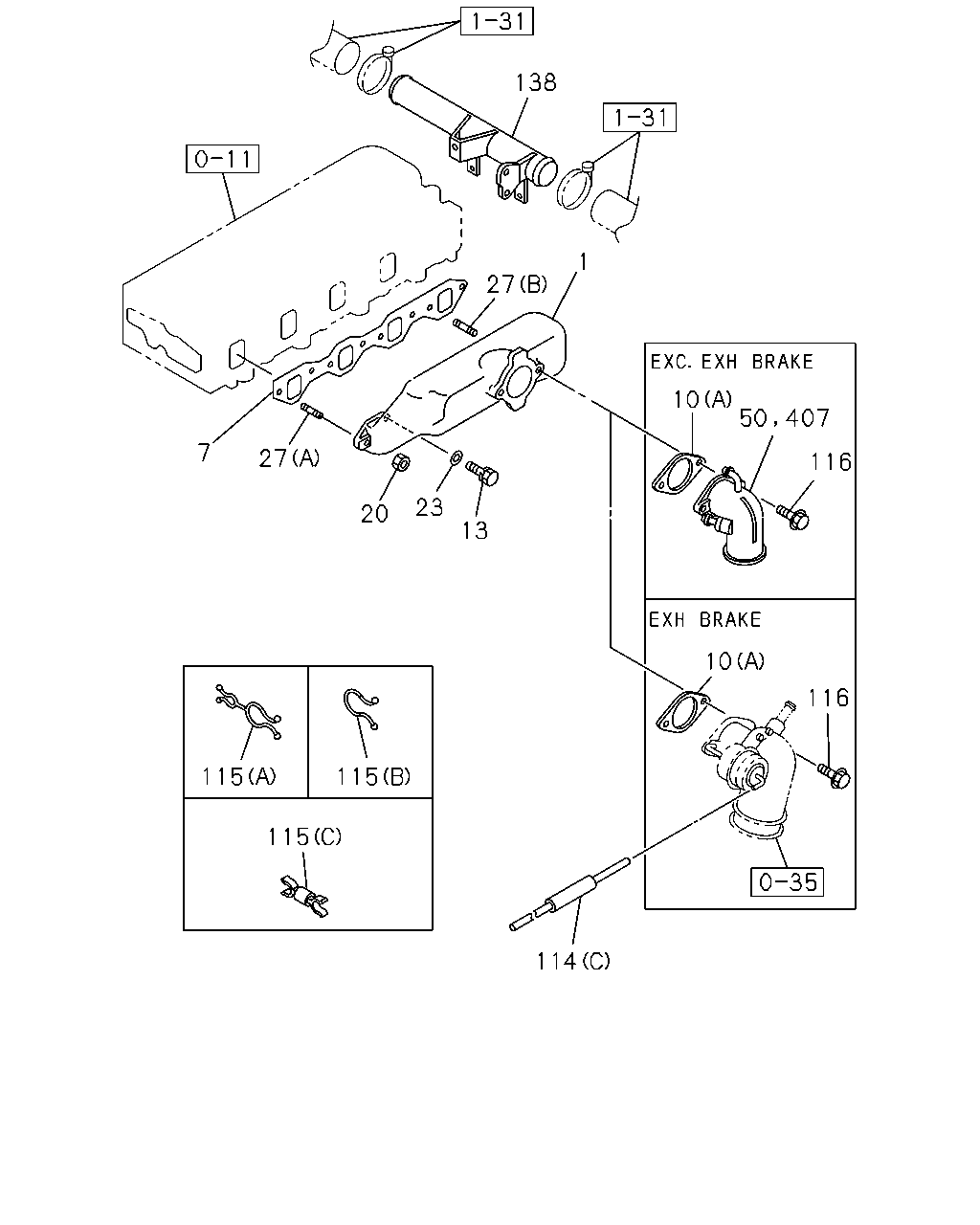

çizim 45227
138 1 27 10 407 7 27 116 23 20 13 10 116 115 115 115 114 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.265 MANIFOLD; INL
HONG KONG EQUIPMENT(PQ1) 		8-97147-920-0 01 1 9811-0105 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0106- ●
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 9811- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) HONG KONG EQUIPMENT(PQ1) 		8-97144-623-0 04 1 9811-0105 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97228-044-0 01 1 0106-0112 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97066-741-1 01 1 9811-9905 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97228-044-0 01 1 9906-0101 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97301-838-0 01 1 0102- ● ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) HONG KONG EQUIPMENT(PQ1) (B) 		8-97144-622-0 01 1 9811-0105 ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> (A) 		8-97035-883-0 01 1 9811-0105 ● ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> (A) 		8-97035-883-1 01 1 0106- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9811-0105 ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0106- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 0106- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 9811- ● ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0106- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811-0105 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0106- ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9811-0105 ● ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 0106- ●
27 03.275 STUD; INL MANIF
00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 0106- ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37 		9-04110-825-0 02 1 9811- ●
50 03.265 PIPE; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> 		8-97078-858-0 01 1 9811-0105 ● ●
50 03.265 PIPE; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> 		8-97078-858-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97096-148-1 01 1 9811-9904 ● ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97227-211-0 01 1 9905-0105 ● ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97227-211-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403 		8-97228-401-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.962 (A) L=430 SERVICED BY L=3000 		0-04740-300-0 01 1 9811-0006 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=430 		8-97259-506-0 01 1 0007-0009 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=890 		8-97302-168-0 01 1 0010-0105 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=890 		8-97302-168-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200 		8-97180-275-0 01 1 9811-0006 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200 		8-97259-490-0 01 1 0007-0009 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=310 		8-97302-167-0 01 1 0010-0102 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=310 		8-97309-000-0 01 1 0103-0105 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310 		8-97309-000-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 03.278 (B) ID=37 		8-94481-468-0 01 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.278 (B) ID=37 		8-94481-468-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.162 (D) ID=6.8X2 		8-94126-636-0 01 1 0010-0105 ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2 		8-94126-636-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (C) ID=6 & 7 		8-97302-181-0 01 1 0010-0102 ●
116 03.275 BOLT; MANIF TO INL PIPE
EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9811-0105 ● ●
116 03.275 BOLT; MANIF TO INL PIPE
EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE 		0-28181-020-0 02 1 0106-0208 ●
116 03.275 BOLT; MANIF TO INL PIPE
EXC. TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0209- ●
138 03.265 PIPE; INL
SGL CAB(NK**S*) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 		8-94417-173-1 01 1 9811-0105 ● ●
138 03.265 PIPE; INL
SGL CAB(NK**S*) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 		8-94417-173-1 01 1 0106- ●
138 03.265 PIPE; INL
EXHAUST BRAKE<NF8> 		8-97180-566-1 01 1 9811- ● ●
407 03.265 PIPE; INL,REAR
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 		8-94152-318-0 01 1 9811- ● ●

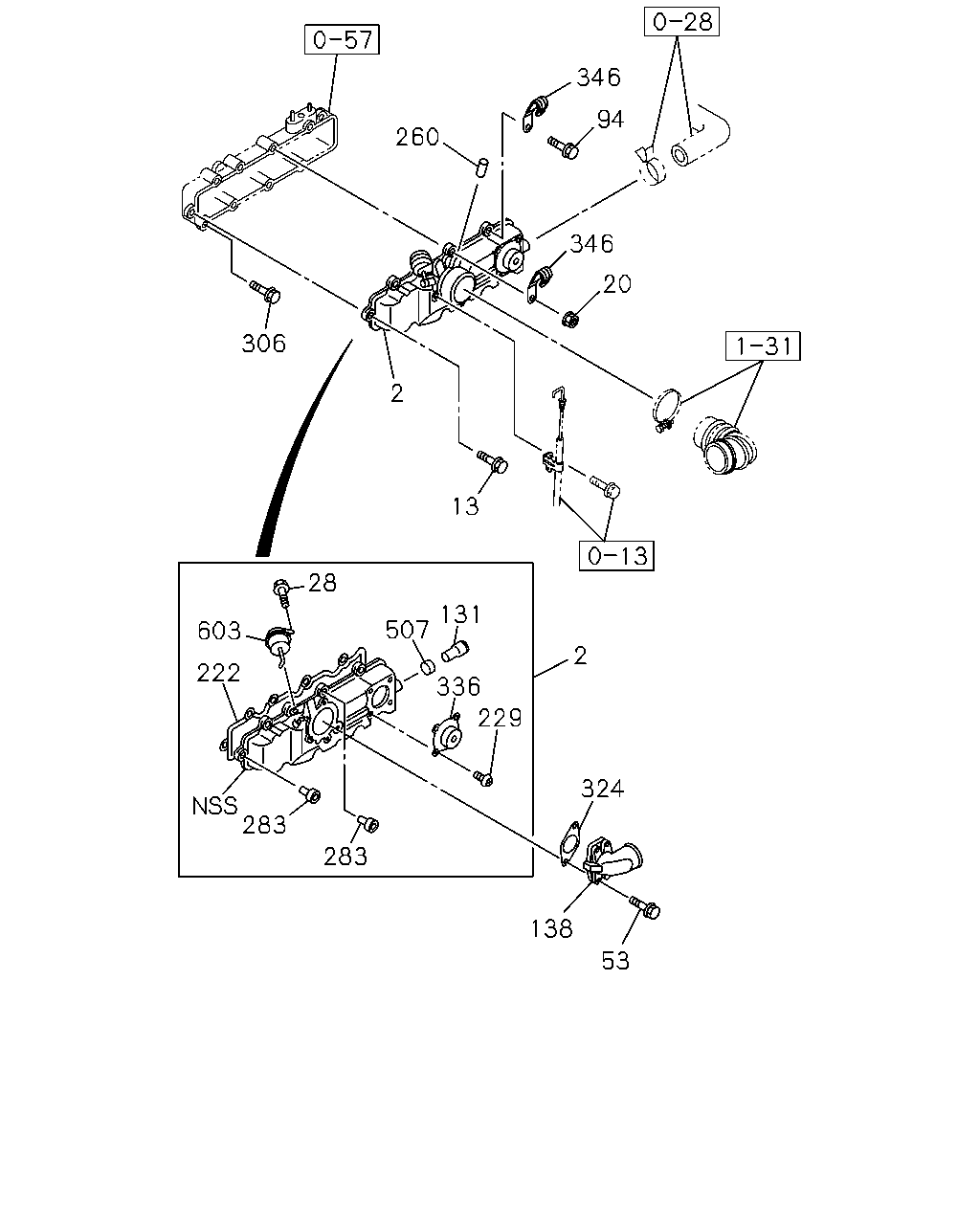

çizim 45783
346 94 260 346 20 306 2 13 28 131 507 603 2 222 336 229 324 283 283 138 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8> 		8-97146-866-2 01 1 9811- ● ●
2 03.407 COVER; INL 8-97122-604-1 01 1 9811-9811 ●
2 03.407 COVER; INL
AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8> 		8-97222-239-0 01 1 9812- ● ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> 		8-97122-603-1 01 1 9811-9811 ●
2 03.407 COVER; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> 		8-97222-238-0 01 1 9812- ●
2 03.407 COVER; INL
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 		8-97146-864-2 01 1 9811- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9811-0105 ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0106- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 0106- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 9811- ● ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0106- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811-0105 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0106- ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ●
28 03.278 BOLT; CHAMBER
EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811- ● ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 09.181 M10X25 FLANGE 		0-28781-025-0 02 1 9811-0208 ●
53 03.602 BOLT; INL PIPE
09.181 M10X25 FLANGE 		0-28781-025-0 02 1 9811-0208 ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0209- ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0209- ●
53 03.602 BOLT; INL PIPE
EXHAUST BRAKE<NF8> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811- ● ●
94 02.559 BOLT
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9811- ● ●
131 03.278 PIPE; PCV,INL 8-97102-601-0 01 1 9811- ● ●
138 03.265 PIPE; INL
SGL CAB(NK**S*) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 		8-94417-173-1 01 1 9811-0105 ● ●
138 03.265 PIPE; INL
SGL CAB(NK**S*) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 		8-94417-173-1 01 1 0106- ●
138 03.265 PIPE; INL
EXHAUST BRAKE<NF8> 		8-97180-566-1 01 1 9811- ● ●
222 03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97084-938-2 01 1 9811- ● ●
229 03.278 SCREW; VENTILATION VLV
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 9811- ● ●
260 03.278 CAP; RUBBER
TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 01.780 ID=4 		8-94217-809-0 01 1 9811- ●
260 03.278 CAP; RUBBER
01.780 ID=4 		8-94217-809-0 01 1 9811- ● ●
283 03.265 RUBBER
OD=23 		8-97105-689-6 10 1 9811- ● ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 0106- ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9811- ●
306 03.265 BOLT; VLV
01.540 M8X45 FLANGE 		0-28080-845-0 05 1 9811- ● ●
324 03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) EXHAUST BRAKE<NF8> 		8-97180-546-0 01 1 9811- ● ●
336 03.415 VALVE; VENTILATION 8-97119-887-0 01 1 9811- ● ●
346 02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9811- ● ●
507 03.415 ORIFICE 8-97088-649-0 01 1 9811- ● ●
603 03.278 CHAMBER; THROTTLE
EXHAUST BRAKE<NF8> 		8-97204-780-0 01 1 9811- ● ●

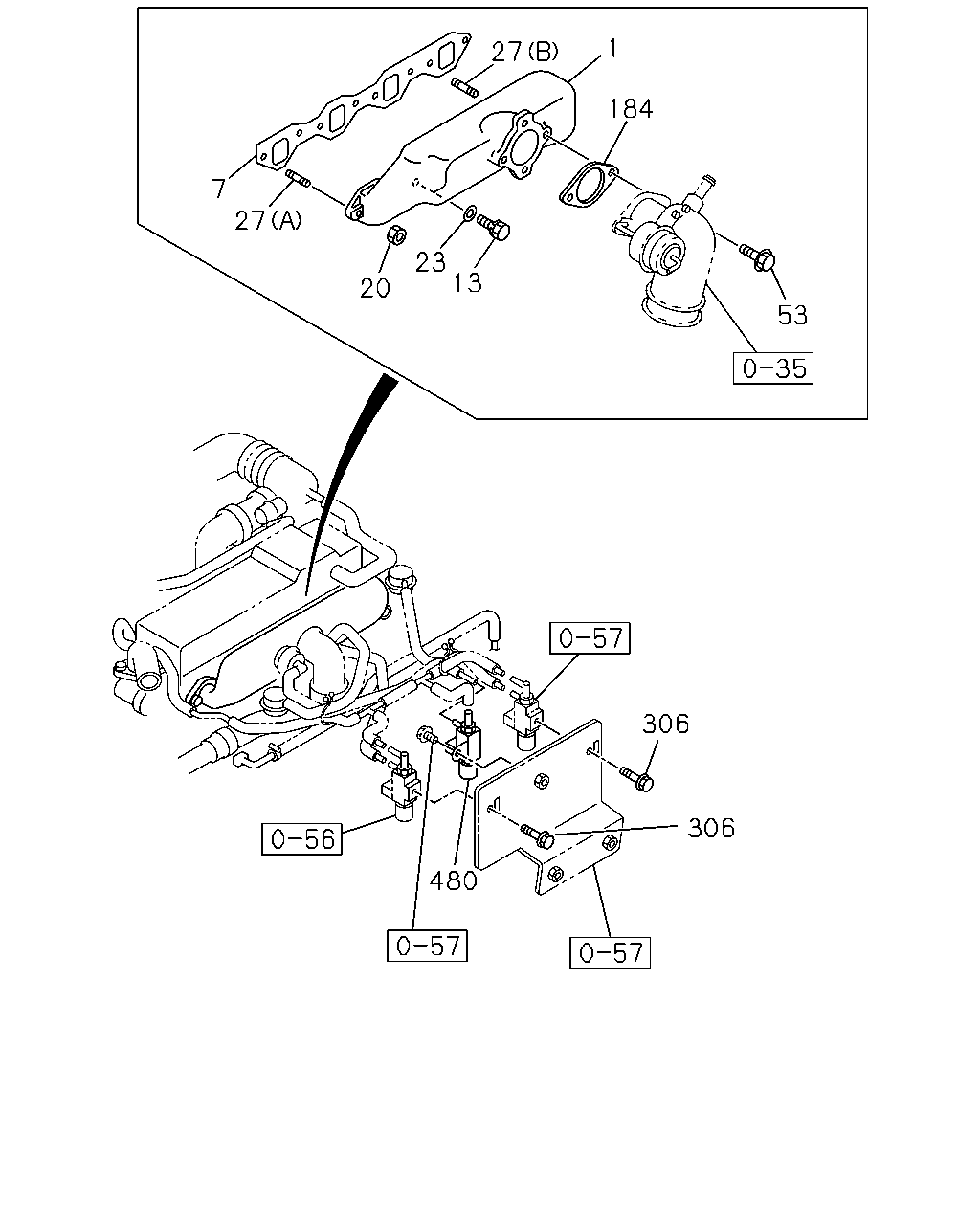

çizim 45987
1 27 184 7 27 23 13 20 53 306 306 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.265 MANIFOLD; INL
HONG KONG EQUIPMENT(PQ1) 		8-97147-920-0 01 1 9811-0105 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0106- ●
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 9811- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) HONG KONG EQUIPMENT(PQ1) 		8-97144-623-0 04 1 9811-0105 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97228-044-0 01 1 0106-0112 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97066-741-1 01 1 9811-9905 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97228-044-0 01 1 9906-0101 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97301-838-0 01 1 0102- ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9811-0105 ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0106- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 0106- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 9811- ● ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0106- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811-0105 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0106- ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9811-0105 ● ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 0106- ●
27 03.275 STUD; INL MANIF
00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 0106- ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37 		9-04110-825-0 02 1 9811- ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 09.181 M10X25 FLANGE 		0-28781-025-0 02 1 9811-0208 ●
53 03.602 BOLT; INL PIPE
09.181 M10X25 FLANGE 		0-28781-025-0 02 1 9811-0208 ●
53 03.602 BOLT; INL PIPE
TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0209- ●
53 03.602 BOLT; INL PIPE
04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0209- ●
53 03.602 BOLT; INL PIPE
EXHAUST BRAKE<NF8> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9811- ● ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.406 		8-97035-883-1 01 1 9811- ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.406 		8-97035-883-1 01 1 9811- ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 0106- ●
306 03.265 BOLT; VLV
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9811- ●
306 03.265 BOLT; VLV
01.540 M8X45 FLANGE 		0-28080-845-0 05 1 9811- ● ●
480 03.314 VALVE ASM; VAC SW
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.670 		8-94144-597-1 01 1 9811- ●

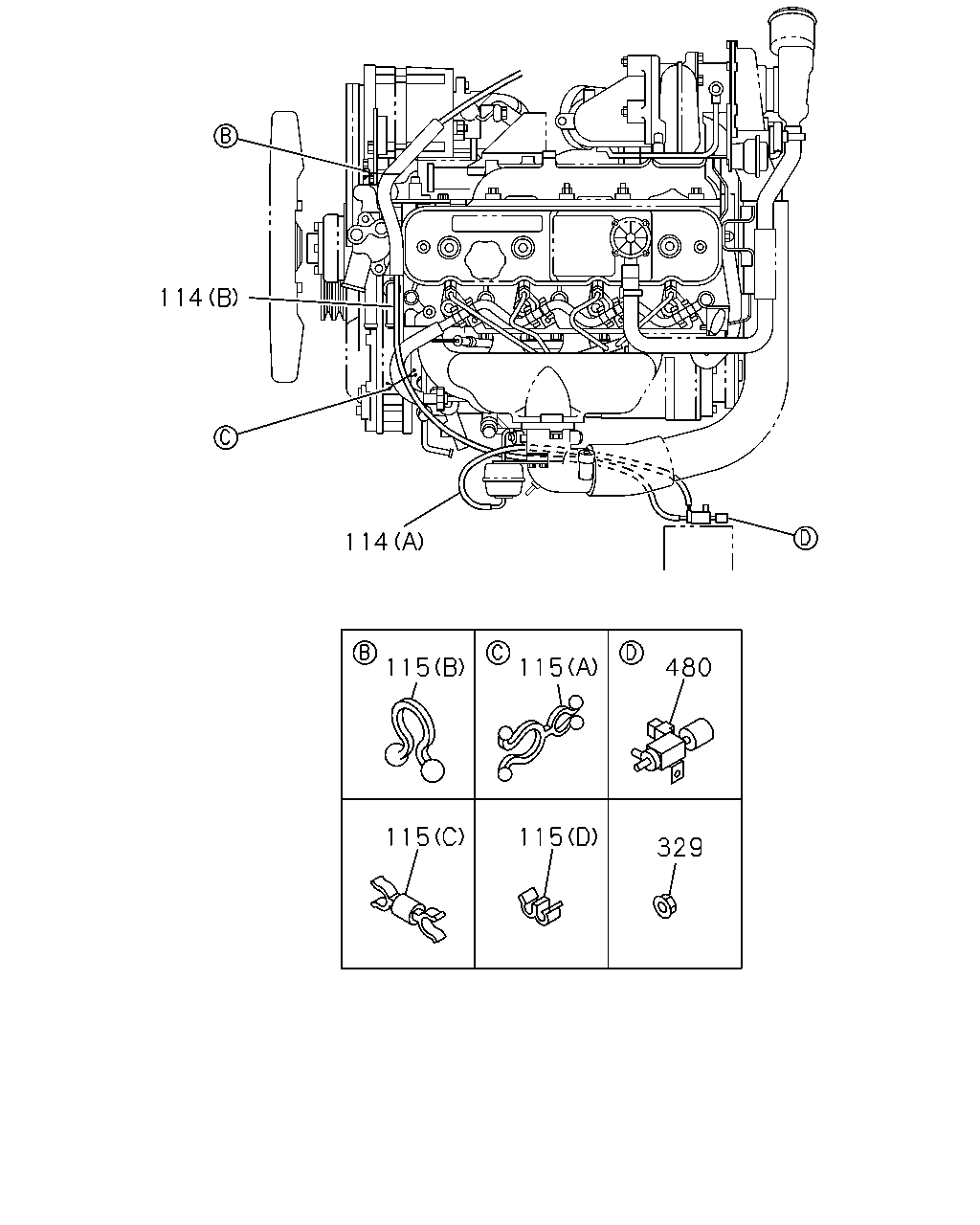

çizim 47436
114 114 115 115 480 115 115 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97096-148-1 01 1 9811-9904 ● ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97227-211-0 01 1 9905-0105 ● ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97227-211-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403 		8-97228-401-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.962 (A) L=430 SERVICED BY L=3000 		0-04740-300-0 01 1 9811-0006 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=430 		8-97259-506-0 01 1 0007-0009 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=890 		8-97302-168-0 01 1 0010-0105 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=890 		8-97302-168-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200 		8-97180-275-0 01 1 9811-0006 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200 		8-97259-490-0 01 1 0007-0009 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=310 		8-97302-167-0 01 1 0010-0102 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=310 		8-97309-000-0 01 1 0103-0105 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310 		8-97309-000-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 03.278 (B) ID=37 		8-94481-468-0 01 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.278 (B) ID=37 		8-94481-468-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.162 (D) ID=6.8X2 		8-94126-636-0 01 1 0010-0105 ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2 		8-94126-636-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (C) ID=6 & 7 		8-97302-181-0 01 1 0010-0102 ●
329 03.280 NUT; VLV
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0009 ●
480 03.314 VALVE ASM; VAC SW
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.670 		8-94144-597-1 01 1 9811- ●

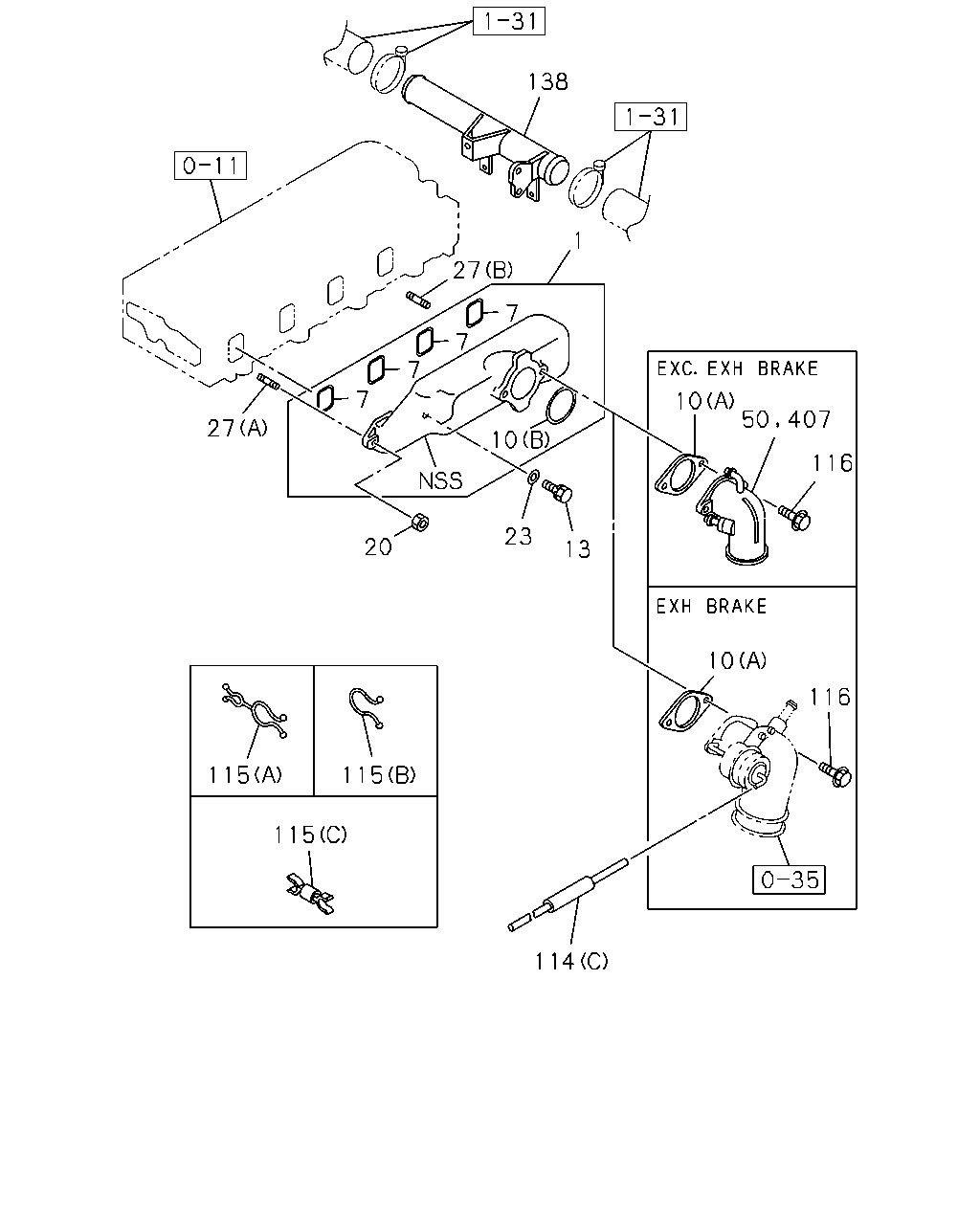

çizim 48025
138 1 27 7 7 7 7 10 407 27 10 116 23 20 13 10 116 115 115 115 114 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.265 MANIFOLD; INL
HONG KONG EQUIPMENT(PQ1) 		8-97147-920-0 01 1 9811-0105 ●
1 03.265 MANIFOLD; INL 8-97192-327-1 01 1 0106- ●
1 03.265 MANIFOLD; INL 8-97107-744-1 01 1 9811- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) HONG KONG EQUIPMENT(PQ1) 		8-97144-623-0 04 1 9811-0105 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97228-044-0 01 1 0106-0112 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97066-741-1 01 1 9811-9905 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97228-044-0 01 1 9906-0101 ● ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97301-838-0 01 1 0102- ● ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) HONG KONG EQUIPMENT(PQ1) (B) 		8-97144-622-0 01 1 9811-0105 ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> (A) 		8-97035-883-0 01 1 9811-0105 ● ●
10 03.406 GASKET; INL PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> (A) 		8-97035-883-1 01 1 0106- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 9811-0105 ● ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 04 1 0106- ●
13 03.275 BOLT; INL MANIF
01.073 M8X25 W/LK WASHER 		0-50040-825-0 06 1 0106- ●
13 03.275 BOLT; INL MANIF
M8X30 FLANGE 		0-28080-830-0 08 1 9811- ● ●
13 03.275 BOLT; INL MANIF
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0106- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 9811-0105 ● ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0106- ● ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9811-0105 ● ●
23 03.275 WASHER; PL,INL MANIF
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
03.901 (A) M8X25 L=37 		9-04110-825-0 01 1 0106- ●
27 03.275 STUD; INL MANIF
00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 9811-0105 ●
27 03.275 STUD; INL MANIF
OIL COOLER<KC4> 00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 0106- ●
27 03.275 STUD; INL MANIF
00.219 (B) M8X35 L=46 		9-09630-034-1 01 1 0106- ●
27 03.275 STUD; INL MANIF
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37 		9-04110-825-0 02 1 9811- ●
50 03.265 PIPE; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> 		8-97078-858-0 01 1 9811-0105 ● ●
50 03.265 PIPE; INL
AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8> 		8-97078-858-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97096-148-1 01 1 9811-9904 ● ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97227-211-0 01 1 9905-0105 ● ●
114 03.265 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320 		8-97227-211-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) L=403 		8-97228-401-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.962 (A) L=430 SERVICED BY L=3000 		0-04740-300-0 01 1 9811-0006 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=430 		8-97259-506-0 01 1 0007-0009 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=890 		8-97302-168-0 01 1 0010-0105 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) L=890 		8-97302-168-0 01 1 0106- ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200 		8-97180-275-0 01 1 9811-0006 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200 		8-97259-490-0 01 1 0007-0009 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=310 		8-97302-167-0 01 1 0010-0102 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=310 		8-97309-000-0 01 1 0103-0105 ●
114 03.265 HOSE; VAC,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B) L=310 		8-97309-000-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (A) ID=8 & 23 		5-09707-002-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> 03.278 (B) ID=37 		8-94481-468-0 01 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.278 (B) ID=37 		8-94481-468-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6 		8-94463-708-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 9811-0105 ● ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16 		5-09707-032-0 03 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.162 (D) ID=6.8X2 		8-94126-636-0 01 1 0010-0105 ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (D) ID=6.8X2 		8-94126-636-0 01 1 0106- ●
115 03.265 CLIP; VAC HOSE,INT THROTTLE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (C) ID=6 & 7 		8-97302-181-0 01 1 0010-0102 ●
116 03.275 BOLT; MANIF TO INL PIPE
EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9811-0105 ● ●
116 03.275 BOLT; MANIF TO INL PIPE
EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE 		0-28181-020-0 02 1 0106-0208 ●
116 03.275 BOLT; MANIF TO INL PIPE
EXC. TURBOCHARGER<K51> 04.525 M10X25 FLANGE 		0-28181-025-0 02 1 0209- ●
138 03.265 PIPE; INL
SGL CAB(NK**S*) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 		8-94417-173-1 01 1 9811-0105 ● ●
138 03.265 PIPE; INL
SGL CAB(NK**S*) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417 		8-94417-173-1 01 1 0106- ●
138 03.265 PIPE; INL
EXHAUST BRAKE<NF8> 		8-97180-566-1 01 1 9811- ● ●
407 03.265 PIPE; INL,REAR
AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 		8-94152-318-0 01 1 9811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
