◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#46104) — 309 parça

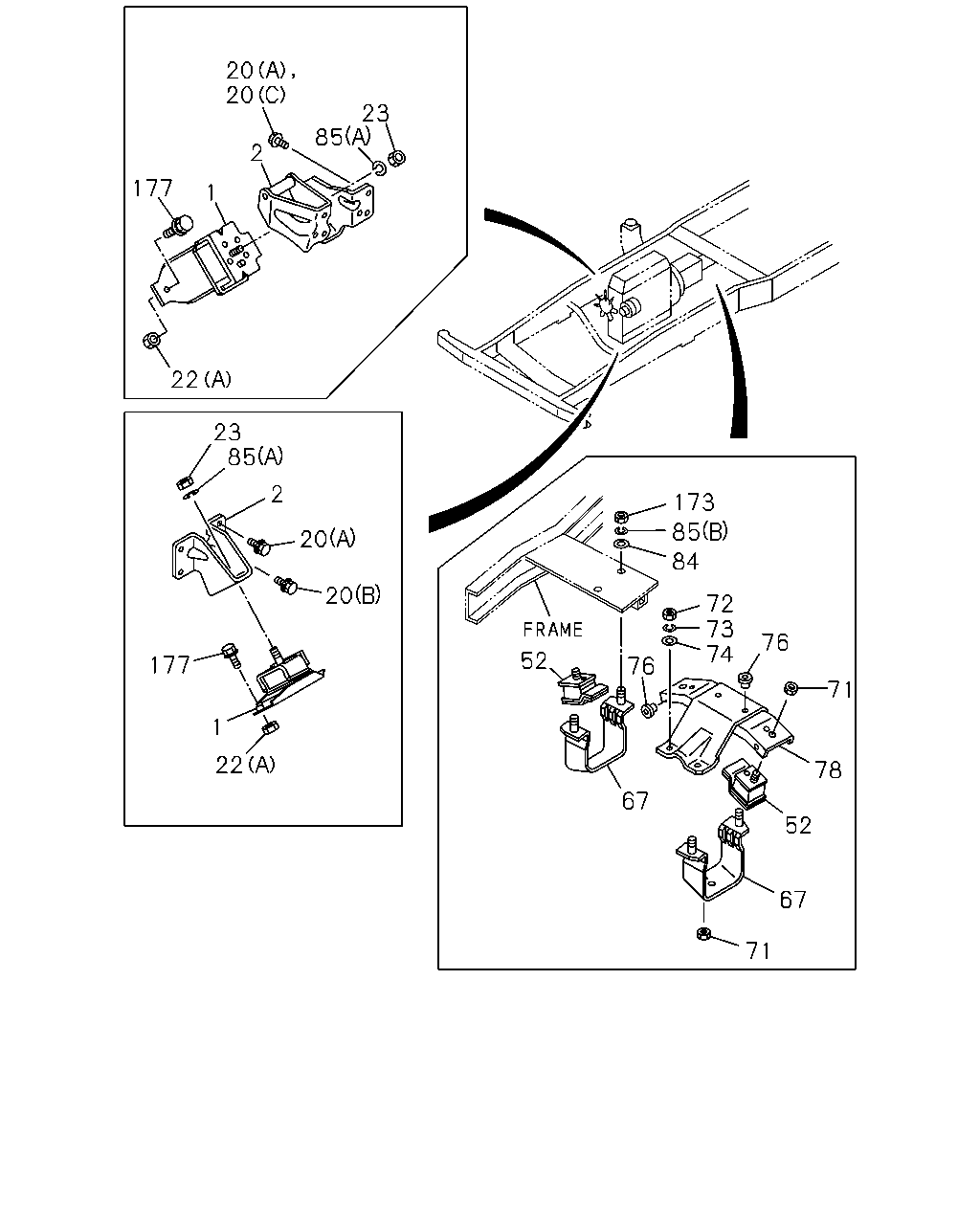

çizim 44241
20 20 23 85 2 177 1 22 23 85 2 173 85 20 84 20 72 73 74 76 52 177 76 71 1 22 78 67 52 67 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 9811-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 9811-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 9811-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 0108- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 0108- ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 9811-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 0108- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 0108- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 0106- ●
2 00.029 FOOT; ENG 8-94122-052-1 01 1 9811-0105 ● ●
2 00.029 FOOT; ENG 8-94122-052-1 01 1 0106-0107 ● ●
2 00.029 FOOT; ENG 8-97073-922-1 01 1 9811-0105 ● ●
2 00.029 FOOT; ENG 8-97073-922-1 01 1 0106-0107 ● ●
2 00.029 FOOT; ENG 8-97145-013-0 02 1 9811-9907 ● ●
2 00.029 FOOT; ENG 8-97228-330-0 02 1 9908-9910 ● ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 9911- ● ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0106- ● ●
2 00.029 FOOT; ENG 8-97287-639-1 01 1 0106- ● ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 00.034 (C) M10X28 		8-94329-952-1 02 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 00.034 (C) M10X28 		8-94329-952-1 02 1 0106- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0106- ●
20 00.029 BOLT; ENG FOOT
HONG KONG EQUIPMENT(PQ1) 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0106- ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9811-0105 ● ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 0106- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9811- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9811- ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 02 1 9811- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 (C) M10X28 		8-94329-952-1 01 1 9811- ●
20 00.029 BOLT; ENG FOOT
(D) M10X20 FLANGE 		0-28191-020-0 08 1 9811- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 9811-0105 ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0106- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0106- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 9811- ● ●
23 00.002 NUT; SUPPORT RUBBER,ENG FOOT
HONG KONG EQUIPMENT(PQ1) 05.816 M12 		9-99110-412-0 02 1 9811-0105 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9811-0105 ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0106- ● ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 9811-0105 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 0106- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 9811-0105 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 0106- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94384-214-0 01 1 9811- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94384-213-0 01 1 9811- ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0105 ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
09.011 M10 		9-09110-410-0 04 1 9811-0105 ● ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
09.011 M10 		9-09110-410-0 04 1 0106- ●
73 00.002 WASHER; LK,CUSHION RUBBER TO FRA
ID=10.2 		9-09150-610-0 04 1 9811-0105 ● ●
73 00.002 WASHER; LK,CUSHION RUBBER TO FRA
ID=10.2 		9-09150-610-0 04 1 0106- ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 9811-0105 ● ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 0106- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 9811-0105 ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 0106-0203 ● ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 0204- ● ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-1 01 1 9811-0105 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 0106- ●
78 00.029 BRACKET; ENG MTG,RR 8-94112-891-2 01 1 9811- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97260-282-1 01 1 0106- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 9811-0105 ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0106- ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
HONG KONG EQUIPMENT(PQ1) 06.515 (A) ID=12.2 		9-09150-612-0 02 1 9811-0105 ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9811-0105 ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 0106- ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 9811-0105 ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0106- ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 9811-0105 ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 0106- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 0106- ●

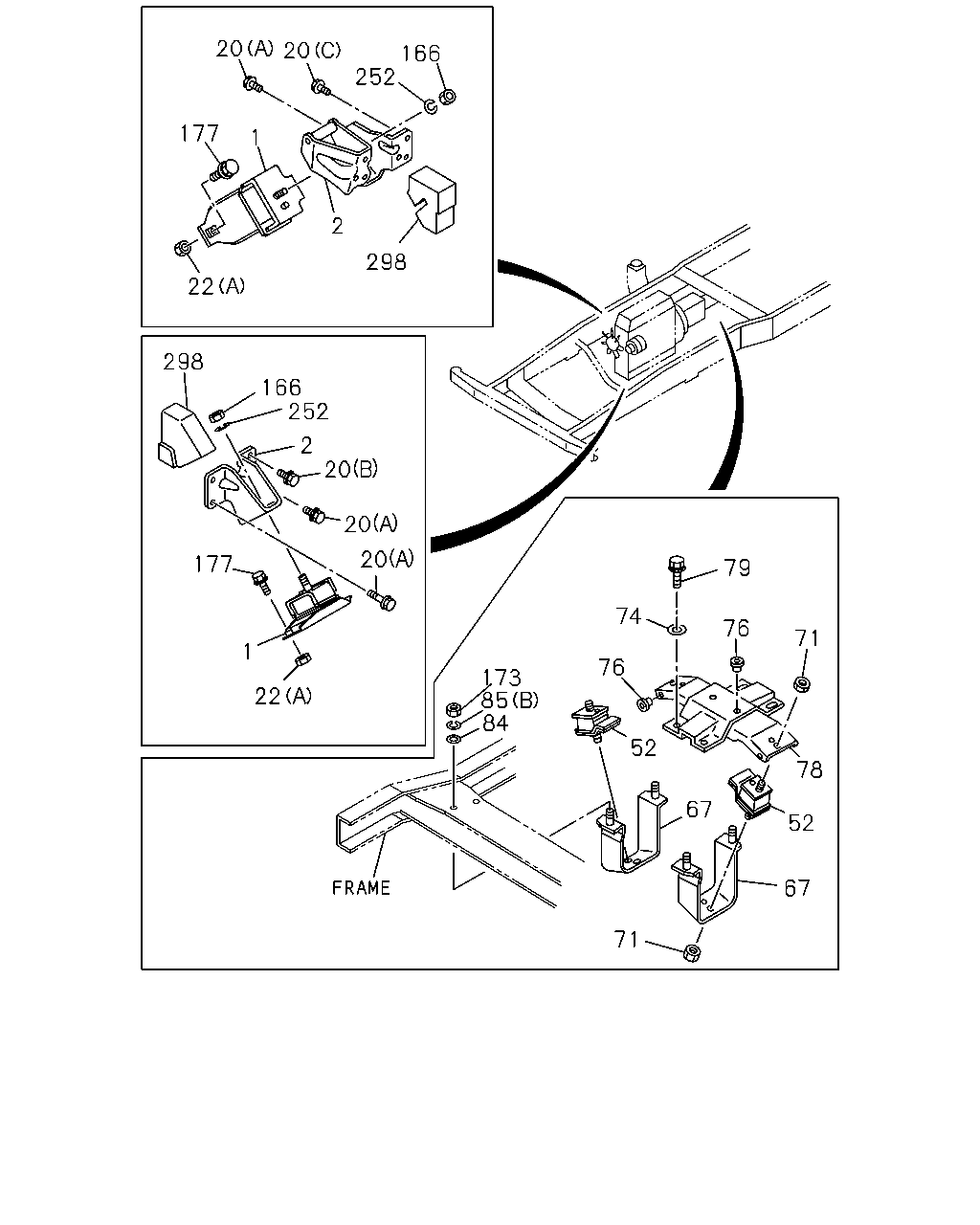

çizim 45506
20 166 252 177 1 2 298 22 298 166 252 2 20 20 20 177 79 74 76 71 1 76 173 85 84 22 52 78 67 52 67 71 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 9811-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 9811-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 9811-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 0108- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 0108- ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 9811-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 0108- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 0108- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 0106- ●
2 00.029 FOOT; ENG 8-94122-052-1 01 1 9811-0105 ● ●
2 00.029 FOOT; ENG 8-94122-052-1 01 1 0106-0107 ● ●
2 00.029 FOOT; ENG 8-97073-922-1 01 1 9811-0105 ● ●
2 00.029 FOOT; ENG 8-97073-922-1 01 1 0106-0107 ● ●
2 00.029 FOOT; ENG 8-97145-013-0 02 1 9811-9907 ● ●
2 00.029 FOOT; ENG 8-97228-330-0 02 1 9908-9910 ● ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 9911- ● ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0106- ● ●
2 00.029 FOOT; ENG 8-97287-639-1 01 1 0106- ● ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 00.034 (C) M10X28 		8-94329-952-1 02 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 00.034 (C) M10X28 		8-94329-952-1 02 1 0106- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0106- ●
20 00.029 BOLT; ENG FOOT
HONG KONG EQUIPMENT(PQ1) 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0106- ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9811-0105 ● ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 0106- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9811- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9811- ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 02 1 9811- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 (C) M10X28 		8-94329-952-1 01 1 9811- ●
20 00.029 BOLT; ENG FOOT
(D) M10X20 FLANGE 		0-28191-020-0 08 1 9811- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 9811-0105 ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0106- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0106- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 9811- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9811-0105 ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0106- ● ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 9811-0105 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 0106- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 9811-0105 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 0106- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94384-214-0 01 1 9811- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94384-213-0 01 1 9811- ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0105 ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 9811-0105 ● ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 0106- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 9811-0105 ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 0106-0203 ● ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 0204- ● ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-1 01 1 9811-0105 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 0106- ●
78 00.029 BRACKET; ENG MTG,RR 8-94112-891-2 01 1 9811- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97260-282-1 01 1 0106- ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
03.417 M10X25 FLANGE 		0-28081-025-0 04 1 9811- ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 9811-0105 ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0106- ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
HONG KONG EQUIPMENT(PQ1) 06.515 (A) ID=12.2 		9-09150-612-0 02 1 9811-0105 ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9811-0105 ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 0106- ● ● ●
166 00.002 NUT; SUPPORT RUBBER
05.816 M12 		9-99110-412-0 02 1 9811-0206 ● ●
166 00.002 NUT; SUPPORT RUBBER
04.634 M12 		9-99110-512-0 02 1 0207- ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 9811-0105 ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0106- ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 9811-0105 ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 0106- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 0106- ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 9811- ● ● ● ●
298 00.027 RUBBER; SPACE,ENG FOOT
00.002 		8-97205-803-0 01 1 0106-0203 ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-926-0 01 1 0204- ●
298 00.027 RUBBER; SPACE,ENG FOOT
00.002 		8-97205-805-0 01 1 0106-0203 ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-925-0 01 1 0204- ●

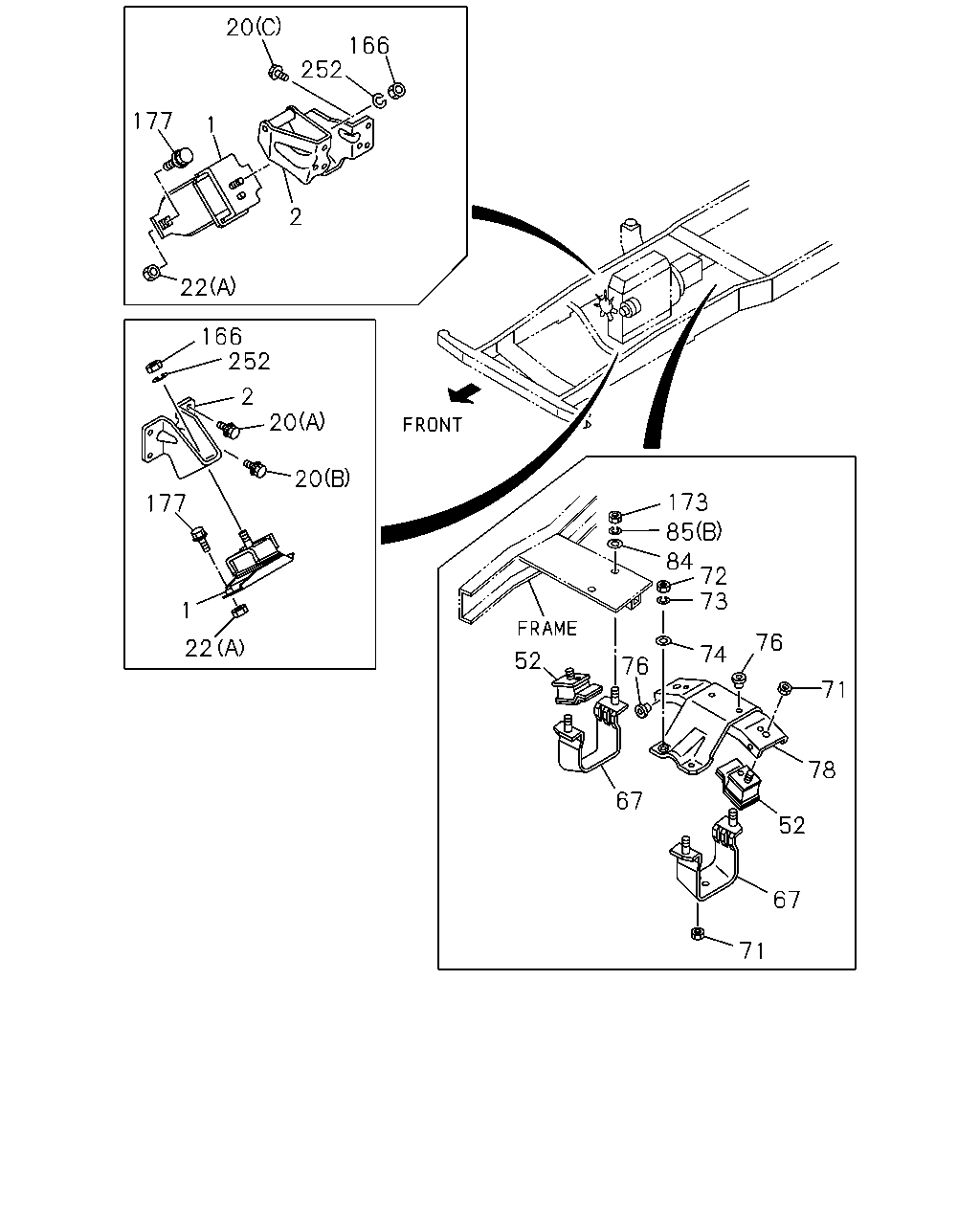

çizim 49130
20 166 252 177 1 2 22 166 252 2 20 20 173 177 85 84 72 73 1 76 22 74 52 76 71 78 67 52 67 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 9811-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 9811-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 9811-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 0108- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 0108- ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 9811-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 0108- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 0108- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 0106- ●
2 00.029 FOOT; ENG 8-94122-052-1 01 1 9811-0105 ● ●
2 00.029 FOOT; ENG 8-94122-052-1 01 1 0106-0107 ● ●
2 00.029 FOOT; ENG 8-97073-922-1 01 1 9811-0105 ● ●
2 00.029 FOOT; ENG 8-97073-922-1 01 1 0106-0107 ● ●
2 00.029 FOOT; ENG 8-97145-013-0 02 1 9811-9907 ● ●
2 00.029 FOOT; ENG 8-97228-330-0 02 1 9908-9910 ● ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 9911- ● ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0106- ● ●
2 00.029 FOOT; ENG 8-97287-639-1 01 1 0106- ● ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 00.034 (C) M10X28 		8-94329-952-1 02 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 00.034 (C) M10X28 		8-94329-952-1 02 1 0106- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0106- ●
20 00.029 BOLT; ENG FOOT
HONG KONG EQUIPMENT(PQ1) 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0106- ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9811-0105 ● ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 0106- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9811- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9811- ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 02 1 9811- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 (C) M10X28 		8-94329-952-1 01 1 9811- ●
20 00.029 BOLT; ENG FOOT
(D) M10X20 FLANGE 		0-28191-020-0 08 1 9811- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 9811-0105 ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0106- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0106- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 9811- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9811-0105 ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0106- ● ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 9811-0105 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 0106- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 9811-0105 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 0106- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94384-214-0 01 1 9811- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94384-213-0 01 1 9811- ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0105 ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
09.011 M10 		9-09110-410-0 04 1 9811-0105 ● ●
72 00.002 NUT; SUPPORT RUBBER TO TRANS
09.011 M10 		9-09110-410-0 04 1 0106- ●
73 00.002 WASHER; LK,CUSHION RUBBER TO FRA
ID=10.2 		9-09150-610-0 04 1 9811-0105 ● ●
73 00.002 WASHER; LK,CUSHION RUBBER TO FRA
ID=10.2 		9-09150-610-0 04 1 0106- ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 9811-0105 ● ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 0106- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 9811-0105 ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 0106-0203 ● ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 0204- ● ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-1 01 1 9811-0105 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 0106- ●
78 00.029 BRACKET; ENG MTG,RR 8-94112-891-2 01 1 9811- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97260-282-1 01 1 0106- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 9811-0105 ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0106- ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
HONG KONG EQUIPMENT(PQ1) 06.515 (A) ID=12.2 		9-09150-612-0 02 1 9811-0105 ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9811-0105 ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 0106- ● ● ●
166 00.002 NUT; SUPPORT RUBBER
05.816 M12 		9-99110-412-0 02 1 9811-0206 ● ●
166 00.002 NUT; SUPPORT RUBBER
04.634 M12 		9-99110-512-0 02 1 0207- ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 9811-0105 ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0106- ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 9811-0105 ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 0106- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 0106- ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 9811- ● ● ● ●

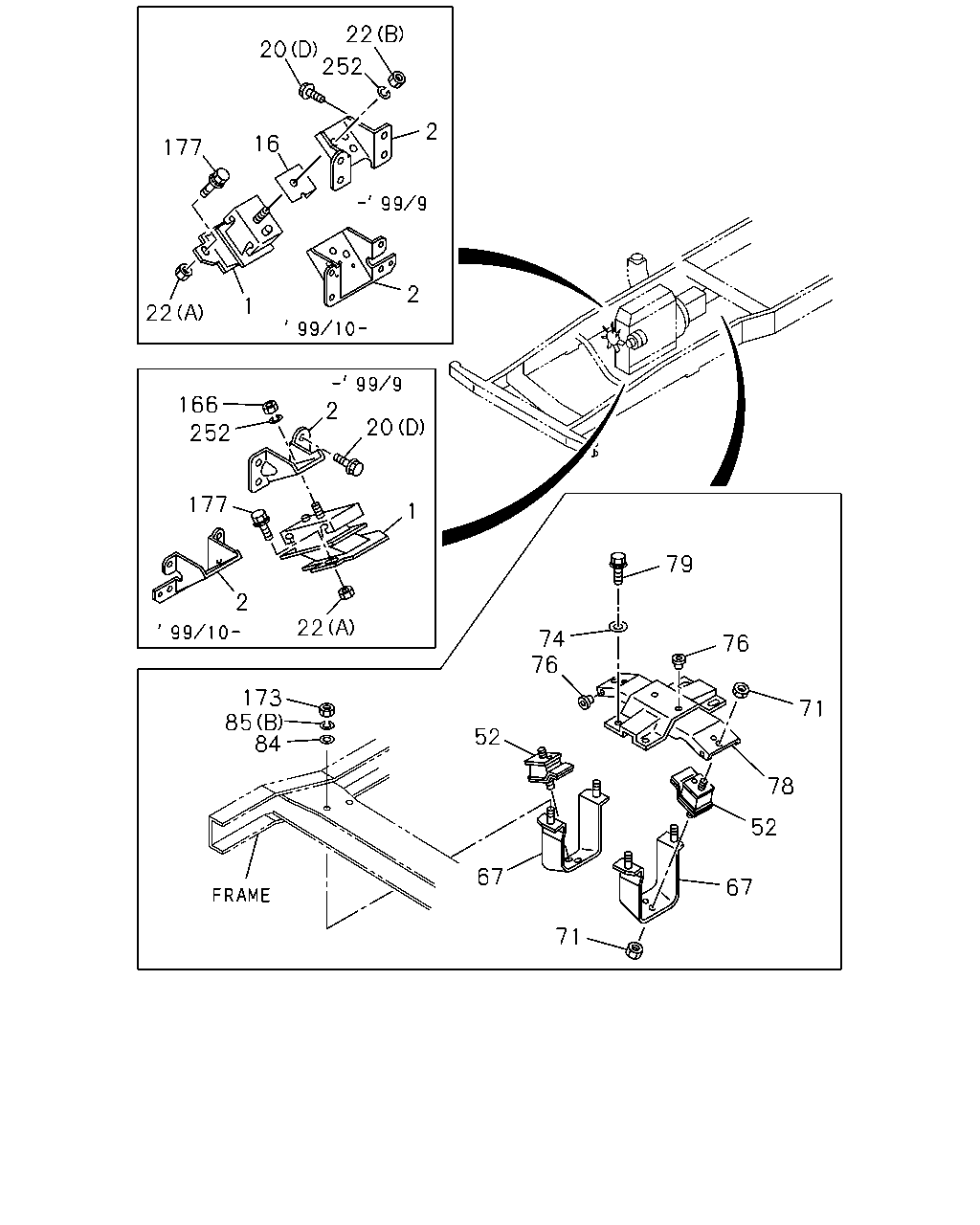

çizim 49134
22 20 252 2 16 177 2 1 22 166 252 2 20 177 1 79 2 22 74 76 76 173 85 84 71 52 78 52 67 67 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 9811-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 9811-0105 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 9811-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-895-0 01 1 0108- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-895-0 01 1 0108- ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 9811-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 0106-0107 ●
1 00.027 RUBBER; ENG FOOT,FRT
FLOOR REMOTE SHIFT<M11> 		8-97122-893-0 01 1 0108- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-893-0 01 1 0108- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-892-0 01 1 0106- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-890-0 01 1 0106- ●
2 00.029 FOOT; ENG 8-94122-052-1 01 1 9811-0105 ● ●
2 00.029 FOOT; ENG 8-94122-052-1 01 1 0106-0107 ● ●
2 00.029 FOOT; ENG 8-97073-922-1 01 1 9811-0105 ● ●
2 00.029 FOOT; ENG 8-97073-922-1 01 1 0106-0107 ● ●
2 00.029 FOOT; ENG 8-97145-013-0 02 1 9811-9907 ● ●
2 00.029 FOOT; ENG 8-97228-330-0 02 1 9908-9910 ● ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 9911- ● ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0106- ● ●
2 00.029 FOOT; ENG 8-97287-639-1 01 1 0106- ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT
00.027 		8-94365-486-0 01 1 9811- ● ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 00.034 (C) M10X28 		8-94329-952-1 02 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 00.034 (C) M10X28 		8-94329-952-1 02 1 0106- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0106- ●
20 00.029 BOLT; ENG FOOT
HONG KONG EQUIPMENT(PQ1) 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 9811-0105 ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0106- ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9811-0105 ● ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 0106- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9811- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 03 1 9811- ●
20 00.029 BOLT; ENG FOOT
OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 02 1 9811- ●
20 00.029 BOLT; ENG FOOT
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 (C) M10X28 		8-94329-952-1 01 1 9811- ●
20 00.029 BOLT; ENG FOOT
(D) M10X20 FLANGE 		0-28191-020-0 08 1 9811- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 9811-0105 ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0106- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0106- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 9811- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 9811-0105 ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0106- ● ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 9811-0105 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 0106- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 9811-0105 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 0106- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94384-214-0 01 1 9811- ● ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94384-213-0 01 1 9811- ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 9811-0105 ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 9811-0105 ● ● ●
74 00.002 WASHER; PL,SUPPORT RUBBER TO TRA
04.085 ID=10.5 OD=22 		9-09164-610-0 02 1 0106- ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 9811-0105 ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 04 1 0106-0203 ● ● ● ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 02 1 0204- ● ● ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-1 01 1 9811-0105 ● ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 0106- ●
78 00.029 BRACKET; ENG MTG,RR 8-94112-891-2 01 1 9811- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97260-282-1 01 1 0106- ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
03.417 M10X25 FLANGE 		0-28081-025-0 04 1 9811- ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 9811-0105 ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0106- ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
HONG KONG EQUIPMENT(PQ1) 06.515 (A) ID=12.2 		9-09150-612-0 02 1 9811-0105 ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 9811-0105 ● ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
(B) ID=10.2 		9-09150-610-0 04 1 0106- ● ● ●
166 00.002 NUT; SUPPORT RUBBER
05.816 M12 		9-99110-412-0 02 1 9811-0206 ● ●
166 00.002 NUT; SUPPORT RUBBER
04.634 M12 		9-99110-512-0 02 1 0207- ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 9811-0105 ● ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0106- ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 9811-0105 ● ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5 		8-94468-733-1 04 1 0106- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) M10X32.5 		8-97090-761-0 04 1 0106- ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 9811- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
