Sayfa 0-15 - Isuzu EPC

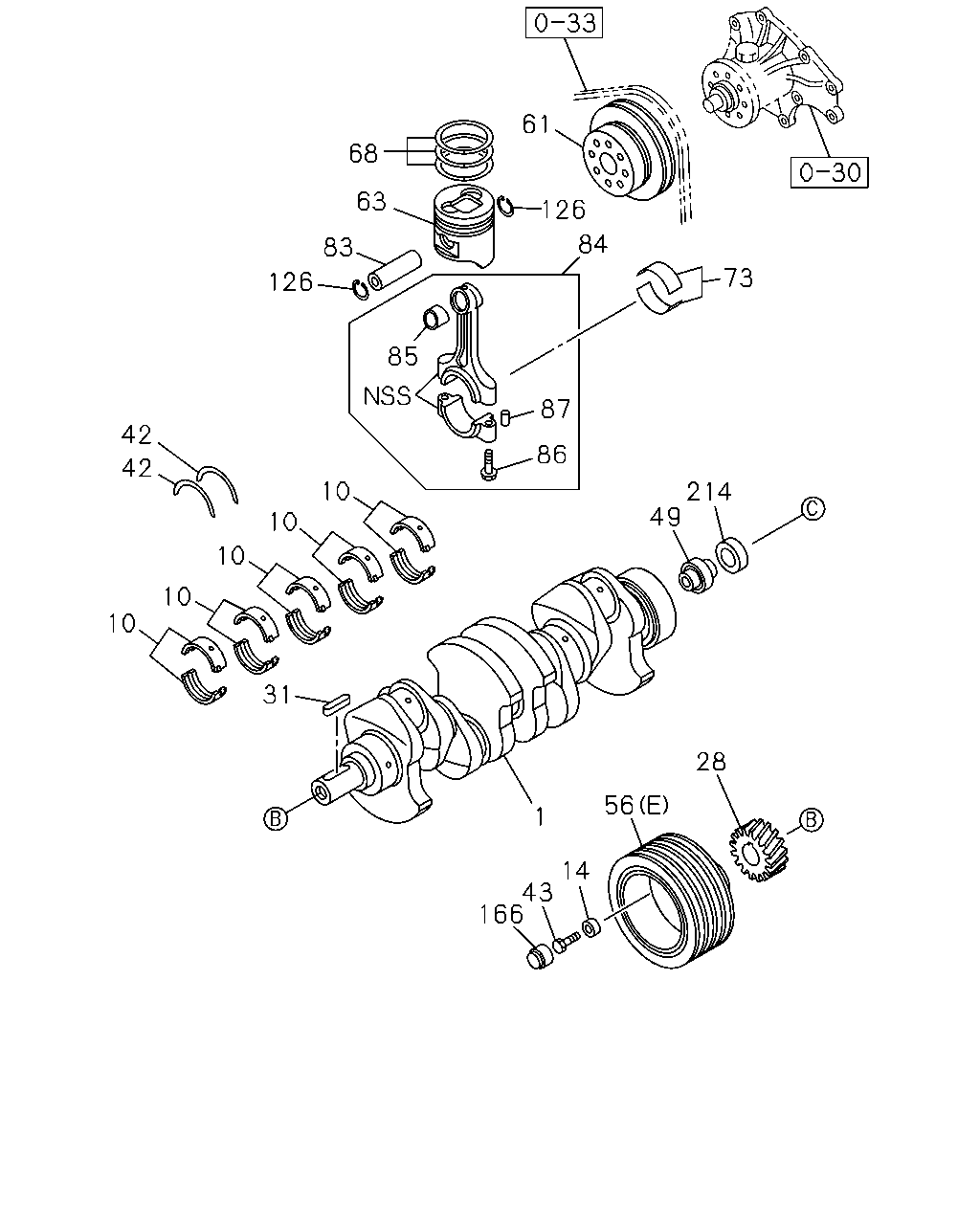

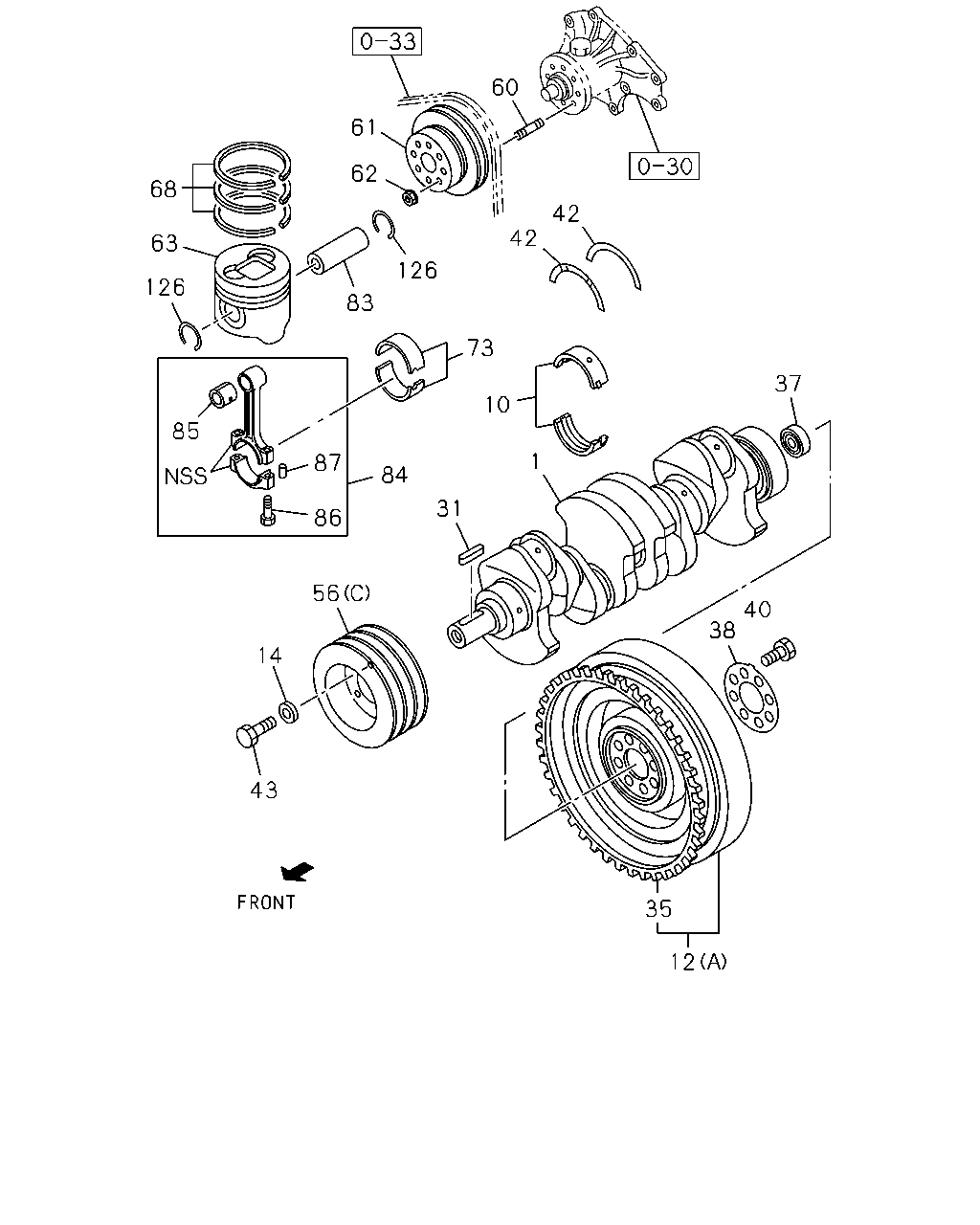

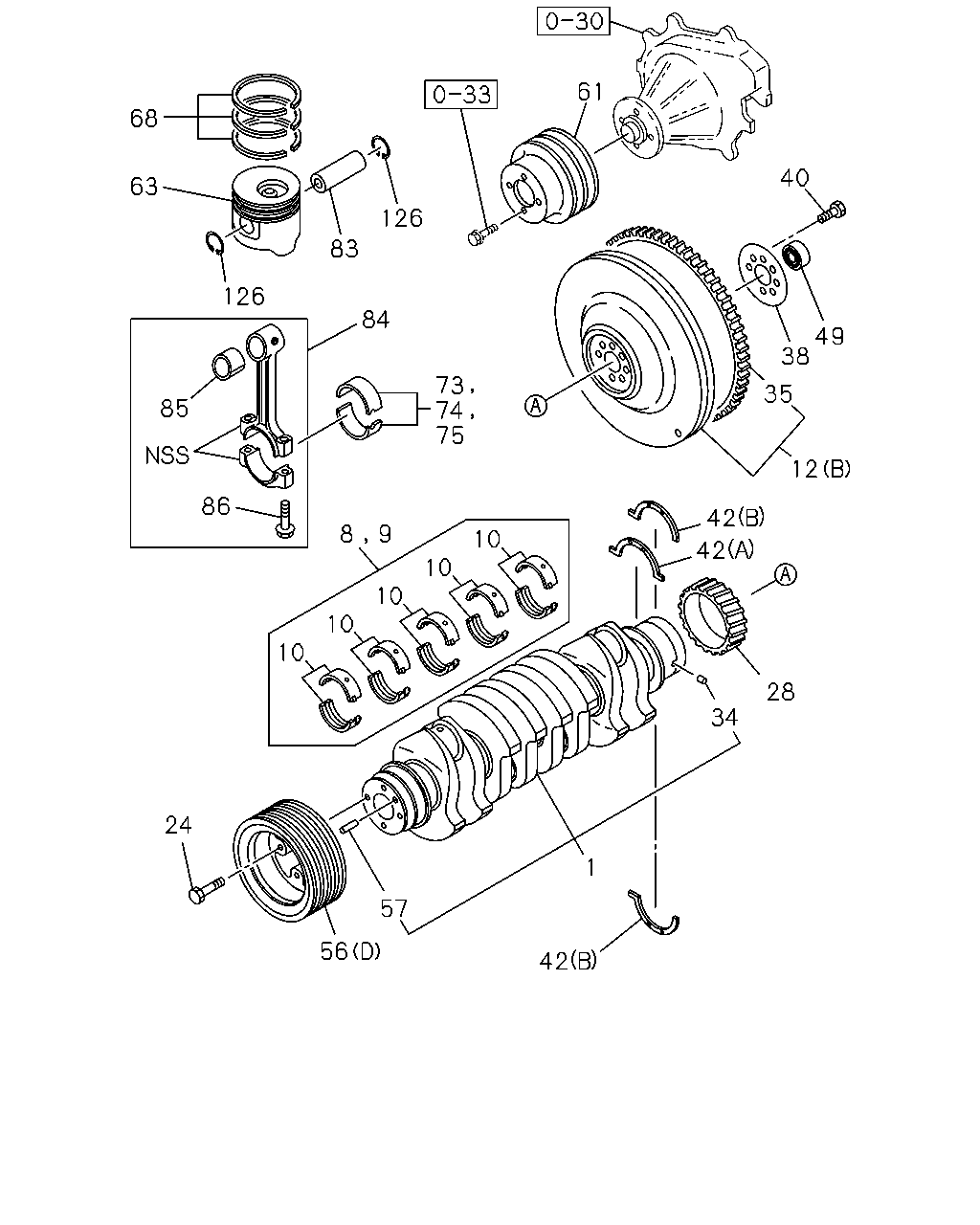

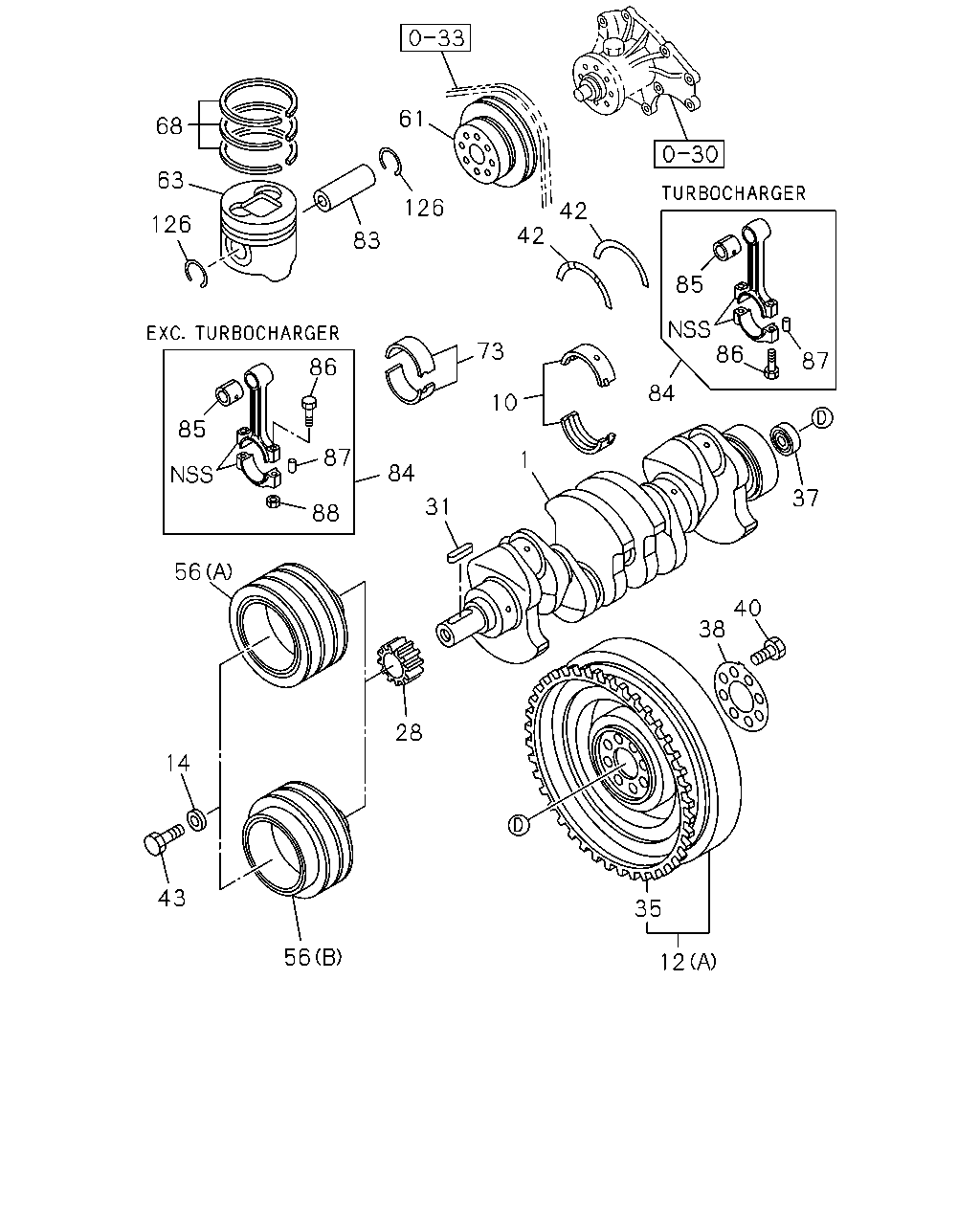

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#46102) — 603 parça

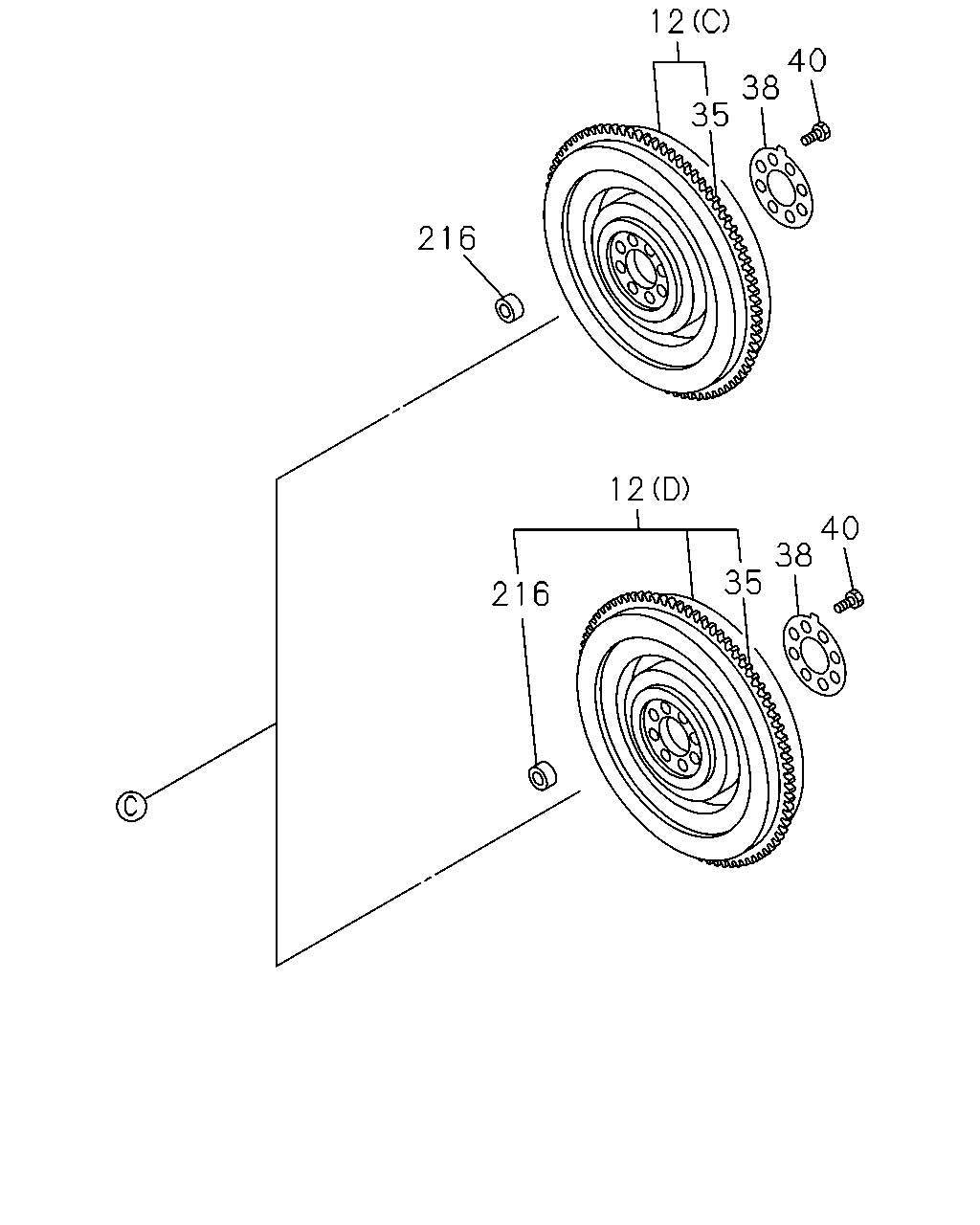

12 40 38 35 216 12 40 38 35 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	00.666 FLYWHEEL (A)	8-97034-430-2	01	1	9811-0105	●
12	00.666 FLYWHEEL TURBOCHARGER<K51> (A)	8-97034-430-2	01	1	9811-0105		●
12	00.666 FLYWHEEL TURBOCHARGER<K51> (A)	8-97034-430-2	01	1	0106-		●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51> (A)	8-94125-761-4	01	1	9811-		●
12	00.666 FLYWHEEL (B)	8-97169-129-2	01	1	9811-9903			●
12	00.666 FLYWHEEL (B)	8-97115-782-0	01	1	9904-			●	●
12	00.666 FLYWHEEL (C)	8-97239-929-1	01	1	0106-0202					●
12	00.666 FLYWHEEL (D)	8-97333-110-0	01	1	0203-					●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9811-0105	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0106-		●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9811-9903			●	●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9904-			●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-					●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9811-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-		●			●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9811-			●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9811-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0106-		●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9811-			●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-					●
216	00.293 DOWEL	8-97259-856-0	01	1	0106-					●

60 61 62 68 42 42 63 126 126 83 73 37 10 85 1 87 84 31 86 56 40 38 14 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT HONG KONG EQUIPMENT(PQ1)	8-97023-182-1	01	1	9811-0008	●
1	00.646 CRANKSHAFT HONG KONG EQUIPMENT(PQ1)	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108					●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-					●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9811-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-1	01	1	0009-0206		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97331-853-0	01	1	0207-		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9811-0008		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-2	01	1	0009-		●
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	9811-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	9905-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	9905-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	9905-			●	●
12	00.666 FLYWHEEL (A)	8-97034-430-2	01	1	9811-0105	●
12	00.666 FLYWHEEL TURBOCHARGER<K51> (A)	8-97034-430-2	01	1	9811-0105		●
12	00.666 FLYWHEEL TURBOCHARGER<K51> (A)	8-97034-430-2	01	1	0106-		●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51> (A)	8-94125-761-4	01	1	9811-		●
12	00.666 FLYWHEEL (B)	8-97169-129-2	01	1	9811-9903			●
12	00.666 FLYWHEEL (B)	8-97115-782-0	01	1	9904-			●	●
12	00.666 FLYWHEEL (C)	8-97239-929-1	01	1	0106-0202					●
12	00.666 FLYWHEEL (D)	8-97333-110-0	01	1	0203-					●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9811-0105	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-		●			●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9811-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-		●			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9811-0105	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0106-		●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9811-9903			●	●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9904-			●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-					●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9811-0105	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0106-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9811-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-		●			●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9811-			●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9811-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0106-		●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9811-			●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-					●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9811-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-		●			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9811-			●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9811-			●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9811-0105	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-		●			●
56	00.659 PULLEY; CR/SHF DAMPER HONG KONG EQUIPMENT(PQ1) (C) 3-GROOVE	8-97182-904-0	01	1	9811-0105	●
56	00.659 PULLEY; CR/SHF DAMPER (E) 4-GROOVE	8-97254-844-0	01	1	0106-					●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	0106-0108		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	0106-0108		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> (A) 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-94453-552-2	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-97229-901-0	01	1	9907-0108		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-94453-552-3	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (B) 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9811-		●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97088-478-3	01	1	9811-9812			●	●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97222-031-0	01	1	9901-0210			●	●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97222-031-3	01	1	0211-			●	●
60	01.060 STUD; FAN FIX HONG KONG EQUIPMENT(PQ1) 01.073 M6X18 L=27	9-04110-618-0	04	1	9811-0105	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105	●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105		●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	0106-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-					●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9811-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9811-9903			●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-2	01	1	9904-			●	●
62	01.060 NUT; FAN PULLEY HONG KONG EQUIPMENT(PQ1) 07.829 M6 FLANGE	5-09440-004-0	04	1	9811-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	0108-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) GRADE=AX	8-97176-618-0	04	1	9811-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) GRADE=CX	8-97176-619-0	04	1	9811-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9811-0006			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0007-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0108-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1)	8-97147-984-0	04	1	9811-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9811-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9811-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9811-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	0106-0210		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9811-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9811-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9811-0105	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	9811-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9811-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	0106-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9811-			●	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9811-0105	●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9811-0105		●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-1	04	1	0106-		●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-4	04	1	9811-		●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	9811-			●	●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206					●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0207-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9811-0105	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	9811-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	0106-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9811-0112		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9811-			●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0112					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0201-0206		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0201-0206					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0207-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9811-0105	●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9811-0105		●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	0106-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-					●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9811-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9811-			●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9811-0105	●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	9811-0105		●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	0106-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9811-0105	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	9811-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9811-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	0106-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9811-			●	●

61 68 40 63 126 83 126 84 49 38 73 74 75 35 85 12 86 42 9 8 10 42 10 10 10 10 28 34 24 1 57 56 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT HONG KONG EQUIPMENT(PQ1)	8-97023-182-1	01	1	9811-0008	●
1	00.646 CRANKSHAFT HONG KONG EQUIPMENT(PQ1)	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108					●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-					●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9811-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-1	01	1	0009-0206		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97331-853-0	01	1	0207-		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9811-0008		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-2	01	1	0009-		●
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	9811-			●	●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-97174-988-0	01	1	9811-9904			●	●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	5-87310-546-0	01	1	9905-			●	●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-97174-989-0	01	1	9811-9904			●	●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	5-87310-547-0	01	1	9905-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	9905-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	9905-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	9905-			●	●
12	00.666 FLYWHEEL (A)	8-97034-430-2	01	1	9811-0105	●
12	00.666 FLYWHEEL TURBOCHARGER<K51> (A)	8-97034-430-2	01	1	9811-0105		●
12	00.666 FLYWHEEL TURBOCHARGER<K51> (A)	8-97034-430-2	01	1	0106-		●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51> (A)	8-94125-761-4	01	1	9811-		●
12	00.666 FLYWHEEL (B)	8-97169-129-2	01	1	9811-9903			●
12	00.666 FLYWHEEL (B)	8-97115-782-0	01	1	9904-			●	●
12	00.666 FLYWHEEL (C)	8-97239-929-1	01	1	0106-0202					●
12	00.666 FLYWHEEL (D)	8-97333-110-0	01	1	0203-					●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	9811-			●	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9811-		●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9811-9902			●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	9903-			●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-					●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9811-			●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9811-0105	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0106-		●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9811-9903			●	●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9904-			●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-					●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9811-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-		●			●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9811-			●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9811-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0106-		●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9811-			●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-					●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9811-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-		●			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9811-			●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9811-			●	●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	9811-			●	●	●
56	00.659 PULLEY; CR/SHF DAMPER HONG KONG EQUIPMENT(PQ1) (C) 3-GROOVE	8-97182-904-0	01	1	9811-0105	●
56	00.659 PULLEY; CR/SHF DAMPER (E) 4-GROOVE	8-97254-844-0	01	1	0106-					●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	0106-0108		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	0106-0108		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> (A) 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-94453-552-2	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-97229-901-0	01	1	9907-0108		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-94453-552-3	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (B) 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9811-		●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97088-478-3	01	1	9811-9812			●	●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97222-031-0	01	1	9901-0210			●	●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97222-031-3	01	1	0211-			●	●
57	00.662 PIN; PULLEY 08.939 OD=8 L=16	9-08150-816-0	02	1	9811-0212			●	●
57	00.662 PIN; PULLEY 08.939 OD=8 L=20	9-08160-820-0	02	1	0301-			●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105	●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105		●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	0106-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-					●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9811-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9811-9903			●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-2	01	1	9904-			●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	0108-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) GRADE=AX	8-97176-618-0	04	1	9811-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) GRADE=CX	8-97176-619-0	04	1	9811-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9811-0006			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0007-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0108-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1)	8-97147-984-0	04	1	9811-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9811-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9811-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9811-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	0106-0210		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9811-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9811-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-					●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	9811-			●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	9811-			●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9811-0105	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	9811-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9811-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	0106-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9811-			●	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9811-0105	●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9811-0105		●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-1	04	1	0106-		●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-4	04	1	9811-		●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	9811-			●	●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206					●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0207-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9811-0105	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	9811-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	0106-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9811-0112		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9811-			●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0112					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0201-0206		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0201-0206					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0207-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9811-0105	●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9811-0105		●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	0106-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-					●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9811-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9811-			●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9811-0105	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	9811-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9811-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	0106-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9811-			●	●

61 68 63 42 126 126 42 83 85 86 73 87 86 84 10 85 87 1 84 37 31 88 56 40 38 28 14 43 35 56 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT HONG KONG EQUIPMENT(PQ1)	8-97023-182-1	01	1	9811-0008	●
1	00.646 CRANKSHAFT HONG KONG EQUIPMENT(PQ1)	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108					●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-					●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9811-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-1	01	1	0009-0206		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97331-853-0	01	1	0207-		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9811-0008		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-2	01	1	0009-		●
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	9811-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	9905-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	9905-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	9905-			●	●
12	00.666 FLYWHEEL (A)	8-97034-430-2	01	1	9811-0105	●
12	00.666 FLYWHEEL TURBOCHARGER<K51> (A)	8-97034-430-2	01	1	9811-0105		●
12	00.666 FLYWHEEL TURBOCHARGER<K51> (A)	8-97034-430-2	01	1	0106-		●
12	00.666 FLYWHEEL EXC. TURBOCHARGER<K51> (A)	8-94125-761-4	01	1	9811-		●
12	00.666 FLYWHEEL (B)	8-97169-129-2	01	1	9811-9903			●
12	00.666 FLYWHEEL (B)	8-97115-782-0	01	1	9904-			●	●
12	00.666 FLYWHEEL (C)	8-97239-929-1	01	1	0106-0202					●
12	00.666 FLYWHEEL (D)	8-97333-110-0	01	1	0203-					●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9811-0105	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-		●			●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9811-		●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9811-9902			●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	9903-			●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-					●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9811-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-		●			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9811-0105	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0106-		●
35	00.673 GEAR; RING Z=138	8-97169-134-0	01	1	9811-9903			●	●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	9904-			●	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0106-					●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9811-0105	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0106-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9811-0105	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0106-		●			●
38	00.862 WASHER; FLYWHEEL 00.669	8-94310-615-0	01	1	9811-			●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9811-0105	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0106-		●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	9811-			●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0106-					●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9811-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-		●			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9811-			●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9811-			●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9811-0105	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-		●			●
56	00.659 PULLEY; CR/SHF DAMPER HONG KONG EQUIPMENT(PQ1) (C) 3-GROOVE	8-97182-904-0	01	1	9811-0105	●
56	00.659 PULLEY; CR/SHF DAMPER (E) 4-GROOVE	8-97254-844-0	01	1	0106-					●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	0106-0108		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	0106-0108		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> (A) 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-94453-552-2	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-97229-901-0	01	1	9907-0108		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-94453-552-3	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (B) 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9811-		●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97088-478-3	01	1	9811-9812			●	●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97222-031-0	01	1	9901-0210			●	●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97222-031-3	01	1	0211-			●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105	●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105		●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	0106-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-					●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9811-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9811-9903			●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-2	01	1	9904-			●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	0108-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) GRADE=AX	8-97176-618-0	04	1	9811-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) GRADE=CX	8-97176-619-0	04	1	9811-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9811-0006			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0007-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0108-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1)	8-97147-984-0	04	1	9811-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9811-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9811-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9811-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	0106-0210		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9811-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9811-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9811-0105	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	9811-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9811-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	0106-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9811-			●	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9811-0105	●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9811-0105		●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-1	04	1	0106-		●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-4	04	1	9811-		●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	9811-			●	●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206					●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0207-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9811-0105	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	9811-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	0106-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9811-0112		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9811-			●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0112					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0201-0206		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0201-0206					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0207-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9811-0105	●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9811-0105		●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	0106-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-					●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9811-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9811-			●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9811-0105	●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	9811-0105		●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	0106-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-					●
88	00.623 NUT; CONNROD EXC. TURBOCHARGER<K51> 00.626 M11	5-09409-016-0	08	1	9811-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9811-0105	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	9811-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9811-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	0106-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9811-			●	●

61 68 63 126 84 83 73 126 85 87 42 86 42 10 214 49 10 10 10 10 31 28 56 1 14 43 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT HONG KONG EQUIPMENT(PQ1)	8-97023-182-1	01	1	9811-0008	●
1	00.646 CRANKSHAFT HONG KONG EQUIPMENT(PQ1)	8-97190-930-0	01	1	0009-0105	●
1	00.646 CRANKSHAFT	8-97239-932-1	01	1	0106-0108					●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0109-					●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-94453-525-2	01	1	9811-0008		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97190-929-1	01	1	0009-0206		●
1	00.646 CRANKSHAFT TURBOCHARGER<K51>	8-97331-853-0	01	1	0207-		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-94443-662-0	01	1	9811-0008		●
1	00.646 CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-2	01	1	0009-		●
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	9811-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0106-		●			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9811-0105	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	0106-0209		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97045-915-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	9905-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97045-916-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	9905-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97045-917-0	05	1	9811-9904			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	9905-			●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9811-0105	●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0106-		●			●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9811-		●
28	00.728 GEAR; CR/SHF Z=42	8-97110-040-4	01	1	9811-9902			●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	9903-			●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0106-					●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9811-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-0105	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0106-		●			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9811-0105	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0106-		●			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9811-			●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9811-			●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9811-0105	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0106-		●			●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	9811-			●	●	●
56	00.659 PULLEY; CR/SHF DAMPER HONG KONG EQUIPMENT(PQ1) (C) 3-GROOVE	8-97182-904-0	01	1	9811-0105	●
56	00.659 PULLEY; CR/SHF DAMPER (E) 4-GROOVE	8-97254-844-0	01	1	0106-					●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0105		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	0106-0108		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	0106-0108		●
56	00.659 PULLEY; CR/SHF DAMPER POWER STEERING<N40> (A) 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-94453-552-2	01	1	9811-9906		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-97229-901-0	01	1	9907-0108		●
56	00.659 PULLEY; CR/SHF DAMPER EXC. POWER STEERING<N40> (B) 2-GROOVE	8-94453-552-3	01	1	0109-		●
56	00.659 PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (B) 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9811-		●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97088-478-3	01	1	9811-9812			●	●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97222-031-0	01	1	9901-0210			●	●
56	00.659 PULLEY; CR/SHF DAMPER (D) 4-GROOVE	8-97222-031-3	01	1	0211-			●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105	●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	9811-0105		●
61	00.659 PULLEY; FAN DRIVE TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-3	01	1	0106-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0106-					●
61	00.659 PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-1	01	1	9811-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-94389-413-1	01	1	9811-9903			●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-2	01	1	9904-			●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-0	04	1	0108-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) GRADE=AX	8-97176-618-0	04	1	9811-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0106-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) GRADE=CX	8-97176-619-0	04	1	9811-0105	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0106-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	9811-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-667-0	04	1	9811-0006			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0007-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0108-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1)	8-97147-984-0	04	1	9811-0105	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0106-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9811-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	9811-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9811-0105	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	0106-0210		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	9811-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	9811-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0106-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9811-0105	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	9811-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0106-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	9811-0105		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-008-1	04	1	0106-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	9811-			●	●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9811-0105	●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-0	04	1	9811-0105		●
84	00.603 ROD ASM; CONN TURBOCHARGER<K51>	8-97062-300-1	04	1	0106-		●
84	00.603 ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-94329-692-4	04	1	9811-		●
84	00.603 ROD ASM; CONN	8-97135-032-1	04	1	9811-			●	●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0106-0206					●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0207-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0207-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9811-0105	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	9811-0105		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94457-158-0	04	1	0106-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9811-0112		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	9811-			●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0106-0112					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0201-0206		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0201-0206					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0207-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9811-0105	●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	9811-0105		●
86	00.623 BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	0106-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0106-					●
86	00.623 BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	9811-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	9811-			●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9811-0105	●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	9811-0105		●
87	00.613 PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	0106-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0106-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9811-0105	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	9811-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0106-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94133-969-0	08	1	9811-0105		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51>	8-94460-687-0	08	1	0106-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	9811-			●	●
166	00.659 RUBBER; SPACE,PULLEY	8-97231-528-0	01	1	0106-					●
214	00.724 STOPPER; BEARING	8-97240-620-0	01	1	0106-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
