0-13 — OIL PAN AND LEVEL GAUGE (#46100) — 124 parça

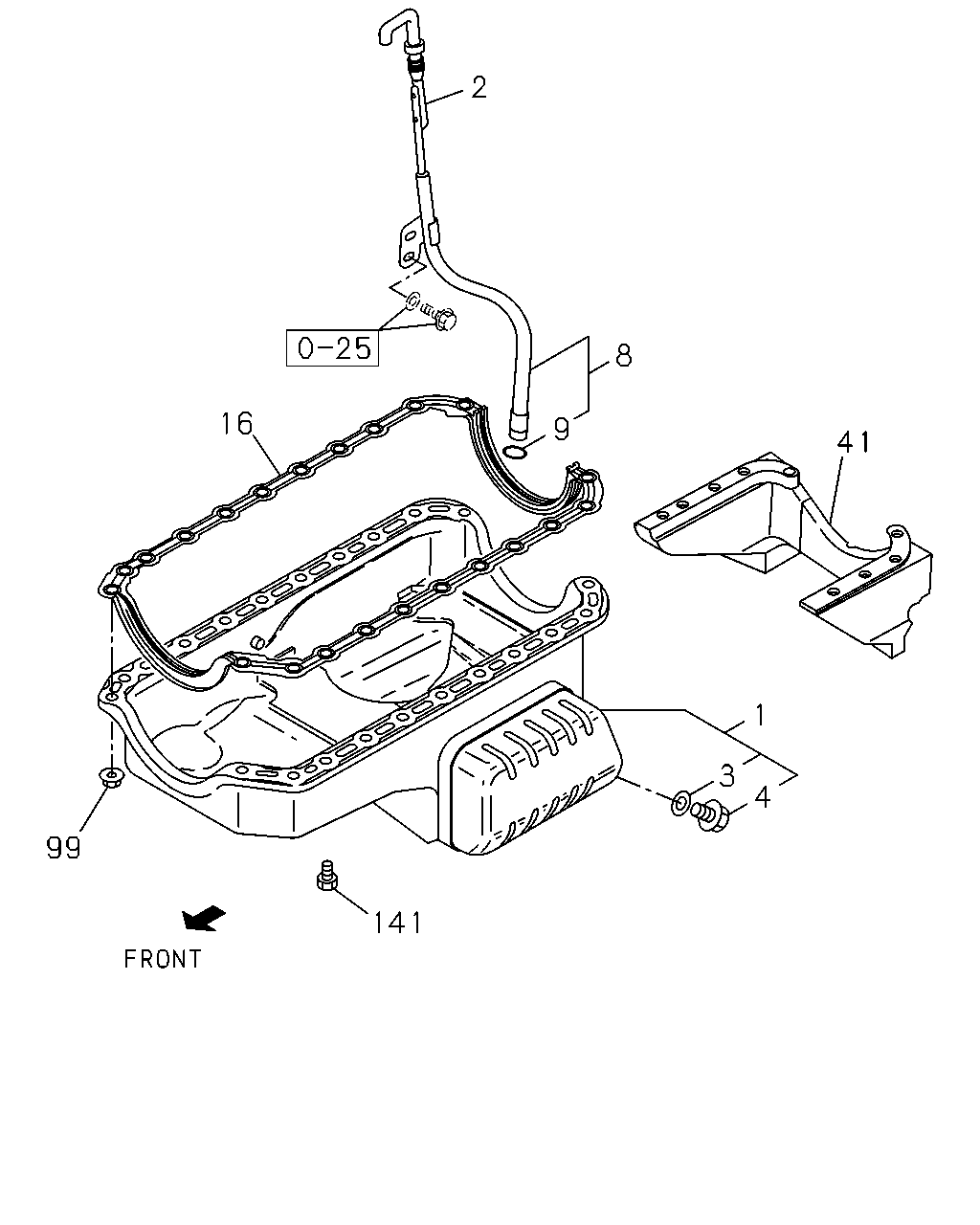

2 8 16 9 41 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9811-0105	●	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0106-		●
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012			●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-			●	●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0106-					●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-0105	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-0105		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0106-		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0106-					●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	9906-0105		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0106-		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-			●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-0105	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-0105	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-		●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9811-0105	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0106-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9811-			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0106-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-0105	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-		●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-					●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9811-0105	●	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0106-		●			●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97095-936-0	01	1	9811-0105	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97095-936-0	01	1	9811-0105		●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1) EXC. TURBOCHARGER<K51>	8-97095-936-0	01	1	9811-0105		●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97286-992-0	01	1	0106-		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0106-					●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9811-0105	●	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0106-		●			●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9811-0105	●	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0106-		●			●

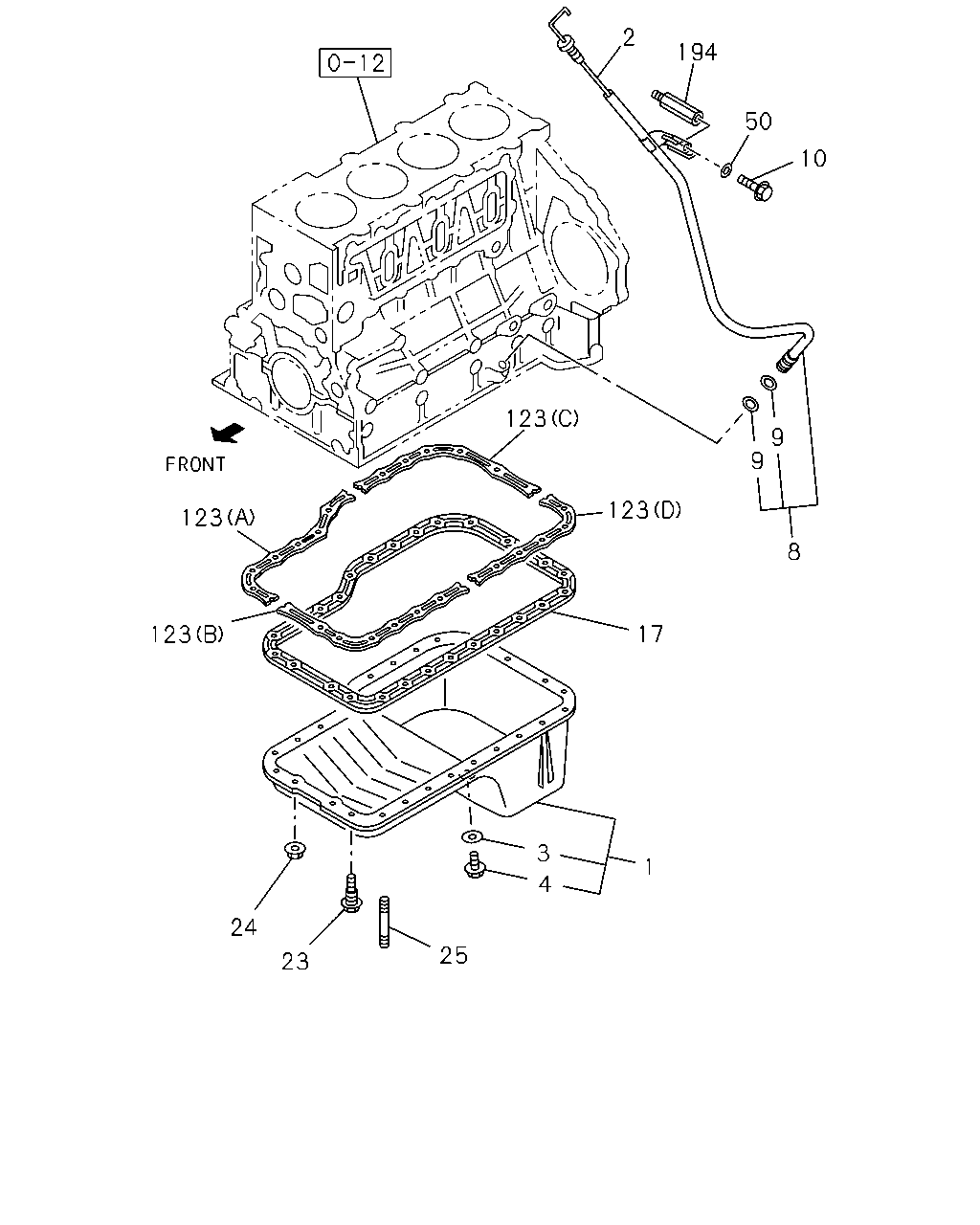

2 194 50 10 123 9 9 123 123 8 17 123 3 1 4 24 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9811-0105	●	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0106-		●
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012			●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-			●	●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0106-					●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-0105	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-0105		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0106-		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0106-					●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	9906-0105		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0106-		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-			●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-0105	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-0105	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-		●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9811-0105	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0106-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9811-			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0106-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-0105	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-		●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-					●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-			●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-148-2	01	1	9811-0012			●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97190-191-1	01	1	0101-			●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	11	1	9811-0005			●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	13	1	0006-0012			●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0101-			●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	15	1	9811-0005			●	●
24	01.453 NUT; OIL PAN 07.633 M8 FLANGE	0-91150-108-0	13	1	0006-			●	●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	10	1	9811-0005			●	●
25	01.453 STUD; OIL PAN 01.428 M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	09	1	0006-0012			●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0101-			●	●
25	01.453 STUD; OIL PAN M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	01	1	9811-0012			●	●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0101-			●	●
50	01.516 WASHER; PL,GUIDE TUBE 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	9811-			●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97087-619-2	01	1	9811-0012			●	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0101-			●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97087-622-2	01	1	9811-0012			●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0101-			●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97087-625-2	01	1	9811-0012			●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0101-			●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97087-628-2	01	1	9811-0012			●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0101-			●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	9811-			●	●

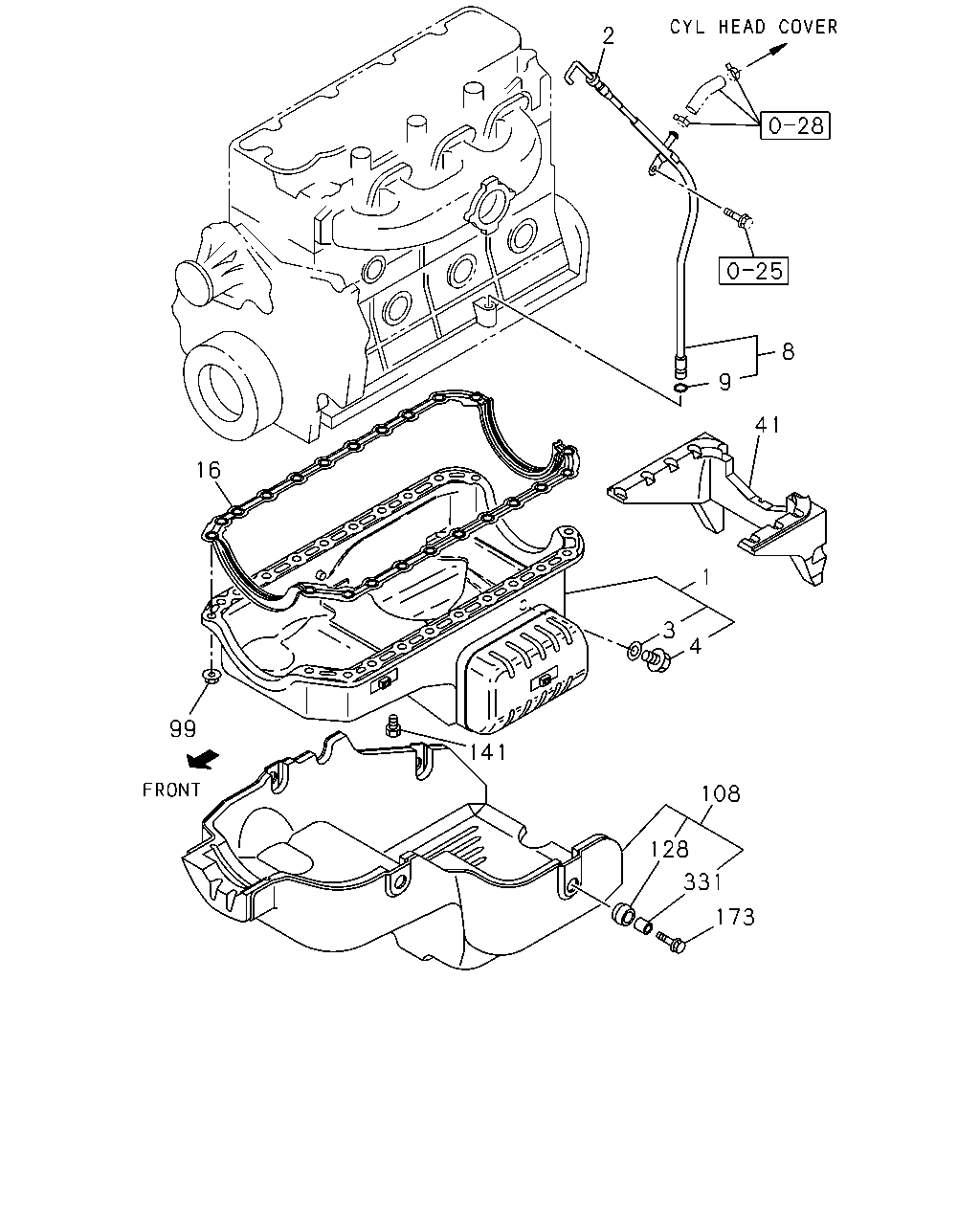

2 8 9 41 16 1 3 4 141 99 108 128 331 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	9811-0105	●	●
1	01.426 PAN ASM; OIL	8-97083-322-3	01	1	0106-		●
1	01.426 PAN ASM; OIL	8-97087-642-2	01	1	9811-0012			●
1	01.426 PAN ASM; OIL	8-97305-077-0	01	1	0101-			●	●
1	01.426 PAN ASM; OIL	8-97223-955-0	01	1	0106-					●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9811-9905	●	●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	9906-0105	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	9906-0105		●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	0106-		●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	0106-					●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97231-295-0	01	1	9906-0105		●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-97092-924-0	01	1	0106-		●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	9811-			●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9811-0105	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0106-		●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9811-0105	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0106-		●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	9811-0105	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	0106-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	9811-			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97239-977-0	01	1	0106-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9811-0105	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-		●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9811-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	0106-					●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	9811-0105	●	●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	0106-		●			●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97095-936-0	01	1	9811-0105	●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97095-936-0	01	1	9811-0105		●
41	00.137 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1) EXC. TURBOCHARGER<K51>	8-97095-936-0	01	1	9811-0105		●
41	00.137 RUBBER; SPACE TURBOCHARGER<K51>	8-97286-992-0	01	1	0106-		●
41	00.137 RUBBER; SPACE	8-97286-992-0	01	1	0106-					●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	9811-0105	●	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	0106-		●			●
108	01.426 COVER; OIL PAN	8-97248-296-2	01	1	0106-					●
128	01.516 RUBBER; MTG,OIL PAN	8-97227-521-0	04	1	0106-					●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	9811-0105	●	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	0106-		●			●
173	01.428 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0106-					●
331	01.516 COLLAR; MTG RUBBER	8-97224-450-0	04	1	0106-					●
