◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#4610) — 199 parça

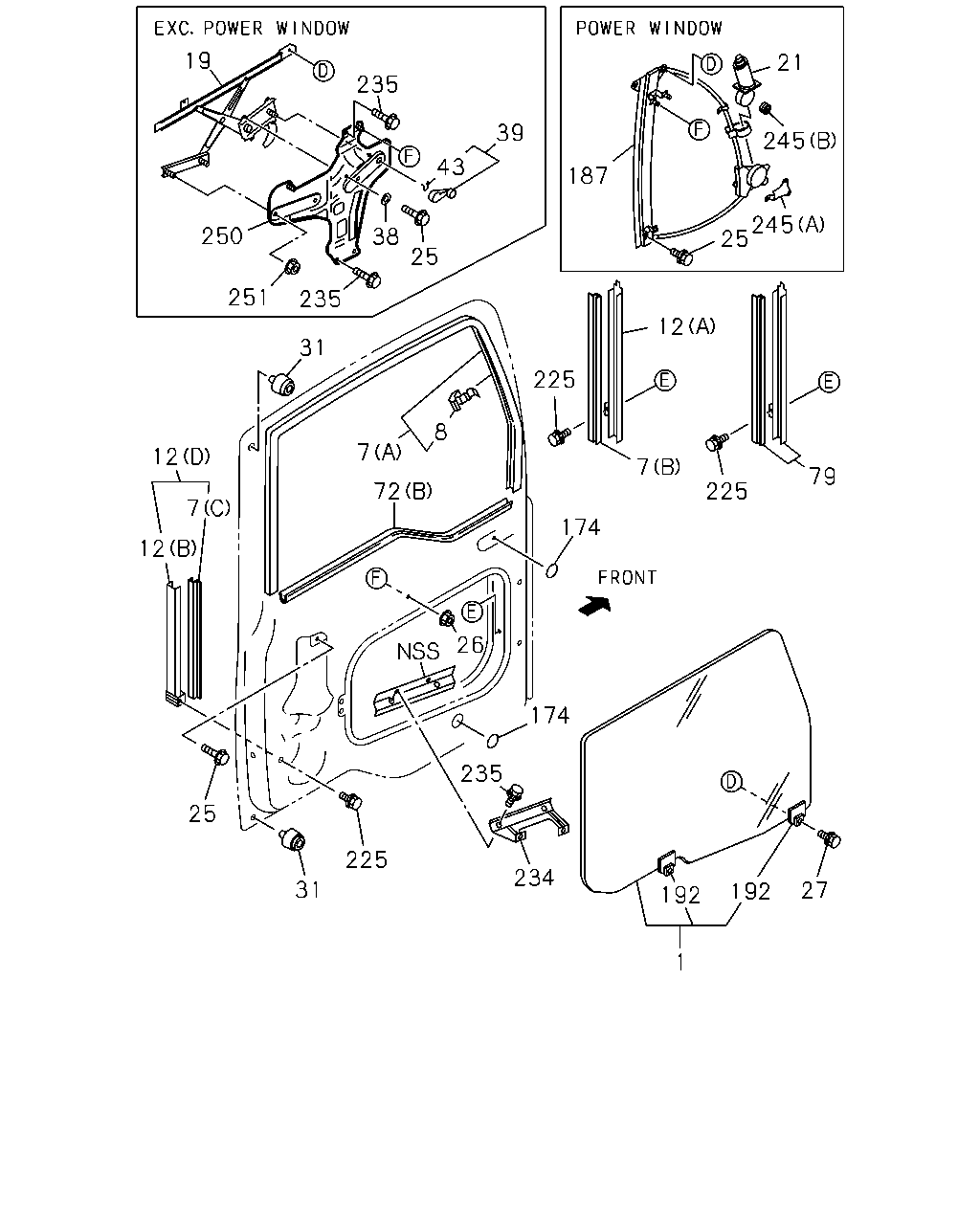

çizim 8097
19 21 235 39 245 43 187 245 25 250 38 25 251 235 12 31 225 8 7 12 7 79 225 72 7 174 12 26 174 235 25 225 234 31 27 192 192 1
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-071-0 01 1 9603-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-1 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9603-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-1 01 1 9906-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-069-1 01 1 9603-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-1 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-068-1 01 1 9603-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-1 01 1 9802-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9603-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9603-9901
7 GLASS RUN; FRT DOOR
(B) 		1-74318-043-0 01 1 9603-9705
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9603-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9603-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-042-0 01 1 9603-
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9603-9705
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9706-9901
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9603-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9603-9901
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9603-9901
12 CHANNEL; GLASS RUN,FRT
(D) 		1-74338-071-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-048-1 01 1 9603-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-036-0 01 1 9603-
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-046-1 01 1 9603-9901
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9603-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9603-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-139-2 01 1 9603-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0004-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-153-1 01 1 9603-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004-
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9603-
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9603-9606
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9603-
26 NUT; FLANGE,WINDOW REG
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9603-9606
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9603-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9603-
38 WASHER; PL,WINDOW REG
EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 9603-9606
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9603-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9603-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-7 01 1 9603-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-5 01 1 9603-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-7 01 1 9603-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-5 01 1 9603-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 9902-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 9902-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 9603-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 9603-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 9603-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 9603-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-138-2 01 1 9603-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-2 01 1 0004-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-152-0 01 1 9603-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-2 01 1 0004-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 04 1 9603-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9603-9801
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9603-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9603-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 02 1 0106-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-146-0 02 1 9603-0003
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-180-0 01 1 0004-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-181-0 01 1 0004-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 9603-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 9603-
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9603-

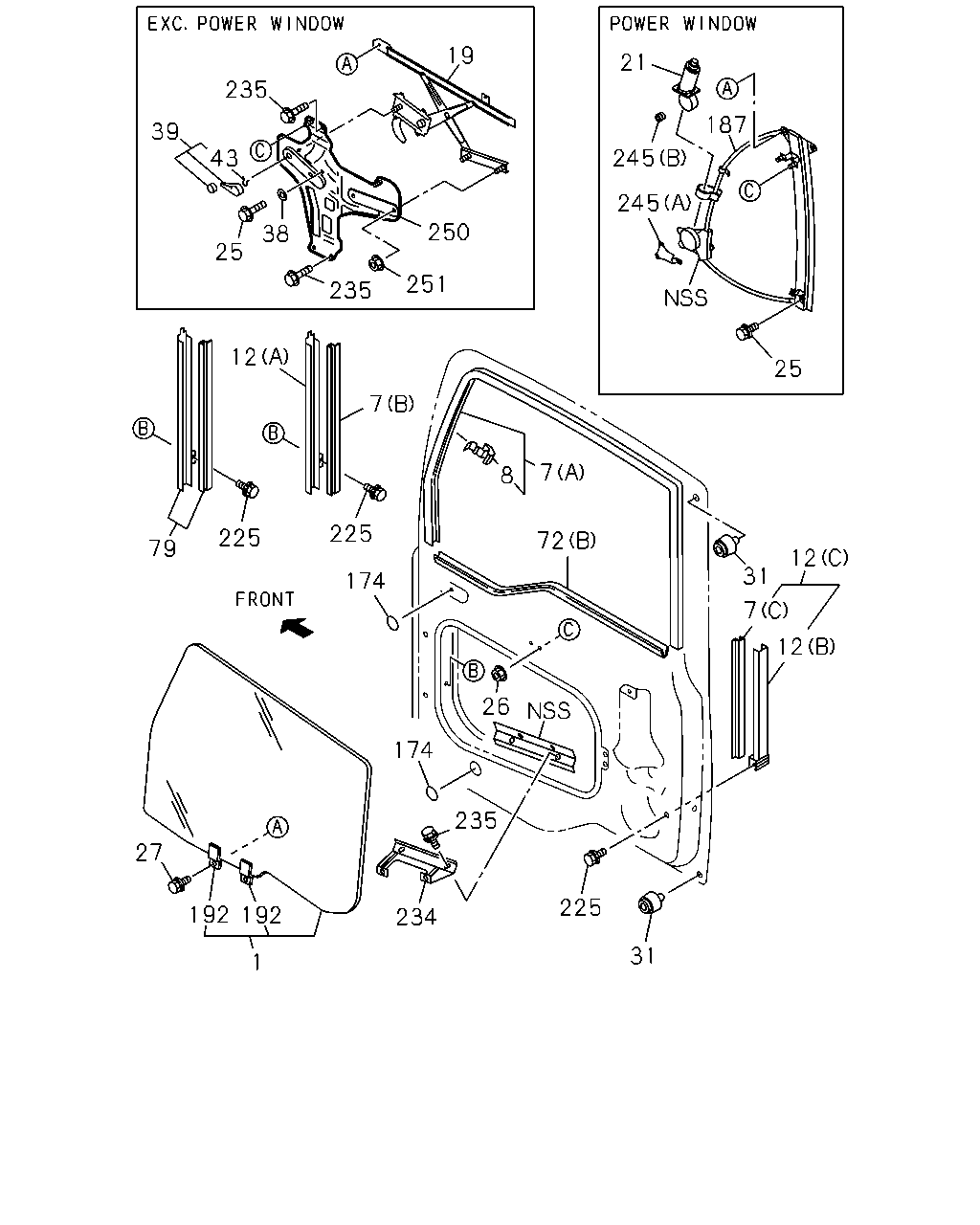

çizim 9787
19 21 235 187 39 245 43 245 250 38 25 251 235 12 25 7 7 8 225 225 72 79 12 31 174 7 12 26 174 235 27 225 192 192 234 31 1
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-071-0 01 1 9603-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-1 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9603-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-1 01 1 9906-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-069-1 01 1 9603-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-1 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-068-1 01 1 9603-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-1 01 1 9802-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9603-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9603-9901
7 GLASS RUN; FRT DOOR
(B) 		1-74318-043-0 01 1 9603-9705
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9603-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9603-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-042-0 01 1 9603-
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9603-9705
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9706-9901
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9603-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9603-9901
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9603-9901
12 CHANNEL; GLASS RUN,FRT
(D) 		1-74338-071-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-048-1 01 1 9603-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-036-0 01 1 9603-
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-046-1 01 1 9603-9901
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9603-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9603-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-139-2 01 1 9603-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0004-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-153-1 01 1 9603-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004-
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9603-
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9603-9606
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9603-
26 NUT; FLANGE,WINDOW REG
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9603-9606
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9603-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9603-
38 WASHER; PL,WINDOW REG
EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 9603-9606
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9603-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9603-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-7 01 1 9603-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-5 01 1 9603-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-7 01 1 9603-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-5 01 1 9603-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 9902-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 9902-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 9603-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 9603-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 9603-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 9603-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-138-2 01 1 9603-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-2 01 1 0004-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-152-0 01 1 9603-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-2 01 1 0004-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 04 1 9603-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9603-9801
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9603-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9603-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 02 1 0106-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-146-0 02 1 9603-0003
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-180-0 01 1 0004-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-181-0 01 1 0004-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 9603-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 9603-
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9603-

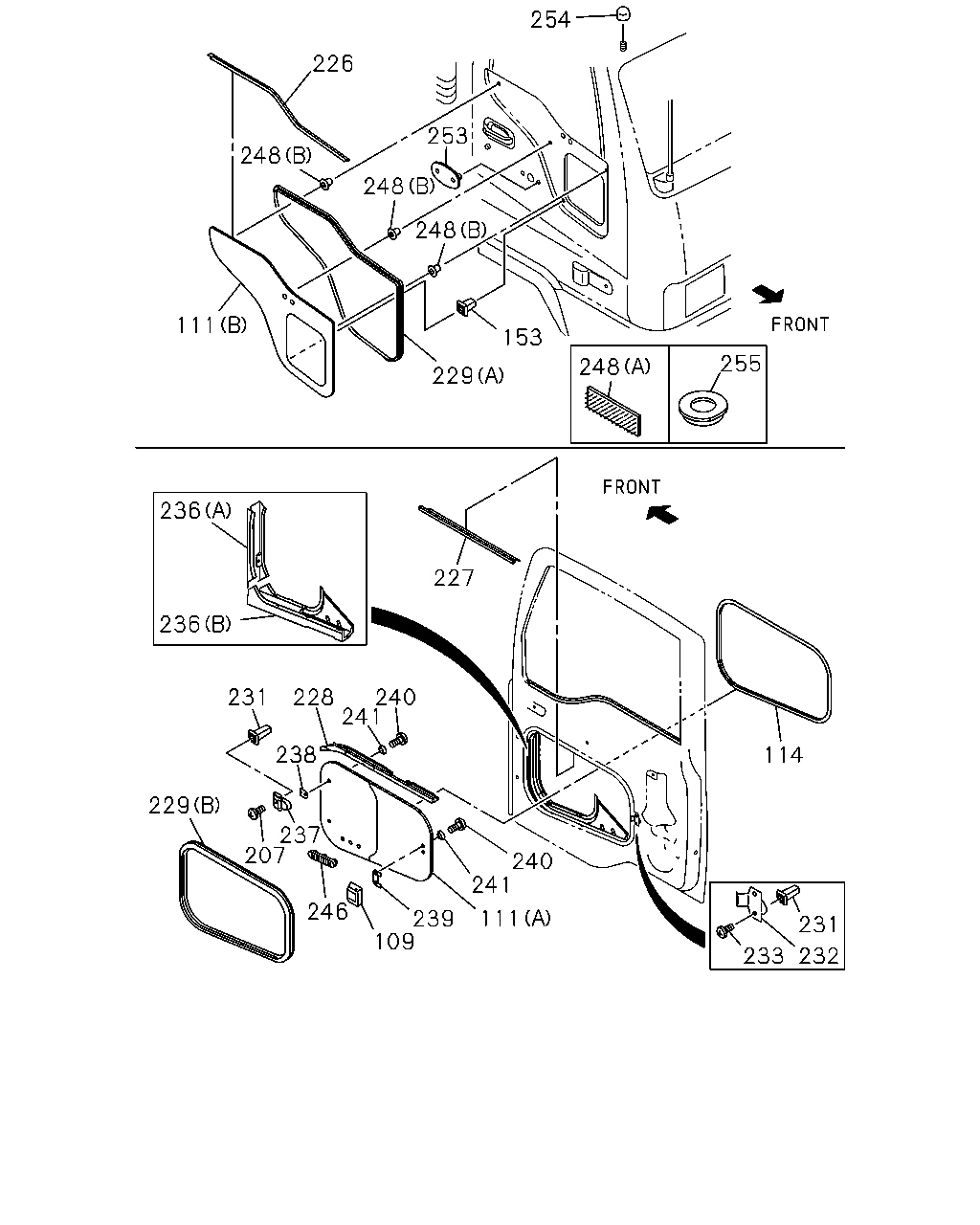

çizim 41123
254 226 253 248 248 248 111 153 255 248 229 236 227 236 231 228 240 241 238 114 229 237 207 240 241 246 111 239 109 231 233 232
BalonParca AdiParca NoAdetTipApplied Date
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 9603-
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76167-150-0 01 1 9603-9910
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		8-97893-167-0 01 1 9911-
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76168-032-2 01 1 9603-9611
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76148-081-2 01 1 9612-
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-037-1 01 1 9603-
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 9603-
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9603-
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-156-0 01 1 9603-
227 RUBBER; SHUTTER
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-162-0 01 1 9603-9709
228 RAIL; DRIP,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-157-0 01 1 9603-9709
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76738-160-2 01 1 9603-
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76738-161-1 01 1 9603-
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9603-
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 9603-
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9603-
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-461-2 01 1 9603-
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-462-0 01 1 9603-
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 9603-
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 9603-
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 9603-
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 		8-94279-346-0 04 1 9603-
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-054-0 04 1 9603-
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 9603-
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74998-072-0 01 1 9603-
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (B) ID=5.4 OD=6.8 		1-09989-019-0 03 1 9603-
253 COVER; CONNECTOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		8-97865-049-0 01 1 9603-9605
253 COVER; CONNECTOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		8-97865-049-0 01 1 9606-
254 CAP; MIRROR STAY
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71736-200-0 02 1 9603-9608
254 CAP; MIRROR STAY
DOOR WITH UNDER VIEW WINDOW<YD8> 		8-94276-413-1 02 1 9609-
255 GROMMET; MIRROR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 		8-94225-442-0 02 1 9603-
çizim 42330
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-7 01 1 9603-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-5 01 1 9603-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-7 01 1 9603-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-5 01 1 9603-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9603-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9603-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9911-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9911-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
