Sayfa 0-85 - Isuzu EPC

0-85 — AUTO TIMER; INJECTION PUMP (#461) — 246 parça

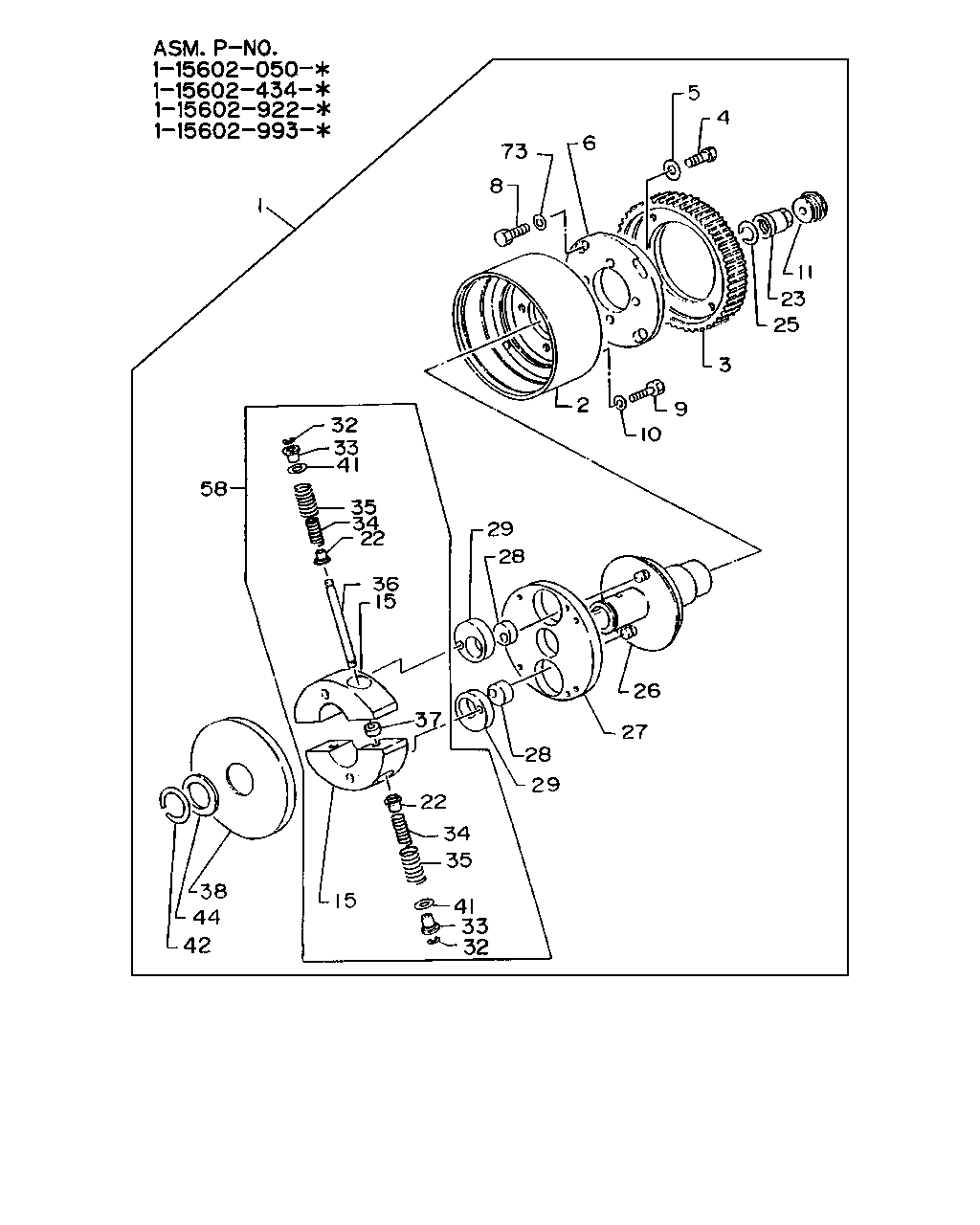

1 26 27 28 29 58 36 28 29 15 32 33 41 20 35 35 22 22 15 22 22 35 38 44 42 35 20 41 33 32 11 23 25 4 5 6 73 8 3 9 10 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15602-453-0	1-15740-236-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0	1-15740-237-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: C = 1-15602-444-1	1-15740-271-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-050-4	1-15740-368-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: G = 1-15602-598-2	1-15740-376-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-434-5	1-15740-395-0	01	1	-9412
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-922-0, I = 1-15602-993-0	1-15740-395-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-434-5	1-15740-500-0	01	1	9501-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1	1-15741-009-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15741-028-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 1-15602-453-0	5-15741-028-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: B = 1-15602-434-5	1-12524-034-0	01	1	-9412
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 1-15602-050-4, H = 1-15602-922-0, I = 1-15602-993-0	1-12524-034-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: B = 1-15602-434-5	1-15789-190-0	01	1	9501-
4	BOLT; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-188-0	04	1	-
5	WASHER; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-189-0	04	1	-
6	FLANGE; DRIVE GEAR,INJ PUMP T=1.00 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15742-036-0	01	1	-
8	BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-186-0	04	1	-
9	BOLT; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-190-0	04	1	-
10	WASHER; HSG FIX BOLT,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-191-0	04	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-122-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-192-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: J = 1-15603-021-1	1-15749-698-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1	1-15743-008-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: G = 1-15602-598-2	1-15743-015-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0	1-15743-019-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15602-453-0	1-15743-051-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: J = 1-15603-021-1	1-15743-077-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15743-105-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15743-110-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-014-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-015-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-016-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-017-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-018-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-019-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-082-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-083-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-084-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-085-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.500 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-330-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.000 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-331-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: J = 1-15603-021-1	1-15749-390-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: J = 1-15603-021-1	1-15749-391-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: J = 1-15603-021-1	1-15749-392-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: J = 1-15603-021-1	1-15749-393-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: J = 1-15603-021-1	1-15749-493-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: J = 1-15603-021-1	1-15749-494-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-037-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-182-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: J = 1-15603-021-1	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: J = 1-15603-021-1	1-15749-519-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15749-635-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-045-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-144-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-044-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15742-040-1	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15742-058-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15742-078-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15602-453-0	1-15742-079-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1	1-15742-087-0	01	1	-
27	PLATE; CAM,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-239-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-151-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-159-0	04	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: J = 1-15603-021-1	1-15749-358-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-176-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: J = 1-15603-021-1	1-15749-520-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15749-633-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-689-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP (A) ASM PART: J = 1-15603-021-1	1-15749-853-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-174-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: J = 1-15603-021-1	1-15749-530-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-283-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-332-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-494-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: J = 1-15603-021-1	1-15749-524-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: J = 1-15603-021-1	1-15749-525-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: J = 1-15603-021-1	1-15749-526-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: J = 1-15603-021-1	1-15749-527-0	AR	1	-
42	RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-185-0	01	1	-
44	SHIM; TIMER COVER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-184-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15743-104-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15743-109-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: J = 1-15603-021-1	1-15743-134-0	01	1	-
73	WASHER; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-187-0	04	1	-

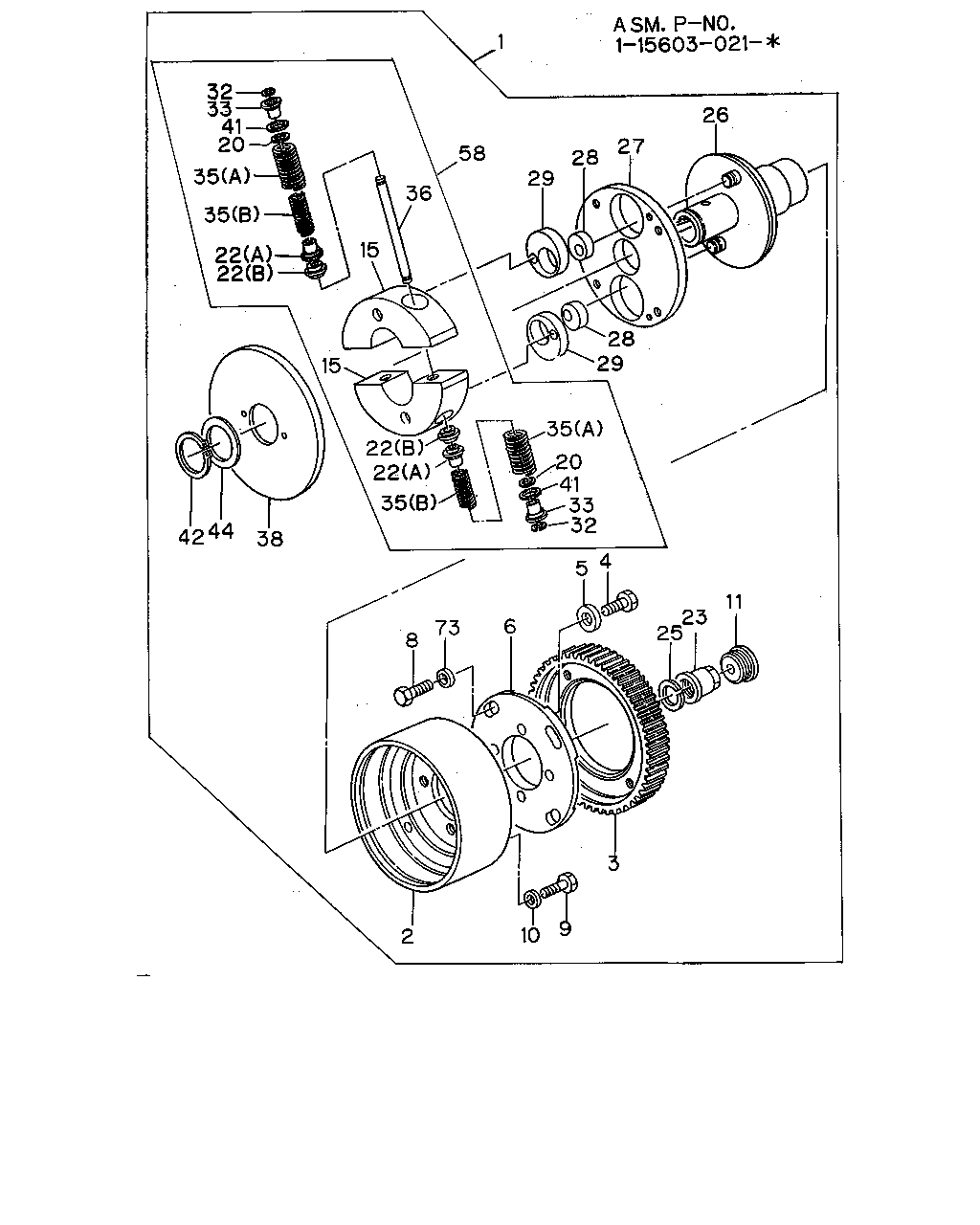

1 73 8 6 5 4 11 23 25 3 9 10 2 29 28 26 27 28 29 32 33 41 35 34 22 15 37 15 36 22 34 35 41 33 32 58 38 44 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15602-453-0	1-15740-236-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0	1-15740-237-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: C = 1-15602-444-1	1-15740-271-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-050-4	1-15740-368-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: G = 1-15602-598-2	1-15740-376-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-434-5	1-15740-395-0	01	1	-9412
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-922-0, I = 1-15602-993-0	1-15740-395-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-434-5	1-15740-500-0	01	1	9501-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1	1-15741-009-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15741-028-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 1-15602-453-0	5-15741-028-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: B = 1-15602-434-5	1-12524-034-0	01	1	-9412
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 1-15602-050-4, H = 1-15602-922-0, I = 1-15602-993-0	1-12524-034-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: B = 1-15602-434-5	1-15789-190-0	01	1	9501-
4	BOLT; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-188-0	04	1	-
5	WASHER; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-189-0	04	1	-
6	FLANGE; DRIVE GEAR,INJ PUMP T=1.00 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15742-036-0	01	1	-
8	BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-186-0	04	1	-
9	BOLT; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-190-0	04	1	-
10	WASHER; HSG FIX BOLT,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-191-0	04	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-122-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-192-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: J = 1-15603-021-1	1-15749-698-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1	1-15743-008-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: G = 1-15602-598-2	1-15743-015-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0	1-15743-019-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15602-453-0	1-15743-051-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: J = 1-15603-021-1	1-15743-077-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15743-105-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15743-110-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-037-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-182-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: J = 1-15603-021-1	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: J = 1-15603-021-1	1-15749-519-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15749-635-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-045-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-144-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-044-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15742-040-1	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15742-058-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15742-078-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15602-453-0	1-15742-079-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1	1-15742-087-0	01	1	-
27	PLATE; CAM,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-239-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-151-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-159-0	04	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: J = 1-15603-021-1	1-15749-358-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-176-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: J = 1-15603-021-1	1-15749-520-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15749-634-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-660-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15749-633-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-689-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP (A) ASM PART: J = 1-15603-021-1	1-15749-853-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-174-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: J = 1-15603-021-1	1-15749-530-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-402-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15749-418-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-283-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-332-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-494-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: J = 1-15603-021-1	1-15749-524-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: J = 1-15603-021-1	1-15749-525-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: J = 1-15603-021-1	1-15749-526-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: J = 1-15603-021-1	1-15749-527-0	AR	1	-
42	RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-185-0	01	1	-
44	SHIM; TIMER COVER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-184-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15743-104-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15743-109-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: J = 1-15603-021-1	1-15743-134-0	01	1	-
73	WASHER; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-187-0	04	1	-

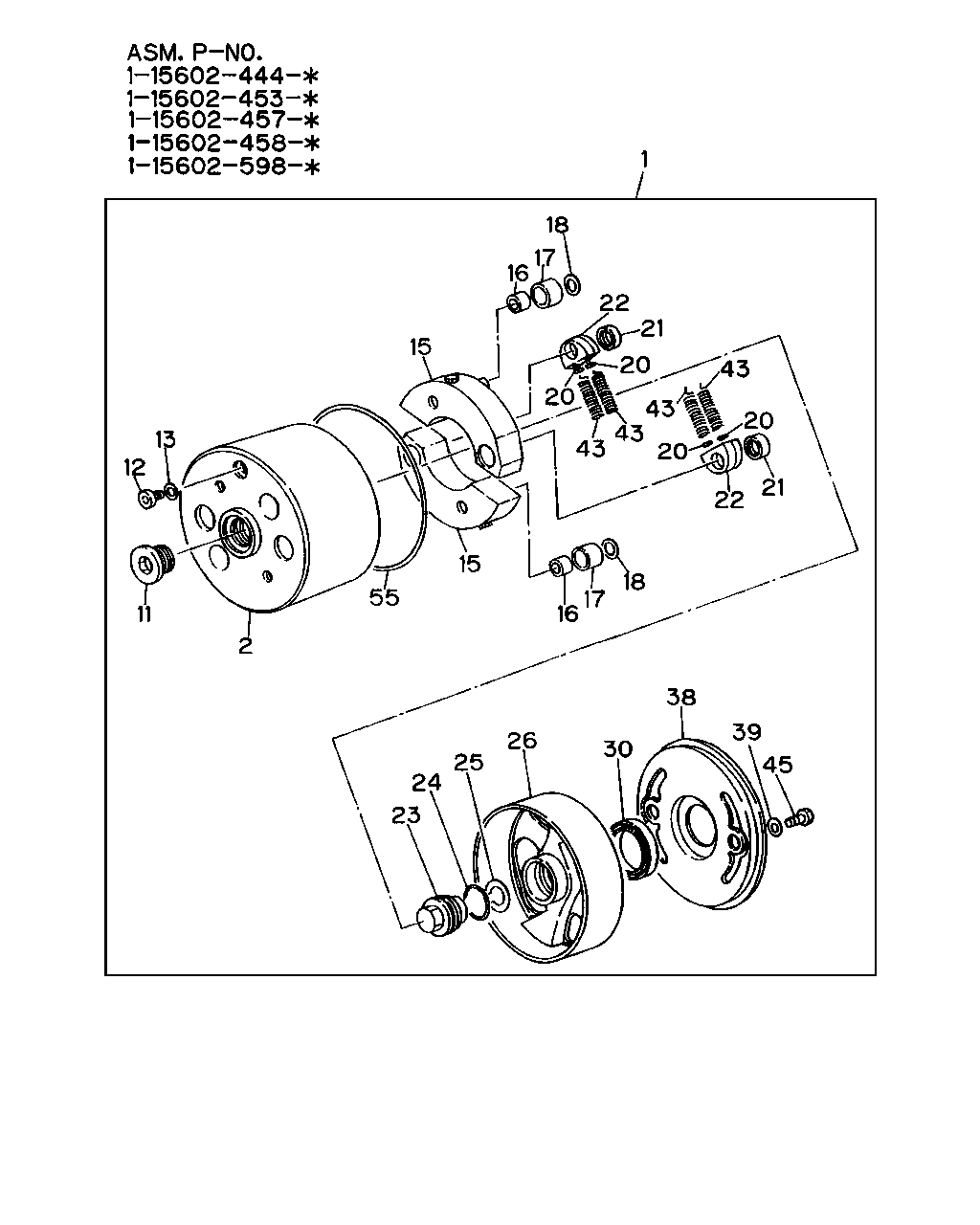

1 18 17 16 15 22 21 20 20 43 43 43 43 20 20 22 21 18 17 16 45 39 38 30 26 25 24 23 15 55 2 11 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15602-453-0	1-15740-236-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0	1-15740-237-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: C = 1-15602-444-1	1-15740-271-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-050-4	1-15740-368-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: G = 1-15602-598-2	1-15740-376-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-434-5	1-15740-395-0	01	1	-9412
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-922-0, I = 1-15602-993-0	1-15740-395-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-434-5	1-15740-500-0	01	1	9501-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1	1-15741-009-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15741-028-1	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 1-15602-453-0	5-15741-028-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-122-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-192-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: J = 1-15603-021-1	1-15749-698-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1	1-15743-008-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: G = 1-15602-598-2	1-15743-015-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0	1-15743-019-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15602-453-0	1-15743-051-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: J = 1-15603-021-1	1-15743-077-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15743-105-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15743-110-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-021-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=23.9 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-022-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=24.0 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-049-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=24.1 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-050-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=24.2 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-051-0	01	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-023-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-014-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-015-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-016-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-017-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-018-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-019-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-082-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-083-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-084-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-085-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.500 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-330-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.000 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-331-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: J = 1-15603-021-1	1-15749-390-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: J = 1-15603-021-1	1-15749-391-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: J = 1-15603-021-1	1-15749-392-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: J = 1-15603-021-1	1-15749-393-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: J = 1-15603-021-1	1-15749-493-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: J = 1-15603-021-1	1-15749-494-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-110-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-037-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15749-182-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: J = 1-15603-021-1	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: J = 1-15603-021-1	1-15749-519-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15749-635-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-045-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-144-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-046-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-044-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15742-040-1	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4	1-15742-058-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15742-078-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15602-453-0	1-15742-079-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1	1-15742-087-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-027-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15749-283-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-332-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-113-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: C = 1-15602-444-1	1-15749-407-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 1-15602-453-0, E = 1-15602-457-0	1-15749-410-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: F = 1-15602-458-0	1-15749-419-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: G = 1-15602-598-2	1-15749-649-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-118-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15749-111-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
