Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#46099) — 325 parça

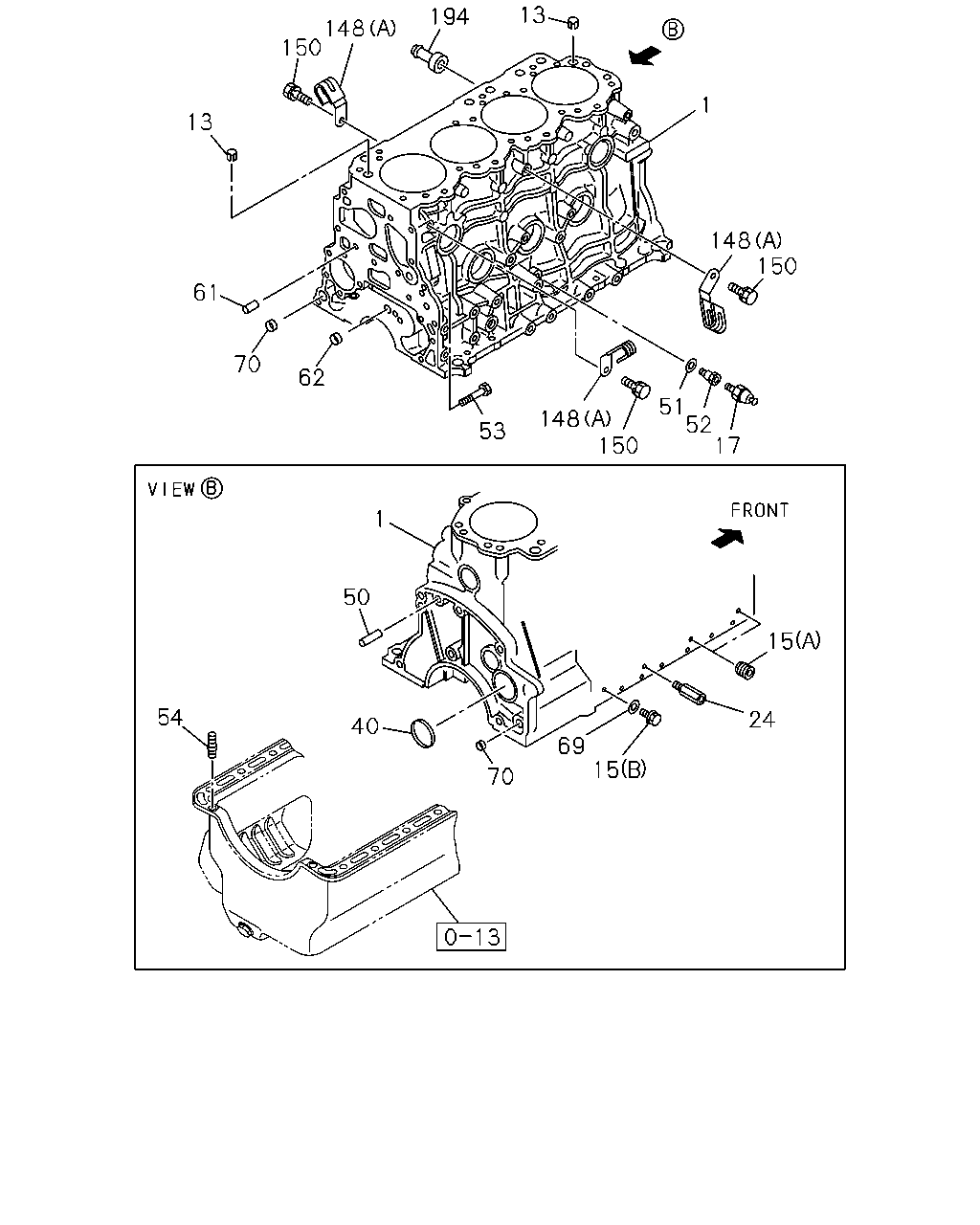

13 194 148 150 1 13 148 150 61 70 62 51 52 17 148 150 53 1 50 15 54 24 40 69 15 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.033 BLOCK ASM; CYL	8-97191-846-5	01	1	0108-	●
1	00.033 BLOCK ASM; CYL HONG KONG EQUIPMENT(PQ1)	8-97043-280-0	01	1	9811-0105		●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0106-			●
1	00.033 BLOCK ASM; CYL	8-94437-397-7	01	1	9811-0209				●
1	00.033 BLOCK ASM; CYL	8-97352-707-1	01	1	0210-				●
1	00.033 BLOCK ASM; CYL	8-97163-853-3	01	1	9811-					●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9811-0105		●		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0106-			●	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9811-	●				●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9811-0105		●
15	01.531 PLUG; OIL GALLERY EXC. TURBOCHARGER<K51> 03.001 (B) M14X14	8-94152-613-0	01	1	9811-0105				●
15	01.531 PLUG; OIL GALLERY EXC. TURBOCHARGER<K51> 03.001 (B) M14X14	8-94152-613-0	01	1	0106-				●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9811-0105		●		●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	0106-			●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9811-0105		●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0106-			●	●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9811-	●				●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9811-0105		●		●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	0106-			●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9811-0105		●		●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	0106-			●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9811-0105		●		●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0106-			●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9811-0105		●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0106-			●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B HONG KONG EQUIPMENT(PQ1)	8-94167-750-2	01	1	9811-0105		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0106-			●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-2	01	1	9811-				●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9811-0105		●		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0106-				●
53	00.862 BOLT; REAMER M10X43	9-09606-535-0	01	1	0106-			●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9811-0105		●		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0106-			●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9811-0105		●		●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	0106-0201				●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-				●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9811-	●				●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	01	1	0106-0201			●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0202-			●
62	00.034 CUP; SEALING,C/BL FRT HONG KONG EQUIPMENT(PQ1) OD=14	5-11219-011-0	01	1	9811-0105		●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	01	1	9811-0105		●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9811-0105				●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0106-				●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9811-0105		●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0106-			●	●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	9811-	●				●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-9812		●		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9901-9906		●		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9907-0105		●		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0106-			●
148	02.313 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	9907-0105		●		●
148	02.313 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	0106-				●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0106-				●
148	02.313 CLIP; HARNESS 04.785 (B) ID=16 H=30 L=30	1-09701-080-0	01	1	0106-0107			●
148	02.313 CLIP; HARNESS 04.686 (B) ID=21 L=24	8-94176-807-1	01	1	0108-			●
148	02.313 CLIP; HARNESS 01.516 (A) ID=13 L=20	9-09525-235-0	01	1	0106-			●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9811-9812		●		●
150	02.313 BOLT; CLIP HONG KONG EQUIPMENT(PQ1) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9901-0105		●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-			●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9901-				●
194	00.439 PIPE; OIL DRAIN,C/BL TURBOCHARGER<K51>	8-97137-781-0	01	1	9811-0105				●
194	00.439 PIPE; OIL DRAIN,C/BL TURBOCHARGER<K51>	8-97137-781-0	01	1	0106-				●
194	00.439 PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	0106-			●

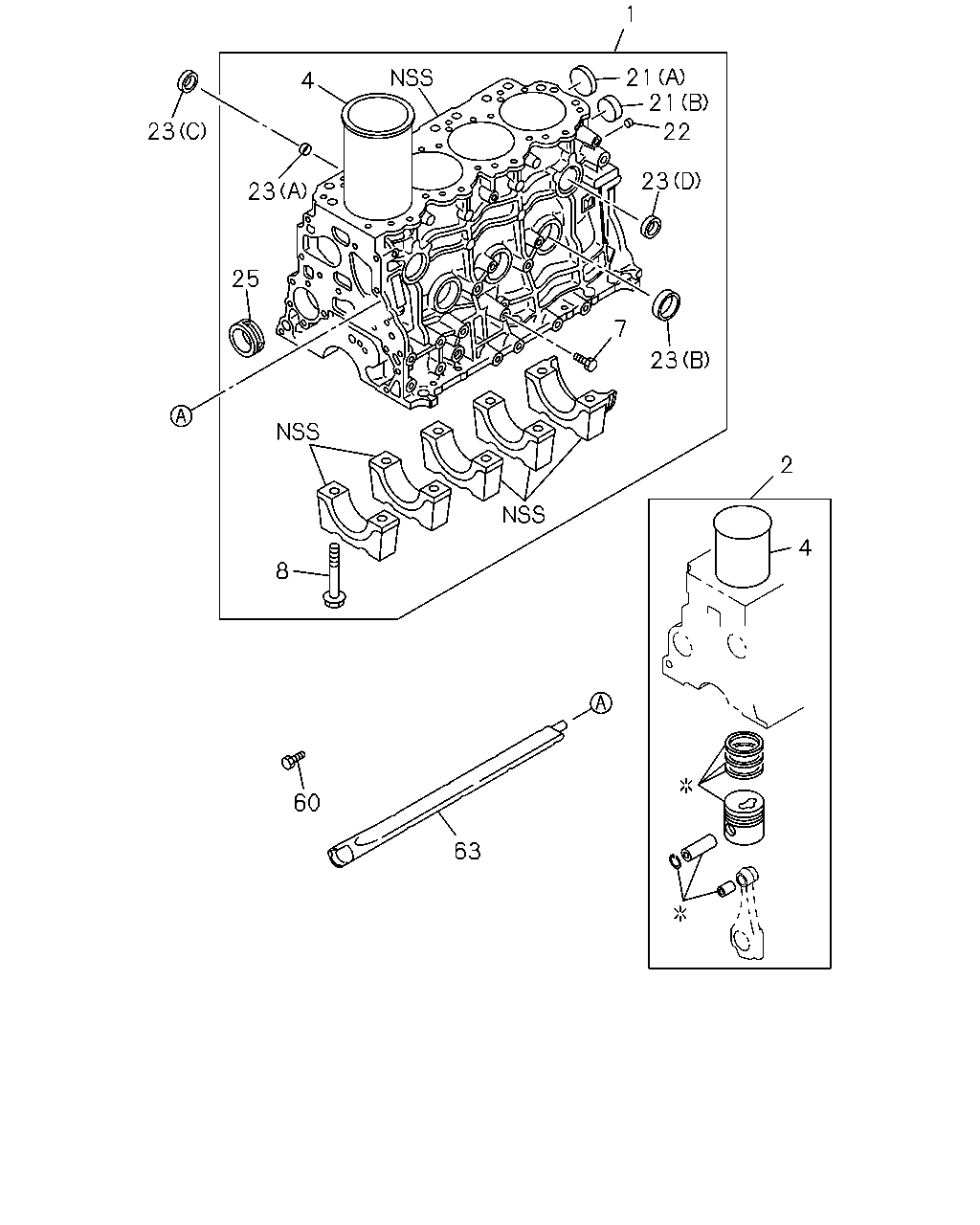

1 21 21 4 23 22 23 23 25 7 23 2 4 8 60 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.033 BLOCK ASM; CYL	8-97191-846-5	01	1	0108-	●
1	00.033 BLOCK ASM; CYL HONG KONG EQUIPMENT(PQ1)	8-97043-280-0	01	1	9811-0105		●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0106-			●
1	00.033 BLOCK ASM; CYL	8-94437-397-7	01	1	9811-0209				●
1	00.033 BLOCK ASM; CYL	8-97352-707-1	01	1	0210-				●
1	00.033 BLOCK ASM; CYL	8-97163-853-3	01	1	9811-					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-392-2	04	1	0108-	●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-393-2	04	1	0108-	●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=1	5-87813-209-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=2	5-87813-210-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=3	5-87813-211-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=4	5-87813-212-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-1	04	1	9811-					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-1	04	1	9811-					●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-090-1	04	1	0106-			●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-091-1	04	1	0106-			●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-092-1	04	1	0106-			●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-093-1	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	0108-0204	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97351-558-0	04	1	0205-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	0108-0204	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97351-559-0	04	1	0205-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9811-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9811-					●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9811-0105		●		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0106-			●	●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9811-0208	●				●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0209-	●				●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9811-0105		●		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0106-			●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9811-0105		●		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0106-			●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9811-0105		●		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0106-			●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9811-0105		●		●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0106-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9811-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	03	1	9811-0105				●
23	00.034 CUP; SEALING,C/BL FRT & RR TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0106-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9811-0105		●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	0106-0209			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	0210-0210			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9811-0105		●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	0106-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9811-0105		●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0106-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	9811-0105				●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	03	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9811-	●				●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	9811-0209	●				●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0210-0210	●			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0211-	●		●	●	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9811-0105		●		●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	0106-			●	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9811-0105		●		●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	0106-			●	●
60	01.531 BOLT; OIL JET EXC. TURBOCHARGER<K51> 04.105 M16X12	9-99202-316-0	01	1	9811-				●
63	01.153 DUCT; WATER,C/BL HONG KONG EQUIPMENT(PQ1)	8-94456-794-2	01	1	9811-0105		●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	0106-			●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9811-				●

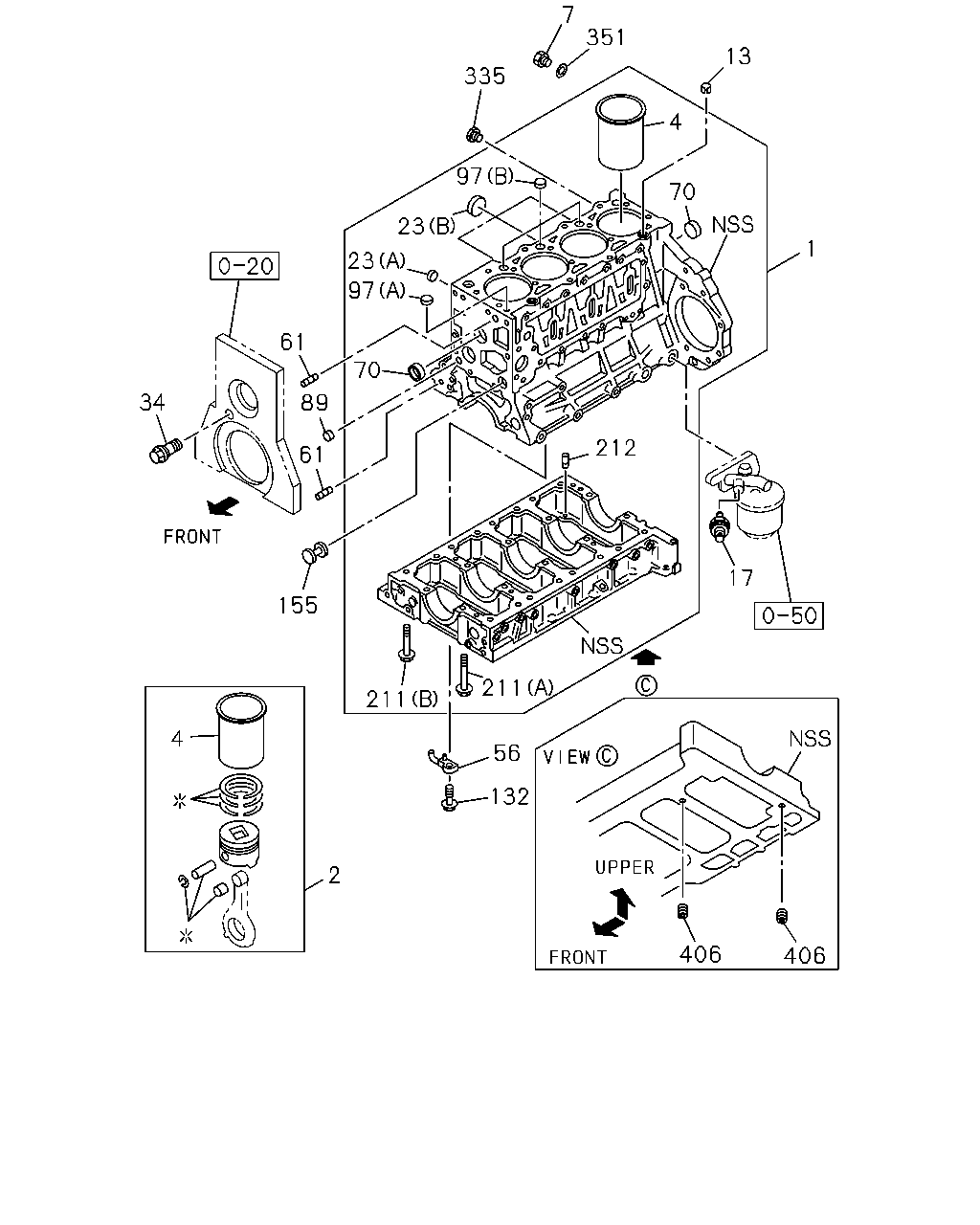

7 351 13 335 4 97 70 23 1 23 97 61 70 34 89 212 61 17 155 211 211 4 56 132 2 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.033 BLOCK ASM; CYL	8-97191-846-5	01	1	0108-	●
1	00.033 BLOCK ASM; CYL HONG KONG EQUIPMENT(PQ1)	8-97043-280-0	01	1	9811-0105		●
1	00.033 BLOCK ASM; CYL	8-97257-264-2	01	1	0106-			●
1	00.033 BLOCK ASM; CYL	8-94437-397-7	01	1	9811-0209				●
1	00.033 BLOCK ASM; CYL	8-97352-707-1	01	1	0210-				●
1	00.033 BLOCK ASM; CYL	8-97163-853-3	01	1	9811-					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-392-2	04	1	0108-	●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-393-2	04	1	0108-	●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=1	5-87813-209-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=2	5-87813-210-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=3	5-87813-211-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) 00.094 GRADE=4	5-87813-212-0	04	1	9811-0105		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	9811-				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-1	04	1	9811-					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-1	04	1	9811-					●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-090-1	04	1	0106-			●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-091-1	04	1	0106-			●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-092-1	04	1	0106-			●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-093-1	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	0108-0204	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97351-558-0	04	1	0205-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	0108-0204	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97351-559-0	04	1	0205-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. HONG KONG EQUIPMENT(PQ1) OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9811-0105		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0106-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9811-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9811-					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9811-					●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9811-0105		●		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0106-			●	●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9811-0208	●				●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0209-	●				●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9811-0105		●		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0106-			●	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9811-	●				●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9811-0105		●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0106-			●	●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9811-	●				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9811-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	03	1	9811-0105				●
23	00.034 CUP; SEALING,C/BL FRT & RR TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0106-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9811-0105		●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	0106-0209			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	0210-0210			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9811-0105		●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	0106-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9811-0105		●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0106-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	9811-0105				●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	03	1	0106-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9811-	●				●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	9811-0209	●				●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0210-0210	●			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0211-	●		●	●	●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9811-	●				●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9811-	●				●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9811-0105		●		●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	0106-0201				●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-				●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9811-	●				●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	01	1	0106-0201			●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0202-			●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9811-0105		●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0106-			●	●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	9811-	●				●
89	00.034 CUP; SEALING,OIL GALLERY 03.265 OD=20	9-11219-192-0	03	1	9811-9907	●				●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	9908-	●				●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0205-	●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0205-	●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9811-	●				●
155	01.531 PLUG; OIL GALLERY END INDONESIA EQUIPMENT(S4S)	8-97249-325-0	01	1	0001-0107					●
155	01.531 PLUG; OIL GALLERY END INDONESIA EQUIPMENT(S4S)	8-97249-325-0	01	1	0108-					●
155	01.531 PLUG; OIL GALLERY END	8-97249-325-0	01	1	0108-	●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9811-	●				●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9811-	●				●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	9811-	●				●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9811-	●				●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9811-	●				●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	9811-	●				●

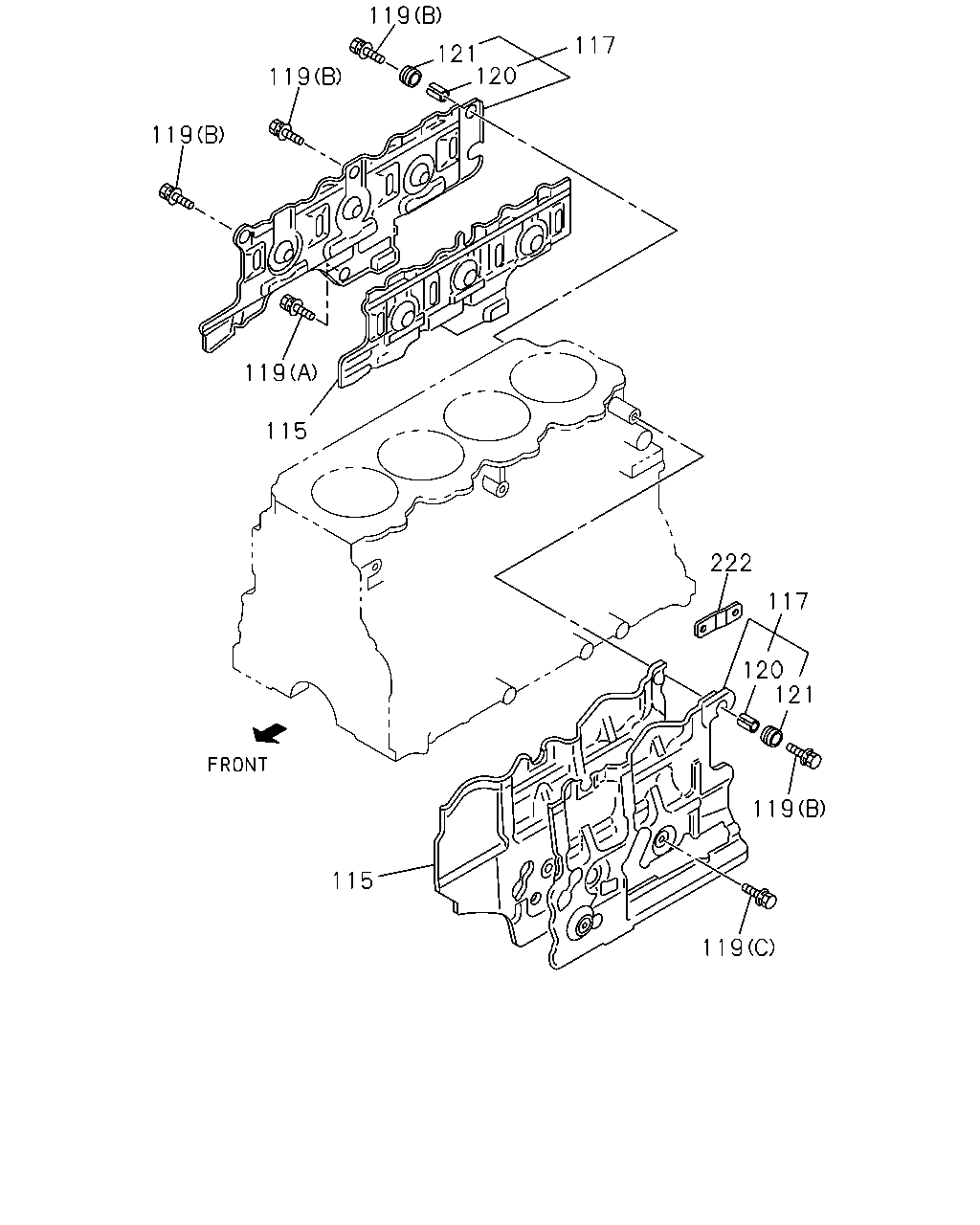

119 117 121 120 119 119 119 115 222 117 120 121 119 115 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
115	00.034 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97141-688-2	01	1	9811-0105	●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	0106-		●
115	00.034 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97141-687-0	01	1	9811-0105	●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	0106-		●
117	00.030 COVER ASM; C/BL HONG KONG EQUIPMENT(PQ1)	8-97141-686-0	01	1	9811-0105	●
117	00.030 COVER ASM; C/BL	8-97300-309-1	01	1	0106-		●
117	00.030 COVER ASM; C/BL HONG KONG EQUIPMENT(PQ1)	8-97141-685-1	01	1	9811-0105	●
117	00.030 COVER ASM; C/BL	8-97259-600-0	01	1	0106-		●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9811-0105	●
119	00.034 BOLT; COVER FIX 00.004 (E) M8X32 FLANGE	0-28080-832-0	01	1	0106-		●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9811-0105	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) (A) M10X28	8-94329-952-1	01	1	9811-0105	●
119	00.034 BOLT; COVER FIX (D) M10X28	8-94329-952-1	01	1	0106-		●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9811-0105	●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0106-		●
120	00.034 BUSHING; MTG RUBBER (B) OD=18 T=4.5	8-97188-506-0	01	1	0106-		●
120	00.034 BUSHING; MTG RUBBER HONG KONG EQUIPMENT(PQ1) OD=13 T=9.5	8-94140-427-1	06	1	9811-0105	●
120	00.034 BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	05	1	0106-		●
121	00.034 RUBBER; MTG,COVER (B) OD=16	8-97188-507-0	01	1	0106-		●
121	00.034 RUBBER; MTG,COVER HONG KONG EQUIPMENT(PQ1) OD=22	8-94140-428-1	06	1	9811-0105	●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0106-		●
222	00.340 BRACKET; COVER,C/BL HONG KONG EQUIPMENT(PQ1)	8-94460-512-0	01	1	9811-0105	●

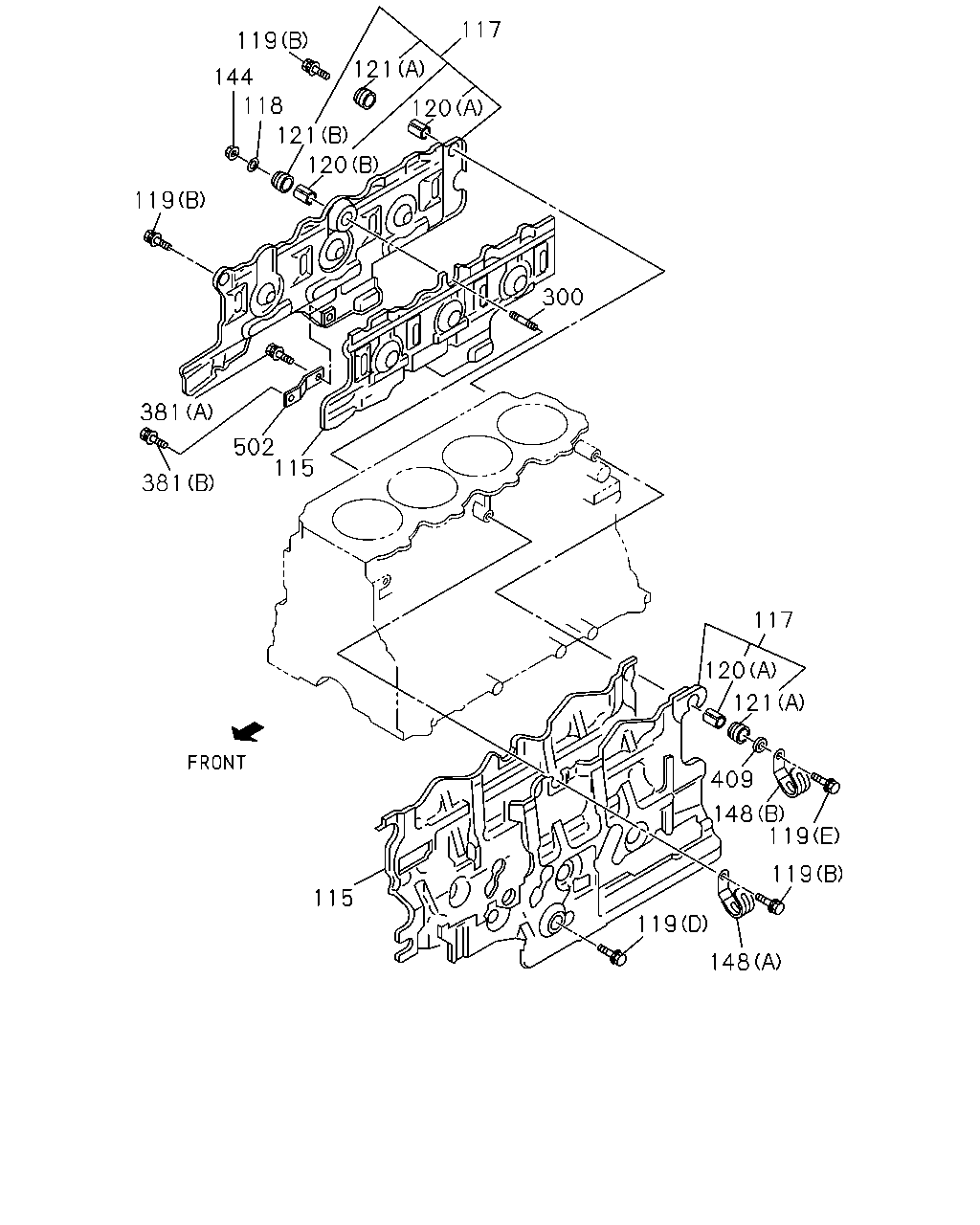

117 119 121 144 118 120 121 120 119 300 381 502 115 381 117 120 121 409 148 119 119 115 119 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
115	00.034 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97141-688-2	01	1	9811-0105	●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	0106-		●
115	00.034 RUBBER; SPACE HONG KONG EQUIPMENT(PQ1)	8-97141-687-0	01	1	9811-0105	●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	0106-		●
117	00.030 COVER ASM; C/BL HONG KONG EQUIPMENT(PQ1)	8-97141-686-0	01	1	9811-0105	●
117	00.030 COVER ASM; C/BL	8-97300-309-1	01	1	0106-		●
117	00.030 COVER ASM; C/BL HONG KONG EQUIPMENT(PQ1)	8-97141-685-1	01	1	9811-0105	●
117	00.030 COVER ASM; C/BL	8-97259-600-0	01	1	0106-		●
118	00.446 WASHER; PL,COVER FIX 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0106-		●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9811-0105	●
119	00.034 BOLT; COVER FIX 00.004 (E) M8X32 FLANGE	0-28080-832-0	01	1	0106-		●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9811-0105	●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) (A) M10X28	8-94329-952-1	01	1	9811-0105	●
119	00.034 BOLT; COVER FIX (D) M10X28	8-94329-952-1	01	1	0106-		●
119	00.034 BOLT; COVER FIX HONG KONG EQUIPMENT(PQ1) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9811-0105	●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0106-		●
120	00.034 BUSHING; MTG RUBBER (B) OD=18 T=4.5	8-97188-506-0	01	1	0106-		●
120	00.034 BUSHING; MTG RUBBER HONG KONG EQUIPMENT(PQ1) OD=13 T=9.5	8-94140-427-1	06	1	9811-0105	●
120	00.034 BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	05	1	0106-		●
121	00.034 RUBBER; MTG,COVER (B) OD=16	8-97188-507-0	01	1	0106-		●
121	00.034 RUBBER; MTG,COVER HONG KONG EQUIPMENT(PQ1) OD=22	8-94140-428-1	06	1	9811-0105	●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0106-		●
144	02.100 NUT; COVER FIX 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-9812	●		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9901-9906	●		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9907-0105	●		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0106-		●
148	02.313 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	9907-0105	●		●
148	02.313 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	0106-			●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0106-			●
148	02.313 CLIP; HARNESS 04.785 (B) ID=16 H=30 L=30	1-09701-080-0	01	1	0106-0107		●
148	02.313 CLIP; HARNESS 04.686 (B) ID=21 L=24	8-94176-807-1	01	1	0108-		●
148	02.313 CLIP; HARNESS 01.516 (A) ID=13 L=20	9-09525-235-0	01	1	0106-		●
300	02.042 STUD; COVER 05.387 M8X30 L=41	9-04110-830-0	01	1	0106-		●
381	01.531 BOLT; BRKT 00.206 (B) M8X12 W/LK WASHER	0-50040-812-0	01	1	0106-0202		●
381	01.531 BOLT; BRKT 00.206 (B) M8X10 FLANGE	0-28080-810-0	01	1	0203-		●
381	01.531 BOLT; BRKT 11.377 (A) M10X20 W/LK WASHER	0-50041-020-0	01	1	0106-		●
409	00.033 SPACER; COVER ID=8.5 L=10	5-13642-077-0	01	1	0106-		●
502	00.340 BRACKET; BODY COVER	8-97209-129-0	01	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
