◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶

0-10 — CYLINDER HEAD COVER (#46097) — 142 parça

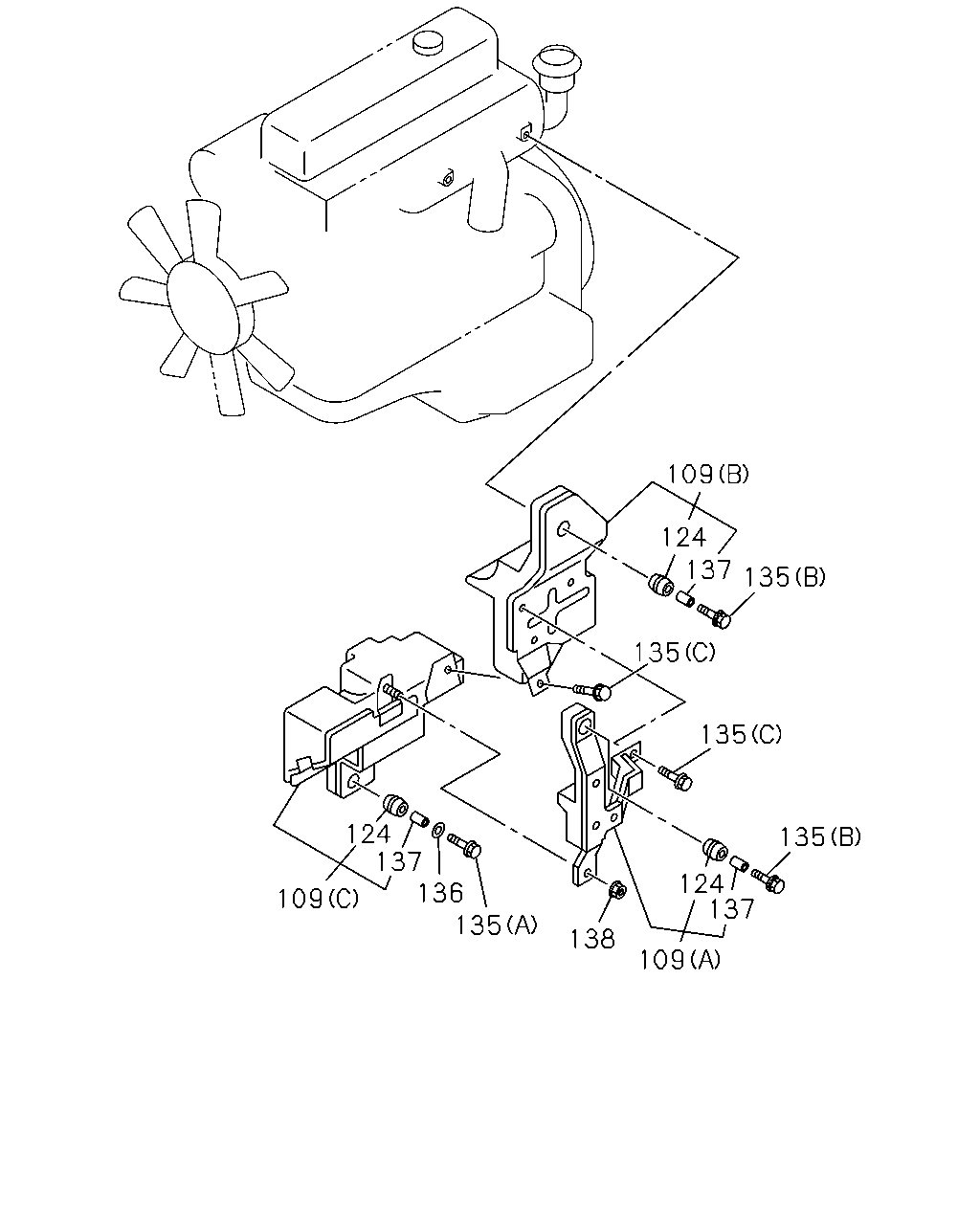

109 124 137 35 135 135 124 137 136 135 135 124 137 109 138 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
35	00.293 BOLT; NOISE SHIELD COVER HONG KONG EQUIPMENT(PQ1) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9811-0105	●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9811-0203		●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0204-		●	●
109	00.386 COVER; ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97223-628-2	01	1	0111-				●
109	00.386 COVER; ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97223-629-1	01	1	0111-				●
109	00.386 COVER; ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97223-630-1	01	1	0111-				●
124	00.413 RUBBER; MTG,COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 OD=22	8-94140-428-1	03	1	0111-0201				●
124	00.413 RUBBER; MTG,COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> OD=21.8	8-97325-051-0	03	1	0202-				●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0111-				●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 09.008 (A) M10X20 FLANGE	0-28081-020-0	01	1	0111-				●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	0111-				●
136	00.413 WASHER; PL,ENG COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0111-				●
137	00.413 BUSHING; MTG RUBBER,COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 OD=13 T=9.5	8-94140-427-1	03	1	0111-				●
138	00.413 NUT; COVER,ENG TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	01	1	0111-				●

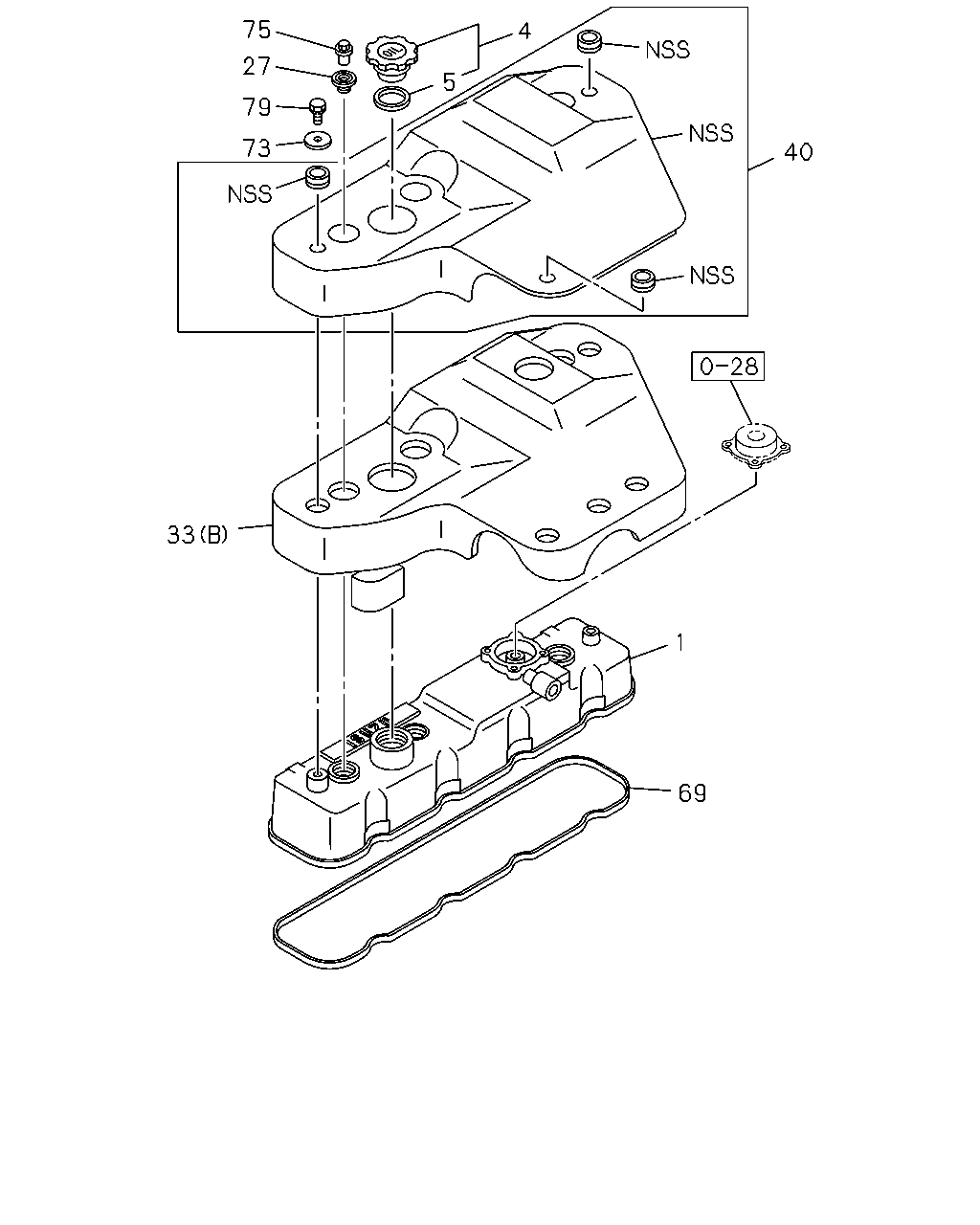

75 4 27 5 79 73 40 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9811-0105	●			●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	0106-				●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9811-0203		●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0204-		●	●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0106-					●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9811-0105	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0106-		●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9811-0105	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0106-		●	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-94202-456-3	03	1	9811-0103	●			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-97263-801-0	03	1	0104-0105	●			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-97263-801-0	03	1	0106-				●	●
33	00.386 RUBBER; SPACE,CYL HD COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97204-206-1	01	1	0111-				●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-97141-691-2	01	1	9811-0105	●
33	00.386 RUBBER; SPACE,CYL HD COVER HONG KONG EQUIPMENT(PQ1) (A)	8-97147-921-0	01	1	9811-0105	●
33	00.386 RUBBER; SPACE,CYL HD COVER (C)	8-97240-038-0	01	1	0106-					●
40	00.386 COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97204-205-4	01	1	0111-				●
40	00.386 COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1)	8-97141-690-3	01	1	9811-0105	●
40	00.386 COVER HONG KONG EQUIPMENT(PQ1)	8-94133-732-2	01	1	9811-0105	●
40	00.386 COVER	8-97240-037-0	01	1	0106-					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97161-131-0	01	1	9811-0105	●			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97161-131-0	01	1	0106-				●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	9811-0203		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97189-871-1	01	1	0204-		●	●
73	00.413 WASHER; PL,HD COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9811-0105	●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0106-0110					●
73	00.413 WASHER; PL,HD COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0111-				●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0111-					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9811-0105	●			●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0106-				●	●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9811-0105	●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-0110					●
79	00.293 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0111-				●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0111-					●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9811-0105	●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0106-0110					●
79	00.293 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0111-				●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0111-					●

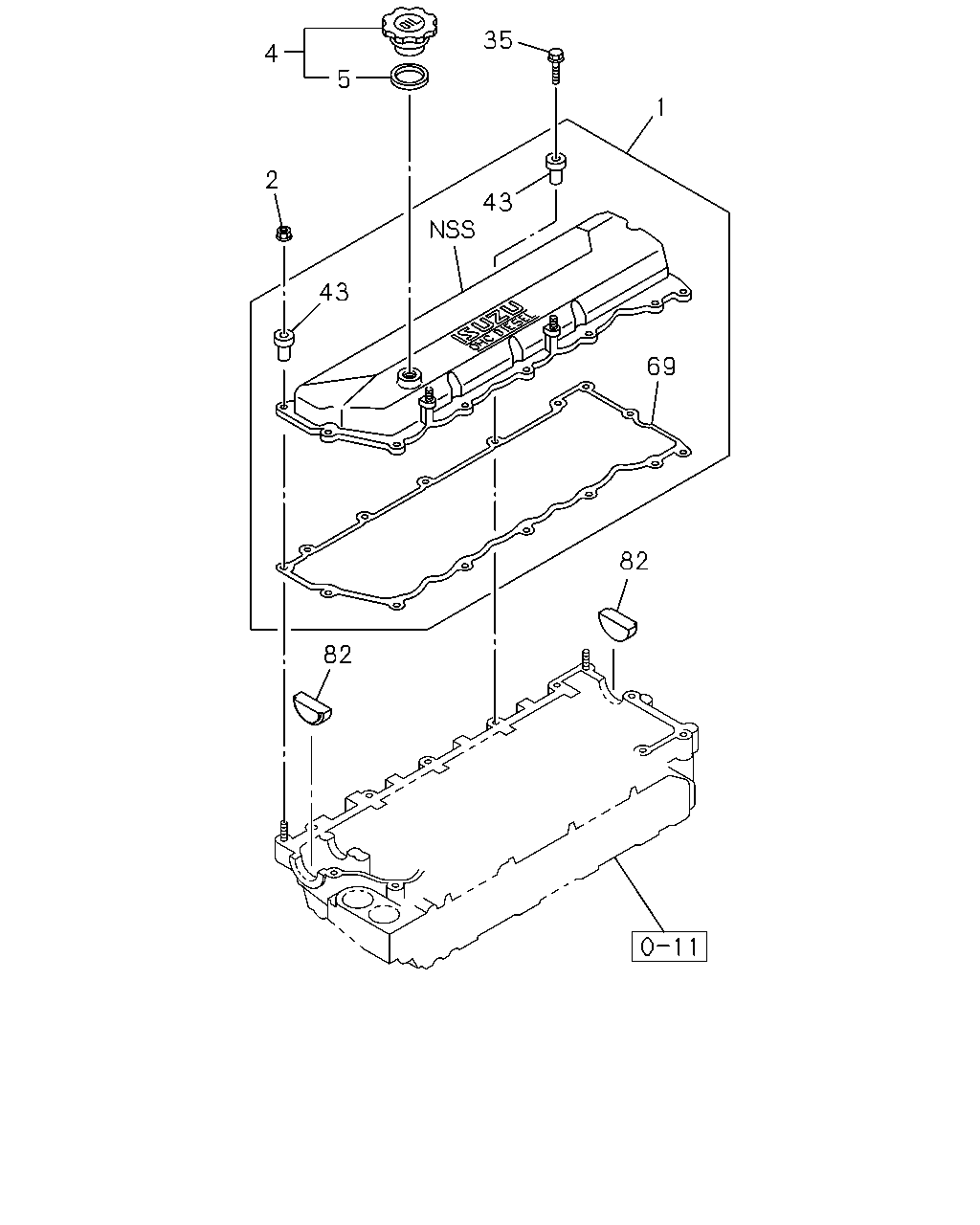

35 4 5 1 2 43 43 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9811-0105	●			●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	0106-				●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9811-0203		●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0204-		●	●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0106-					●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9811-0105	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0106-		●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9811-0105	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0106-		●	●	●	●
35	00.293 BOLT; NOISE SHIELD COVER HONG KONG EQUIPMENT(PQ1) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9811-0105	●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9811-0203		●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0204-		●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9811-0203		●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=23	8-97190-120-2	08	1	0204-		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97161-131-0	01	1	9811-0105	●			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97161-131-0	01	1	0106-				●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	9811-0203		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97189-871-1	01	1	0204-		●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	9811-		●	●

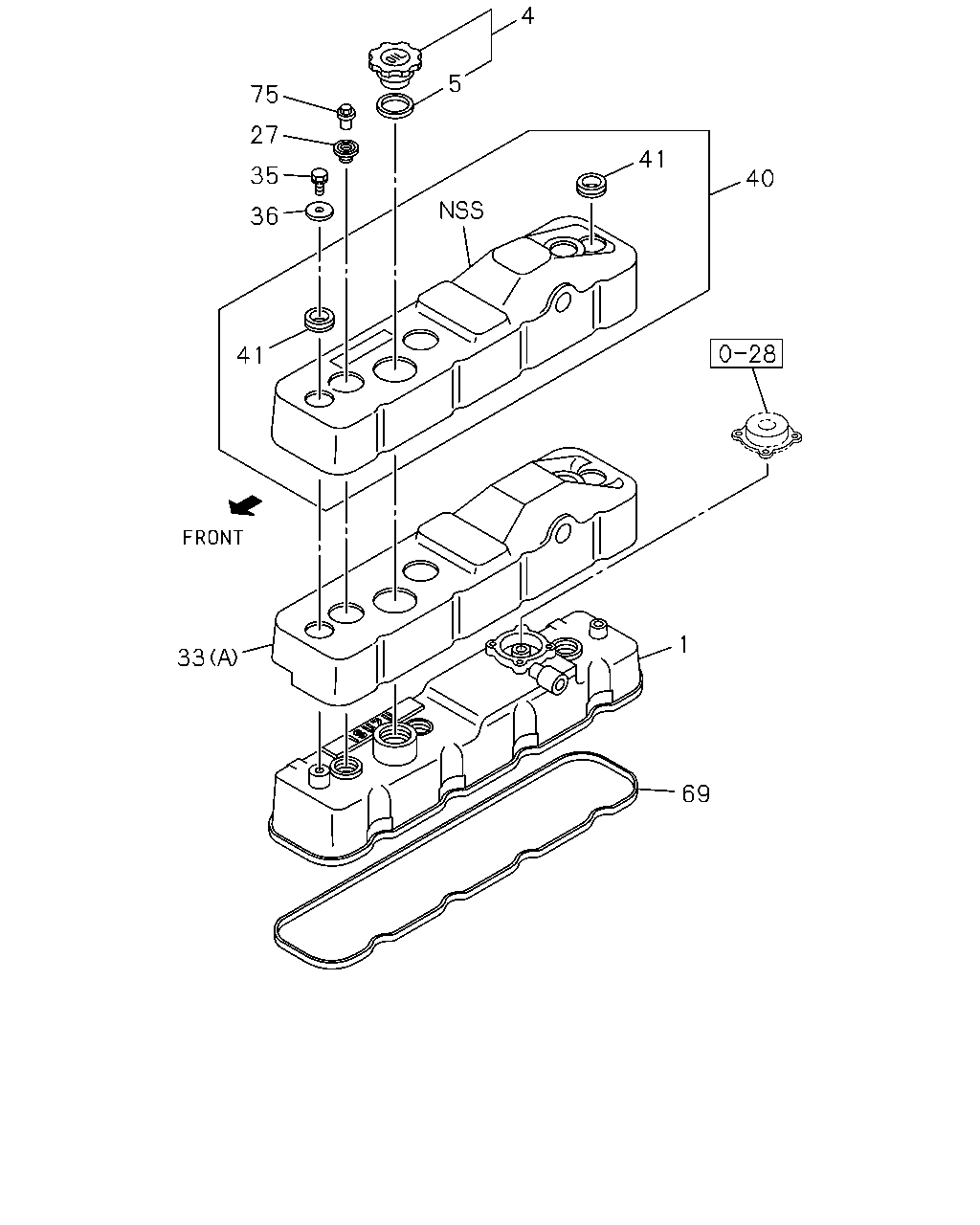

4 5 75 27 41 35 40 36 41 1 33 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9811-0105	●			●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	0106-				●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9811-0203		●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0204-		●	●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0106-					●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9811-0105	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0106-		●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9811-0105	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0106-		●	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-94202-456-3	03	1	9811-0103	●			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-97263-801-0	03	1	0104-0105	●			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-97263-801-0	03	1	0106-				●	●
33	00.386 RUBBER; SPACE,CYL HD COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97204-206-1	01	1	0111-				●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-97141-691-2	01	1	9811-0105	●
33	00.386 RUBBER; SPACE,CYL HD COVER HONG KONG EQUIPMENT(PQ1) (A)	8-97147-921-0	01	1	9811-0105	●
33	00.386 RUBBER; SPACE,CYL HD COVER (C)	8-97240-038-0	01	1	0106-					●
35	00.293 BOLT; NOISE SHIELD COVER HONG KONG EQUIPMENT(PQ1) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9811-0105	●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9811-0203		●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.704 M8X40 FLANGE	0-28680-840-0	06	1	0204-		●	●
36	00.413 WASHER; PL,NOISE SHIELD COVER HONG KONG EQUIPMENT(PQ1) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9811-0105	●
40	00.386 COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97204-205-4	01	1	0111-				●
40	00.386 COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1)	8-97141-690-3	01	1	9811-0105	●
40	00.386 COVER HONG KONG EQUIPMENT(PQ1)	8-94133-732-2	01	1	9811-0105	●
40	00.386 COVER	8-97240-037-0	01	1	0106-					●
41	00.413 GROMMET; HD COVER,OUTER HONG KONG EQUIPMENT(PQ1)	8-94256-959-0	02	1	9811-0105	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97161-131-0	01	1	9811-0105	●			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97161-131-0	01	1	0106-				●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	9811-0203		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97189-871-1	01	1	0204-		●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9811-0105	●			●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0106-				●	●

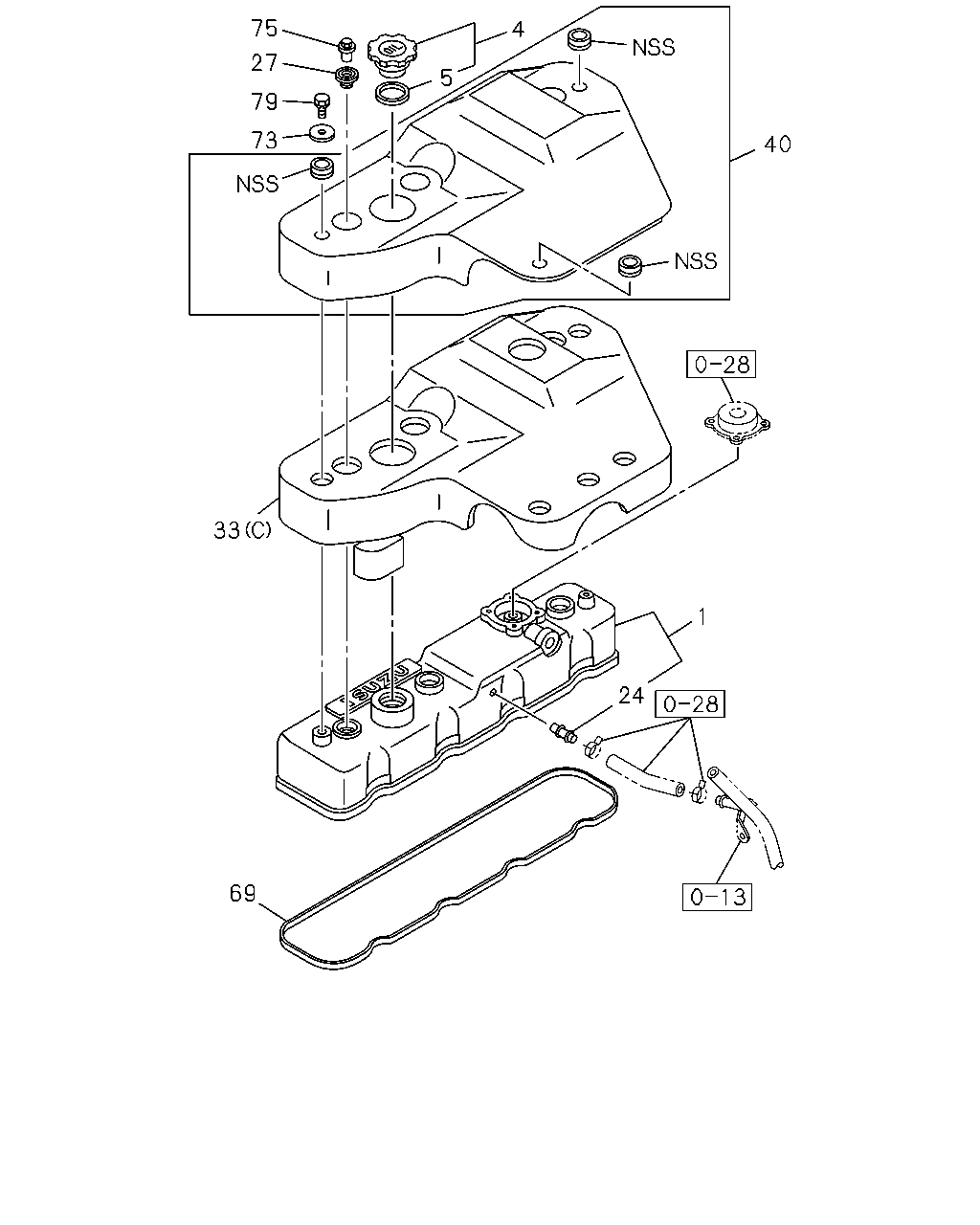

75 4 27 5 79 73 40 33 1 24 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9811-0105	●			●
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	0106-				●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9811-0203		●	●
1	00.386 COVER; CYL HD	8-97226-760-1	01	1	0204-		●	●
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	0106-					●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9811-0105	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0106-		●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9811-0105	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0106-		●	●	●	●
24	00.413 PIPE; BREATHER,OIL FILLER 01.430	8-94455-311-1	01	1	0106-					●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-94202-456-3	03	1	9811-0103	●			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-97263-801-0	03	1	0104-0105	●			●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-97263-801-0	03	1	0106-				●	●
33	00.386 RUBBER; SPACE,CYL HD COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97204-206-1	01	1	0111-				●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-97141-691-2	01	1	9811-0105	●
33	00.386 RUBBER; SPACE,CYL HD COVER HONG KONG EQUIPMENT(PQ1) (A)	8-97147-921-0	01	1	9811-0105	●
33	00.386 RUBBER; SPACE,CYL HD COVER (C)	8-97240-038-0	01	1	0106-					●
40	00.386 COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97204-205-4	01	1	0111-				●
40	00.386 COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1)	8-97141-690-3	01	1	9811-0105	●
40	00.386 COVER HONG KONG EQUIPMENT(PQ1)	8-94133-732-2	01	1	9811-0105	●
40	00.386 COVER	8-97240-037-0	01	1	0106-					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97161-131-0	01	1	9811-0105	●			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97161-131-0	01	1	0106-				●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	9811-0203		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97189-871-1	01	1	0204-		●	●
73	00.413 WASHER; PL,HD COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9811-0105	●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0106-0110					●
73	00.413 WASHER; PL,HD COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0111-				●
73	00.413 WASHER; PL,HD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0111-					●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9811-0105	●			●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0106-				●	●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9811-0105	●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-0110					●
79	00.293 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0111-				●
79	00.293 BOLT; COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0111-					●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9811-0105	●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0106-0110					●
79	00.293 BOLT; COVER TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0111-				●
79	00.293 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0111-					●
