Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#46094) — 310 parça

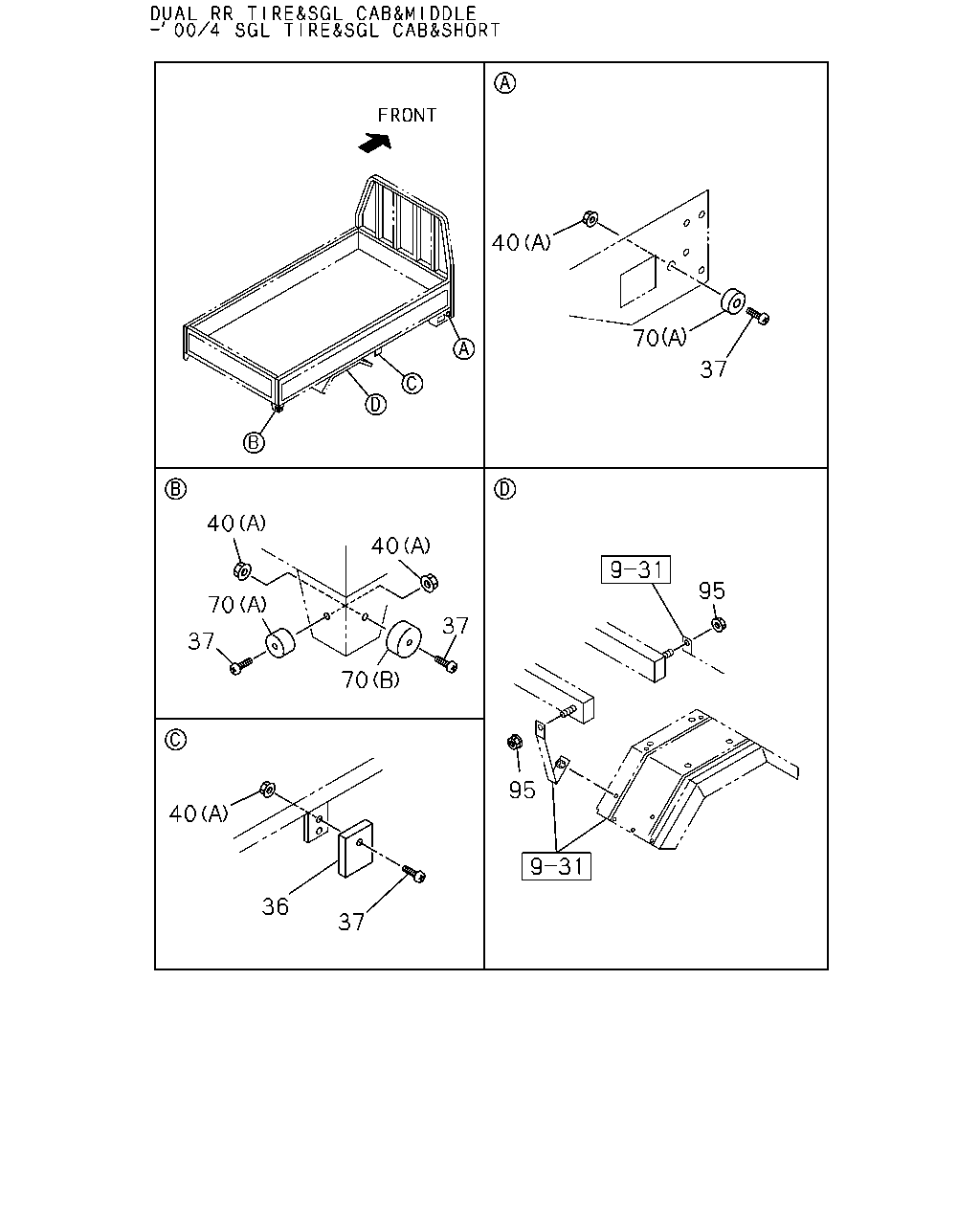

40 70 37 40 40 95 70 37 37 70 95 40 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	17.202 RUBBER; STOPPER,RR GATE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-202-0	02	1	0005-0105	●
36	17.202 RUBBER; STOPPER,RR GATE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-202-0	02	1	0106-	●
36	17.202 RUBBER; STOPPER,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.507	5-66950-178-0	02	1	9906-0105		●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	9906-0004	●
37	17.202 SCREW AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	9906-0004		●
37	17.202 SCREW AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	0005-0105		●
37	17.202 SCREW 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-198-0	06	1	0005-0105	●
37	17.202 SCREW 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-198-0	06	1	0106-	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9906-0004	●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9906-0004		●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0005-0105		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9906-0004	●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9906-0004		●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0005-0105		●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (A) M6 FLANGE	8-94197-199-0	06	1	0005-0105	●
40	17.202 NUT; STOPPER RUBBER 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (A) M6 FLANGE	8-94197-199-0	06	1	0106-	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A),(B) OD=45 H=22	5-66950-120-1	04	1	9906-0004	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.202 (B) OD=45 H=28	8-94192-532-0	02	1	9906-0004	●
70	17.490 RUBBER; BUMPER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.202 (B) OD=45 H=28	8-94192-532-0	02	1	9906-0004		●
70	17.490 RUBBER; BUMPER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.202 (B) OD=45 H=28	8-94192-532-0	02	1	0005-0105		●
70	17.490 RUBBER; BUMPER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	9906-0105		●
70	17.490 RUBBER; BUMPER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (B) OD=60 H=28	8-94194-895-0	02	1	9906-0105		●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED<RS6> 17.447	8-94194-114-0	08	1	9906-0004	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9906-0004	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	0005-0105	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	0106-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9906-0004	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	0005-0105	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	0106-	●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9906-0007		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-449-0	01	1	0008-0105		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9906-0007		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-448-0	01	1	0008-0105		●

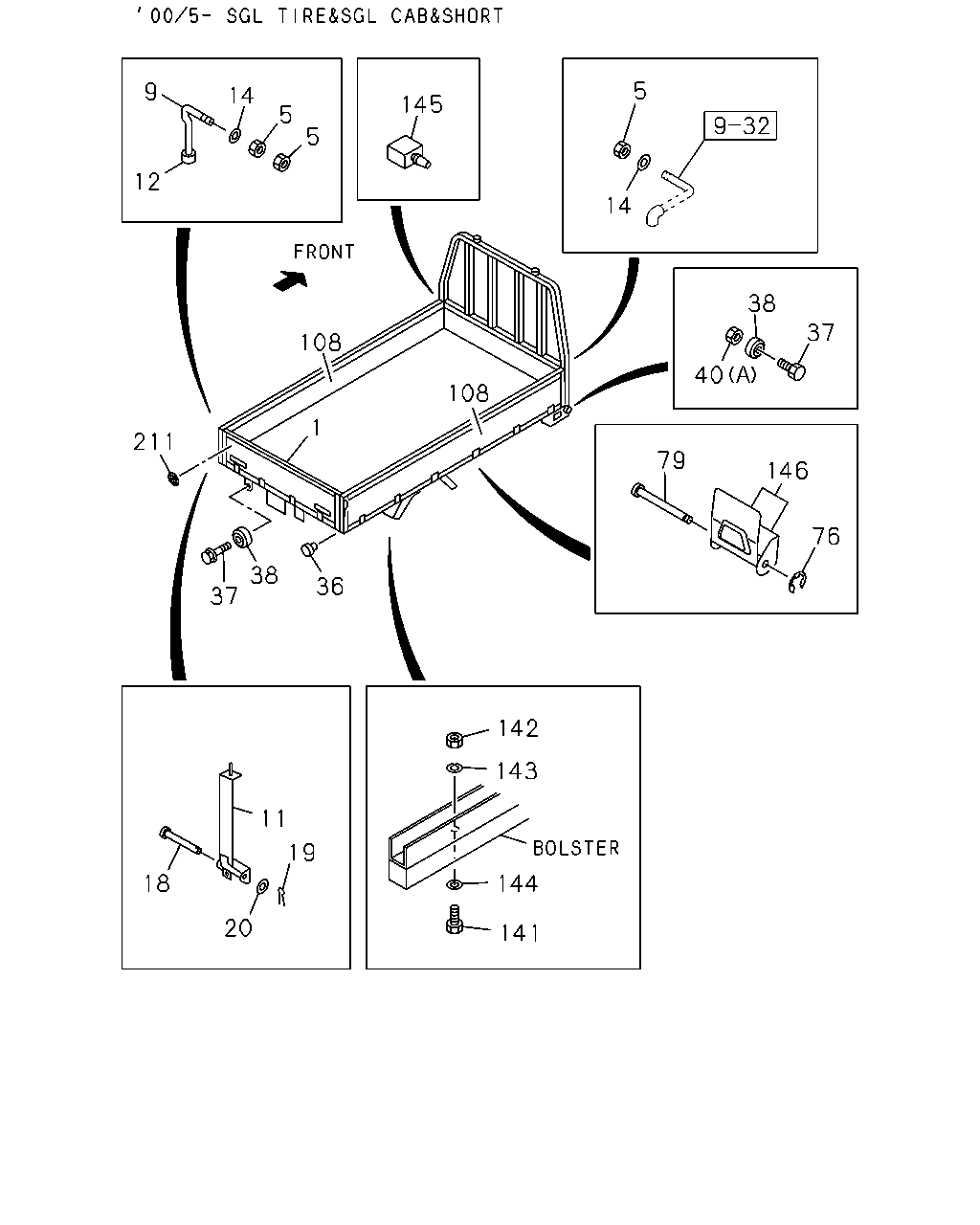

5 9 14 145 5 5 12 14 38 37 108 40 108 1 211 79 146 76 38 36 37 142 143 11 19 18 144 20 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-1	01	1	9906-0004	●
1	17.185 GATE ASM; RR 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=1596 H=398 B=43 STEEL TAKADA	8-94197-168-0	01	1	0005-0105	●
1	17.185 GATE ASM; RR 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=1596 H=398 B=43 STEEL TAKADA	8-94197-168-0	01	1	0106-	●
1	17.185 GATE ASM; RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94193-788-1	01	1	9906-0007		●
1	17.185 GATE ASM; RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94195-477-1	01	1	0008-0105		●
5	17.204 NUT; LATCH HANDLE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 07.347 M12	9-99111-412-0	08	1	0005-0105	●
5	17.204 NUT; LATCH HANDLE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 07.347 M12	9-99111-412-0	08	1	0106-	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	9906-0004	●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	9906-0004		●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	0005-0007		●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94196-401-0	01	1	0008-0105		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	9906-0004	●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	9906-0004		●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	0005-0007		●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94196-400-0	01	1	0008-0105		●
9	17.204 HANDLE; LATCH,RR GATE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-208-0	01	1	0005-0105	●
9	17.204 HANDLE; LATCH,RR GATE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-208-0	01	1	0106-	●
9	17.204 HANDLE; LATCH,RR GATE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-207-0	01	1	0005-0105	●
9	17.204 HANDLE; LATCH,RR GATE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-207-0	01	1	0106-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-144-0	01	1	9906-0004	●
11	17.198 LOCK ASM; VERTICAL 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-201-2	01	1	0005-0105	●
11	17.198 LOCK ASM; VERTICAL 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-201-2	01	1	0106-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-143-0	01	1	9906-0004	●
11	17.198 LOCK ASM; VERTICAL 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-200-2	01	1	0005-0105	●
11	17.198 LOCK ASM; VERTICAL 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-200-2	01	1	0106-	●
11	17.198 LOCK ASM; VERTICAL AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-347-0	01	1	9906-0007		●
11	17.198 LOCK ASM; VERTICAL AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94196-399-0	01	1	0008-0105		●
11	17.198 LOCK ASM; VERTICAL AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-346-0	01	1	9906-0007		●
11	17.198 LOCK ASM; VERTICAL AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94196-398-0	01	1	0008-0105		●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	9906-0004	●
12	17.204 PIECE; END,RR HANDLE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	0005-0105	●
12	17.204 PIECE; END,RR HANDLE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	0106-	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	9906-0004	●
14	17.204 WASHER; PL,HANDLE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	9906-0004		●
14	17.204 WASHER; PL,HANDLE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	0005-0105		●
14	17.204 WASHER; PL,HANDLE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	02	1	0005-0105	●
14	17.204 WASHER; PL,HANDLE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	02	1	0106-	●
14	17.204 WASHER; PL,HANDLE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 03.430 ID=12.5	9-09160-512-0	04	1	0005-0105	●
14	17.204 WASHER; PL,HANDLE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 03.430 ID=12.5	9-09160-512-0	04	1	0106-	●
18	17.198 PIN; VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-090-0	04	1	0005-0105	●
18	17.198 PIN; VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-090-0	04	1	0106-	●
19	17.198 PIN; SPLIT,VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	9-08113-015-0	04	1	0005-0105	●
19	17.198 PIN; SPLIT,VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	9-08113-015-0	04	1	0106-	●
20	17.198 WASHER; PL,VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	04	1	0005-0105	●
20	17.198 WASHER; PL,VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	04	1	0106-	●
36	17.202 RUBBER; STOPPER,RR GATE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-202-0	02	1	0005-0105	●
36	17.202 RUBBER; STOPPER,RR GATE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-202-0	02	1	0106-	●
36	17.202 RUBBER; STOPPER,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.507	5-66950-178-0	02	1	9906-0105		●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	9906-0004	●
37	17.202 SCREW AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	9906-0004		●
37	17.202 SCREW AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94194-119-0	06	1	0005-0105		●
37	17.202 SCREW 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-198-0	06	1	0005-0105	●
37	17.202 SCREW 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-198-0	06	1	0106-	●
38	17.507 RUBBER; STOPPER,SIDE GATE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.202 OD=45 H=30	5-66900-013-1	06	1	0005-0105	●
38	17.507 RUBBER; STOPPER,SIDE GATE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.202 OD=45 H=30	5-66900-013-1	06	1	0106-	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9906-0004	●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9906-0004		●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0005-0105		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9906-0004	●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9906-0004		●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0005-0105		●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (A) M6 FLANGE	8-94197-199-0	06	1	0005-0105	●
40	17.202 NUT; STOPPER RUBBER 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (A) M6 FLANGE	8-94197-199-0	06	1	0106-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	16	1	9906-0004	●
76	17.505 RING; SNAP,GATE HINGE PIN 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 ID=6	9-09185-006-0	16	1	0005-0105	●
76	17.505 RING; SNAP,GATE HINGE PIN 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 ID=6	9-09185-006-0	16	1	0106-	●
76	17.505 RING; SNAP,GATE HINGE PIN AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	14	1	9906-0007		●
76	17.505 RING; SNAP,GATE HINGE PIN AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	18	1	0008-0105		●
76	17.505 RING; SNAP,GATE HINGE PIN AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	04	1	9906-0007		●
79	17.185 PIN; SIDE & RR GATE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-143-0	16	1	0005-0105	●
79	17.185 PIN; SIDE & RR GATE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-143-0	16	1	0106-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-770-1	01	1	9906-0004	●
108	17.505 GATE ASM; SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-263-0	01	1	0005-0105	●
108	17.505 GATE ASM; SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-263-0	01	1	0106-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-769-1	01	1	9906-0004	●
108	17.505 GATE ASM; SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-262-0	01	1	0005-0105	●
108	17.505 GATE ASM; SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-262-0	01	1	0106-	●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94193-787-1	01	1	9906-0007		●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94195-866-1	01	1	0008-0105		●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94193-786-1	01	1	9906-0007		●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94195-865-1	01	1	0008-0105		●
141	17.505 BOLT 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M6X32	0-10805-632-0	16	1	0005-0105	●
141	17.505 BOLT 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M6X32	0-10805-632-0	16	1	0106-	●
142	17.505 NUT 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 16.176 M6	9-09110-406-0	16	1	0005-0105	●
142	17.505 NUT 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 16.176 M6	9-09110-406-0	16	1	0106-	●
143	17.505 WASHER; LK,SPACER 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 00.206 ID=6.1	9-09150-506-0	16	1	0005-0105	●
143	17.505 WASHER; LK,SPACER 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 00.206 ID=6.1	9-09150-506-0	16	1	0106-	●
144	17.505 WASHER; PL,SPACER 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 02.334 ID=6.4 OD=22	9-09164-806-0	16	1	0005-0105	●
144	17.505 WASHER; PL,SPACER 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 02.334 ID=6.4 OD=22	9-09164-806-0	16	1	0106-	●
145	17.505 STOPPER; SIDE GATE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.507	8-94238-211-0	02	1	0005-0105	●
145	17.505 STOPPER; SIDE GATE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.507	8-94238-211-0	02	1	0106-	●
146	17.505 HINGE; SIDE & REAR 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-205-0	16	1	0005-0105	●
146	17.505 HINGE; SIDE & REAR 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-205-0	16	1	0106-	●
211	17.505 REFLECTOR; RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 16.225	8-97808-650-0	02	1	0005-0105	●
211	17.505 REFLECTOR; RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 16.225	8-97808-650-0	02	1	0106-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9906-0004	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	0005-0105	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	0106-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9906-0004	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	0005-0105	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	0106-	●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9906-0007		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-449-0	01	1	0008-0105		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9906-0007		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-448-0	01	1	0008-0105		●

108 108 11 1 11 1 259 229 40 14 210 22 2 9 4 26 4 228 76 88 12 23 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-1	01	1	9906-0004	●
1	17.185 GATE ASM; RR 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=1596 H=398 B=43 STEEL TAKADA	8-94197-168-0	01	1	0005-0105	●
1	17.185 GATE ASM; RR 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=1596 H=398 B=43 STEEL TAKADA	8-94197-168-0	01	1	0106-	●
1	17.185 GATE ASM; RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94193-788-1	01	1	9906-0007		●
1	17.185 GATE ASM; RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94195-477-1	01	1	0008-0105		●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6>	8-94194-024-0	01	1	9906-0004	●
2	17.185 PANEL; RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-025-0	01	1	9906-0007		●
2	17.185 PANEL; RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97590-081-0	01	1	0008-0105		●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (A) UPPER M8X16	8-94193-952-0	04	1	9906-0004	●
4	17.185 SCREW; PANEL,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (A) UPPER M8X16	8-94193-952-0	04	1	9906-0004		●
4	17.185 SCREW; PANEL,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (A) UPPER M8X16	8-94193-952-1	04	1	0005-0105		●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (B) LOWER M8X21	8-94193-953-0	04	1	9906-0004	●
4	17.185 SCREW; PANEL,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (B) LOWER M8X21	8-94193-953-0	04	1	9906-0004		●
4	17.185 SCREW; PANEL,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (B) LOWER M8X21	8-94193-953-1	04	1	0005-0105		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	9906-0004	●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	9906-0004		●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-795-0	01	1	0005-0007		●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94196-401-0	01	1	0008-0105		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	9906-0004	●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	9906-0004		●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-794-0	01	1	0005-0007		●
9	17.204 HANDLE; LATCH,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94196-400-0	01	1	0008-0105		●
9	17.204 HANDLE; LATCH,RR GATE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-208-0	01	1	0005-0105	●
9	17.204 HANDLE; LATCH,RR GATE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-208-0	01	1	0106-	●
9	17.204 HANDLE; LATCH,RR GATE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-207-0	01	1	0005-0105	●
9	17.204 HANDLE; LATCH,RR GATE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-207-0	01	1	0106-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-144-0	01	1	9906-0004	●
11	17.198 LOCK ASM; VERTICAL 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-201-2	01	1	0005-0105	●
11	17.198 LOCK ASM; VERTICAL 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-201-2	01	1	0106-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6>	8-94193-143-0	01	1	9906-0004	●
11	17.198 LOCK ASM; VERTICAL 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-200-2	01	1	0005-0105	●
11	17.198 LOCK ASM; VERTICAL 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-200-2	01	1	0106-	●
11	17.198 LOCK ASM; VERTICAL AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-347-0	01	1	9906-0007		●
11	17.198 LOCK ASM; VERTICAL AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94196-399-0	01	1	0008-0105		●
11	17.198 LOCK ASM; VERTICAL AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-346-0	01	1	9906-0007		●
11	17.198 LOCK ASM; VERTICAL AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94196-398-0	01	1	0008-0105		●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	9906-0004	●
12	17.204 PIECE; END,RR HANDLE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	0005-0105	●
12	17.204 PIECE; END,RR HANDLE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	0106-	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	9906-0004	●
14	17.204 WASHER; PL,HANDLE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	9906-0004		●
14	17.204 WASHER; PL,HANDLE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	0005-0105		●
14	17.204 WASHER; PL,HANDLE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	02	1	0005-0105	●
14	17.204 WASHER; PL,HANDLE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	02	1	0106-	●
14	17.204 WASHER; PL,HANDLE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 03.430 ID=12.5	9-09160-512-0	04	1	0005-0105	●
14	17.204 WASHER; PL,HANDLE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 03.430 ID=12.5	9-09160-512-0	04	1	0106-	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> M8	8-94193-954-0	08	1	9906-0004	●
22	17.185 NUT; PLATE,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> M8	8-94193-954-0	08	1	9906-0004		●
22	17.185 NUT; PLATE,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> M8	8-94193-954-0	08	1	0005-0105		●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	04	1	9906-0004	●
23	17.208 PIN; HINGE,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> OD=10 L=58.5	8-94193-933-0	04	1	9906-0105		●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6>	8-94194-271-0	04	1	9906-0004	●
26	17.208 HINGE; UPR,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-377-0	04	1	9906-0007		●
26	17.208 HINGE; UPR,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97590-079-0	04	1	0008-0105		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9906-0004	●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	9906-0004		●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0005-0105		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9906-0004	●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	9906-0004		●
40	17.202 NUT; STOPPER RUBBER AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0005-0105		●
40	17.202 NUT; STOPPER RUBBER 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (A) M6 FLANGE	8-94197-199-0	06	1	0005-0105	●
40	17.202 NUT; STOPPER RUBBER 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (A) M6 FLANGE	8-94197-199-0	06	1	0106-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	16	1	9906-0004	●
76	17.505 RING; SNAP,GATE HINGE PIN 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 ID=6	9-09185-006-0	16	1	0005-0105	●
76	17.505 RING; SNAP,GATE HINGE PIN 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 ID=6	9-09185-006-0	16	1	0106-	●
76	17.505 RING; SNAP,GATE HINGE PIN AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	14	1	9906-0007		●
76	17.505 RING; SNAP,GATE HINGE PIN AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	18	1	0008-0105		●
76	17.505 RING; SNAP,GATE HINGE PIN AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	04	1	9906-0007		●
88	17.505 RING; SNAP,VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-123-0	02	1	0009-0105		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-770-1	01	1	9906-0004	●
108	17.505 GATE ASM; SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-263-0	01	1	0005-0105	●
108	17.505 GATE ASM; SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-263-0	01	1	0106-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-769-1	01	1	9906-0004	●
108	17.505 GATE ASM; SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-262-0	01	1	0005-0105	●
108	17.505 GATE ASM; SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-262-0	01	1	0106-	●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94193-787-1	01	1	9906-0007		●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94195-866-1	01	1	0008-0105		●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94193-786-1	01	1	9906-0007		●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94195-865-1	01	1	0008-0105		●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	9906-0004	●
210	17.505 SPRING; LATCH HANDLE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	9906-0004		●
210	17.505 SPRING; LATCH HANDLE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	0005-0105		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-279-0	01	1	9906-0004	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-94194-278-0	01	1	9906-0004	●
228	17.505 BRACKET; LATCH HANDLE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-376-0	01	1	9906-0007		●
228	17.505 BRACKET; LATCH HANDLE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-093-0	01	1	0008-0105		●
228	17.505 BRACKET; LATCH HANDLE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-375-0	01	1	9906-0007		●
228	17.505 BRACKET; LATCH HANDLE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-092-0	01	1	0008-0105		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6>	8-94194-280-0	01	1	9906-0004	●
229	17.505 BOARD; RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-378-0	01	1	9906-0007		●
229	17.505 BOARD; RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-086-0	01	1	0008-0105		●
259	17.505 BOLT; BRKT,RR GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-439-0	04	1	0008-0105		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9906-0004	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	0005-0105	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	0106-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9906-0004	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	0005-0105	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	0106-	●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9906-0007		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-449-0	01	1	0008-0105		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9906-0007		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-448-0	01	1	0008-0105		●

108 108 108 1 223 222 30 223 112 29 224 225 35 28 28 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1615 H=398 B=37 PLYWOOD	8-94193-765-1	01	1	9906-0004	●
1	17.185 GATE ASM; RR 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=1596 H=398 B=43 STEEL TAKADA	8-94197-168-0	01	1	0005-0105	●
1	17.185 GATE ASM; RR 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=1596 H=398 B=43 STEEL TAKADA	8-94197-168-0	01	1	0106-	●
1	17.185 GATE ASM; RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94193-788-1	01	1	9906-0007		●
1	17.185 GATE ASM; RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=1787 H=398 B=45 PLYWOOD	8-94195-477-1	01	1	0008-0105		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	12	1	9906-0004	●
27	17.208 PIN; HINGE,SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> OD=12 L=88.5	8-94193-932-0	14	1	9906-0007		●
27	17.208 PIN; HINGE,SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-0	14	1	0008-0105		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> (A),(B)	8-94194-271-0	12	1	9906-0004	●
28	17.208 HINGE; UPR,SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (A),(B)	8-94194-271-0	14	1	9906-0007		●
28	17.208 HINGE; UPR,SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (A) TAKADA	8-97590-027-0	12	1	0008-0105		●
28	17.208 HINGE; UPR,SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (B) TAKADA	8-97590-077-0	02	1	0008-0105		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-0	12	1	9906-0004	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-0	12	1	9906-0004	●
29	17.455 SCREW; PANEL SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-1	14	1	9906-0105		●
29	17.455 SCREW; PANEL SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-1	14	1	9906-0105		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	24	1	9906-0004	●
30	17.455 NUT; PLATE,SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-0	28	1	9906-0105		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9906-0004	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	9906-0004		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	0005-0105		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	16	1	9906-0004	●
76	17.505 RING; SNAP,GATE HINGE PIN 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 ID=6	9-09185-006-0	16	1	0005-0105	●
76	17.505 RING; SNAP,GATE HINGE PIN 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 ID=6	9-09185-006-0	16	1	0106-	●
76	17.505 RING; SNAP,GATE HINGE PIN AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	14	1	9906-0007		●
76	17.505 RING; SNAP,GATE HINGE PIN AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> SIDE ID=9	8-94194-116-0	18	1	0008-0105		●
76	17.505 RING; SNAP,GATE HINGE PIN AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> REAR ID=8	8-94194-117-0	04	1	9906-0007		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-770-1	01	1	9906-0004	●
108	17.505 GATE ASM; SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-263-0	01	1	0005-0105	●
108	17.505 GATE ASM; SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-263-0	01	1	0106-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3126 H=398 B=37 PLYWOOD	8-94193-769-1	01	1	9906-0004	●
108	17.505 GATE ASM; SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-262-0	01	1	0005-0105	●
108	17.505 GATE ASM; SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-262-0	01	1	0106-	●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94193-787-1	01	1	9906-0007		●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94195-866-1	01	1	0008-0105		●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94193-786-1	01	1	9906-0007		●
108	17.505 GATE ASM; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> L=4366 H=398 B=45 PLYWOOD	8-94195-865-1	01	1	0008-0105		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6>	8-94193-323-0	02	1	9906-0004	●
112	17.455 PANEL; SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 16.575	8-94193-326-0	02	1	9906-0007		●
112	17.455 PANEL; SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97590-037-0	02	1	0008-0105		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-94194-300-0	02	1	9906-0004	●
222	17.505 BOARD; SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-380-0	02	1	9906-0007		●
222	17.505 BOARD; SIDE GATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-063-0	02	1	0008-0105		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR TAKADA	8-94194-274-0	01	1	9906-0004	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-94194-292-0	01	1	9906-0004	●
223	17.505 HOOK; PLATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> FRONT	8-94194-292-0	01	1	9906-0004		●
223	17.505 HOOK; PLATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> FRONT	8-94194-292-0	01	1	0005-0105		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR TAKADA	8-94194-273-0	01	1	9906-0004	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-94194-291-0	01	1	9906-0004	●
223	17.505 HOOK; PLATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> FRONT	8-94194-291-0	01	1	9906-0004		●
223	17.505 HOOK; PLATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> FRONT	8-94194-291-0	01	1	0005-0105		●
223	17.505 HOOK; PLATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> REAR	8-94194-372-0	01	1	9906-0105		●
223	17.505 HOOK; PLATE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> REAR	8-94194-371-0	01	1	9906-0105		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-276-0	01	1	9906-0004	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-275-0	01	1	9906-0004	●
224	17.505 HOOK; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-374-0	01	1	9906-0105		●
224	17.505 HOOK; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-373-0	01	1	9906-0105		●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	9906-0004	●
225	17.505 CLIP; WEATHERSTRIP AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	9906-0004		●
225	17.505 CLIP; WEATHERSTRIP AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	0005-0105		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9906-0004	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	0005-0105	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	0106-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9906-0004	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	0005-0105	●
341	17.505 SPRING KIT; VERTICAL LOCK 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	0106-	●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-466-0	01	1	9906-0007		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-449-0	01	1	0008-0105		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-465-0	01	1	9906-0007		●
341	17.505 SPRING KIT; VERTICAL LOCK AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97594-448-0	01	1	0008-0105		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
