9-32 — REAR BODY; GUARD FRAME (#46093) — 111 parça

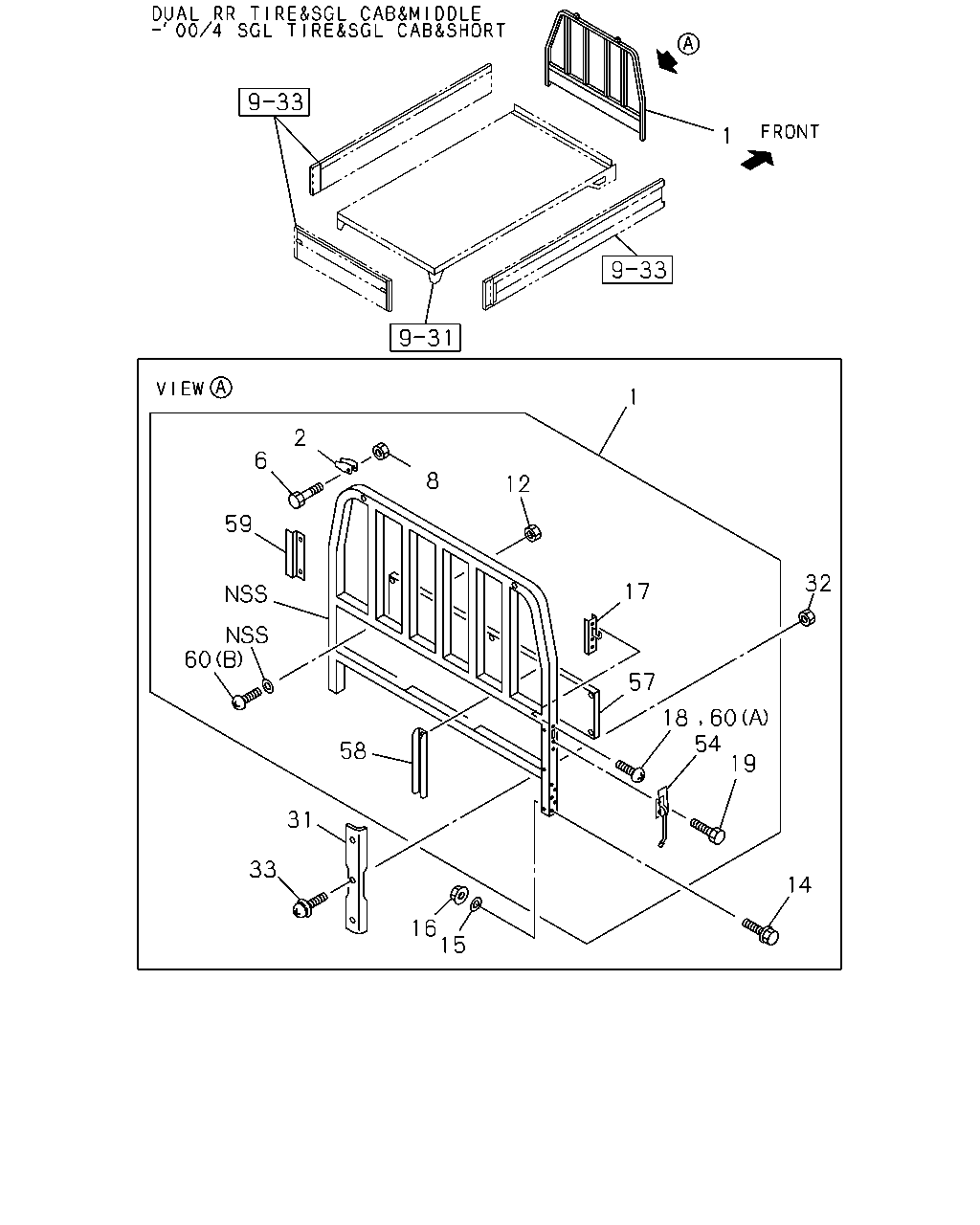

1 1 2 6 8 12 59 32 17 60 57 18 54 58 19 31 33 14 16 15 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-086-0	01	1	9906-0004	●
1	17.455 FRAME; GUARD,RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-326-1	01	1	0005-0105	●
1	17.455 FRAME; GUARD,RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-326-1	01	1	0106-	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-095-0	01	1	9906-0007		●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-97590-476-0	01	1	0008-0105		●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED<RS6> TAKADA	8-94193-798-0	02	1	9906-0004	●
2	17.447 STOPPER; GUARD FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-135-0	02	1	0005-0105	●
2	17.447 STOPPER; GUARD FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-135-0	02	1	0106-	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED<RS6>	8-97590-396-0	02	1	0008-0105		●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED<RS6> TAKADA	8-94193-950-0	02	1	9906-0004	●
6	17.447 BOLT; STOPPER TO GUARD FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-154-1	02	1	0005-0105	●
6	17.447 BOLT; STOPPER TO GUARD FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-154-1	02	1	0106-	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED<RS6>	8-97590-488-0	02	1	0008-0105		●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED<RS6> M10 TAKADA	8-94193-951-0	02	1	9906-0004	●
8	17.447 NUT; STOPPER BOLT 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-155-0	02	1	0005-0105	●
8	17.447 NUT; STOPPER BOLT 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-155-0	02	1	0106-	●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED<RS6> M10	8-97590-493-0	02	1	0008-0105		●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 M8 FLANGE	8-94193-939-0	04	1	9906-0004	●
12	17.455 NUT; GUARD FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	04	1	0005-0105	●
12	17.455 NUT; GUARD FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	04	1	0106-	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 M8 FLANGE	8-94193-939-0	05	1	9906-0105		●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9906-0002	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22	8-97233-077-0	10	1	0003-0004	●
14	17.455 BOLT; GUARD FRAME TO GUSSET 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10X22	8-97233-077-0	07	1	0005-0105	●
14	17.455 BOLT; GUARD FRAME TO GUSSET 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10X22	8-97233-077-0	07	1	0106-	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	12	1	9906-0002		●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22	8-97233-077-0	12	1	0003-0007		●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22	8-97233-077-0	08	1	0008-0105		●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9906-0002	●
15	17.455 WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	12	1	9906-0002		●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9906-0004	●
16	17.455 NUT; GUARD FRAME TO GUSSET 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	07	1	0005-0105	●
16	17.455 NUT; GUARD FRAME TO GUSSET 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	07	1	0106-	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	12	1	9906-0007		●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	08	1	0008-0105		●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED<RS6>	8-94194-628-0	02	1	9906-0004	●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED<RS6>	8-94194-628-0	02	1	0005-0105		●
18	17.455 SCREW; HOOK TO GUARD FRAME RR BODY FLAT BED<RS6> M8X30	8-94193-938-1	02	1	0008-0105		●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED<RS6> M8X20	8-94193-942-0	04	1	9906-0004	●	●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED<RS6> M8X20	8-94193-942-0	04	1	0005-0105		●
31	17.455 PROTECTOR; GUARD FRAME BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> PRIMER	8-94192-023-2	02	1	9906-0007		●
31	17.455 PROTECTOR; GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> WHITE PRIMER	8-94192-023-2	02	1	9906-0007		●
31	17.455 PROTECTOR; GUARD FRAME BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> BLUE PRIMER	8-94192-023-2	02	1	9906-0007		●
32	17.455 NUT; PROTECTOR RR BODY FLAT BED<RS6> M5	8-97065-433-0	06	1	9906-0007		●
33	17.455 SCREW; PROTECTOR RR BODY FLAT BED<RS6>	8-97065-434-0	06	1	9906-0007		●
54	17.455 HANDLE; LOCK,GATE,FRT 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-301-0	01	1	0005-0105	●
54	17.455 HANDLE; LOCK,GATE,FRT 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-301-0	01	1	0106-	●
54	17.455 HANDLE; LOCK,GATE,FRT 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-300-0	01	1	0005-0105	●
54	17.455 HANDLE; LOCK,GATE,FRT 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-300-0	01	1	0106-	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED<RS6> 17.490	8-94193-936-0	02	1	9906-0004	●	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED<RS6> 17.490	8-94193-936-0	02	1	0005-0105		●
57	17.400 BOARD; HEADER RR BODY FLAT BED<RS6>	8-94194-455-0	01	1	9906-0004	●
57	17.400 BOARD; HEADER RR BODY FLAT BED<RS6>	8-94194-459-0	01	1	9906-0105		●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-452-0	02	1	9906-0004	●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED<RS6>	8-94195-457-0	02	1	9906-0007		●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-97590-019-0	02	1	0008-0105		●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-454-0	01	1	9906-0004	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-454-0	01	1	0005-0007		●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6>	8-97590-024-0	01	1	0008-0105		●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-453-0	01	1	9906-0004	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6> TAKADA	8-94194-453-0	01	1	0005-0007		●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED<RS6>	8-97590-023-0	01	1	0008-0105		●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (A),(B) M8X30	8-94193-938-0	06	1	9906-0004	●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (A) M8X30	8-94193-938-0	02	1	9906-0007		●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (A) M8X30	8-94193-938-1	05	1	0008-0105		●
60	17.455 SCREW; BOARD RR BODY FLAT BED<RS6> (B) M8X35	8-94193-941-0	05	1	9906-0007		●

1 8 2 6 1 37 54 12 37 36 16 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-086-0	01	1	9906-0004	●
1	17.455 FRAME; GUARD,RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-326-1	01	1	0005-0105	●
1	17.455 FRAME; GUARD,RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-326-1	01	1	0106-	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-095-0	01	1	9906-0007		●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-97590-476-0	01	1	0008-0105		●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED<RS6> TAKADA	8-94193-798-0	02	1	9906-0004	●
2	17.447 STOPPER; GUARD FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-135-0	02	1	0005-0105	●
2	17.447 STOPPER; GUARD FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-135-0	02	1	0106-	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED<RS6>	8-97590-396-0	02	1	0008-0105		●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED<RS6> TAKADA	8-94193-950-0	02	1	9906-0004	●
6	17.447 BOLT; STOPPER TO GUARD FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-154-1	02	1	0005-0105	●
6	17.447 BOLT; STOPPER TO GUARD FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-154-1	02	1	0106-	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED<RS6>	8-97590-488-0	02	1	0008-0105		●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED<RS6> M10 TAKADA	8-94193-951-0	02	1	9906-0004	●
8	17.447 NUT; STOPPER BOLT 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-155-0	02	1	0005-0105	●
8	17.447 NUT; STOPPER BOLT 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-155-0	02	1	0106-	●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED<RS6> M10	8-97590-493-0	02	1	0008-0105		●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 M8 FLANGE	8-94193-939-0	04	1	9906-0004	●
12	17.455 NUT; GUARD FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	04	1	0005-0105	●
12	17.455 NUT; GUARD FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	04	1	0106-	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED<RS6> 17.447 M8 FLANGE	8-94193-939-0	05	1	9906-0105		●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9906-0002	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22	8-97233-077-0	10	1	0003-0004	●
14	17.455 BOLT; GUARD FRAME TO GUSSET 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10X22	8-97233-077-0	07	1	0005-0105	●
14	17.455 BOLT; GUARD FRAME TO GUSSET 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10X22	8-97233-077-0	07	1	0106-	●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	12	1	9906-0002		●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22	8-97233-077-0	12	1	0003-0007		●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22	8-97233-077-0	08	1	0008-0105		●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9906-0004	●
16	17.455 NUT; GUARD FRAME TO GUSSET 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	07	1	0005-0105	●
16	17.455 NUT; GUARD FRAME TO GUSSET 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	07	1	0106-	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	12	1	9906-0007		●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	08	1	0008-0105		●
36	17.455 RUBBER; FRT HANDLE 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.204 TAKADA	8-94193-344-0	02	1	0005-0105	●
36	17.455 RUBBER; FRT HANDLE 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.204 TAKADA	8-94193-344-0	02	1	0106-	●
37	17.455 BOLT; GUARD FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 02.559 (A) M8X25 FLANGE	0-28680-825-0	07	1	0005-0105	●
37	17.455 BOLT; GUARD FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 02.559 (A) M8X25 FLANGE	0-28680-825-0	07	1	0106-	●
37	17.455 BOLT; GUARD FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (B) M10X22	8-97233-077-0	04	1	0005-0105	●
37	17.455 BOLT; GUARD FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (B) M10X22	8-97233-077-0	04	1	0106-	●
54	17.455 HANDLE; LOCK,GATE,FRT 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-301-0	01	1	0005-0105	●
54	17.455 HANDLE; LOCK,GATE,FRT 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-301-0	01	1	0106-	●
54	17.455 HANDLE; LOCK,GATE,FRT 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-300-0	01	1	0005-0105	●
54	17.455 HANDLE; LOCK,GATE,FRT 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> TAKADA	8-94197-300-0	01	1	0106-	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED<RS6> 17.490	8-94193-936-0	02	1	9906-0004	●	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED<RS6> 17.490	8-94193-936-0	02	1	0005-0105		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
