Sayfa 9-31 - Isuzu EPC

9-31 — REAR BODY; FLOOR AND FENDER (#46092) — 155 parça

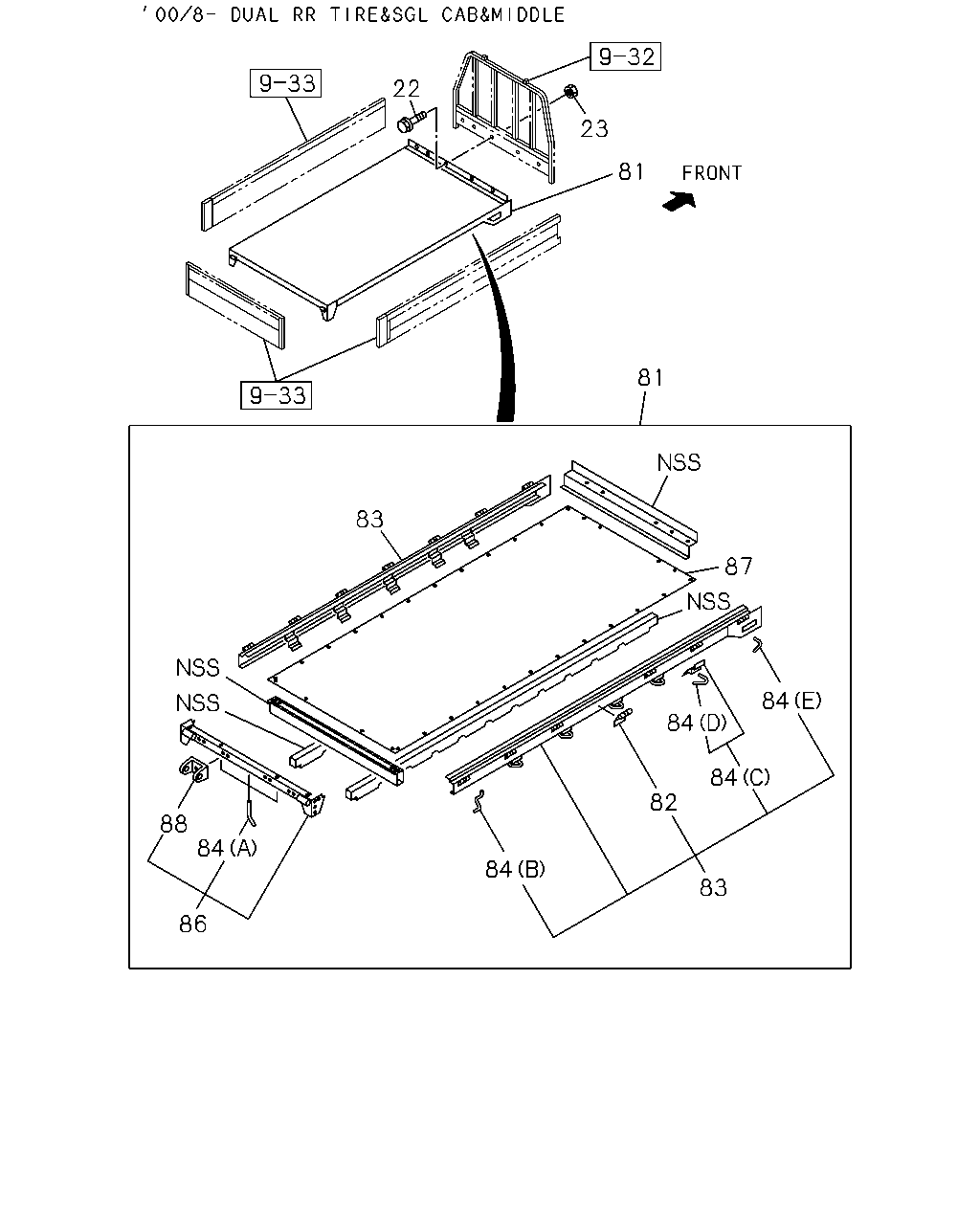

81 22 81 12 23 87 83 82 84 85 83 88 84 89 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	17.405 ANGLE; SETTING,RR BODY RR BODY FLAT BED<RS6>	8-94196-293-0	01	1	9906-0004	●
12	17.405 ANGLE; SETTING,RR BODY AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-294-0	01	1	9906-0007		●
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	04	1	9906-0004	●
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	05	1	9906-0105		●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	04	1	9906-0004	●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	9906-0105		●
81	17.400 FLOOR ASM; RR BODY AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-912-2	01	1	9906-0004	●
81	17.400 FLOOR ASM; RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-327-0	01	1	0005-0105	●
81	17.400 FLOOR ASM; RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-330-0	01	1	0106-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94194-615-2	01	1	9906-0004	●
81	17.400 FLOOR ASM; RR BODY AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-598-2	01	1	9906-0007		●
81	17.400 FLOOR ASM; RR BODY AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-481-0	01	1	0008-0105		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	12	1	9906-0004	●
82	17.510 HINGE; SIDE GATE,LWR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	14	1	9906-0007		●
82	17.510 HINGE; SIDE GATE,LWR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	14	1	0008-0105		●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-235-0	01	1	9906-0004	●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-234-0	01	1	9906-0004	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-201-0	01	1	9906-0004	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-200-0	01	1	9906-0004	●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-298-0	01	1	9906-0007		●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-530-0	01	1	0008-0105		●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-297-0	01	1	9906-0007		●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-529-0	01	1	0008-0105		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (F) HOOK BRACKET WO/HOLE	8-94194-283-0	10	1	9906-0004	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) TAKADA	8-94194-318-0	03	1	9906-0004	●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (G) TAKADA	8-94194-318-0	03	1	9906-0004		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (G) TAKADA	8-94194-318-0	03	1	0005-0007		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (B)	8-97590-221-0	02	1	0008-0105		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (F) HOOK BRACKET WO/HOLE	8-94194-283-0	04	1	9906-0007		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (E)	8-97590-218-0	02	1	0008-0105		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (F) HOOK BRACKET W/HOLE	8-94194-384-0	08	1	9906-0007		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (C)	8-97590-231-0	08	1	0008-0105		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (F) HOOK BRACKET W/HOLE	8-94194-383-0	08	1	9906-0007		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (C)	8-97590-230-0	08	1	0008-0105		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (D)	8-97590-232-0	08	1	0008-0105		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (A)	8-97590-252-0	03	1	0008-0105		●
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-94194-354-0	02	1	9906-0004	●
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED<RS6>	8-94194-353-0	02	1	9906-0004	●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-94196-256-0	01	1	9906-0004	●
86	17.202 FRAME; RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-258-0	01	1	9906-0007		●
86	17.202 FRAME; RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-528-0	01	1	0008-0105		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-271-0	01	1	9906-0004	●
87	17.400 BOARD; FLOOR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-276-0	01	1	9906-0007		●
87	17.400 BOARD; FLOOR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-111-0	01	1	0008-0105		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6>	8-94193-345-0	04	1	9906-0004	●
88	17.208 HINGE; RR GATE,LWR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-520-0	04	1	9906-0007		●
88	17.208 HINGE; RR GATE,LWR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97590-251-0	04	1	0008-0105		●
89	17.400 STEP; RR RR BODY FLAT BED<RS6>	8-94194-289-0	01	1	9906-0004	●

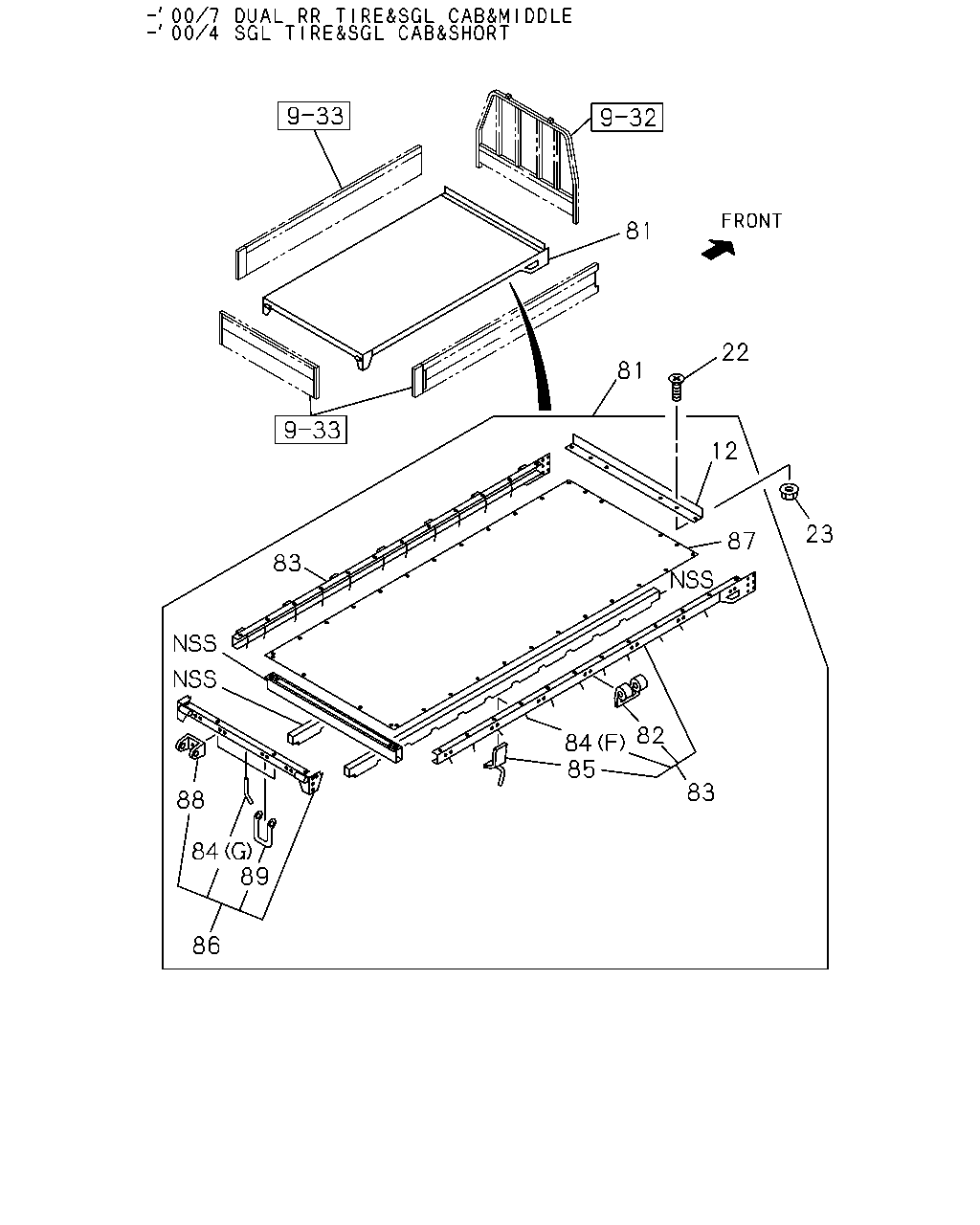

22 23 81 81 83 87 84 84 84 82 88 84 84 83 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	04	1	9906-0004	●
22	17.405 SCREW; ANGLE RR BODY FLAT BED<RS6>	8-97065-437-0	05	1	9906-0105		●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	04	1	9906-0004	●
23	17.405 NUT; ANGLE RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	9906-0105		●
81	17.400 FLOOR ASM; RR BODY AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-912-2	01	1	9906-0004	●
81	17.400 FLOOR ASM; RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-327-0	01	1	0005-0105	●
81	17.400 FLOOR ASM; RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-330-0	01	1	0106-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94194-615-2	01	1	9906-0004	●
81	17.400 FLOOR ASM; RR BODY AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-598-2	01	1	9906-0007		●
81	17.400 FLOOR ASM; RR BODY AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-481-0	01	1	0008-0105		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	12	1	9906-0004	●
82	17.510 HINGE; SIDE GATE,LWR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 17.208	8-94193-345-0	14	1	9906-0007		●
82	17.510 HINGE; SIDE GATE,LWR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97590-219-0	14	1	0008-0105		●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-235-0	01	1	9906-0004	●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-234-0	01	1	9906-0004	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-201-0	01	1	9906-0004	●
83	08.309 FRAME; SIDE RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94196-200-0	01	1	9906-0004	●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-298-0	01	1	9906-0007		●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-530-0	01	1	0008-0105		●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-297-0	01	1	9906-0007		●
83	08.309 FRAME; SIDE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-529-0	01	1	0008-0105		●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (F) HOOK BRACKET WO/HOLE	8-94194-283-0	10	1	9906-0004	●
84	08.820 HOOK; ROPE RR BODY FLAT BED<RS6> (G) TAKADA	8-94194-318-0	03	1	9906-0004	●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (G) TAKADA	8-94194-318-0	03	1	9906-0004		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (G) TAKADA	8-94194-318-0	03	1	0005-0007		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (B)	8-97590-221-0	02	1	0008-0105		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (F) HOOK BRACKET WO/HOLE	8-94194-283-0	04	1	9906-0007		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (E)	8-97590-218-0	02	1	0008-0105		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (F) HOOK BRACKET W/HOLE	8-94194-384-0	08	1	9906-0007		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (C)	8-97590-231-0	08	1	0008-0105		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (F) HOOK BRACKET W/HOLE	8-94194-383-0	08	1	9906-0007		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (C)	8-97590-230-0	08	1	0008-0105		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (D)	8-97590-232-0	08	1	0008-0105		●
84	08.820 HOOK; ROPE AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> (A)	8-97590-252-0	03	1	0008-0105		●
86	17.202 FRAME; RR RR BODY FLAT BED<RS6>	8-94196-256-0	01	1	9906-0004	●
86	17.202 FRAME; RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-258-0	01	1	9906-0007		●
86	17.202 FRAME; RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-528-0	01	1	0008-0105		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED<RS6>	8-94196-271-0	01	1	9906-0004	●
87	17.400 BOARD; FLOOR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-276-0	01	1	9906-0007		●
87	17.400 BOARD; FLOOR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-111-0	01	1	0008-0105		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED<RS6>	8-94193-345-0	04	1	9906-0004	●
88	17.208 HINGE; RR GATE,LWR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94193-520-0	04	1	9906-0007		●
88	17.208 HINGE; RR GATE,LWR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> TAKADA	8-97590-251-0	04	1	0008-0105		●

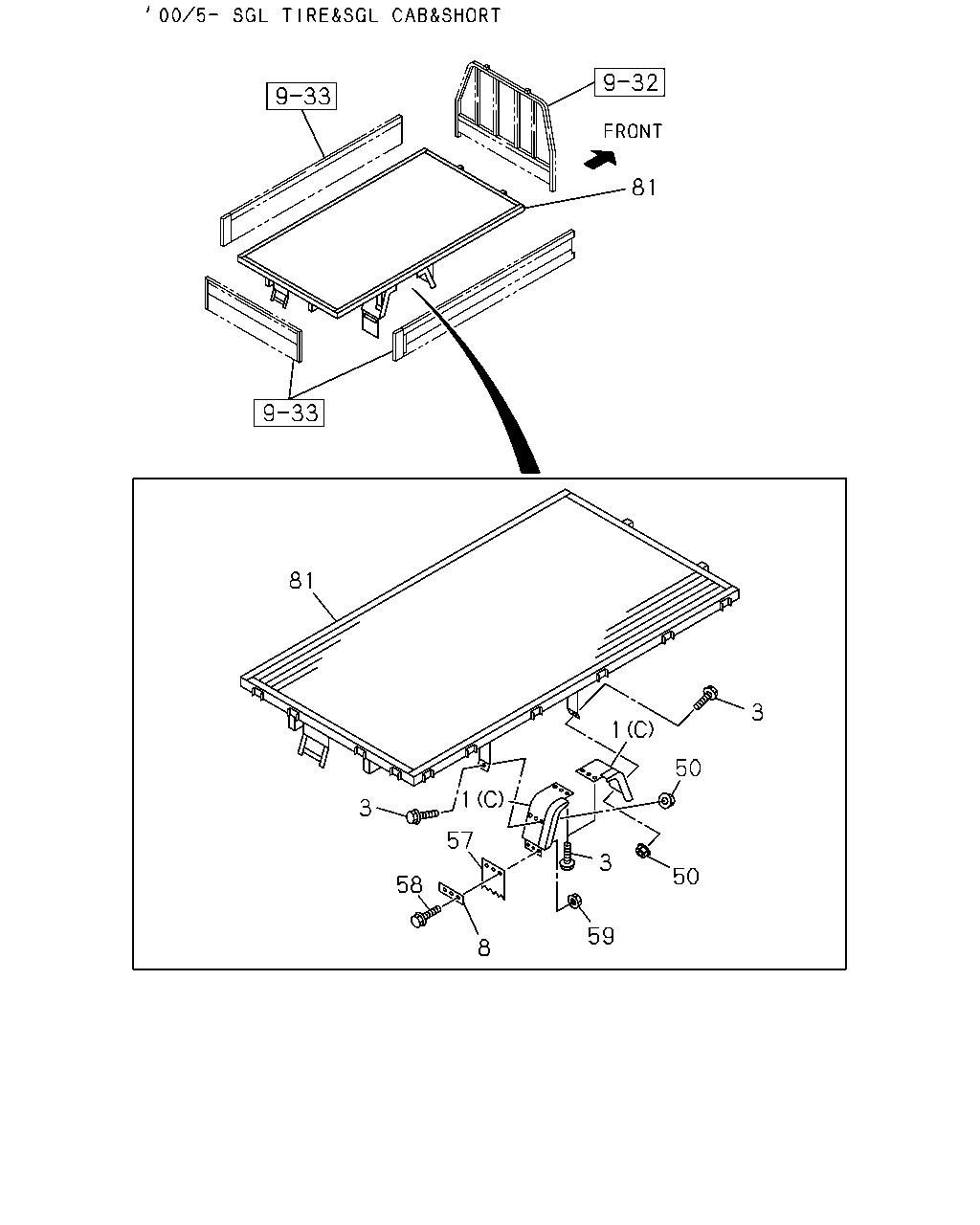

81 81 3 1 50 1 3 57 3 50 58 59 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> (A)	8-94195-139-0	02	1	9906-0004	●
1	08.203 FENDER; RR,RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) FRONT	8-94197-180-0	01	1	0005-0105	●
1	08.203 FENDER; RR,RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) FRONT	8-94197-180-0	01	1	0106-	●
1	08.203 FENDER; RR,RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) FRONT	8-94197-181-0	01	1	0005-0105	●
1	08.203 FENDER; RR,RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) FRONT	8-94197-181-0	01	1	0106-	●
1	08.203 FENDER; RR,RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) REAR	8-94197-185-0	01	1	0005-0105	●
1	08.203 FENDER; RR,RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) REAR	8-94197-185-0	01	1	0106-	●
1	08.203 FENDER; RR,RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) REAR	8-94197-184-0	01	1	0005-0105	●
1	08.203 FENDER; RR,RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) REAR	8-94197-184-0	01	1	0106-	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> (B)	8-97162-720-0	02	1	9906-0105		●
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED<RS6> 17.447	8-94194-113-0	08	1	9906-0004	●
3	08.203 BOLT; FENDER TO RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	16	1	0005-0105	●
3	08.203 BOLT; FENDER TO RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	16	1	0106-	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97069-729-0	02	1	9906-	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97179-829-0	02	1	9906-0105		●
50	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6>	8-94194-114-0	08	1	9906-0004	●
50	17.447 NUT; RR FENDER 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 M6 FLANGE	8-94197-193-0	08	1	0005-0105	●
50	17.447 NUT; RR FENDER 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 M6 FLANGE	8-94197-193-0	08	1	0106-	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=330 B=280	8-97089-827-1	02	1	9906-	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=440 B=430	8-97214-177-0	02	1	9906-0105		●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	9906-0004	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	0005-0105		●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	9906-0004	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	0005-0105		●
81	17.400 FLOOR ASM; RR BODY AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94194-912-2	01	1	9906-0004	●
81	17.400 FLOOR ASM; RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-327-0	01	1	0005-0105	●
81	17.400 FLOOR ASM; RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6>	8-94197-330-0	01	1	0106-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC>	8-94194-615-2	01	1	9906-0004	●
81	17.400 FLOOR ASM; RR BODY AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-94196-598-2	01	1	9906-0007		●
81	17.400 FLOOR ASM; RR BODY AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97590-481-0	01	1	0008-0105		●

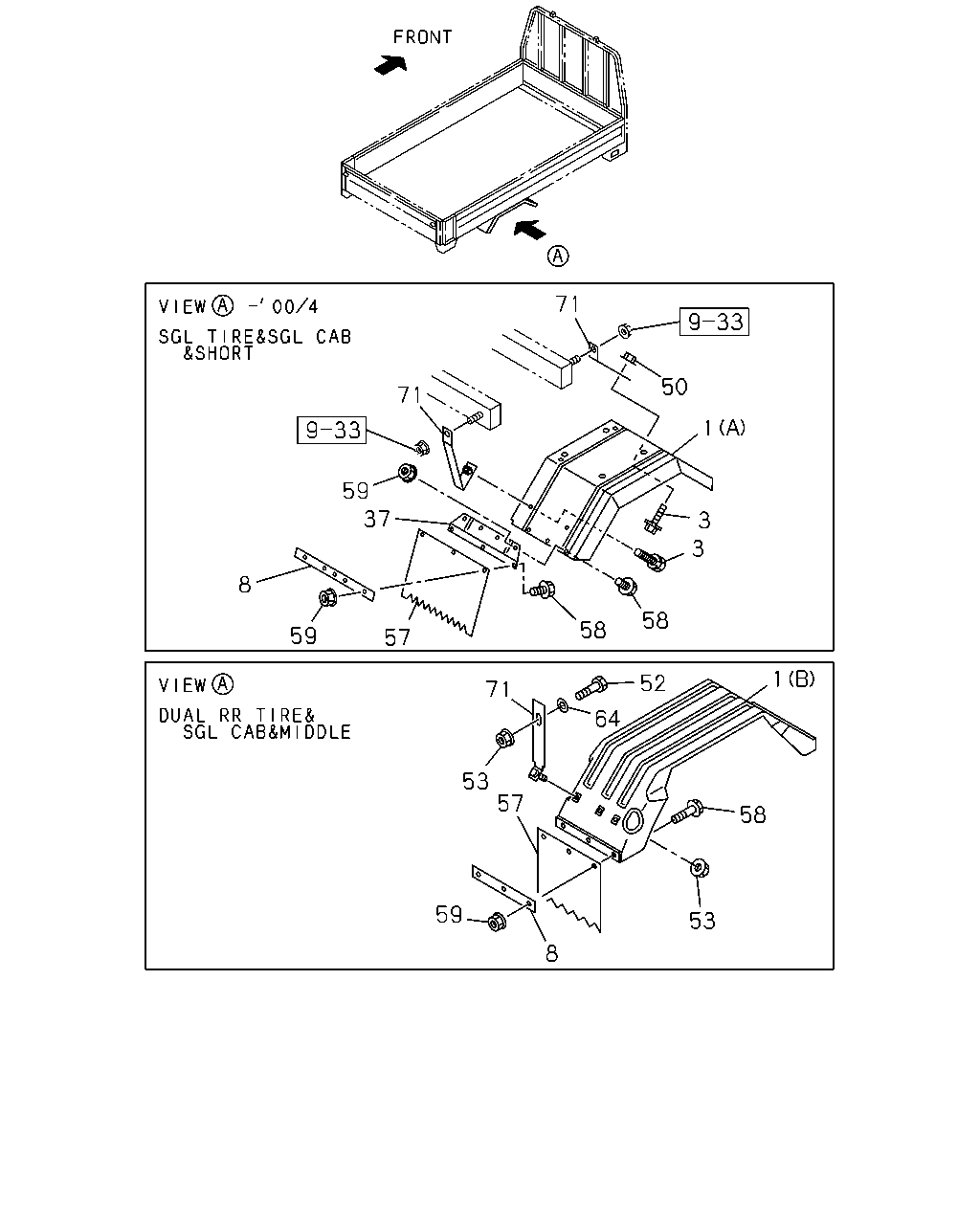

71 50 71 1 59 37 3 3 8 58 58 59 57 1 52 71 64 53 57 58 59 53 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> (A)	8-94195-139-0	02	1	9906-0004	●
1	08.203 FENDER; RR,RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) FRONT	8-94197-180-0	01	1	0005-0105	●
1	08.203 FENDER; RR,RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) FRONT	8-94197-180-0	01	1	0106-	●
1	08.203 FENDER; RR,RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) FRONT	8-94197-181-0	01	1	0005-0105	●
1	08.203 FENDER; RR,RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) FRONT	8-94197-181-0	01	1	0106-	●
1	08.203 FENDER; RR,RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) REAR	8-94197-185-0	01	1	0005-0105	●
1	08.203 FENDER; RR,RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) REAR	8-94197-185-0	01	1	0106-	●
1	08.203 FENDER; RR,RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) REAR	8-94197-184-0	01	1	0005-0105	●
1	08.203 FENDER; RR,RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> (C) REAR	8-94197-184-0	01	1	0106-	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED<RS6> (B)	8-97162-720-0	02	1	9906-0105		●
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED<RS6> 17.447	8-94194-113-0	08	1	9906-0004	●
3	08.203 BOLT; FENDER TO RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	16	1	0005-0105	●
3	08.203 BOLT; FENDER TO RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	16	1	0106-	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97069-729-0	02	1	9906-	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED<RS6>	8-97179-829-0	02	1	9906-0105		●
37	08.212 BRACKET; MUD COVER RR BODY FLAT BED<RS6>	5-66900-382-2	02	1	9906-0004	●
50	17.447 NUT; RR FENDER RR BODY FLAT BED<RS6>	8-94194-114-0	08	1	9906-0004	●
50	17.447 NUT; RR FENDER 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 M6 FLANGE	8-94197-193-0	08	1	0005-0105	●
50	17.447 NUT; RR FENDER 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 17.208 M6 FLANGE	8-94197-193-0	08	1	0106-	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED<RS6> 01.252 M8X60 W/LK WASHER	0-50040-860-0	08	1	9906-0105		●
53	17.447 NUT; FENDER STAY,RR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> M8 FLANGE	8-94193-939-0	32	1	9906-0105		●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED<RS6> 07.633 M8 FLANGE	0-91150-108-0	16	1	9906-0105		●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=330 B=280	8-97089-827-1	02	1	9906-	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED<RS6> H=440 B=430	8-97214-177-0	02	1	9906-0105		●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	9906-0004	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	0005-0105		●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	9906-0004	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	0005-0105		●
64	17.447 WASHER; PL,RR FENDER,UPR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	07	1	9906-0105		●
64	17.447 WASHER; PL,RR FENDER,UPR AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> 03.706 ID=10.5 OD=32	9-09164-810-0	24	1	9906-0105		●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	08	1	9906-0105		●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> FORWARD	8-94194-878-0	04	1	9906-0004	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6> REARWARD	8-94194-879-0	04	1	9906-0004	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED<RS6>	8-97179-830-0	08	1	9906-0105		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
