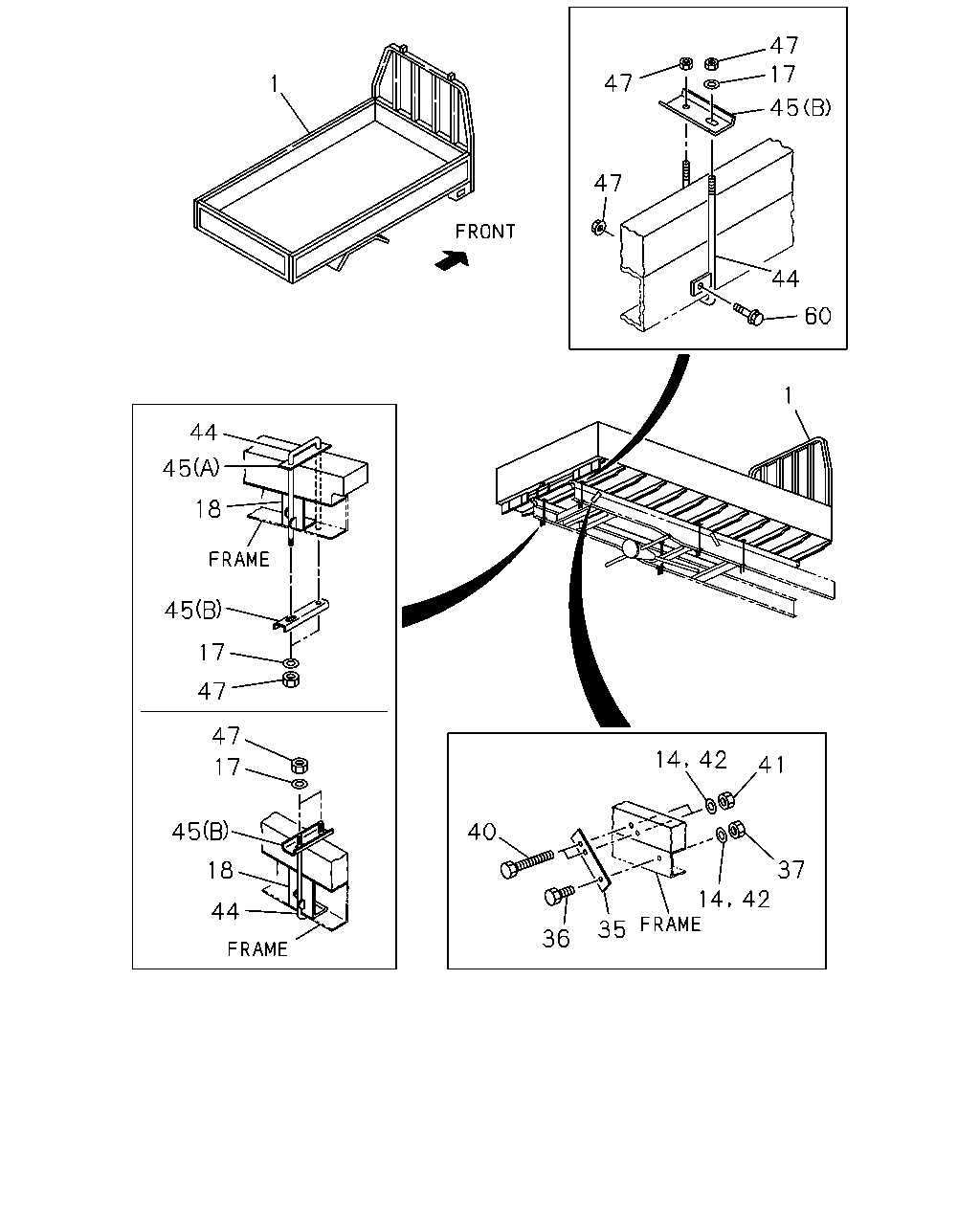

9-30 — REAR BODY ASM AND MOUNTING (#46091) — 103 parça

1 13 14 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97158-927-1	01	1	9906-0004	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR MARINE BLUE(890) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> BLUE	8-97295-965-0	01	1	0005-0105	●
1	17.090 BODY ASM; REAR 4JH1 ENG(RJX) BODY COLOR MARINE BLUE(890) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> BLUE	8-97296-645-0	01	1	0106-	●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> BLUE	8-97199-095-0	01	1	9906-0004	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> WHITE	8-97158-925-1	01	1	9906-0004	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> WHITE	8-97295-964-0	01	1	0005-0101	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR ARC WHITE(729) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> WHITE	8-97295-964-0	01	1	0102-0105	●
1	17.090 BODY ASM; REAR 4JH1 ENG(RJX) BODY COLOR ARC WHITE(729) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> WHITE	8-97296-644-0	01	1	0106-	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> WHITE	8-97199-093-0	01	1	9906-0004	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR ADRIATIC BLUE(730) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> BLUE	8-97295-966-0	01	1	0005-0105	●
1	17.090 BODY ASM; REAR 4JH1 ENG(RJX) BODY COLOR ADRIATIC BLUE(730) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> BLUE	8-97296-646-0	01	1	0106-	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97158-926-1	01	1	9906-0004	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> BLUE	8-97199-094-0	01	1	9906-0004	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR CARDINAL RED(736) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> RED	8-97298-796-0	01	1	0102-0105	●
1	17.090 BODY ASM; REAR 4JH1 ENG(RJX) BODY COLOR CARDINAL RED(736) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> RED	8-97298-795-0	01	1	0106-	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR POLAR SILVER MET(845) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> SILVER	8-97296-911-0	01	1	0009-0105	●
1	17.090 BODY ASM; REAR 4JH1 ENG(RJX) BODY COLOR POLAR SILVER MET(845) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> SILVER	8-97296-913-0	01	1	0106-	●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97199-061-2	01	1	9906-0007		●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97296-851-0	01	1	0008-0105		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97199-062-2	01	1	9906-0007		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> WHITE	8-97296-852-0	01	1	0008-0101		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> WHITE	8-97296-852-0	01	1	0102-0105		●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> RED	8-97298-800-0	01	1	0102-0105		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97199-060-2	01	1	9906-0007		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97296-850-0	01	1	0008-0105		●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> SILVER	8-97297-872-0	01	1	0009-0105		●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED<RS6> M8X100	8-97090-620-0	02	1	9906-0105		●
14	09.011 WASHER; PL,RR BODY MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 04.792 ID=10.5 OD=26	9-09160-710-0	04	1	0005-0105	●
14	09.011 WASHER; PL,RR BODY MTG 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 04.792 ID=10.5 OD=26	9-09160-710-0	04	1	0106-	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED<RS6> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9906-0105		●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED<RS6> M8 W/LK WASHER	8-97065-435-0	02	1	9906-0105		●

47 17 47 1 45 47 44 60 1 44 45 18 45 17 47 47 14 41 17 45 40 37 14 18 44 35 36 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97158-927-1	01	1	9906-0004	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR MARINE BLUE(890) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> BLUE	8-97295-965-0	01	1	0005-0105	●
1	17.090 BODY ASM; REAR 4JH1 ENG(RJX) BODY COLOR MARINE BLUE(890) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> BLUE	8-97296-645-0	01	1	0106-	●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> BLUE	8-97199-095-0	01	1	9906-0004	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> WHITE	8-97158-925-1	01	1	9906-0004	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> WHITE	8-97295-964-0	01	1	0005-0101	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR ARC WHITE(729) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> WHITE	8-97295-964-0	01	1	0102-0105	●
1	17.090 BODY ASM; REAR 4JH1 ENG(RJX) BODY COLOR ARC WHITE(729) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> WHITE	8-97296-644-0	01	1	0106-	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> WHITE	8-97199-093-0	01	1	9906-0004	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR ADRIATIC BLUE(730) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> BLUE	8-97295-966-0	01	1	0005-0105	●
1	17.090 BODY ASM; REAR 4JH1 ENG(RJX) BODY COLOR ADRIATIC BLUE(730) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> BLUE	8-97296-646-0	01	1	0106-	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97158-926-1	01	1	9906-0004	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> AIR INTAKE SYSTEM FRONT<6PC> BLUE	8-97199-094-0	01	1	9906-0004	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR CARDINAL RED(736) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> RED	8-97298-796-0	01	1	0102-0105	●
1	17.090 BODY ASM; REAR 4JH1 ENG(RJX) BODY COLOR CARDINAL RED(736) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> RED	8-97298-795-0	01	1	0106-	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF) BODY COLOR POLAR SILVER MET(845) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> SILVER	8-97296-911-0	01	1	0009-0105	●
1	17.090 BODY ASM; REAR 4JH1 ENG(RJX) BODY COLOR POLAR SILVER MET(845) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> SILVER	8-97296-913-0	01	1	0106-	●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97199-061-2	01	1	9906-0007		●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97296-851-0	01	1	0008-0105		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97199-062-2	01	1	9906-0007		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> WHITE	8-97296-852-0	01	1	0008-0101		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> WHITE	8-97296-852-0	01	1	0102-0105		●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> RED	8-97298-800-0	01	1	0102-0105		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97199-060-2	01	1	9906-0007		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97296-850-0	01	1	0008-0105		●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> SILVER	8-97297-872-0	01	1	0009-0105		●
14	09.011 WASHER; PL,RR BODY MTG 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 04.792 ID=10.5 OD=26	9-09160-710-0	04	1	0005-0105	●
14	09.011 WASHER; PL,RR BODY MTG 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 04.792 ID=10.5 OD=26	9-09160-710-0	04	1	0106-	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED<RS6> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9906-0105		●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	06	1	9906-	●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED<RS6> 00.029 ID=15 OD=26	9-09164-514-0	06	1	9906-0105		●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=161 B=50 D=52	5-53119-093-2	04	1	9906-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> 121X47.5	5-53119-094-2	02	1	9906-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=161 B=50 D=68	5-53119-091-3	04	1	9906-0105		●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=91 B=50 D=68	5-53119-092-3	02	1	9906-0105		●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=215	8-97100-408-0	02	1	9906-0004	●
35	17.447 STOPPER; RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=191.5	8-94121-666-0	04	1	0005-0105	●
35	17.447 STOPPER; RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=191.5	8-94121-666-0	04	1	0106-	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=185	9-53459-602-0	02	1	9906-0004	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=185	9-53459-602-0	04	1	9906-0105		●
36	17.447 BOLT; FRAME RR BODY FLAT BED<RS6> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9906-0105	●	●
36	17.447 BOLT; FRAME RR BODY FLAT BED<RS6> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0106-	●
37	17.447 NUT; STOPPER TO FRAME RR BODY FLAT BED<RS6> 08.917 M10 FLANGE	0-91150-210-0	04	1	9906-0105	●	●
37	17.447 NUT; STOPPER TO FRAME RR BODY FLAT BED<RS6> 08.917 M10 FLANGE	0-91150-210-0	04	1	0106-	●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED<RS6> 01.840 M8X70 FLANGE	0-28080-870-0	08	1	9906-0004	●	●
40	17.447 BOLT; STOPPER TO RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0005-0105	●
40	17.447 BOLT; STOPPER TO RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0106-	●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED<RS6> 03.023 M8 FLANGE	9-09130-408-0	08	1	9906-0004	●	●
42	17.447 WASHER; PL,STOPPER TO RR BODY RR BODY FLAT BED<RS6> 07.633 ID=8.4 OD=22	9-09164-708-0	08	1	9906-0004	●	●
42	17.447 WASHER; PL,STOPPER TO RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 04.792 ID=10.5 OD=26	9-09160-710-0	04	1	0005-0105	●
42	17.447 WASHER; PL,STOPPER TO RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 04.792 ID=10.5 OD=26	9-09160-710-0	04	1	0106-	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=326	8-94151-368-0	04	1	9906-0004	●
44	17.447 U-BOLT; FRAME TO RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=340	8-94151-369-0	03	1	0005-0105	●
44	17.447 U-BOLT; FRAME TO RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=340	8-94151-369-0	03	1	0106-	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=280	8-94151-372-0	02	1	9906-0004	●
44	17.447 U-BOLT; FRAME TO RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=300	8-94151-371-0	02	1	0005-0105	●
44	17.447 U-BOLT; FRAME TO RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=300	8-94151-371-0	02	1	0106-	●
44	17.447 U-BOLT; FRAME TO RR BODY 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=340	8-97252-196-0	01	1	0005-0105	●
44	17.447 U-BOLT; FRAME TO RR BODY 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> L=340	8-97252-196-0	01	1	0106-	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=272	5-51171-007-1	02	1	9906-0105		●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=345	8-94317-633-0	04	1	9906-0105		●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (B) L=115 B=40	9-61200-629-2	06	1	9906-	●
45	17.447 PLATE; U-BOLT 4JB1 ENG(RLF) RR BODY FLAT BED<RS6> (A) L=100 B=30	8-94148-715-0	05	1	9906-0105	●
45	17.447 PLATE; U-BOLT 4JH1 ENG(RJX) RR BODY FLAT BED<RS6> (A) L=100 B=30	8-94148-715-0	05	1	0106-	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	06	1	9906-0105		●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (B) L=120 B=45	5-66900-204-3	06	1	9906-0105		●
47	17.447 NUT; U-BOLT RR BODY FLAT BED<RS6> M12	9-09130-412-0	12	1	9906-	●
47	17.447 NUT; U-BOLT 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 04.785 M10 FLANGE	0-91150-110-0	01	1	0005-0105	●
47	17.447 NUT; U-BOLT 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-	●
47	17.447 NUT; U-BOLT RR BODY FLAT BED<RS6> 06.008 M14	9-09130-414-0	12	1	9906-0105		●
60	17.447 BOLT; U-BOLT 4JB1 ENG(RLF) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0005-0105	●
60	17.447 BOLT; U-BOLT 4JH1 ENG(RJX) TURBOCHARGER<K51> RR BODY FLAT BED<RS6> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-	●
