◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶

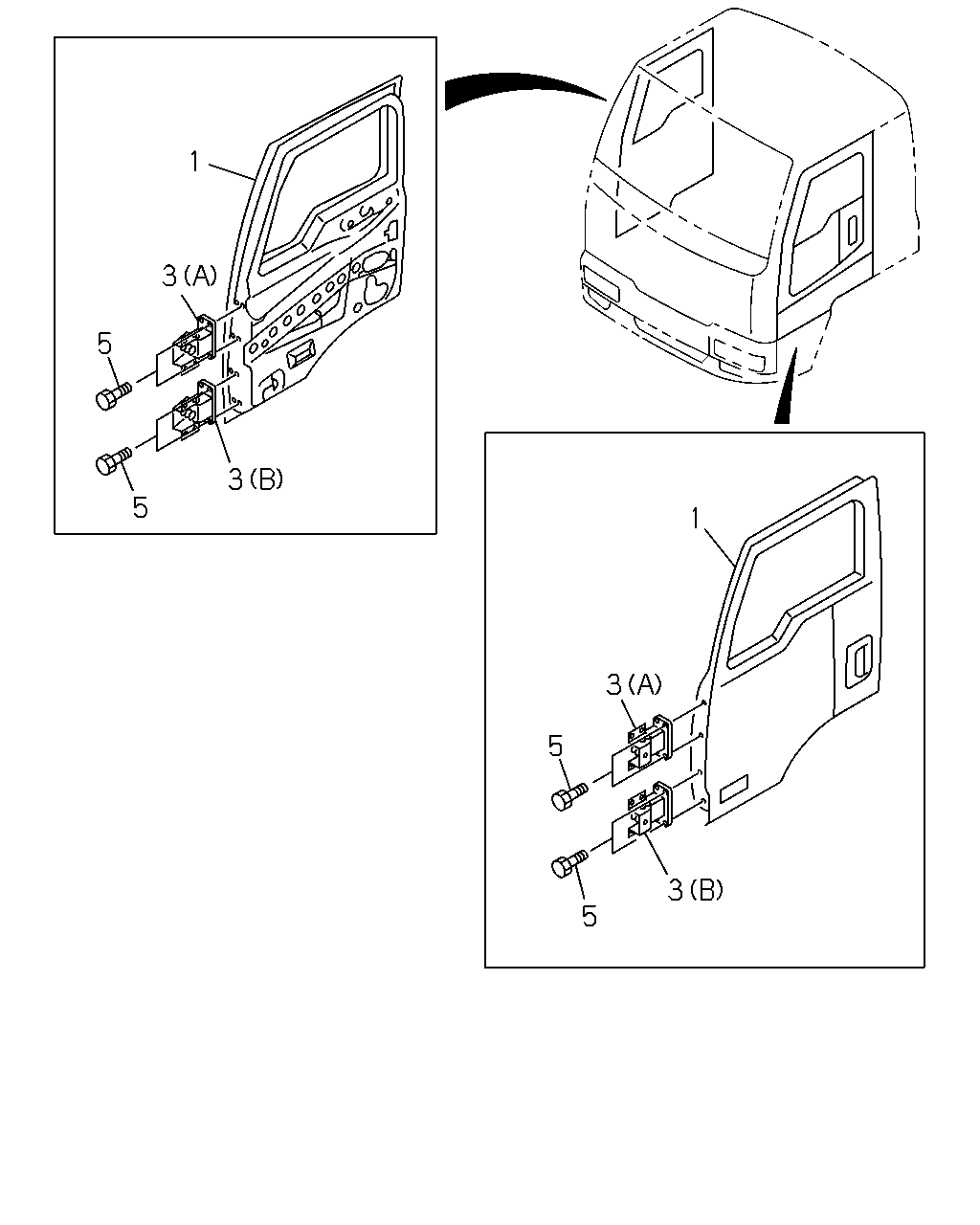

6-30 — FRONT DOOR AND HINGE (#4609) — 19 parça

1 3 5 3 5 1 3 5 3 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DOOR ASM; FRT,WO/TRIM	1-64080-326-0	01	1	9603-9901
1	DOOR ASM; FRT,WO/TRIM	1-64080-391-2	01	1	9902-
1	DOOR ASM; FRT,WO/TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-327-0	01	1	9603-9901
1	DOOR ASM; FRT,WO/TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-393-0	01	1	9902-0103
1	DOOR ASM; FRT,WO/TRIM DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER	1-64080-404-2	01	1	0104-
1	DOOR ASM; FRT,WO/TRIM EXC. DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER	1-64080-333-0	01	1	9603-9708
1	DOOR ASM; FRT,WO/TRIM EXC. SAUDI ARABIA EQUIPMENT(WH1),DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER	1-64080-333-0	01	1	9709-9901
1	DOOR ASM; FRT,WO/TRIM EXC. SAUDI ARABIA EQUIPMENT(WH1),DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-388-0	01	1	9902-9904
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-388-2	01	1	9905-
1	DOOR ASM; FRT,WO/TRIM SAUDI ARABIA EQUIPMENT(WH1)	1-64080-325-0	01	1	9709-9901
1	DOOR ASM; FRT,WO/TRIM SAUDI ARABIA EQUIPMENT(WH1)	1-64080-390-0	01	1	9902-9904
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-390-2	01	1	9905-
3	HINGE; DOOR FRT (A)	1-64780-088-3	02	1	9603-
3	HINGE; DOOR FRT (B)	1-64780-089-3	02	1	9603-
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	9603-9708
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9709-9904
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9709-9904
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	9905-
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	9603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
