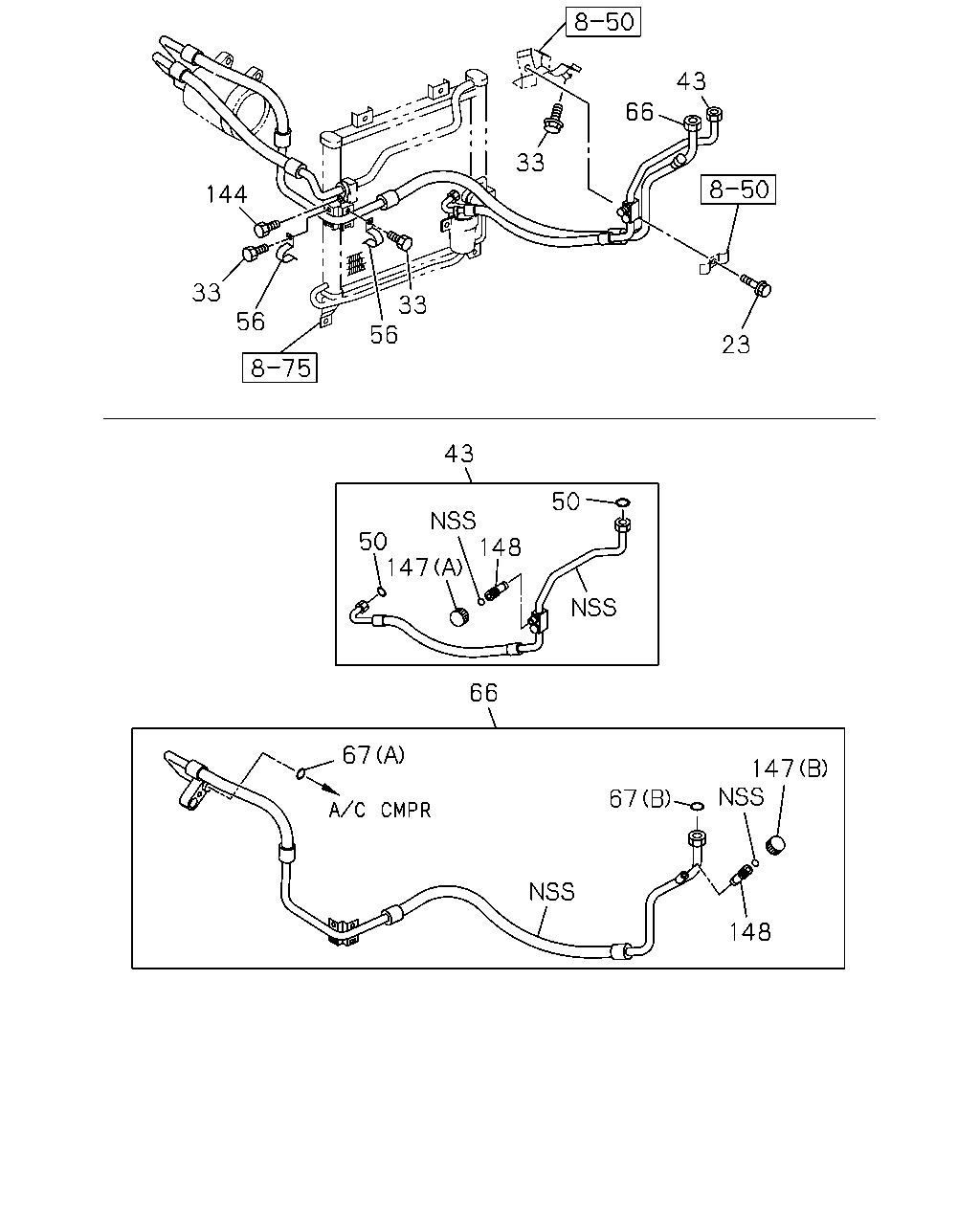

8-52 — PIPING; AIR CONDITIONING (#46082) — 18 parça

43 66 33 144 33 33 56 56 23 43 50 148 50 147 66 67 147 67 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9812-	●	●	●
33	09.920 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9812-	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97103-572-0	01	1	9812-0105	●		●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	9812-0105	●		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97024-716-0	02	1	9812-	●	●	●
66	09.225 HOSE; FLEX,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97069-977-1	01	1	9812-0105	●		●
66	09.225 HOSE; FLEX,A/C 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97069-977-1	01	1	9812-0105	●		●
67	09.260 GASKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.222 (B) ID=13.9	8-94113-330-0	01	1	9812-0105	●		●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 (B) ID=13.9	8-94113-330-0	01	1	9812-0105	●		●
67	09.260 GASKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (A) ID=14.8	8-94461-901-0	01	1	9812-0105	●		●
67	09.260 GASKET; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=14.8	8-94461-901-0	01	1	9812-0105	●		●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9812-	●	●	●
147	09.242 CAP; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	9812-0105	●		●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	9812-0105	●		●
147	09.242 CAP; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9812-0105	●		●
147	09.242 CAP; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9812-0105	●		●
148	09.262 VALVE; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9812-0105	●		●
148	09.262 VALVE; FLEX HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9812-0105	●		●
