Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#46080) — 184 parça

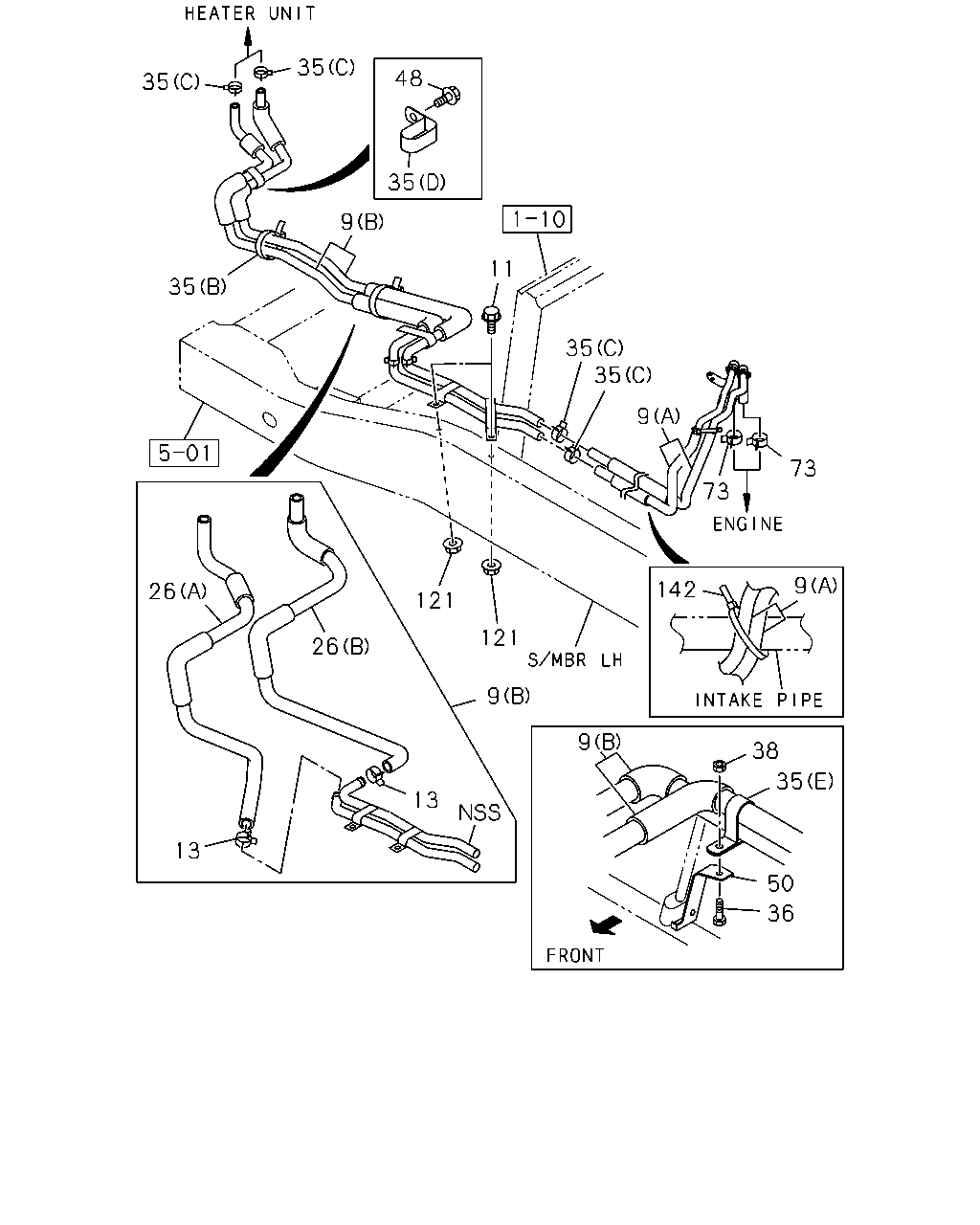

35 48 35 35 9 11 35 35 35 9 73 73 9 142 26 121 121 26 9 9 38 35 13 13 50 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97205-281-2	01	1	9906-9908	●	●
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97231-907-0	01	1	9909-0105	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97260-268-3	01	1	0106-	●	●	●
9	08.846 PIPE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	9812-9905	●	●
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-185-0	01	1	9906-0105	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97261-456-3	01	1	0106-	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (A)	8-97261-456-3	01	1	0106-		●	●
11	08.845 BOLT; HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9812-9905	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	9906-0105	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9906-0105	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	0106-	●	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-080-0	01	1	9906-9908	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-084-0	01	1	9909-0105	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-084-0	01	1	0106-	●	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-081-0	01	1	9906-9908	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-085-0	01	1	9909-0105	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-085-0	01	1	0106-	●	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9812-9905	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	9906-0105	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9812-9905	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	9906-0105	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	9812-	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) ID=22	8-94382-401-0	01	1	9812-9904	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) ID=22	8-94382-401-0	04	1	9905-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (E)	5-83574-006-0	01	1	9906-0105	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (E)	5-83574-006-0	01	1	0106-	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	9812-0105	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	01	1	0106-	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	9812-9905	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	9906-0105	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (A) B=18	9-83651-948-1	01	1	9906-0105	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	9906-0105	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-		●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9905	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9905	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 03.405	8-97180-936-0	01	1	9906-9910	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	9911-0105	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0106-	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 03.417	8-97072-530-0	01	1	9906-0105		●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0106-		●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9812-0105	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.166 ID=25	9-09915-642-2	02	1	0106-	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.166 ID=25	9-09915-642-2	02	1	0106-		●	●
121	08.845 NUT; PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	02	1	9812-9904		●
121	08.845 NUT; PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9905-9905		●
121	08.845 NUT; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9906-0105	●	●
121	08.845 NUT; PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-		●	●
142	08.846 CLIP; BAND 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 L=450	1-09707-142-1	01	1	0106-	●	●	●
142	08.846 CLIP; BAND 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.852 L=350	8-94152-256-1	01	1	0106-	●	●	●

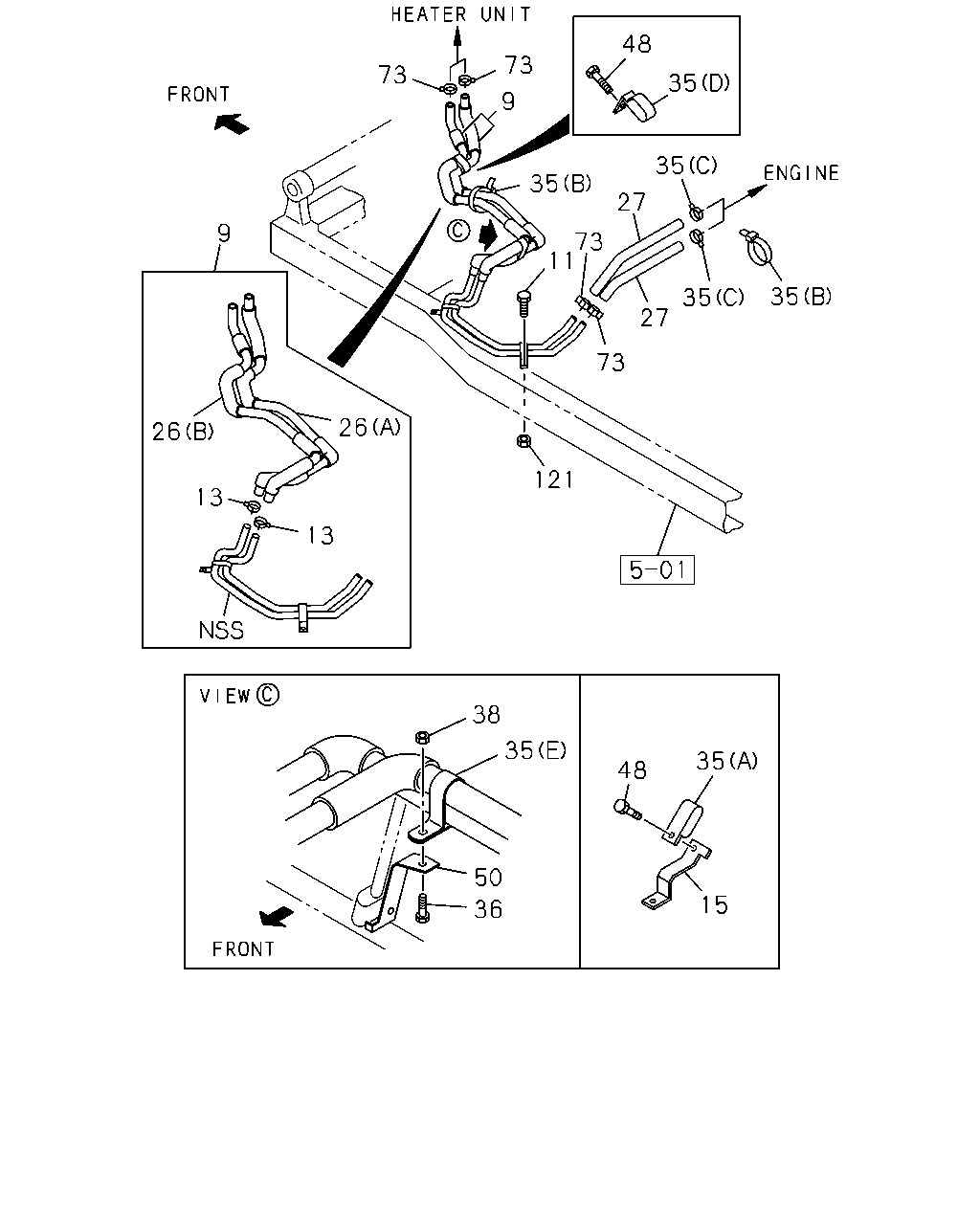

48 73 73 35 35 9 35 27 11 73 35 9 27 73 121 26 26 35 48 13 13 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97205-281-2	01	1	9906-9908	●	●
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97231-907-0	01	1	9909-0105	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97260-268-3	01	1	0106-	●	●	●
9	08.846 PIPE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	9812-9905	●	●
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-185-0	01	1	9906-0105	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97261-456-3	01	1	0106-	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (A)	8-97261-456-3	01	1	0106-		●	●
11	08.845 BOLT; HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9812-9905	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	9906-0105	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9906-0105	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	0106-	●	●	●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-872-0	01	1	9812-9905	●	●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97101-872-0	01	1	9906-0105	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-080-0	01	1	9906-9908	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-084-0	01	1	9909-0105	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-084-0	01	1	0106-	●	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-081-0	01	1	9906-9908	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-085-0	01	1	9909-0105	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-085-0	01	1	0106-	●	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9812-9905	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	9906-0105	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9812-9905	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	9906-0105	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97205-283-0	02	1	9906-0105	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9812-9905	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9906-0011	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9906-0011		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9906-0011		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-97300-262-0	02	1	0012-0105	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97300-262-0	02	1	0012-0105		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51>	8-97300-262-0	02	1	0012-0105		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	9812-	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) ID=22	8-94382-401-0	01	1	9812-9904	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) ID=22	8-94382-401-0	04	1	9905-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (E)	5-83574-006-0	01	1	9906-0105	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (E)	5-83574-006-0	01	1	0106-	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	9812-0105	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	01	1	0106-	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	9812-9905	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	9906-0105	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (A) B=18	9-83651-948-1	01	1	9906-0105	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-		●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9905	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9905	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9812-0105	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.166 ID=25	9-09915-642-2	02	1	0106-	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.166 ID=25	9-09915-642-2	02	1	0106-		●	●
121	08.845 NUT; PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	02	1	9812-9904		●
121	08.845 NUT; PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9905-9905		●
121	08.845 NUT; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9906-0105	●	●
121	08.845 NUT; PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-		●	●

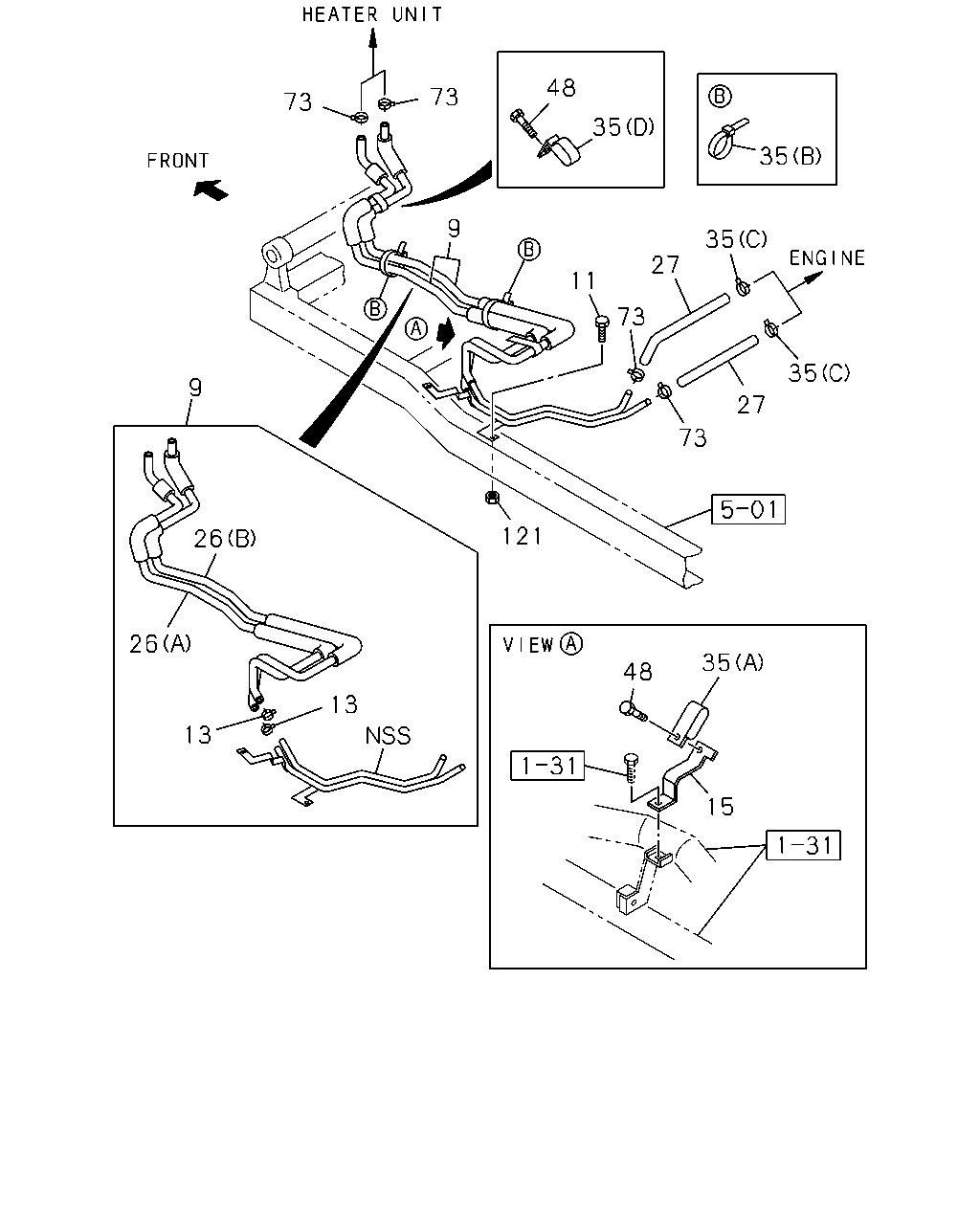

48 73 73 35 9 35 35 27 9 73 11 35 35 27 73 26 26 121 13 13 38 35 35 48 50 15 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97205-281-2	01	1	9906-9908	●	●
9	08.846 PIPE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97231-907-0	01	1	9909-0105	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97260-268-3	01	1	0106-	●	●	●
9	08.846 PIPE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	9812-9905	●	●
9	08.846 PIPE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-185-0	01	1	9906-0105	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97261-456-3	01	1	0106-	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (A)	8-97261-456-3	01	1	0106-		●	●
11	08.845 BOLT; HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9812-9905	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	9906-0105	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9906-0105	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	02	1	0106-	●	●	●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-872-0	01	1	9812-9905	●	●
15	08.846 BRACKET; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97101-872-0	01	1	9906-0105	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-080-0	01	1	9906-9908	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-084-0	01	1	9909-0105	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A)	8-97239-084-0	01	1	0106-	●	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-081-0	01	1	9906-9908	●	●
26	08.846 HOSE; HTR 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-085-0	01	1	9909-0105	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B)	8-97239-085-0	01	1	0106-	●	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9812-9905	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	9906-0105	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9812-9905	●	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	9906-0105	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97205-283-0	02	1	9906-0105	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9812-9905	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9906-0011	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9906-0011		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9906-0011		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-97300-262-0	02	1	0012-0105	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97300-262-0	02	1	0012-0105		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51>	8-97300-262-0	02	1	0012-0105		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	9812-	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) ID=22	8-94382-401-0	01	1	9812-9904	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) ID=22	8-94382-401-0	04	1	9905-	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (E)	5-83574-006-0	01	1	9906-0105	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (E)	5-83574-006-0	01	1	0106-	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	02	1	9812-0105	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	01	1	0106-	●	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	9812-9905	●	●
35	08.852 CLIP; WATER HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18	9-83651-948-1	01	1	9906-0105	●	●
35	08.852 CLIP; WATER HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (A) B=18	9-83651-948-1	01	1	9906-0105	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	9906-0105	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-	●	●	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●
48	09.262 BOLT; CLIP FIX 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-		●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9905	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-9905	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9906-0105	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) 03.405	8-97180-936-0	01	1	9906-9910	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	9911-0105	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0106-	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 03.417	8-97072-530-0	01	1	9906-0105		●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0106-		●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9812-0105	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.166 ID=25	9-09915-642-2	02	1	0106-	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.166 ID=25	9-09915-642-2	02	1	0106-		●	●
121	08.845 NUT; PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	02	1	9812-9904		●
121	08.845 NUT; PIPE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9905-9905		●
121	08.845 NUT; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9906-0105	●	●
121	08.845 NUT; PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
