6-20 — SIDE PANEL AND STEP (#4608) — 114 parça

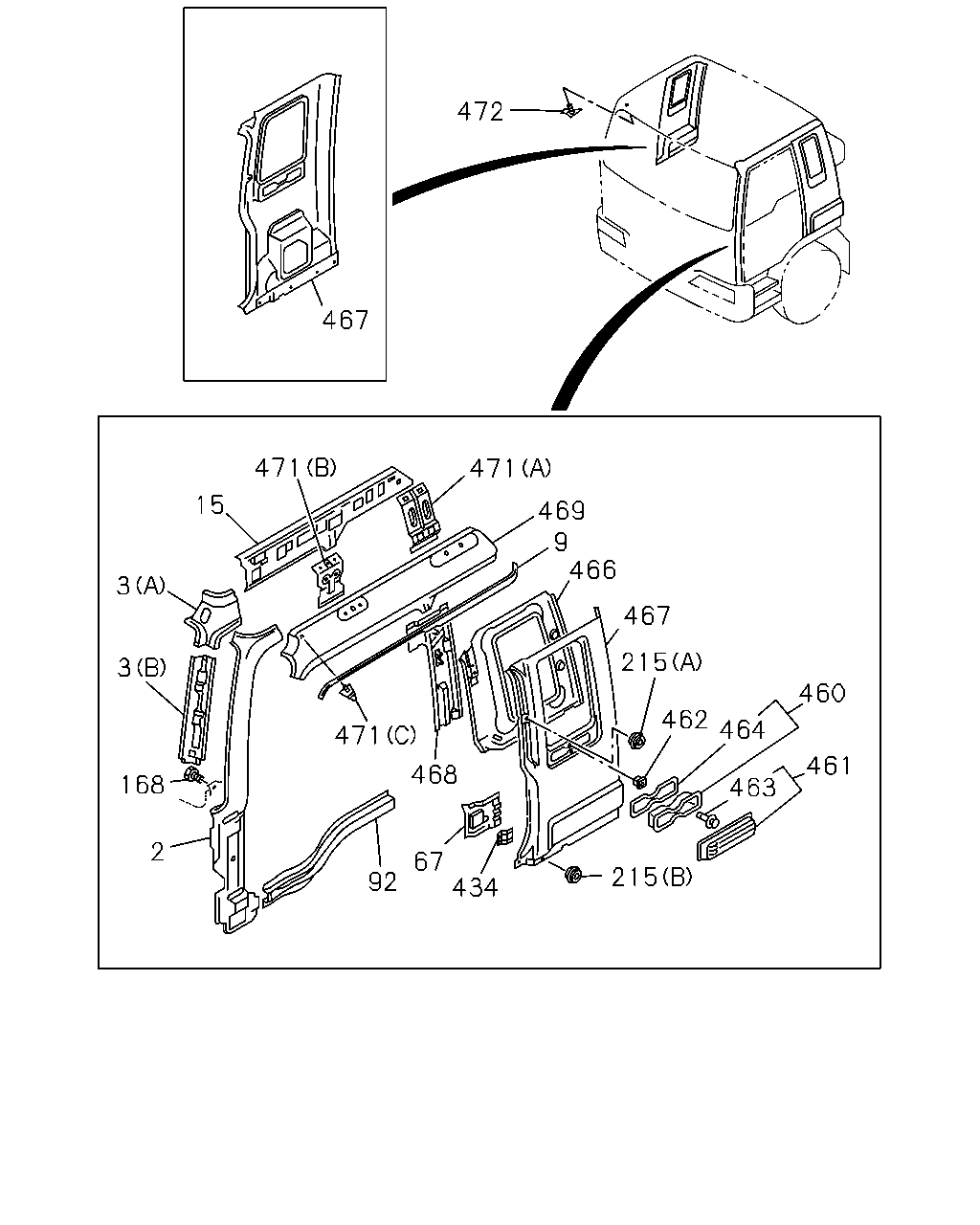

472 467 471 471 15 469 9 466 3 467 215 3 460 462 464 471 461 468 168 463 2 67 434 215 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PILLAR; FRT	1-61281-410-2	01	1	9603-
2	PILLAR; FRT	1-61281-409-2	01	1	9603-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-170-5	01	1	9603-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-344-5	01	1	9603-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-169-5	01	1	9603-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-343-5	01	1	9603-
9	MOLDING; DRIP,CAB SIDE	1-61281-281-4	01	1	9603-9904
9	MOLDING; DRIP,CAB SIDE EXC. HIGH ROOF<S2F>	1-61281-281-5	01	1	9905-
9	MOLDING; DRIP,CAB SIDE	1-61281-280-4	01	1	9603-9904
9	MOLDING; DRIP,CAB SIDE EXC. HIGH ROOF<S2F>	1-61281-280-5	01	1	9905-
9	MOLDING; DRIP,CAB SIDE HIGH ROOF<S2F>	1-61270-792-4	01	1	9905-
9	MOLDING; DRIP,CAB SIDE HIGH ROOF<S2F>	1-61270-791-4	01	1	9905-
15	PANEL; CANT RAIL SIDE	1-61281-178-8	01	1	9603-
15	PANEL; CANT RAIL SIDE	1-61281-177-8	01	1	9603-
67	PANEL; INNER,RR PILLAR LWR	1-61281-195-5	01	1	9603-
67	PANEL; INNER,RR PILLAR LWR	1-61281-194-5	01	1	9603-
92	PANEL; SIDE SILL,CAB	1-61281-212-8	01	1	9603-
92	PANEL; SIDE SILL,CAB	1-61281-211-9	01	1	9603-
168	BOLT; BODY SIDE PANEL M6X12 W/LK&PL WASHER	0-50140-612-0	04	1	9603-9702
168	BOLT; BODY SIDE PANEL M6X10 FLANGE	0-28080-610-0	04	1	9703-
215	GROMMET; RR PILLAR (A) OD=23.5	1-09983-155-0	02	1	9603-9709
215	GROMMET; RR PILLAR (A) OD=23.5	1-09983-101-0	02	1	9710-
215	GROMMET; RR PILLAR (B) OD=28.5	8-94279-711-0	02	1	9603-
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	9603-
460	VENTILATOR; BODY SIDE	1-76378-292-3	02	1	9603-
461	ORNAMENT; VENTILATOR	1-76378-303-6	01	1	9603-
461	ORNAMENT; VENTILATOR	1-76378-302-6	01	1	9603-
462	GROMMET; VENTILATOR OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	08	1	9603-
463	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	9603-
464	SEAL; VENTILATOR	1-76378-299-0	02	1	9603-
466	PANEL; INNER,BACK CORNER	1-61281-415-1	01	1	9603-
466	PANEL; INNER,BACK CORNER	1-61281-416-1	01	1	9603-
467	PANEL; OUTER,BACK CORNER	1-61281-203-3	01	1	9603-
467	PANEL; OUTER,BACK CORNER BAGGAGE BOX CAB RR SIDE<TBM> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-61270-773-2	01	1	9905-
467	PANEL; OUTER,BACK CORNER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) BAGGAGE BOX CAB RR SIDE<TBM>	1-61270-939-1	01	1	9905-
467	PANEL; OUTER,BACK CORNER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-61281-476-1	01	1	9603-9708
467	PANEL; OUTER,BACK CORNER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-61281-476-1	01	1	9709-9904
467	PANEL; OUTER,BACK CORNER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. BAGGAGE BOX CAB RR SIDE<TBM>	1-61281-476-2	01	1	9905-
467	PANEL; OUTER,BACK CORNER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-61281-204-2	01	1	9603-9708
467	PANEL; OUTER,BACK CORNER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2)	1-61281-204-2	01	1	9709-9904
467	PANEL; OUTER,BACK CORNER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), BAGGAGE BOX CAB RR SIDE<TBM>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-61281-204-3	01	1	9905-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-418-2	01	1	9603-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-417-2	01	1	9603-
469	ROOF; SIDE	1-61281-199-8	01	1	9603-
469	ROOF; SIDE	1-61281-198-8	01	1	9603-
471	PATCH; AIR DEFLECTOR (A)	1-61281-202-3	02	1	9603-9904
471	PATCH; AIR DEFLECTOR (A)	1-61281-202-3	01	1	9905-
471	PATCH; AIR DEFLECTOR (B)	1-61281-201-3	01	1	9603-
471	PATCH; AIR DEFLECTOR (C)	1-61281-233-4	01	1	9603-
471	PATCH; AIR DEFLECTOR (B)	1-61281-200-3	01	1	9603-
472	PATCH; STAY,ROOF	1-61281-232-3	01	1	9603-9910
472	PATCH; STAY,ROOF	1-61270-943-1	01	1	9911-

446 110 103 517 444 30 455 304 339 447 285 291 289 103 149 289 494 404 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	1-71907-465-0	01	1	9603-
30	CLOSING; SIDE STEP	1-71907-464-0	01	1	9603-
103	PLATE; STEP (A)	1-53414-090-2	01	1	9603-9608
103	PLATE; STEP (A)	1-53414-181-0	01	1	9609-
103	PLATE; STEP (B)	1-71907-249-1	01	1	9603-
103	PLATE; STEP (A)	1-53414-089-2	01	1	9603-9608
103	PLATE; STEP (A)	1-53414-180-0	01	1	9609-
103	PLATE; STEP (B)	1-71907-174-1	01	1	9603-
110	BOLT; 1ST STEP PLATE M8X20 W/LK&PL WASHER	8-94279-216-0	08	1	9603-
149	NUT; STEP BRKT M12 FLANGE	0-91150-212-0	08	1	9603-
285	PLATE; STEP,1ST STEP	1-53414-101-2	01	1	9603-9606
285	PLATE; STEP,1ST STEP	1-53414-183-0	01	1	9607-
285	PLATE; STEP,1ST STEP	1-53414-100-2	01	1	9603-
289	WASHER; PL,STEP (A) ID=6.4 OD=18	9-09160-706-0	08	1	9603-
289	WASHER; PL,STEP (B) ID=15	9-09651-069-0	04	1	9603-
291	BOLT; STEP PLATE M8X30 FLANGE	0-28080-830-0	08	1	9603-9606
291	BOLT; STEP PLATE M8X35 FLANGE	0-28680-835-0	08	1	9607-9904
291	BOLT; STEP PLATE M8X30 FLANGE	0-28680-830-0	08	1	9905-
304	NUT; SPIRE M6	1-09984-182-0	04	1	9603-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	12	1	9603-
404	BRACKET	1-53414-151-3	01	1	9603-
404	BRACKET	1-53414-150-3	01	1	9603-
430	NUT; PANEL M8	9-09110-508-0	08	1	9603-9606
430	NUT; PANEL M8 FLANGE	0-91150-108-0	08	1	9607-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9603-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	9603-
447	BOLT; PANEL M6X12 FLANGE	0-28080-612-0	08	1	9603-
455	PROTECTOR; STEP	1-71907-179-1	01	1	9603-
455	PROTECTOR; STEP	1-71907-178-1	01	1	9603-
494	STUD; BRKT M12X35,M14X45 L=100	1-09029-075-0	04	1	9603-
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74100-510-0	04	1	9603-

446 110 517 103 444 30 304 339 289 455 291 103 447 285 149 289 494 404 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	1-71907-465-0	01	1	9603-
30	CLOSING; SIDE STEP	1-71907-464-0	01	1	9603-
103	PLATE; STEP (A)	1-53414-090-2	01	1	9603-9608
103	PLATE; STEP (A)	1-53414-181-0	01	1	9609-
103	PLATE; STEP (B)	1-71907-249-1	01	1	9603-
103	PLATE; STEP (A)	1-53414-089-2	01	1	9603-9608
103	PLATE; STEP (A)	1-53414-180-0	01	1	9609-
103	PLATE; STEP (B)	1-71907-174-1	01	1	9603-
110	BOLT; 1ST STEP PLATE M8X20 W/LK&PL WASHER	8-94279-216-0	08	1	9603-
149	NUT; STEP BRKT M12 FLANGE	0-91150-212-0	08	1	9603-
285	PLATE; STEP,1ST STEP	1-53414-101-2	01	1	9603-9606
285	PLATE; STEP,1ST STEP	1-53414-183-0	01	1	9607-
285	PLATE; STEP,1ST STEP	1-53414-100-2	01	1	9603-
289	WASHER; PL,STEP (A) ID=6.4 OD=18	9-09160-706-0	08	1	9603-
289	WASHER; PL,STEP (B) ID=15	9-09651-069-0	04	1	9603-
291	BOLT; STEP PLATE M8X30 FLANGE	0-28080-830-0	08	1	9603-9606
291	BOLT; STEP PLATE M8X35 FLANGE	0-28680-835-0	08	1	9607-9904
291	BOLT; STEP PLATE M8X30 FLANGE	0-28680-830-0	08	1	9905-
304	NUT; SPIRE M6	1-09984-182-0	04	1	9603-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	12	1	9603-
404	BRACKET	1-53414-151-3	01	1	9603-
404	BRACKET	1-53414-150-3	01	1	9603-
430	NUT; PANEL M8	9-09110-508-0	08	1	9603-9606
430	NUT; PANEL M8 FLANGE	0-91150-108-0	08	1	9607-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9603-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	9603-
447	BOLT; PANEL M6X12 FLANGE	0-28080-612-0	08	1	9603-
455	PROTECTOR; STEP	1-71907-179-1	01	1	9603-
455	PROTECTOR; STEP	1-71907-178-1	01	1	9603-
494	STUD; BRKT M12X35,M14X45 L=100	1-09029-075-0	04	1	9603-
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74100-510-0	04	1	9603-
