8-28 — CHASSIS ELECTRICAL (#46078) — 37 parça

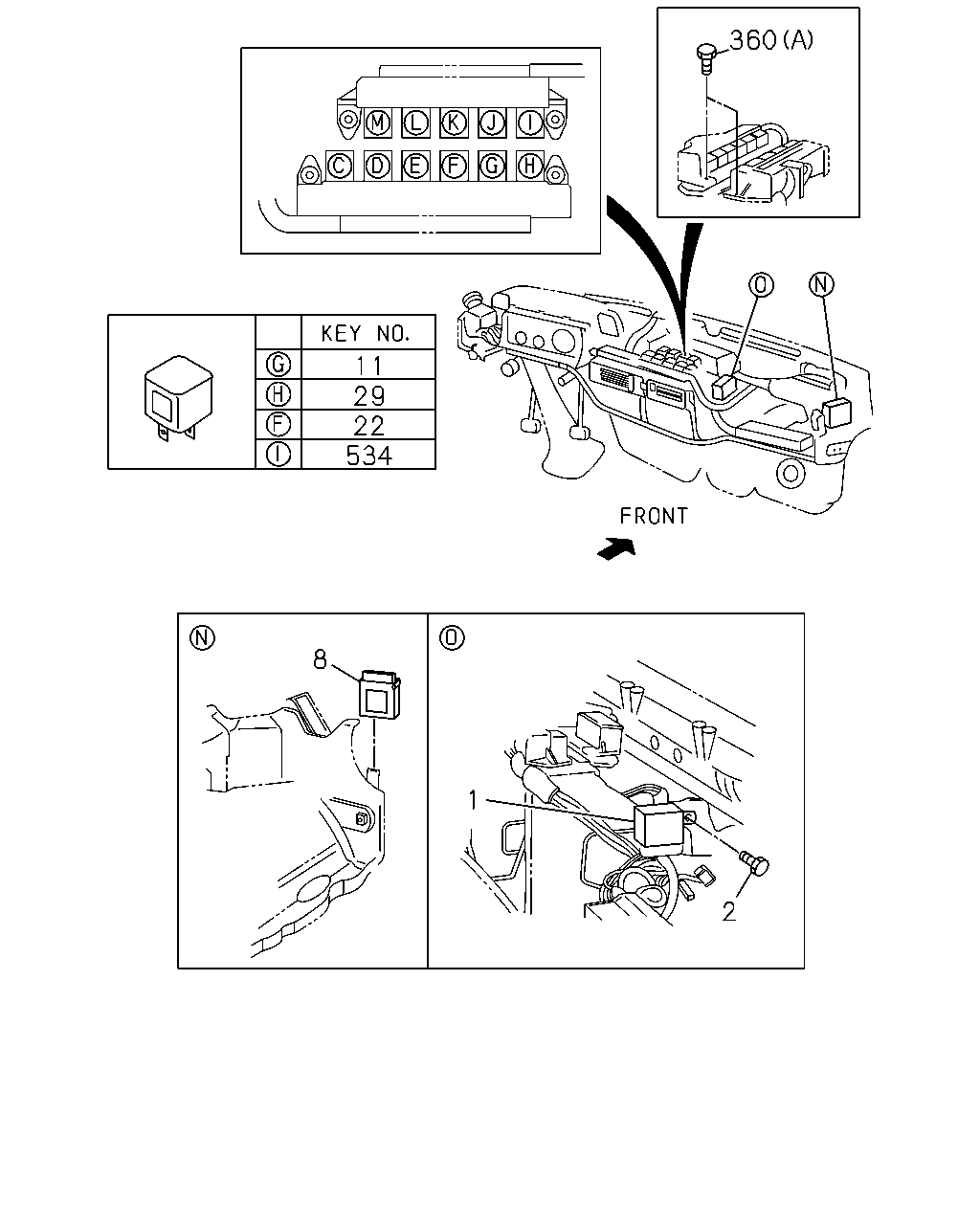

çizim 8749
360 11 29 22 534 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.575 UNIT; FLASHER 8-97086-509-1 01 1 9812-0003 ● ●
1 02.575 UNIT; FLASHER 8-97228-398-0 01 1 0004- ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9812- ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97855-186-0 01 1 9812-0301 ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-984-0 01 1 0302- ● ● ●
11 02.485 RELAY; DIMMER
08.852 12V 20A 		8-97060-926-1 01 1 0204- ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 12V 20A 		8-97060-926-1 01 1 9812- ● ● ●
29 02.815 RELAY; HORN
08.852 12V 20A 		8-97060-926-1 01 1 9812- ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9812- ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9812- ● ● ●
534 02.485 RELAY; FUEL FILTER
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ● ● ●

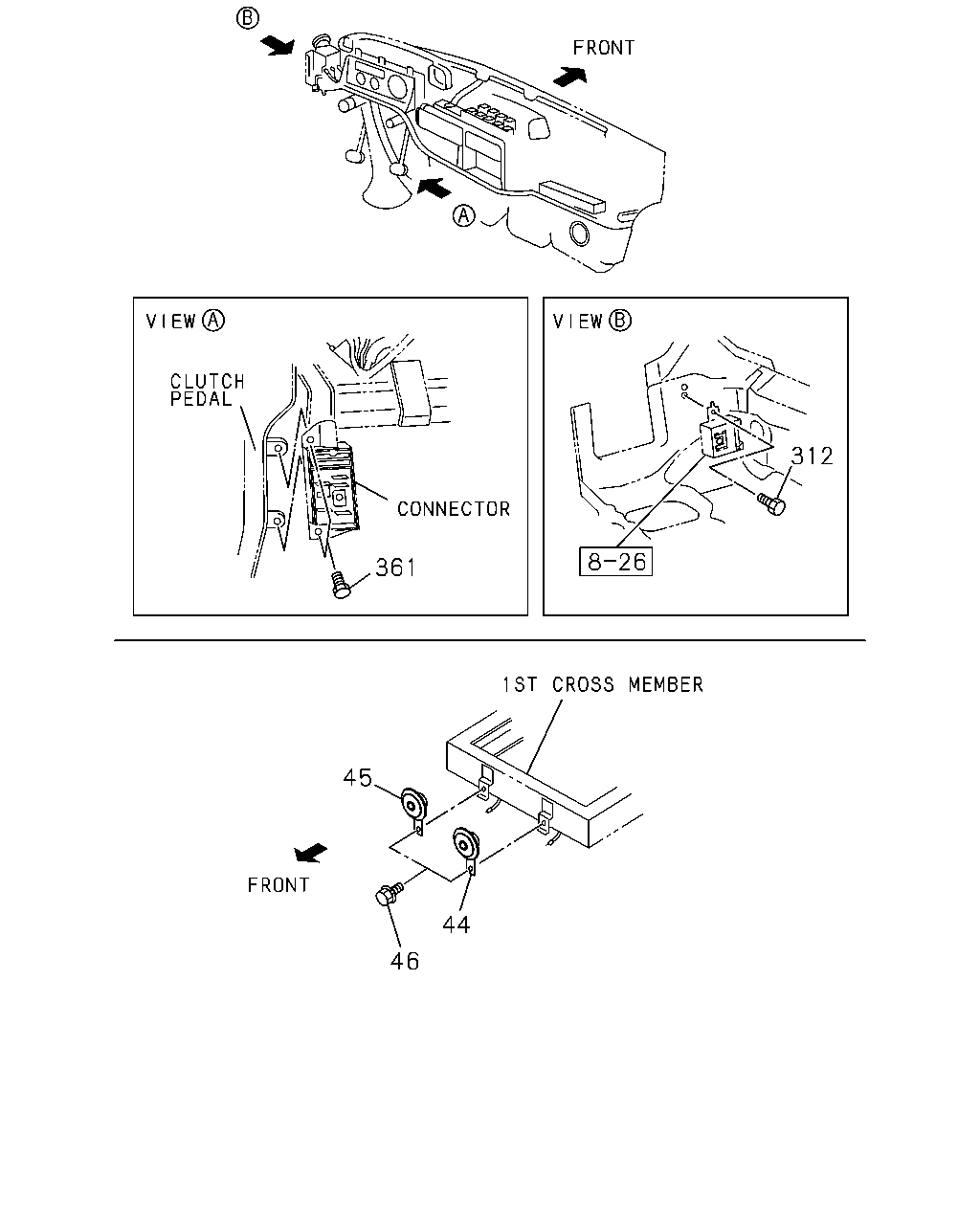

çizim 46227
312 361 45 44 46
BalonParca AdiParca NoAdetTipApplied Date A B C
44 02.810 HORN; HIGH NOTE 8-97109-361-0 01 1 9812-9812 ● ●
44 02.810 HORN; HIGH NOTE 8-97211-743-0 01 1 9812-9904 ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) 		8-97211-743-1 01 1 9905- ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-97109-361-0 01 1 9905- ● ● ●
45 02.810 HORN; LOW NOTE 8-97109-362-1 01 1 9812-9812 ● ●
45 02.810 HORN; LOW NOTE 8-97211-744-0 01 1 9812-9904 ● ●
45 02.810 HORN; LOW NOTE
EXC. DUAL HEAVY DUTY HORN(6KK) 		8-97211-744-1 01 1 9905- ● ● ●
45 02.810 HORN; LOW NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-97109-362-1 01 1 9905- ● ● ●
46 02.812 BOLT; HORN TO BODY
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9812-9904 ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05),DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9905- ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05),DUAL HEAVY DUTYHORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9905- ● ● ●
312 09.765 BOLT; BUZZER
4JH1 ENG(RJX) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0106- ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9812- ● ● ●

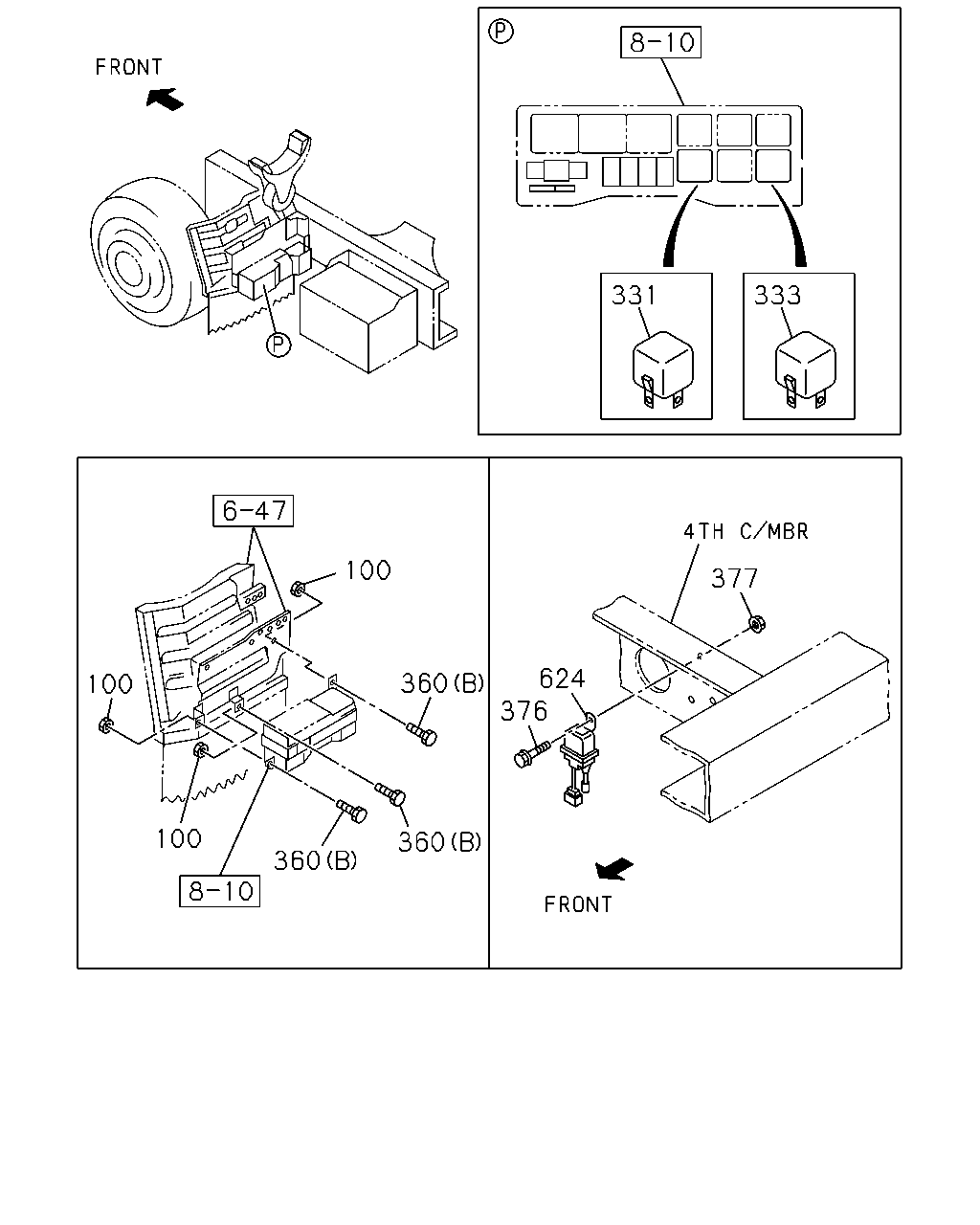

çizim 46343
331 333 100 377 624 376 360 100 100 360 360
BalonParca AdiParca NoAdetTipApplied Date A B C
100 09.277 NUT; RELAY BOX COVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 03 1 9812-0105 ● ●
100 09.277 NUT; RELAY BOX COVER
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ● ● ●
331 02.510 RELAY; A/C
4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 0106- ● ● ●
333 09.277 RELAY; MARKER LAMP
08.852 12V 20A 		8-97060-926-1 01 1 9812- ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 9812- ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9812- ● ● ●
376 03.342 BOLT; RELAY
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9901- ●
377 02.892 NUT; RELAY
07.633 M8 FLANGE 		0-91150-108-0 01 1 9901- ●
624 02.892 RELAY; SIDE TURN 8-97222-700-0 01 1 9901-9912 ●
624 02.892 RELAY; SIDE TURN
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97222-700-0 01 1 0001-0102 ●
624 02.892 RELAY; SIDE TURN
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97251-621-0 01 1 0001-0102 ●
624 02.892 RELAY; SIDE TURN 8-97251-621-0 01 1 0103-0301 ●
624 02.892 RELAY; SIDE TURN 8-97363-874-0 01 1 0302- ●
