8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#46077) — 19 parça

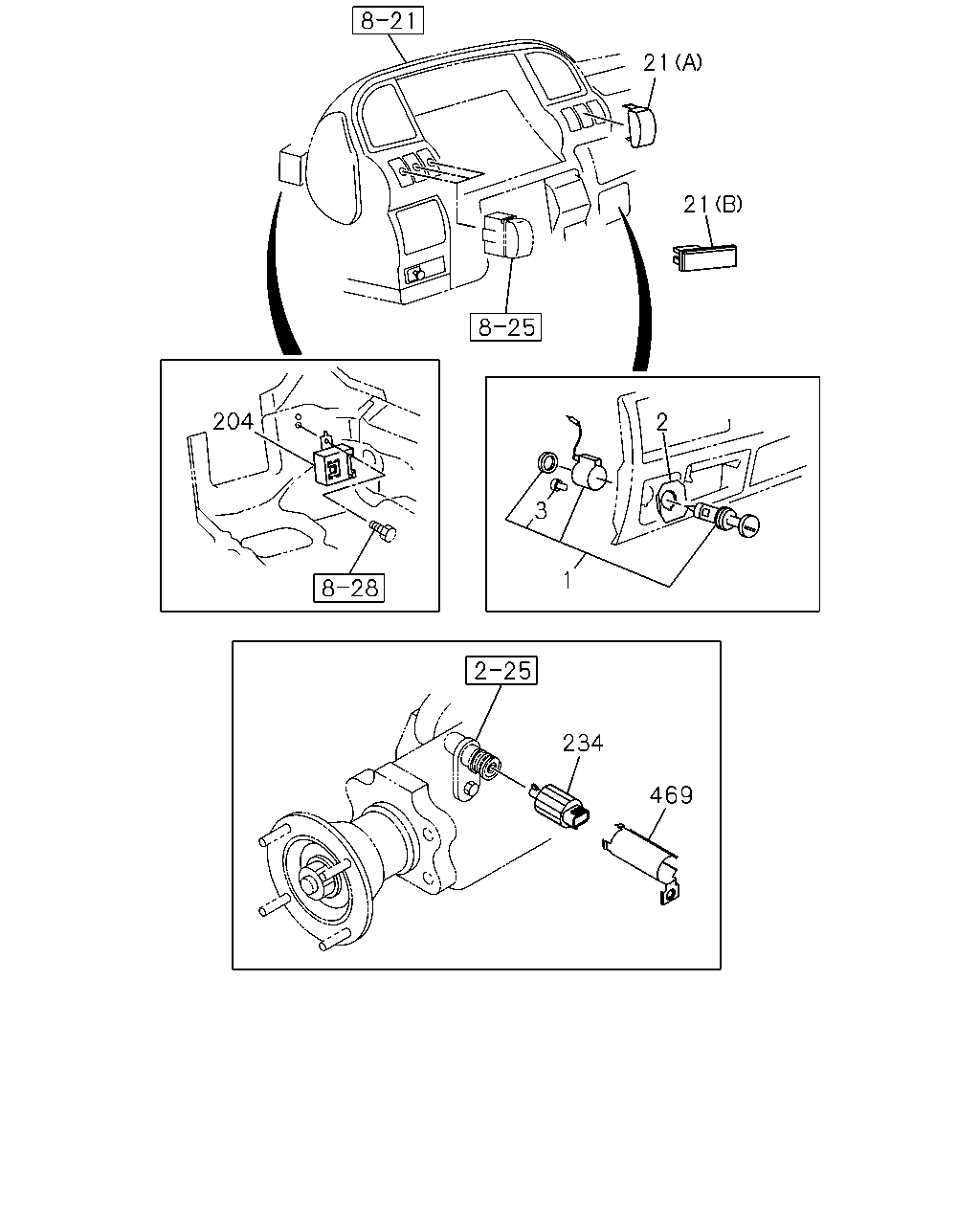

çizim 10232
21 21 204 2 3 1 234 469
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.709 LIGHTER; CIGAR 8-97073-936-1 01 1 9812-0108 ● ●
1 09.709 LIGHTER; CIGAR 8-97320-322-0 01 1 0109- ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9812- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 9812- ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 02 1 9812- ● ● ●
21 09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9812-0210 ● ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 01 1 0211- ●
21 09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211- ● ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC) (A) 		8-97136-694-0 01 1 9812-0105 ● ●
204 02.195 BUZZER; KEY REMIND
4JH1 ENG(RJX) 09.765 		8-97036-649-0 01 1 0106- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9812-0006 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0007- ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 0106- ● ● ●

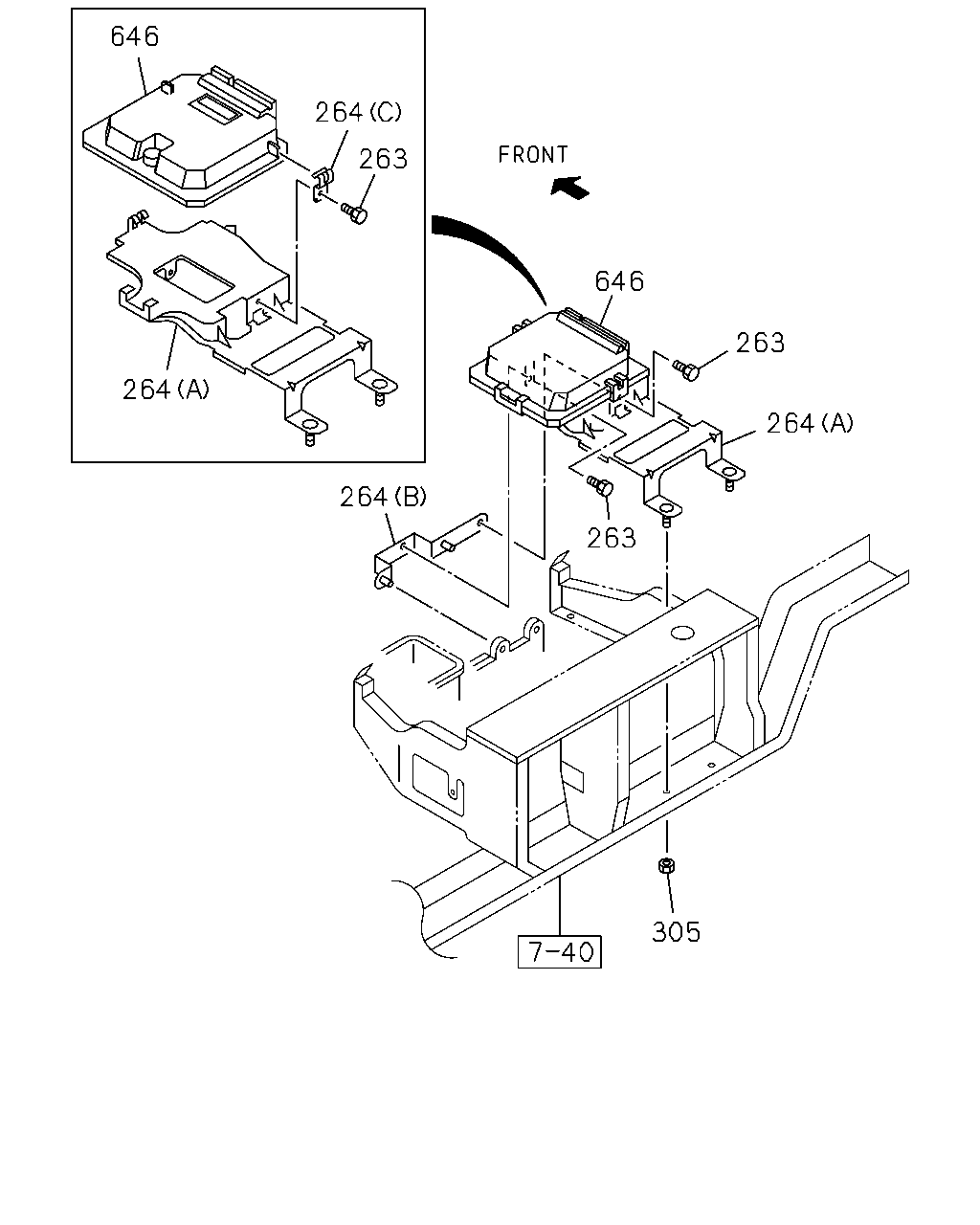

çizim 46054
646 264 263 646 263 264 264 264 263 305
BalonParca AdiParca NoAdetTipApplied Date A B C
263 04.115 BOLT; CONT UNIT
4JH1 ENG(RJX) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0106- ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (C) 		8-97240-154-1 01 1 0106- ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (A) 		8-97309-165-4 01 1 0106- ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (B) 		8-97312-796-2 01 1 0106- ● ● ●
305 08.915 NUT; CONT UNIT
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0106- ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) 		8-97260-385-4 01 1 0106- ● ● ●
