◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#46075) — 248 parça

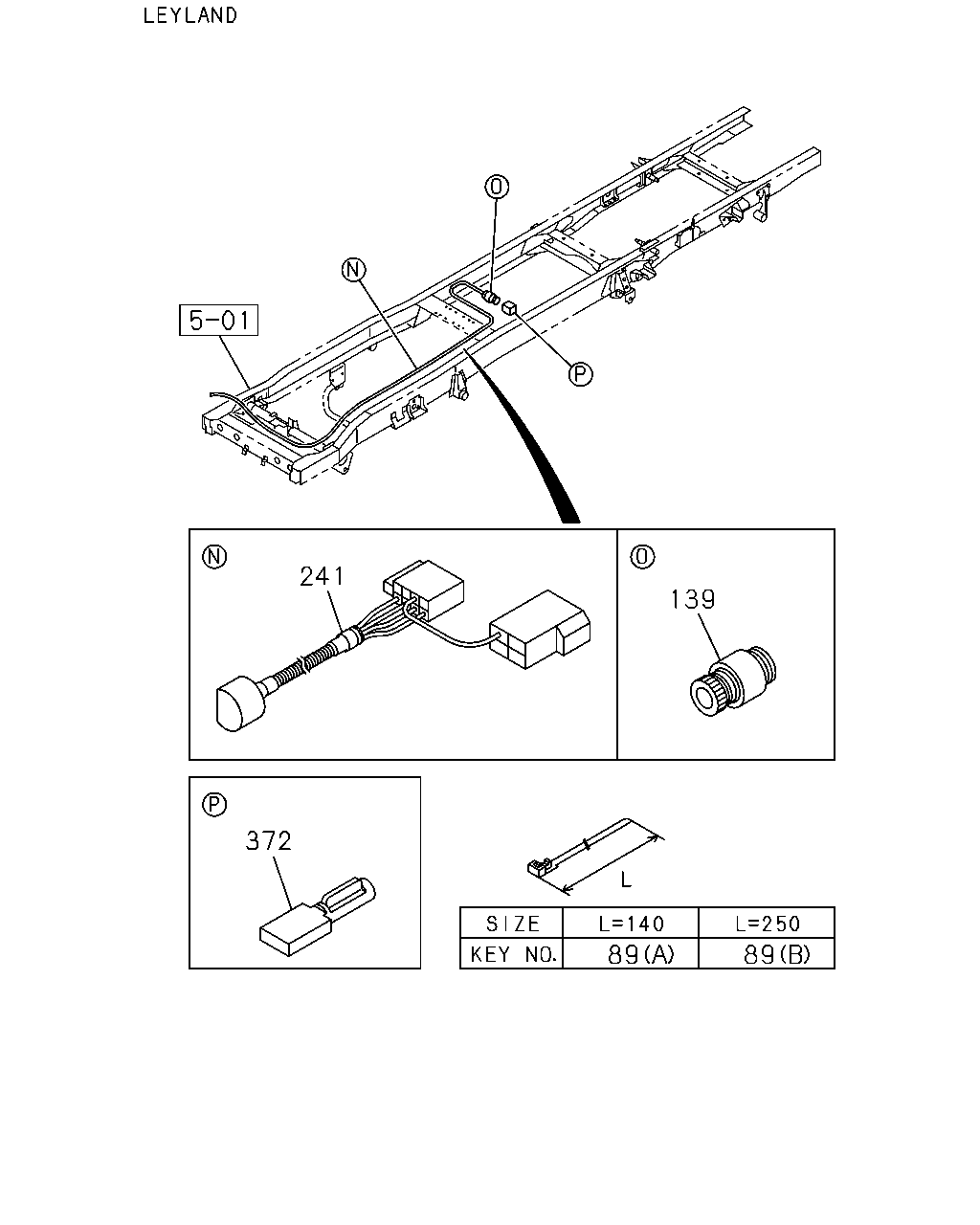

çizim 9171
241 139 372 89 89
BalonParca AdiParca NoAdetTipApplied Date A B C
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT(S9Z) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 02.559 (B) L=250 		5-09707-030-1 15 1 9812- ● ● ●
89 09.761 CLIP; HARNESS
LEYLAND EQUIPMENT(S9Z) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 03.162 (A) L=140 		5-09707-031-1 02 1 9812- ● ● ●
139 09.750 SENSOR; SPD,CLUSTER METER
LEYLAND EQUIPMENT(S9Z) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-802-0 01 1 9812- ● ● ●
241 02.480 HARNESS; SPEEDOMETER
LEYLAND EQUIPMENT(S9Z) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-804-0 01 1 9812- ● ● ●
372 09.750 SHAFT; DRIVE,SPEED
LEYLAND EQUIPMENT(S9Z) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97160-805-0 01 1 9812- ● ● ●

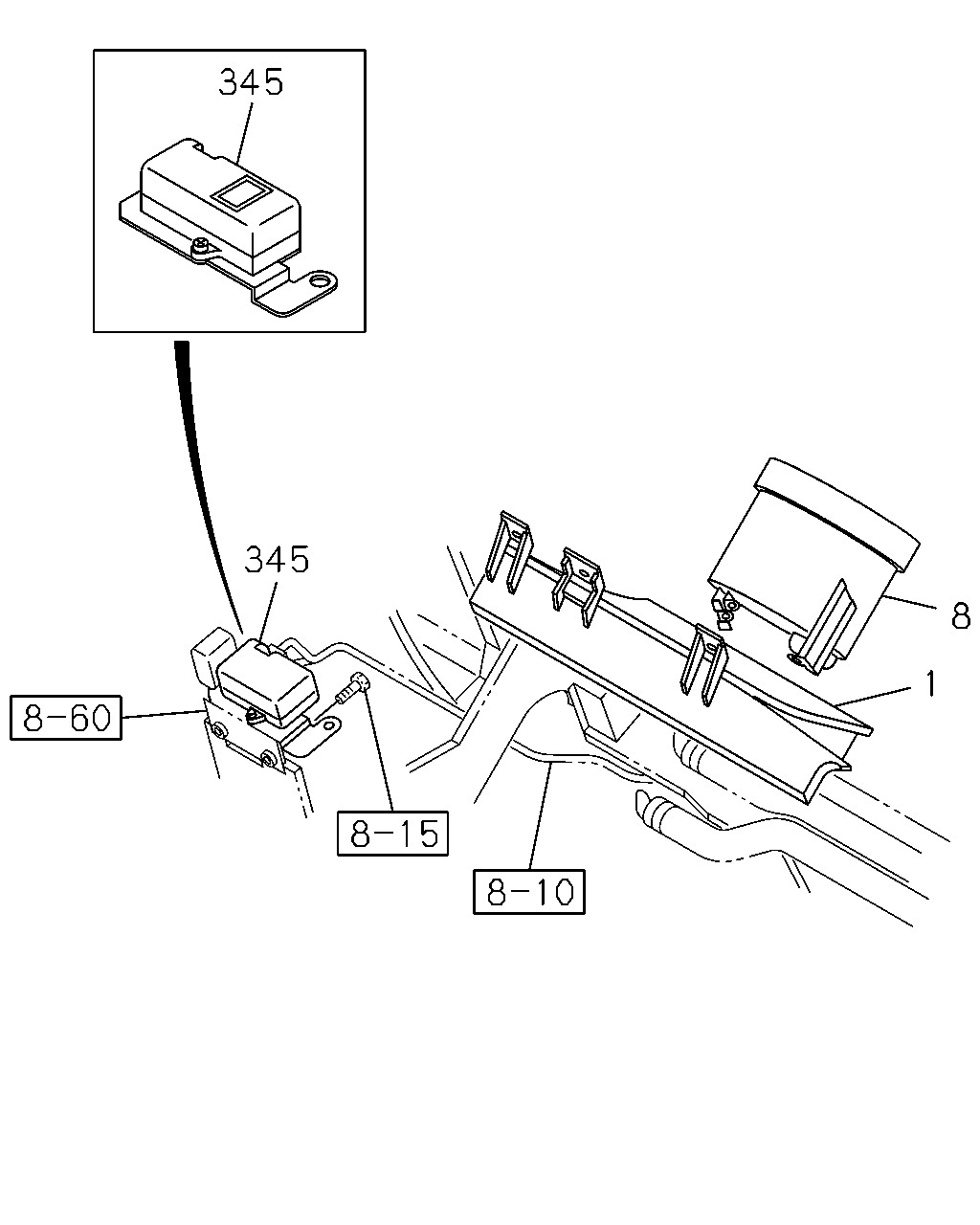

çizim 47794
345 345 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16> 		8-97206-202-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97170-652-3 01 1 9812-0002 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-249-0 01 1 0003-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-249-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-195-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97206-195-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-243-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97249-243-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97260-645-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-203-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97170-651-3 01 1 9812-0002 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-248-0 01 1 0003-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-248-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97206-194-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-194-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97249-242-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-242-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0106- ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT(S9Z) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97183-885-0 01 1 9812- ● ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97183-331-2 01 1 9812- ● ● ●

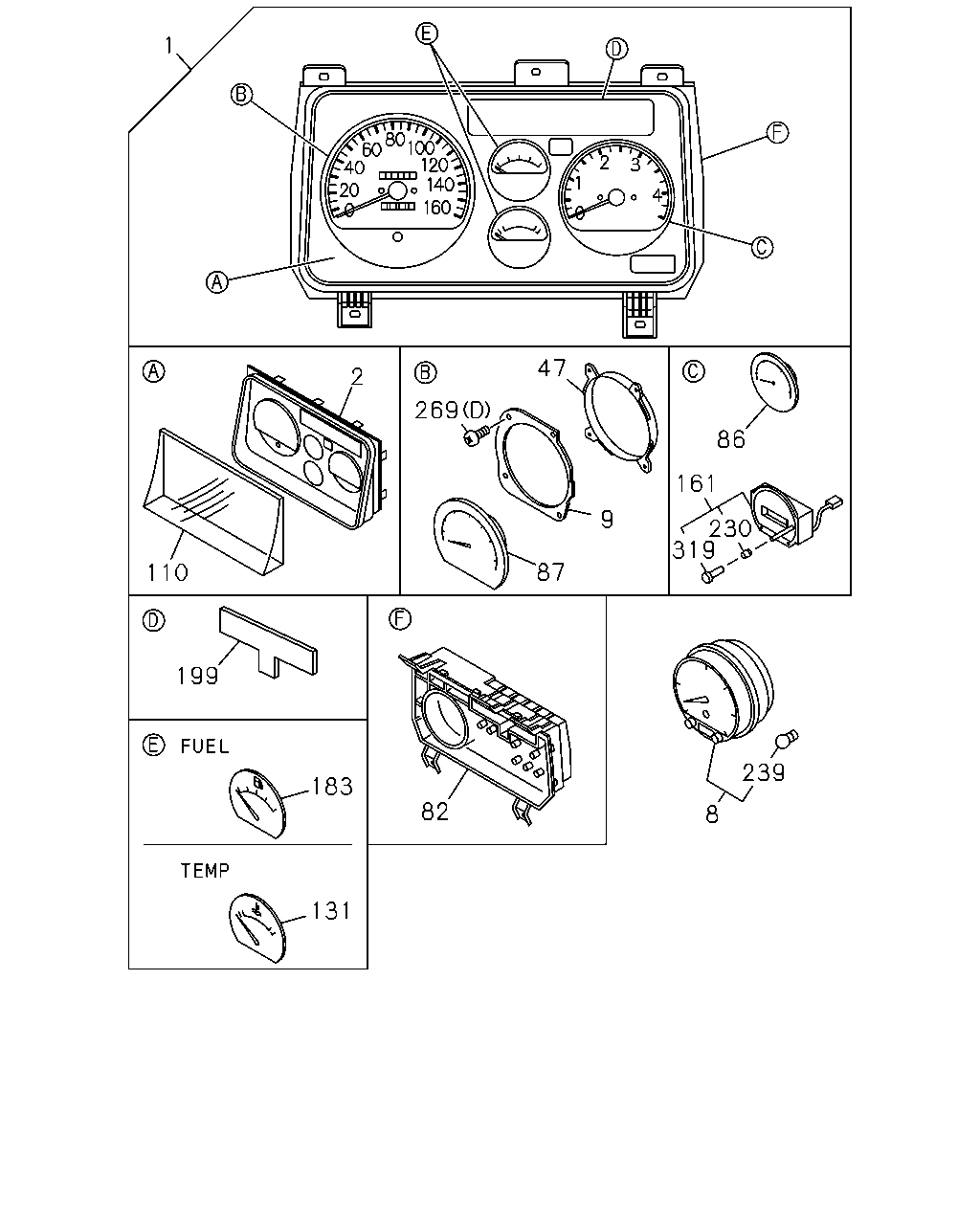

çizim 49201
1 47 2 269 86 161 9 230 319 87 110 199 239 183 82 8 131
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16> 		8-97206-202-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97170-652-3 01 1 9812-0002 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-249-0 01 1 0003-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-249-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-195-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97206-195-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-243-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97249-243-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97260-645-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-203-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97170-651-3 01 1 9812-0002 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-248-0 01 1 0003-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-248-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97206-194-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-194-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97249-242-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-242-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0106- ● ● ●
2 09.735 PANEL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 9812-0105 ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-445-0 01 1 0106- ● ● ●
2 09.735 PANEL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-443-0 01 1 9812-0105 ● ●
2 09.735 PANEL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-443-0 01 1 0106- ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
LEYLAND EQUIPMENT(S9Z) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97183-885-0 01 1 9812- ● ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-531-0 01 1 9812-0105 ● ●
9 09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-531-0 01 1 0106- ● ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-530-0 01 1 9812-0105 ● ●
47 09.748 COVER; TACHOGRAPH,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-530-0 01 1 0106- ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-449-0 01 1 9812-0105 ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-449-0 01 1 0106- ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-448-0 01 1 9812-0105 ● ●
82 09.743 CASE ASM; CLUSTER METER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-448-0 01 1 0106- ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> 		8-97185-467-0 01 1 9812-0105 ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JH1 ENG(RJX) TACHOMETER<U16> 		8-97307-050-0 01 1 0106- ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-456-0 01 1 9812-0105 ● ●
87 09.761 SPEEDOMETER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-456-0 01 1 0106- ● ● ●
110 09.748 GLASS; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-452-0 01 1 9812-0105 ● ●
110 09.748 GLASS; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-452-0 01 1 9812-0105 ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-452-0 01 1 0106- ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-452-0 01 1 0106- ● ● ●
110 09.748 GLASS; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97185-454-0 01 1 9812-0105 ● ●
110 09.748 GLASS; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97185-453-0 01 1 9812-0105 ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97185-453-0 01 1 0106- ● ● ●
110 09.748 GLASS; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97185-451-0 01 1 9812-0105 ● ●
110 09.748 GLASS; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-451-0 01 1 9812-0105 ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97185-451-0 01 1 0106- ● ● ●
110 09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-451-0 01 1 0106- ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-476-0 01 1 9812-0105 ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97185-476-0 01 1 9812-0105 ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-476-0 01 1 0106- ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JH1 ENG(RJX) 		8-97185-476-0 01 1 0106- ● ● ●
161 09.772 CLOCK; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-462-0 01 1 9812-0105 ● ●
161 09.772 CLOCK; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 9812-0105 ● ●
161 09.772 CLOCK; CLUSTER METER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97185-462-0 01 1 0106- ● ● ●
161 09.772 CLOCK; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-462-0 01 1 0106- ● ● ●
183 03.107 GAUGE; FUEL
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-473-0 01 1 9812-0105 ● ●
183 03.107 GAUGE; FUEL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97185-473-0 01 1 9812-0105 ● ●
183 03.107 GAUGE; FUEL
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-473-0 01 1 0106- ● ● ●
183 03.107 GAUGE; FUEL
4JH1 ENG(RJX) 		8-97185-473-0 01 1 0106- ● ● ●
183 03.107 GAUGE; FUEL
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 09.772 		8-97185-462-0 01 1 0106- ● ● ●
199 09.772 LENS; WARNING LAMP
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97210-305-0 01 1 9812-0002 ● ●
199 09.772 LENS; WARNING LAMP
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97210-305-0 01 1 0003-0105 ● ●
199 09.772 LENS; WARNING LAMP
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97210-305-0 01 1 0003-0105 ● ●
199 09.772 LENS; WARNING LAMP
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97210-305-0 01 1 0106- ● ● ●
199 09.772 LENS; WARNING LAMP
4JH1 ENG(RJX) 		8-97210-305-0 01 1 0106- ● ● ●
199 09.772 LENS; WARNING LAMP
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-481-0 01 1 9812-0002 ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-644-0 01 1 9812-0105 ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 9812-0105 ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-644-0 01 1 0106- ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JH1 ENG(RJX) EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0106- ● ● ●
239 08.991 BULB; TACHOGRAPH
LEYLAND EQUIPMENT(S9Z) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97356-179-0 02 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-525-0 06 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97185-525-0 06 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-525-0 06 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (B) 		8-97185-525-0 06 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97185-528-0 02 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (C) 		8-97185-528-0 02 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (A) 		8-97185-524-0 03 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 		8-97185-524-0 02 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-524-0 08 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 		8-97185-524-0 08 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-524-0 08 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 		8-97185-524-0 08 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (A) 		8-97185-524-0 02 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> (A) 		8-97185-524-0 07 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-524-0 07 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> (A) 		8-97185-524-0 07 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-524-0 07 1 0106- ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-522-0 01 1 9812-0105 ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 9812-0105 ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-522-0 01 1 0106- ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JH1 ENG(RJX) EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0106- ● ● ●

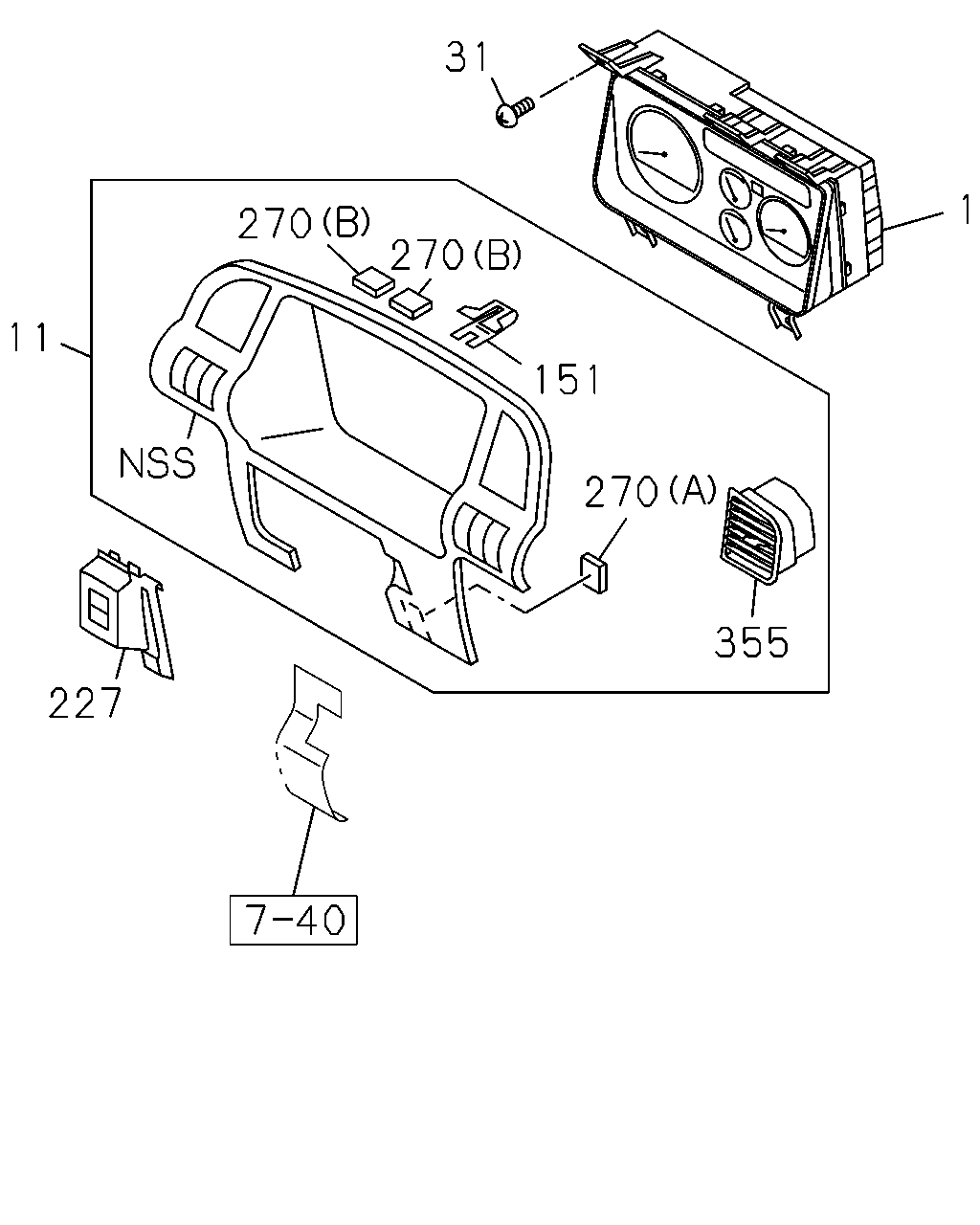

çizim 49406
31 1 270 11 151 355 227 270 270
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16> 		8-97206-202-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97170-652-3 01 1 9812-0002 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-249-0 01 1 0003-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-249-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-195-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97206-195-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-243-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97249-243-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97260-645-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-203-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97170-651-3 01 1 9812-0002 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-248-0 01 1 0003-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-248-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97206-194-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-194-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97249-242-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-242-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0106- ● ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 9812- ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9812- ● ● ●
151 09.747 CLIP; METER CLUSTER 8-97853-939-4 07 1 9812-9902 ● ●
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 9903- ● ● ●
227 09.743 BEZEL; METER
EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97868-660-2 01 1 9812-0011 ● ●
227 09.743 BEZEL; METER
EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97307-066-0 01 1 0012-0210 ● ● ●
227 09.743 BEZEL; METER
BLACK 		8-97307-066-0 01 1 0211- ●
227 09.743 BEZEL; METER
EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97307-066-0 01 1 0211- ● ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 9812- ● ● ●
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 9812- ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 9812- ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 9812- ● ● ●

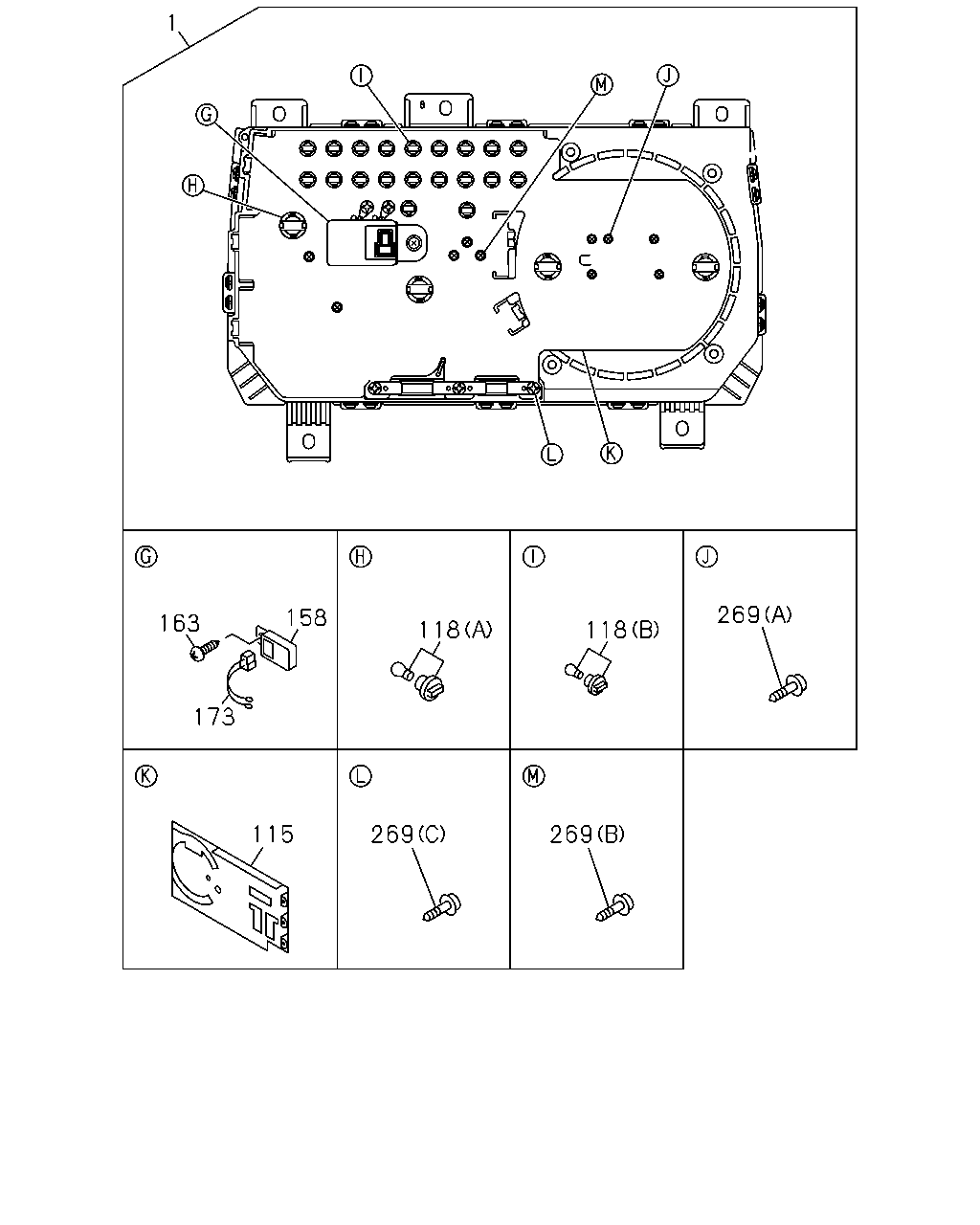

çizim 49407
1 269 158 163 118 118 173 115 269 269
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16> 		8-97206-202-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97170-652-3 01 1 9812-0002 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-249-0 01 1 0003-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97249-249-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97260-647-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-195-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97206-195-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-243-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97249-243-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-645-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97260-645-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-203-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97170-651-3 01 1 9812-0002 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-248-0 01 1 0003-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97249-248-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97260-646-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97206-194-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97206-194-0 01 1 9812-0004 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97249-242-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97249-242-0 01 1 0005-0105 ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97260-644-1 01 1 0106- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97260-644-1 01 1 0106- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> IDENTIFICATION LABEL FOR KD<6UT> EXC. TACHOMETER<U16> 		8-97210-312-0 01 1 9812-0002 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97210-312-0 01 1 0003-0105 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> 		8-97307-053-0 01 1 0106- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-498-0 01 1 9812-0002 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97210-309-0 01 1 9812-0105 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97210-309-0 01 1 9812-0105 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97307-051-0 01 1 0106- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> 		8-97307-051-0 01 1 0106- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> IDENTIFICATION LABEL FOR KD<6UT> 		8-97210-313-0 01 1 9812-0002 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97210-313-0 01 1 0003-0105 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> 		8-97307-054-0 01 1 0106- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-497-0 01 1 9812-0002 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97210-308-0 01 1 9812-0105 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97210-308-0 01 1 9812-0105 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> 		8-97307-052-0 01 1 0106- ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97307-052-0 01 1 0106- ● ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 10 1 9812-0004 ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 11 1 0005-0105 ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 11 1 0005-0105 ● ●
118 08.991 BULB; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 12 1 0106- ● ● ●
118 08.991 BULB; CLUSTER METER
4JH1 ENG(RJX) (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 12 1 0106- ● ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 12V SOCKET COLOR BLACK 		8-97185-535-0 02 1 9812-0105 ● ●
118 08.991 BULB; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 12V SOCKET COLOR BLACK 		8-97185-535-0 02 1 0106- ● ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 9812-0002 ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 11 1 0003-0004 ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 9812-0105 ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 9812-0105 ● ●
118 08.991 BULB; CLUSTER METER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0106- ● ● ●
118 08.991 BULB; CLUSTER METER
4JH1 ENG(RJX) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0106- ● ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 9812-0105 ● ●
118 08.991 BULB; CLUSTER METER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 0106- ● ● ●
158 09.765 BUZZER; VAC WARNING
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 		8-97185-520-0 01 1 9812-0105 ● ●
158 09.765 BUZZER; VAC WARNING
4JG2 ENG(RJC),4JB1 ENG(RLF) 12V 		8-97185-520-0 01 1 9812-0105 ● ●
158 09.765 BUZZER; VAC WARNING
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 12V 		8-97185-520-0 01 1 0106- ● ● ●
158 09.765 BUZZER; VAC WARNING
4JH1 ENG(RJX) 12V 		8-97185-520-0 01 1 0106- ● ● ●
163 08.977 SCREW; BUZZER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 9812-0105 ● ●
163 08.977 SCREW; BUZZER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97185-527-0 01 1 9812-0105 ● ●
163 08.977 SCREW; BUZZER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-527-0 01 1 0106- ● ● ●
163 08.977 SCREW; BUZZER
4JH1 ENG(RJX) 		8-97185-527-0 01 1 0106- ● ● ●
173 09.744 WIRE; LEAD
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-643-0 01 1 9812-0105 ● ●
173 09.744 WIRE; LEAD
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97185-643-0 01 1 9812-0105 ● ●
173 09.744 WIRE; LEAD
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97185-643-0 01 1 0106- ● ● ●
173 09.744 WIRE; LEAD
4JH1 ENG(RJX) 		8-97185-643-0 01 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (D) 		8-97185-532-0 04 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-525-0 06 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97185-525-0 06 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97185-525-0 06 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (B) 		8-97185-525-0 06 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) 		8-97185-528-0 02 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97185-528-0 02 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (C) 		8-97185-528-0 02 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> (A) 		8-97185-524-0 03 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 		8-97185-524-0 02 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-524-0 08 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 		8-97185-524-0 08 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> TACHOMETER<U16> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-524-0 08 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOMETER<U16> EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) 		8-97185-524-0 08 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16> (A) 		8-97185-524-0 02 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> (A) 		8-97185-524-0 07 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JG2 ENG(RJC),4JB1 ENG(RLF) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-524-0 07 1 9812-0105 ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) EXC. TACHOGRAPH ECC REGULATIONS KIENZLE<UC9>,TACHOMETER<U16> (A) 		8-97185-524-0 07 1 0106- ● ● ●
269 09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> EXC. TACHOMETER<U16>,IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97185-524-0 07 1 0106- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
