◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#46074) — 294 parça
çizim 9582
49 16 510 514 504 514 514 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C
16 02.559 CLIP; HARNESS
(A) L=250 		5-09707-030-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(C) ID=15-32 		8-97174-404-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
03.162 (G) L=140 		5-09707-031-1 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
01.166 (J) ID=22 & 22 		8-94464-837-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(K) L=175 		8-97110-167-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(L) ID=25 L=55 		9-09917-573-0 AR 1 0001- ● ● ●
16 02.559 CLIP; HARNESS
02.589 (M) ID=27 		5-09700-323-0 AR 1 0005- ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=24 H=40 L=24 		1-09701-243-0 AR 1 0106- ● ● ●
16 02.559 CLIP; HARNESS
(O) ID=12 		5-09700-331-0 AR 1 0106- ● ● ●
49 02.559 CLIP; GEN HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0106- ●
49 02.559 CLIP; GEN HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0106- ● ●
53 02.483 BRACKET; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97202-003-2 01 1 0106-0203 ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX) (B) 		8-97062-178-3 01 1 0106- ● ● ●
53 02.483 BRACKET; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97040-410-2 01 1 0001-0203 ●
504 02.559 PROTECTOR; HARNESS
16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9812-0105 ●
504 02.559 PROTECTOR; HARNESS
04.785 L=200 		8-97096-423-0 01 1 0106- ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 9812- ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 9812-0105 ● ●
514 02.559 FINISHER; HARNESS
4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0106- ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 9812-0105 ● ● ●
514 02.559 FINISHER; HARNESS
4JH1 ENG(RJX) 16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0106- ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0106- ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0106- ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (B) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 9812- ● ● ●

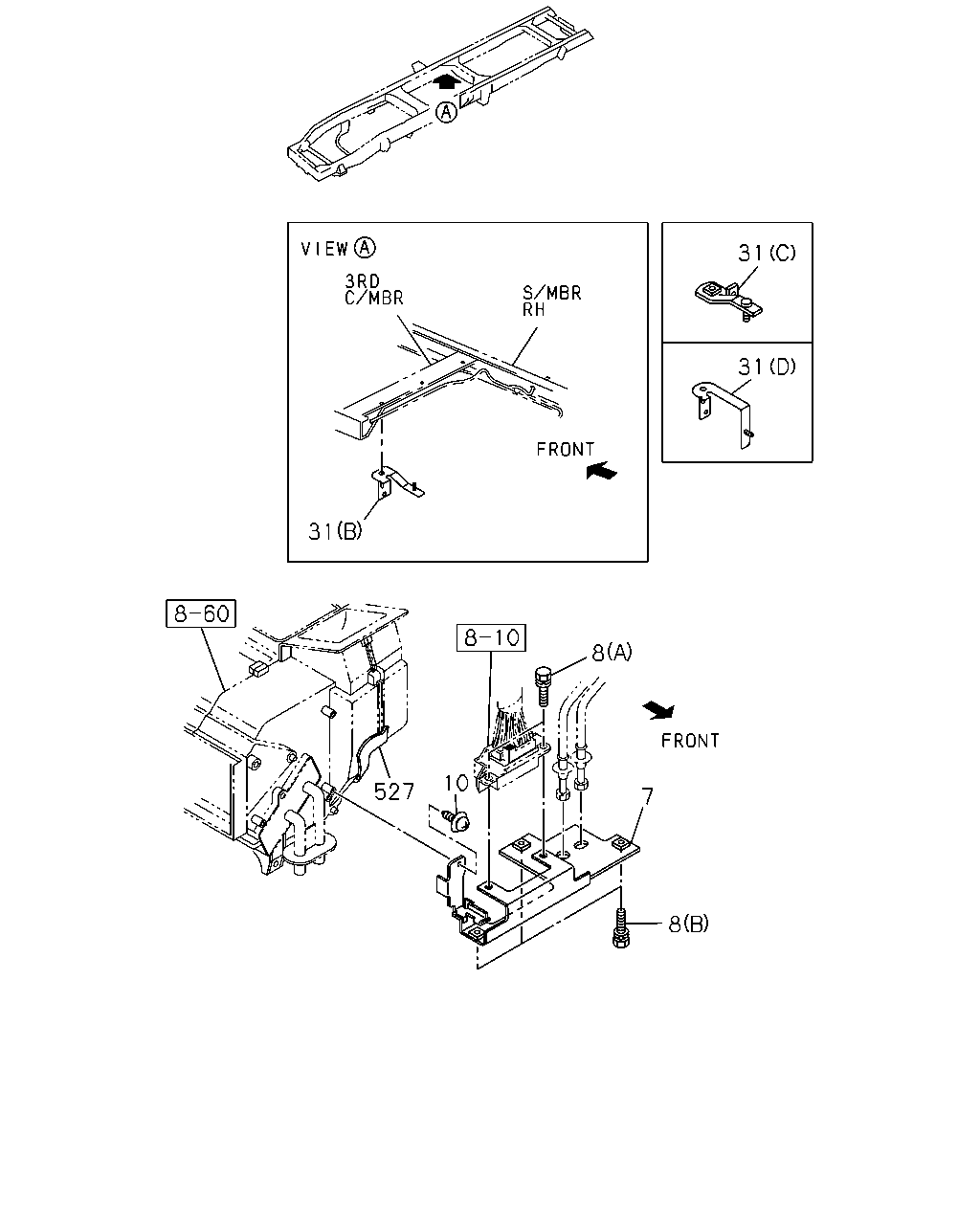

çizim 10394
31 31 31 8 10 527 7 8
BalonParca AdiParca NoAdetTipApplied Date A B C
7 02.559 BRACKET; CONNECTOR 8-97102-247-2 01 1 9812- ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 03 1 9812- ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9812- ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9812- ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=20 		8-94165-263-1 01 1 9812-0105 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (A) L=20 		8-94165-263-1 01 1 0106- ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97077-845-0 02 1 9812-0105 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (B) 		8-97077-845-0 02 1 0106- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (C) 		8-97077-845-0 01 1 0106- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (D) 		8-97288-169-0 01 1 0106- ● ●
527 02.559 TAPE; SOFT,CONNECTOR
100X100 		8-94232-622-0 01 1 9812- ● ● ●
çizim 10396
31 31
BalonParca AdiParca NoAdetTipApplied Date A B C
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) L=20 		8-94165-263-1 01 1 9812-0105 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (A) L=20 		8-94165-263-1 01 1 0106- ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97077-845-0 02 1 9812-0105 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (B) 		8-97077-845-0 02 1 0106- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (C) 		8-97077-845-0 01 1 0106- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (D) 		8-97288-169-0 01 1 0106- ● ●
çizim 45521
16 16 208 16 48 52 16 48 16 48 48 48 48 48 48 16 48 48 48 48 208 48 551 48
BalonParca AdiParca NoAdetTipApplied Date A B C
16 02.559 CLIP; HARNESS
(A) L=250 		5-09707-030-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(C) ID=15-32 		8-97174-404-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
03.162 (G) L=140 		5-09707-031-1 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
01.166 (J) ID=22 & 22 		8-94464-837-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(K) L=175 		8-97110-167-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(L) ID=25 L=55 		9-09917-573-0 AR 1 0001- ● ● ●
16 02.559 CLIP; HARNESS
02.589 (M) ID=27 		5-09700-323-0 AR 1 0005- ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=24 H=40 L=24 		1-09701-243-0 AR 1 0106- ● ● ●
16 02.559 CLIP; HARNESS
(O) ID=12 		5-09700-331-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=28 L=32 		1-09701-064-1 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=19 L=60 		9-09525-893-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=35 L=35 		1-09700-895-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=170.3 		1-09987-182-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=11 L=16 		9-09525-025-0 AR 1 9906- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) L=250 		5-09707-030-1 AR 1 9908- ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (N) T=4.5 & 9 		5-09709-023-0 AR 1 0001- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=25 L=55 		9-09917-573-0 AR 1 0001- ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (P) ID=27 		5-09700-323-0 AR 1 0005- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0008- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (S) L=330 		5-09709-118-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (T) T=9.2 & 9 		5-09709-025-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(U) ID=31 L=33.5 		1-09987-165-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (V) ID=9.6 		8-94147-870-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=31 L=30 		1-09700-969-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) ID=32 L=35 		1-09701-244-0 AR 1 0106- ● ● ●
52 02.559 CLIP; HARNESS TO BRKT
01.240 ID=14 L=47 		5-09700-319-0 01 1 9812- ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) L=140 		5-09707-031-1 01 1 9812-9905 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) L=140 		5-09707-031-1 01 1 9906-0105 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (C) L=140 		5-09707-031-1 01 1 9906-0105 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 9812-9905 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 9906-0105 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10 		5-09700-318-0 02 1 9906-0105 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 9812-9905 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 9906-0105 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.240 (B) T=5.5 		5-09709-047-0 01 1 9906-0105 ●
551 02.559 CLIP; HARNESS,SIDE TURN
02.525 T=4.5 & 9 		5-09709-023-0 04 1 9901-9912 ●
551 02.559 CLIP; HARNESS,SIDE TURN
4 WHEEL ANTI LOCK BRAKE<JE5> 02.525 T=4.5 & 9 		5-09709-023-0 02 1 0001-0105 ●
551 02.559 CLIP; HARNESS,SIDE TURN
02.525 T=4.5 & 9 		5-09709-023-0 02 1 0106- ●
551 02.559 CLIP; HARNESS,SIDE TURN
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.525 T=4.5 & 9 		5-09709-023-0 04 1 0001-0105 ●

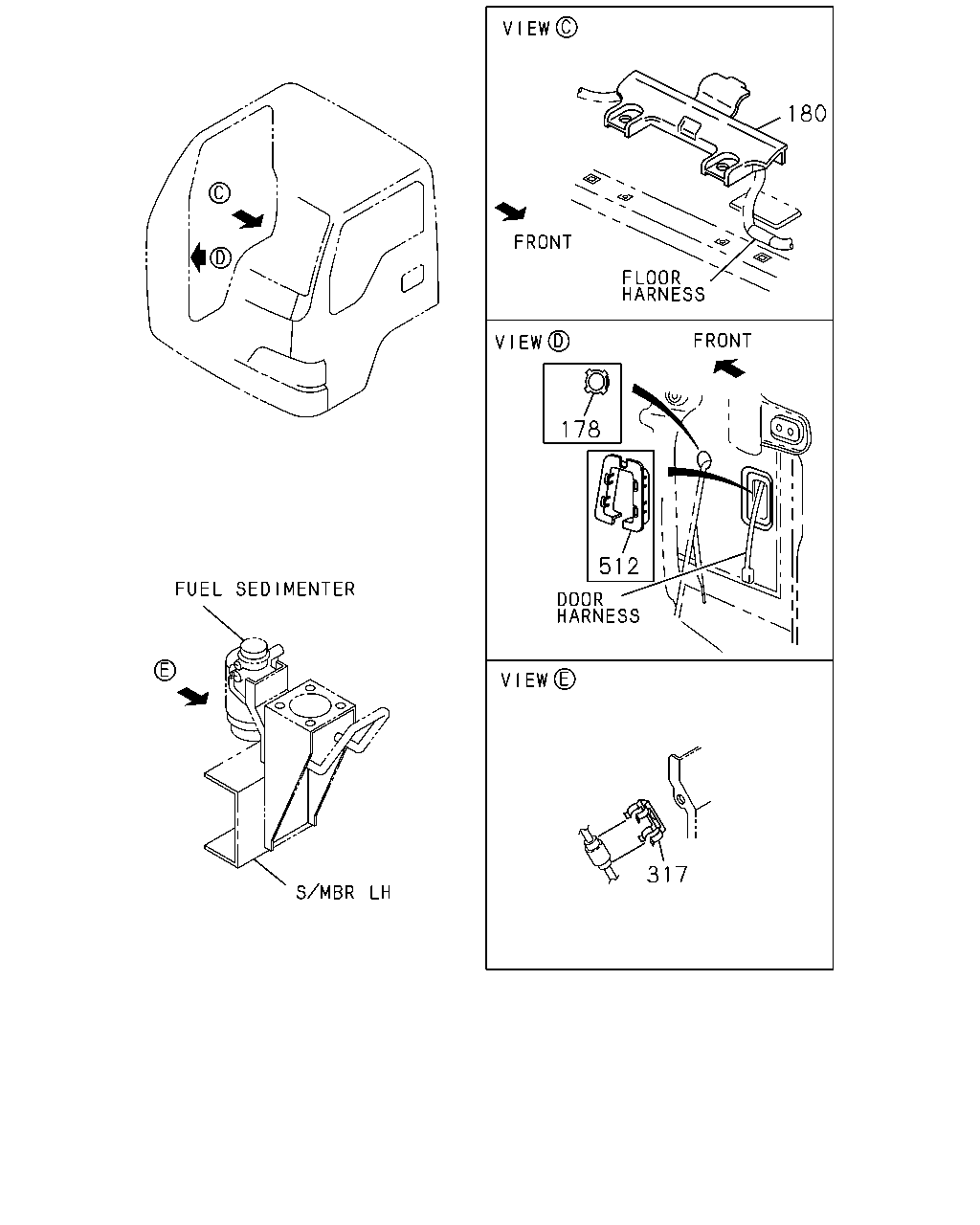

çizim 45593
180 178 512 317
BalonParca AdiParca NoAdetTipApplied Date A B C
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 9812- ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 9812- ● ● ●
317 02.559 CLAMP; CONNECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94441-365-0 01 1 9812-0105 ● ●
317 02.559 CLAMP; CONNECTOR
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94441-365-0 01 1 0106- ● ● ●
512 02.559 PROTECTOR; HARNESS 8-97072-950-0 02 1 9812- ● ● ●
çizim 46339
16 16 264 48 16 264 48 48 48 464 483 48 483 48
BalonParca AdiParca NoAdetTipApplied Date A B C
16 02.559 CLIP; HARNESS
(A) L=250 		5-09707-030-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(C) ID=15-32 		8-97174-404-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
03.162 (G) L=140 		5-09707-031-1 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
01.166 (J) ID=22 & 22 		8-94464-837-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(K) L=175 		8-97110-167-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(L) ID=25 L=55 		9-09917-573-0 AR 1 0001- ● ● ●
16 02.559 CLIP; HARNESS
02.589 (M) ID=27 		5-09700-323-0 AR 1 0005- ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=24 H=40 L=24 		1-09701-243-0 AR 1 0106- ● ● ●
16 02.559 CLIP; HARNESS
(O) ID=12 		5-09700-331-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=28 L=32 		1-09701-064-1 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=19 L=60 		9-09525-893-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=35 L=35 		1-09700-895-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=170.3 		1-09987-182-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=11 L=16 		9-09525-025-0 AR 1 9906- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) L=250 		5-09707-030-1 AR 1 9908- ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (N) T=4.5 & 9 		5-09709-023-0 AR 1 0001- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=25 L=55 		9-09917-573-0 AR 1 0001- ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (P) ID=27 		5-09700-323-0 AR 1 0005- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0008- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (S) L=330 		5-09709-118-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (T) T=9.2 & 9 		5-09709-025-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(U) ID=31 L=33.5 		1-09987-165-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (V) ID=9.6 		8-94147-870-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=31 L=30 		1-09700-969-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) ID=32 L=35 		1-09701-244-0 AR 1 0106- ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 (A) ID=10 & 16 		8-94413-325-0 03 1 9812-0101 ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 (A) ID=10 & 16 		8-94413-325-0 02 1 0102- ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 (B) ID=6 & 10-13 		8-97069-515-0 01 1 0102- ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 ID=6.5 		8-94257-639-0 01 1 9812-0105 ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX) 02.559 ID=6.5 		8-94257-639-0 01 1 0106- ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) 04.342 (A) L=197 		1-83574-032-0 01 1 9812-9905 ● ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 9906-0105 ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.342 (A) L=197 		1-83574-032-0 01 1 0106- ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197 		1-83574-032-0 01 1 0106- ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) (B) ID=11 L=20 		9-09525-035-0 01 1 9812-9905 ● ●
483 02.559 CLIP; ENG HARNESS
(B) ID=11 L=20 		9-09525-035-0 01 1 9906-0105 ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.343 (C) ID=16 L=20 		9-09525-535-0 01 1 0106- ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20 		9-09525-535-0 01 1 0106- ● ●
çizim 46345
150 38 8 38 460 38 139 150 139 139 377 481 8 38 150 466 386 159 139 511 10 55 219 219 219 515 219 294 469 524 519
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 03 1 9812- ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9812- ● ● ●
10 02.559 SCREW; BRKT TO BODY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9812- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 04.930 (D) M6X20 FLANGE 		0-28680-620-0 01 1 9906-0105 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9812-0105 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0106- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 9812-0105 ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 02 1 0106- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 02 1 9812-0105 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX) 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ●
55 02.559 WASHER; PL,CLIP
02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9812- ● ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 9812-9911 ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (D) M8X10 W/LK WASHER 		8-97025-916-0 02 1 0204- ● ● ●
139 02.559 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 9912- ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9812-0105 ● ●
139 02.559 BOLT; BRKT
4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0106- ● ● ●
139 02.559 BOLT; BRKT
4JH1 ENG(RJX) (C) 		8-97028-451-3 01 1 0106- ● ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0001-0105 ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0106-0203 ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0204-0204 ●
150 02.343 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0203 ●
150 02.343 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 0204- ● ●
150 02.343 BOLT; CLIP
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.500 (B) M6X10 FLANGE 		0-28080-610-0 01 1 0106- ●
150 02.343 BOLT; CLIP
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.500 (B) M6X10 FLANGE 		0-28080-610-0 01 1 0106- ● ●
150 02.343 BOLT; CLIP
4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 9812-9905 ● ●
150 02.343 BOLT; CLIP
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 9906-0105 ● ●
150 02.343 BOLT; CLIP
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0106- ●
150 02.343 BOLT; CLIP
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0106- ● ●
159 02.559 BOLT; GRAND ENG ELEC
02.343 M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9812- ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9812-0105 ● ●
219 02.559 NUT
4JB1 ENG(RLF) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9812-0105 ● ●
219 02.559 NUT
4JH1 ENG(RJX) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ● ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106- ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9812-0105 ● ●
219 02.559 NUT
4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0106- ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9812- ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9812- ● ●
219 02.559 NUT
(D) 		8-97108-658-0 01 1 9812- ● ●
294 02.559 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
377 02.559 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9812- ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9812- ● ● ●
460 02.559 BOLT; HARNESS PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9812- ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9812-0105 ●
466 02.483 BOLT; HEAT PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0106- ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ●
466 02.483 BOLT; HEAT PROTECTOR
02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0106-0203 ●
466 02.483 BOLT; HEAT PROTECTOR
02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0204- ●
466 02.483 BOLT; HEAT PROTECTOR
4JH1 ENG(RJX) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0204- ●
469 02.559 NUT; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-0105 ●
469 02.559 NUT; PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●
469 02.559 NUT; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ●
469 02.559 NUT; PROTECTOR
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
469 02.559 NUT; PROTECTOR
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
481 13.090 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0001-0105 ●
481 13.090 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0106-0203 ● ●
481 13.090 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0204-0204 ●
481 13.090 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0204- ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9812- ● ● ●
515 02.559 NUT; BRKT
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ● ● ●
519 02.559 NUT; EARTH CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) 05.586 M12 FLANGE 		0-91150-112-0 01 1 9812-0105 ● ●
524 02.559 NUT; HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0106- ●
524 02.559 NUT; HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0106- ● ●
çizim 48474
16 48 488 48 488 14 16 48 162 208 220 48 488 16 16 483 16
BalonParca AdiParca NoAdetTipApplied Date A B C
14 02.559 CLIP; BAND,HARNESS
ADJUST HEADLAMP<6RC> 03.162 L=140 		5-09707-031-1 01 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(A) L=250 		5-09707-030-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(C) ID=15-32 		8-97174-404-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
03.162 (G) L=140 		5-09707-031-1 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
01.166 (J) ID=22 & 22 		8-94464-837-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(K) L=175 		8-97110-167-0 AR 1 9812- ● ● ●
16 02.559 CLIP; HARNESS
(L) ID=25 L=55 		9-09917-573-0 AR 1 0001- ● ● ●
16 02.559 CLIP; HARNESS
02.589 (M) ID=27 		5-09700-323-0 AR 1 0005- ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=24 H=40 L=24 		1-09701-243-0 AR 1 0106- ● ● ●
16 02.559 CLIP; HARNESS
(O) ID=12 		5-09700-331-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(D) ID=28 L=32 		1-09701-064-1 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(E) ID=19 L=60 		9-09525-893-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=35 L=35 		1-09700-895-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) L=170.3 		1-09987-182-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (I) L=140 		5-09707-031-1 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 AR 1 9812- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=11 L=16 		9-09525-025-0 AR 1 9906- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) L=250 		5-09707-030-1 AR 1 9908- ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (N) T=4.5 & 9 		5-09709-023-0 AR 1 0001- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=25 L=55 		9-09917-573-0 AR 1 0001- ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (P) ID=27 		5-09700-323-0 AR 1 0005- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0008- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=20 		8-94169-650-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (S) L=330 		5-09709-118-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (T) T=9.2 & 9 		5-09709-025-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(U) ID=31 L=33.5 		1-09987-165-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (V) ID=9.6 		8-94147-870-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=31 L=30 		1-09700-969-0 AR 1 0106- ● ● ●
48 02.559 CLIP; FRAME HARNESS
(X) ID=32 L=35 		1-09701-244-0 AR 1 0106- ● ● ●
162 02.559 CLIP; SW HARNESS
4JH1 ENG(RJX) 03.162 L=140 		5-09707-031-1 01 1 0106- ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) L=140 		5-09707-031-1 01 1 9812-9905 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) L=140 		5-09707-031-1 01 1 9906-0105 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (C) L=140 		5-09707-031-1 01 1 9906-0105 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 9812-9905 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 9906-0105 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10 		5-09700-318-0 02 1 9906-0105 ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 9812-9905 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 9906-0105 ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.240 (B) T=5.5 		5-09709-047-0 01 1 9906-0105 ●
220 02.559 CLIP; HARNESS TO CABLE
4JH1 ENG(RJX) 03.162 L=140 		5-09707-031-1 01 1 0106- ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) 04.342 (A) L=197 		1-83574-032-0 01 1 9812-9905 ● ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 9906-0105 ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.342 (A) L=197 		1-83574-032-0 01 1 0106- ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197 		1-83574-032-0 01 1 0106- ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) (B) ID=11 L=20 		9-09525-035-0 01 1 9812-9905 ● ●
483 02.559 CLIP; ENG HARNESS
(B) ID=11 L=20 		9-09525-035-0 01 1 9906-0105 ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.343 (C) ID=16 L=20 		9-09525-535-0 01 1 0106- ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20 		9-09525-535-0 01 1 0106- ● ●
488 02.559 CLIP; CABLE,TRAILER
(B) L=170.3 		1-09987-182-0 02 1 9812- ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 9812-9905 ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 9812-9905 ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 9906-0105 ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED<RS6> (A) L=250 		5-09707-030-1 01 1 9906-0105 ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0106- ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED<RS6> (A) L=250 		5-09707-030-1 01 1 0106- ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0106- ● ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY FLAT BED<RS6> 02.587 (C) L=112 		8-94232-618-0 04 1 9906-0105 ● ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY FLAT BED<RS6> 02.587 (C) L=112 		8-94232-618-0 04 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
