◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#46073) — 185 parça

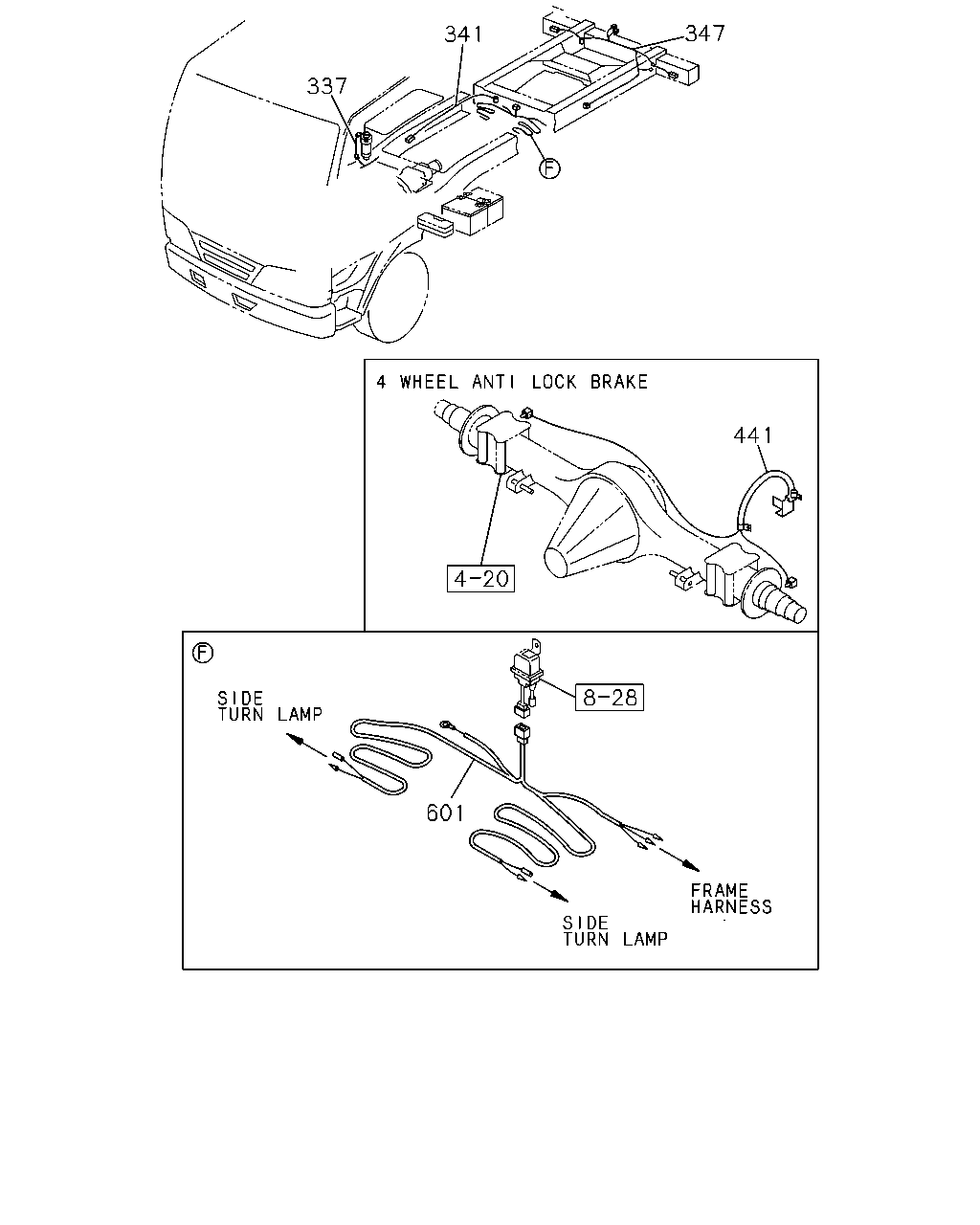

çizim 8366
347 341 337 441 601
BalonParca AdiParca NoAdetTipApplied Date A B C
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9812-0105 ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0106- ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9812-9905 ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9906-0105 ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 9906-0105 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-657-0 01 1 9812- ● ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97261-909-1 01 1 0106-0203 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97351-462-0 01 1 0204- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97213-055-0 01 1 0001-0004 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97213-057-2 01 1 0005-0203 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97308-220-4 01 1 0204- ● ●
601 02.892 HARNESS; LAMP,SIDE TURN SIGNAL 8-97223-051-0 01 1 9901-9912 ●
601 02.892 HARNESS; LAMP,SIDE TURN SIGNAL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97223-051-0 01 1 0001-0105 ●

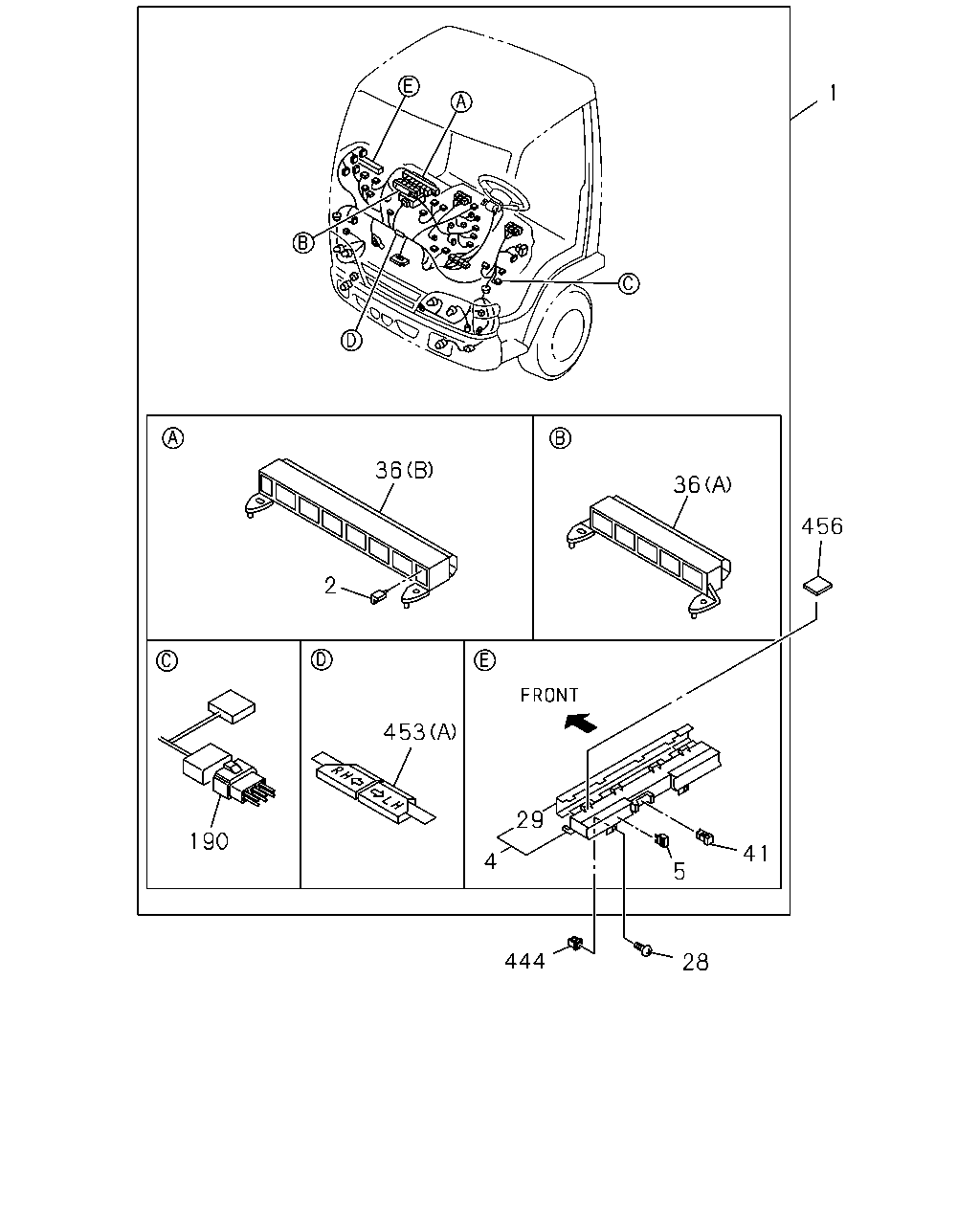

çizim 9481
1 36 36 456 2 453 29 190 41 4 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97230-667-0 01 1 9906-9912 ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97230-667-1 01 1 0001-0105 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97230-667-1 01 1 0001-0105 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-1 01 1 9906-0105 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97205-708-1 01 1 9812-0105 ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97312-693-1 01 1 0106-0112 ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-674-0 01 1 0201- ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> 		8-97248-454-0 01 1 0001-0004 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> 		8-97257-172-0 01 1 0005-0105 ●
2 02.483 DIODE; CABLE HARNESS
4JB1 ENG(RLF) BLACK 3P-1.5A 		8-94422-640-1 01 1 9906-0105 ● ●
2 02.483 DIODE; CABLE HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> BLACK 2P-1.5A 		8-94422-639-1 02 1 9906-0105 ● ●
2 02.483 DIODE; CABLE HARNESS
4JG2 ENG(RJC) BLACK 2P-1.5A 		8-94422-639-1 01 1 9812-9905 ● ●
2 02.483 DIODE; CABLE HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> BLACK 2P-1.5A 		8-94422-639-1 01 1 9906-0105 ● ●
2 02.483 DIODE; CABLE HARNESS
4JG2 ENG(RJC) BLACK 2P-1.5A 		8-94422-639-1 01 1 9906-0105 ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1 ENG(RJX) BLACK 2P-1.5A 		8-94422-639-1 01 1 0106- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9906-0105 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JH1 ENG(RJX) 		8-97214-415-0 01 1 0106- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) 		8-97077-664-0 01 1 9812-9905 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) 		8-97077-664-0 01 1 9906-0105 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 9906-0105 ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9812- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9812- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9812- ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812- ● ● ●
29 02.483 COVER; FUSE BOX
4JG2 ENG(RJC) 		8-97074-955-0 01 1 0010-0105 ● ●
29 02.483 COVER; FUSE BOX
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97074-955-0 01 1 0010-0105 ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97087-638-1 01 1 9812-9912 ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97087-638-1 01 1 0001-0105 ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97087-638-1 01 1 0001-0105 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) (A) 		8-97087-638-1 01 1 0001-0105 ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 0001-0105 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97087-639-1 01 1 9812-0105 ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) (B) 		8-97087-639-1 01 1 0106- ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0001-0105 ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) (A) 		8-97087-640-1 01 1 0106- ● ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9812-0105 ● ●
41 08.821 PULLER; FUSE
4JH1 ENG(RJX) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0106- ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) 		5-82690-411-0 01 1 9812-9905 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) 		5-82690-411-0 01 1 9906-0009 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 9906-0009 ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9812- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 9812-9905 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 9812-9905 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 9812-9905 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97074-957-0 01 1 9812-0105 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97074-957-0 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (F) 		8-97093-668-1 01 1 9812-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (G) 		8-94452-553-0 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (G) 		8-94452-553-0 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 9812-9905 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 9906-0007 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 9906-0007 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0008-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) 		8-97120-589-0 01 1 0106- ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9812- ● ● ●

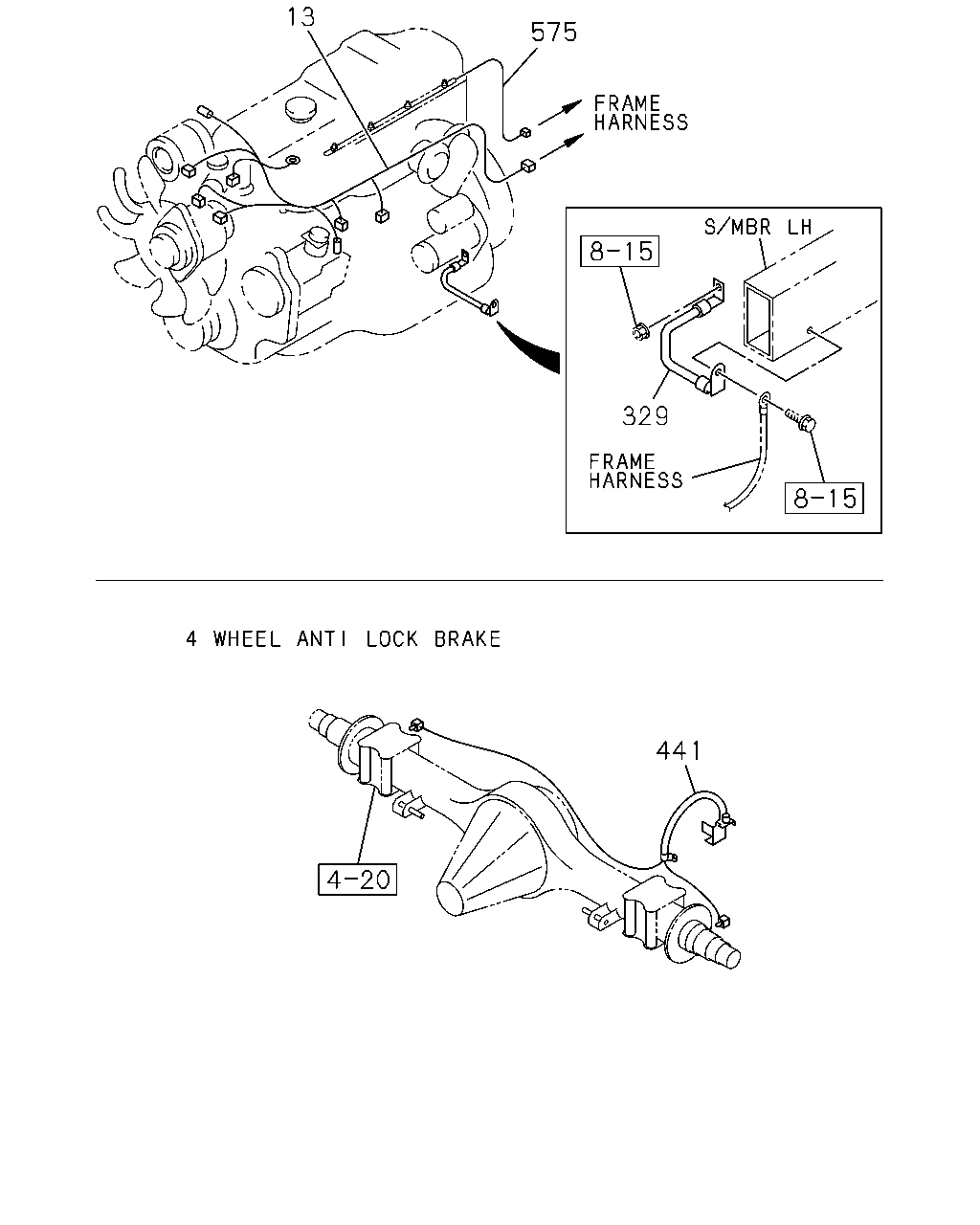

çizim 45632
13 575 329 441
BalonParca AdiParca NoAdetTipApplied Date A B C
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97218-750-0 01 1 9906-0105 ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) EXC. GENERATOR 12V80A(K97) 		8-97240-032-5 01 1 0106- ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) EXC. GENERATOR 12V80A(K97) 		8-97240-032-5 01 1 0106- ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97173-696-1 01 1 9812-0105 ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) FRT INDEPENDENT SUSPENSION(6PP) 		8-97261-132-4 01 1 0106- ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) 		8-97261-132-4 01 1 0106- ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97173-694-1 01 1 9906-0105 ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97173-694-1 01 1 9906-0105 ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97213-192-0 01 1 9812-0105 ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1 ENG(RJX) 		8-97305-771-0 01 1 0106- ● ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97261-909-1 01 1 0106-0203 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97351-462-0 01 1 0204- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97213-055-0 01 1 0001-0004 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97213-057-2 01 1 0005-0203 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97308-220-4 01 1 0204- ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 9901-9905 ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 9906-0105 ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-328-0 01 1 9906-0105 ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 		8-97212-328-0 01 1 0106- ●
575 02.525 HARNESS; GLOW PLUG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 		8-97212-328-0 01 1 0106- ● ●

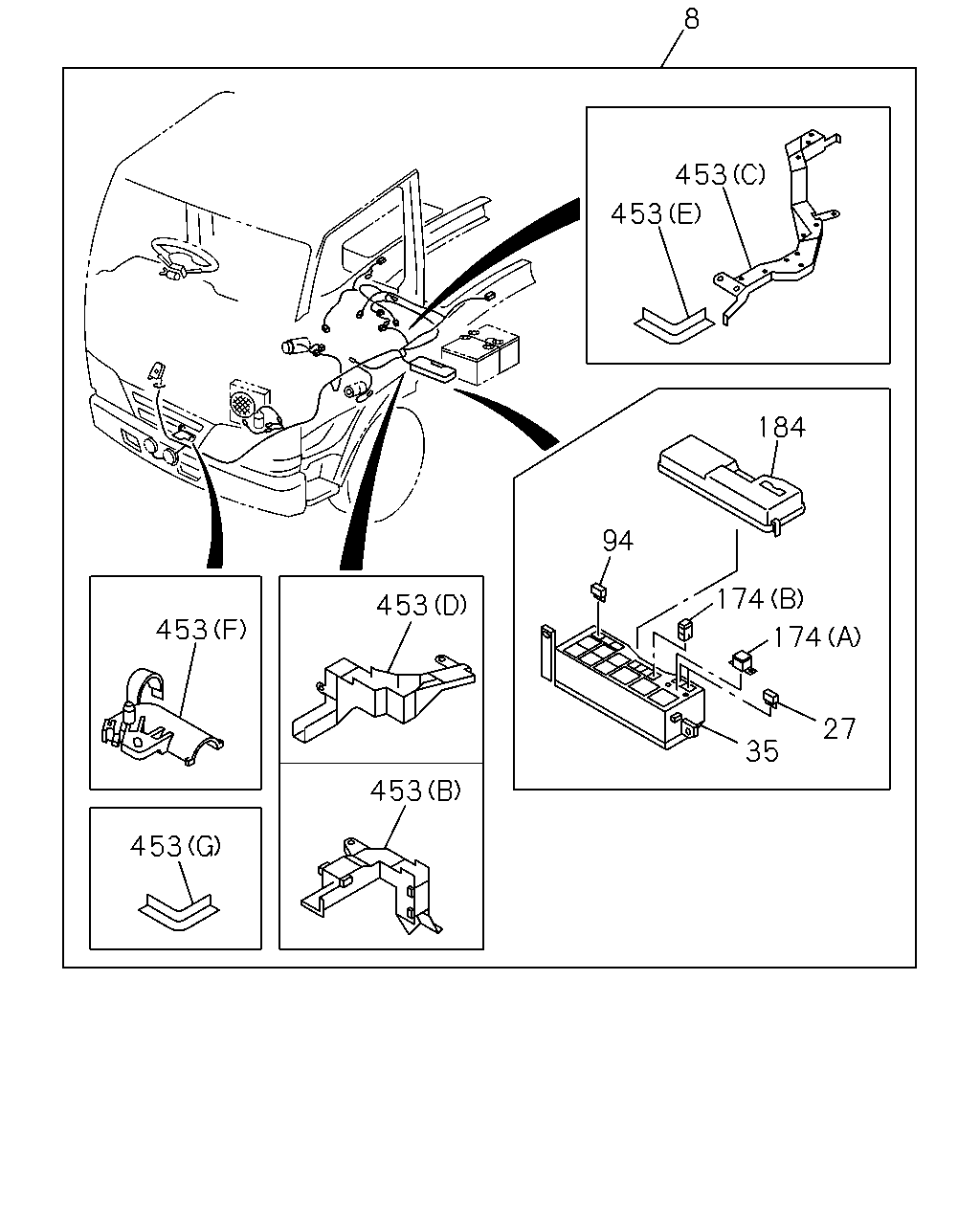

çizim 49285
8 453 453 184 94 174 453 453 174 27 35 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97225-914-1 01 1 9906-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97312-700-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97220-755-0 01 1 9812-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97312-701-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-915-0 01 1 9906-9912 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97225-915-1 01 1 0001-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97188-700-2 01 1 9906-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97188-699-2 01 1 9906-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> 		8-97248-463-0 01 1 0001-0004 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> 		8-97257-155-0 01 1 0005-0007 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> 		8-97288-360-0 01 1 0008-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97312-703-0 01 1 0106-0203 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97312-703-0 01 1 0204- ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97220-756-0 01 1 9812-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97312-705-0 01 1 0106- ● ●
27 08.965 FUSE UNIT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 15A BLUE 		5-82516-003-0 01 1 9812-9905 ●
27 08.965 FUSE UNIT
4JG2 ENG(RJC) 15A BLUE 		5-82516-003-0 01 1 9812-9905 ●
27 08.965 FUSE UNIT
4JG2 ENG(RJC) 15A BLUE 		5-82516-003-0 01 1 9906-0105 ● ●
27 08.965 FUSE UNIT
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 15A BLUE 		5-82516-003-0 01 1 9906-0105 ● ●
27 08.965 FUSE UNIT
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 15A BLUE 		5-82516-003-0 01 1 0106-0203 ●
27 08.965 FUSE UNIT
4JH1 ENG(RJX) 15A BLUE 		5-82516-003-0 01 1 0106-0203 ●
27 08.965 FUSE UNIT
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 15A BLUE 		5-82516-003-0 01 1 0204- ●
27 08.965 FUSE UNIT
4JH1 ENG(RJX) 15A BLUE 		5-82516-003-0 01 1 0204- ● ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-150-1 01 1 9812-9905 ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC) 		8-97063-150-1 01 1 9812-9905 ●
35 02.530 BOX; RELAY & FUSE
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97063-150-1 01 1 9906-0105 ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC) 		8-97063-150-1 01 1 9906-0105 ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97063-150-1 01 1 9906-0105 ●
35 02.530 BOX; RELAY & FUSE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-150-1 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JH1 ENG(RJX) 		8-97063-150-1 01 1 0106- ● ●
94 02.483 DIODE; FRAME HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> BLACK 3P-1.5A 		8-94422-640-1 01 1 9906-0105 ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9812- ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9812- ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9812- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-152-1 01 1 9812-9905 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) 		8-97063-152-1 01 1 9812-9905 ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97063-152-1 01 1 9906-0105 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) 		8-97063-152-1 01 1 9906-0105 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97063-152-1 01 1 9906-0105 ●
184 02.559 COVER; RELAY & FUSE BOX
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-152-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
4JH1 ENG(RJX) 		8-97063-152-1 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 9812-9905 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 9812-9905 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 9812-9905 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 9906-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97074-957-0 01 1 9812-0105 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97074-957-0 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (F) 		8-97093-668-1 01 1 9812-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (G) 		8-94452-553-0 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (G) 		8-94452-553-0 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 9812-9905 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) 		8-97120-589-0 01 1 9906-0007 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 9906-0007 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0008-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) 		8-97120-589-0 01 1 0106- ● ●

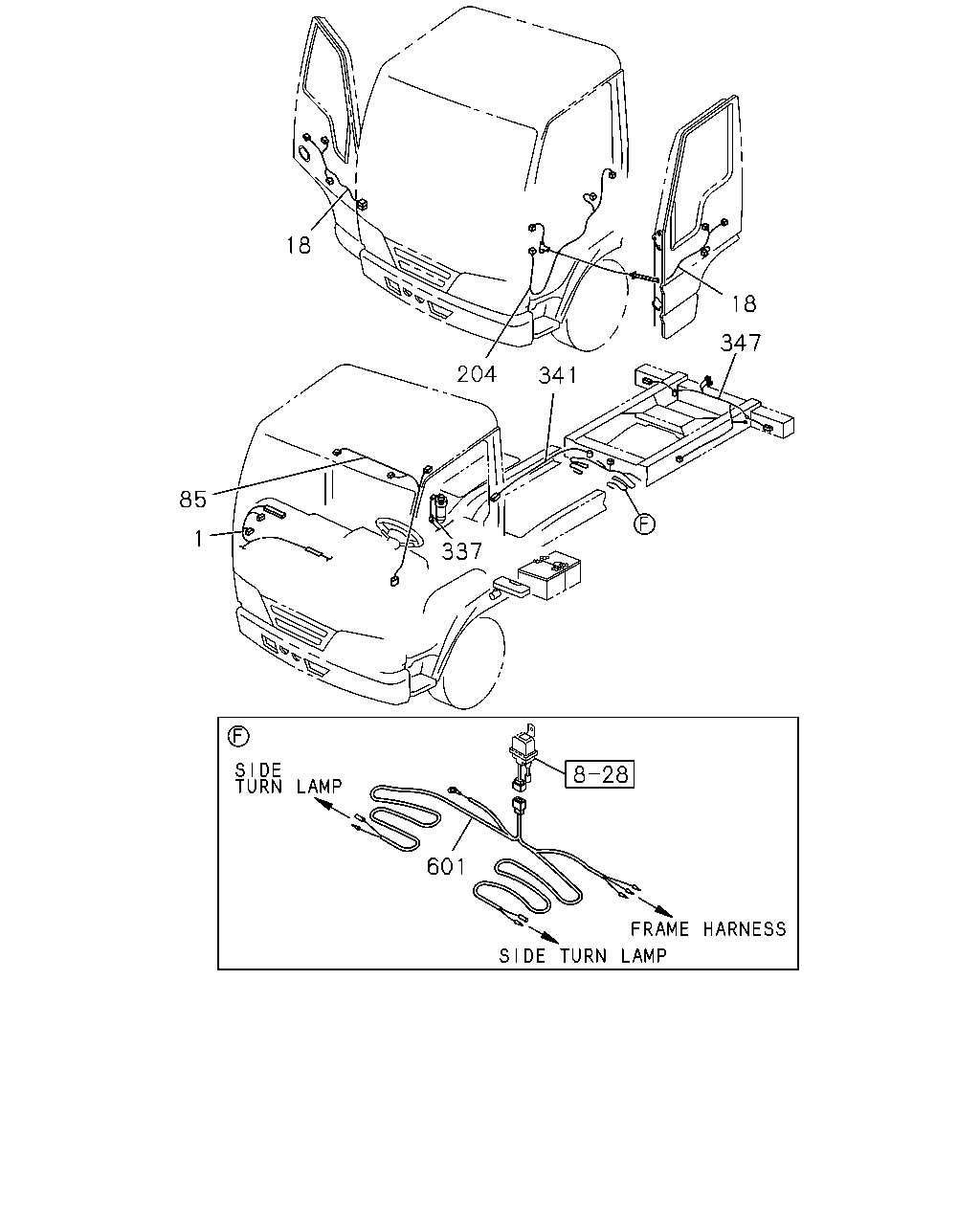

çizim 49488
18 18 347 204 341 85 1 337 601
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97230-667-0 01 1 9906-9912 ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97230-667-1 01 1 0001-0105 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97230-667-1 01 1 0001-0105 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-1 01 1 9906-0105 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97205-708-1 01 1 9812-0105 ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97312-693-1 01 1 0106-0112 ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-674-0 01 1 0201- ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> 		8-97248-454-0 01 1 0001-0004 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> 		8-97257-172-0 01 1 0005-0105 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 9812- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-144-1 01 1 9812-9904 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 9905- ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-571-0 01 1 9812- ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-572-1 01 1 9812-9904 ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-0 01 1 9905- ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 9812- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 9812- ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9812-0105 ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0106- ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9812-9905 ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9906-0105 ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 9906-0105 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-657-0 01 1 9812- ● ● ●
601 02.892 HARNESS; LAMP,SIDE TURN SIGNAL 8-97223-051-0 01 1 9901-9912 ●
601 02.892 HARNESS; LAMP,SIDE TURN SIGNAL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97223-051-0 01 1 0001-0105 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
