7-43 — SUN VISOR AND ASSIST GRIP (#46068) — 43 parça

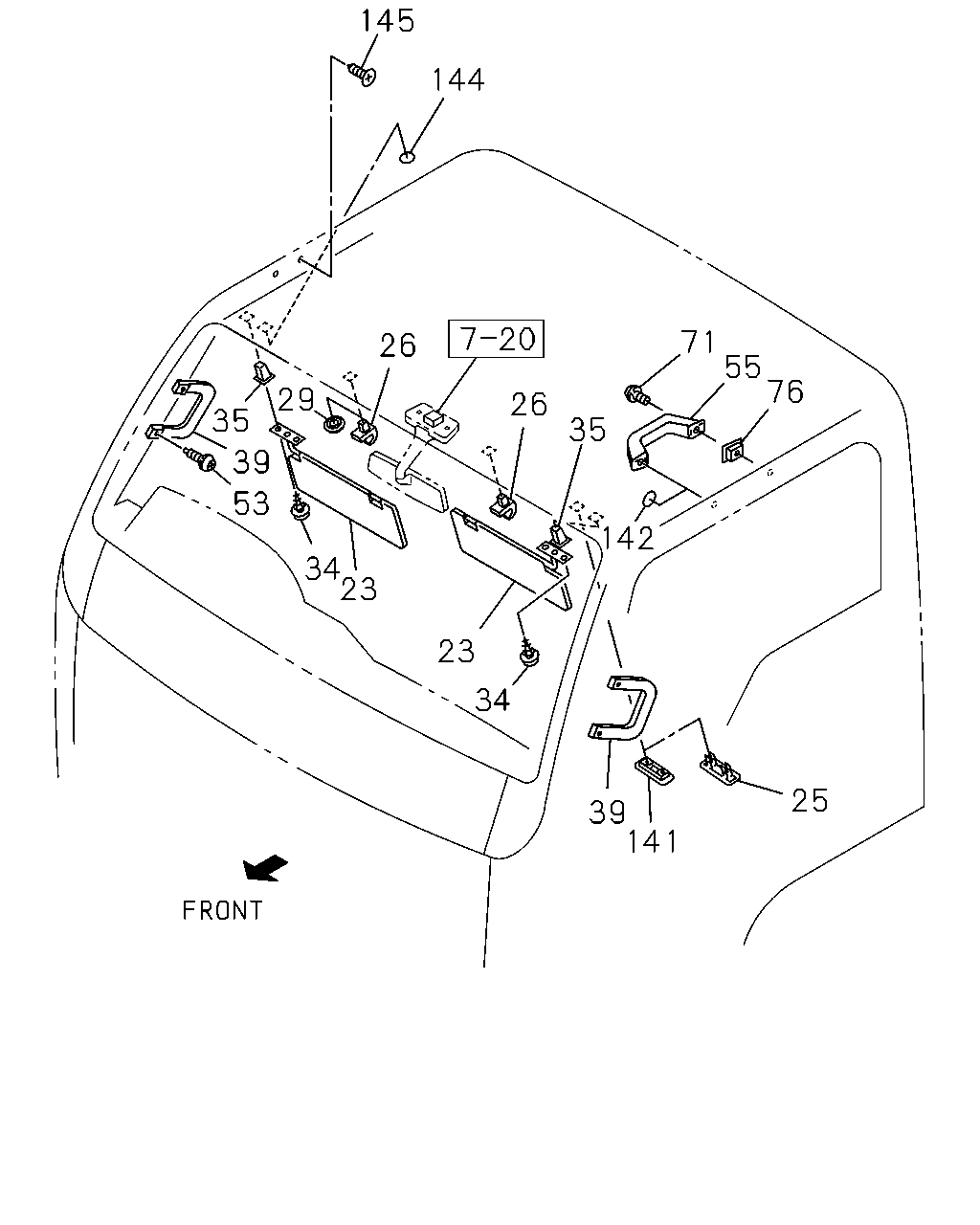

çizim 45862
145 144 71 55 76 26 29 26 35 35 39 53 142 34 23 23 34 25 39 141
BalonParca AdiParca NoAdetTipApplied Date A B C
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY 		8-97868-631-2 01 1 9812- ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY 		8-94351-820-3 01 1 9812- ● ● ●
23 16.070 SUN VISOR
TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY 		8-97859-841-3 01 1 9812- ● ● ●
23 16.070 SUN VISOR
EXC. TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY 		8-97868-630-3 01 1 9812- ● ● ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97859-846-3 01 1 9812- ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97867-184-2 02 1 9812- ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-94351-982-0 02 1 9812- ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-94351-982-0 01 1 9812- ● ● ●
26 16.070 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97867-184-2 01 1 9812- ● ● ●
29 16.070 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.547 OD=15.0 		8-94279-040-0 01 1 9812- ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20 		5-09981-059-0 04 1 9812- ● ● ●
34 16.070 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20 		5-09981-059-0 04 1 9812- ● ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 03.671 M5X20 		5-09981-059-0 02 1 9812- ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 16.588 		8-94279-039-0 04 1 9812- ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588 		8-94279-039-0 04 1 9812- ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.588 		8-94279-039-0 02 1 9812- ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97867-209-0 02 1 9812- ● ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 9812- ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> 16.346 DARK GRAY 		8-97098-476-2 01 1 9812- ● ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER 		5-09981-064-0 02 1 9812- ● ● ●
76 16.742 SPACER; ASSIST GRIP
INTERIOR DELUXE(RBB) DARK GRAY 		8-97859-854-0 02 1 9812- ● ● ●
141 16.070 COVER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97859-845-1 01 1 9812- ● ● ●
142 16.742 SEAL; ASSIST GRIP
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR POLAR SILV ER MET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9812-0208 ● ● ●
142 16.742 SEAL; ASSIST GRIP
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9812-0208 ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR POLAR SILV ER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9812- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9812- ● ● ●
145 16.070 PLUG; HOLE
EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8 		8-94279-921-0 04 1 9812- ● ● ●

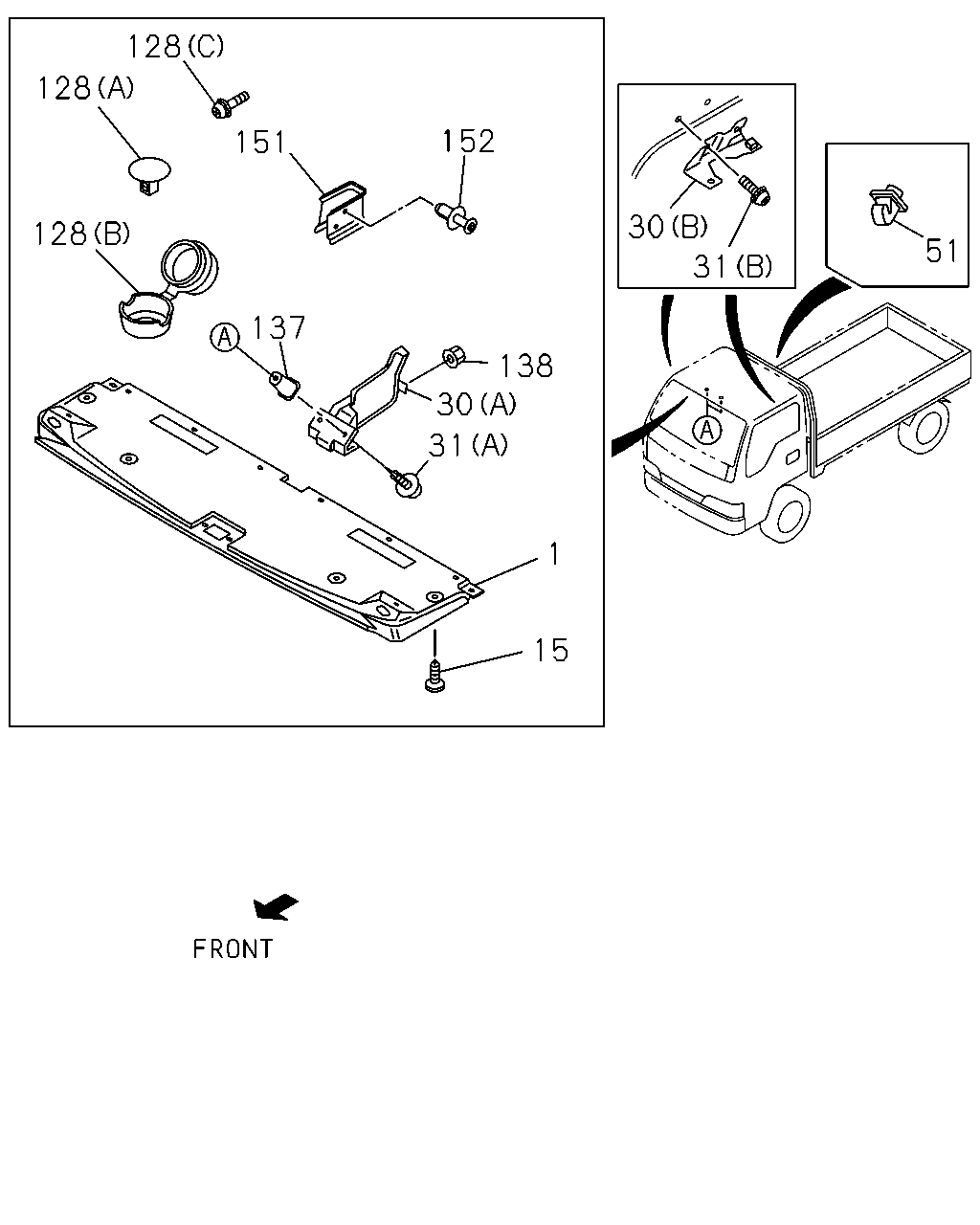

çizim 46257
128 128 152 151 30 128 51 31 137 138 30 31 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.742 BOARD; HEADER SHELF
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97892-371-5 01 1 9812-0105 ● ●
1 16.742 BOARD; HEADER SHELF
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97994-818-0 01 1 0106- ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET 		8-97892-693-0 02 1 9812- ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) 		8-97859-388-1 01 1 9812- ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-798-2 01 1 9812- ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-797-2 01 1 9812- ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812- ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9812- ● ● ●
51 16.570 HOOK; COAT HANGER
INTERIOR DELUXE(RBB) LIGHT GRAY 		8-97867-259-1 01 1 9812- ● ● ●
128 16.742 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY 		8-97892-153-2 02 1 9812- ● ● ●
128 16.742 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (C) 		8-97892-737-0 03 1 9812- ● ● ●
128 16.742 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY 		8-97892-151-0 01 1 9812- ● ● ●
137 16.742 GROMMET; SCREW,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.588 		8-94279-039-0 01 1 9812- ● ● ●
138 16.742 NUT; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812- ● ● ●
151 16.450 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-250-0 01 1 9812- ● ● ●
152 16.450 CLIP; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-185-0 02 1 9812- ● ● ●
