◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#46062) — 63 parça
çizim 10395
113 35 5 5 130
BalonParca AdiParca NoAdetTipApplied Date A B C
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-832-0 01 1 9812- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) CAUTION SPANISH<YN1> (A) 		8-97188-833-0 01 1 9812- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9812- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9812- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9812- ● ● ●
113 08.808 PLATE; CAUTION,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97108-090-0 01 1 9812- ●
130 08.808 PLATE; CAUTION,GUARD FRAME
RR BODY FLAT BED<RS6> 		8-94192-480-0 02 1 9906-0004 ● ●
130 08.808 PLATE; CAUTION,GUARD FRAME
RR BODY FLAT BED<RS6> 		8-94192-480-0 02 1 0005-0101 ●
130 08.808 PLATE; CAUTION,GUARD FRAME
BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6> VIETNAM KD BREAKDOWN<R5F> 		8-94192-480-0 02 1 0102-0105 ●
130 08.808 PLATE; CAUTION,GUARD FRAME
RR BODY FLAT BED<RS6> 		8-94192-480-0 02 1 0102-0105 ●
çizim 46053
261 261 190 9
BalonParca AdiParca NoAdetTipApplied Date A B C
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) M/T MSB5S(R45) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-938-0 01 1 9812-9812 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-938-0 01 1 9901-9905 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-938-0 01 1 9906-0105 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-938-0 01 1 0106- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) M/T MSB5S(R45) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 9812-9812 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 9901-9905 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 9906-0105 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0106- ● ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 		8-97200-740-0 01 1 0203- ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97200-740-0 01 1 0203- ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0203- ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) (A) 		8-97315-725-0 01 1 0106-0106 ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> (A) 		8-97315-725-0 01 1 0107- ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) CAUTION SPANISH<YN1> (B) 		8-97319-705-0 01 1 0107- ● ● ●

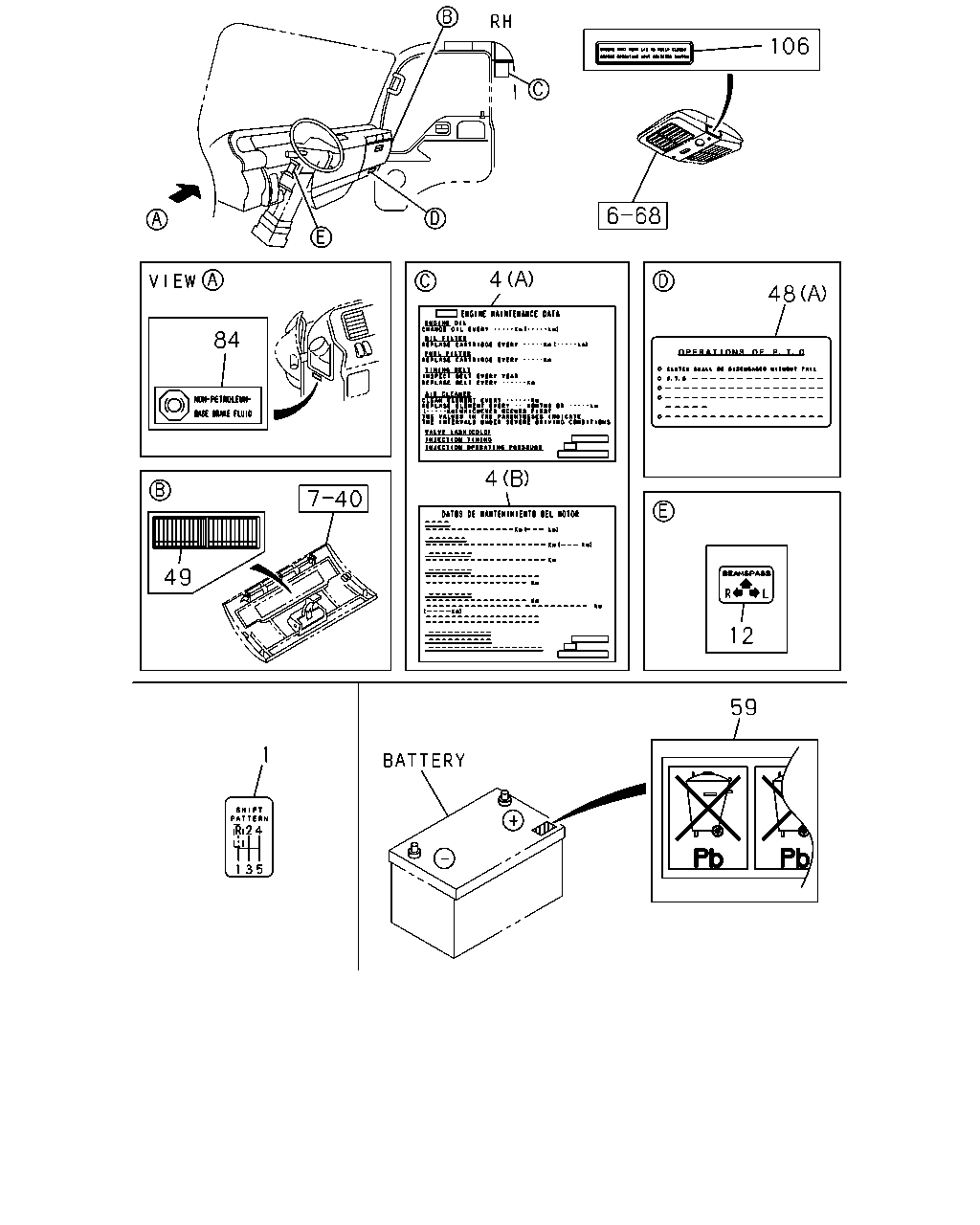

çizim 47378
106 4 48 84 4 49 12 59 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.017 PLATE; CAUTION,SHIFT PATTERN
FLOOR REMOTE SHIFT<M11> 		8-97305-983-0 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. TURBOCHARGER<K51> (B) 		8-97189-414-0 01 1 9906-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97218-365-0 01 1 9906-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> (B) 		8-97231-257-0 01 1 9906-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> (A) 		8-97189-415-0 01 1 9906-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> (A) 		8-97231-256-0 01 1 9906-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,CAUTION SPANISH<YN1> (A) 		8-97189-413-0 01 1 9906-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) (A) 		8-97189-419-0 01 1 9812-9905 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. CAUTION SPANISH<YN1> (A) 		8-97189-419-0 01 1 9906-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> (A) 		8-97260-427-1 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) CAUTION SPANISH<YN1> EURO2 SPECIFICATION<7AF> (B) 		8-97230-699-0 01 1 9906-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1 ENG(RJX) CAUTION SPANISH<YN1> (B) 		8-97260-428-1 01 1 0106- ● ● ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 9812- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-97116-561-0 01 1 9812-0210 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-97116-561-0 01 1 0211- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 9812-0210 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 0211- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 9812-0210 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 0211- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97182-190-0 01 1 9812-0105 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JH1 ENG(RJX) 		8-97260-561-0 01 1 0106- ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. LEYLAND EQUIPMENT(S9Z) 10 PER 1 SHEET 		8-97116-760-0 02 1 9812- ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-97062-755-2 01 1 9812- ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9812- ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9812- ● ● ●
çizim 48838
48 96 35
BalonParca AdiParca NoAdetTipApplied Date A B C
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9812- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9812- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9812- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-97116-561-0 01 1 9812-0210 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-97116-561-0 01 1 0211- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 9812-0210 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (A) 		8-94313-054-0 01 1 0211- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 9812-0210 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (A) 		8-94469-277-0 01 1 0211- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97066-479-0 01 1 9906-0105 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JH1 ENG(RJX) 		8-97066-479-1 01 1 0106- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) 		8-97092-930-0 01 1 9812-9905 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97092-930-0 01 1 9906-0105 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97092-930-0 01 1 9906-0105 ●
