◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#46061) — 14 parça

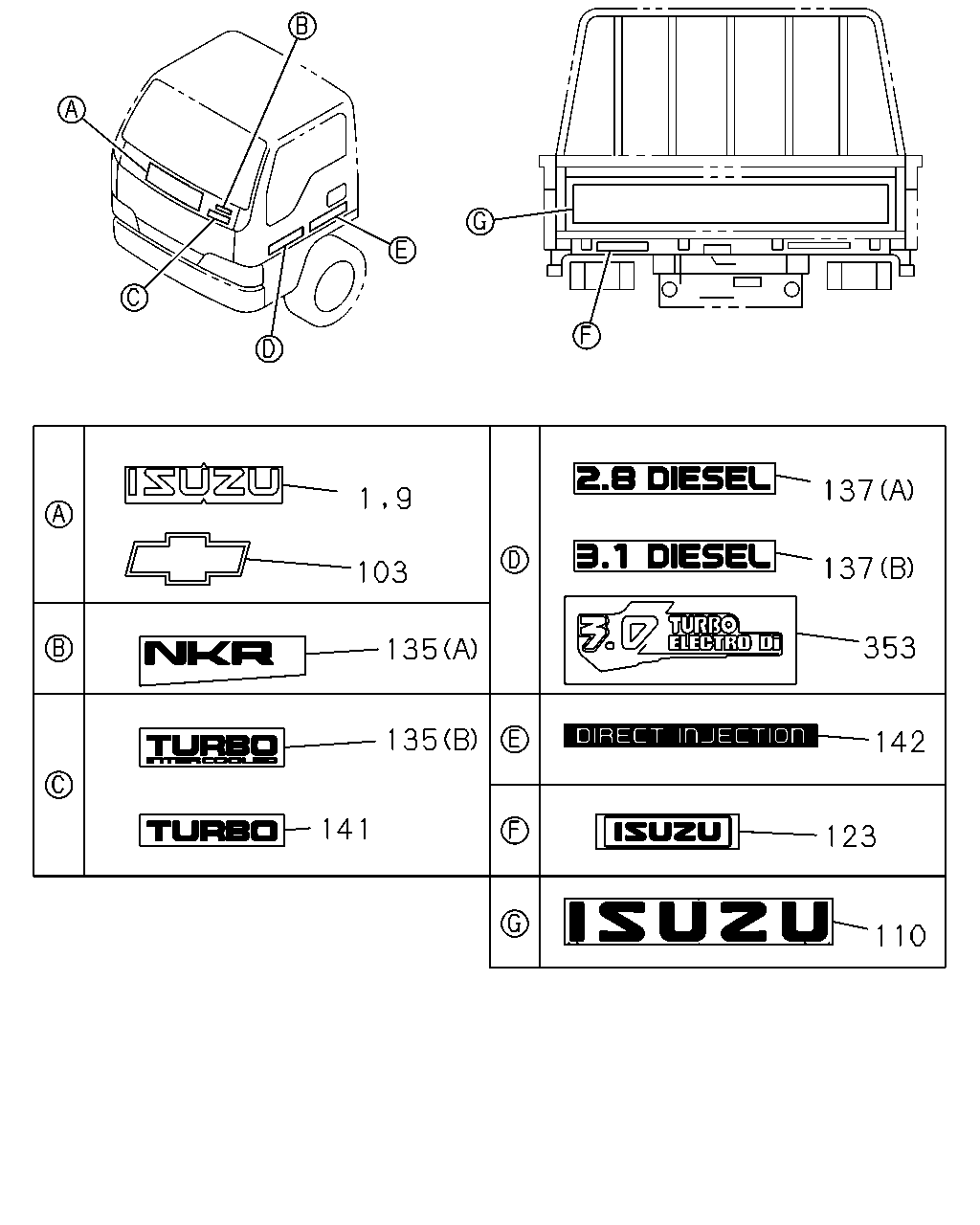

çizim 48974
137 9 1 137 103 353 135 135 142 141 123 110
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.303 MARK; ISUZU
EMBLEM ISUZU<YP4> 		8-97859-556-0 01 1 9812- ● ● ●
9 08.808 DECAL
EXC. MARK VEHICLE NAME<EK7>,EMBLEM ISUZU<YP4> 		8-97868-200-1 01 1 9812- ● ● ●
103 01.303 EMBLEM; "CHEVROLET"
MARK VEHICLE NAME<EK7> CHEVROLET MARK<YL6> 		8-97113-896-0 01 1 9812- ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 9812- ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR CARDINAL RED(736) DECAL-ISUZU TAIL GATE<EX9> 01.303 WHITE 		8-94350-623-1 01 1 9812- ● ● ●
123 17.215 PLATE; NAME,ISUZU
RR BODY FLAT BED<RS6> 		8-97089-829-0 01 1 9906-0105 ● ●
123 17.215 PLATE; NAME,ISUZU
RR BODY FLAT BED<RS6> 		8-97089-829-0 01 1 0106- ●
135 01.303 DECAL; CAB FRT
(A) 		8-97868-260-0 01 1 9812- ● ● ●
135 01.303 DECAL; CAB FRT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) 		8-97857-435-1 01 1 9906-0105 ● ●
137 08.147 DECAL; DOOR
4JB1 ENG(RLF) 01.303 (A) 		8-94272-299-1 02 1 9906-0105 ● ●
137 08.147 DECAL; DOOR
4JG2 ENG(RJC) (B) 		8-97857-430-0 02 1 9812-0105 ● ●
141 01.303 EMBLEM; "TURBO"
TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 		8-97856-319-3 01 1 9906-0105 ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4JB1 ENG(RLF) 17.507 		8-94272-302-1 02 1 9906-0105 ● ●
353 01.303 DECAL; "3.0 ELECTRO DI"
4JH1 ENG(RJX) 		8-97899-159-0 02 1 0106- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
