◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#46053) — 57 parça

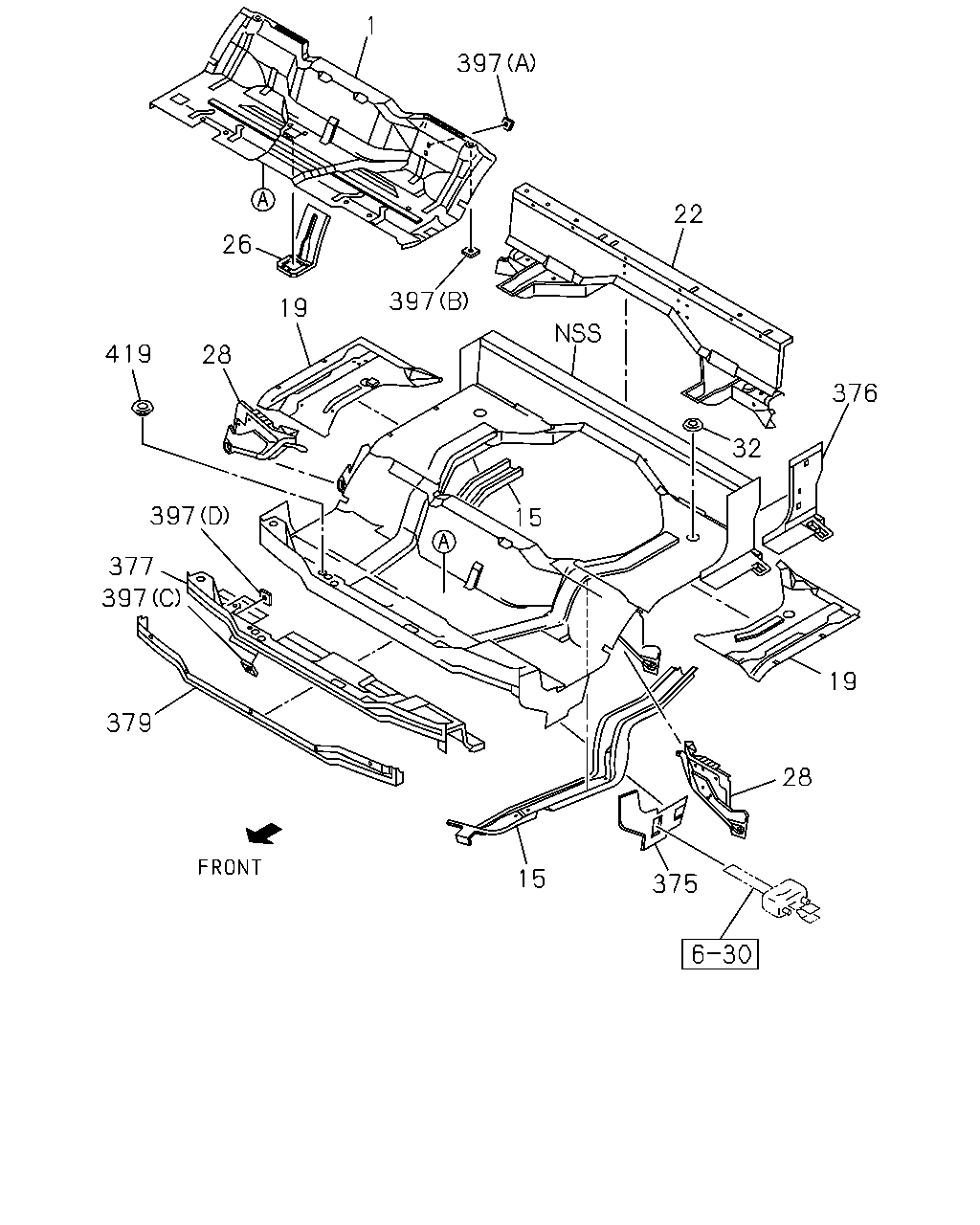

çizim 46979
1 397 22 26 397 19 419 28 376 32 397 15 377 397 19 379 28 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-332-6 01 1 9812-0105 ● ●
1 16.545 PANEL; FLOOR 8-97850-332-7 01 1 0106- ● ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 9812-0105 ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0106- ● ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 9812-0105 ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0106- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-337-4 01 1 9812-0105 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-337-4 01 1 0106- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 9812-0105 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0106- ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-345-6 01 1 9812- ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-537-5 01 1 0106- ● ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-005-6 01 1 9812-0105 ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 0106- ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 9812-0105 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0106- ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 9812-0105 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0106- ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 OD=53.5 		8-94356-253-0 02 1 9812- ● ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 9812-0105 ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0106- ● ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 9812-0105 ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0106- ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-024-6 01 1 9812-9812 ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 9812-0105 ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0106- ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 9812-0105 ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0106- ● ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-351-7 01 1 9812-0105 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-351-9 01 1 0106- ● ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97850-050-2 01 1 9812-0105 ● ●
379 16.545 PANEL 8-97850-050-2 01 1 0106- ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9812-0105 ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0106- ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9812-0105 ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0106- ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0106- ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9812-0105 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0106- ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9812-0210 ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 0211- ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0211- ● ●
çizim 47138
377 378 380 380 398 381 378
BalonParca AdiParca NoAdetTipApplied Date A B C
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-351-7 01 1 9812-0105 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-351-9 01 1 0106- ● ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97850-672-1 01 1 9812-0105 ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 0106- ● ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97850-671-0 01 1 9812-0105 ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 0106- ● ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> 		8-97850-359-1 01 1 9812-0105 ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-359-1 01 1 0106- ● ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> 		8-97850-704-0 01 1 9812-0105 ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-704-0 01 1 0106- ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
MANUAL TILT CAB<RWZ> 		8-97850-352-1 01 1 9812-0105 ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 0106- ● ● ●
398 16.545 BRACKET; PIPE SUPPORT
MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 9812-0105 ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0106- ● ● ●
