◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#46048) — 16 parça

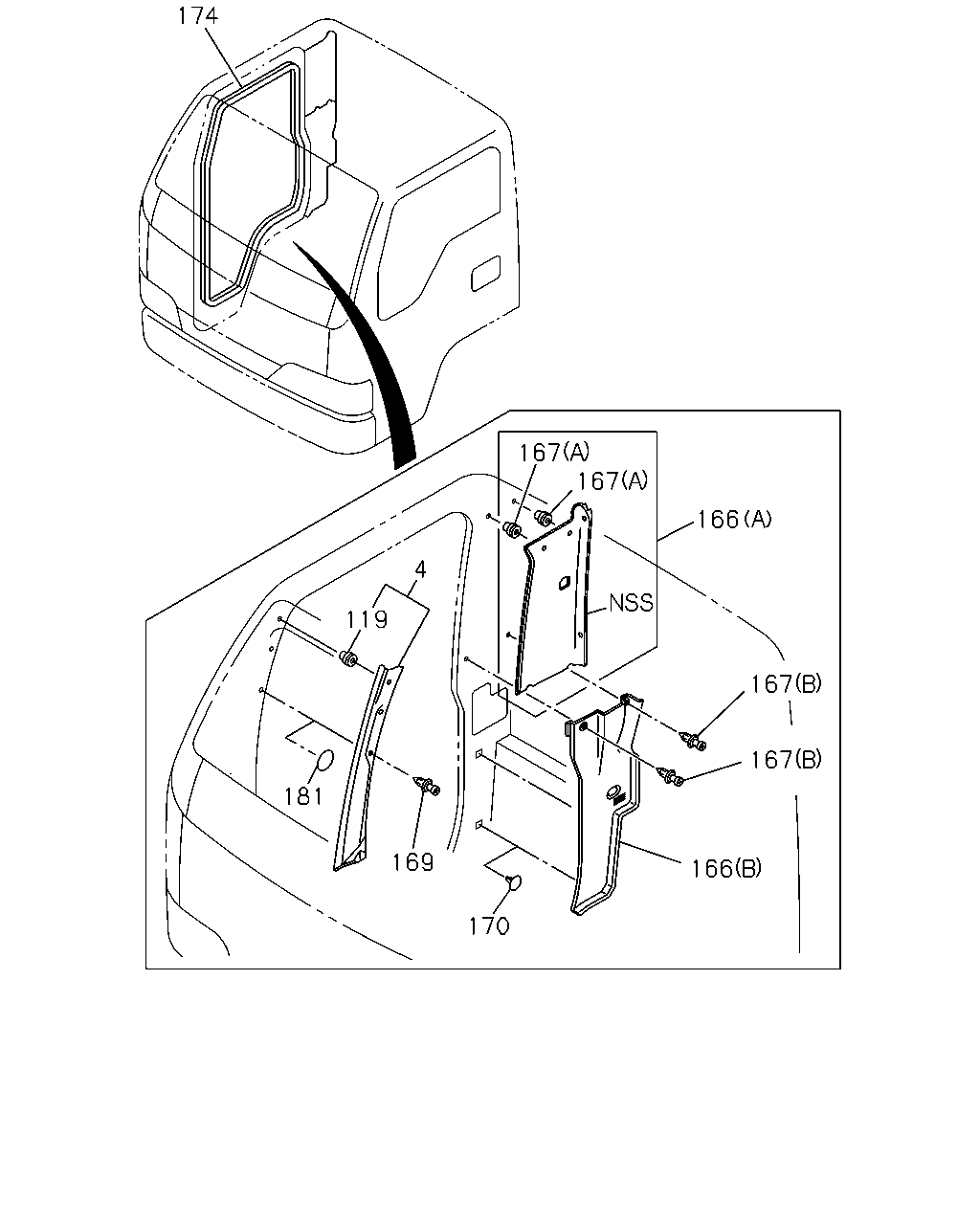

çizim 8312
174 167 167 166 119 167 167 181 169 166 170 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-853-3 01 1 9812- ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-852-3 01 1 9812- ● ● ●
119 16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742 		1-73318-278-0 02 1 9812- ● ● ●
166 16.578 TRIM; RR PILLAR
(B) DARK GRAY 		8-97857-804-0 01 1 9812-0208 ● ● ●
166 16.578 TRIM; RR PILLAR
(B) DARK GRAY 		8-97859-870-5 01 1 0209- ● ● ●
166 16.578 TRIM; RR PILLAR
(B) DARK GRAY 		8-97868-653-3 01 1 9812- ● ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR DELUXE(RBB) (A) LIGHT GRAY 		8-97859-873-5 01 1 9812- ● ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR DELUXE(RBB) (A) LIGHT GRAY 		8-97868-432-2 01 1 9812- ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) DARK GRAY 		8-97857-211-0 04 1 9812- ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
INTERIOR DELUXE(RBB) 16.742 (A) 		1-73318-278-0 04 1 9812- ● ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97857-210-0 02 1 9812- ● ● ●
170 16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602 		8-94244-922-0 02 1 9812- ● ● ●
174 16.507 FINISHER; BODY SIDE
L=2982 DARK GRAY 		8-97857-206-4 01 1 9812- ● ● ●
174 16.507 FINISHER; BODY SIDE
L=2982 DARK GRAY 		8-97857-205-4 01 1 9812- ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR POLAR SILV ER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9812- ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9812- ● ● ●
