◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#46043) — 143 parça

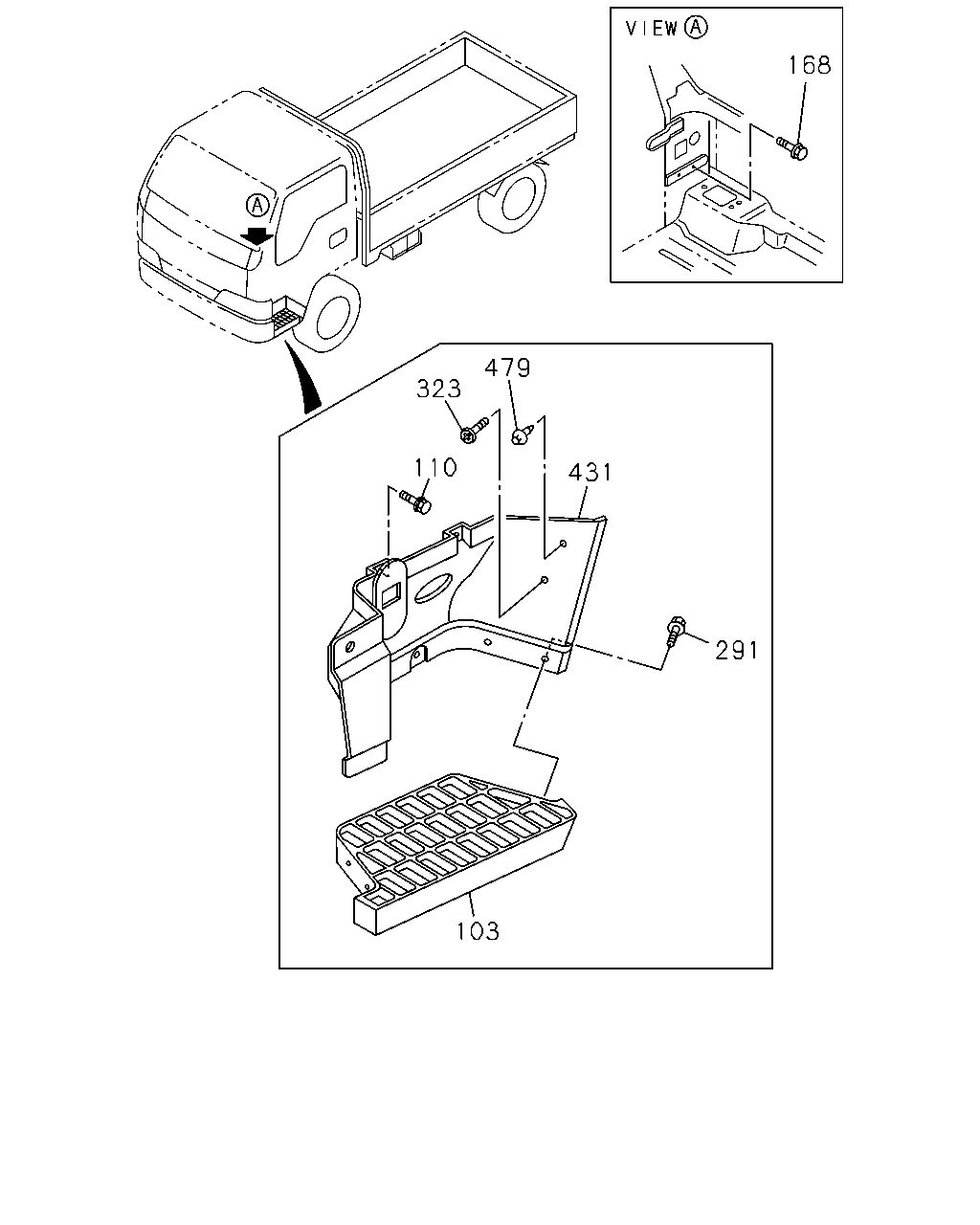

çizim 7783
168 479 323 110 431 291 103
BalonParca AdiParca NoAdetTipApplied Date A B C
103 08.228 PLATE; STEP 8-97892-072-1 01 1 9812- ● ● ●
103 08.228 PLATE; STEP 8-97892-071-1 01 1 9812- ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9812- ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9812- ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9812- ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 9812- ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-584-7 01 1 9812-9910 ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-966-1 01 1 9911- ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-583-7 01 1 9812-9910 ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-965-1 01 1 9911- ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 9812- ● ● ●

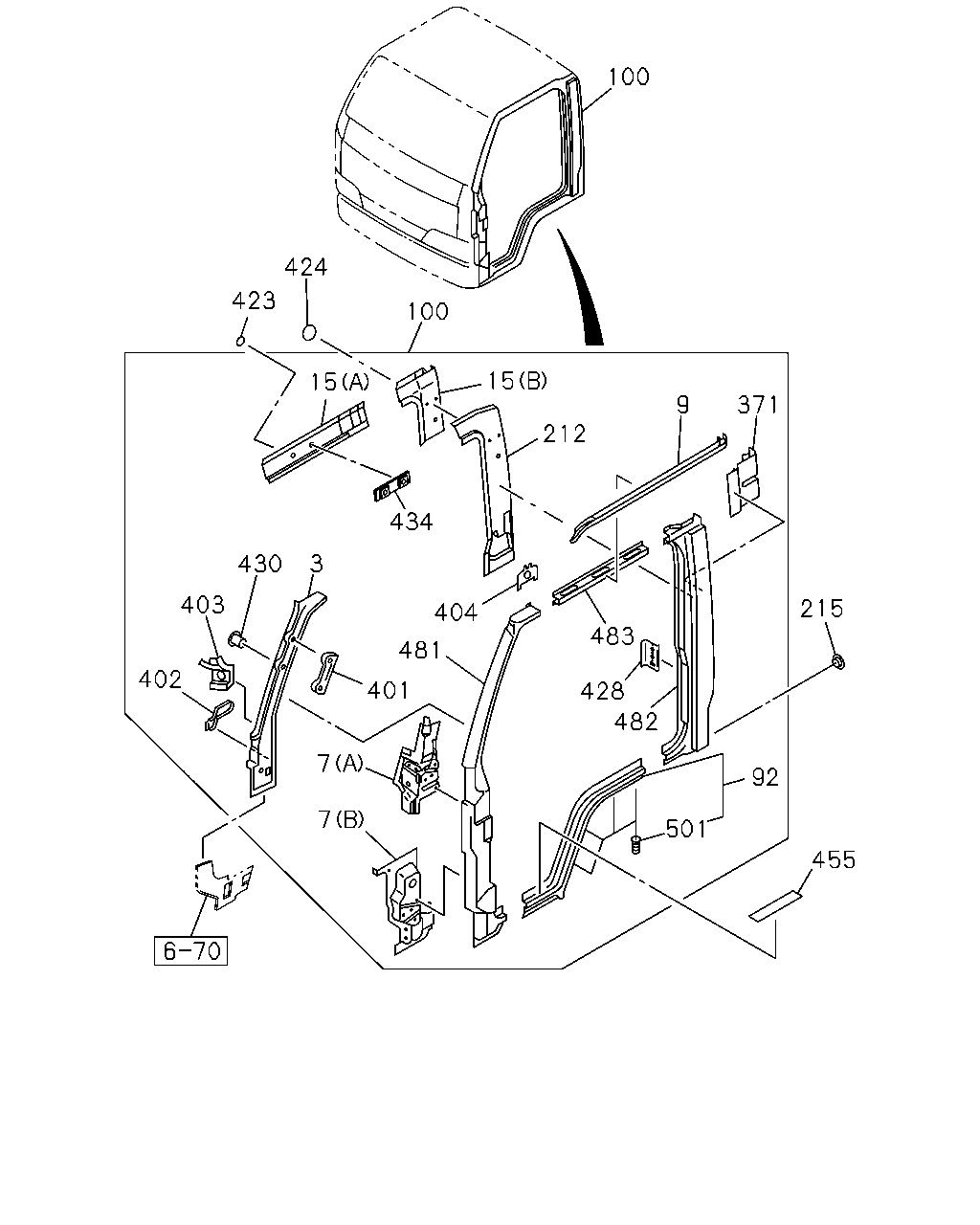

çizim 49522
100 424 423 100 15 15 371 9 212 434 3 430 403 215 404 483 481 402 401 428 482 7 92 7 501 455
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.592 PANEL; CLOSING,FRT PILLAR
4JG2 ENG(RJC) 		8-97851-358-4 01 1 9812-9905 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-358-4 01 1 9906-0105 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR
4JH1 ENG(RJX) 		8-97851-358-4 01 1 0106- ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR
4JG2 ENG(RJC) 		8-97851-357-4 01 1 9812-9905 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-357-4 01 1 9906-0105 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR
4JH1 ENG(RJX) 		8-97851-357-4 01 1 0106- ● ● ●
7 16.570 REINFORCEMENT; HINGE
4JG2 ENG(RJC) (B) LOWER 		8-97851-074-5 01 1 9812-9905 ● ●
7 16.570 REINFORCEMENT; HINGE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) LOWER 		8-97851-074-5 01 1 9906-0105 ● ●
7 16.570 REINFORCEMENT; HINGE
4JH1 ENG(RJX) (B) LOWER 		8-97851-074-5 01 1 0106- ● ● ●
7 16.570 REINFORCEMENT; HINGE
4JG2 ENG(RJC) (A) UPPER 		8-97851-354-1 01 1 9812-9905 ● ●
7 16.570 REINFORCEMENT; HINGE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) UPPER 		8-97851-354-1 01 1 9906-0105 ● ●
7 16.570 REINFORCEMENT; HINGE
4JH1 ENG(RJX) (A) UPPER 		8-97851-354-1 01 1 0106- ● ● ●
7 16.570 REINFORCEMENT; HINGE
4JG2 ENG(RJC) (B) LOWER 		8-97851-073-5 01 1 9812-9905 ● ●
7 16.570 REINFORCEMENT; HINGE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) LOWER 		8-97851-073-5 01 1 9906-0105 ● ●
7 16.570 REINFORCEMENT; HINGE
4JH1 ENG(RJX) (B) LOWER 		8-97851-073-5 01 1 0106- ● ● ●
7 16.570 REINFORCEMENT; HINGE
4JG2 ENG(RJC) (A) UPPER 		8-97851-353-1 01 1 9812-9905 ● ●
7 16.570 REINFORCEMENT; HINGE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) UPPER 		8-97851-353-1 01 1 9906-0105 ● ●
7 16.570 REINFORCEMENT; HINGE
4JH1 ENG(RJX) (A) UPPER 		8-97851-353-1 01 1 0106- ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE
4JG2 ENG(RJC) 		8-97851-020-9 01 1 9812-9905 ● ●
9 16.592 MOLDING; DRIP,CAB SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-020-9 01 1 9906-0105 ● ●
9 16.592 MOLDING; DRIP,CAB SIDE
4JH1 ENG(RJX) 		8-97851-020-9 01 1 0106- ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE
4JG2 ENG(RJC) 		8-97851-019-8 01 1 9812-9905 ● ●
9 16.592 MOLDING; DRIP,CAB SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-019-9 01 1 9906-0105 ● ●
9 16.592 MOLDING; DRIP,CAB SIDE
4JH1 ENG(RJX) 		8-97851-019-9 01 1 0106- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JG2 ENG(RJC) (A) 		8-97851-335-4 01 1 9812-9905 ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97851-335-4 01 1 9906-0105 ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JH1 ENG(RJX) (A) 		8-97851-335-4 01 1 0106- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JG2 ENG(RJC) (B) 		8-97851-337-5 01 1 9812-9905 ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97851-337-5 01 1 9906-0105 ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JH1 ENG(RJX) (B) 		8-97851-337-5 01 1 0106- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JG2 ENG(RJC) (A) 		8-97851-334-4 01 1 9812-9905 ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97851-334-4 01 1 9906-0105 ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JH1 ENG(RJX) (A) 		8-97851-334-4 01 1 0106- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JG2 ENG(RJC) (B) 		8-97851-336-5 01 1 9812-9905 ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97851-336-5 01 1 9906-0105 ● ●
15 16.592 PANEL; CANT RAIL SIDE
4JH1 ENG(RJX) (B) 		8-97851-336-5 01 1 0106- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 9812- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 9812- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-406-0 01 1 9906-0105 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JH1 ENG(RJX) 		8-97890-406-1 01 1 0106- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC) 		8-97890-396-0 01 1 9812-9905 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97890-396-0 01 1 9906-0105 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JH1 ENG(RJX) 		8-97890-396-1 01 1 0106- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC) 		8-97890-408-0 01 1 9812-9905 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-408-0 01 1 9906-9911 ● ●
100 16.570 PANEL ASM; BODY SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-408-0 01 1 9912-0105 ● ●
212 16.588 CLOSING; PILLAR
4JG2 ENG(RJC) 		8-97890-453-2 01 1 9812-9905 ● ●
212 16.588 CLOSING; PILLAR
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97890-453-2 01 1 9906-0105 ● ●
212 16.588 CLOSING; PILLAR
4JH1 ENG(RJX) 		8-97890-453-2 01 1 0106- ● ● ●
212 16.588 CLOSING; PILLAR
4JG2 ENG(RJC) 		8-97890-458-2 01 1 9812-9905 ● ●
212 16.588 CLOSING; PILLAR
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-458-2 01 1 9906-9911 ● ●
212 16.588 CLOSING; PILLAR
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-458-2 01 1 9906-9911 ● ●
212 16.588 CLOSING; PILLAR
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-458-2 01 1 9912-0105 ● ●
212 16.588 CLOSING; PILLAR
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-458-2 01 1 9912-0105 ● ●
212 16.588 CLOSING; PILLAR
4JH1 ENG(RJX) 		8-97890-458-2 01 1 0106- ● ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 9812- ● ● ●
371 16.570 PATCH; SEAT BELT
4JG2 ENG(RJC) 		8-97851-049-1 01 1 9812-9905 ● ●
371 16.570 PATCH; SEAT BELT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-049-1 01 1 9906-0105 ● ●
371 16.570 PATCH; SEAT BELT
4JH1 ENG(RJX) 		8-97851-049-1 01 1 0106- ● ● ●
371 16.570 PATCH; SEAT BELT
4JG2 ENG(RJC) 		8-97851-048-1 01 1 9812-9905 ● ●
371 16.570 PATCH; SEAT BELT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-048-1 01 1 9906-0105 ● ●
371 16.570 PATCH; SEAT BELT
4JH1 ENG(RJX) 		8-97851-048-1 01 1 0106- ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4JG2 ENG(RJC) 		8-97851-301-1 01 1 9812-9905 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4JG2 ENG(RJC) 		8-97851-301-1 01 1 9812-9905 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9906-9911 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-301-1 01 1 9906-9911 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-301-1 01 1 9906-9911 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-301-1 01 1 9912-0105 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-301-1 01 1 9912-0105 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4JB1 ENG(RLF) 		8-97851-301-1 01 1 9912-0105 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4JH1 ENG(RJX) 		8-97851-301-1 01 1 0106- ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4JH1 ENG(RJX) 		8-97851-301-1 01 1 0106- ● ● ●
402 16.085 BRACKET; SUPPORT
4JG2 ENG(RJC) 		8-97851-086-1 01 1 9812-9905 ● ●
402 16.085 BRACKET; SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-086-1 01 1 9906-0105 ● ●
402 16.085 BRACKET; SUPPORT
4JH1 ENG(RJX) 		8-97851-086-1 01 1 0106- ● ● ●
402 16.085 BRACKET; SUPPORT
4JG2 ENG(RJC) 		8-97851-085-1 01 1 9812-9905 ● ●
402 16.085 BRACKET; SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-085-1 01 1 9906-0105 ● ●
402 16.085 BRACKET; SUPPORT
4JH1 ENG(RJX) 		8-97851-085-1 01 1 0106- ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
4JG2 ENG(RJC) 		8-97851-070-0 01 1 9812-9905 ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-070-0 01 1 9906-0105 ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
4JH1 ENG(RJX) 		8-97851-070-0 01 1 0106- ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
4JG2 ENG(RJC) 		8-97851-069-0 01 1 9812-9905 ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97851-069-0 01 1 9906-0105 ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
4JH1 ENG(RJX) 		8-97851-069-0 01 1 0106- ● ● ●
404 16.570 BRACKET
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-318-1 01 1 9906-0105 ● ●
404 16.570 BRACKET
4JG2 ENG(RJC) 		8-97890-317-1 01 1 9812-9905 ● ●
404 16.570 BRACKET
4JG2 ENG(RJC) 		8-97890-317-1 01 1 9812-9905 ● ●
404 16.570 BRACKET
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97890-317-1 01 1 9906-0105 ● ●
404 16.570 BRACKET
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-317-1 01 1 9906-0105 ● ●
404 16.570 BRACKET
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-317-1 01 1 9906-0105 ● ●
404 16.570 BRACKET
4JH1 ENG(RJX) 		8-97890-317-1 01 1 0106- ● ● ●
404 16.570 BRACKET
4JH1 ENG(RJX) 		8-97890-317-1 01 1 0106- ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR MARINE BLU E(890) EXC. INTERIOR DELUXE(RBB) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9812-0010 ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR POLAR SILV ER MET(845),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE(RBB) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0011- ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR MARINE BLU E(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9909-0010 ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR POLAR SILV ER MET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0011- ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9909- ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE(RBB) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9812- ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR MARINE BLU E(890) EXC. INTERIOR DELUXE(RBB) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9812-0010 ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLORCARDINAL RED(736),BODY COLOR POLAR SILV ER MET(845),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE(RBB) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0011- ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE(RBB) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9812- ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
4JG2 ENG(RJC) 16.588 		8-97851-446-1 01 1 9812-9905 ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
4JG2 ENG(RJC),4JB1 ENG(RLF) 16.588 		8-97851-446-1 01 1 9906-0105 ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
4JH1 ENG(RJX) 16.588 		8-97851-446-1 01 1 0106- ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
4JG2 ENG(RJC) 16.588 		8-97851-445-1 01 1 9812-9905 ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
4JG2 ENG(RJC),4JB1 ENG(RLF) 16.588 		8-97851-445-1 01 1 9906-0105 ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
4JH1 ENG(RJX) 16.588 		8-97851-445-1 01 1 0106- ● ● ●
430 16.570 NUT; PANEL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9906-0105 ● ●
430 16.570 NUT; PANEL
4JH1 ENG(RJX) M8 POP NUT 		8-94279-538-0 02 1 0106- ● ● ●
430 16.570 NUT; PANEL
4JG2 ENG(RJC) M6 POP NUT 		8-94279-537-0 01 1 9812-9905 ● ●
430 16.570 NUT; PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF) M6 POP NUT 		8-94279-537-0 01 1 9906-0105 ● ●
430 16.570 NUT; PANEL
4JH1 ENG(RJX) M6 POP NUT 		8-94279-537-0 01 1 0106- ● ● ●
434 16.592 PATCH; ASSIST GRIP
4JG2 ENG(RJC) 		8-94267-191-1 01 1 9812-9905 ● ●
434 16.592 PATCH; ASSIST GRIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94267-191-1 01 1 9906-0105 ● ●
434 16.592 PATCH; ASSIST GRIP
4JH1 ENG(RJX) 		8-94267-191-1 01 1 0106- ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9812- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 9812- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 9812- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97851-522-4 01 1 9812- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 9812- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 9812- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 9812- ● ● ●
501 16.570 PIN; STUD
4JG2 ENG(RJC) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9812-9905 ● ●
501 16.570 PIN; STUD
4JG2 ENG(RJC) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9812-9905 ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9906-9911 ● ●
501 16.570 PIN; STUD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9906-9911 ● ●
501 16.570 PIN; STUD
AIR INTAKE SYSTEM FRONT<6PC> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9906-9911 ● ●
501 16.570 PIN; STUD
4JG2 ENG(RJC),4JB1 ENG(RLF) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9912-0105 ● ●
501 16.570 PIN; STUD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9912-0105 ● ●
501 16.570 PIN; STUD
4JB1 ENG(RLF) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9912-0105 ● ●
501 16.570 PIN; STUD
4JH1 ENG(RJX) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0106- ● ● ●
501 16.570 PIN; STUD
4JH1 ENG(RJX) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0106- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
