◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#46042) — 9 parça

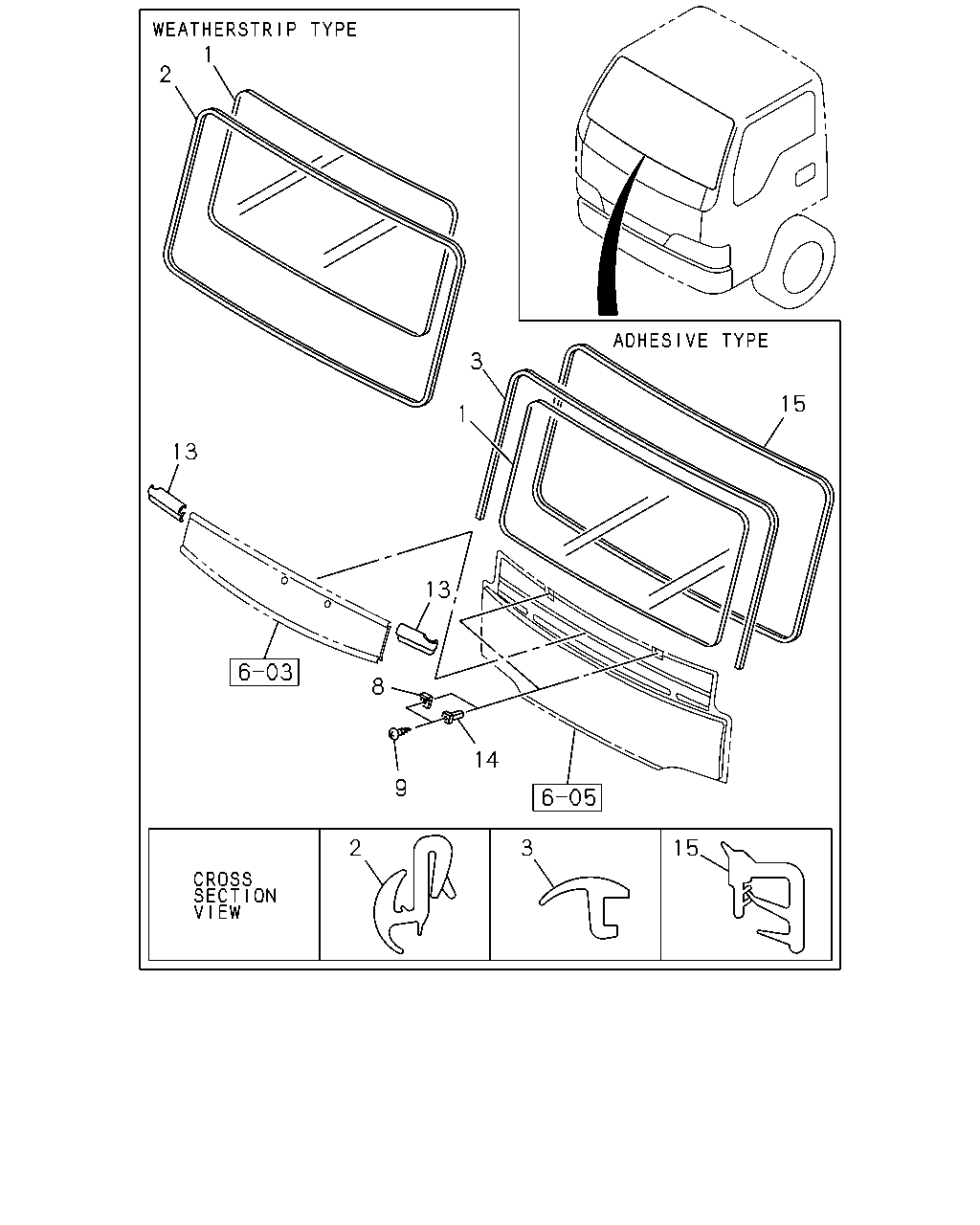

çizim 48977
1 2 3 15 1 13 13 8 14 9 2 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.005 GLASS; WINDSHIELD 8-97869-124-0 01 1 9812- ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-351-3 01 1 9812- ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-214-1 01 1 9812- ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9812- ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9812- ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9812- ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9812- ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9812- ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97859-856-4 01 1 9812- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
