5-20 — BATTERY CARRIER (#46036) — 58 parça

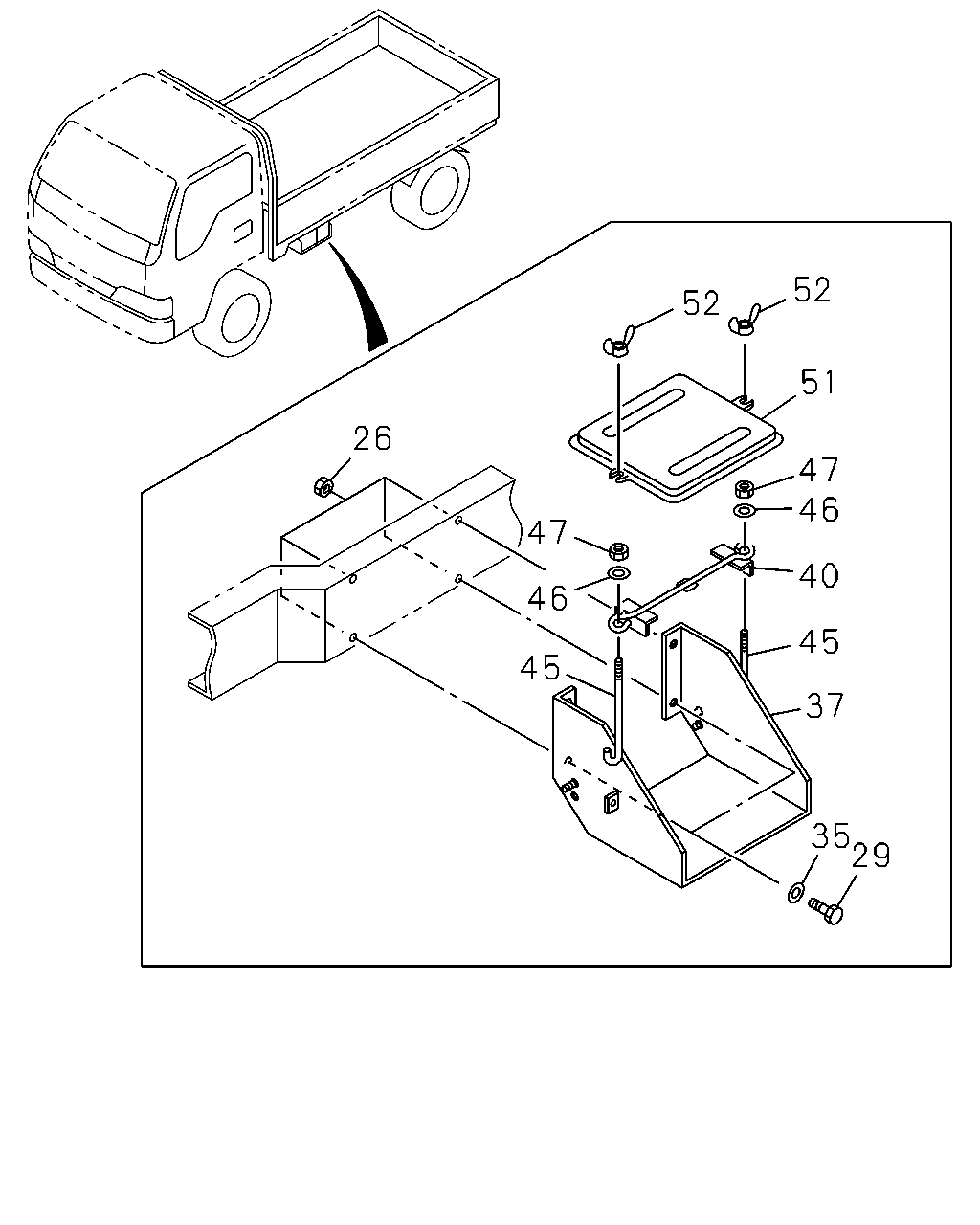

çizim 44319
52 52 51 26 47 46 47 40 46 45 45 37 35 29
BalonParca AdiParca NoAdetTipApplied Date A B C
26 02.334 NUT; BRKT
4JG2 ENG(RJC) 08.917 M10 FLANGE 		0-91150-210-0 02 1 9812-9905 ●
26 02.334 NUT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 08.917 M10 FLANGE 		0-91150-210-0 02 1 9906-0105 ●
26 02.334 NUT; BRKT
4JH1 ENG(RJX) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0106- ●
26 02.334 NUT; BRKT
4JG2 ENG(RJC) 08.917 M10 FLANGE 		0-91150-210-0 04 1 9812-9905 ●
26 02.334 NUT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 08.917 M10 FLANGE 		0-91150-210-0 04 1 9906-0105 ●
26 02.334 NUT; BRKT
4JH1 ENG(RJX) 08.917 M10 FLANGE 		0-91150-210-0 04 1 0106-0203 ●
26 02.334 NUT; BRKT
4JH1 ENG(RJX) 08.917 M10 FLANGE 		0-91150-210-0 04 1 0204- ●
26 02.334 NUT; BRKT
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE 		0-91150-210-0 04 1 0204- ●
26 02.334 NUT; BRKT
EXC. REAR WIDE TREAD(V4T) 08.917 M10 FLANGE 		0-91150-210-0 03 1 0204- ●
29 02.334 BOLT; BRKT TO FRAME
09.171 M10X30 W/LK WASHER 		0-50041-030-0 04 1 9812- ● ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
16.682 ID=10.5 OD=22 		9-09160-610-0 04 1 9812- ● ● ●
37 02.333 BRACKET; BATTERY
LEYLAND EQUIPMENT(S9Z) 		5-53613-009-5 01 1 9812-0203 ● ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		5-53613-009-5 01 1 9812-0203 ● ●
37 02.333 BRACKET; BATTERY
LEYLAND EQUIPMENT(S9Z) 		8-97327-537-0 01 1 0204-0207 ● ● ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		8-97327-537-0 01 1 0204-0207 ● ● ●
37 02.333 BRACKET; BATTERY
LEYLAND EQUIPMENT(S9Z) 		8-97356-174-0 01 1 0208- ● ● ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		8-97356-174-0 01 1 0208- ● ● ●
40 02.335 CLAMP; BATTERY
4JG2 ENG(RJC) LEYLAND EQUIPMENT(S9Z) 		5-53615-004-1 01 1 9812-9905 ● ●
40 02.335 CLAMP; BATTERY
4JG2 ENG(RJC) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		5-53615-004-1 01 1 9812-9905 ● ●
40 02.335 CLAMP; BATTERY
4JG2 ENG(RJC),4JB1 ENG(RLF) LEYLAND EQUIPMENT(S9Z) 		5-53615-004-1 01 1 9906-0105 ● ●
40 02.335 CLAMP; BATTERY
4JG2 ENG(RJC),4JB1 ENG(RLF) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		5-53615-004-1 01 1 9906-0105 ● ●
40 02.335 CLAMP; BATTERY
4JH1 ENG(RJX) LEYLAND EQUIPMENT(S9Z) 		5-53615-004-1 01 1 0106-0203 ● ●
40 02.335 CLAMP; BATTERY
4JH1 ENG(RJX) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		5-53615-004-1 01 1 0106-0203 ● ●
40 02.335 CLAMP; BATTERY
4JH1 ENG(RJX) LEYLAND EQUIPMENT(S9Z) 		5-53615-004-1 01 1 0204- ● ● ●
40 02.335 CLAMP; BATTERY
4JH1 ENG(RJX) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		5-53615-004-1 01 1 0204- ● ● ●
45 02.334 ROD; TENSION,BATTERY 9-53616-615-0 02 1 9812- ● ● ●
46 02.334 WASHER; PL,BATTERY TO CARRIER
4JG2 ENG(RJC) LEYLAND EQUIPMENT(S9Z) 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 9812-9905 ● ●
46 02.334 WASHER; PL,BATTERY TO CARRIER
4JG2 ENG(RJC) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 9812-9905 ● ●
46 02.334 WASHER; PL,BATTERY TO CARRIER
4JG2 ENG(RJC),4JB1 ENG(RLF) LEYLAND EQUIPMENT(S9Z) 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 9906-0105 ● ●
46 02.334 WASHER; PL,BATTERY TO CARRIER
4JG2 ENG(RJC),4JB1 ENG(RLF) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 9906-0105 ● ●
46 02.334 WASHER; PL,BATTERY TO CARRIER
4JH1 ENG(RJX) LEYLAND EQUIPMENT(S9Z) 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0106-0203 ● ●
46 02.334 WASHER; PL,BATTERY TO CARRIER
4JH1 ENG(RJX) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0106-0203 ● ●
46 02.334 WASHER; PL,BATTERY TO CARRIER
4JH1 ENG(RJX) LEYLAND EQUIPMENT(S9Z) 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0204- ● ● ●
46 02.334 WASHER; PL,BATTERY TO CARRIER
4JH1 ENG(RJX) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0204- ● ● ●
47 02.334 NUT; BRKT
4JG2 ENG(RJC) LEYLAND EQUIPMENT(S9Z) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ● ●
47 02.334 NUT; BRKT
4JG2 ENG(RJC) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ● ●
47 02.334 NUT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) LEYLAND EQUIPMENT(S9Z) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ● ●
47 02.334 NUT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ● ●
47 02.334 NUT; BRKT
4JH1 ENG(RJX) LEYLAND EQUIPMENT(S9Z) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0203 ● ●
47 02.334 NUT; BRKT
4JH1 ENG(RJX) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0203 ● ●
47 02.334 NUT; BRKT
4JH1 ENG(RJX) LEYLAND EQUIPMENT(S9Z) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0204- ● ● ●
47 02.334 NUT; BRKT
4JH1 ENG(RJX) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0204- ● ● ●
51 02.335 COVER; BATTERY
4JG2 ENG(RJC) LEYLAND EQUIPMENT(S9Z) 		8-97122-813-0 01 1 9812-9905 ● ●
51 02.335 COVER; BATTERY
4JG2 ENG(RJC) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		8-97122-813-0 01 1 9812-9905 ● ●
51 02.335 COVER; BATTERY
4JG2 ENG(RJC),4JB1 ENG(RLF) LEYLAND EQUIPMENT(S9Z) 		8-97122-813-0 01 1 9906-0105 ● ●
51 02.335 COVER; BATTERY
4JG2 ENG(RJC),4JB1 ENG(RLF) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		8-97122-813-0 01 1 9906-0105 ● ●
51 02.335 COVER; BATTERY
4JH1 ENG(RJX) LEYLAND EQUIPMENT(S9Z) 		8-97218-309-0 01 1 0106-0203 ● ●
51 02.335 COVER; BATTERY
4JH1 ENG(RJX) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		8-97218-309-0 01 1 0106-0203 ● ●
51 02.335 COVER; BATTERY
4JH1 ENG(RJX) LEYLAND EQUIPMENT(S9Z) 		8-97218-309-0 01 1 0204- ● ● ●
51 02.335 COVER; BATTERY
4JH1 ENG(RJX) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) 		8-97218-309-0 01 1 0204- ● ● ●
52 02.335 NUT; WING,COVER FIX
4JG2 ENG(RJC) LEYLAND EQUIPMENT(S9Z) M8 WING NUT 		9-09118-408-0 02 1 9812-9905 ● ●
52 02.335 NUT; WING,COVER FIX
4JG2 ENG(RJC) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) M8 WING NUT 		9-09118-408-0 02 1 9812-9905 ● ●
52 02.335 NUT; WING,COVER FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) LEYLAND EQUIPMENT(S9Z) M8 WING NUT 		9-09118-408-0 02 1 9906-0105 ● ●
52 02.335 NUT; WING,COVER FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) M8 WING NUT 		9-09118-408-0 02 1 9906-0105 ● ●
52 02.335 NUT; WING,COVER FIX
4JH1 ENG(RJX) LEYLAND EQUIPMENT(S9Z) M8 WING NUT 		9-09118-408-0 02 1 0106-0203 ● ●
52 02.335 NUT; WING,COVER FIX
4JH1 ENG(RJX) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) M8 WING NUT 		9-09118-408-0 02 1 0106-0203 ● ●
52 02.335 NUT; WING,COVER FIX
4JH1 ENG(RJX) LEYLAND EQUIPMENT(S9Z) M8 WING NUT 		9-09118-408-0 02 1 0204- ● ● ●
52 02.335 NUT; WING,COVER FIX
4JH1 ENG(RJX) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT(S9Z) M8 WING NUT 		9-09118-408-0 02 1 0204- ● ● ●
