5-15 — CAB MOUNTING; CAB SIDE (#46035) — 115 parça

15 12 1 3 15 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-97114-078-3	01	1	9812-0111	●	●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-97328-485-0	01	1	0112-	●	●	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97114-082-1	01	1	0106-0111	●	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97328-488-0	01	1	0112-	●	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X50	8-94401-729-1	06	1	9812-0111	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	06	1	0112-	●	●	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X50	8-94401-729-1	04	1	0106-0111	●	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0112-	●	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-97171-326-0	01	1	9812-0008	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-97261-873-0	01	1	0009-	●	●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-94258-173-0	02	1	9812-	●	●	●

17 16 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
16	09.007 DAMPER; DYNAMIC 4JG2 ENG(RJC)	8-94148-384-0	01	1	9812-9905	●
16	09.007 DAMPER; DYNAMIC 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94148-384-0	01	1	9906-0105	●
16	09.007 DAMPER; DYNAMIC 4JH1 ENG(RJX)	8-94148-384-0	01	1	0106-	●	●
17	09.007 BOLT; DAMPER 4JG2 ENG(RJC) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9812-9905	●
17	09.007 BOLT; DAMPER 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9906-0105	●
17	09.007 BOLT; DAMPER 4JH1 ENG(RJX) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●
18	09.007 NUT; DAMPER 4JG2 ENG(RJC) 02.559 M8	9-09110-408-0	01	1	9812-9905	●
18	09.007 NUT; DAMPER 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8	9-09110-408-0	01	1	9906-0105	●
18	09.007 NUT; DAMPER 4JH1 ENG(RJX) 02.559 M8	9-09110-408-0	01	1	0106-	●	●

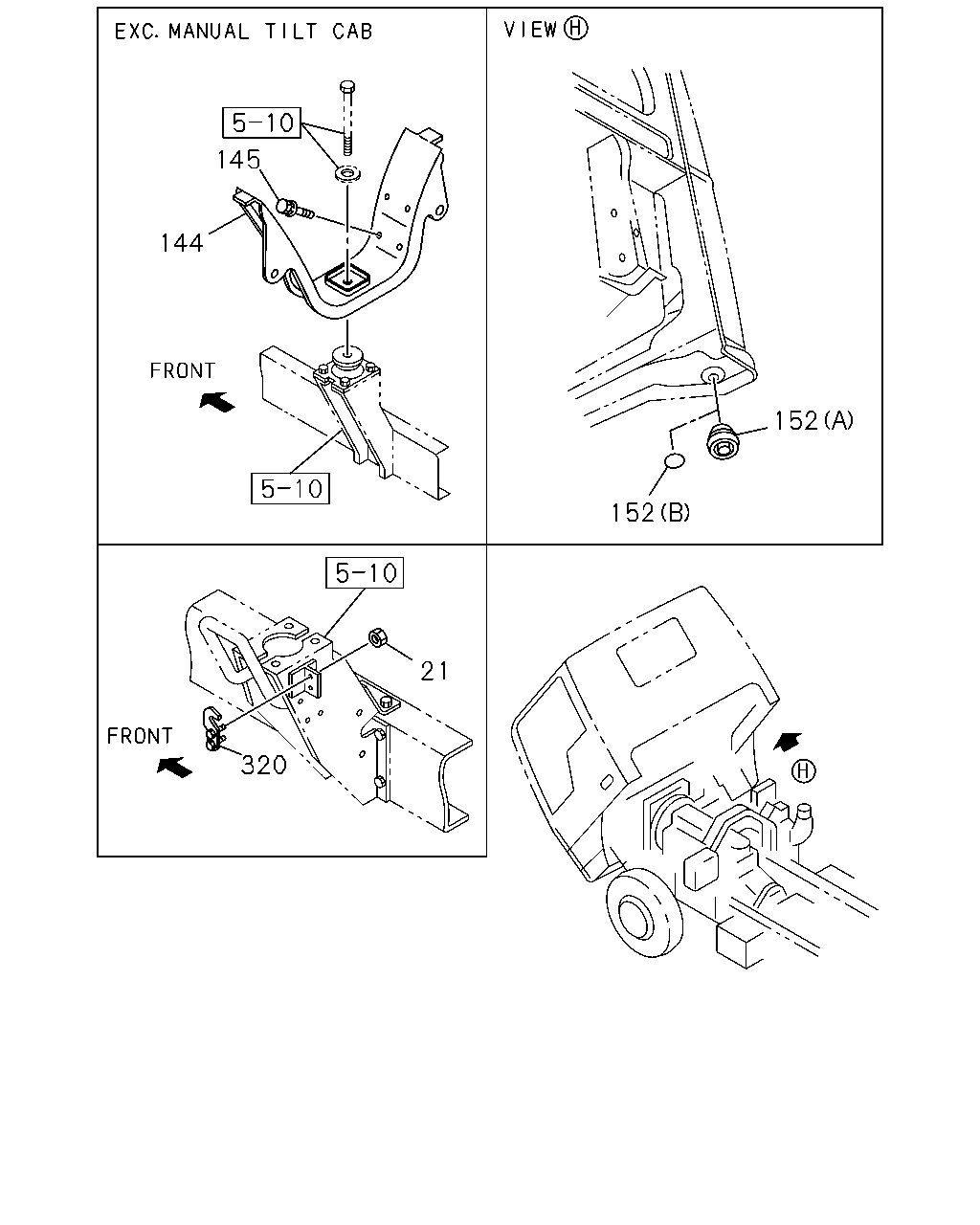

145 144 152 152 21 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	09.005 NUT 07.243 M12 FLANGE	0-91150-212-0	04	1	9812-	●	●	●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	0106-	●	●	●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0106-	●	●	●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC (A) OD=19	8-94279-055-0	02	1	9812-0210	●	●	●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	0211-	●	●	●
320	09.001 ANCHOR; CAB RR	8-97181-722-0	01	1	9812-	●	●	●
320	09.001 ANCHOR; CAB RR	8-97184-188-0	01	1	9812-	●	●	●

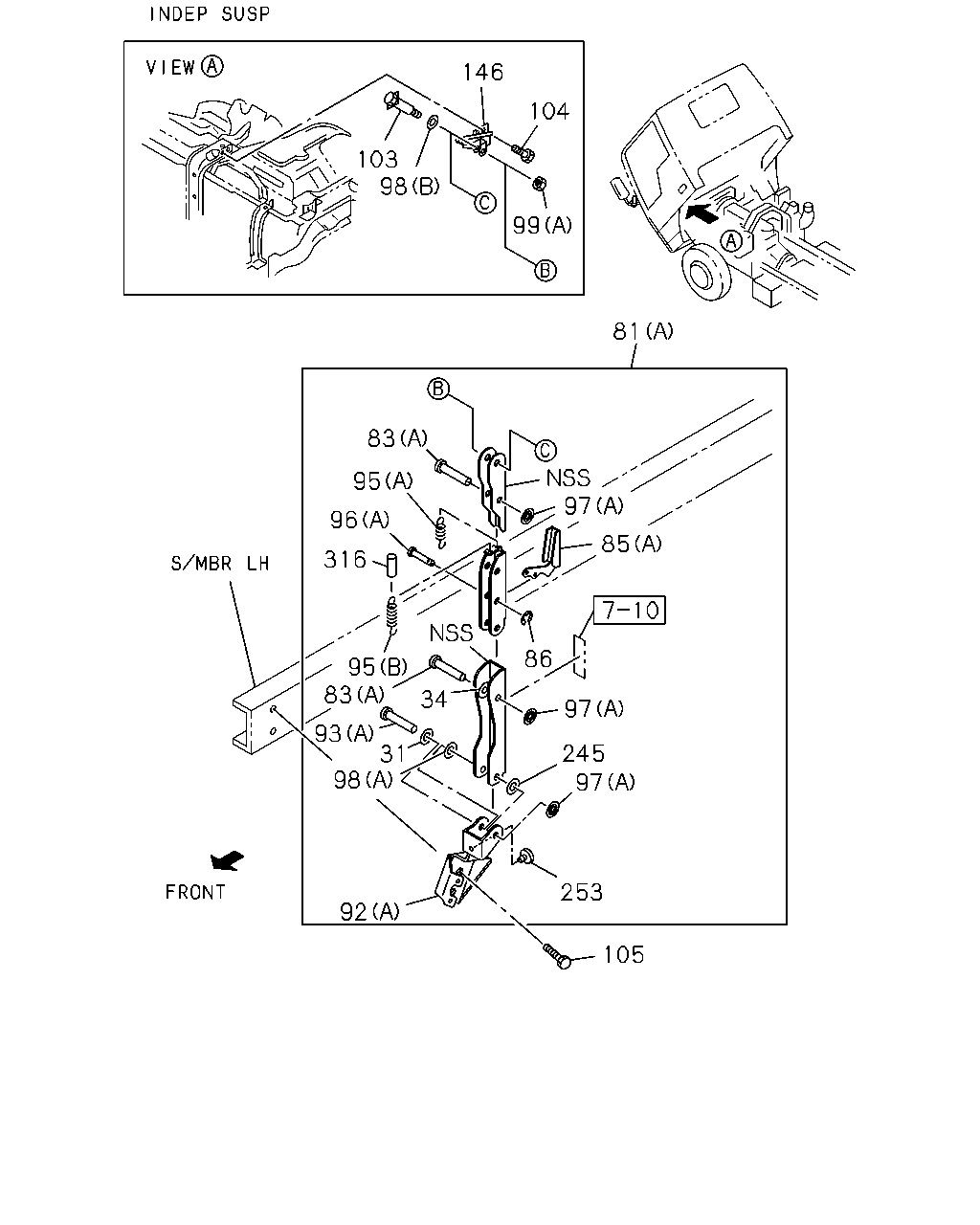

146 104 103 98 99 81 83 97 95 96 85 316 86 95 83 34 97 93 31 98 245 97 253 92 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	09.003 WASHER; WAVE MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97100-623-0	01	1	9812-	●
34	09.003 WASHER; LK MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 12.242 ID=10.5 OD=16	9-09855-178-0	02	1	9812-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97189-842-0	01	1	9812-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-97120-940-0	01	1	9812-9906		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V> (B)	8-97120-940-0	01	1	9907-		●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> (C)	8-97231-503-0	01	1	9907-		●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) OD=10 L=36	8-97096-661-0	02	1	9812-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B) OD=8 L=32	8-97039-548-0	01	1	9812-		●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94380-444-0	01	1	9812-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V> (B)	8-94331-481-0	01	1	9812-		●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> (C)	8-97231-421-0	01	1	9907-		●	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 04.040 ID=4	9-09185-404-0	01	1	9812-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97096-657-1	01	1	9812-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V> (B)	8-97096-654-0	01	1	9812-		●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> (C)	8-97231-420-0	01	1	9907-		●	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) OD=10 L=50	8-97096-659-0	01	1	9812-	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97039-549-0	01	1	9812-9812		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> (B) OD=12 L=53	8-97218-926-0	01	1	9901-		●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94380-428-1	01	1	9812-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97090-910-0	01	1	9812-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> (C)	8-94160-167-2	01	1	9812-		●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	9-08203-622-0	01	1	9812-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> (B) OD=10 L=36	8-97096-661-0	01	1	9812-		●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> (C)	8-97231-416-0	01	1	9907-		●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) ID=9.9 PUSH NUT	8-97022-566-0	03	1	9812-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9812-		●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (C) ID=9.9 PUSH NUT	8-97022-566-0	01	1	9812-		●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (D) ID=11.9 PUSH NUT	8-97022-567-0	01	1	9812-		●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> (E)	8-97231-415-0	01	1	9907-		●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 16.069 (A) T=2.6	8-94279-073-0	01	1	9812-	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> (B) ID=10.5 OD=28.0	8-97184-701-0	01	1	9812-	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> (A) M10	8-97185-205-1	01	1	9812-	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9812-		●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97184-683-0	01	1	9812-	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28690-820-0	03	1	9812-	●	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER	8-94411-010-0	02	1	9812-	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-587-1	01	1	9812-	●	●	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 03.454 T=6 OD=17.5	9-33659-249-0	01	1	9812-	●
253	09.003 RUBBER; STOPPER MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97077-459-0	01	1	9812-	●
316	09.003 COVER; HARNESS MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97096-559-0	01	1	9812-	●

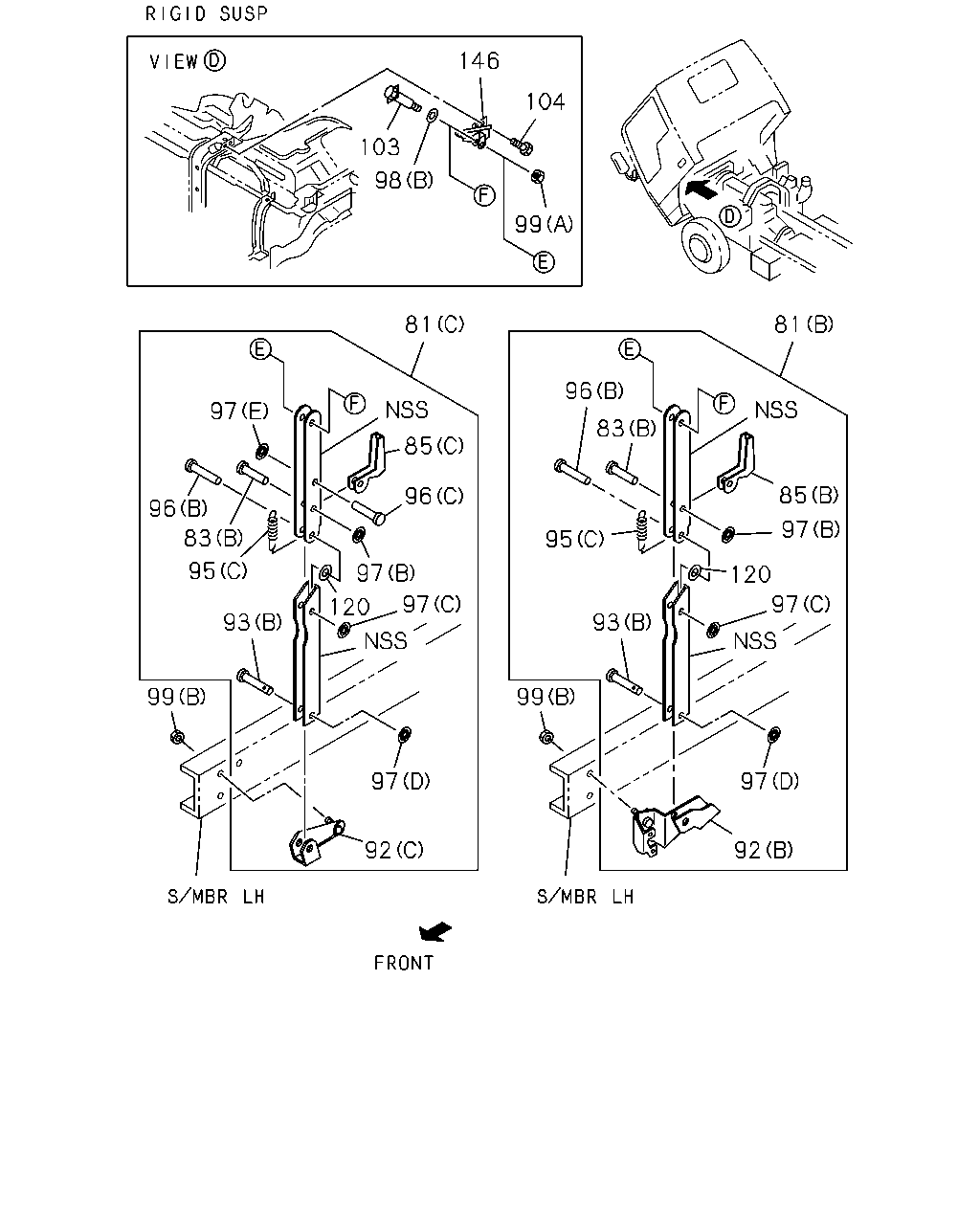

146 104 103 98 99 81 81 96 97 83 85 85 96 96 97 83 95 95 97 120 97 97 120 93 93 99 99 97 97 92 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97189-842-0	01	1	9812-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-97120-940-0	01	1	9812-9906		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V> (B)	8-97120-940-0	01	1	9907-		●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> (C)	8-97231-503-0	01	1	9907-		●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) OD=10 L=36	8-97096-661-0	02	1	9812-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B) OD=8 L=32	8-97039-548-0	01	1	9812-		●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94380-444-0	01	1	9812-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V> (B)	8-94331-481-0	01	1	9812-		●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> (C)	8-97231-421-0	01	1	9907-		●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97096-657-1	01	1	9812-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. SHIMMY DAMPER<S3V> (B)	8-97096-654-0	01	1	9812-		●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> (C)	8-97231-420-0	01	1	9907-		●	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) OD=10 L=50	8-97096-659-0	01	1	9812-	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97039-549-0	01	1	9812-9812		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> (B) OD=12 L=53	8-97218-926-0	01	1	9901-		●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94380-428-1	01	1	9812-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97090-910-0	01	1	9812-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> (C)	8-94160-167-2	01	1	9812-		●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	9-08203-622-0	01	1	9812-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> (B) OD=10 L=36	8-97096-661-0	01	1	9812-		●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> (C)	8-97231-416-0	01	1	9907-		●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) ID=9.9 PUSH NUT	8-97022-566-0	03	1	9812-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9812-		●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (C) ID=9.9 PUSH NUT	8-97022-566-0	01	1	9812-		●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> (D) ID=11.9 PUSH NUT	8-97022-567-0	01	1	9812-		●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> (E)	8-97231-415-0	01	1	9907-		●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 16.069 (A) T=2.6	8-94279-073-0	01	1	9812-	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> (B) ID=10.5 OD=28.0	8-97184-701-0	01	1	9812-	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> (A) M10	8-97185-205-1	01	1	9812-	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9812-		●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97184-683-0	01	1	9812-	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28690-820-0	03	1	9812-	●	●	●
120	09.003 WASHER; NYLON MANUAL TILT CAB<RWZ> ID=10 OD=20	8-97103-223-0	01	1	9812-		●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-587-1	01	1	9812-	●	●	●

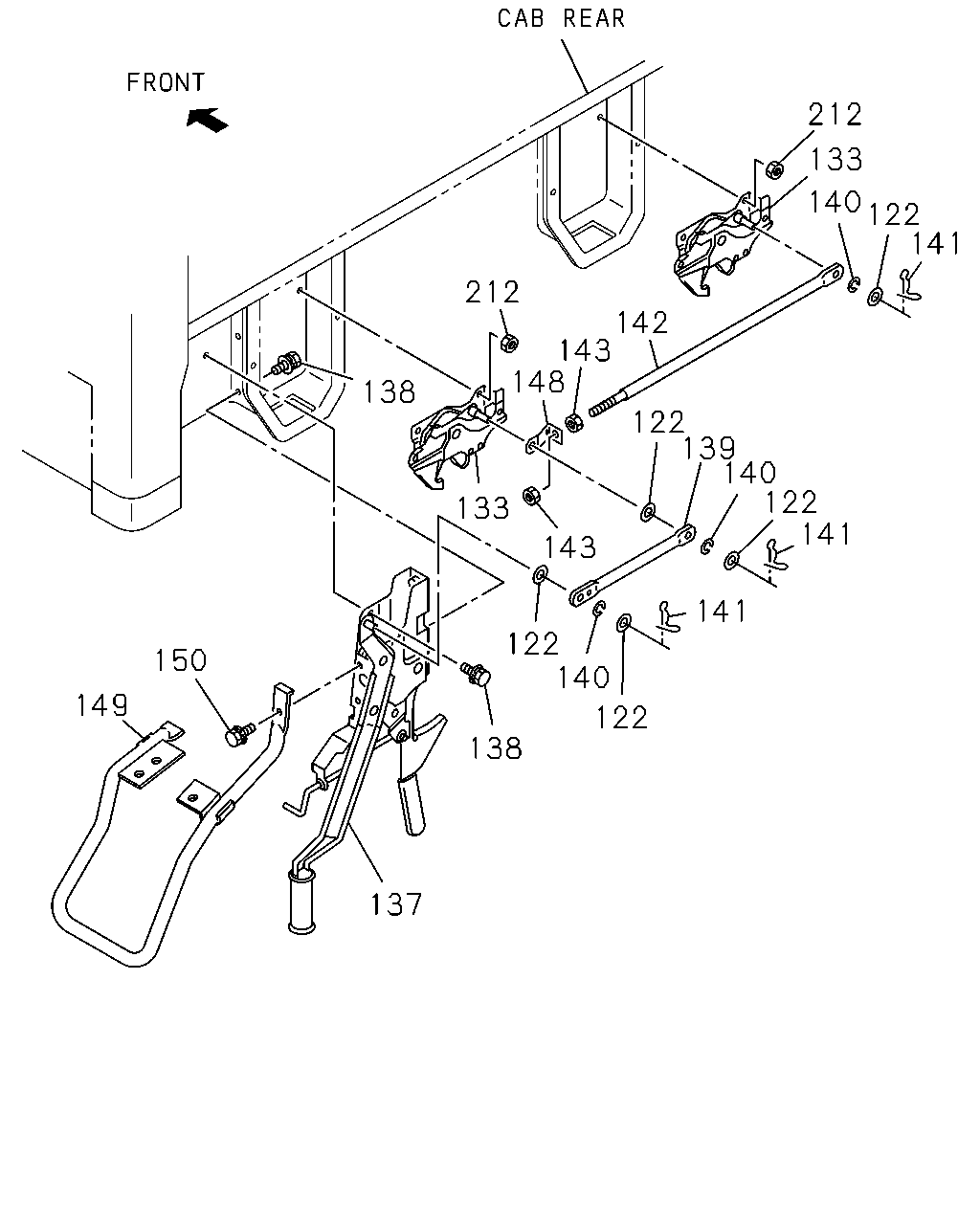

212 133 140 122 141 212 142 143 148 138 122 139 140 122 141 133 143 141 122 140 150 149 122 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
122	09.005 WASHER; PL,CAB LOCK ROD MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22	8-94279-627-0	05	1	9812-	●	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-056-6	01	1	9812-	●	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-055-7	01	1	9812-	●	●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97853-051-8	01	1	9812-	●	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9812-	●	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ>	8-97853-053-1	01	1	9812-	●	●	●
140	09.005 WASHER; LK,CAB LOCK ROD MANUAL TILT CAB<RWZ> ID=13 OD=22	8-94279-629-0	03	1	9812-	●	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> 09.003	1-09987-158-1	03	1	9812-	●	●	●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97856-099-1	01	1	9812-	●	●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 09.008 M10	1-09984-142-0	02	1	9812-	●	●	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97856-106-0	01	1	9812-	●	●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-97853-054-4	01	1	9812-	●	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9812-	●	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE	1-09985-340-0	08	1	9812-	●	●	●
