5-01 — FRAME AND OTHER PARTS (#46033) — 313 parça

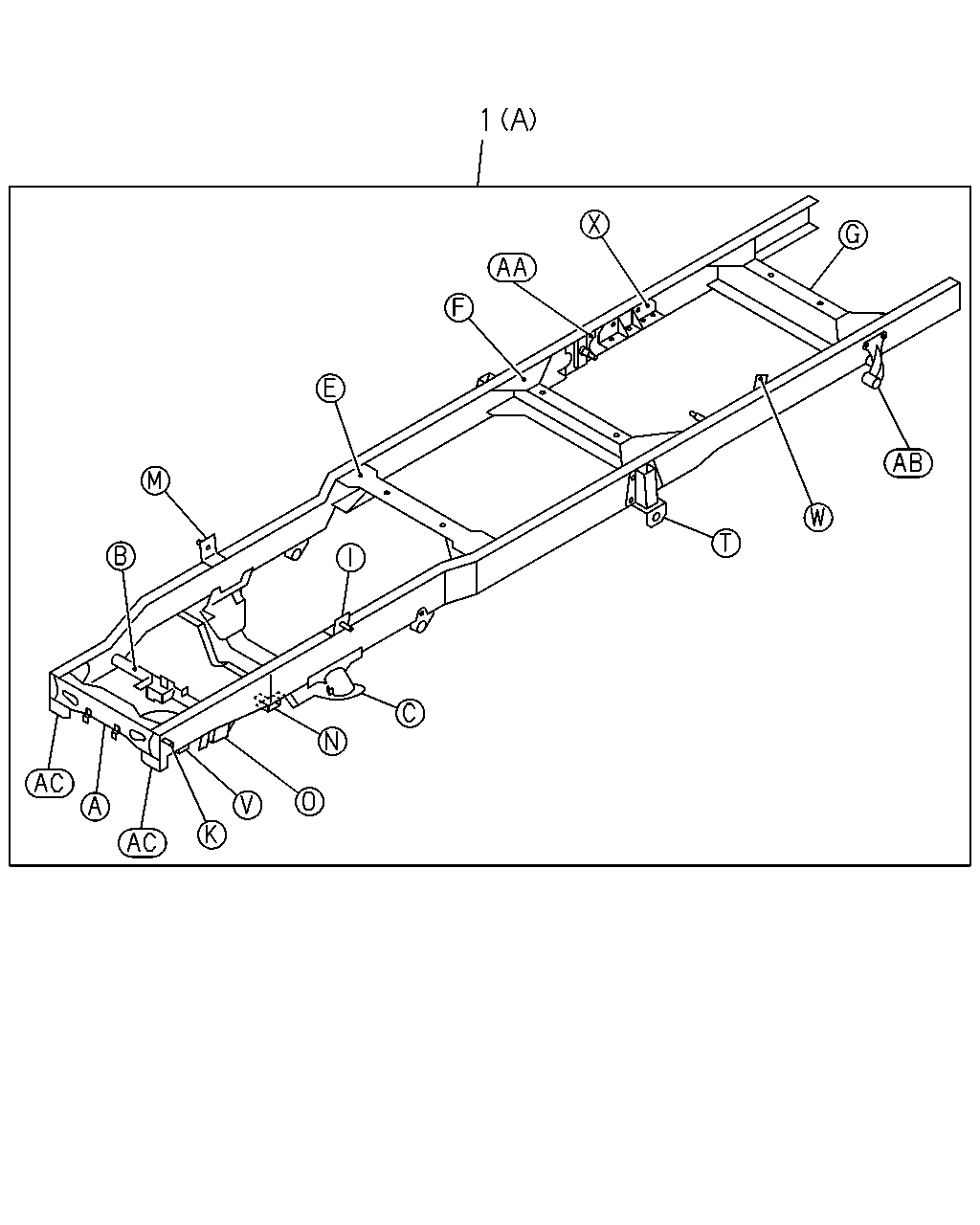

çizim 10333
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.003 FRAME ASM
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-999-2 01 1 9812-9905 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-999-2 01 1 9906-0105 ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97305-461-1 01 1 0106- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) (B) 		8-97205-879-1 01 1 9812-9905 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. SHIMMY DAMPER<S3V> (B) 		8-97205-879-2 01 1 9906-0105 ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) EXC. SHIMMY DAMPER<S3V> (B) 		8-97260-208-0 01 1 0106- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) SHIMMY DAMPER<S3V> (B) 		8-97231-626-1 01 1 9906-0105 ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) SHIMMY DAMPER<S3V> (B) 		8-97260-279-0 01 1 0106- ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (C) 		8-97329-565-0 01 1 0204- ●
çizim 44346
142 101 101 369 188
BalonParca AdiParca NoAdetTipApplied Date A B C
101 07.112 BRACKET; RR SPR,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-093-1 02 1 9812-9905 ●
101 07.112 BRACKET; RR SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-093-1 02 1 9906-0105 ●
101 07.112 BRACKET; RR SPR,FRT
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-093-1 02 1 0106- ●
101 07.112 BRACKET; RR SPR,FRT
4JG2 ENG(RJC) (A) 		8-97034-156-1 02 1 9812-9905 ●
101 07.112 BRACKET; RR SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97034-156-1 02 1 9906-0105 ●
101 07.112 BRACKET; RR SPR,FRT
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-156-1 02 1 0106-0203 ●
101 07.112 BRACKET; RR SPR,FRT
4JH1 ENG(RJX) (A) 		8-97034-156-1 02 1 0204- ●
101 07.112 BRACKET; RR SPR,FRT
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (A) 		8-97034-156-1 02 1 0204- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 9812-9905 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 9906-0105 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97264-169-0 01 1 0106- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC) (B) 		8-97035-308-0 01 1 9812-9905 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97035-308-0 01 1 9906-0105 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-308-0 01 1 0106-0203 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1 ENG(RJX) (B) 		8-97035-308-0 01 1 0204- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (B) 		8-97035-308-0 01 1 0204- ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4JG2 ENG(RJC) 		8-97078-869-0 01 1 9812-9905 ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97078-869-0 01 1 9906-0105 ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-869-1 01 1 0106- ●
369 07.039 STOPPER; STEERING
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97092-869-1 01 1 9812-9905 ●
369 07.039 STOPPER; STEERING
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97092-869-1 01 1 9906-0105 ●
369 07.039 STOPPER; STEERING
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97092-869-1 01 1 0106- ●
çizim 44348
75 75 75 75 345 345 198 198 137 130 139
BalonParca AdiParca NoAdetTipApplied Date A B C
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-081-1 02 1 9812-9905 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-081-1 02 1 9906-0105 ●
75 07.039 GUSSET; 5TH C/MBR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-081-1 02 1 0106- ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC) (A) 		8-97062-499-0 02 1 9812-9905 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97062-499-0 02 1 9906-0105 ●
75 07.039 GUSSET; 5TH C/MBR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97062-499-0 02 1 0106-0203 ●
75 07.039 GUSSET; 5TH C/MBR
4JH1 ENG(RJX) (A) 		8-97062-499-0 02 1 0204- ●
75 07.039 GUSSET; 5TH C/MBR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (A) 		8-97062-499-0 02 1 0204- ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC) (A) 		8-97062-500-0 02 1 9812-9905 ●
75 07.039 GUSSET; 5TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97062-500-0 02 1 9906-0105 ●
75 07.039 GUSSET; 5TH C/MBR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97062-500-0 02 1 0106-0203 ●
75 07.039 GUSSET; 5TH C/MBR
4JH1 ENG(RJX) (A) 		8-97062-500-0 02 1 0204- ●
75 07.039 GUSSET; 5TH C/MBR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (A) 		8-97062-500-0 02 1 0204- ●
130 07.014 MEMBER; CROSS,END
4JG2 ENG(RJC) 		8-97106-992-0 01 1 9812-9905 ●
130 07.014 MEMBER; CROSS,END
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97106-992-0 01 1 9906-0105 ●
130 07.014 MEMBER; CROSS,END
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-992-0 01 1 0106- ●
137 07.629 BRACKET; SPARE TIRE
4JG2 ENG(RJC) 		8-97076-885-1 01 1 9812-9905 ●
137 07.629 BRACKET; SPARE TIRE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97076-885-1 01 1 9906-0105 ●
137 07.629 BRACKET; SPARE TIRE
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-885-1 01 1 0106- ●
137 07.629 BRACKET; SPARE TIRE
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97224-383-1 01 1 0204- ●
139 07.012 MEMBER; CROSS,6TH
4JG2 ENG(RJC) 		8-97062-498-1 01 1 9812-9905 ●
139 07.012 MEMBER; CROSS,6TH
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97062-498-1 01 1 9906-0105 ●
139 07.012 MEMBER; CROSS,6TH
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-498-1 01 1 0106-0203 ●
139 07.012 MEMBER; CROSS,6TH
4JH1 ENG(RJX) 		8-97062-498-1 01 1 0204- ●
139 07.012 MEMBER; CROSS,6TH
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97062-498-1 01 1 0204- ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC) 		8-97062-499-0 02 1 9812-9905 ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97062-499-0 02 1 9906-0105 ●
198 07.039 GUSSET; 6TH C/MBR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-499-0 02 1 0106-0203 ●
198 07.039 GUSSET; 6TH C/MBR
4JH1 ENG(RJX) 		8-97062-499-0 02 1 0204- ●
198 07.039 GUSSET; 6TH C/MBR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97062-499-0 02 1 0204- ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC) 		8-97062-500-0 02 1 9812-9905 ●
198 07.039 GUSSET; 6TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97062-500-0 02 1 9906-0105 ●
198 07.039 GUSSET; 6TH C/MBR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-500-0 02 1 0106-0203 ●
198 07.039 GUSSET; 6TH C/MBR
4JH1 ENG(RJX) 		8-97062-500-0 02 1 0204- ●
198 07.039 GUSSET; 6TH C/MBR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97062-500-0 02 1 0204- ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97045-542-2 01 1 9812-9905 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97045-542-2 01 1 9906-0105 ●
345 07.012 MEMBER; CROSS,5TH
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97045-542-2 01 1 0106- ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC) (B) 		8-97062-497-3 01 1 9812-9905 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97062-497-3 01 1 9906-0105 ●
345 07.012 MEMBER; CROSS,5TH
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97062-497-3 01 1 0106-0203 ●
345 07.012 MEMBER; CROSS,5TH
4JH1 ENG(RJX) (B) 		8-97062-497-3 01 1 0204- ●
345 07.012 MEMBER; CROSS,5TH
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (B) 		8-97062-497-3 01 1 0204- ●
çizim 44725
226 142 142 103 103 147 147 105 140 105 215 215 368 173 173
BalonParca AdiParca NoAdetTipApplied Date A B C
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC) (A) FRONT 		8-97040-628-0 02 1 9812-9904 ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC) (A) FRONT 		8-97223-748-0 02 1 9905-9905 ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) FRONT 		8-97223-748-0 02 1 9906-0105 ●
103 07.420 STOPPER; SUB SPR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT 		8-97223-748-0 02 1 0106-0203 ●
103 07.420 STOPPER; SUB SPR
4JH1 ENG(RJX) (A) FRONT 		8-97223-748-0 02 1 0204- ●
103 07.420 STOPPER; SUB SPR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (A) FRONT 		8-97223-748-0 02 1 0204- ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC) (B) REAR 		8-97040-629-0 02 1 9812-9904 ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC) (B) REAR 		8-97223-750-0 02 1 9905-9905 ●
103 07.420 STOPPER; SUB SPR
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) REAR 		8-97223-750-0 02 1 9906-0105 ●
103 07.420 STOPPER; SUB SPR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) REAR 		8-97223-750-0 02 1 0106-0203 ●
103 07.420 STOPPER; SUB SPR
4JH1 ENG(RJX) (B) REAR 		8-97223-750-0 02 1 0204- ●
103 07.420 STOPPER; SUB SPR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (B) REAR 		8-97223-750-0 02 1 0204- ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-621-1 01 1 9812-9905 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-621-1 01 1 9906-0105 ●
105 07.112 BRACKET; RR SPR,RR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-621-1 01 1 0106- ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-620-1 01 1 9812-9905 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-620-1 01 1 9906-0105 ●
105 07.112 BRACKET; RR SPR,RR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94126-620-1 01 1 0106- ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC) (A) 		8-94459-512-1 01 1 9812-9905 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-94459-512-1 01 1 9906-0105 ●
105 07.112 BRACKET; RR SPR,RR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94459-512-1 01 1 0106-0203 ●
105 07.112 BRACKET; RR SPR,RR
4JH1 ENG(RJX) (A) 		8-94459-512-1 01 1 0204- ●
105 07.112 BRACKET; RR SPR,RR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (A) 		8-94459-512-1 01 1 0204- ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC) (A) 		8-94459-511-1 01 1 9812-9905 ●
105 07.112 BRACKET; RR SPR,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-94459-511-1 01 1 9906-0105 ●
105 07.112 BRACKET; RR SPR,RR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94459-511-1 01 1 0106-0203 ●
105 07.112 BRACKET; RR SPR,RR
4JH1 ENG(RJX) (A) 		8-94459-511-1 01 1 0204- ●
105 07.112 BRACKET; RR SPR,RR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (A) 		8-94459-511-1 01 1 0204- ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-104-1 01 1 9812-9905 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-104-1 01 1 9906-0105 ●
140 07.112 BRACKET; S/ABS,RR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-104-1 01 1 0106- ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-103-1 01 1 9812-9905 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-103-1 01 1 9906-0105 ●
140 07.112 BRACKET; S/ABS,RR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-103-1 01 1 0106- ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC) 		8-97012-285-0 01 1 9812-9905 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97012-285-0 01 1 9906-0105 ●
140 07.112 BRACKET; S/ABS,RR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-285-0 01 1 0106-0203 ●
140 07.112 BRACKET; S/ABS,RR
4JH1 ENG(RJX) 		8-97012-285-0 01 1 0204- ●
140 07.112 BRACKET; S/ABS,RR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97012-285-0 01 1 0204- ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC) 07.395 		8-94101-303-0 01 1 9812-9905 ●
140 07.112 BRACKET; S/ABS,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.395 		8-94101-303-0 01 1 9906-0105 ●
140 07.112 BRACKET; S/ABS,RR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.395 		8-94101-303-0 01 1 0106-0203 ●
140 07.112 BRACKET; S/ABS,RR
4JH1 ENG(RJX) 07.395 		8-94101-303-0 01 1 0204- ●
140 07.112 BRACKET; S/ABS,RR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 07.395 		8-94101-303-0 01 1 0204- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 9812-9905 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 9906-0105 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97264-169-0 01 1 0106- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC) (B) 		8-97035-308-0 01 1 9812-9905 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97035-308-0 01 1 9906-0105 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-308-0 01 1 0106-0203 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1 ENG(RJX) (B) 		8-97035-308-0 01 1 0204- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (B) 		8-97035-308-0 01 1 0204- ●
147 07.535 RUBBER; SUB SPRING
4JG2 ENG(RJC) 		8-94119-958-1 04 1 9812-9905 ●
147 07.535 RUBBER; SUB SPRING
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94119-958-1 04 1 9906-0003 ●
147 07.535 RUBBER; SUB SPRING
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97254-387-0 04 1 0004-0105 ●
147 07.535 RUBBER; SUB SPRING
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97254-387-0 04 1 0106-0203 ●
147 07.535 RUBBER; SUB SPRING
4JH1 ENG(RJX) 		8-97254-387-0 04 1 0204- ●
147 07.535 RUBBER; SUB SPRING
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97254-387-0 04 1 0204- ●
173 07.112 STIFFENER; RR SPRING
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (A) 		8-94372-324-1 02 1 0204- ●
173 07.112 STIFFENER; RR SPRING
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (B) 		8-94408-191-2 01 1 0204- ●
173 07.112 STIFFENER; RR SPRING
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (B) 		8-94403-508-2 01 1 0204- ●
215 07.524 BUSHING; BRKT,RR SPRING
4JG2 ENG(RJC) 		8-97184-699-1 04 1 9812-9905 ●
215 07.524 BUSHING; BRKT,RR SPRING
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-699-1 04 1 9906-0105 ●
215 07.524 BUSHING; BRKT,RR SPRING
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97184-699-1 04 1 0106-0203 ●
215 07.524 BUSHING; BRKT,RR SPRING
4JH1 ENG(RJX) 		8-97184-699-1 04 1 0204- ●
215 07.524 BUSHING; BRKT,RR SPRING
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97184-699-1 04 1 0204- ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-94169-791-2 01 1 9812-9905 ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-94169-791-2 01 1 9906-0105 ●
226 07.112 STIFFENER; HELPER RUBBER
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-94169-791-2 01 1 0106- ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-94111-942-2 01 1 9812-9905 ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-94111-942-2 01 1 9906-0105 ●
226 07.112 STIFFENER; HELPER RUBBER
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-94111-942-2 01 1 0106- ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-363-3 01 1 9812-9905 ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-363-3 01 1 9906-0105 ●
368 07.039 SEAT; TORSION BAR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-363-4 01 1 0106- ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-362-1 01 1 9812-9905 ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-362-1 01 1 9906-0105 ●
368 07.039 SEAT; TORSION BAR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-362-2 01 1 0106- ●
çizim 45402
2 2 17 17 17 17 20 20 5 217 42
BalonParca AdiParca NoAdetTipApplied Date A B C
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97113-624-1 01 1 9812-9905 ●
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97113-624-1 01 1 9906-0105 ●
2 07.010 MEMBER; CROSS,1ST
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97113-624-2 01 1 0106- ●
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC) (B) 		8-97034-332-2 01 1 9812-9905 ●
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97034-332-2 01 1 9906-0105 ●
2 07.010 MEMBER; CROSS,1ST
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97034-332-2 01 1 0106-0203 ●
2 07.010 MEMBER; CROSS,1ST
4JH1 ENG(RJX) (B) 		8-97034-332-2 01 1 0204- ●
2 07.010 MEMBER; CROSS,1ST
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (B) 		8-97034-332-2 01 1 0204- ●
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 9812-9905 ●
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 9906-0105 ●
5 07.010 MEMBER; CROSS,SUSPENSION
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 0106- ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-568-2 01 1 9812-9905 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-568-2 01 1 9906-0105 ●
17 07.039 GUSSET; 1ST C/MBR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-568-2 01 1 0106- ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97035-998-2 01 1 9812-9905 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97035-998-2 01 1 9906-0105 ●
17 07.039 GUSSET; 1ST C/MBR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97035-998-2 01 1 0106- ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC) (B) 		8-97088-205-1 02 1 9812-9905 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97088-205-1 02 1 9906-0105 ●
17 07.039 GUSSET; 1ST C/MBR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97088-205-1 02 1 0106-0203 ●
17 07.039 GUSSET; 1ST C/MBR
4JH1 ENG(RJX) (B) 		8-97088-205-1 02 1 0204- ●
17 07.039 GUSSET; 1ST C/MBR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (B) 		8-97088-205-1 02 1 0204- ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97072-002-4 01 1 9812-9905 ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97072-002-4 01 1 9906-0105 ●
20 07.012 MEMBER; CROSS,2ND
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97072-002-4 01 1 0106- ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC) (B) 		8-97078-581-1 01 1 9812-9905 ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97078-581-1 01 1 9906-0105 ●
20 07.012 MEMBER; CROSS,2ND
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97078-581-1 01 1 0106-0203 ●
20 07.012 MEMBER; CROSS,2ND
4JH1 ENG(RJX) (B) 		8-97078-581-1 01 1 0204- ●
20 07.012 MEMBER; CROSS,2ND
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (B) 		8-97078-581-1 01 1 0204- ●
42 07.011 MEMBER; CROSS,ENG MTG
4JG2 ENG(RJC) 		8-94246-127-7 01 1 9812-9905 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94246-127-7 01 1 9906-0105 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97165-923-1 01 1 0106-0203 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JH1 ENG(RJX) 		8-97165-923-1 01 1 0204- ●
42 07.011 MEMBER; CROSS,ENG MTG
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97165-923-1 01 1 0204- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JG2 ENG(RJC) 		8-94258-963-0 02 1 9812-9905 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94258-963-0 02 1 9906-0105 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-963-0 02 1 0106-0203 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JH1 ENG(RJX) 		8-94258-963-0 02 1 0204- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-94258-963-0 02 1 0204- ●

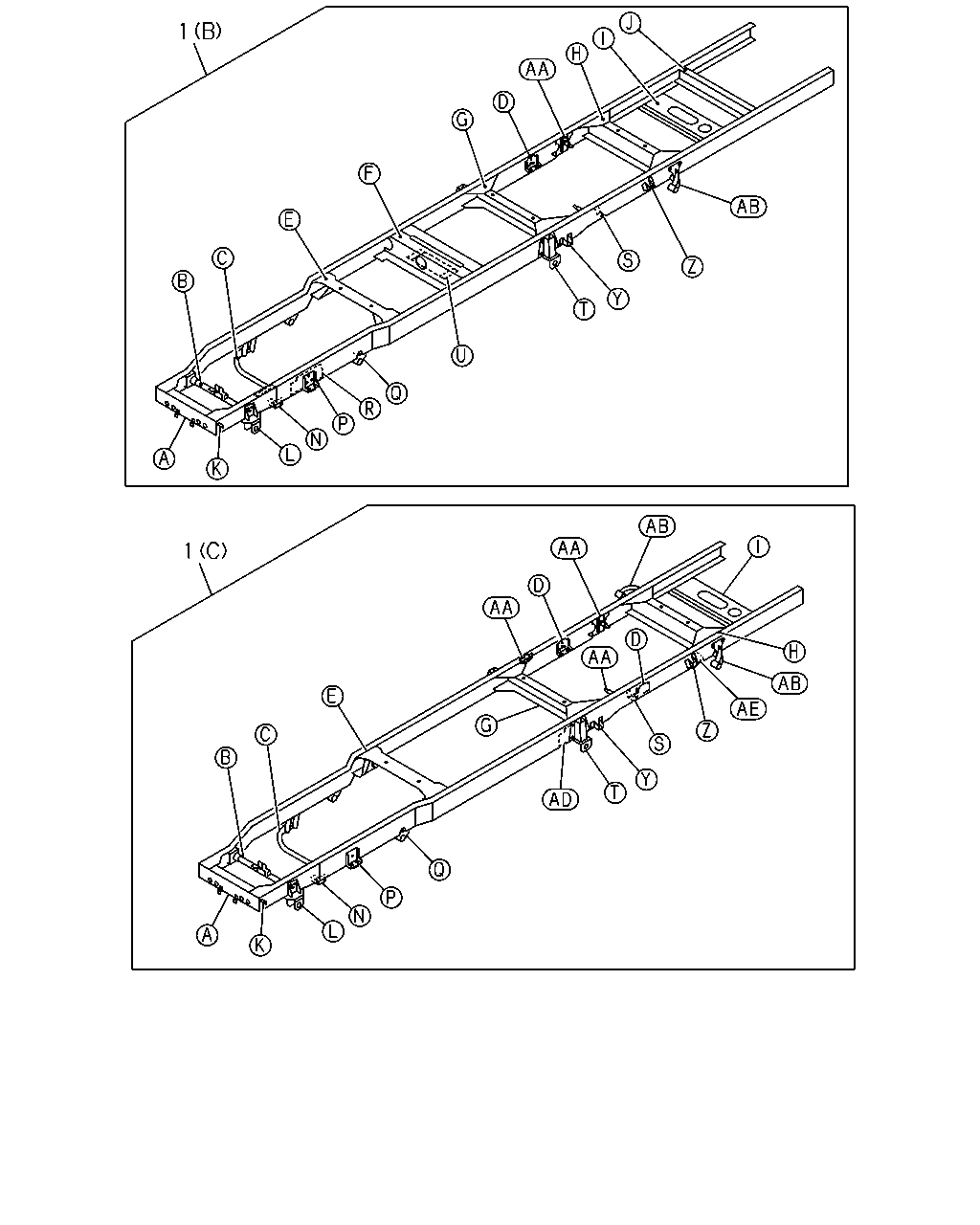

çizim 46298
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.003 FRAME ASM
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-999-2 01 1 9812-9905 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-999-2 01 1 9906-0105 ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97305-461-1 01 1 0106- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) (B) 		8-97205-879-1 01 1 9812-9905 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. SHIMMY DAMPER<S3V> (B) 		8-97205-879-2 01 1 9906-0105 ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) EXC. SHIMMY DAMPER<S3V> (B) 		8-97260-208-0 01 1 0106- ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) SHIMMY DAMPER<S3V> (B) 		8-97231-626-1 01 1 9906-0105 ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) SHIMMY DAMPER<S3V> (B) 		8-97260-279-0 01 1 0106- ●
1 07.003 FRAME ASM
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (C) 		8-97329-565-0 01 1 0204- ●
çizim 49326
24 358 256 256 483 328 63 63 39 51 136 136
BalonParca AdiParca NoAdetTipApplied Date A B C
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC) 		8-97065-788-1 01 1 9812-9905 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97065-788-1 01 1 9906-0105 ●
24 07.105 BRACKET; FRT SPR,FRT
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97065-788-1 01 1 0106-0203 ●
24 07.105 BRACKET; FRT SPR,FRT
4JH1 ENG(RJX) 		8-97065-788-1 01 1 0204- ●
24 07.105 BRACKET; FRT SPR,FRT
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97065-788-1 01 1 0204- ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC) 		8-94366-816-1 01 1 9812-9905 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94366-816-1 01 1 9906-0105 ●
24 07.105 BRACKET; FRT SPR,FRT
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94366-816-1 01 1 0106-0203 ●
24 07.105 BRACKET; FRT SPR,FRT
4JH1 ENG(RJX) 		8-94366-816-1 01 1 0204- ●
24 07.105 BRACKET; FRT SPR,FRT
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-94366-816-1 01 1 0204- ●
39 07.112 BRACKET; FRT SPR,RR
4JG2 ENG(RJC) 		8-94258-091-0 02 1 9812-9905 ●
39 07.112 BRACKET; FRT SPR,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94258-091-0 02 1 9906-0105 ●
39 07.112 BRACKET; FRT SPR,RR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-091-0 02 1 0106-0203 ●
39 07.112 BRACKET; FRT SPR,RR
4JH1 ENG(RJX) 		8-94258-091-0 02 1 0204- ●
39 07.112 BRACKET; FRT SPR,RR
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-94258-091-0 02 1 0204- ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JG2 ENG(RJC) 00.029 		8-94258-086-1 02 1 9812-9905 ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF) 00.029 		8-94258-086-1 02 1 9906-0105 ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.029 		8-94258-086-1 02 1 0106-0203 ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JH1 ENG(RJX) 00.029 		8-94258-086-1 02 1 0204- ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 00.029 		8-94258-086-1 02 1 0204- ●
63 01.270 BRACKET; RAD MTG
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-648-0 01 1 9812-9905 ●
63 01.270 BRACKET; RAD MTG
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-648-0 01 1 9906-0105 ●
63 01.270 BRACKET; RAD MTG
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-648-0 01 1 0106- ●
63 01.270 BRACKET; RAD MTG
4JG2 ENG(RJC) (A) 		8-94257-950-1 01 1 9812-9905 ●
63 01.270 BRACKET; RAD MTG
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-94257-950-1 01 1 9906-0105 ●
63 01.270 BRACKET; RAD MTG
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94257-950-1 01 1 0106-0203 ●
63 01.270 BRACKET; RAD MTG
4JH1 ENG(RJX) (A) 		8-94257-950-1 01 1 0204- ●
63 01.270 BRACKET; RAD MTG
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (A) 		8-94257-950-1 01 1 0204- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC) (B) 		8-97083-311-1 01 1 9812-9905 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97083-311-1 01 1 9906-0006 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF) SHIMMY DAMPER<S3V> (B) 		8-97083-311-1 01 1 0007-0105 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97083-311-1 01 1 0106- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC) (A) 		8-94370-228-1 01 1 9812-9905 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-94370-228-1 01 1 9906-0006 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF) SHIMMY DAMPER<S3V> (A) 		8-94370-228-1 01 1 0007-0105 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94370-228-1 01 1 0106- ●
256 07.395 BRACKET; S/ABS
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97036-160-0 02 1 9812-9905 ●
256 07.395 BRACKET; S/ABS
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97036-160-0 02 1 9906-0105 ●
256 07.395 BRACKET; S/ABS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97210-489-0 02 1 0106- ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 9812-9905 ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 9906-0105 ●
328 07.039 BRACKET; RELAY LEVER
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 0106- ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-3 01 1 9812-9905 ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-3 01 1 9906-0105 ●
328 07.039 BRACKET; RELAY LEVER
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-3 01 1 0106- ●
358 07.039 BRACKET; CAB EARTH
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97065-790-3 01 1 9812-9905 ●
358 07.039 BRACKET; CAB EARTH
4JG2 ENG(RJC) 		8-97065-790-3 01 1 9812-9905 ●
358 07.039 BRACKET; CAB EARTH
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97065-790-3 01 1 9906-0105 ● ●
358 07.039 BRACKET; CAB EARTH
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97065-790-3 01 1 0106-0203 ●
358 07.039 BRACKET; CAB EARTH
4JH1 ENG(RJX) 		8-97065-790-3 01 1 0106-0203 ●
358 07.039 BRACKET; CAB EARTH
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97065-790-3 01 1 0204- ●
358 07.039 BRACKET; CAB EARTH
4JH1 ENG(RJX) 		8-97065-790-3 01 1 0204- ●
358 07.039 BRACKET; CAB EARTH
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97065-790-3 01 1 0204- ●
483 07.039 BRACKET; STRG DUMPER
4JG2 ENG(RJC),4JB1 ENG(RLF) SHIMMY DAMPER<S3V> 		8-97231-423-0 01 1 9906-0105 ●
483 07.039 BRACKET; STRG DUMPER
4JH1 ENG(RJX) SHIMMY DAMPER<S3V> 		8-97231-423-0 01 1 0106-0203 ●
483 07.039 BRACKET; STRG DUMPER
4JH1 ENG(RJX) SHIMMY DAMPER<S3V> 		8-97231-423-0 01 1 0204- ●
483 07.039 BRACKET; STRG DUMPER
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97231-423-0 01 1 0204- ●
çizim 49333
34 74 74 344 74 74 344
BalonParca AdiParca NoAdetTipApplied Date A B C
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-667-1 01 1 9812-9905 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-667-1 01 1 9906-0105 ●
34 07.012 MEMBER; CROSS,3RD
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-668-1 01 1 0106- ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC) 		8-97115-578-0 01 1 9812-9905 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97115-578-0 01 1 9906-0105 ●
34 07.012 MEMBER; CROSS,3RD
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-768-1 01 1 0106-0203 ●
34 07.012 MEMBER; CROSS,3RD
4JH1 ENG(RJX) 		8-97047-768-1 01 1 0204- ●
34 07.012 MEMBER; CROSS,3RD
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 		8-97047-768-1 01 1 0204- ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 9812-9905 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 9906-0105 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94258-075-3 02 1 0106- ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC) (A) RH-UPPER, LH-LOWER 		8-97101-837-0 02 1 9812-9905 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) RH-UPPER, LH-LOWER 		8-97101-837-0 02 1 9906-0105 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 0106- ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC) (A) RH-LOWER, LH-UPPER 		8-97101-838-0 02 1 9812-9905 ●
74 07.039 GUSSET; 4TH C/MBR
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) RH-LOWER, LH-UPPER 		8-97101-838-0 02 1 9906-0105 ●
74 07.039 GUSSET; 4TH C/MBR
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 0106- ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-061-2 01 1 9812-9905 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-061-2 01 1 9906-0105 ●
344 07.012 MEMBER; CROSS,4TH
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-061-2 01 1 0106- ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC) 		8-97078-707-3 01 1 9812-9905 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97078-707-3 01 1 9906-0105 ●
344 07.012 MEMBER; CROSS,4TH
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-707-3 01 1 0106- ●
çizim 49358
376 376 376 376 376 376 376 376 376 376 376 376 16 176 221 106 176 338 4 118
BalonParca AdiParca NoAdetTipApplied Date A B C
4 07.039 NUT; 1ST C/MBR TO S/MBR
01.540 M8 FLANGE 		0-91150-208-0 AR 1 9812- ● ● ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
01.531 M8X25 FLANGE 		0-28080-825-0 AR 1 9812- ● ● ●
106 07.529 BOLT; BRKT
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0204- ●
118 07.529 NUT; STOPPER
07.633 M8 FLANGE 		0-91150-108-0 AR 1 9812- ● ● ●
118 07.529 NUT; STOPPER
4JH1 ENG(RJX) FRAME PRESS KOUGYOU<7RZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0110-0203 ●
118 07.529 NUT; STOPPER
4JH1 ENG(RJX) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0204- ●
118 07.529 NUT; STOPPER
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 07.242 M8 LOCK NUT 		9-09131-508-0 04 1 0204- ●
176 04.085 BOLT; C/MBR,ENG MTG
03.417 (A) M10X25 FLANGE 		0-28081-025-0 AR 1 9812-0105 ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
00.685 (B) M10X30 FLANGE 		0-28081-030-0 AR 1 0106- ● ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
03.417 M10X25 FLANGE 		0-28081-025-0 AR 1 9812- ● ● ●
338 04.085 BOLT; C/MBR,SUSPENSION
07.874 M12X30 W/LK&PL WASHER 		0-50141-230-0 AR 1 9812- ● ● ●
376 07.039 RIVET; FRAME
(A) D8X20 TAPER END 		9-06750-820-0 AR 1 9812- ● ● ●
376 07.039 RIVET; FRAME
07.011 (B) D8X22 TAPER END 		9-06750-822-0 AR 1 9812- ● ● ●
376 07.039 RIVET; FRAME
07.395 (C) D8X28 TAPER END 		9-06750-828-0 AR 1 9812- ● ● ●
376 07.039 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 9812- ● ● ●
376 07.039 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 9812- ● ● ●
376 07.039 RIVET; FRAME
(G) D10X30 TAPER END 		9-06751-030-0 AR 1 9812- ● ● ●
376 07.039 RIVET; FRAME
(H) D10X32 TAPER END 		9-06751-032-0 AR 1 9812- ● ● ●
376 07.039 RIVET; FRAME
07.105 (J) D12X30 TAPER END 		9-06751-230-0 AR 1 9812- ● ● ●
376 07.039 RIVET; FRAME
(B) D8X22 PLATED TAPER END 		9-06760-822-0 AR 1 9812-0004 ● ●
376 07.039 RIVET; FRAME
(C) D8X28 PLATED TAPER END 		9-06760-828-0 AR 1 9812-0004 ● ●
376 07.039 RIVET; FRAME
(D) D10X24 PLATED TAPER END 		9-06761-024-0 AR 1 9812-0004 ● ●
376 07.039 RIVET; FRAME
(E) D10X26 PLATED TAPER END 		9-06761-026-0 AR 1 9812-0004 ● ●
376 07.039 RIVET; FRAME
07.428 (F) D10X28 PLATED TAPER END 		9-06761-028-0 AR 1 9812-0004 ● ●
376 07.039 RIVET; FRAME
(G) D10X30 PLATED TAPER END 		9-06761-030-0 AR 1 9812-0004 ● ●
376 07.039 RIVET; FRAME
07.112 (I) D10X36 PLATED TAPER END 		9-06761-036-0 AR 1 9812-0004 ● ●
376 07.039 RIVET; FRAME
07.529 (J) D12X30 PLATED TAPER END 		9-06761-230-0 AR 1 9812-0004 ● ●
376 07.039 RIVET; FRAME
07.529 (K) D12X34 PLATED TAPER END 		9-06761-234-0 AR 1 9812-0004 ● ●
376 07.039 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 0005- ● ● ●
376 07.039 RIVET; FRAME
(I) D10X36 TAPER END 		9-06751-036-0 AR 1 0005- ● ● ●
376 07.039 RIVET; FRAME
07.535 (K) D12X34 TAPER END 		9-06751-234-0 AR 1 0005- ● ● ●
376 07.039 RIVET; FRAME
07.395 (L) D8X26 TAPER END 		9-06750-826-0 AR 1 0106- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
